mp-29252-2/Sn2ClF3/harm

Equation of state

../../_images/fig_bm5597.png

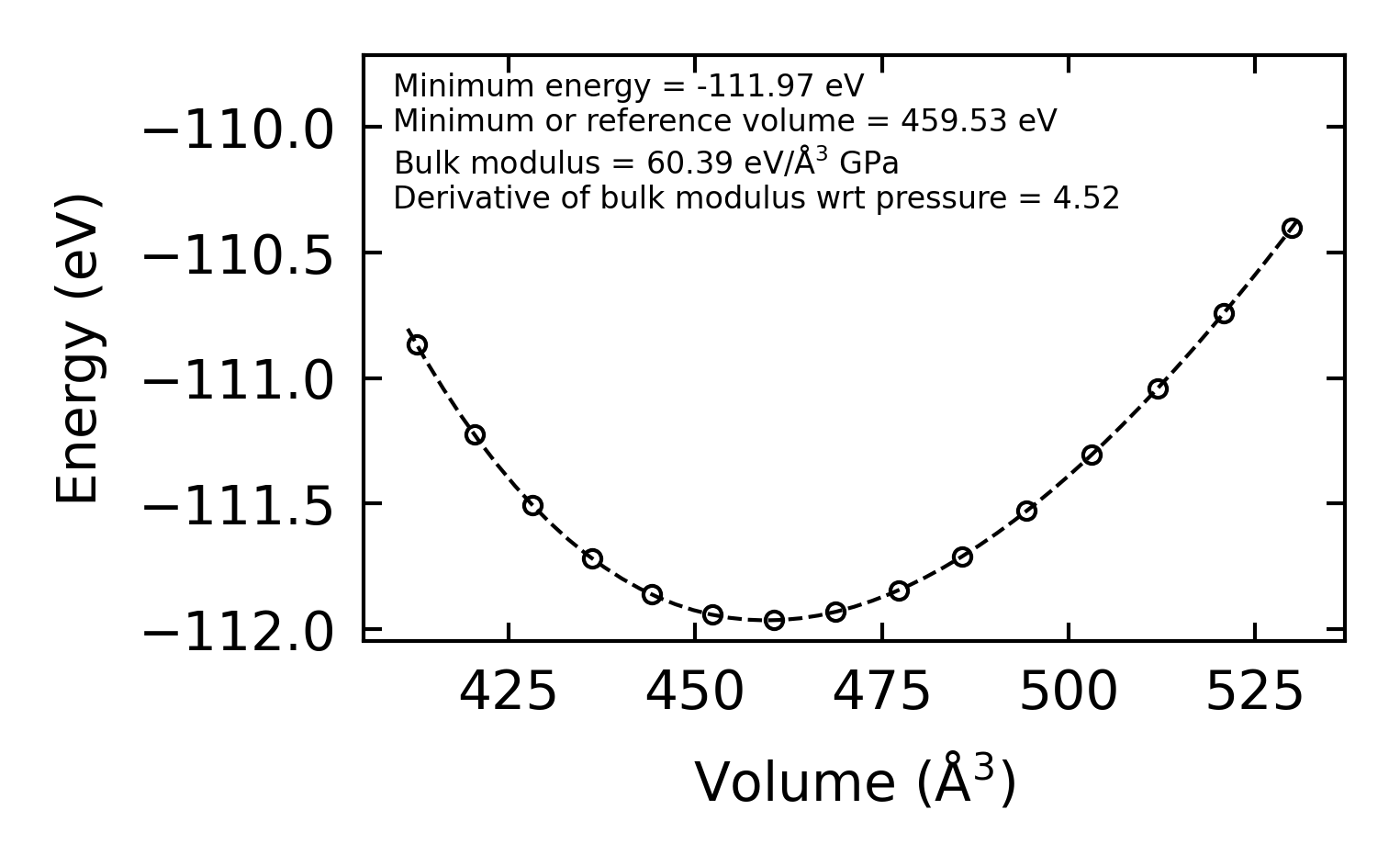

(a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr11466.png

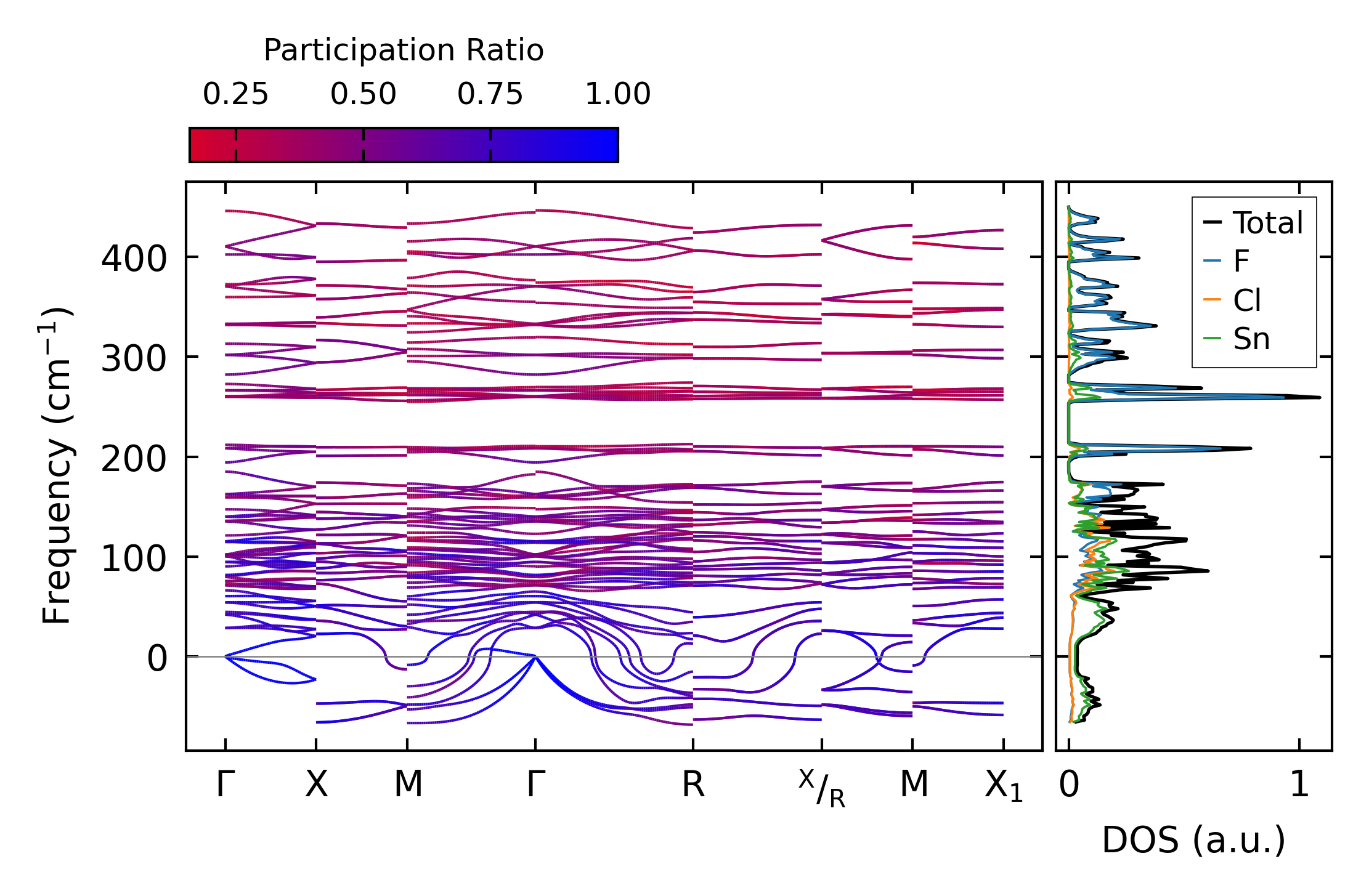

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos15456.png

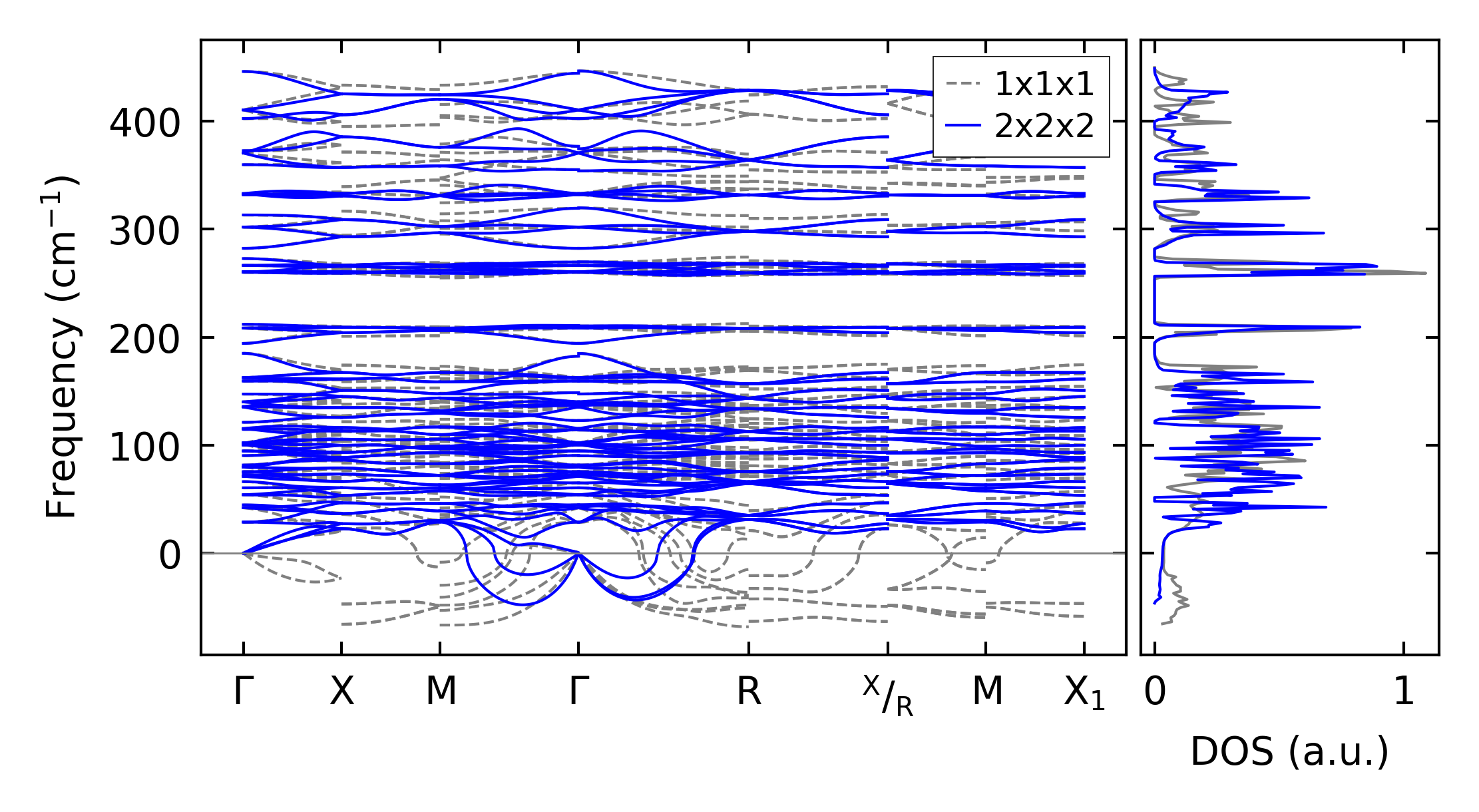

(b) Phonon dispersion and DOS

../../_images/fig_thermo11466.png

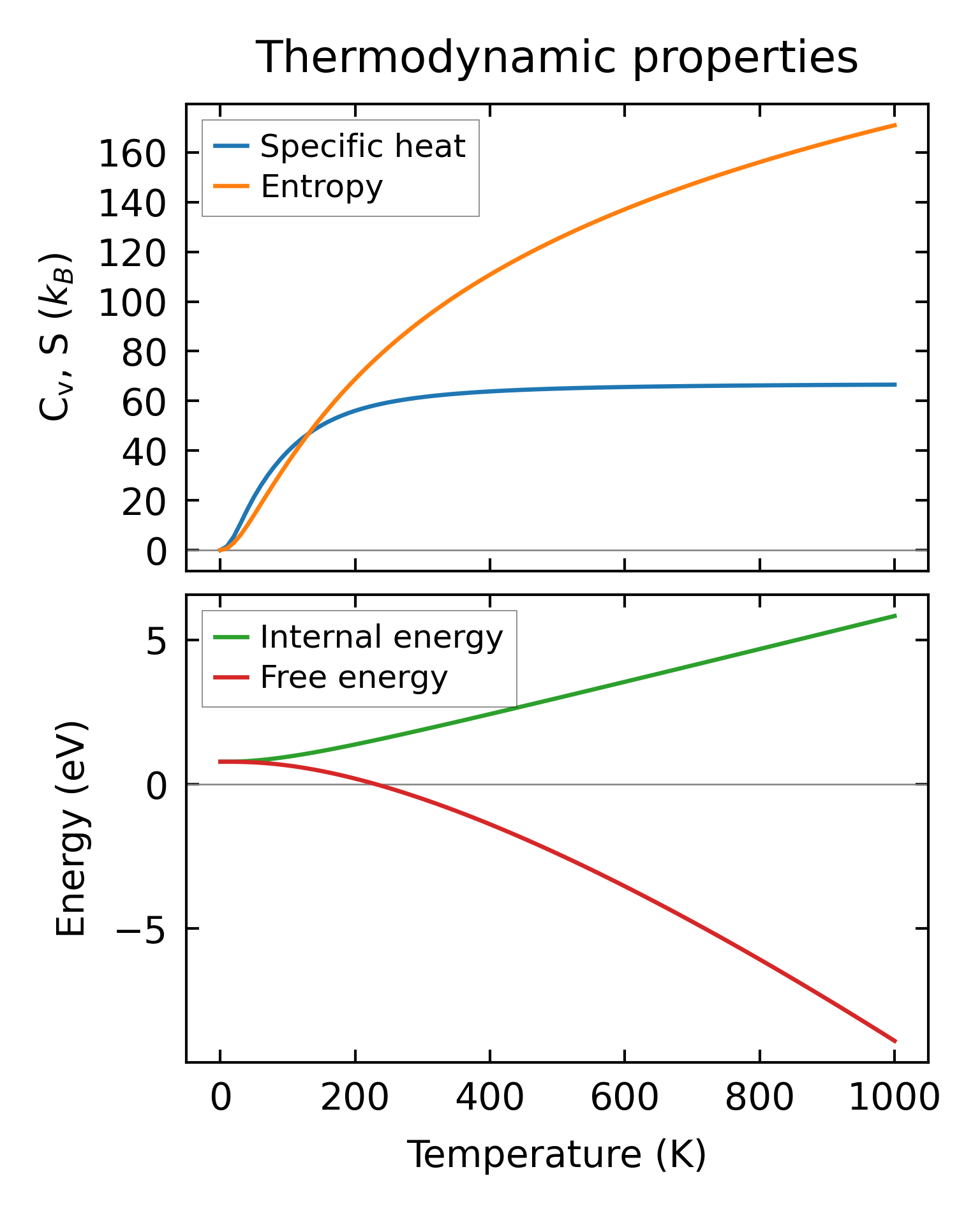

(c) Thermodynamic properties

Force constants

../../_images/fig_fc211182.png

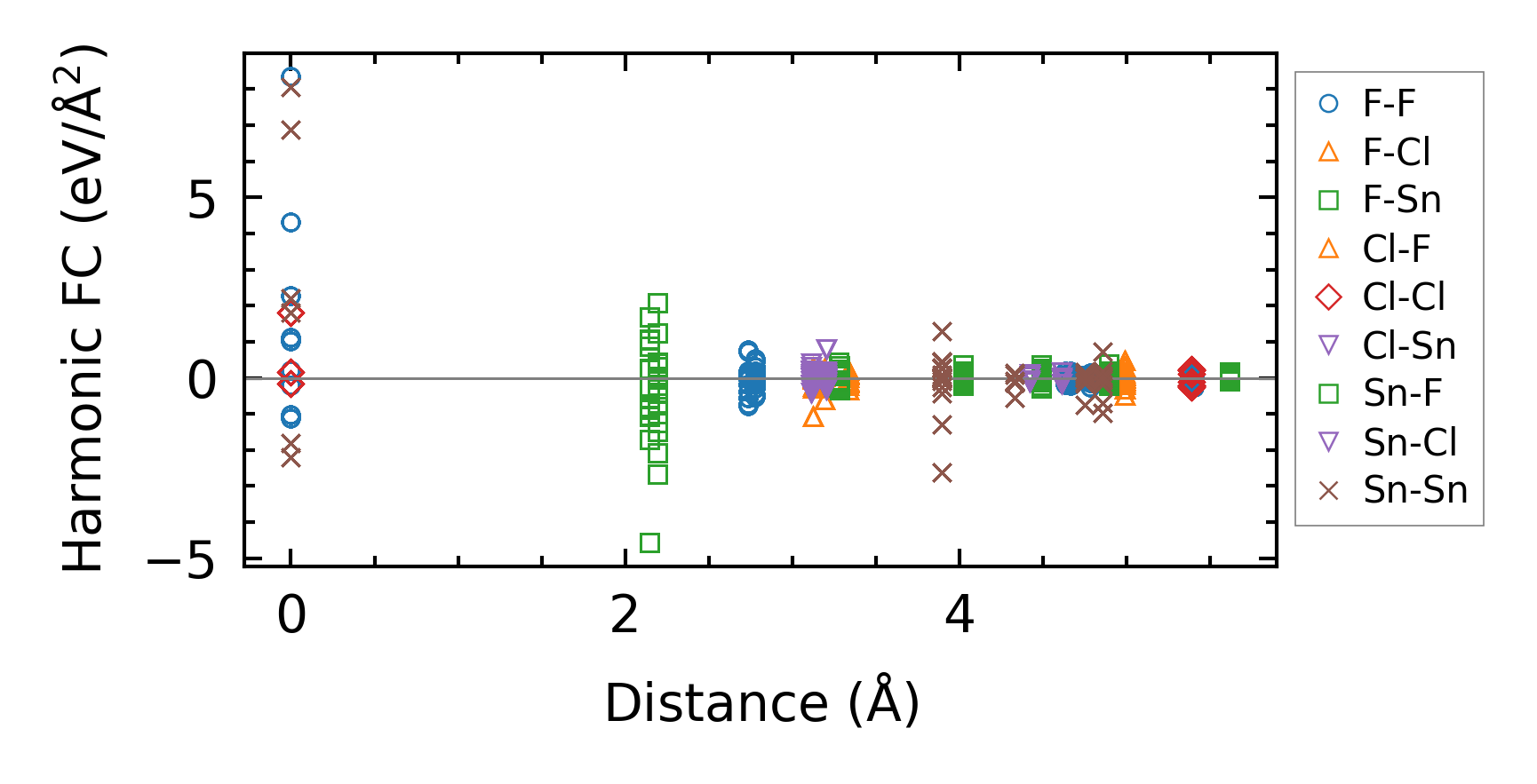

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times19538.png

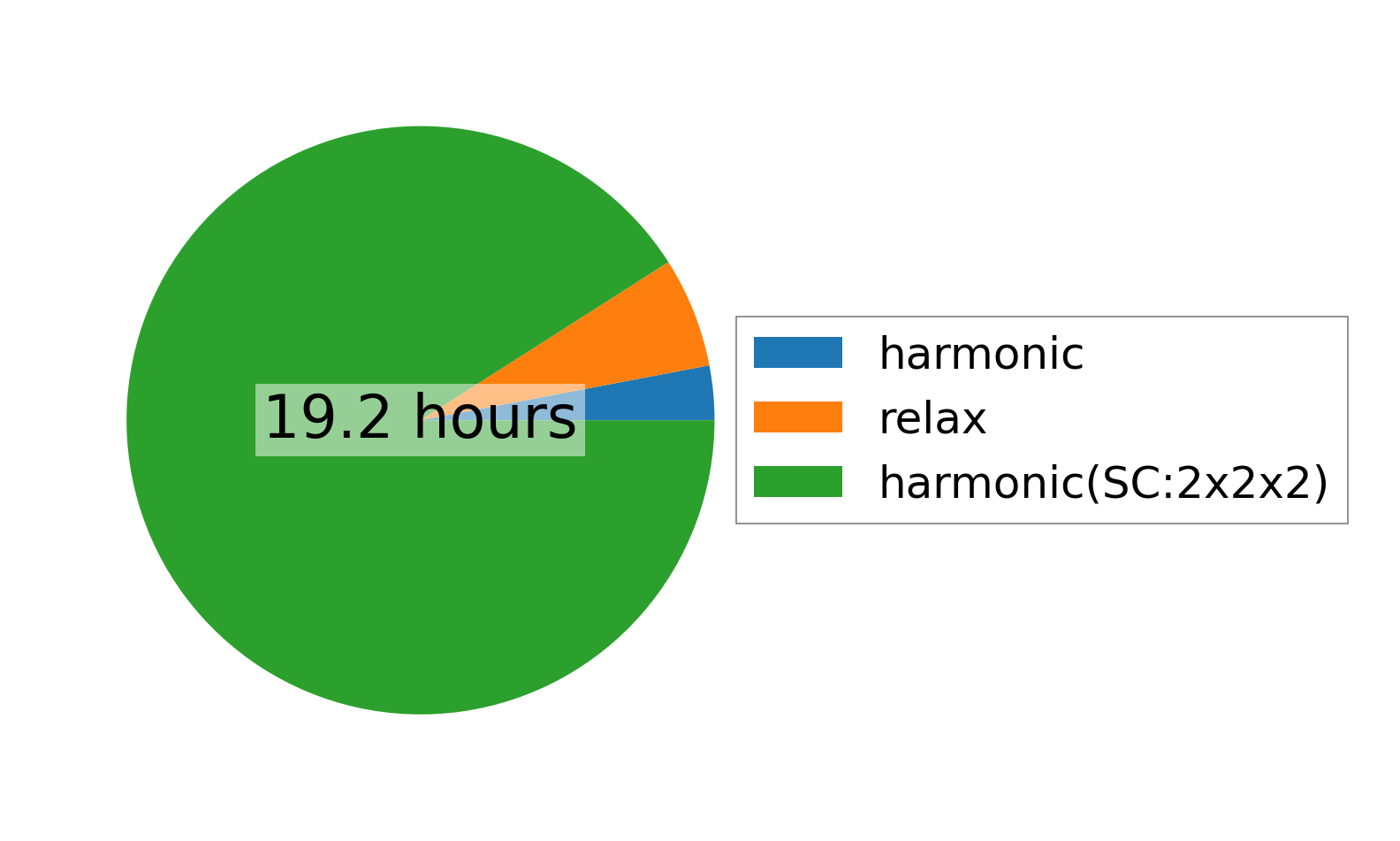

(a) Computation time
