mp-29183/LaNb7O12/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-29183.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11427.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11427.png — (b) Thermodynamic properties

Grüneisen parameters

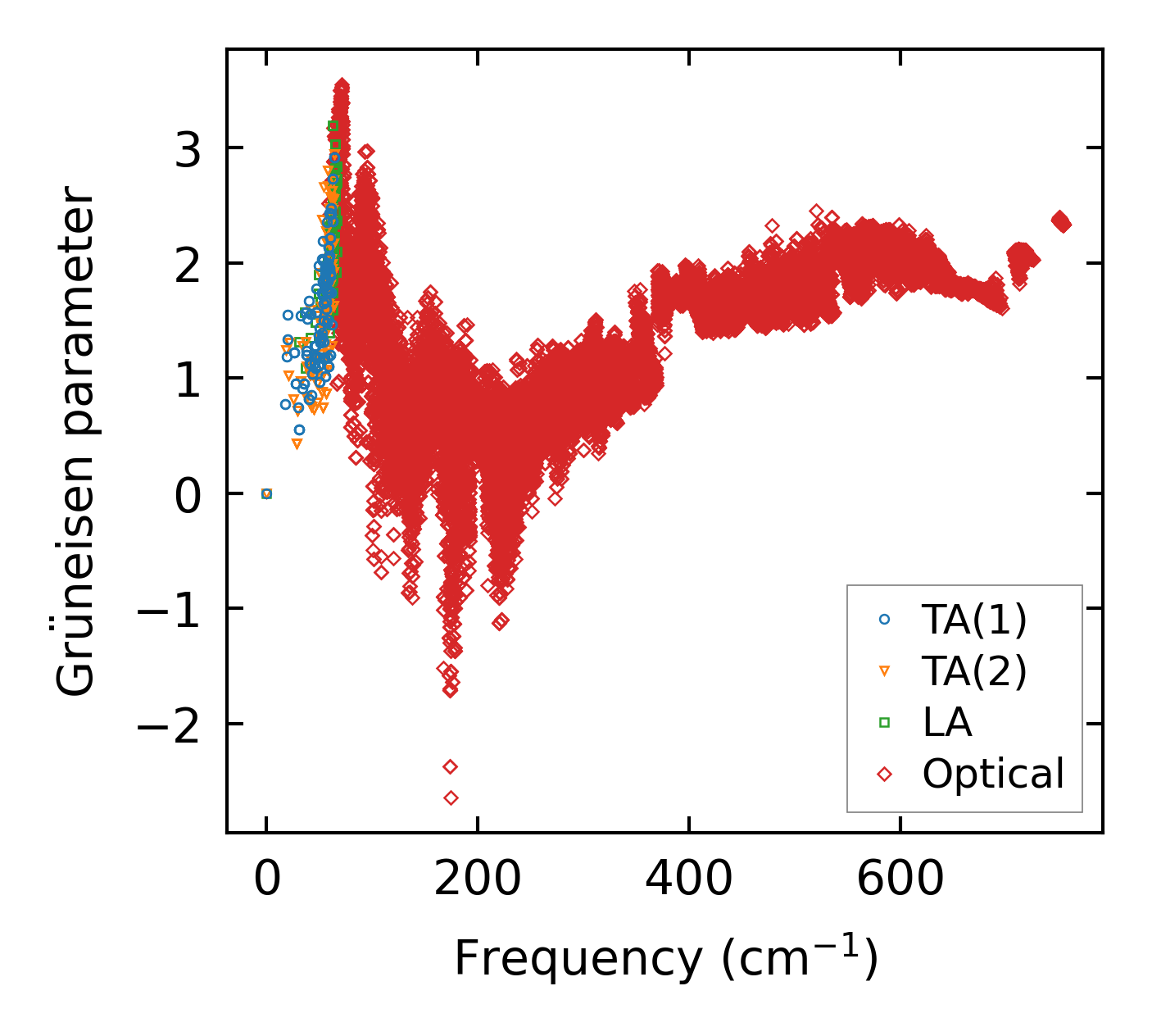

../../_images/fig_gru_all4735.png — (a) Grüneisen parameters

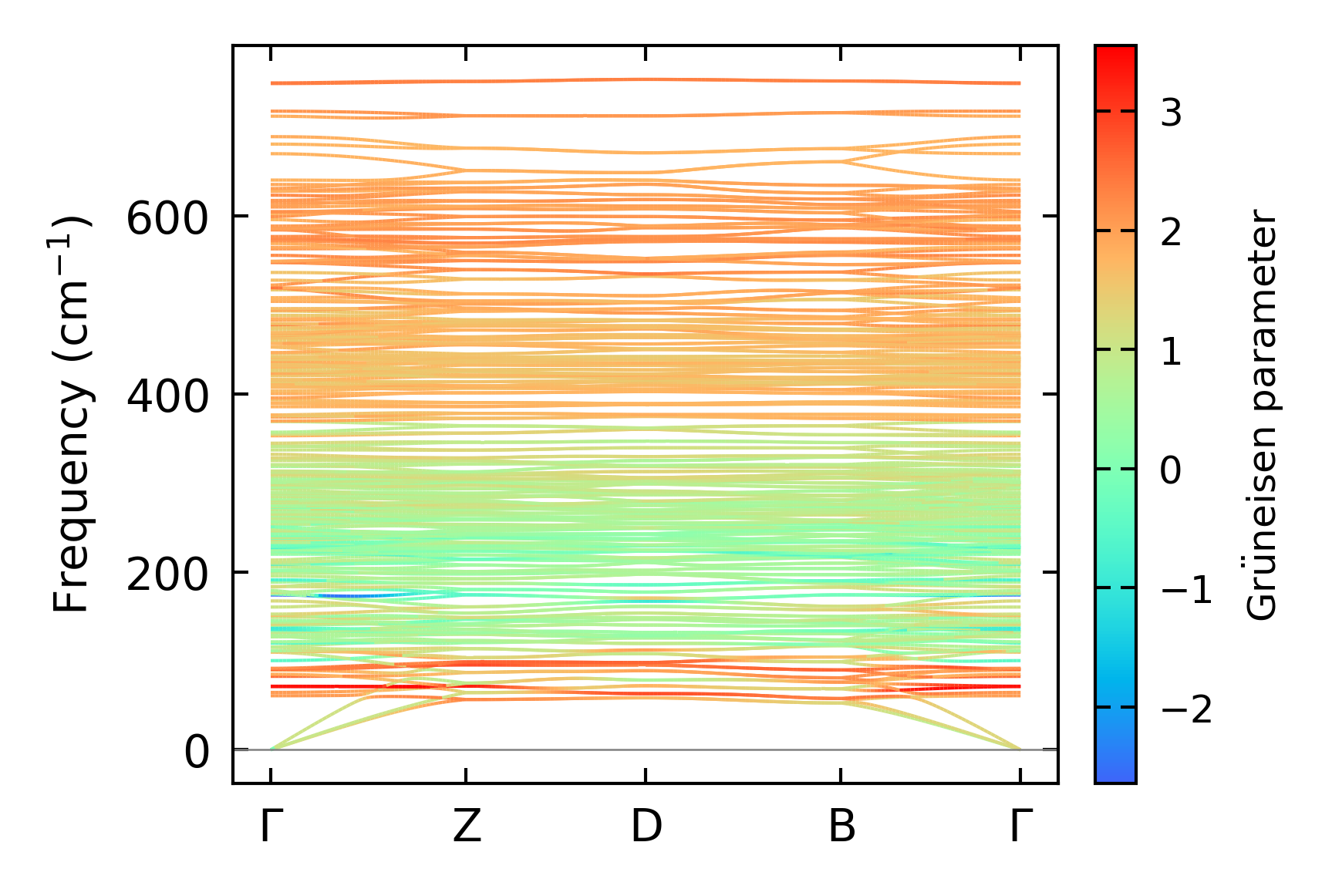

../../_images/fig_gruneisen4735.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x7x7, supercell: 1x1x1

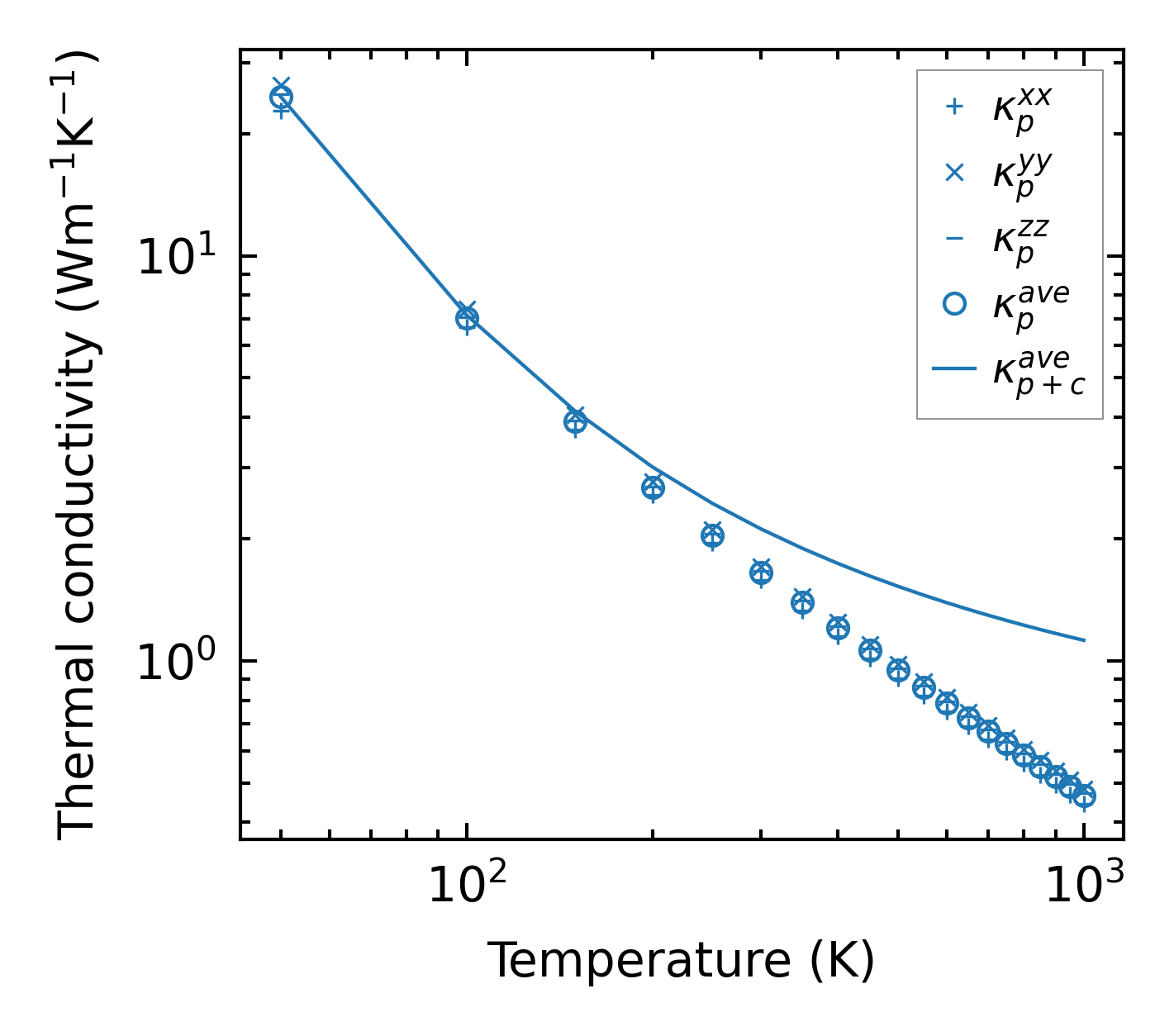

../../_images/fig_kappa8935.png — (a) Temperature-dependent lattice thermal conductivity

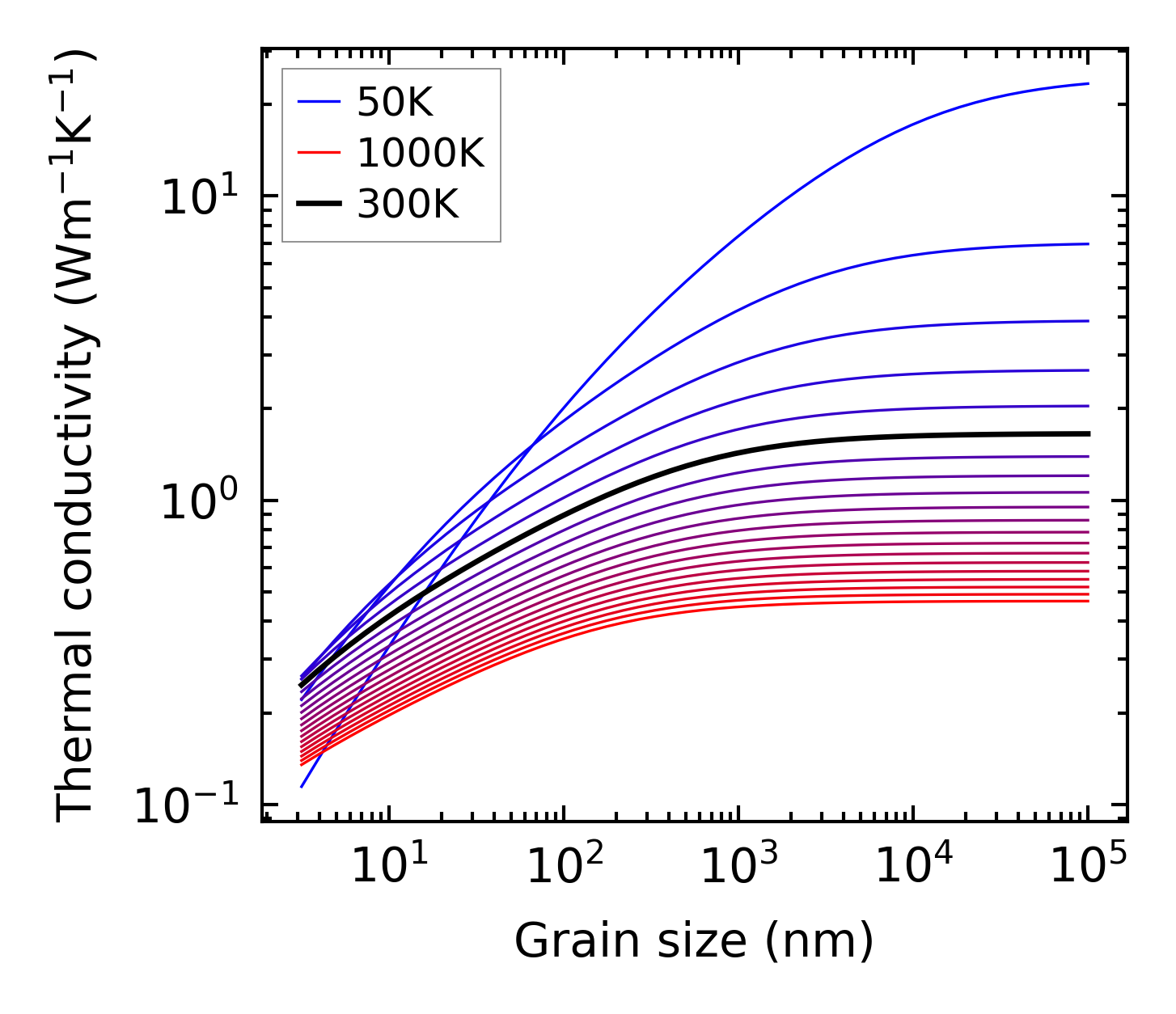

../../_images/fig_kappa_vs_grain_size4793.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

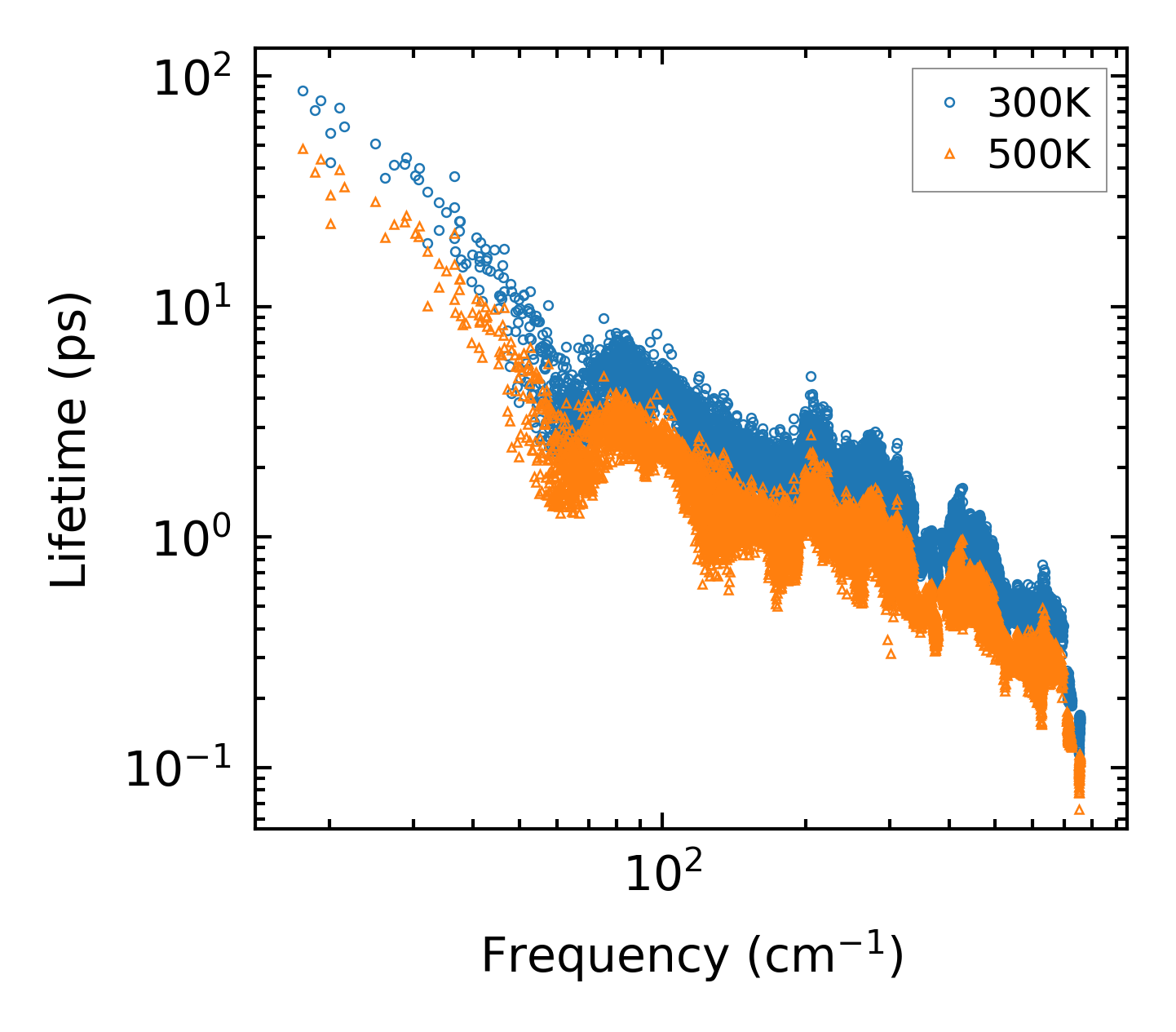

../../_images/fig_lifetime4690.png — (a) Phonon lifetime due to phonon-phonon scattering

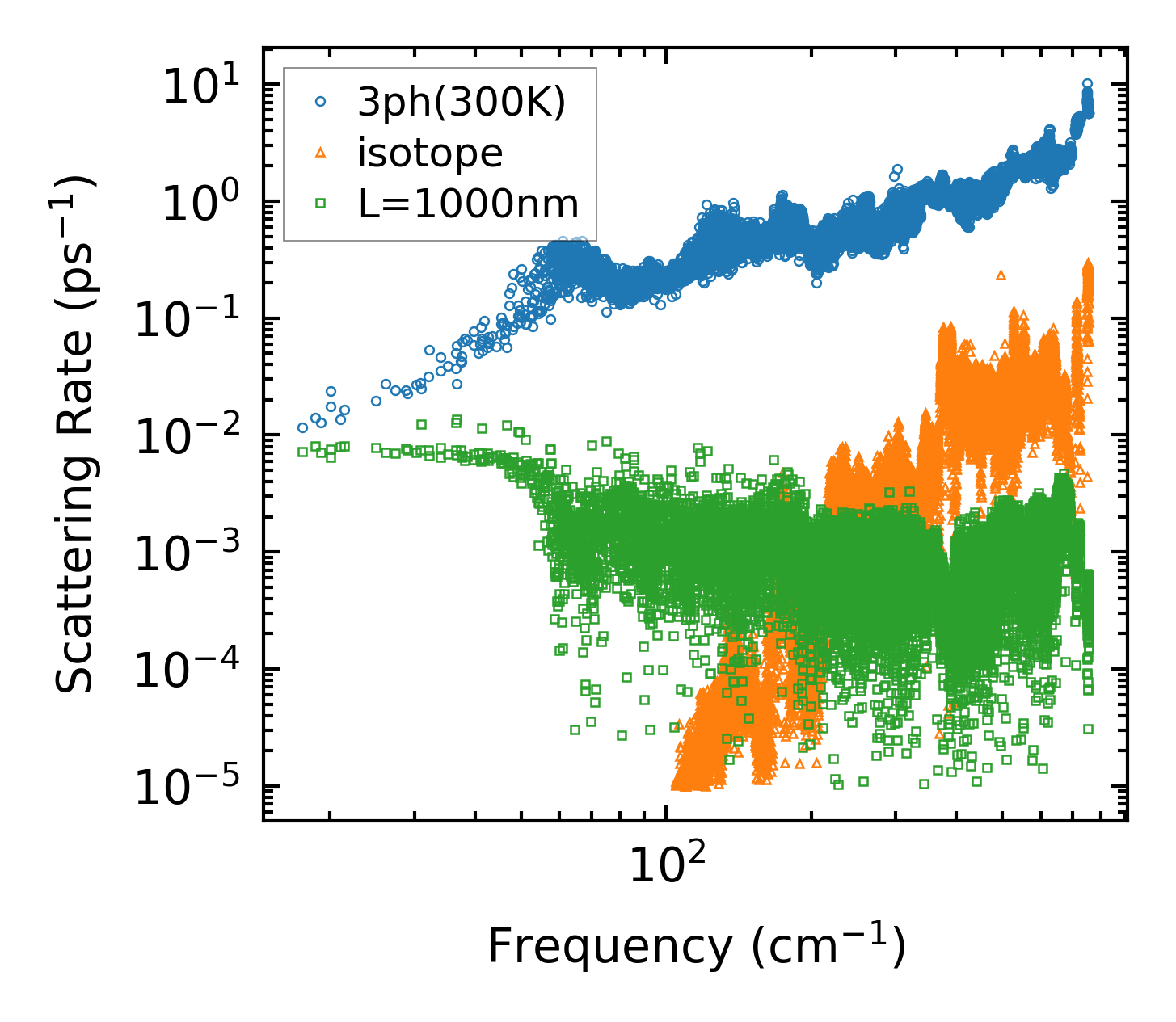

../../_images/fig_scat_rates4689.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4690.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

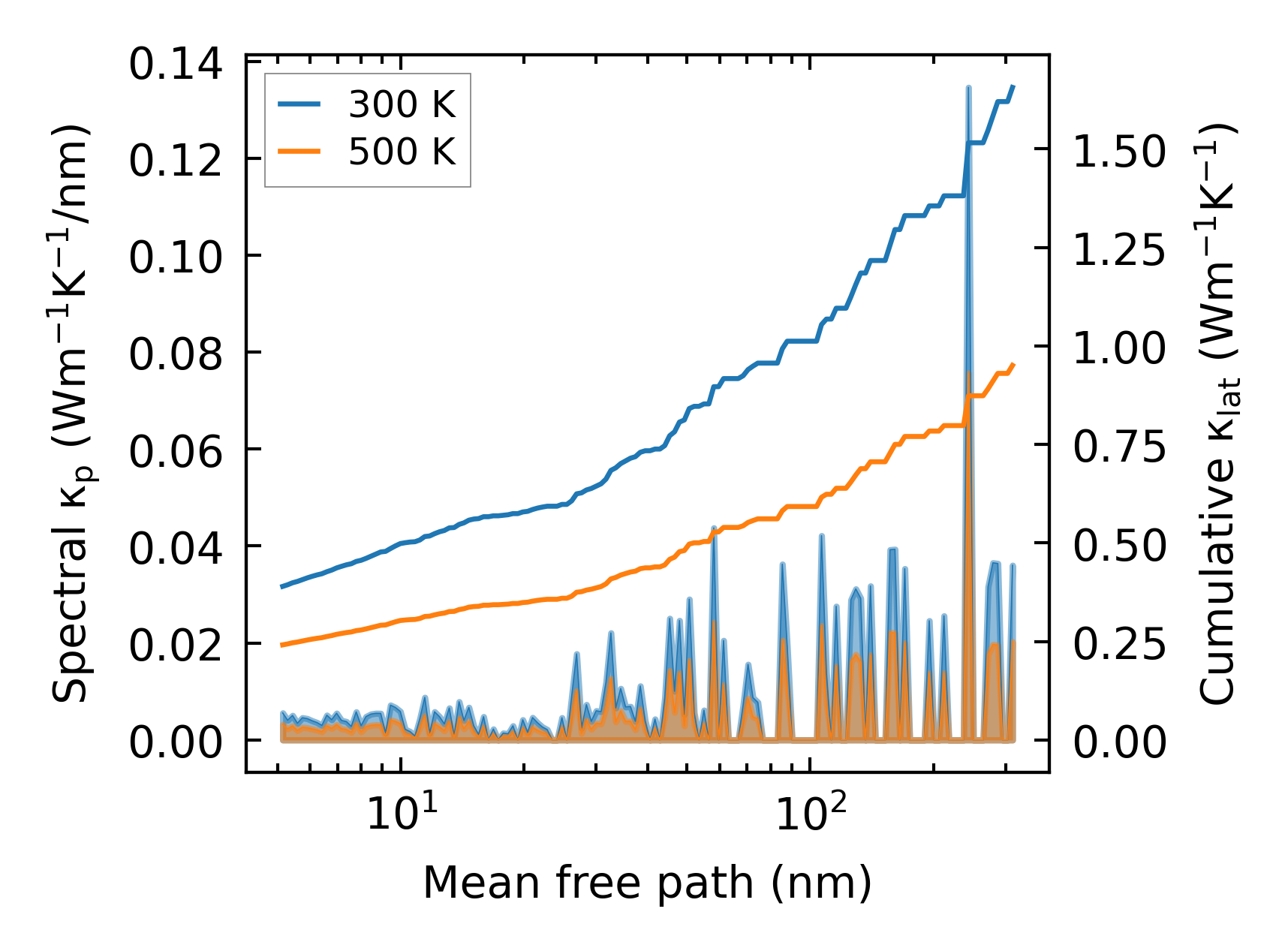

../../_images/fig_cumu_mfp4689.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211143.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8936.png — (a) Temperature-dependent lattice thermal conductivity

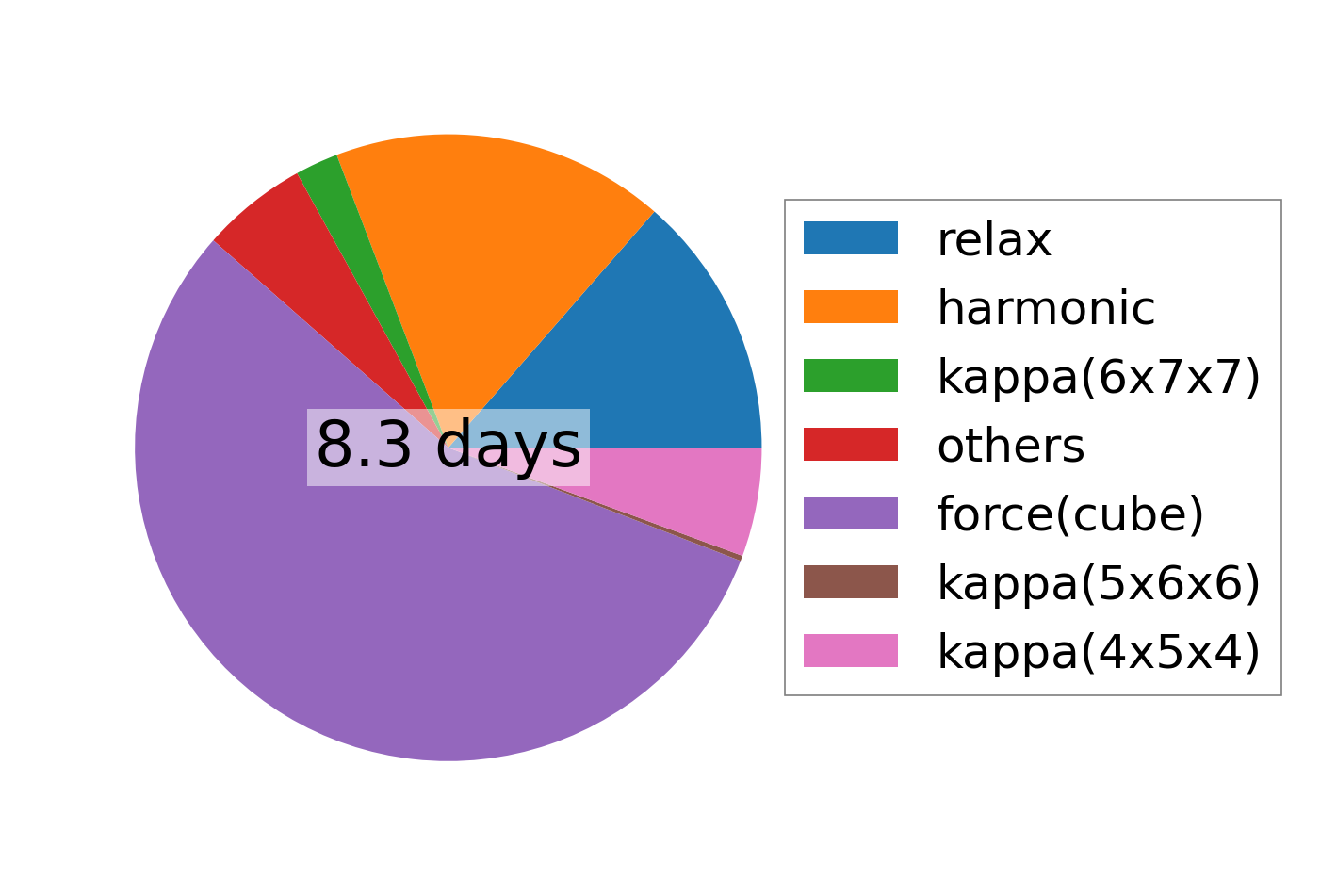

../../_images/fig_times19484.png — (b) Computation time
