mp-29009-2/Li2MgBr4/anharm

Space group: Cmmm (65)
Link: Materials Project
Download: mp-29009-2.tar.gz

Harmonic properties

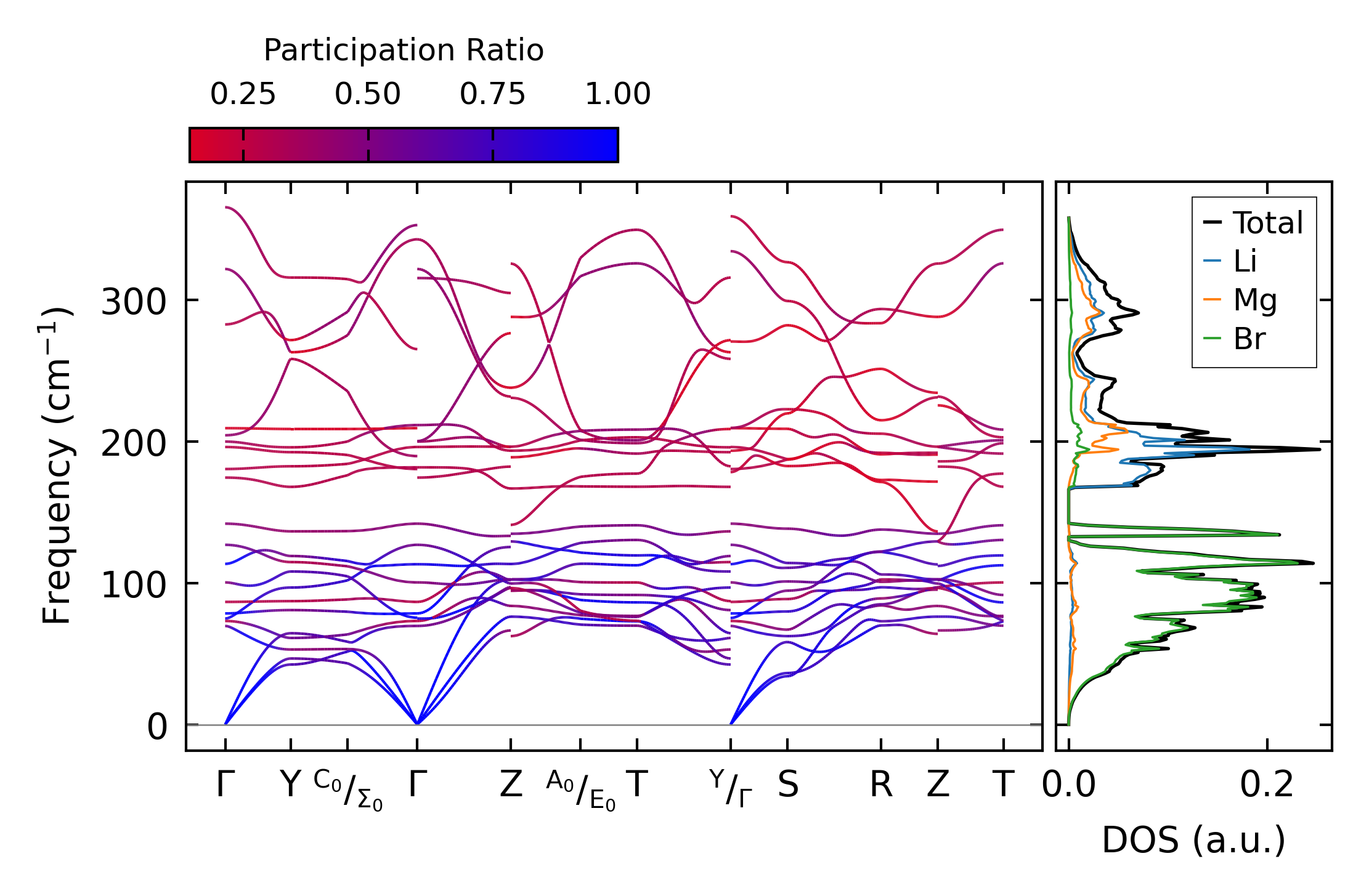

../../_images/fig_bandos_pr11357.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11357.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4700.png — (a) Grüneisen parameters

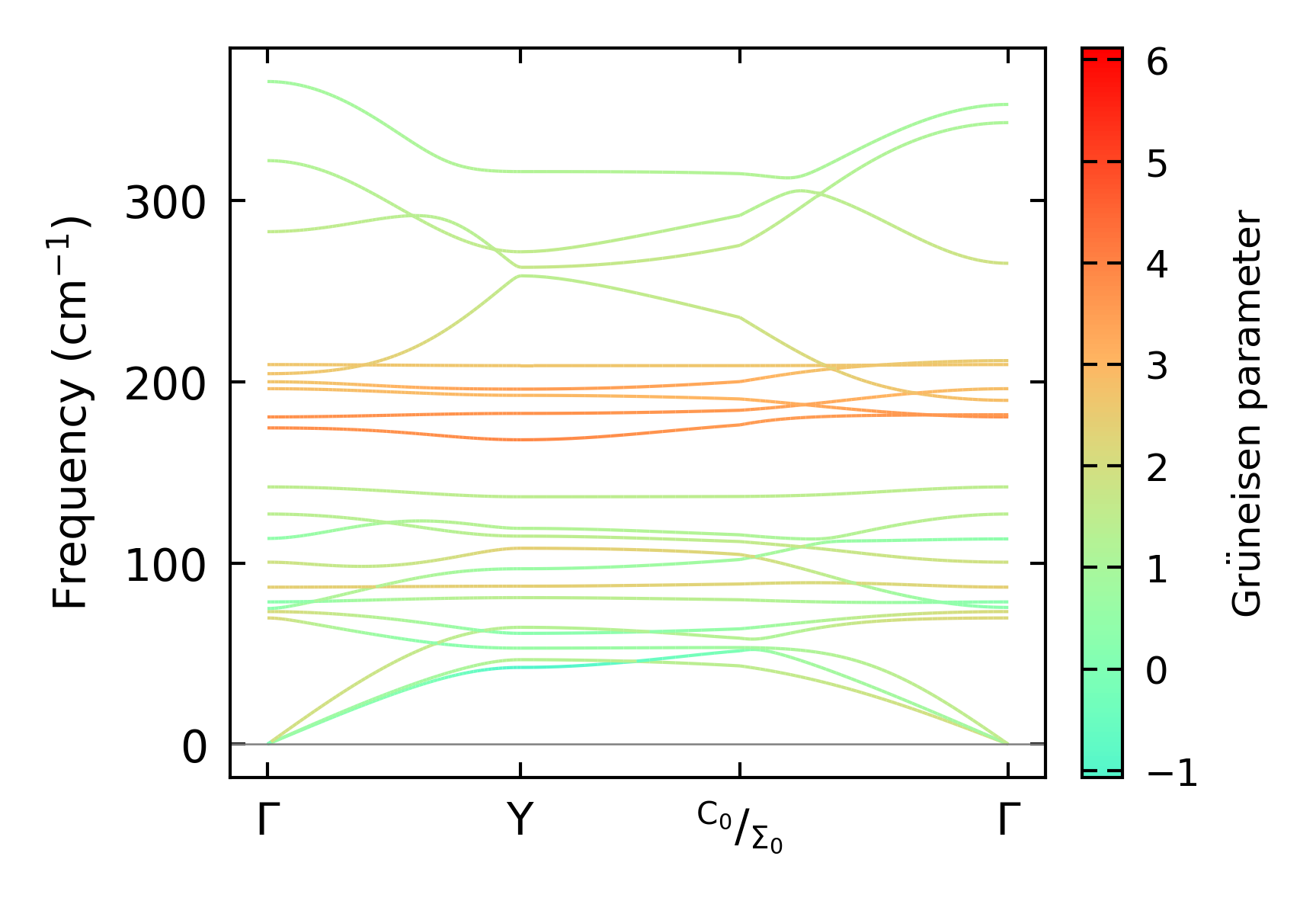

../../_images/fig_gruneisen4700.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x19, supercell: 2x1x3

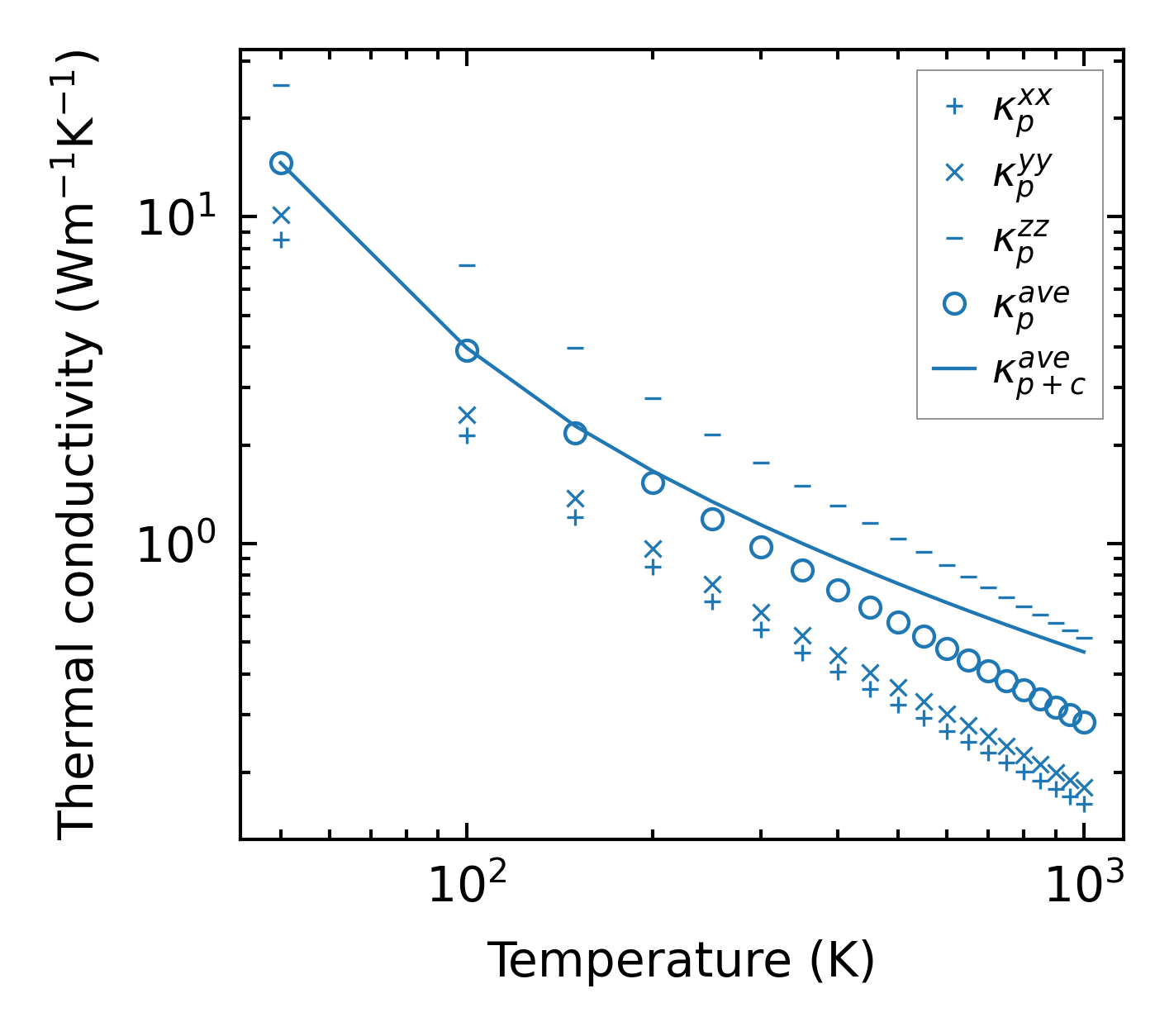

../../_images/fig_kappa8872.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4759.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

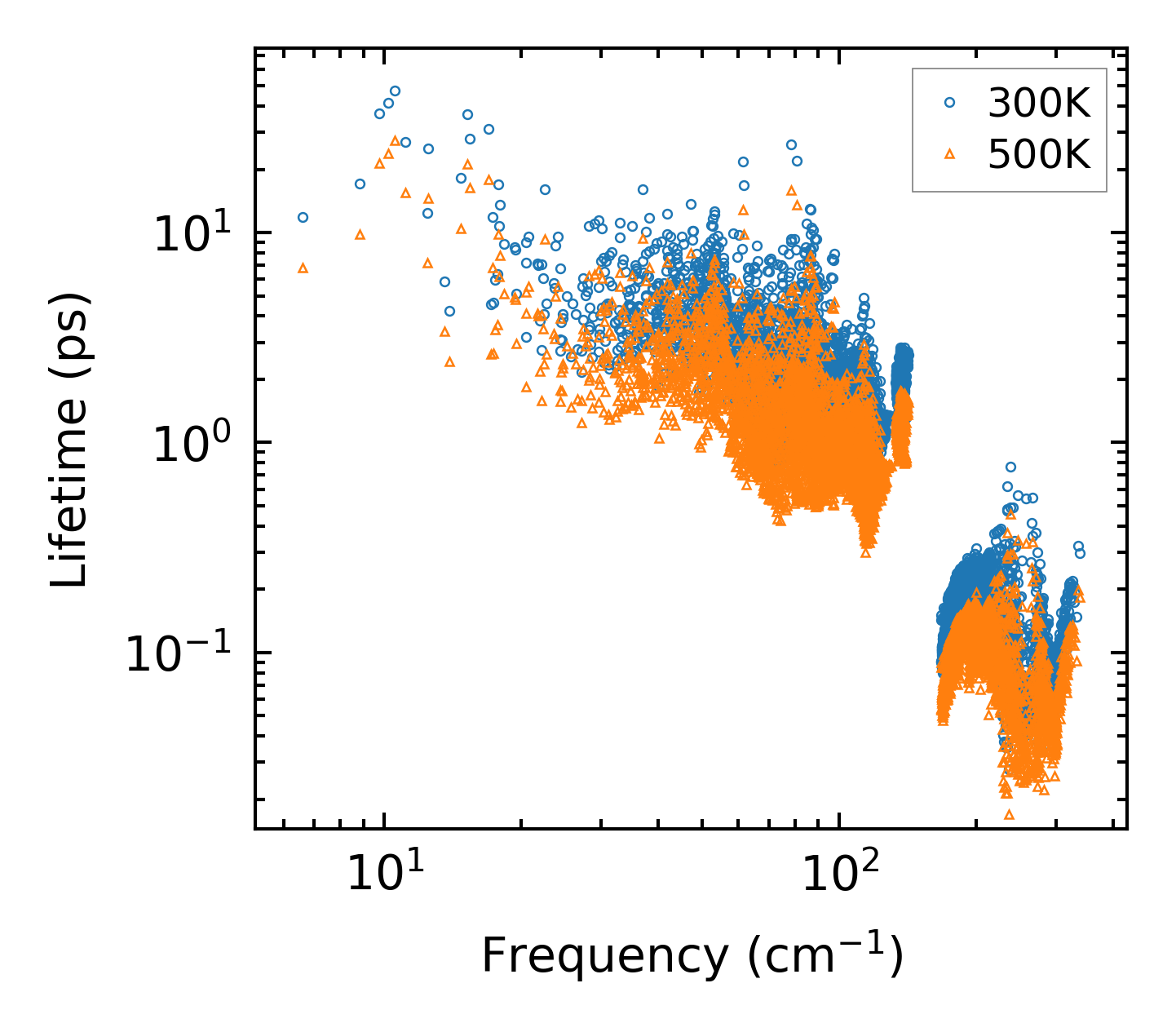

../../_images/fig_lifetime4656.png — (a) Phonon lifetime due to phonon-phonon scattering

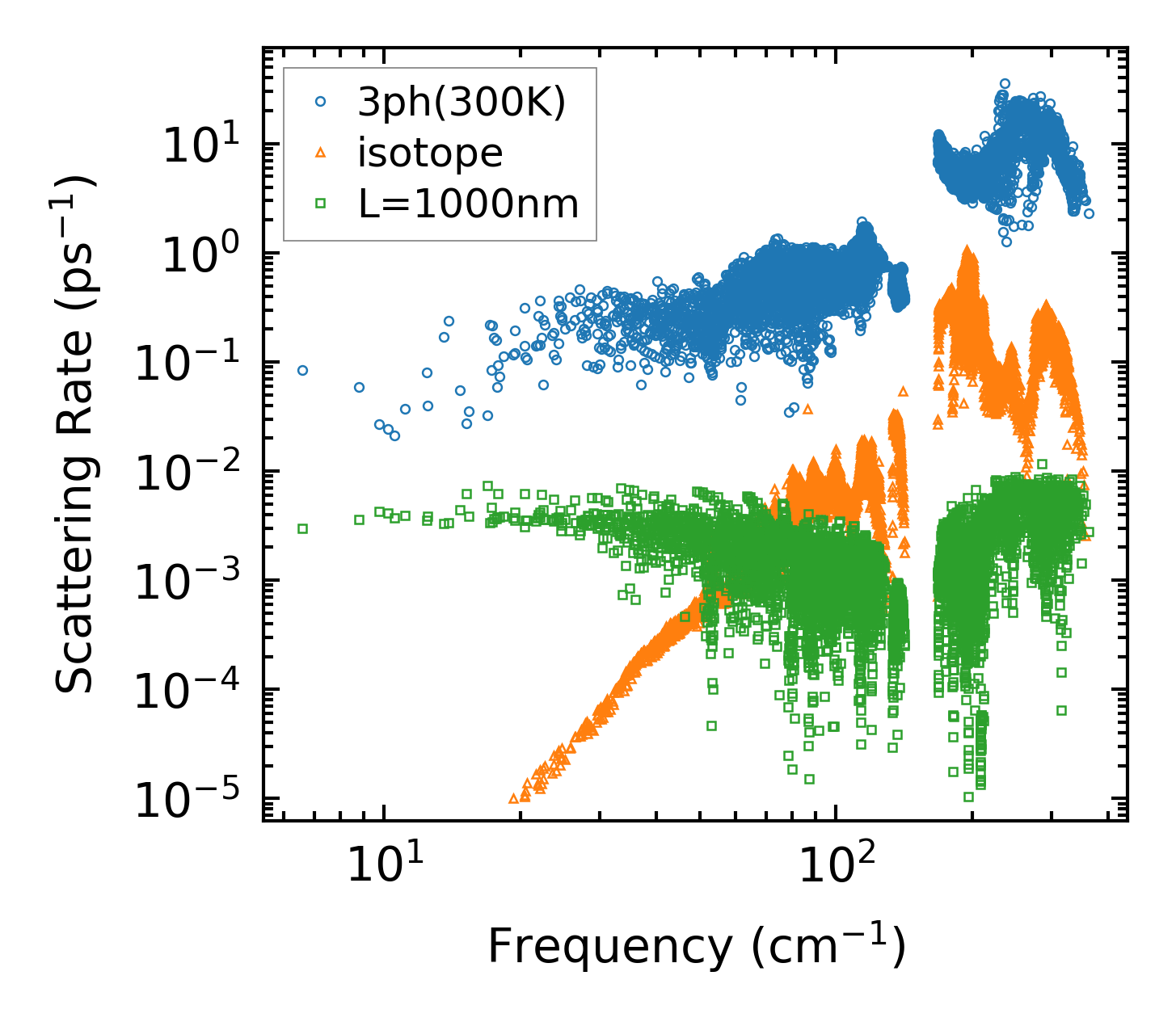

../../_images/fig_scat_rates4655.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4656.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

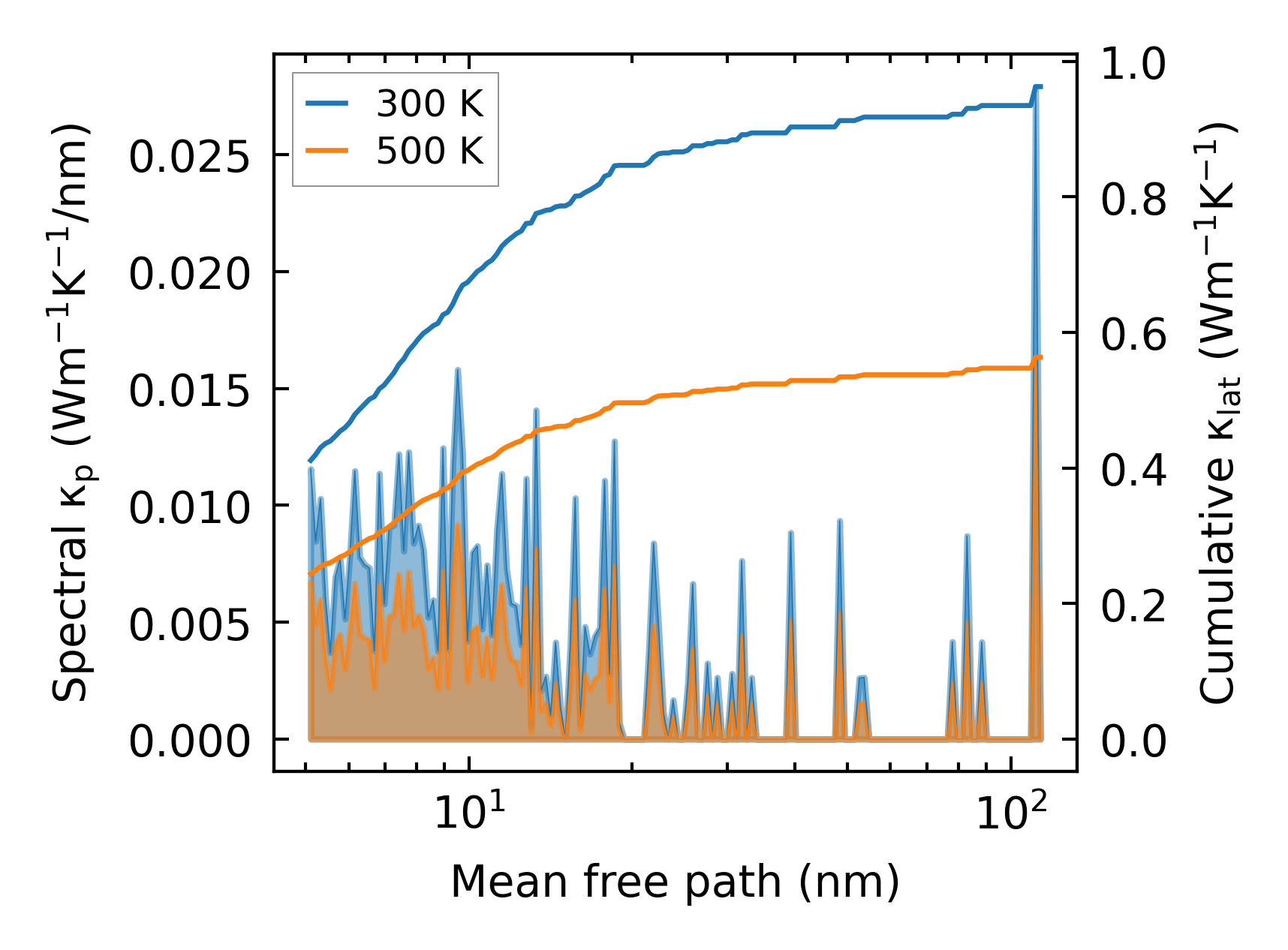

../../_images/fig_cumu_mfp4655.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211073.png — (a) Force constants w.r.t atomic distance

Summary

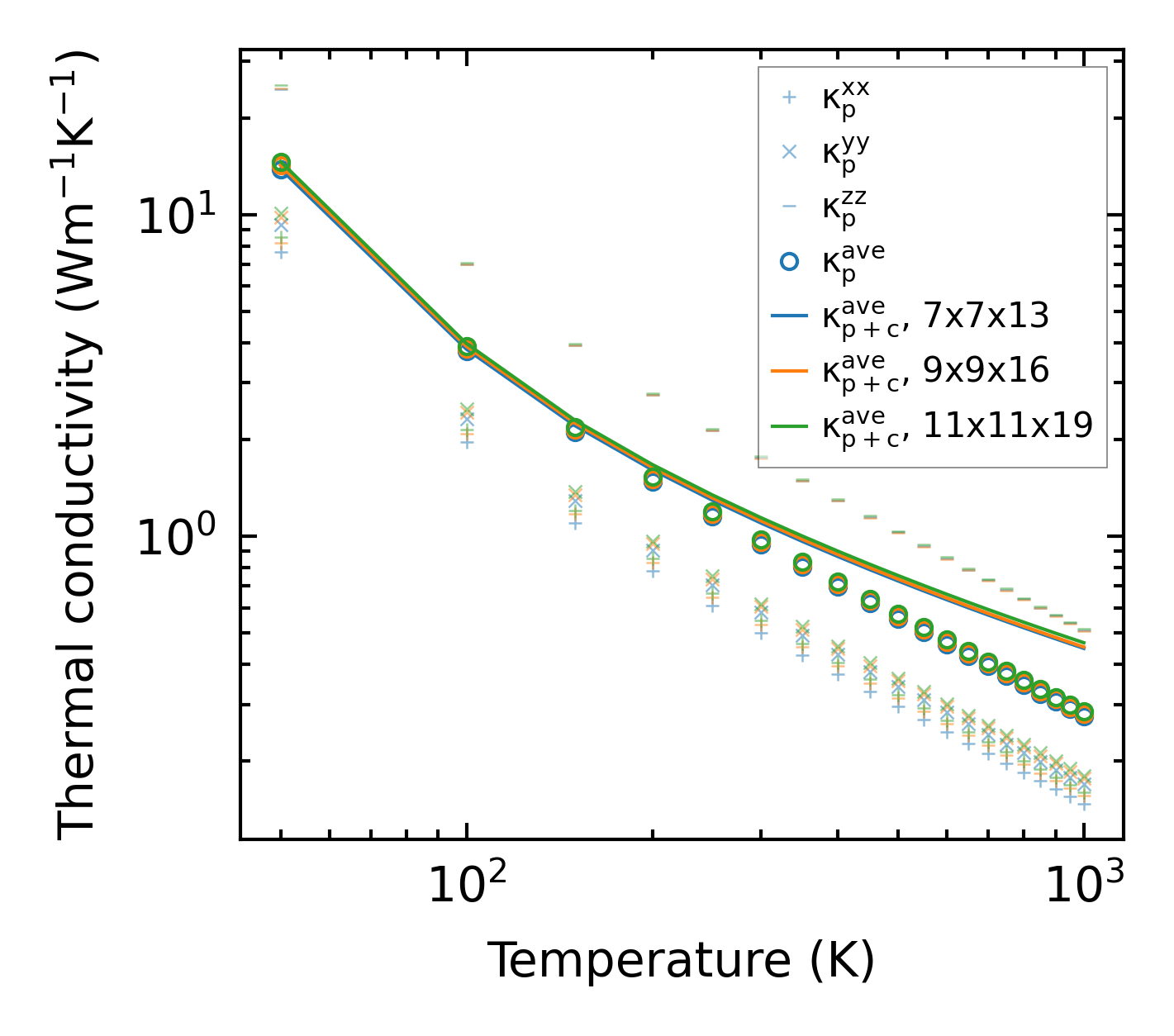

../../_images/fig_kappa8873.png — (a) Temperature-dependent lattice thermal conductivity

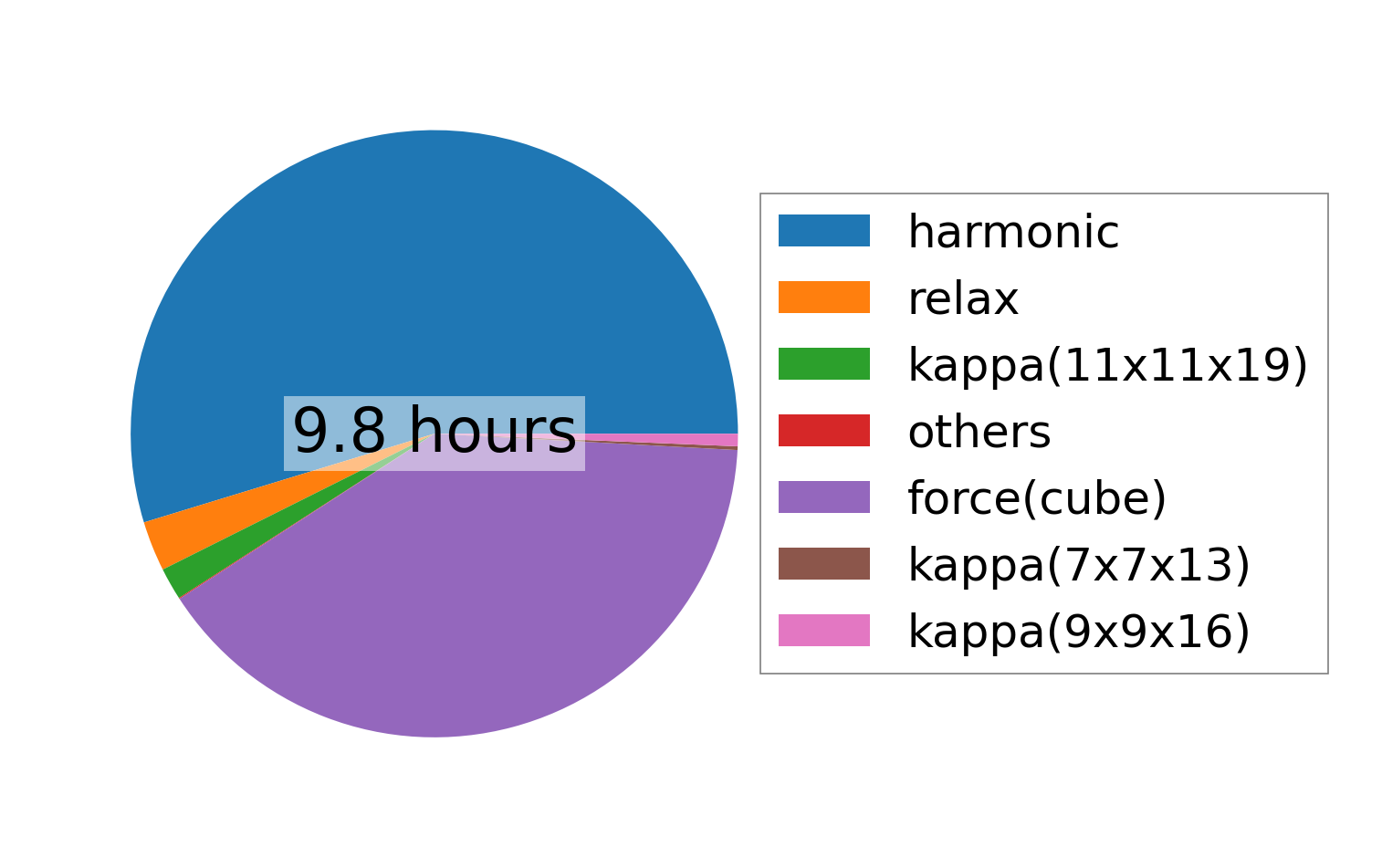

../../_images/fig_times19385.png — (b) Computation time
