mp-29792-2/CaNb2O4/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-29792-2.tar.gz

Equation of state

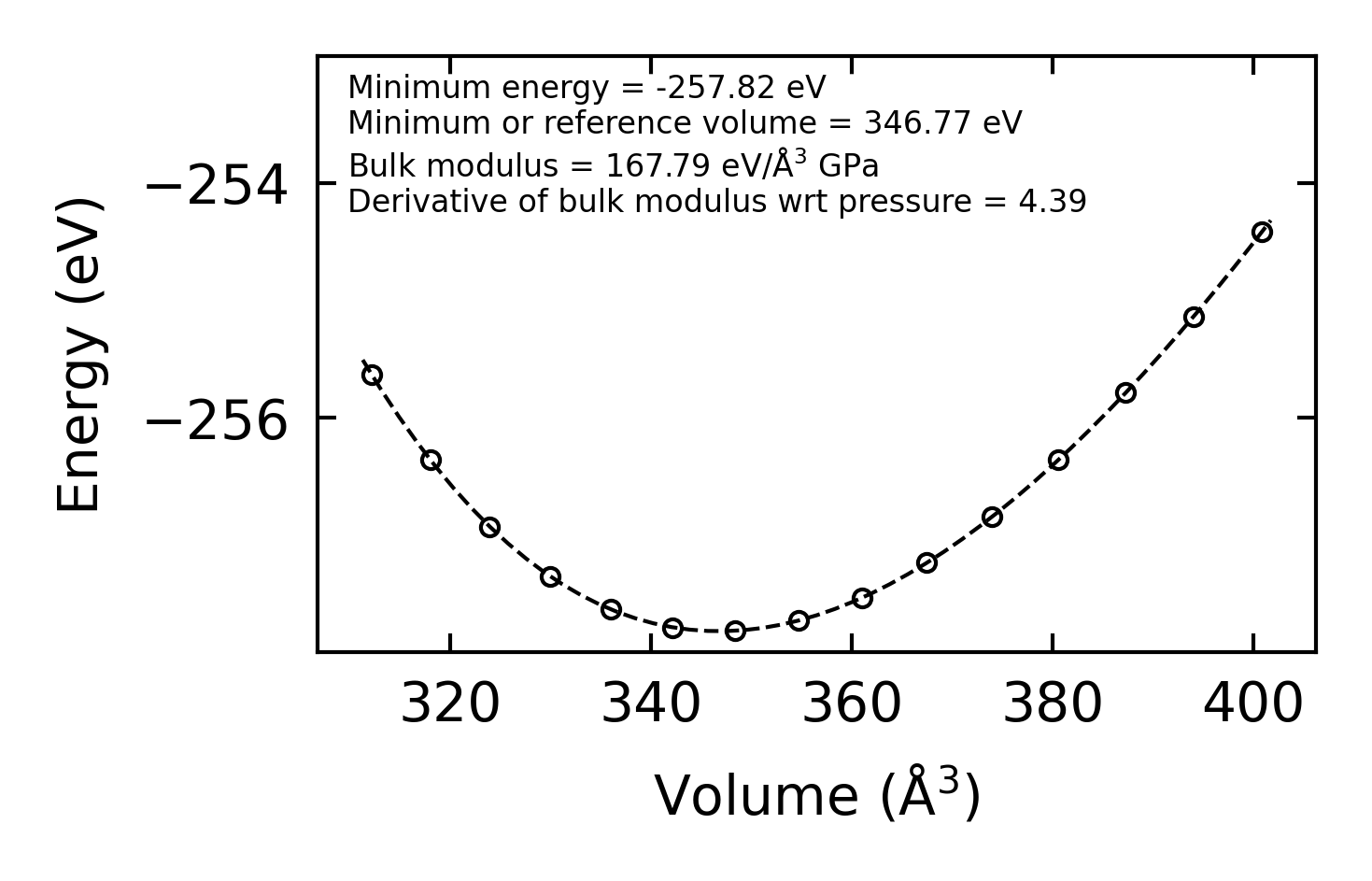

../../_images/fig_bm5524.png — (a) Equation of state

Harmonic properties

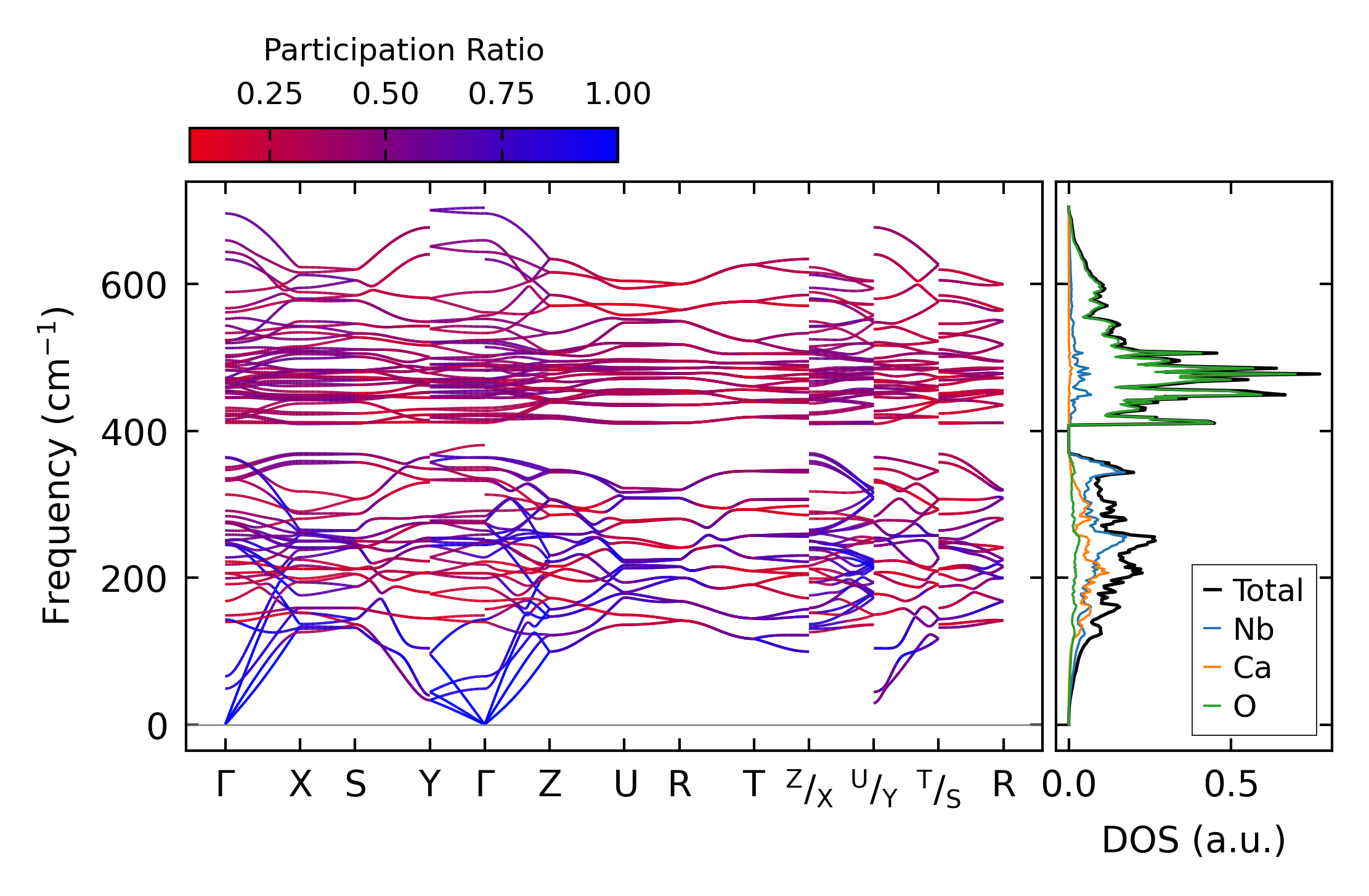

../../_images/fig_bandos_pr11313.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11313.png — (b) Thermodynamic properties

Grüneisen parameters

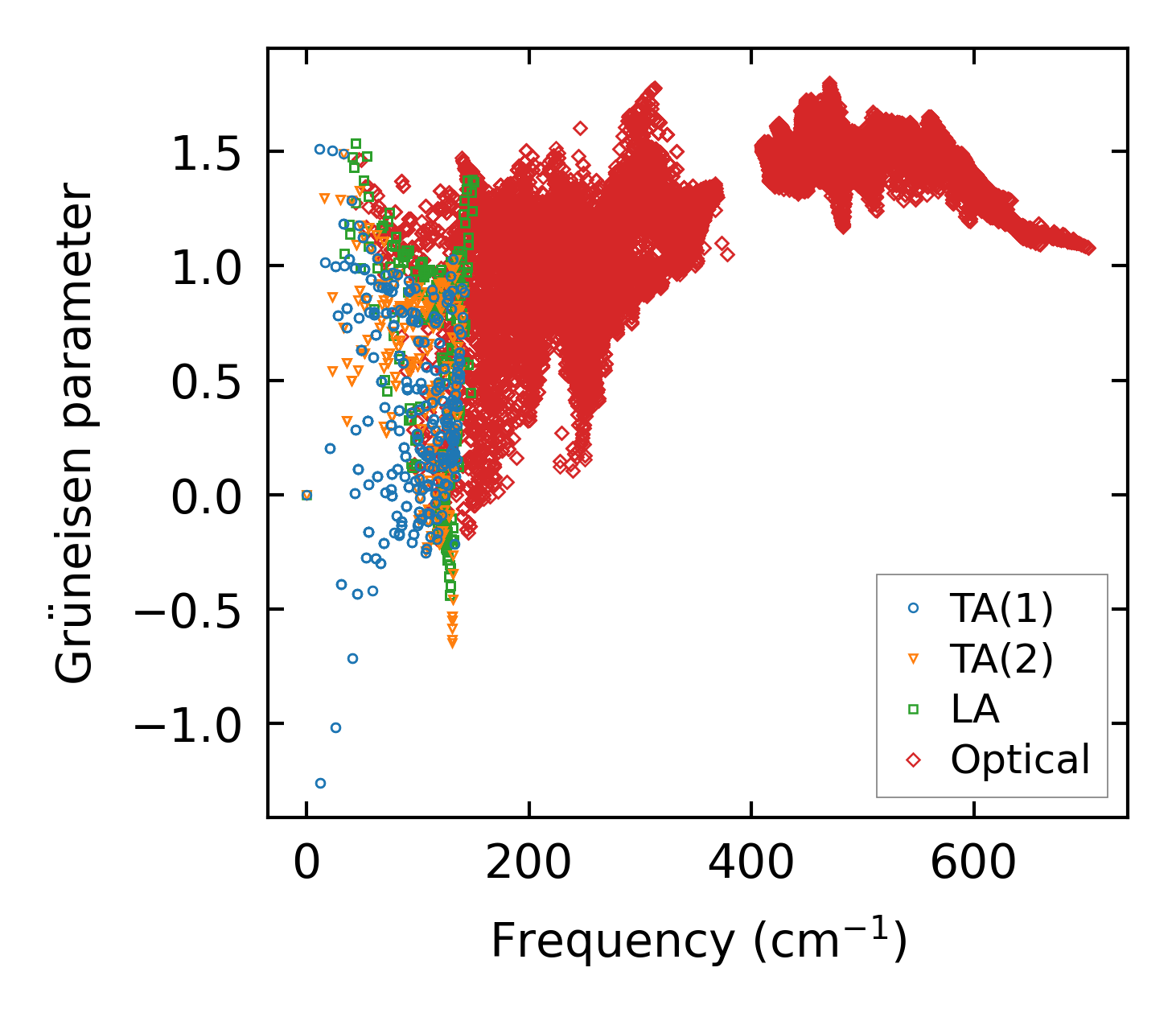

../../_images/fig_gru_all4675.png — (a) Grüneisen parameters

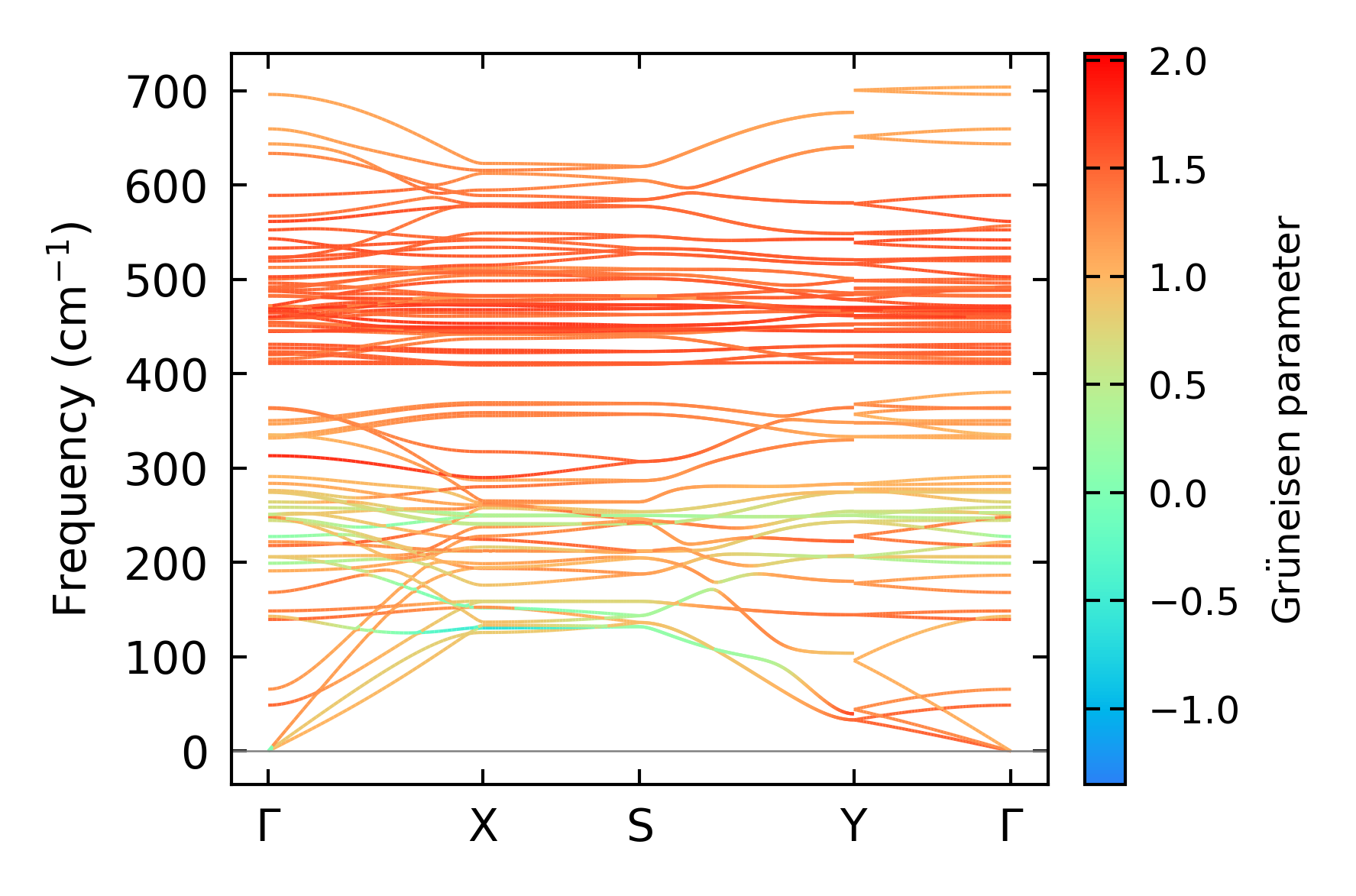

../../_images/fig_gruneisen4675.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x6x12, supercell: 2x1x2

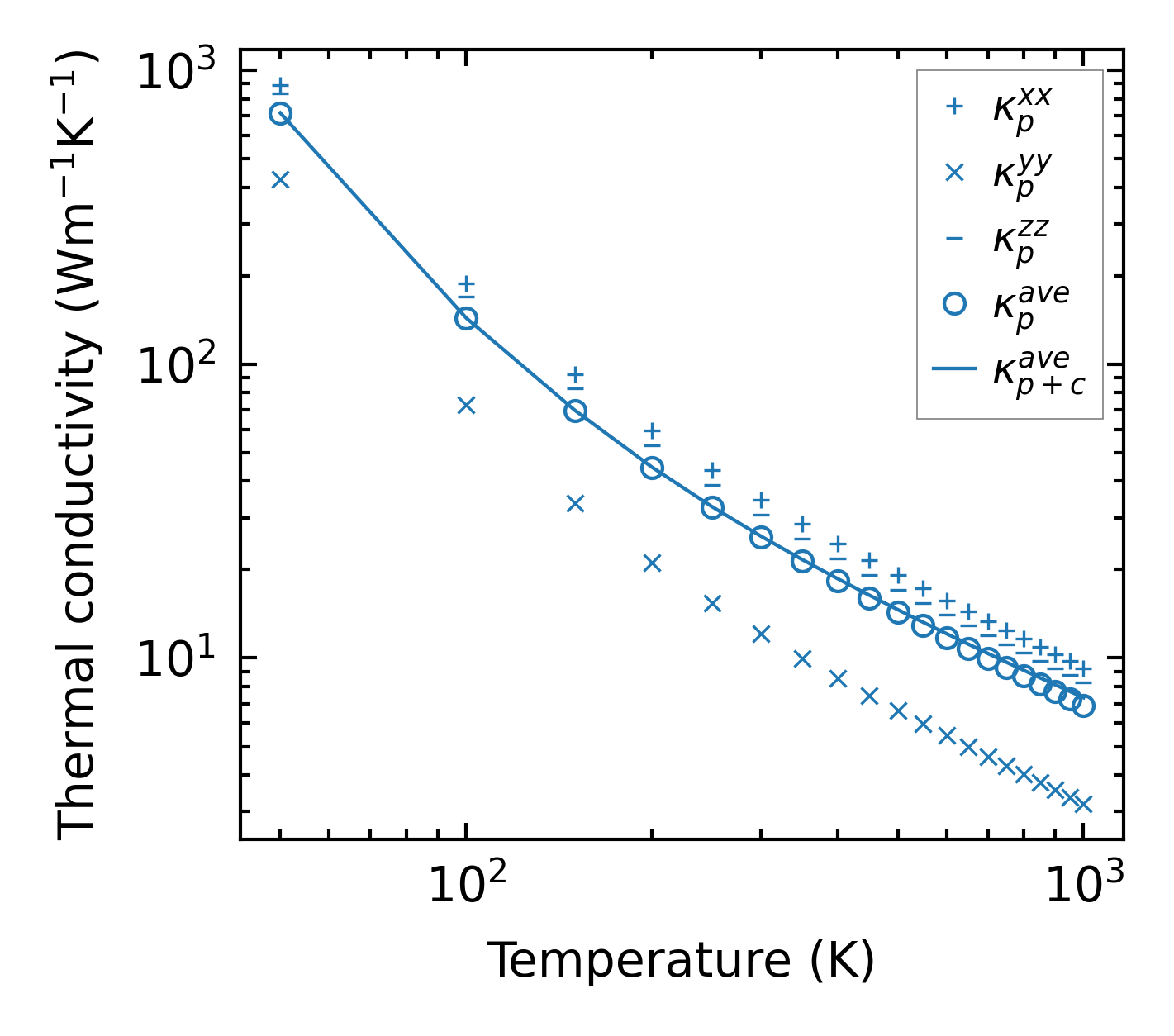

../../_images/fig_kappa8824.png — (a) Temperature-dependent lattice thermal conductivity

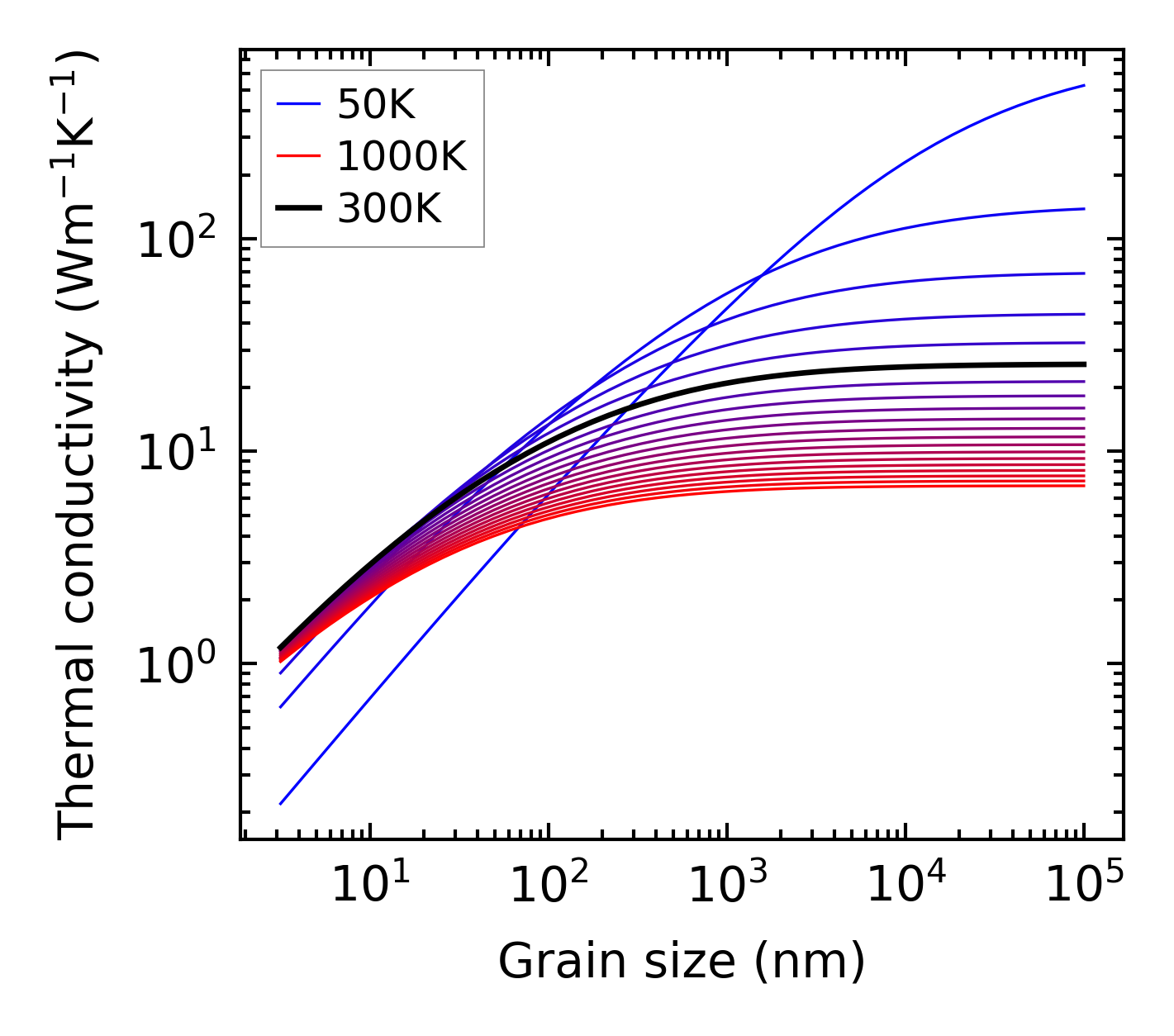

../../_images/fig_kappa_vs_grain_size4732.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

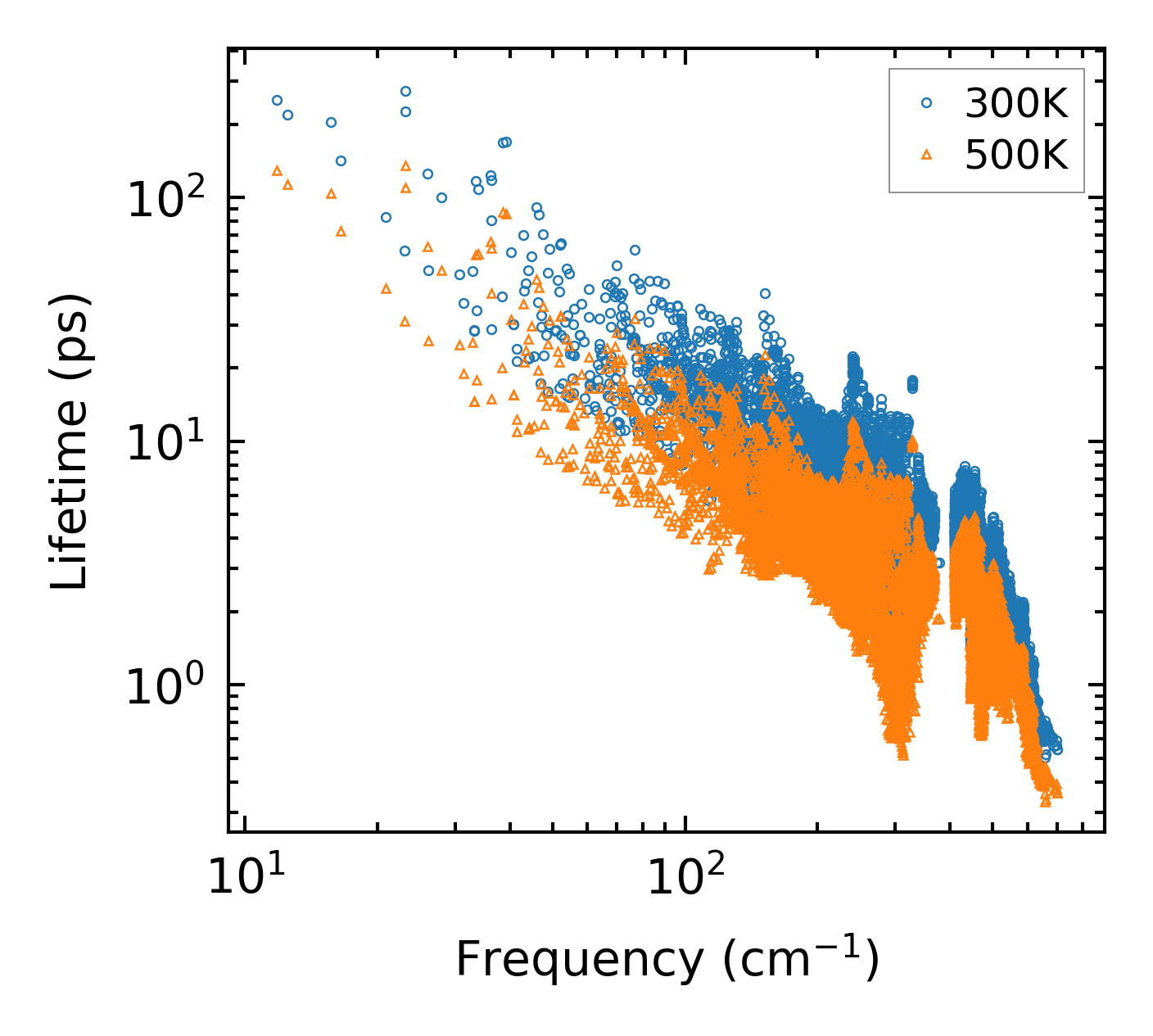

../../_images/fig_lifetime4631.png — (a) Phonon lifetime due to phonon-phonon scattering

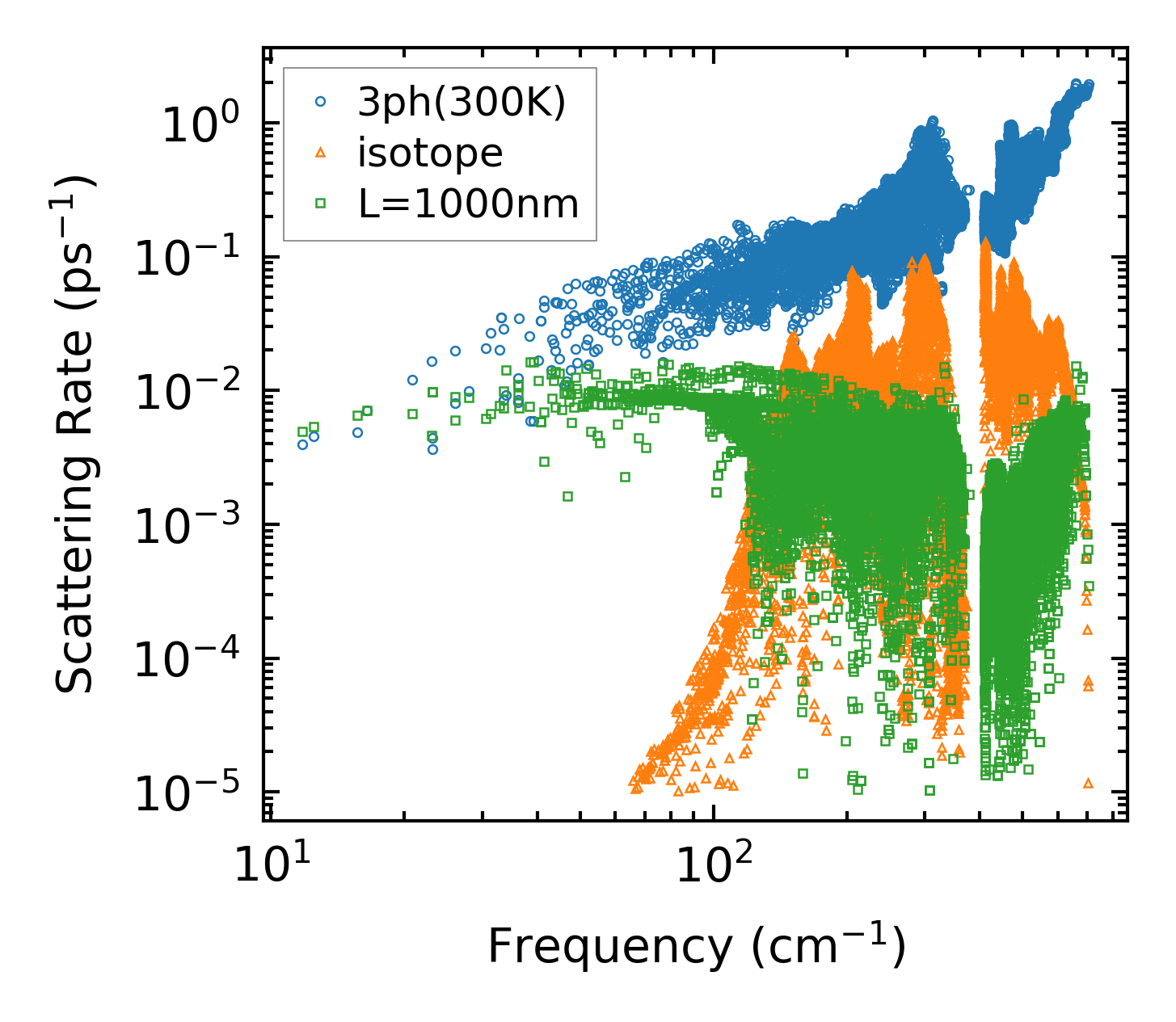

../../_images/fig_scat_rates4630.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

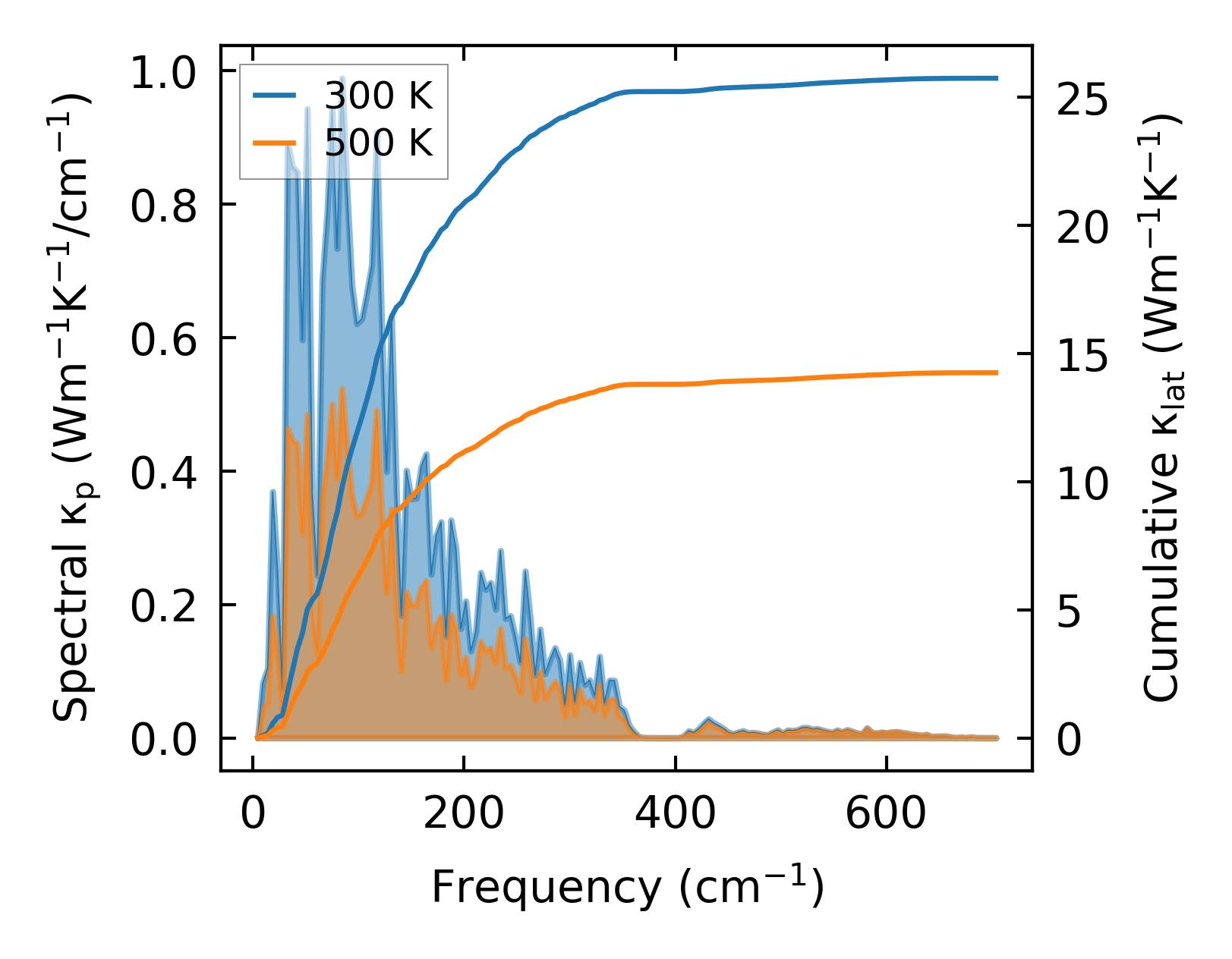

../../_images/fig_cumu_frequency4631.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

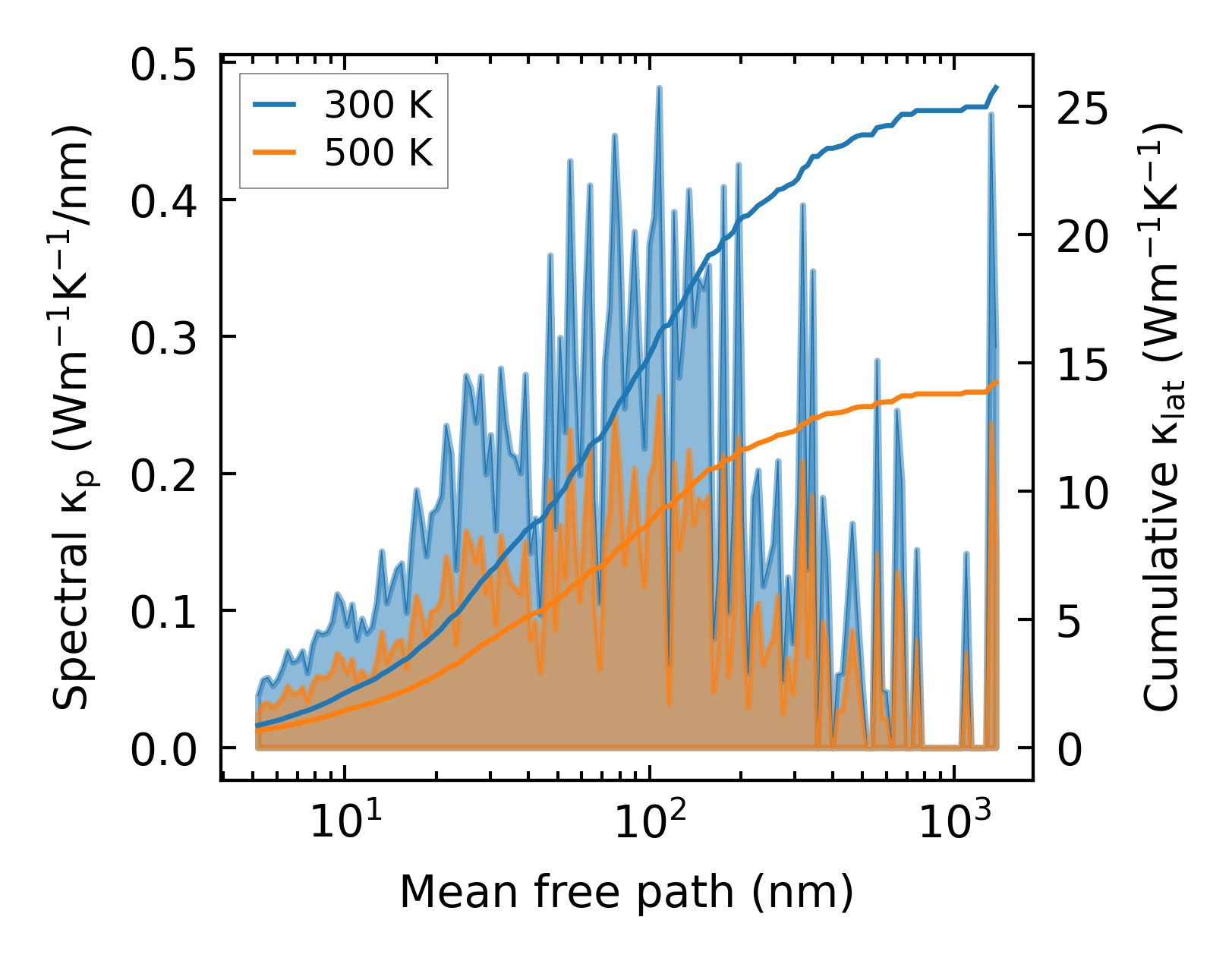

../../_images/fig_cumu_mfp4630.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

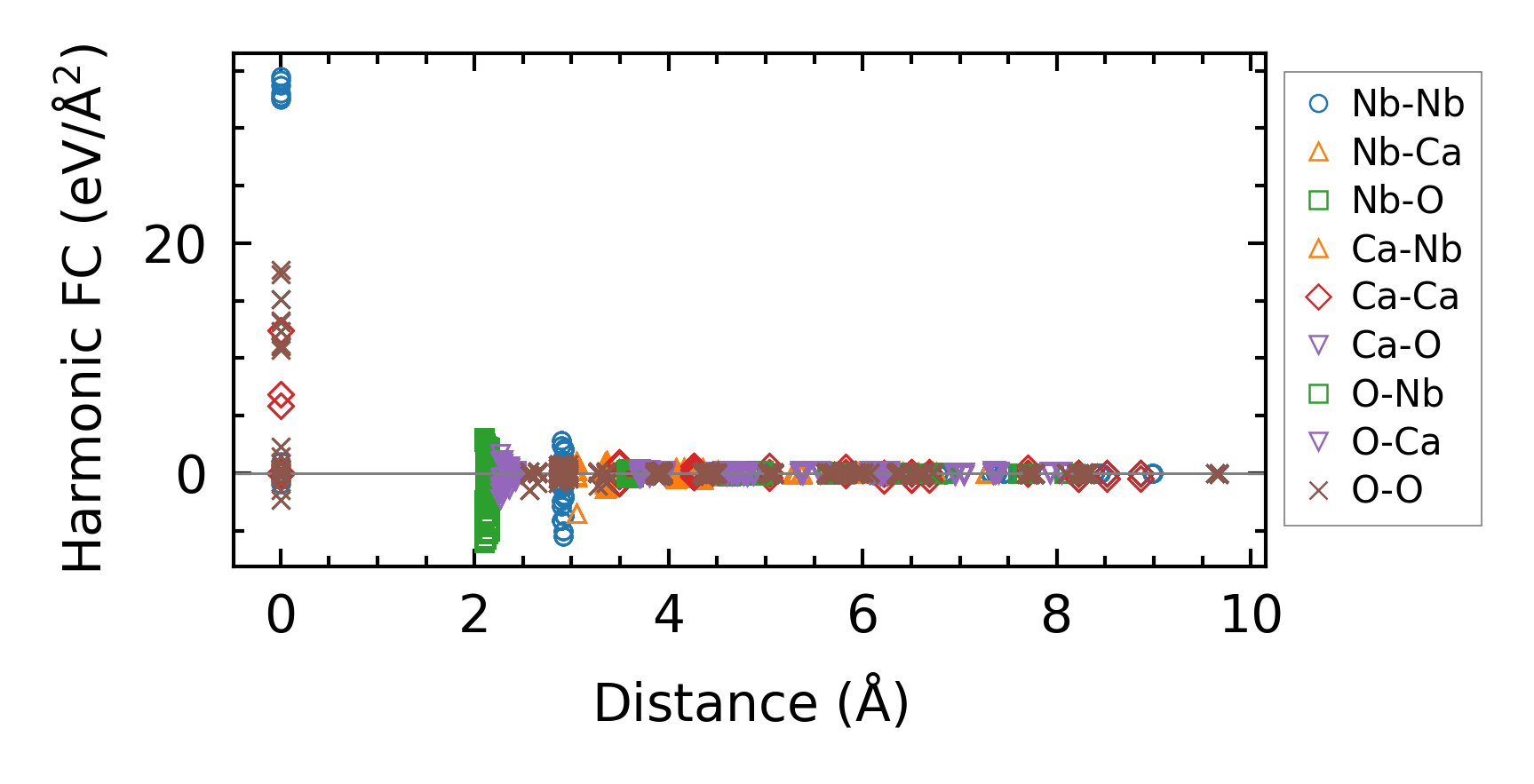

../../_images/fig_fc211029.png — (a) Force constants w.r.t atomic distance

Summary

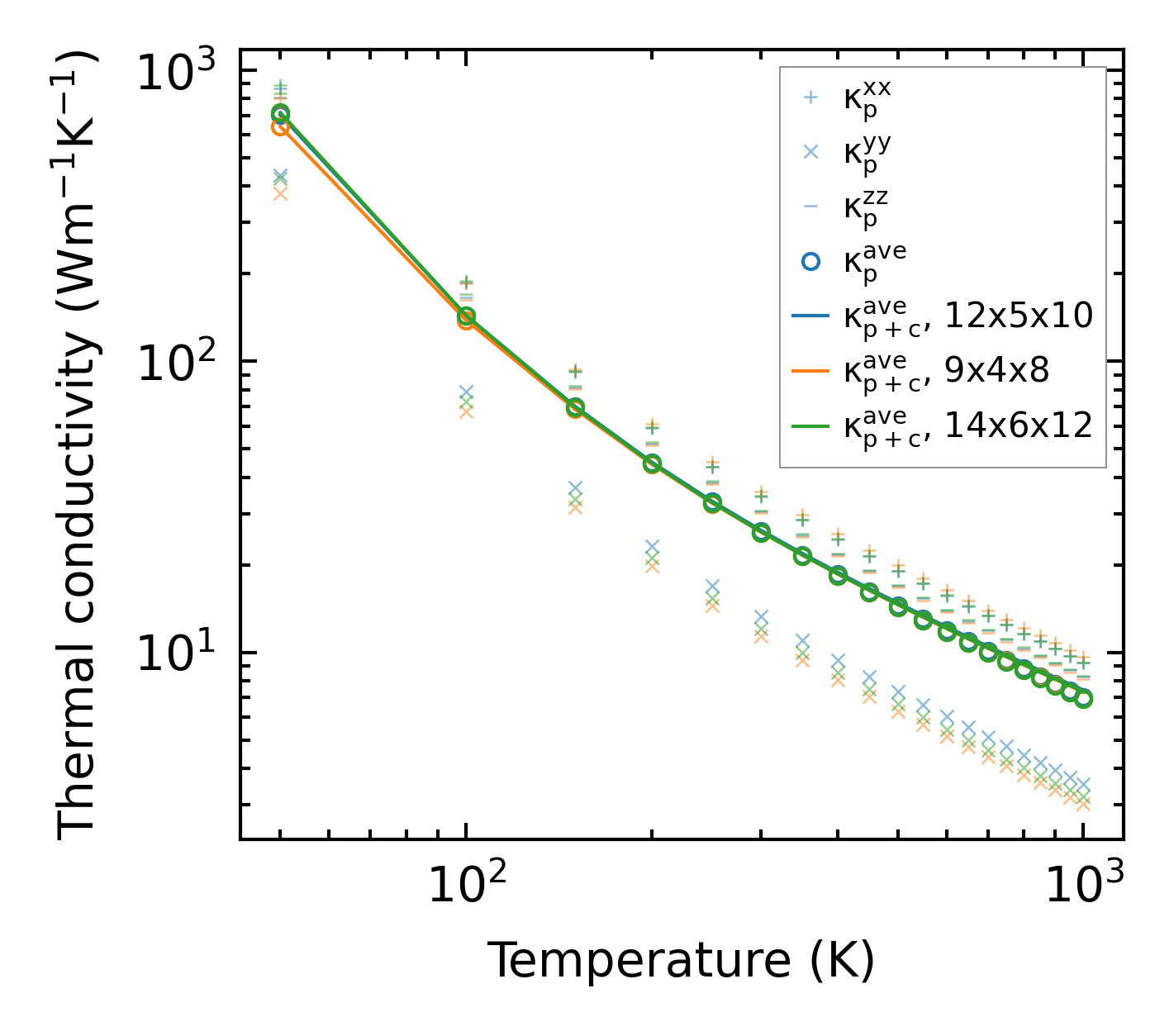

../../_images/fig_kappa8825.png — (a) Temperature-dependent lattice thermal conductivity

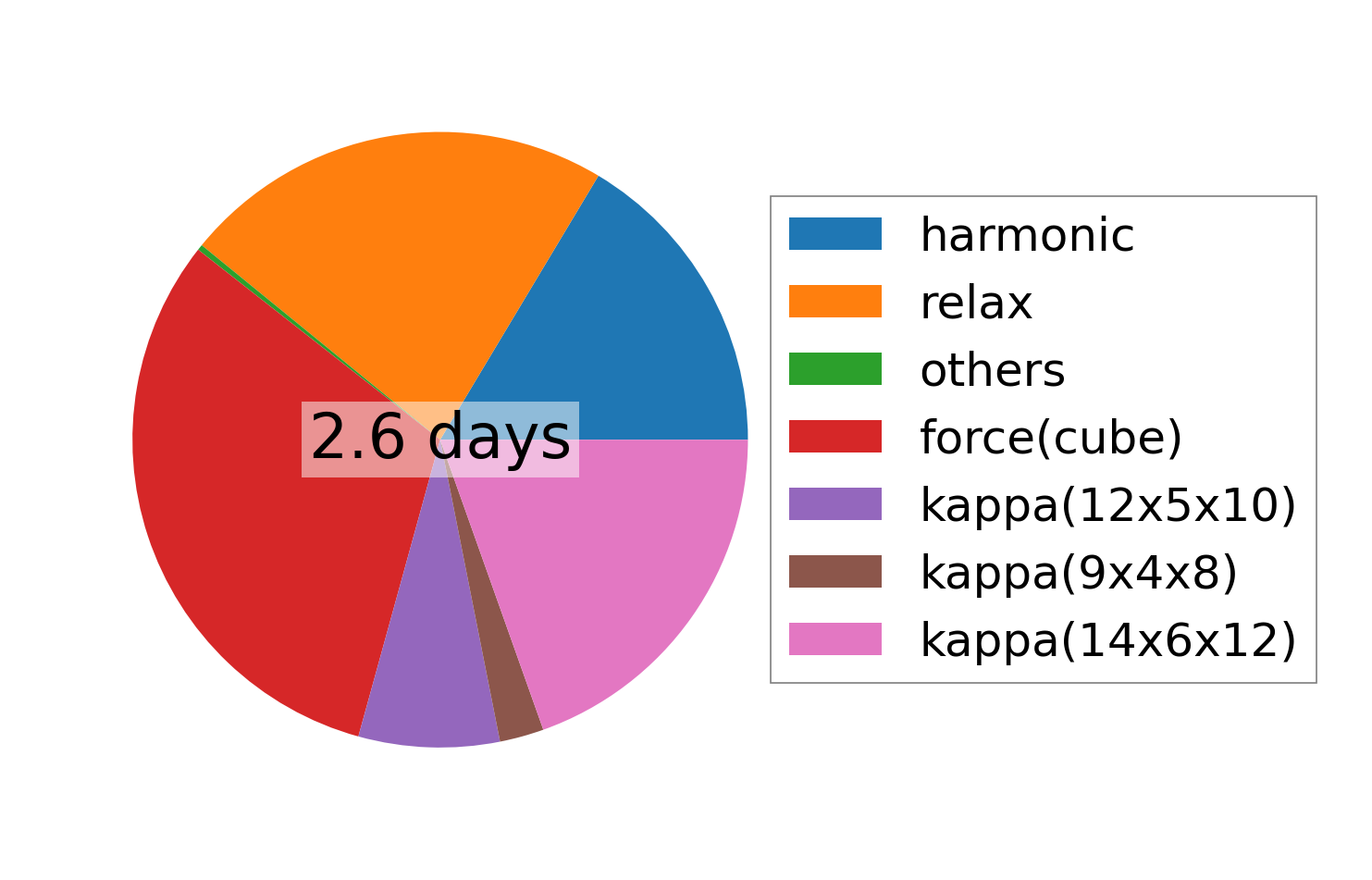

../../_images/fig_times19309.png — (b) Computation time
