mp-29091-2/TiCu4S4/anharm

Space group: I-42m (121)
Link: Materials Project
Download: mp-29091-2.tar.gz

Equation of state

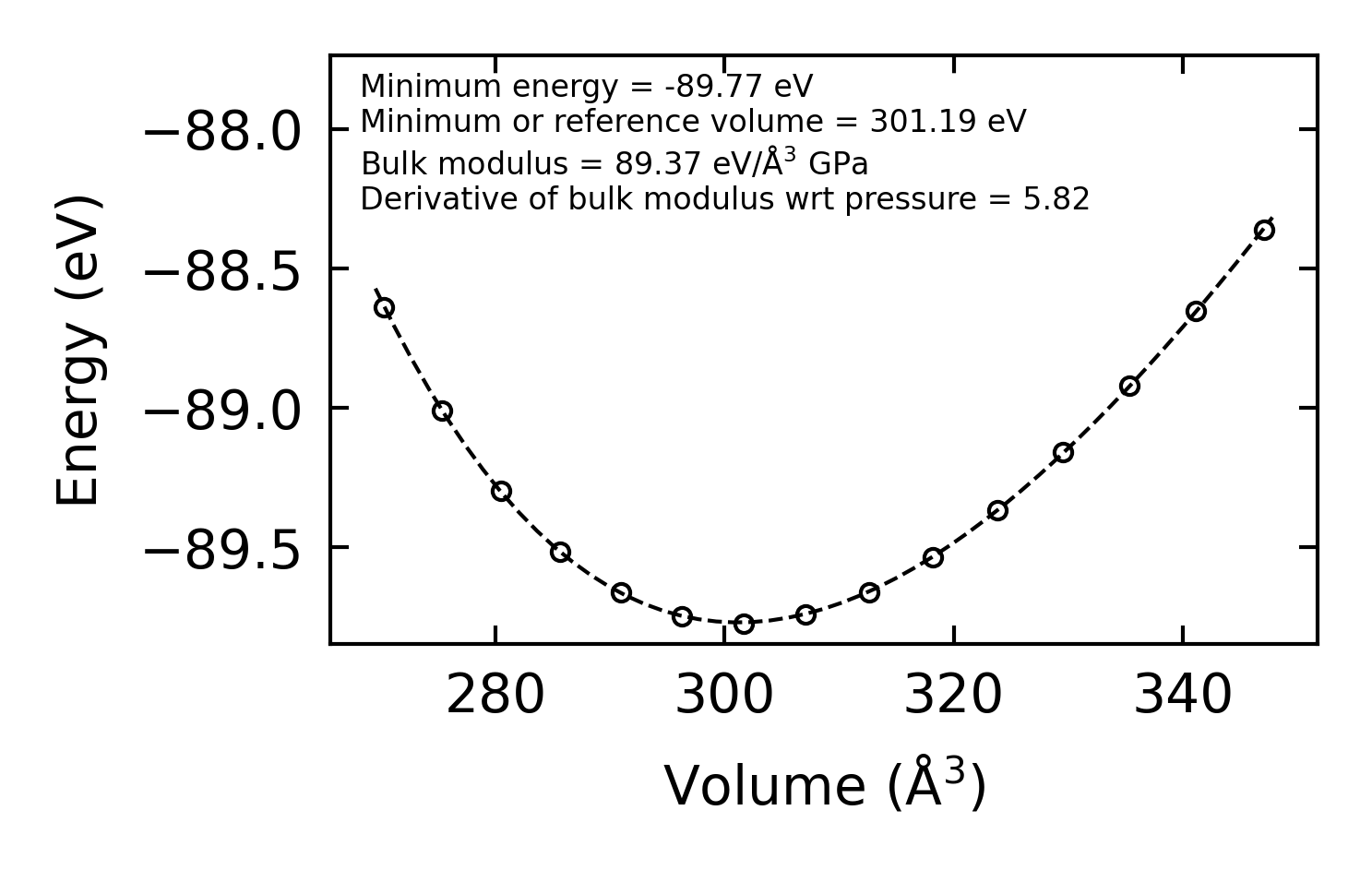

../../_images/fig_bm5565.png — (a) Equation of state

Harmonic properties

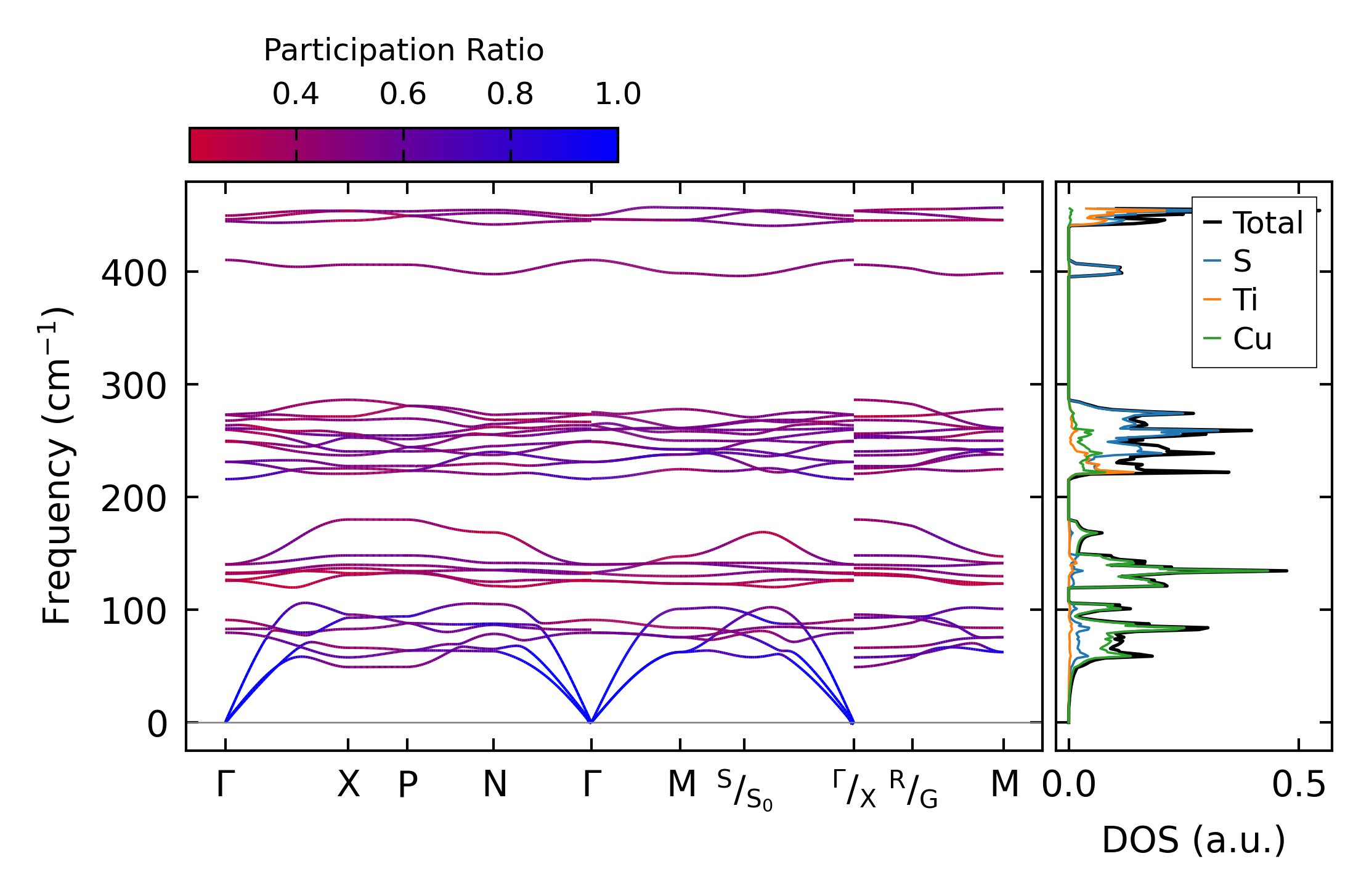

../../_images/fig_bandos_pr11391.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos15382.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo11391.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4718.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4718.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x3x2 — q-mesh: 13x13x13, supercell: 3x3x2

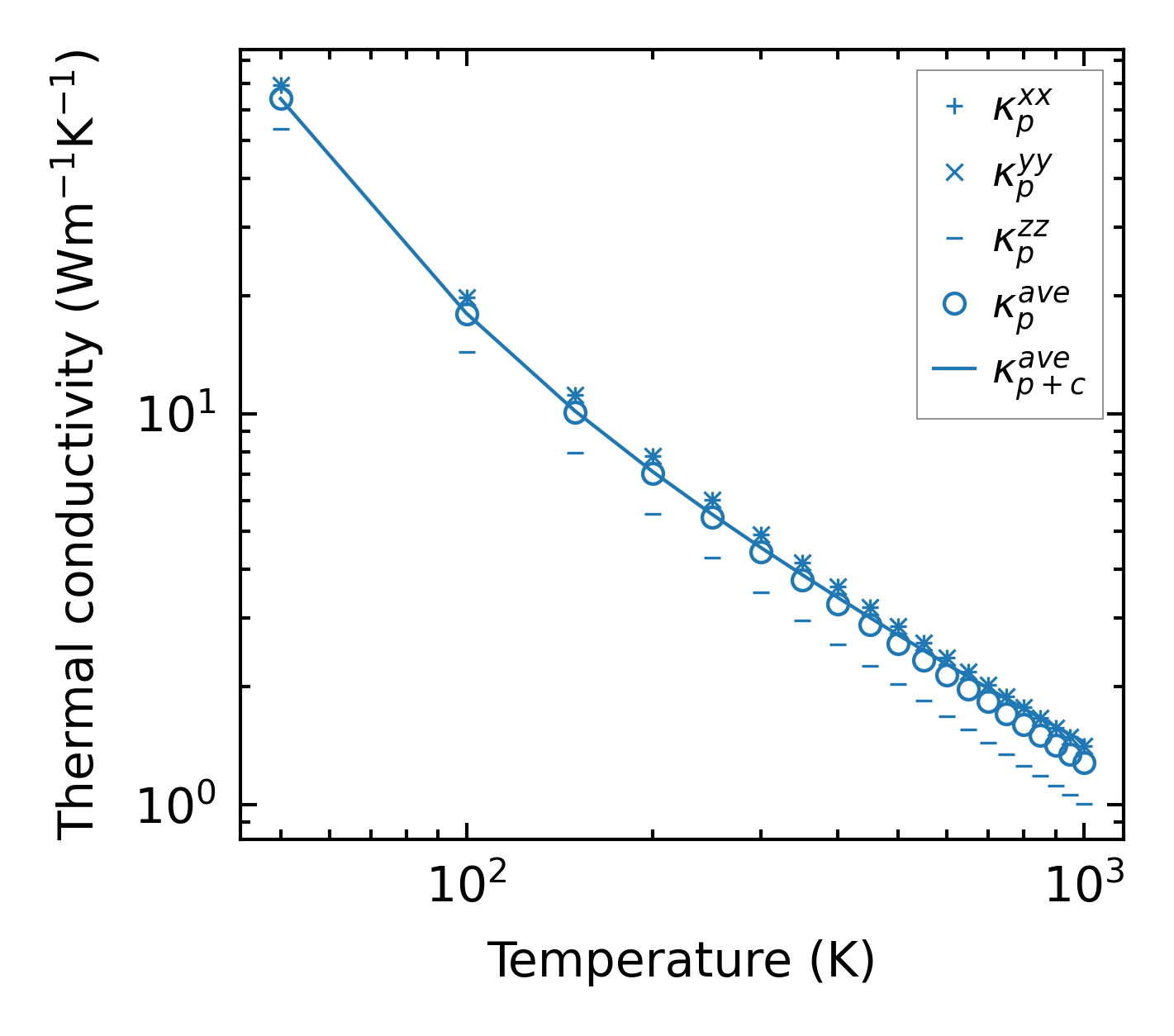

../../_images/fig_kappa8905.png — (a) Temperature-dependent lattice thermal conductivity

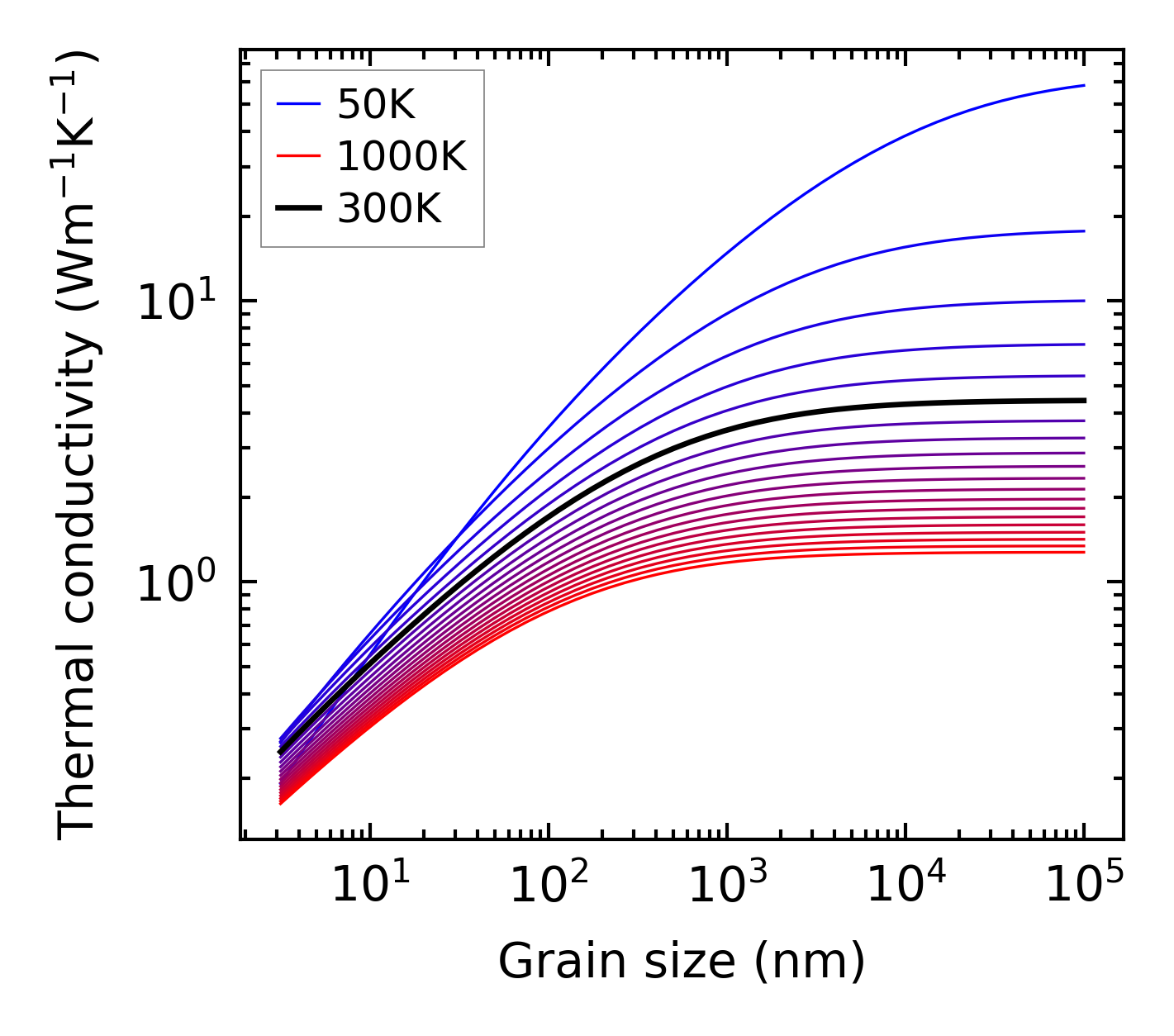

../../_images/fig_kappa_vs_grain_size4777.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4674.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4673.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

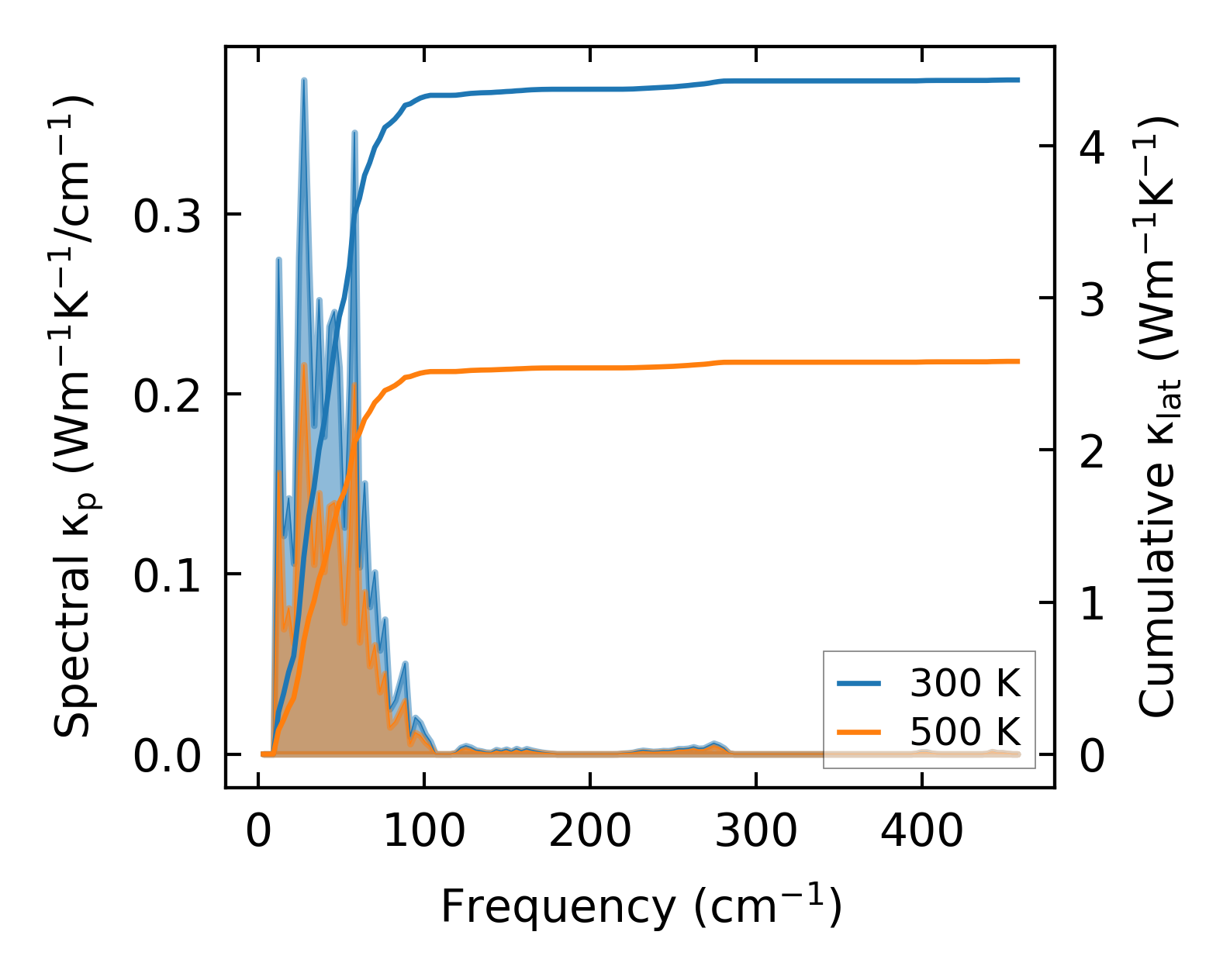

../../_images/fig_cumu_frequency4674.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

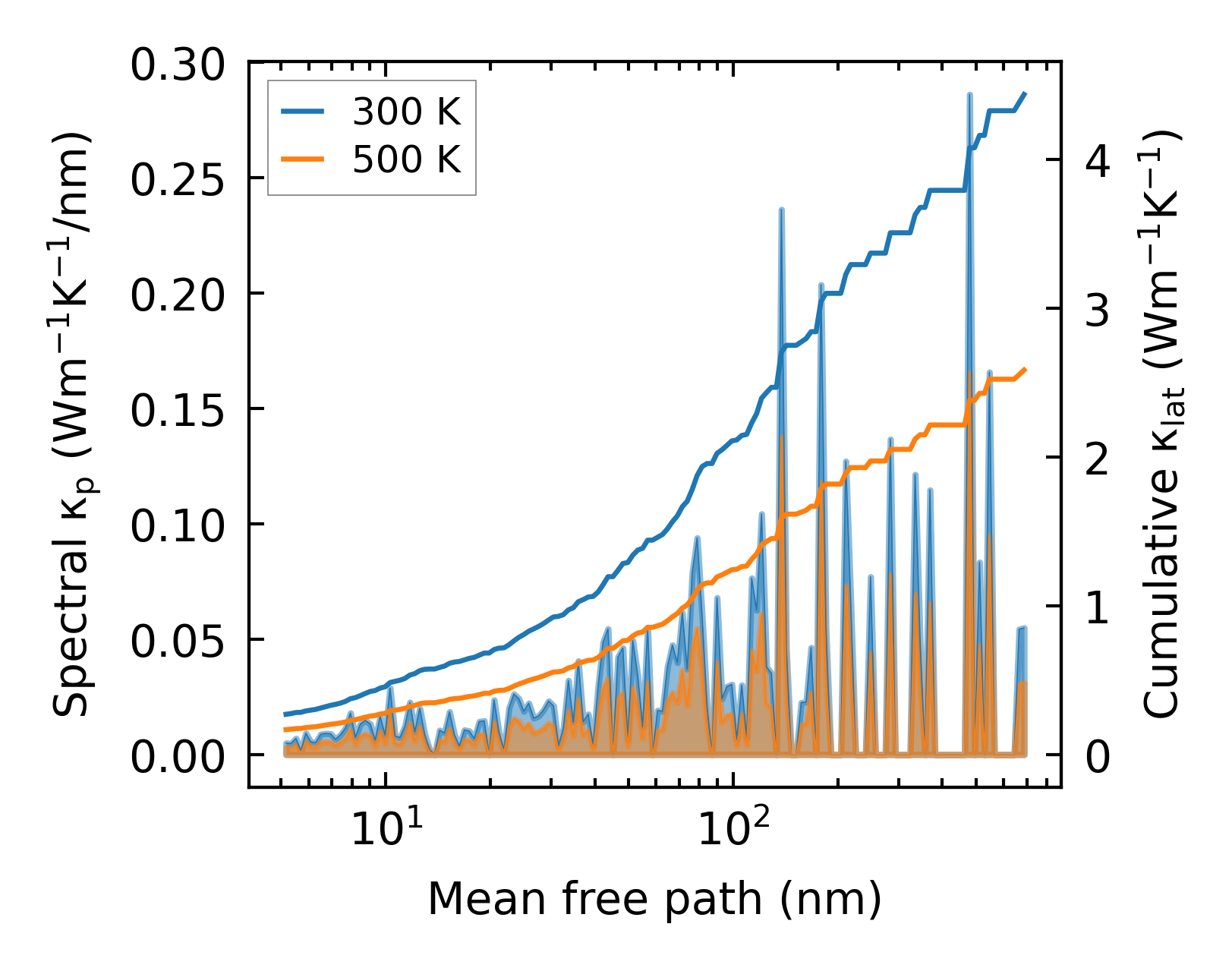

../../_images/fig_cumu_mfp4673.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

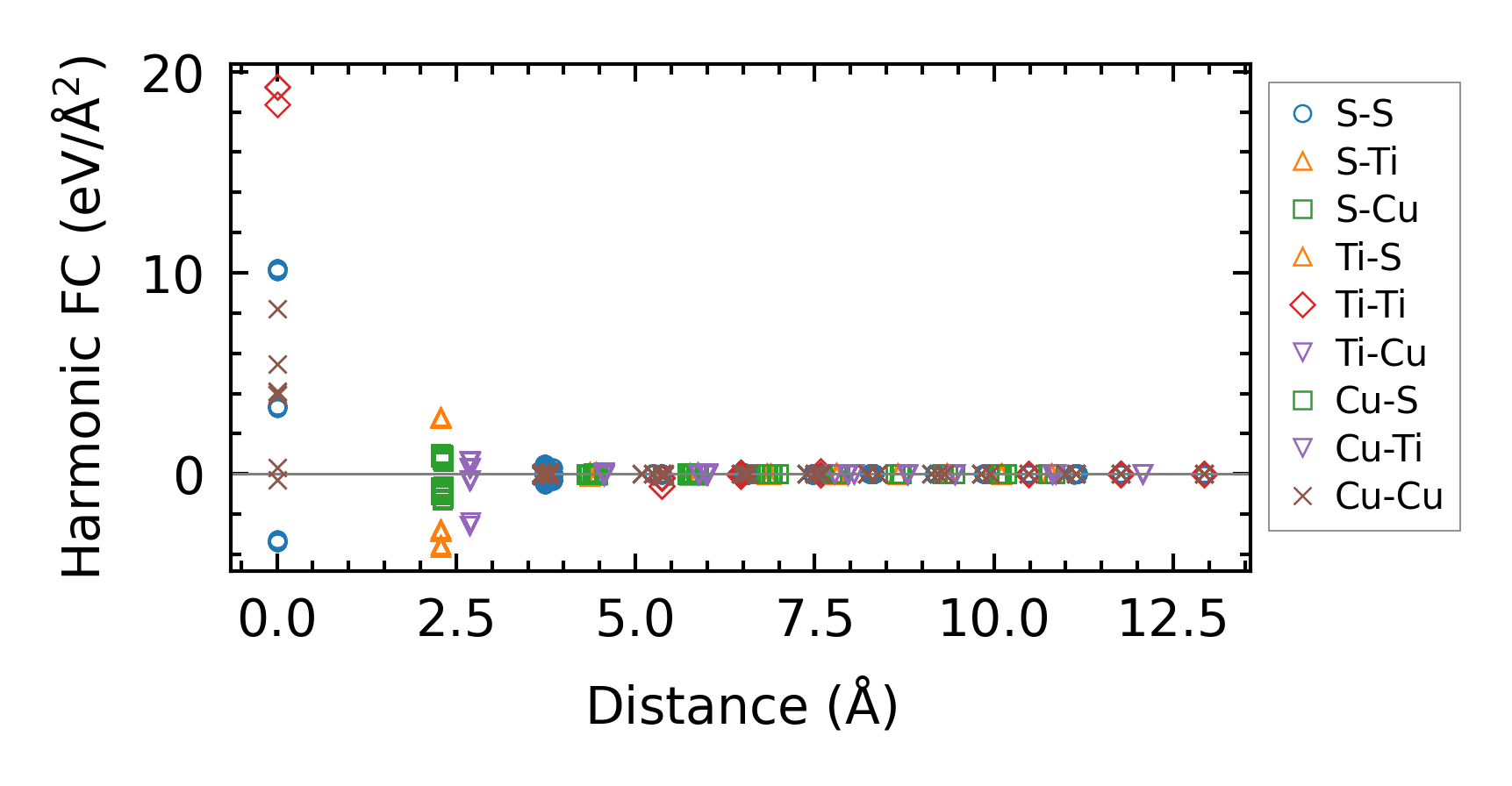

../../_images/fig_fc211107.png — (a) Force constants w.r.t atomic distance

Summary

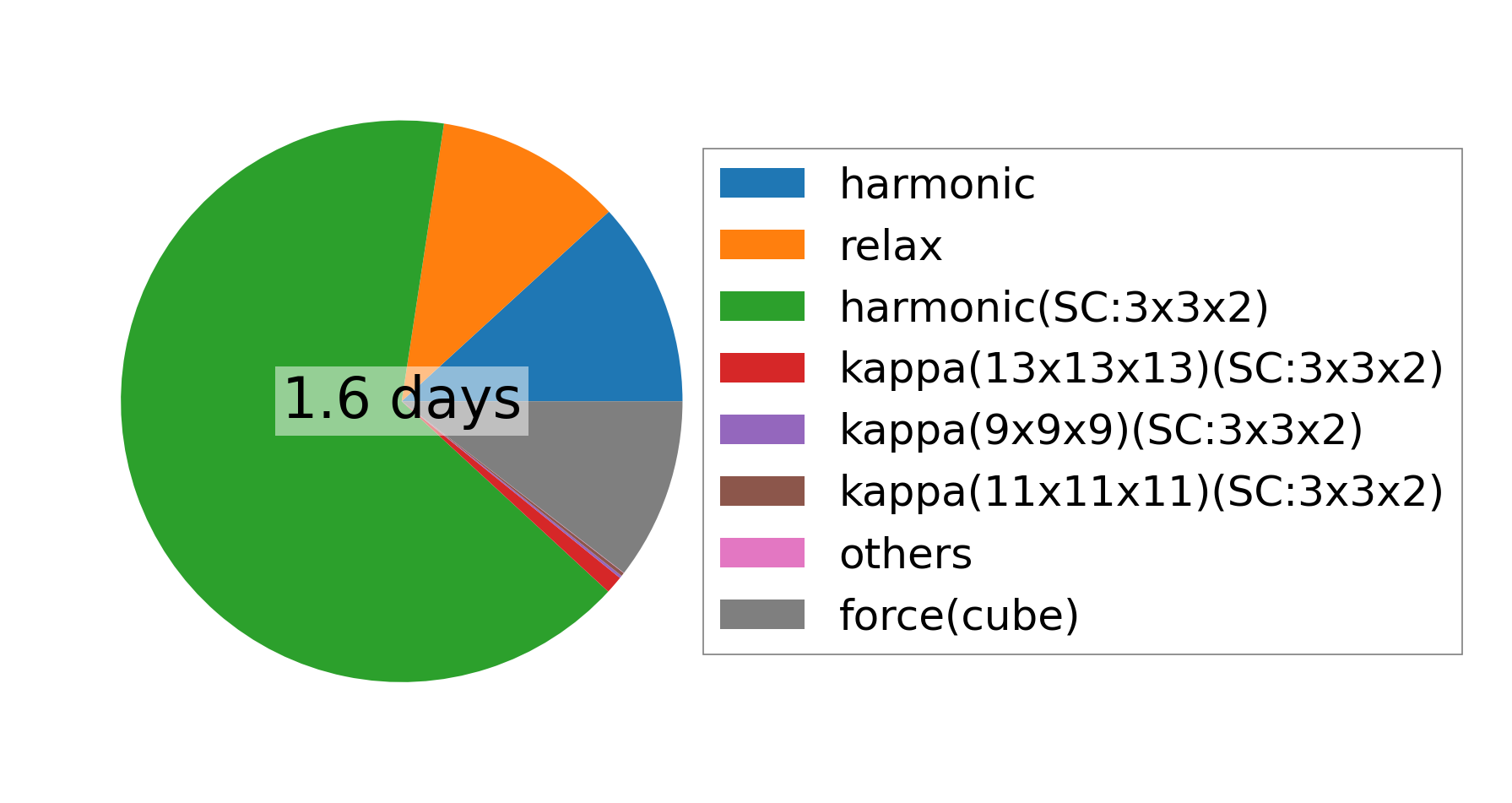

../../_images/fig_times19432.png — (a) Computation time
