mp-29411-2/Na2B2S5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-29411-2.tar.gz

Equation of state

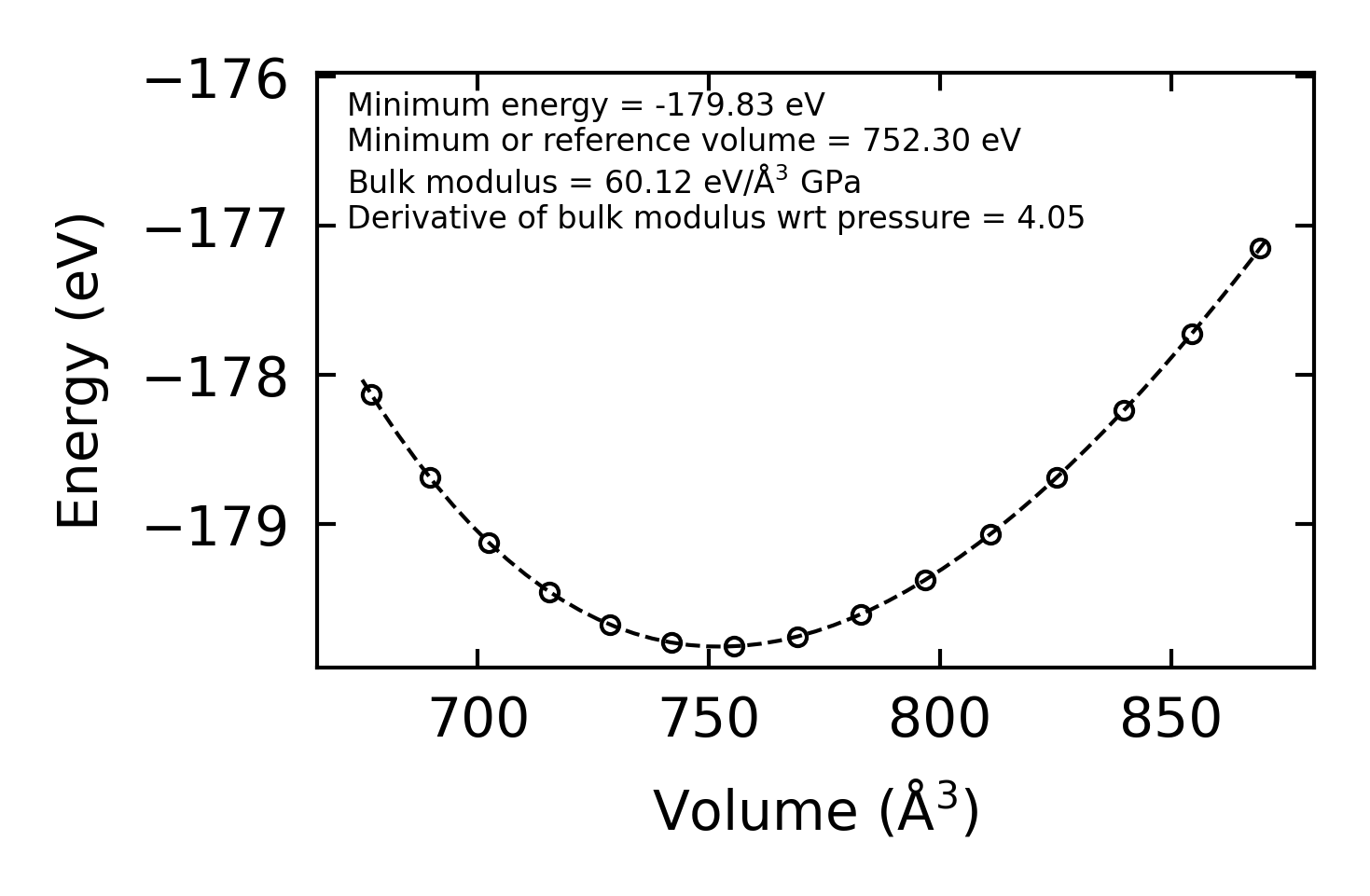

../../_images/fig_bm5471.png — (a) Equation of state

Harmonic properties

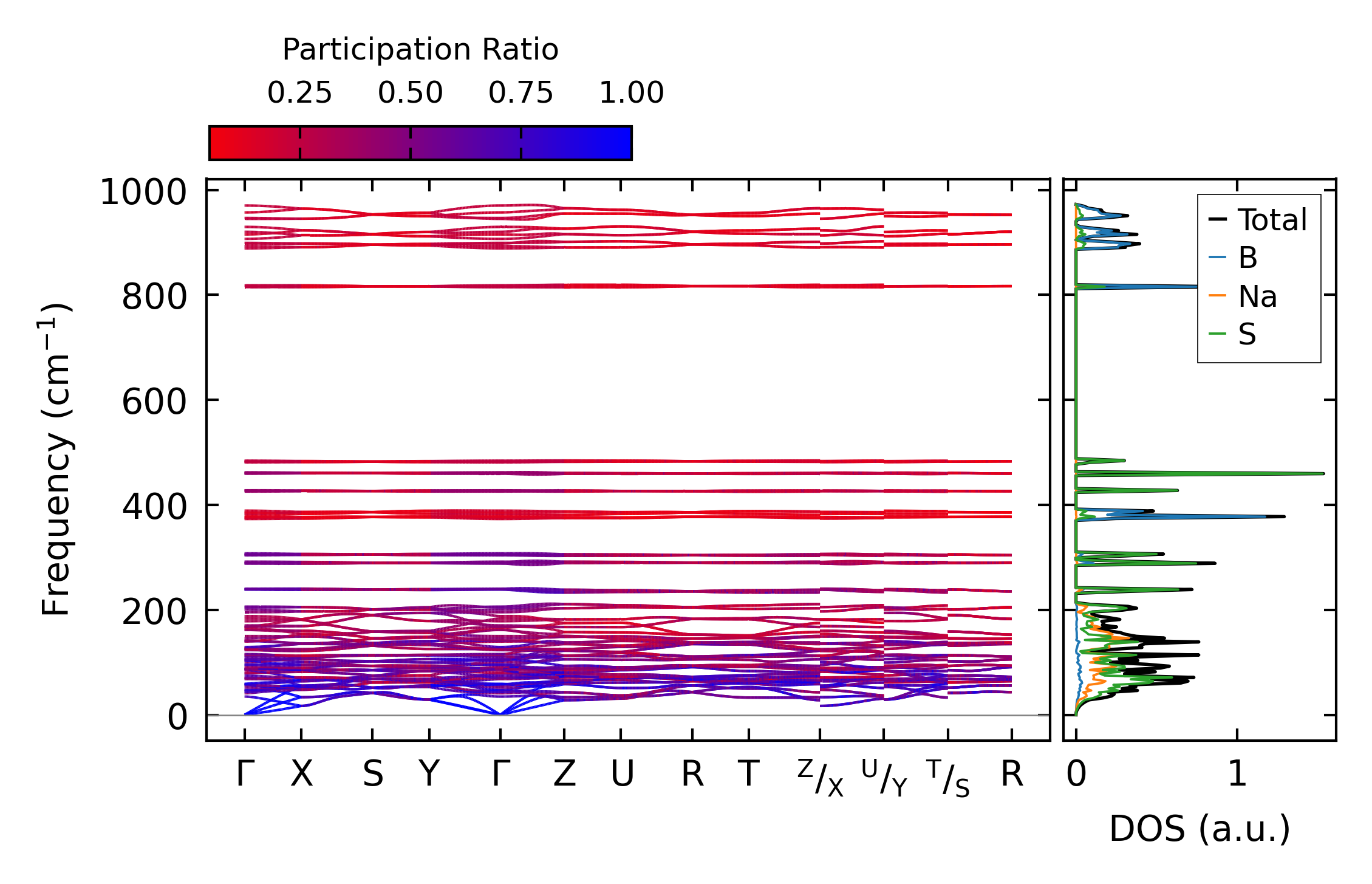

../../_images/fig_bandos_pr11192.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11192.png — (b) Thermodynamic properties

Grüneisen parameters

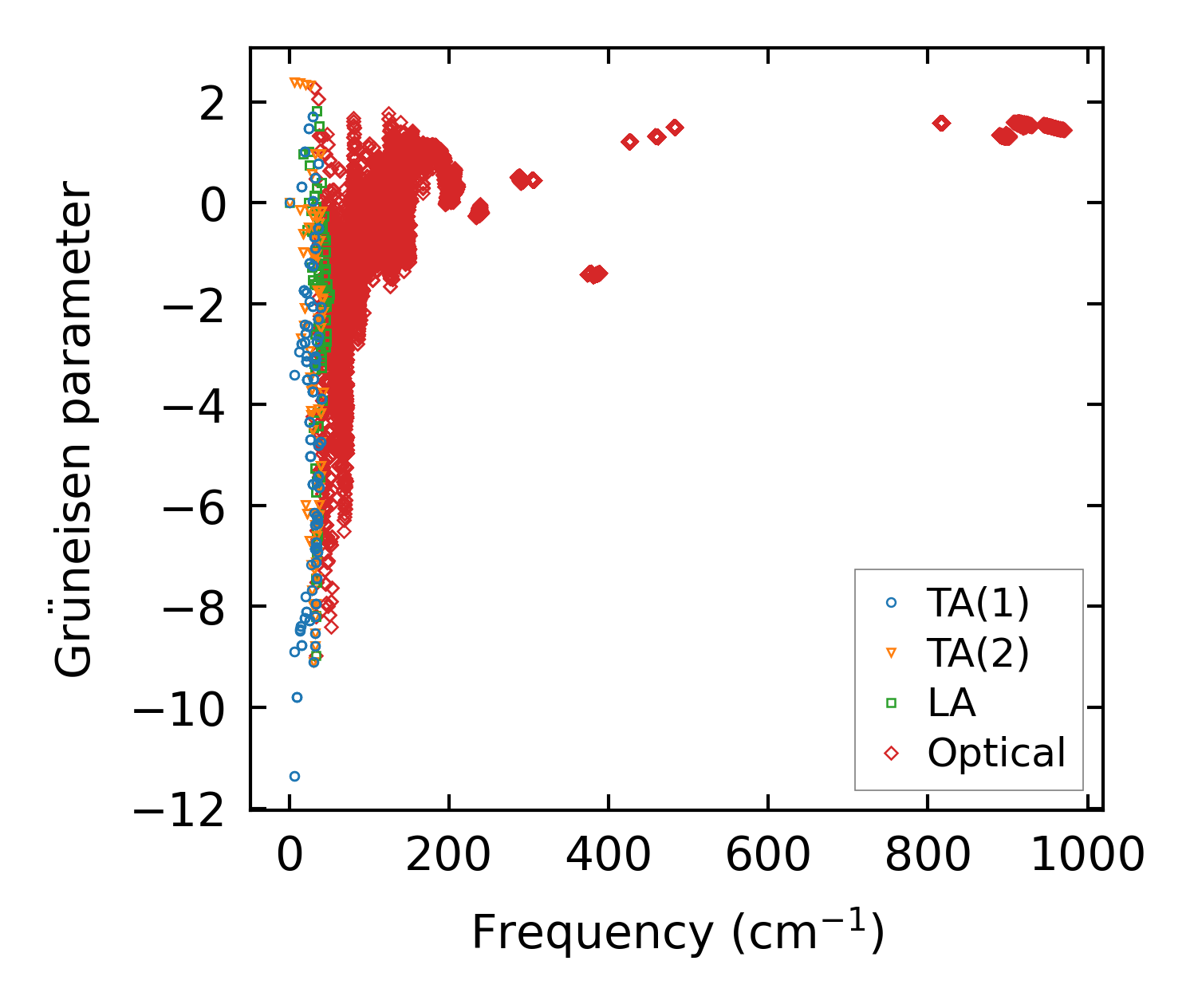

../../_images/fig_gru_all4617.png — (a) Grüneisen parameters

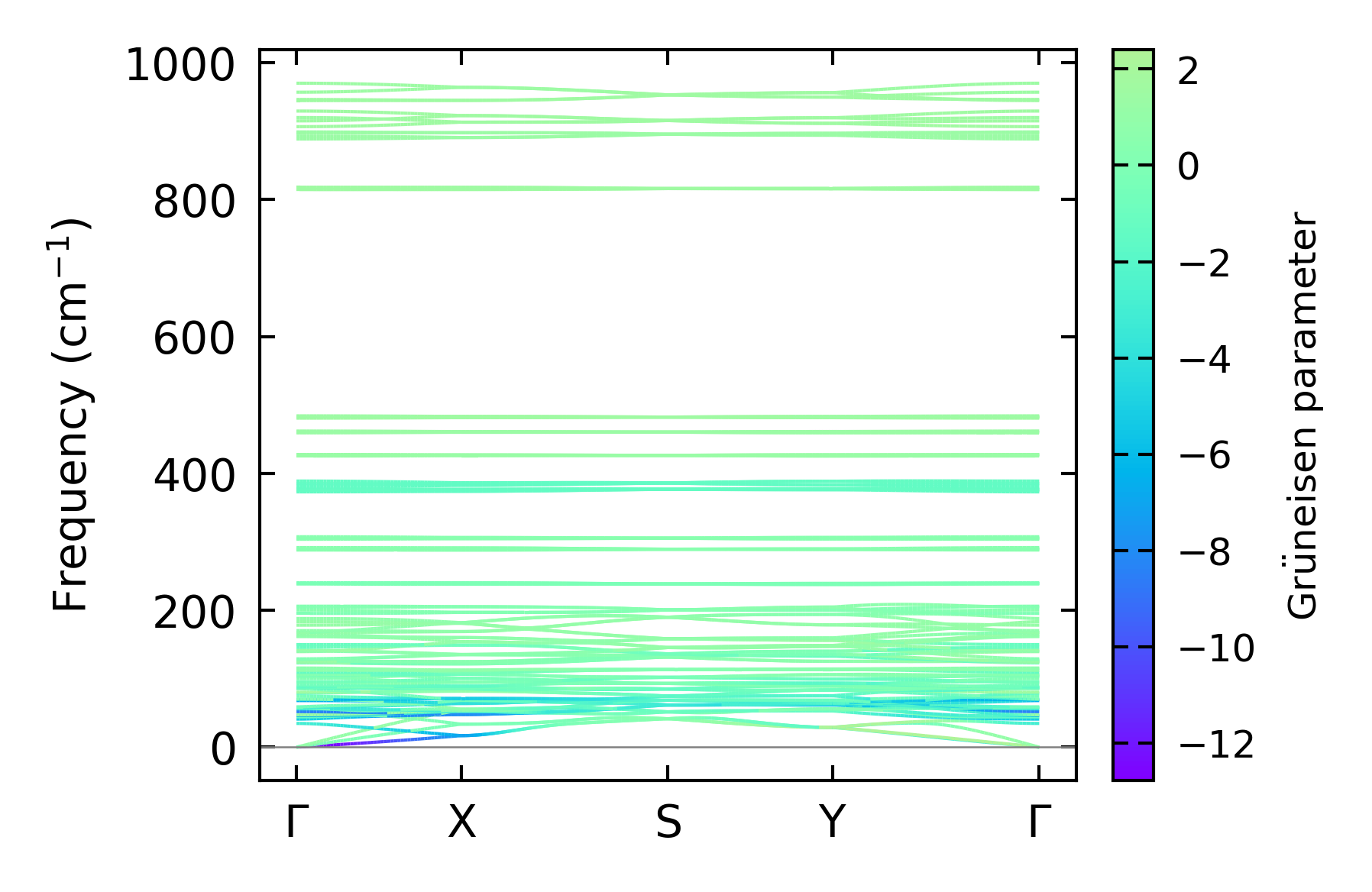

../../_images/fig_gruneisen4617.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x9x8, supercell: 1x2x2

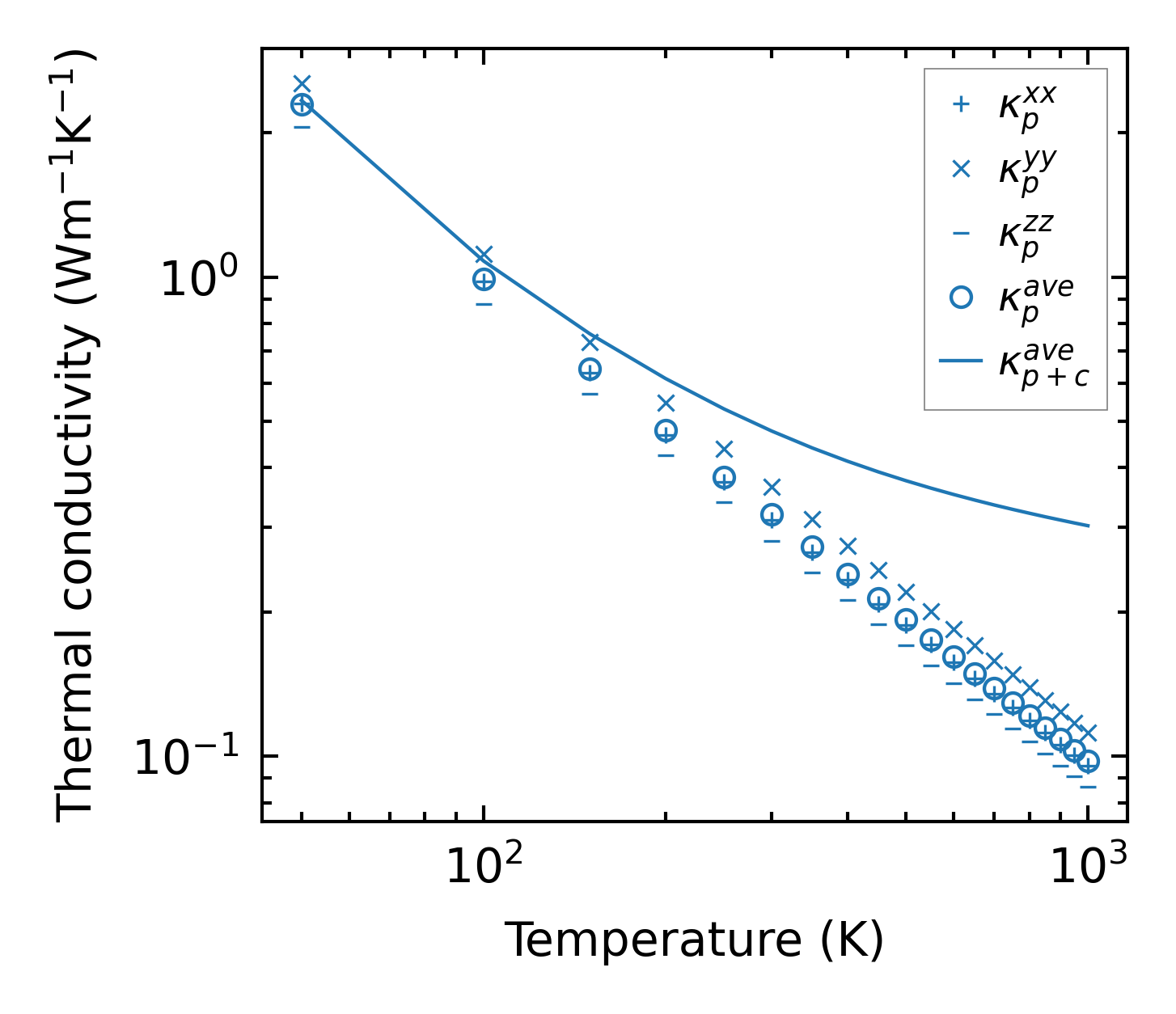

../../_images/fig_kappa8714.png — (a) Temperature-dependent lattice thermal conductivity

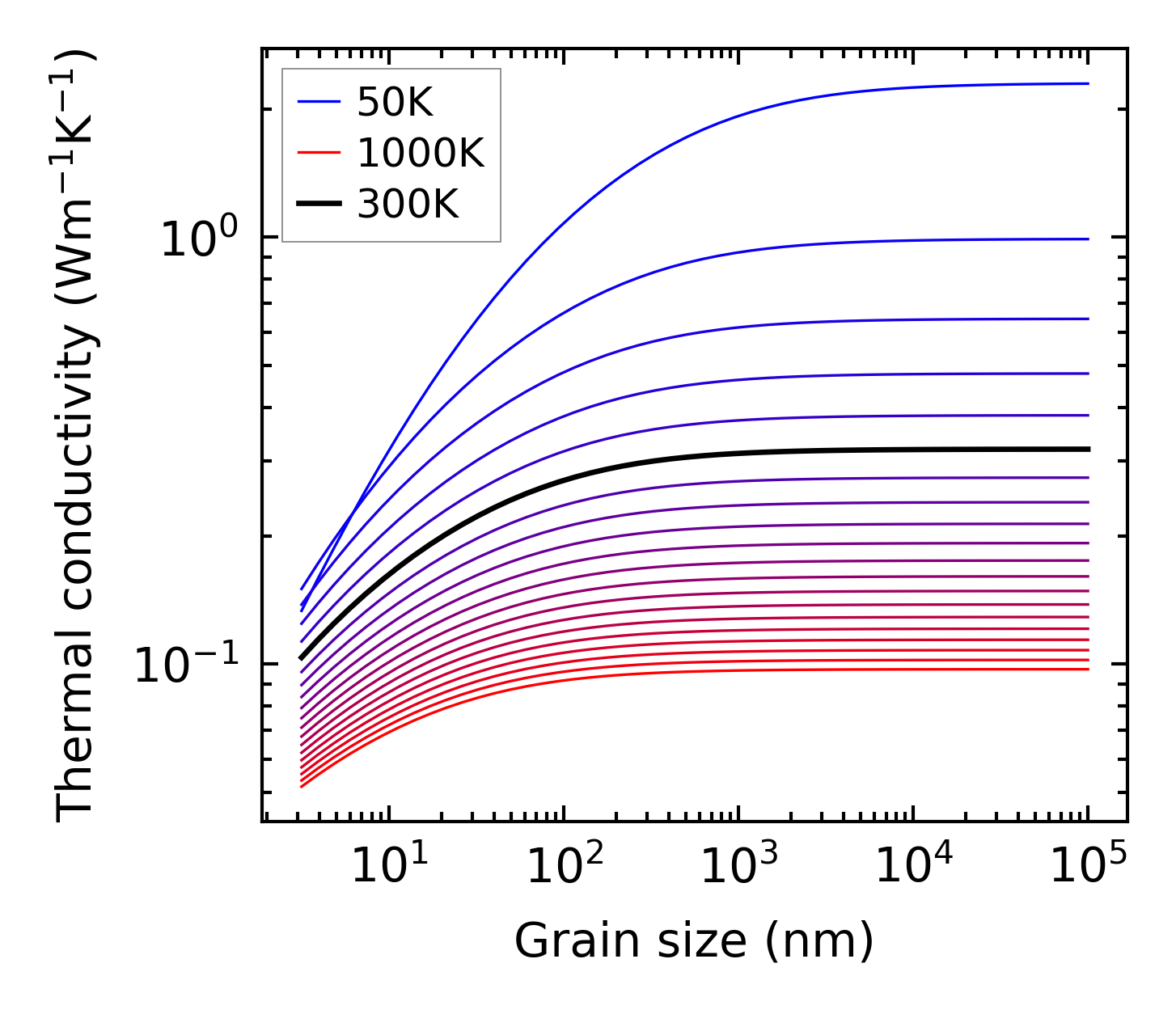

../../_images/fig_kappa_vs_grain_size4674.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

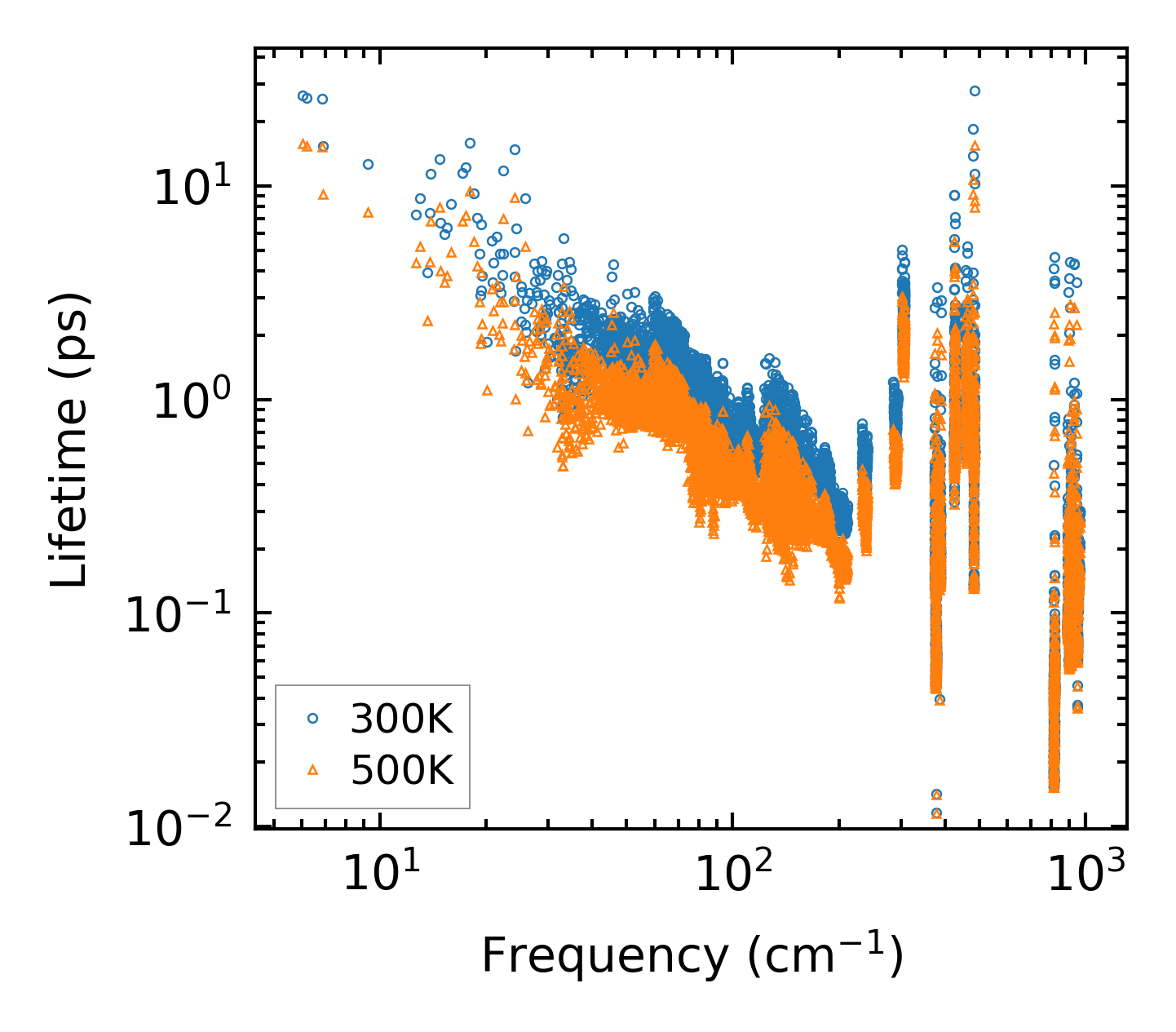

../../_images/fig_lifetime4573.png — (a) Phonon lifetime due to phonon-phonon scattering

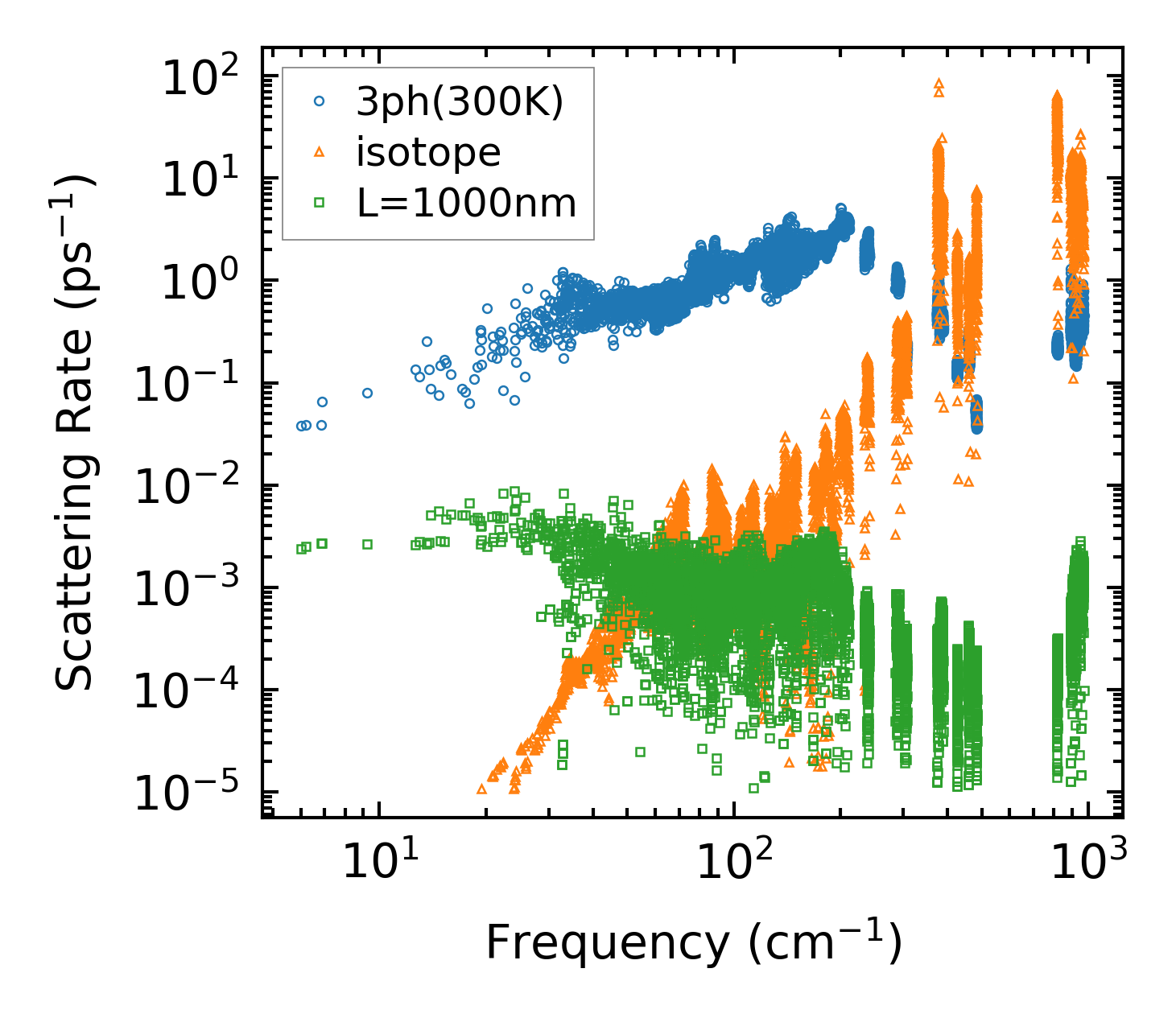

../../_images/fig_scat_rates4572.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

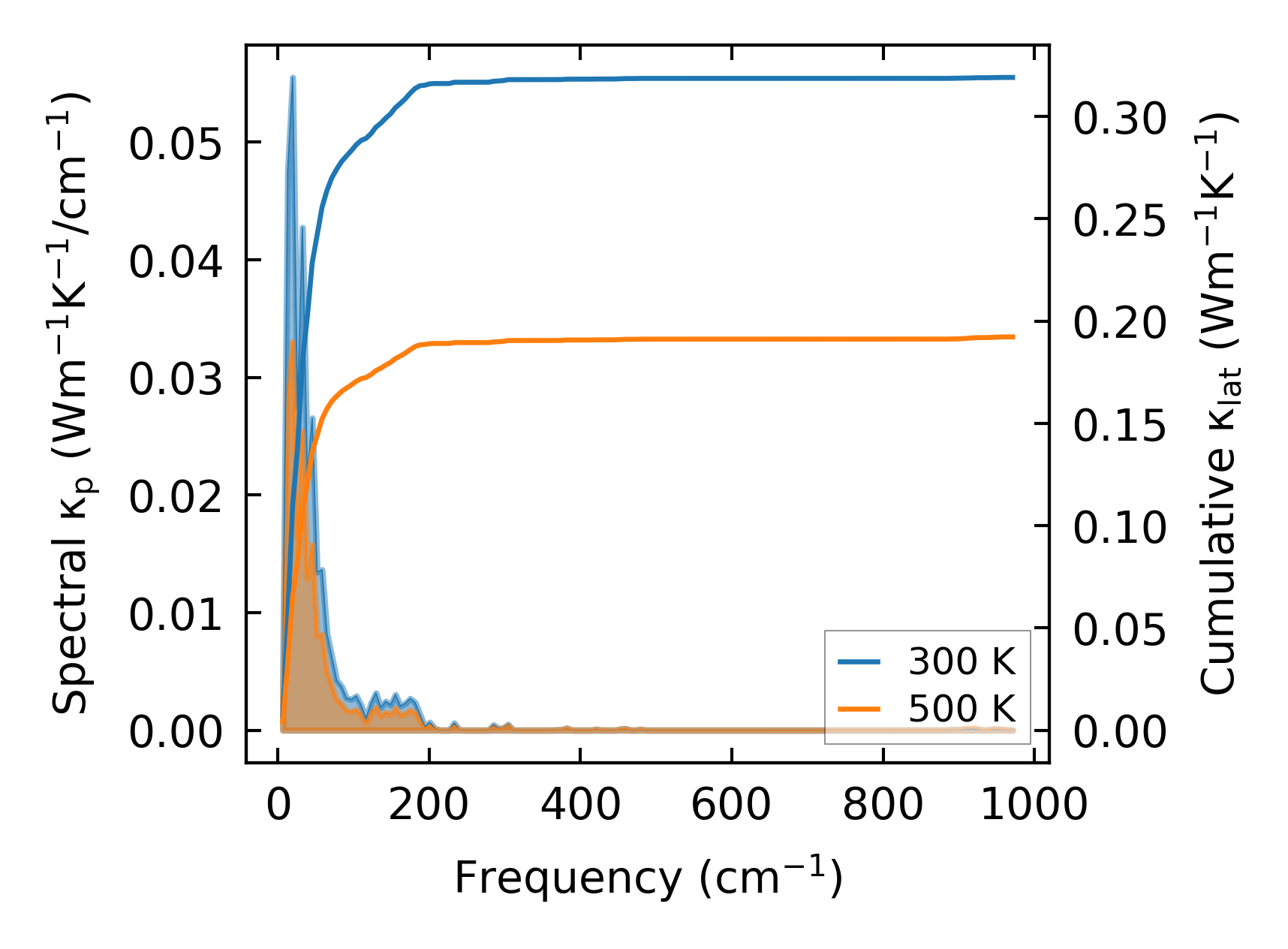

../../_images/fig_cumu_frequency4573.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

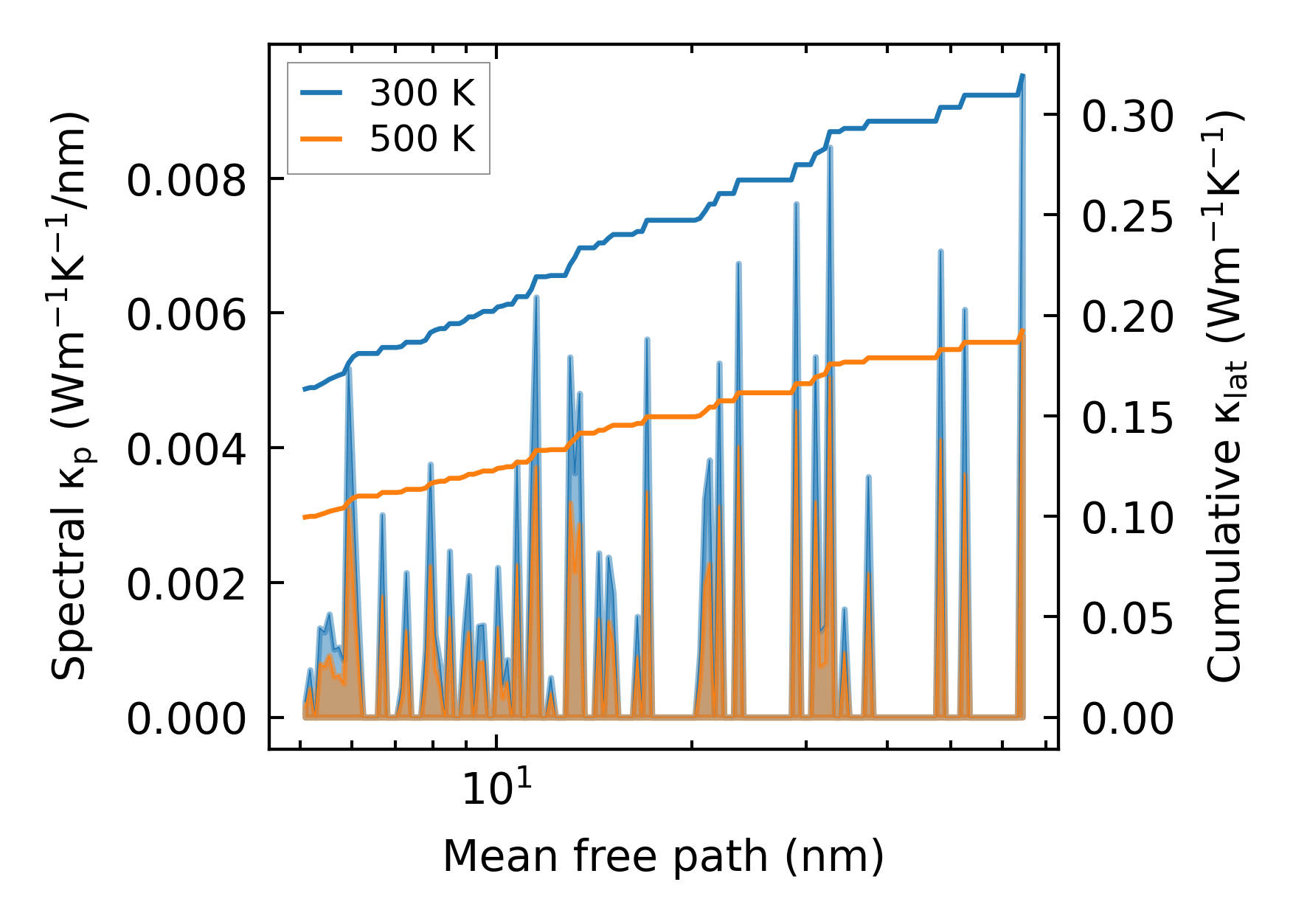

../../_images/fig_cumu_mfp4572.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

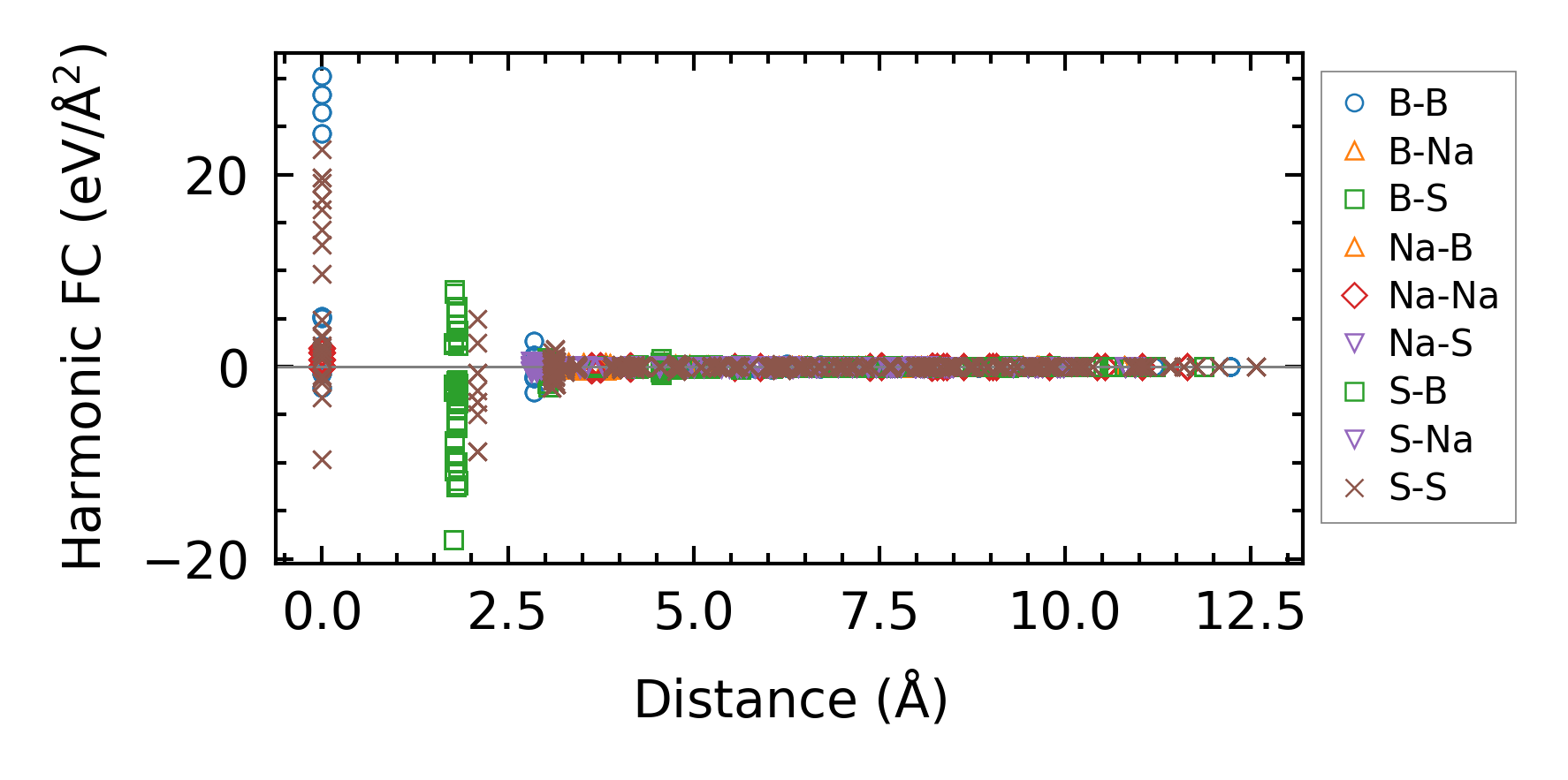

../../_images/fig_fc210908.png — (a) Force constants w.r.t atomic distance

Summary

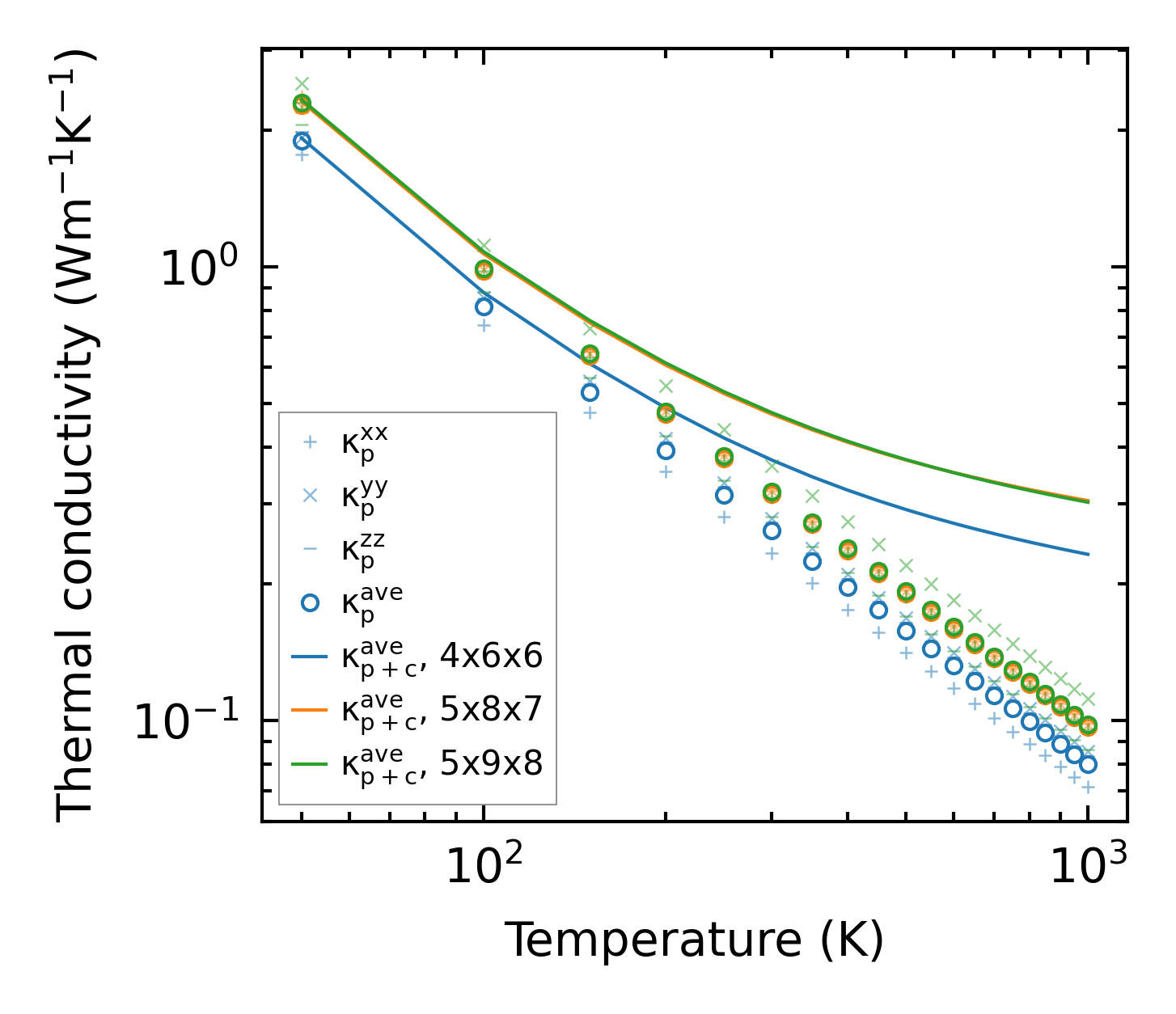

../../_images/fig_kappa8715.png — (a) Temperature-dependent lattice thermal conductivity

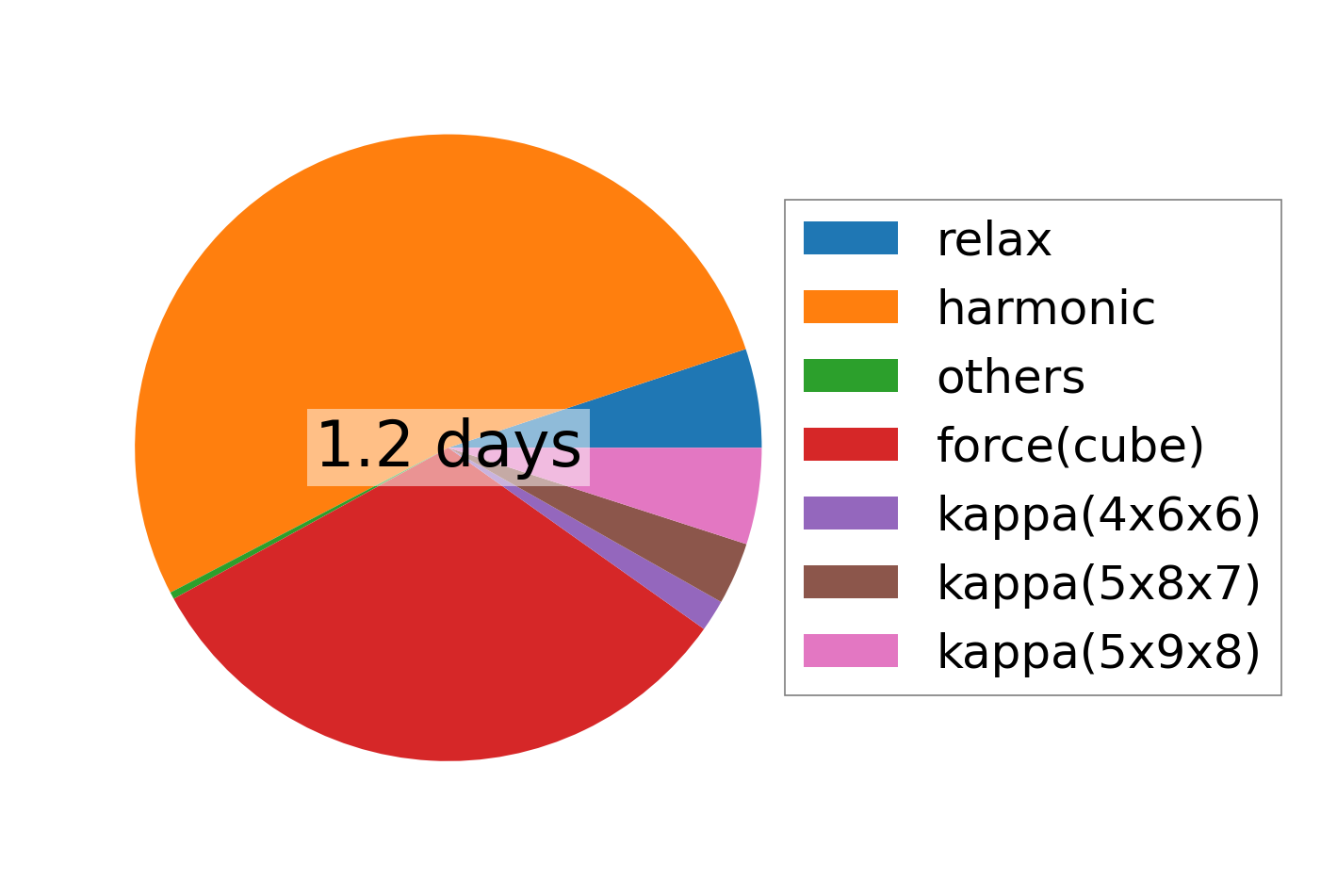

../../_images/fig_times19122.png — (b) Computation time
