mp-29249/GeAsSe/anharm

Space group: Pnna (52)
Link: Materials Project
Download: mp-29249.tar.gz

Harmonic properties

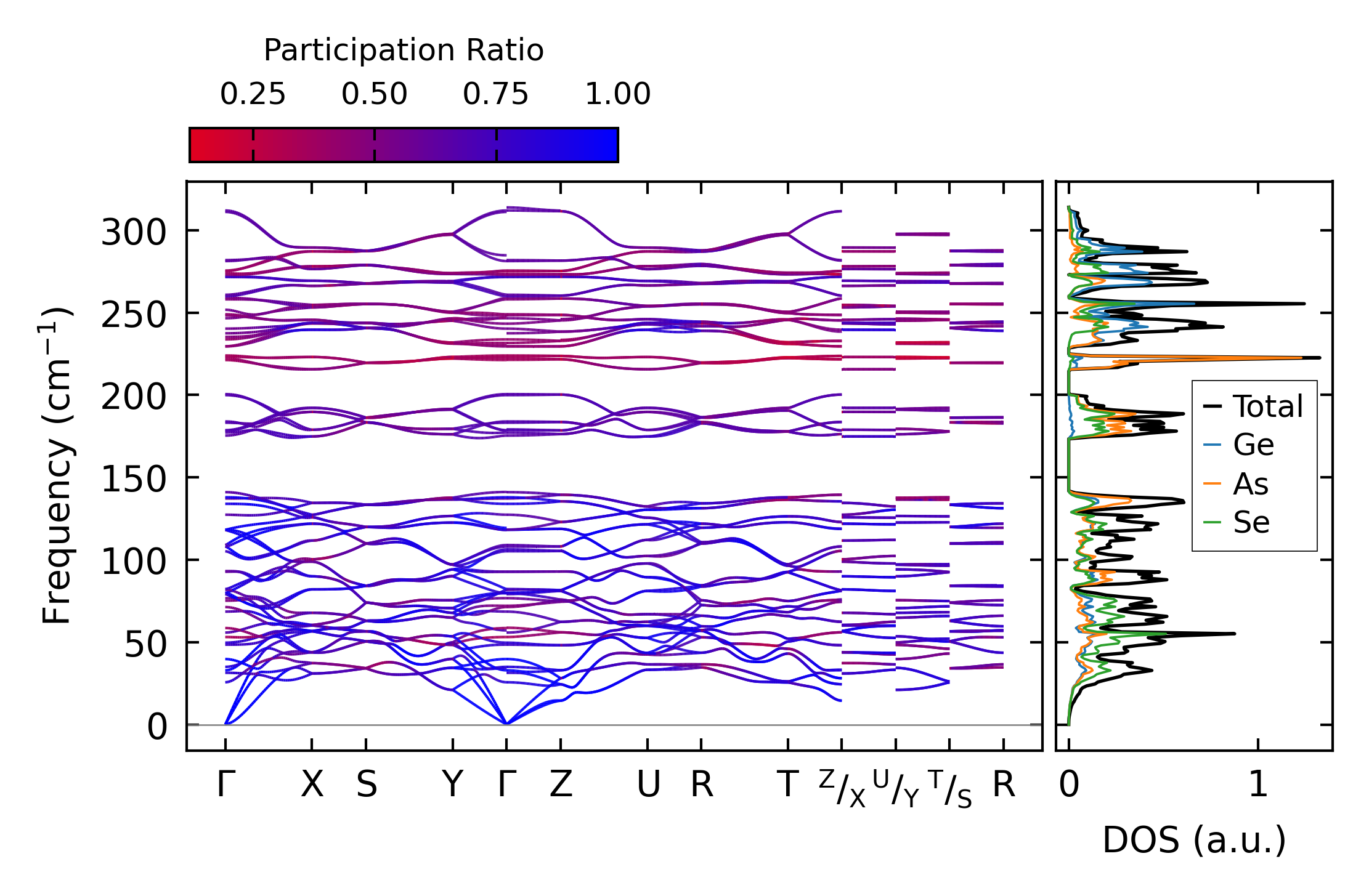

../../_images/fig_bandos_pr11462.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11462.png — (b) Thermodynamic properties

Grüneisen parameters

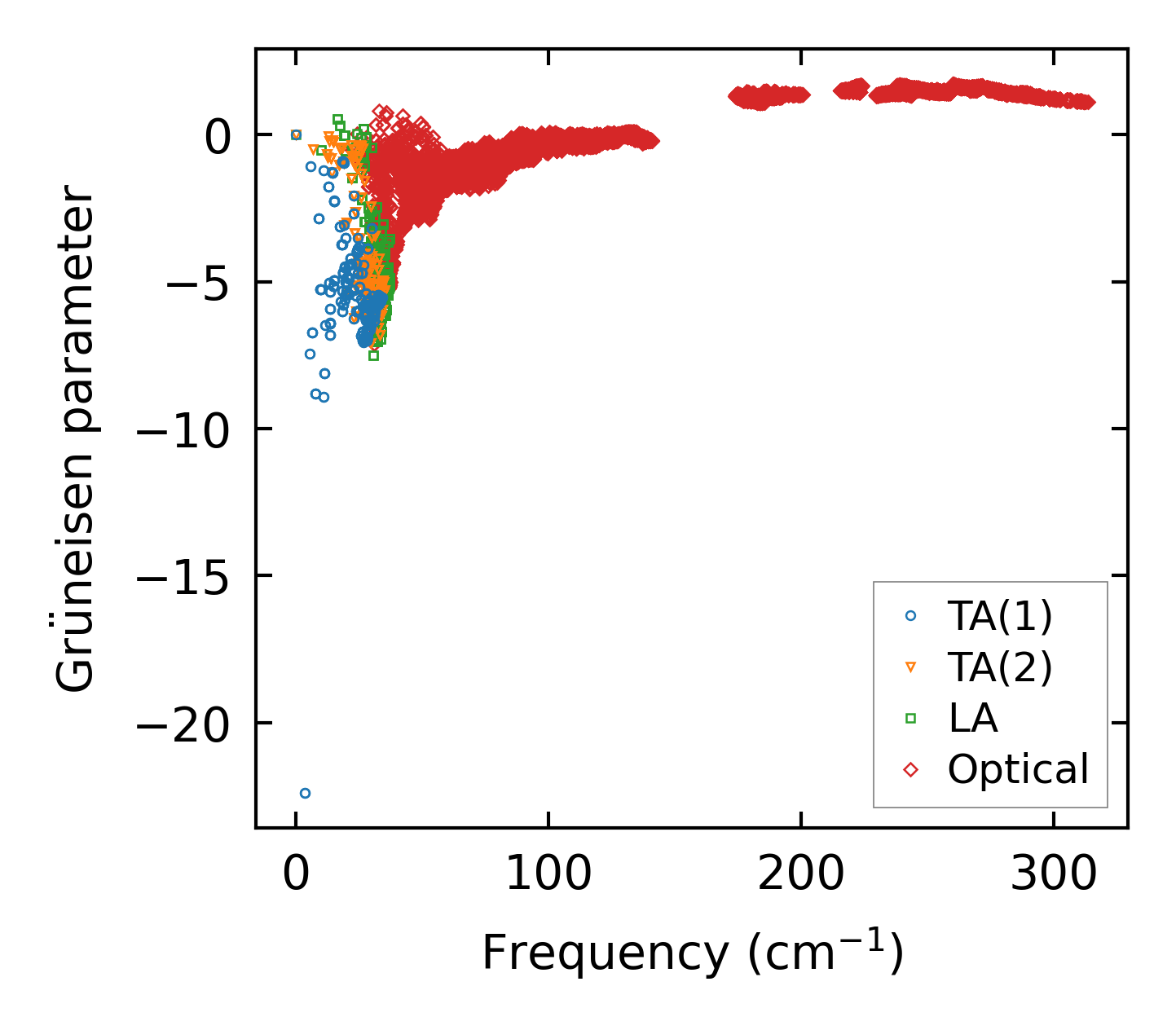

../../_images/fig_gru_all4752.png — (a) Grüneisen parameters

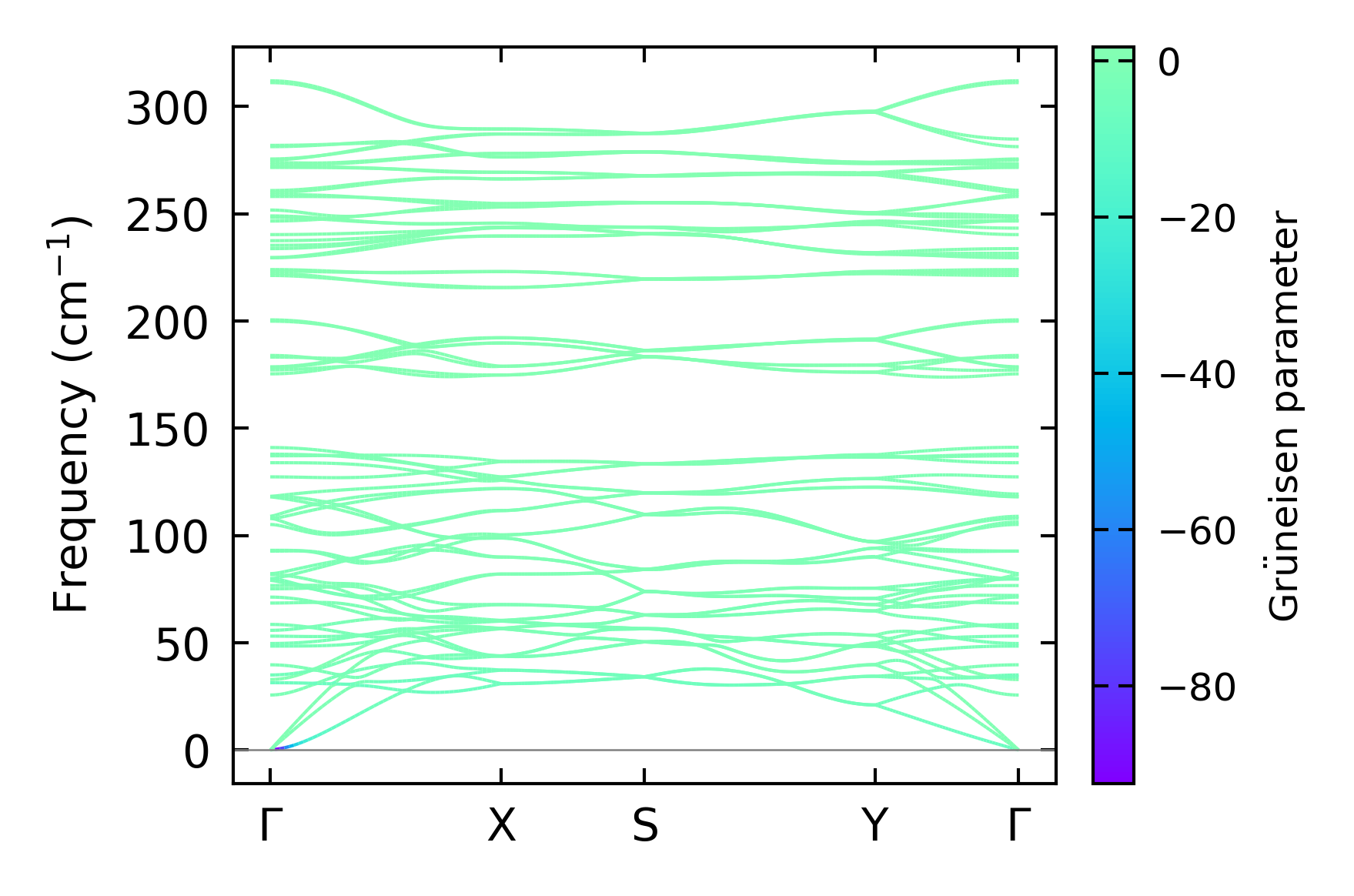

../../_images/fig_gruneisen4752.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x7x6, supercell: 3x2x1

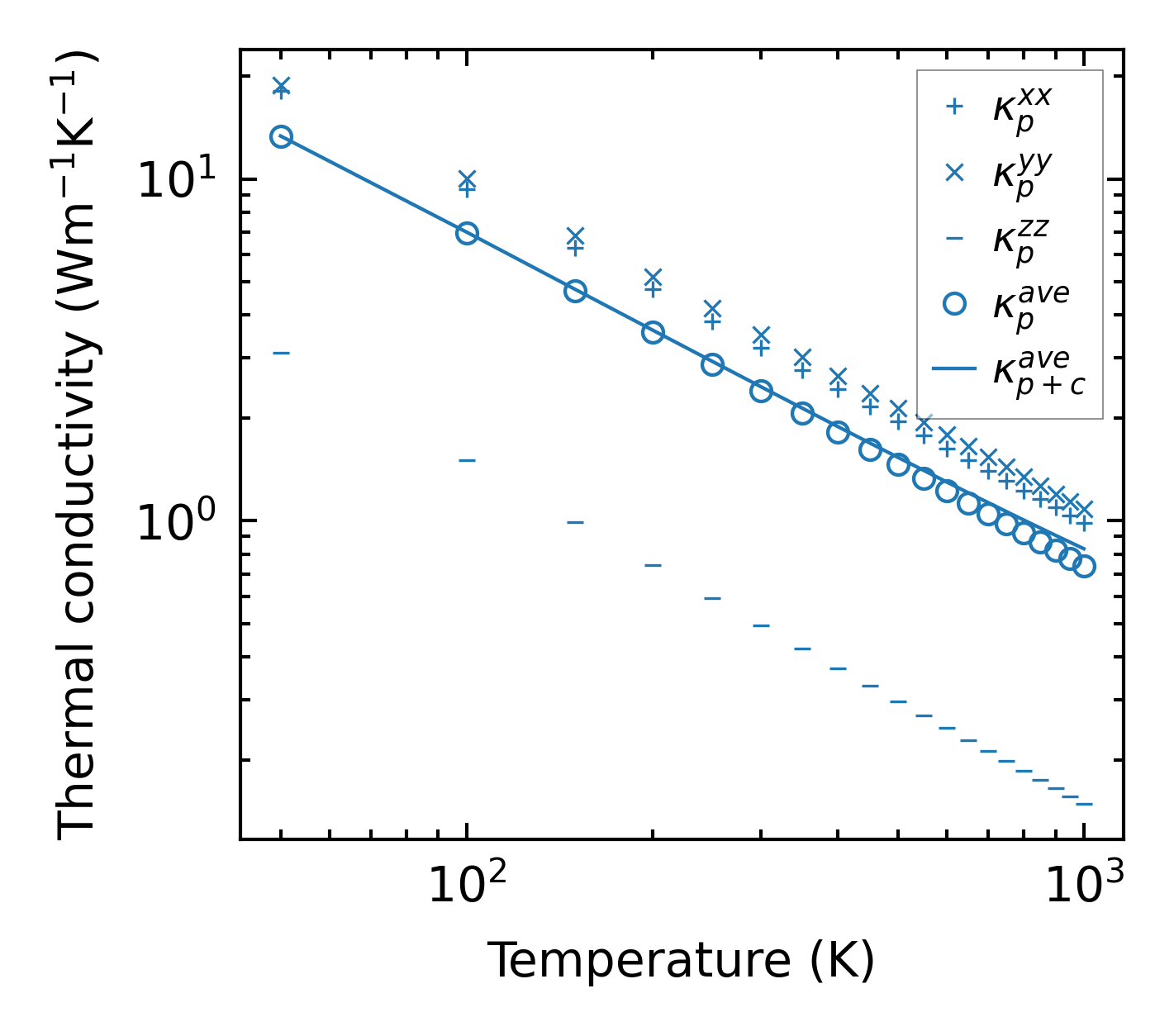

../../_images/fig_kappa8968.png — (a) Temperature-dependent lattice thermal conductivity

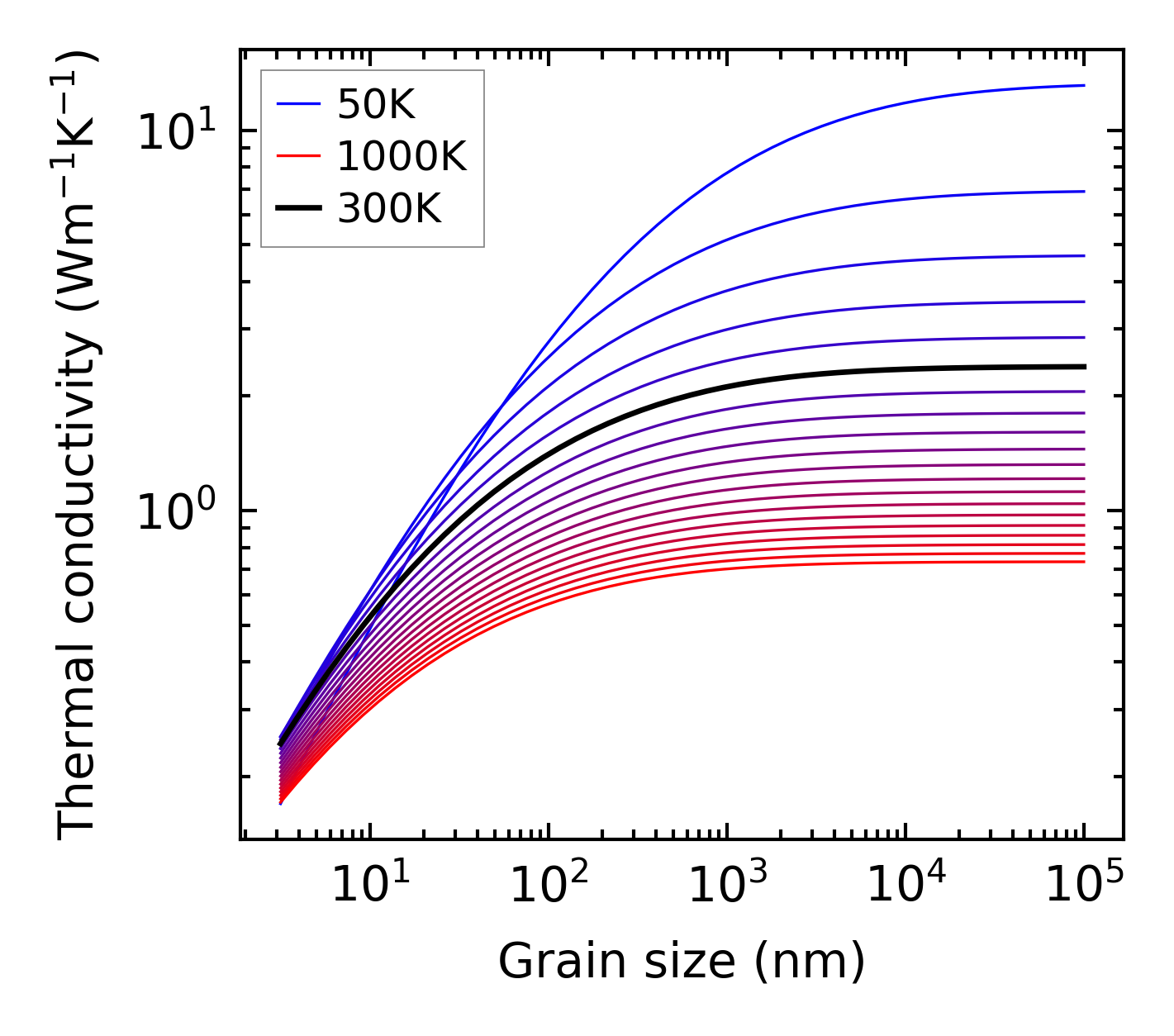

../../_images/fig_kappa_vs_grain_size4810.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4707.png — (a) Phonon lifetime due to phonon-phonon scattering

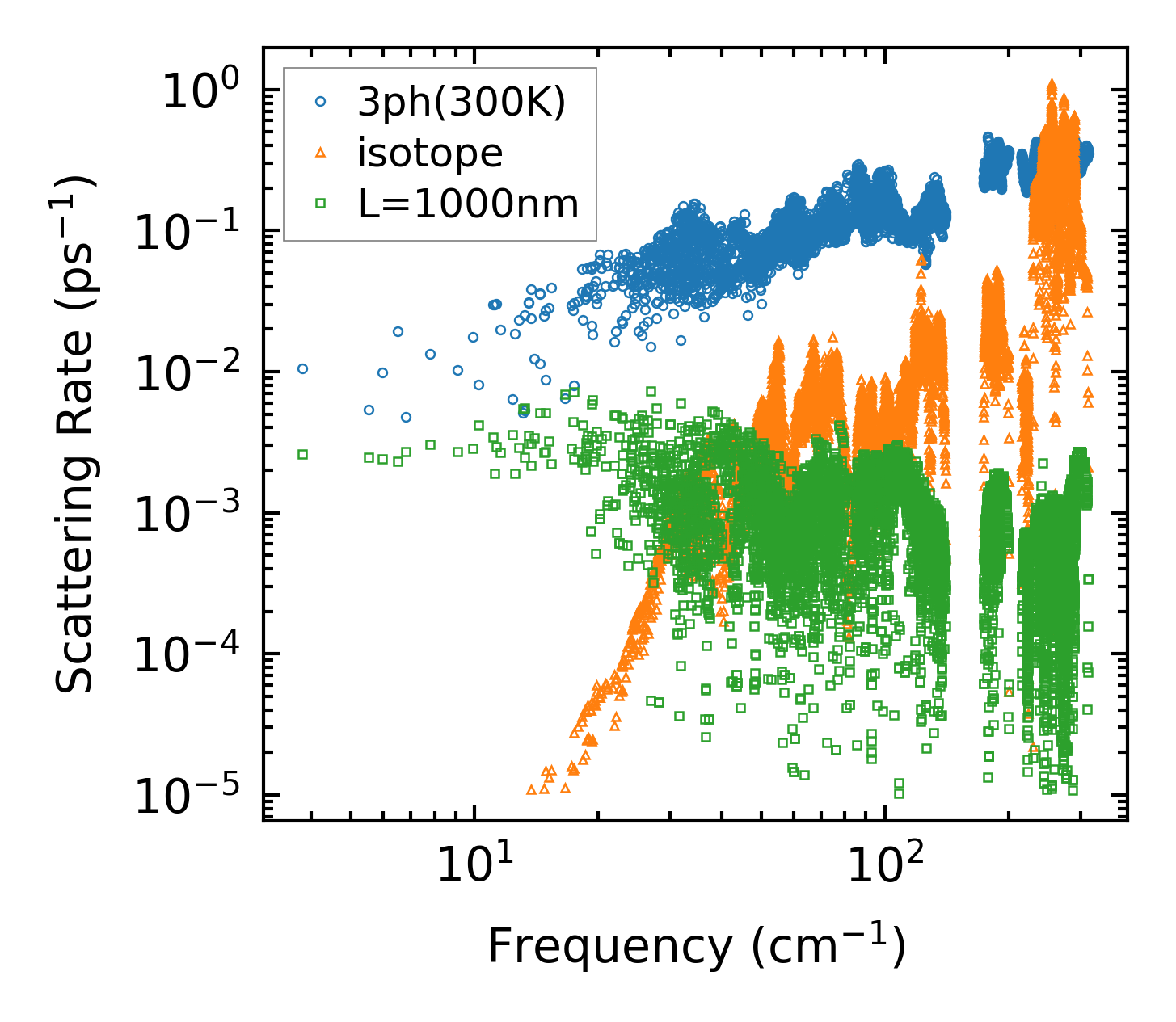

../../_images/fig_scat_rates4706.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

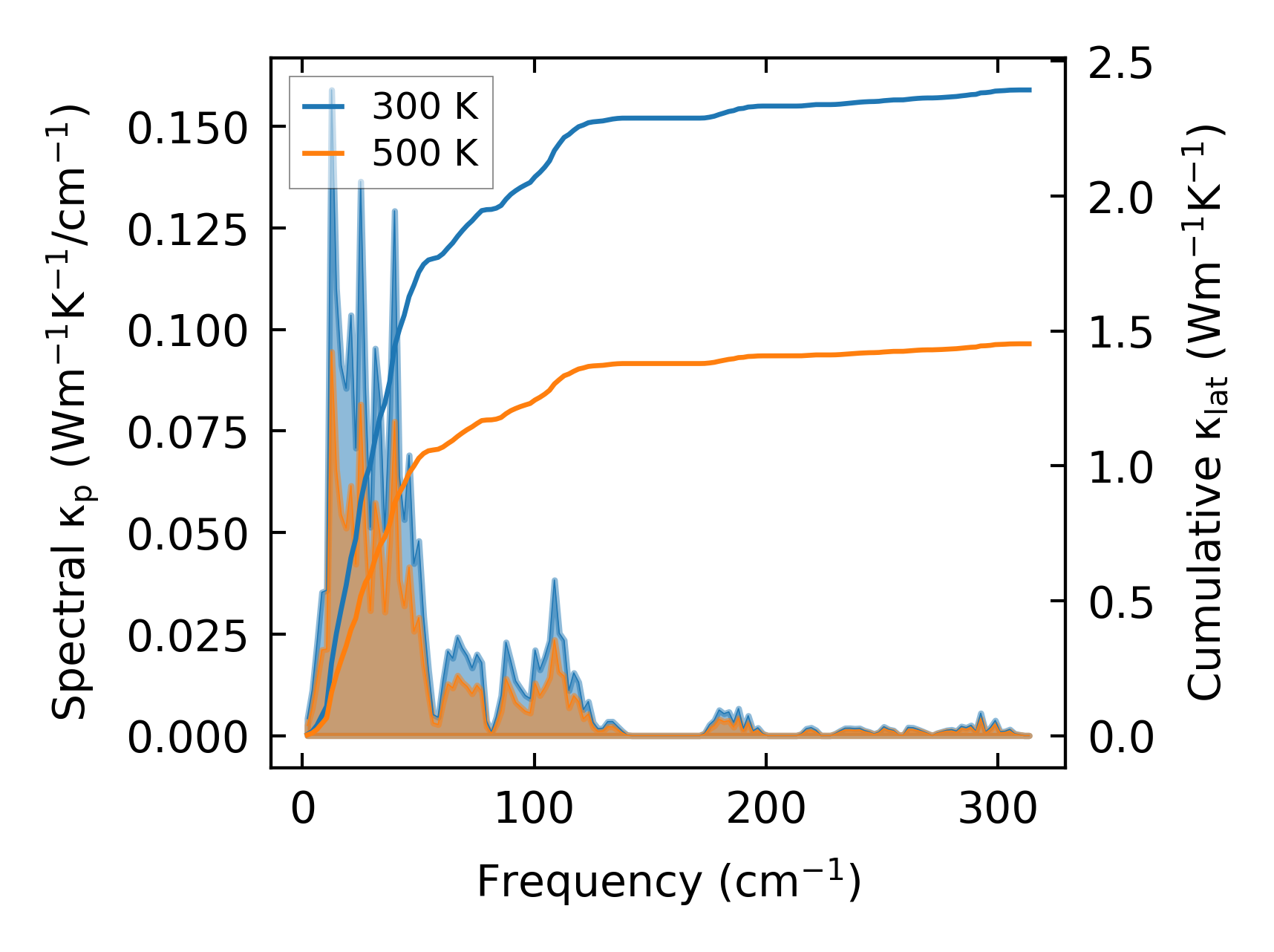

../../_images/fig_cumu_frequency4707.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4706.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211178.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8969.png — (a) Temperature-dependent lattice thermal conductivity

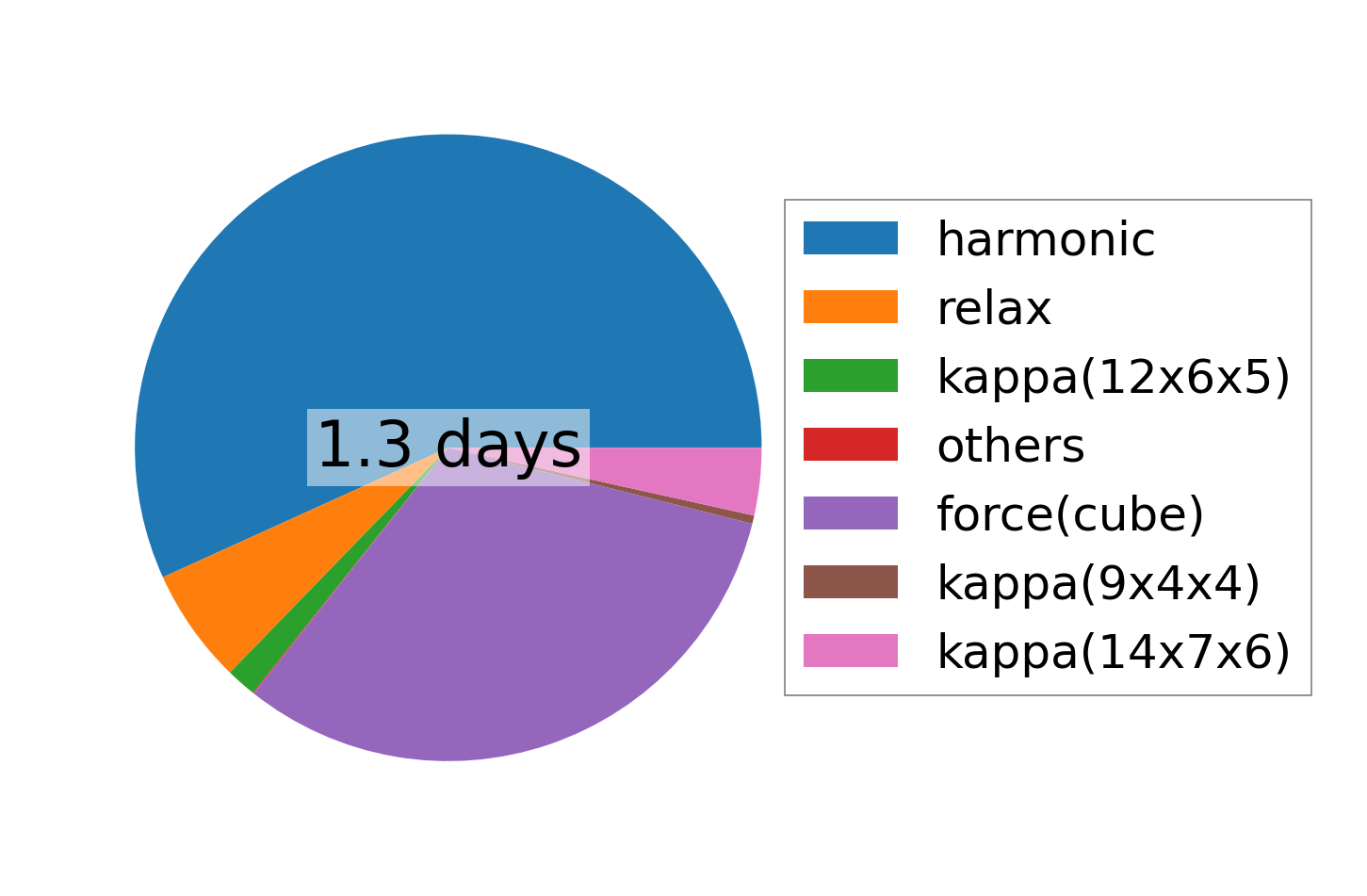

../../_images/fig_times19534.png — (b) Computation time
