mp-29055/KSb2/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-29055.tar.gz

Harmonic properties

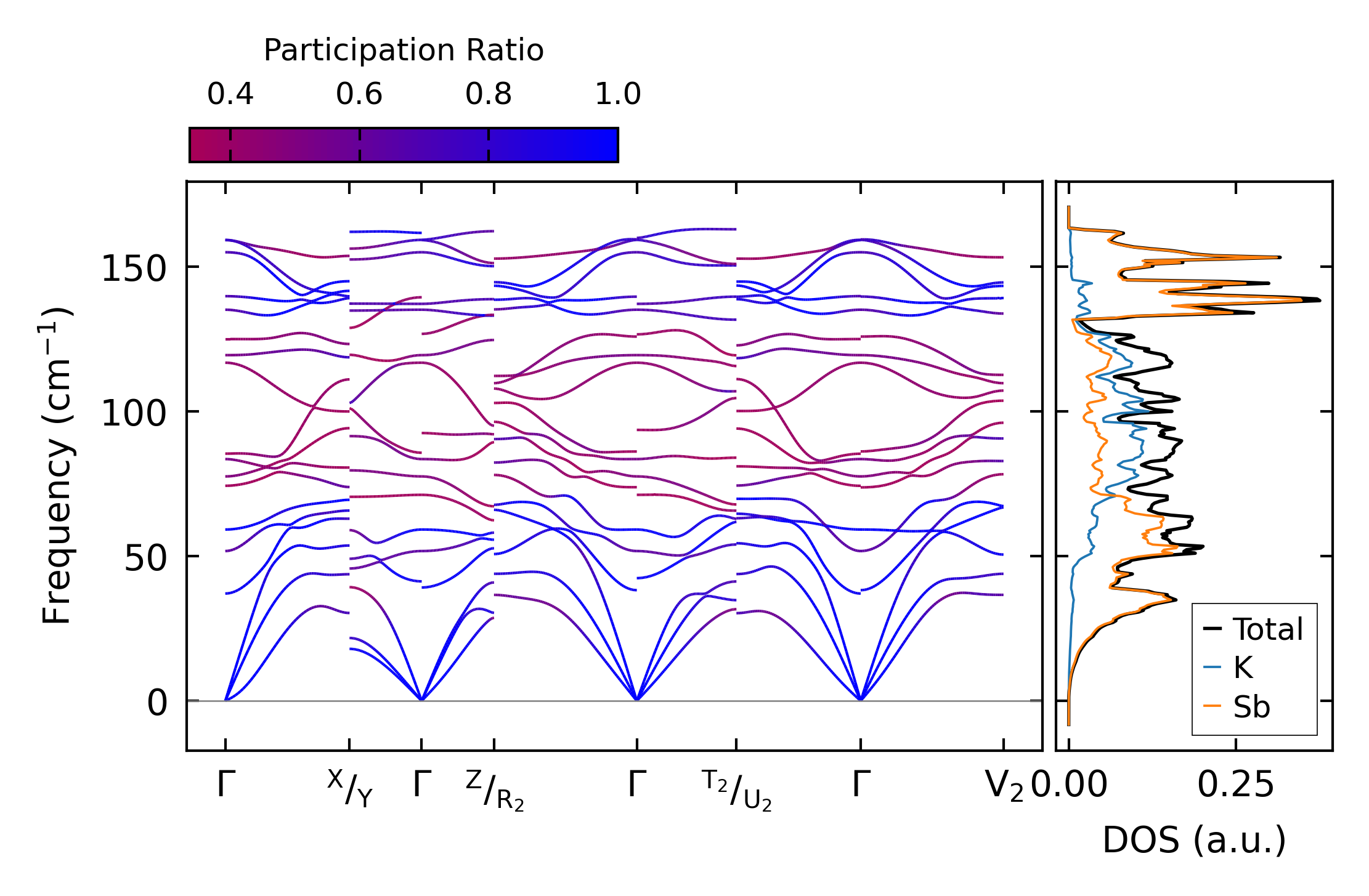

../../_images/fig_bandos_pr11376.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11376.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4711.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4711.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x10x10, supercell: 4x3x2

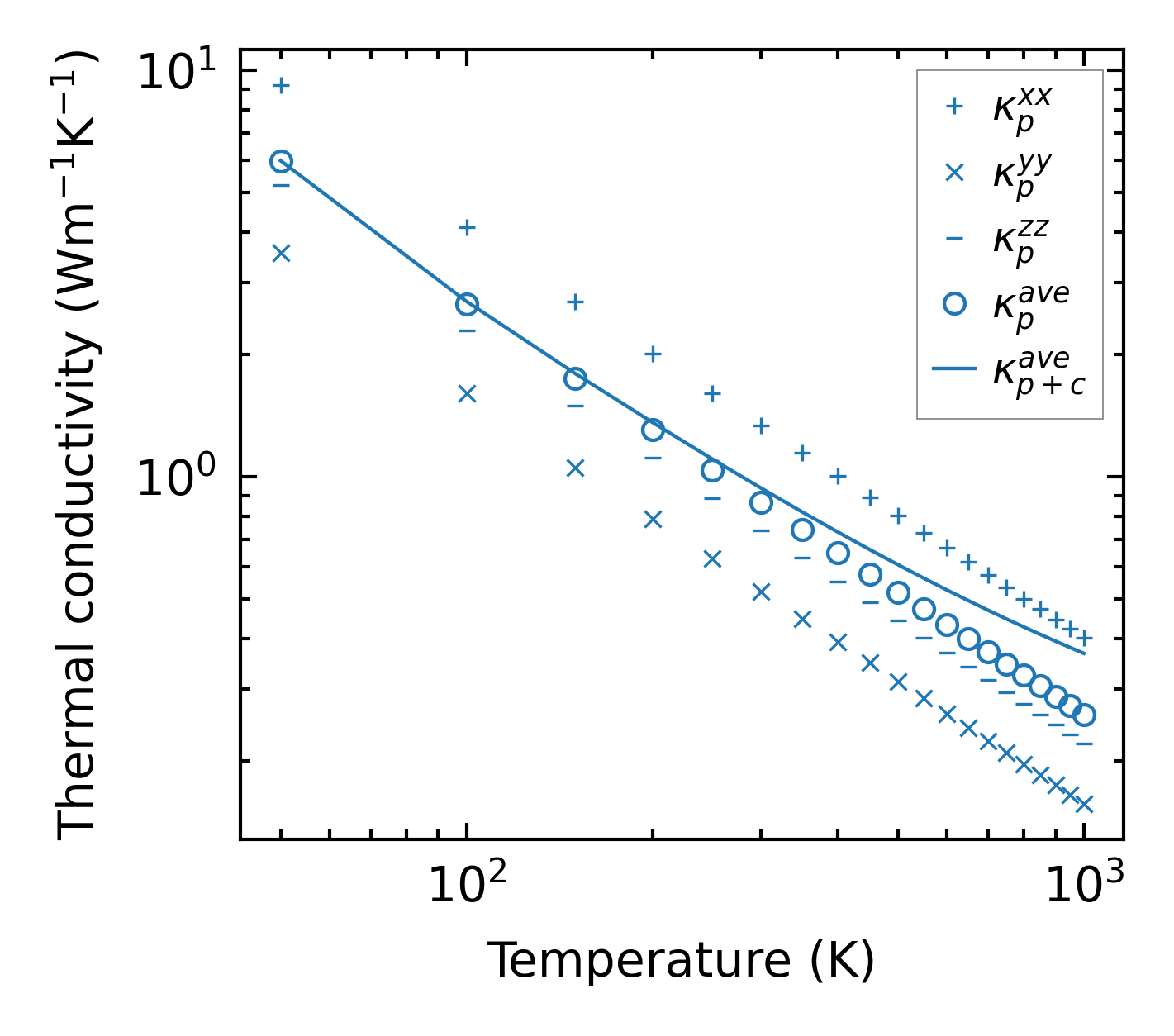

../../_images/fig_kappa8893.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4770.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

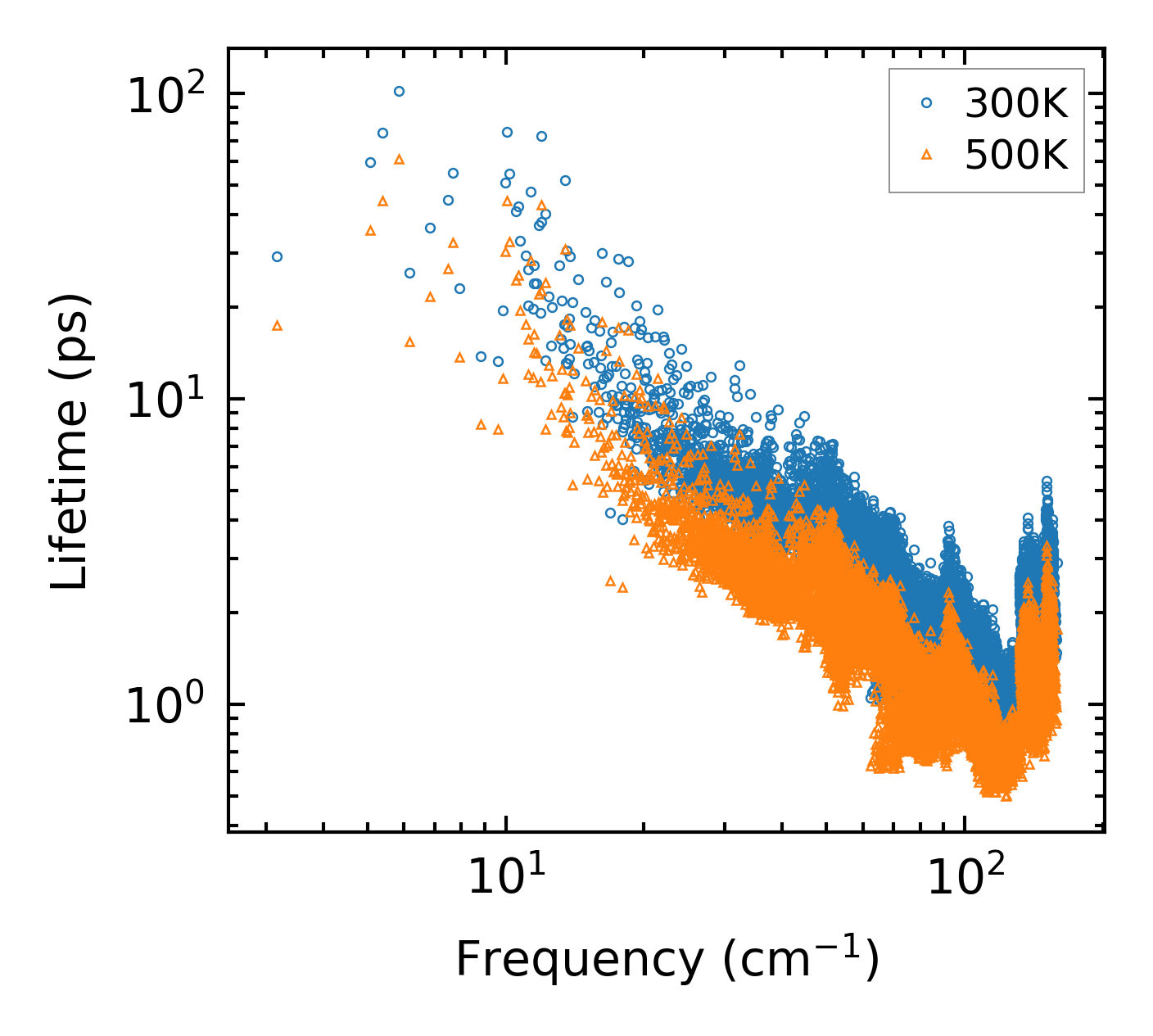

../../_images/fig_lifetime4667.png — (a) Phonon lifetime due to phonon-phonon scattering

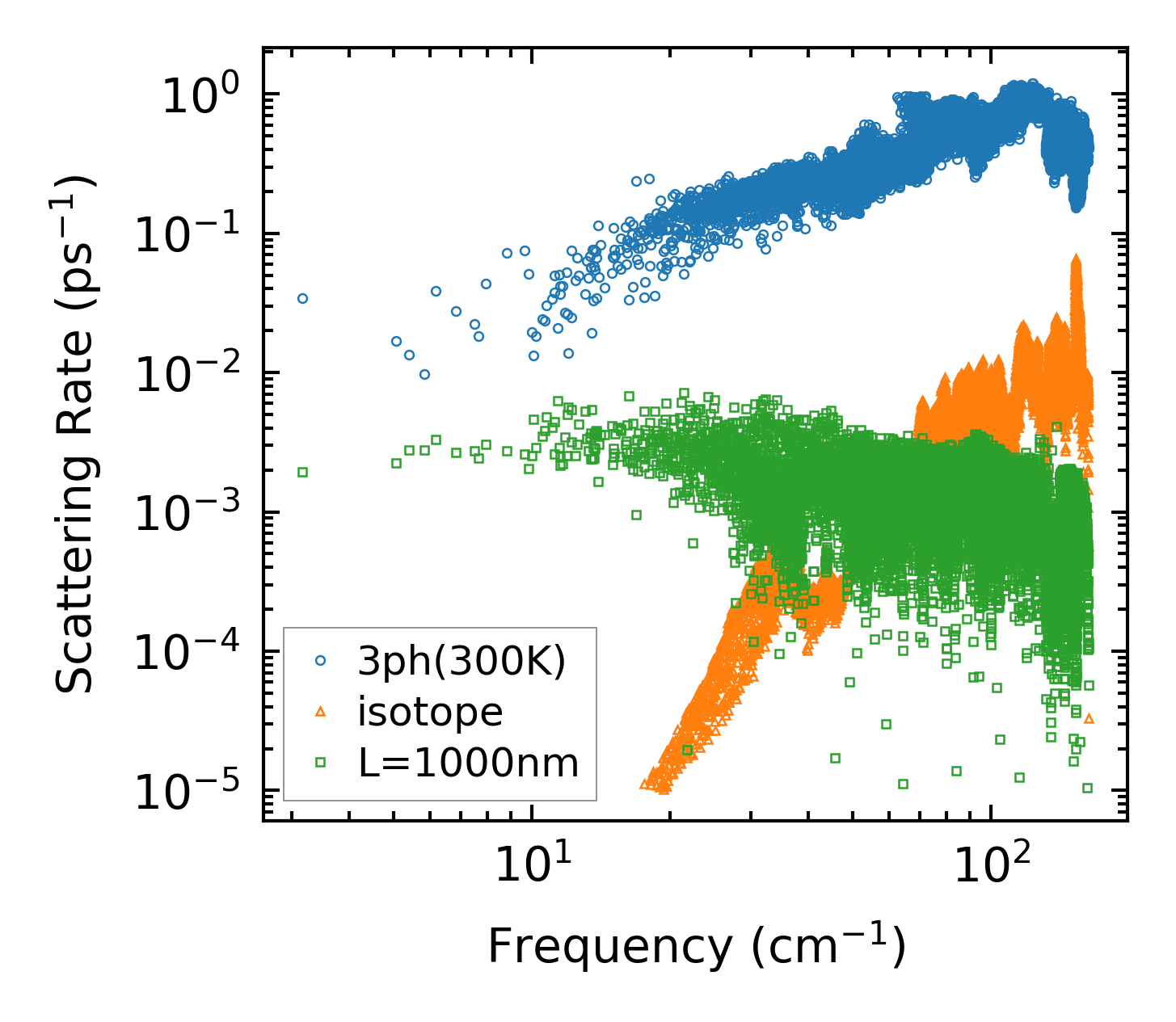

../../_images/fig_scat_rates4666.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

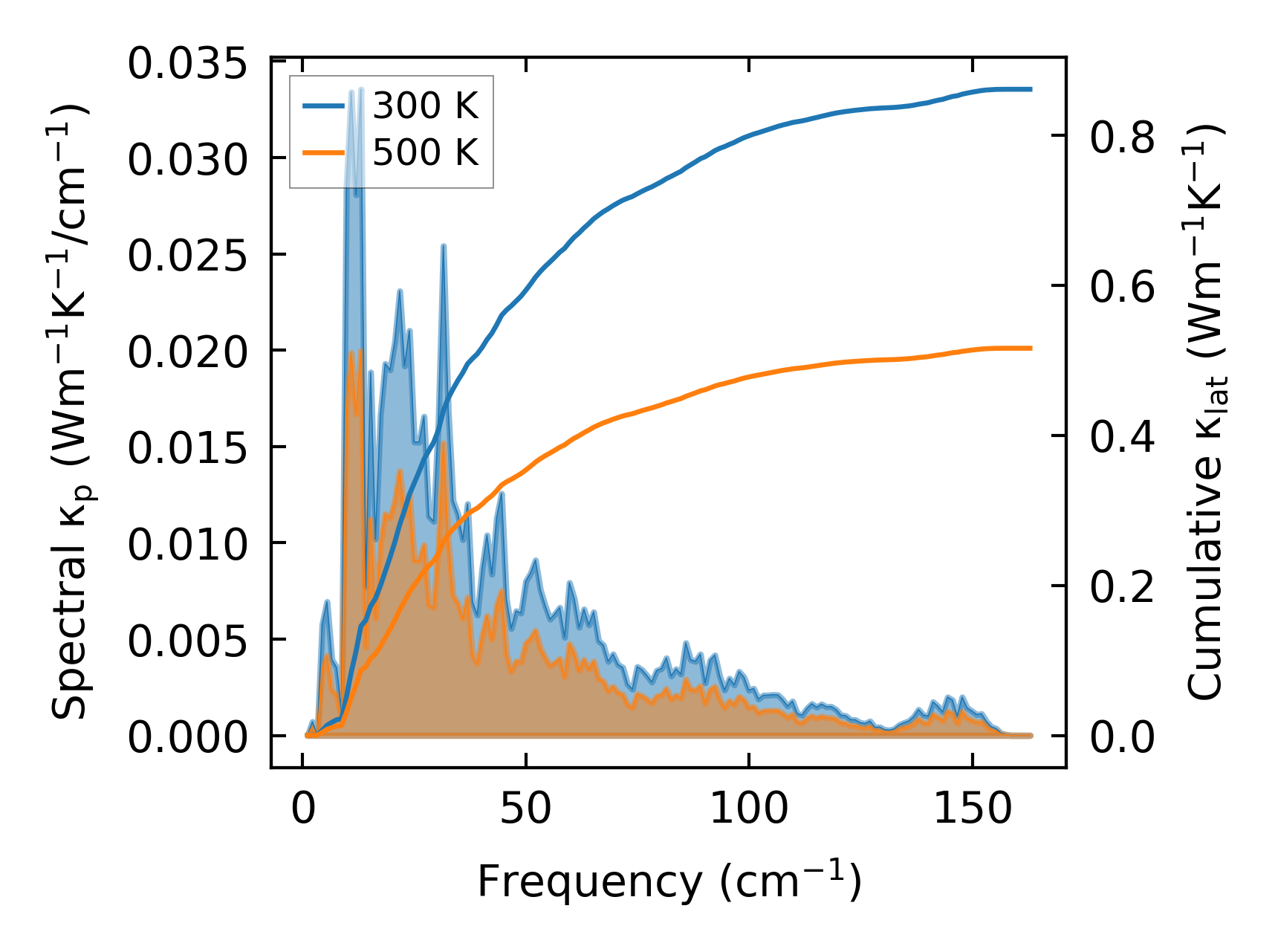

../../_images/fig_cumu_frequency4667.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

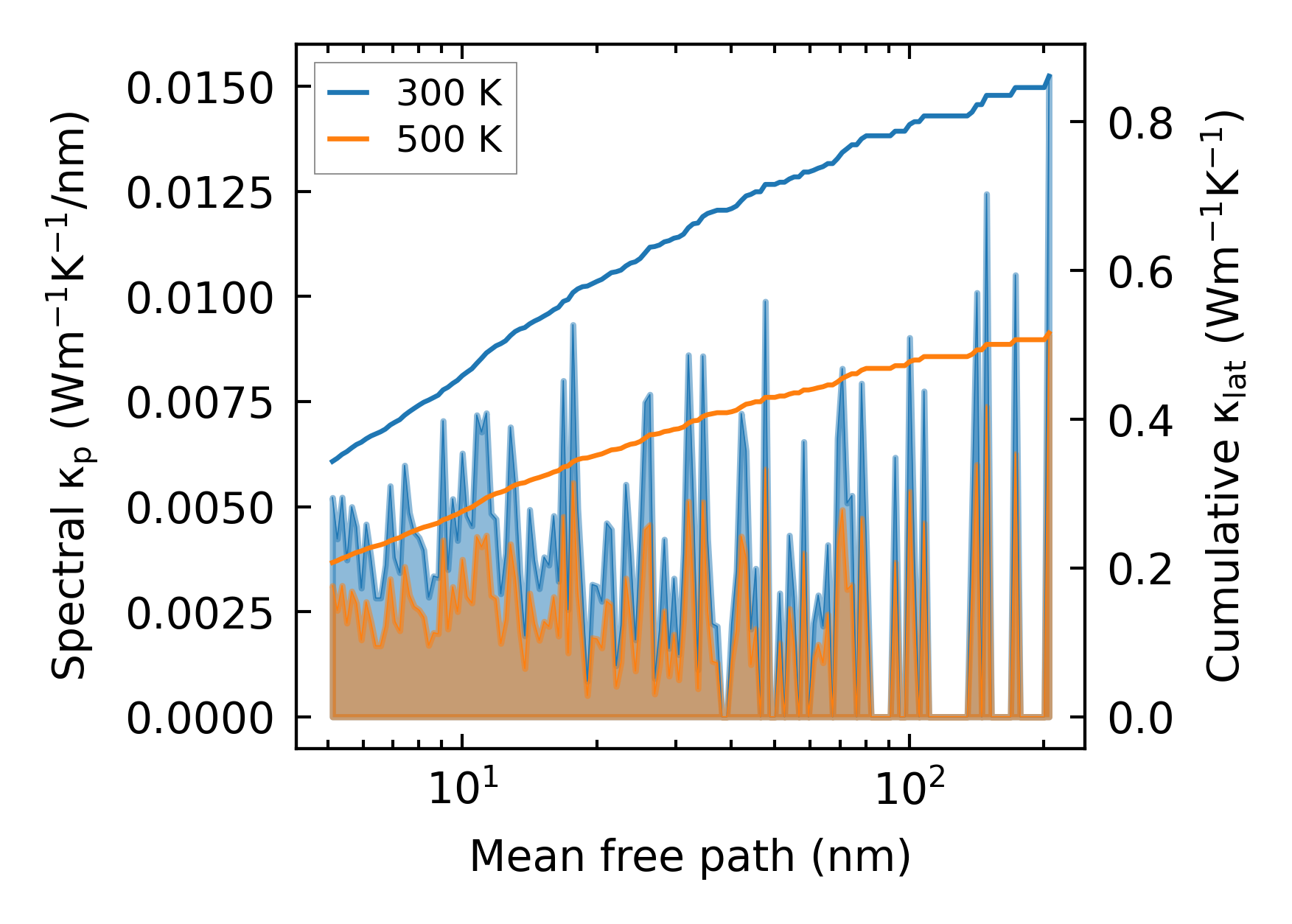

../../_images/fig_cumu_mfp4666.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211092.png — (a) Force constants w.r.t atomic distance

Summary

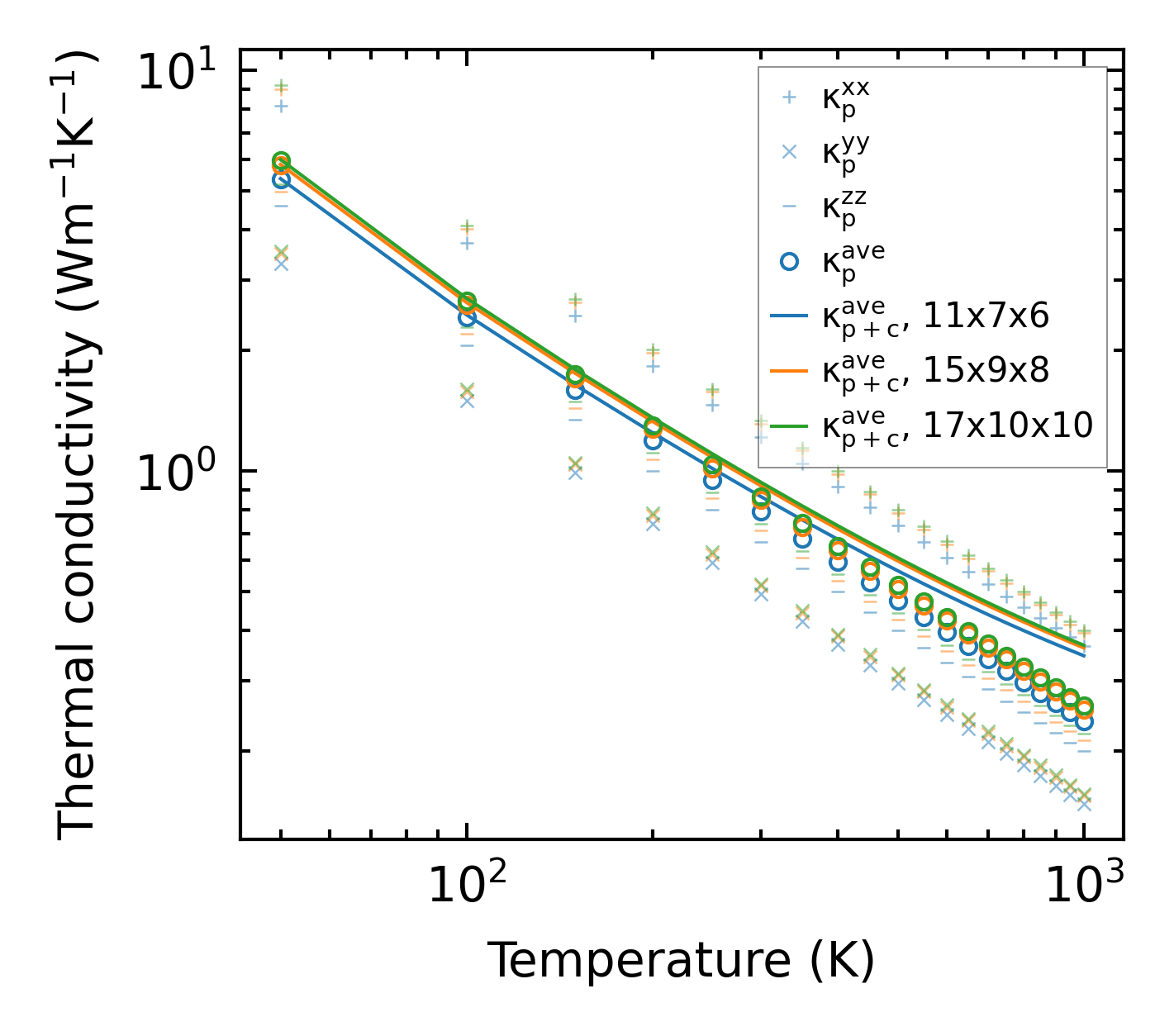

../../_images/fig_kappa8894.png — (a) Temperature-dependent lattice thermal conductivity

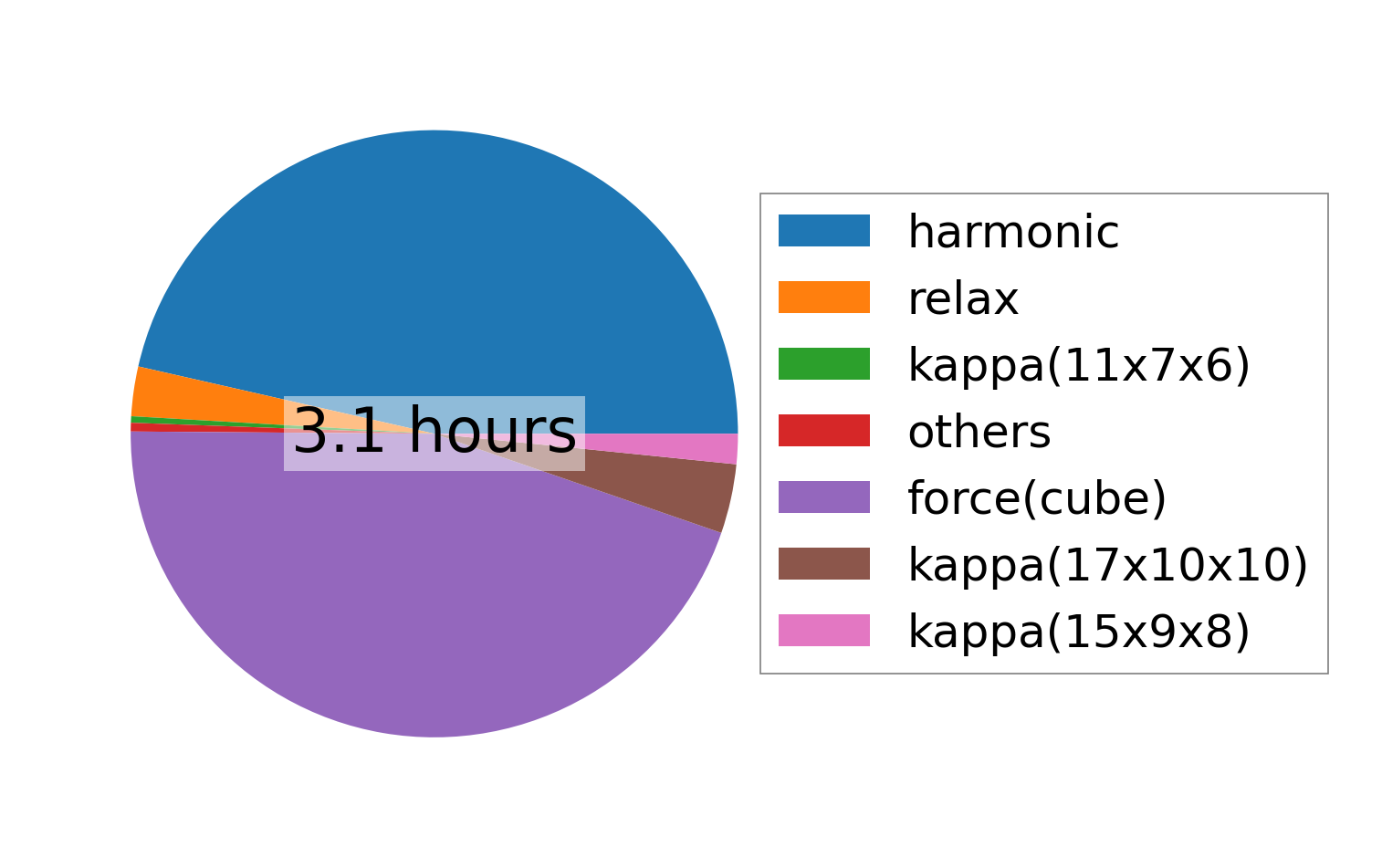

../../_images/fig_times19411.png — (b) Computation time
