mp-29799/KBiO3/anharm

Space group: Pn-3 (201)
Link: Materials Project
Download: mp-29799.tar.gz

Harmonic properties

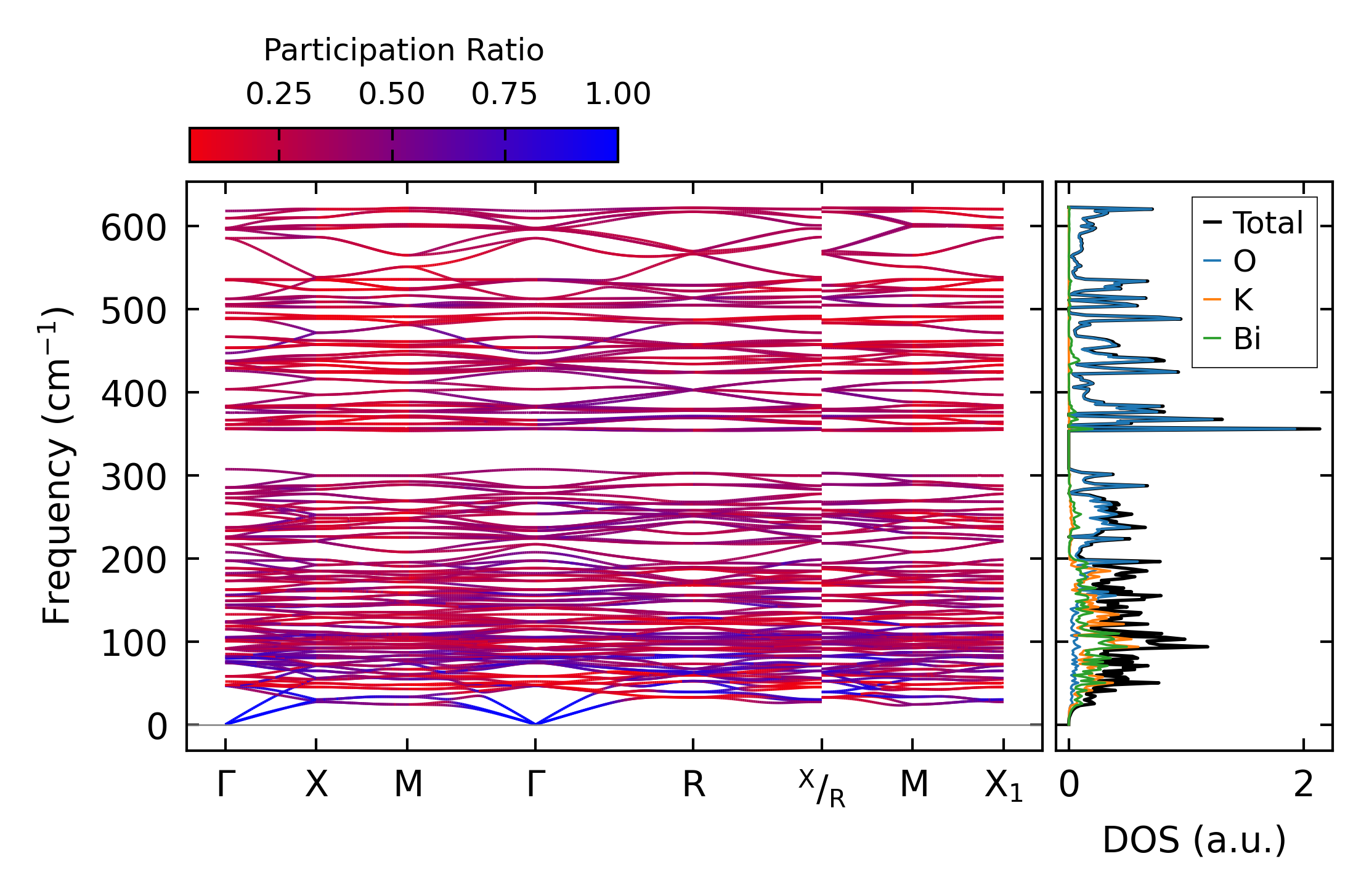

../../_images/fig_bandos_pr11316.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11316.png — (b) Thermodynamic properties

Grüneisen parameters

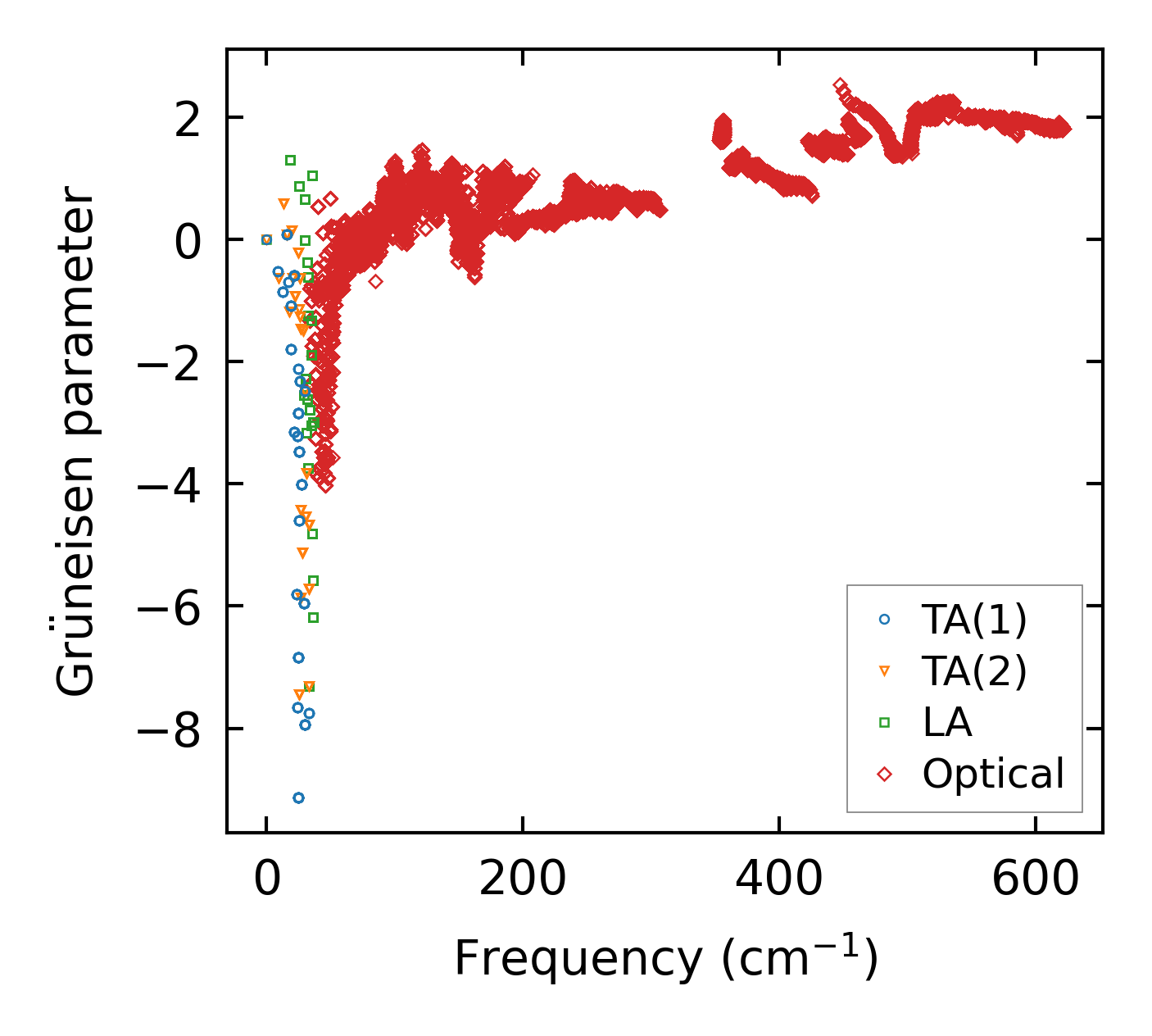

../../_images/fig_gru_all4677.png — (a) Grüneisen parameters

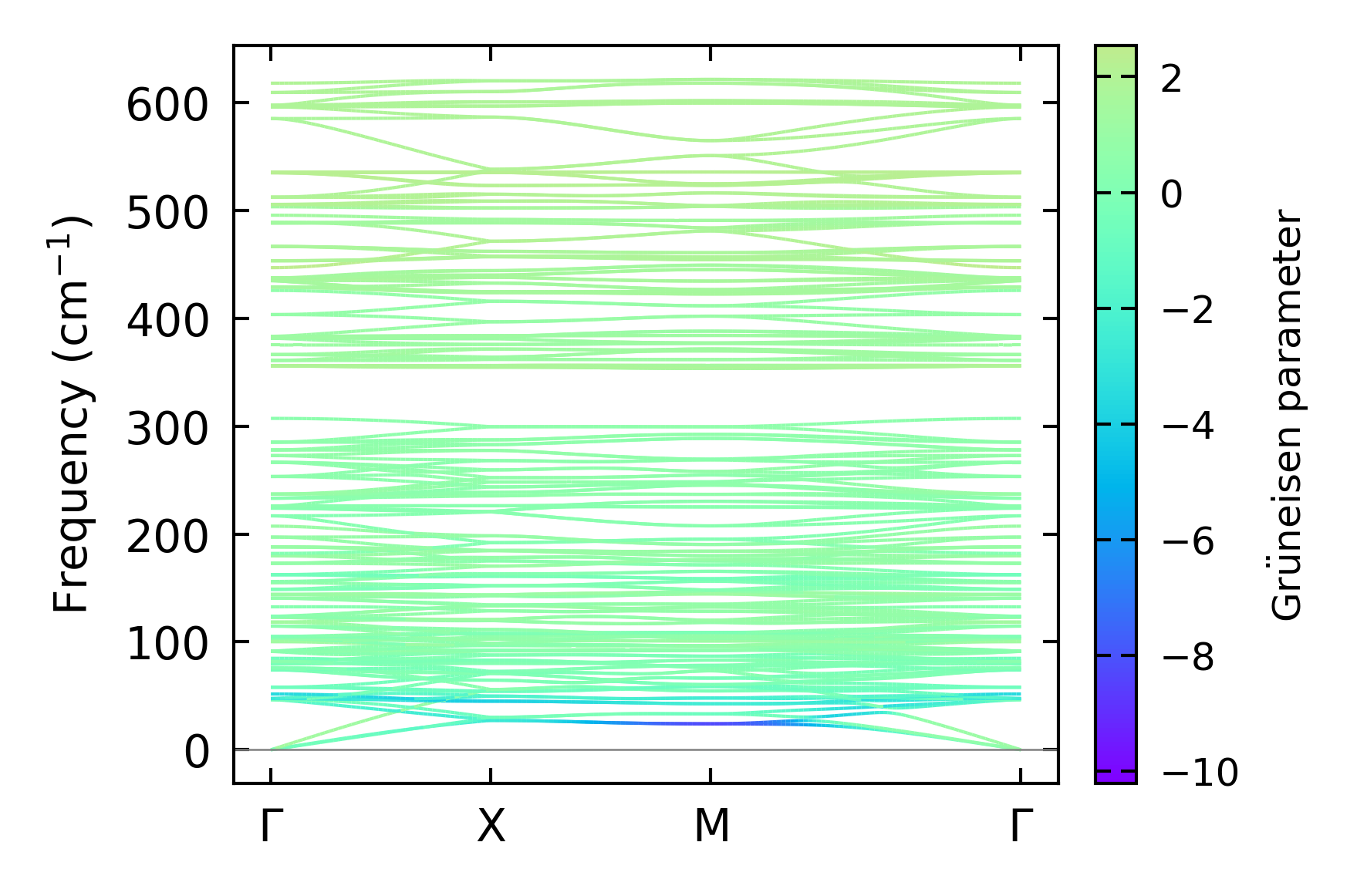

../../_images/fig_gruneisen4677.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

../../_images/fig_kappa8828.png — (a) Temperature-dependent lattice thermal conductivity

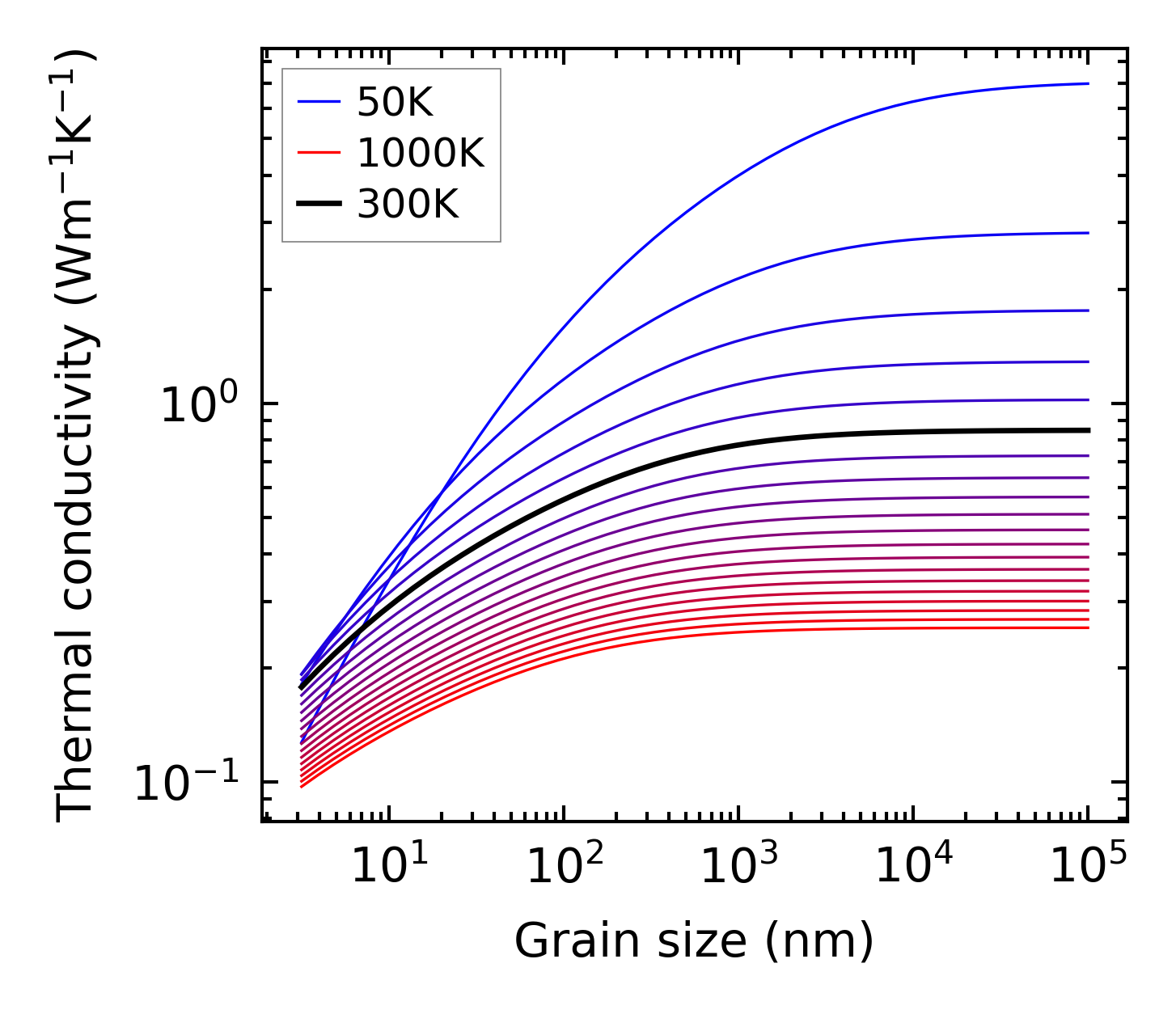

../../_images/fig_kappa_vs_grain_size4734.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4633.png — (a) Phonon lifetime due to phonon-phonon scattering

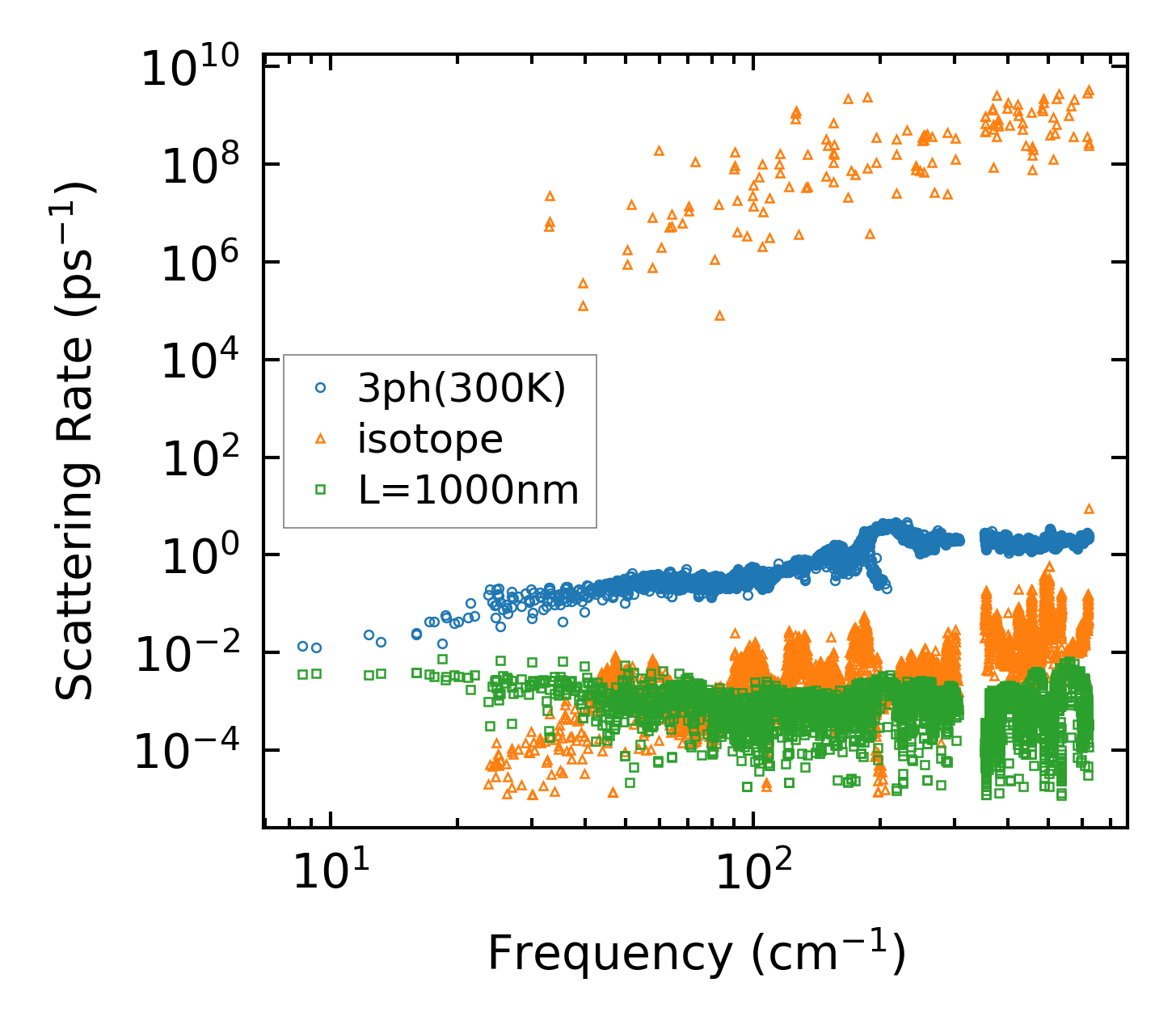

../../_images/fig_scat_rates4632.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4633.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4632.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

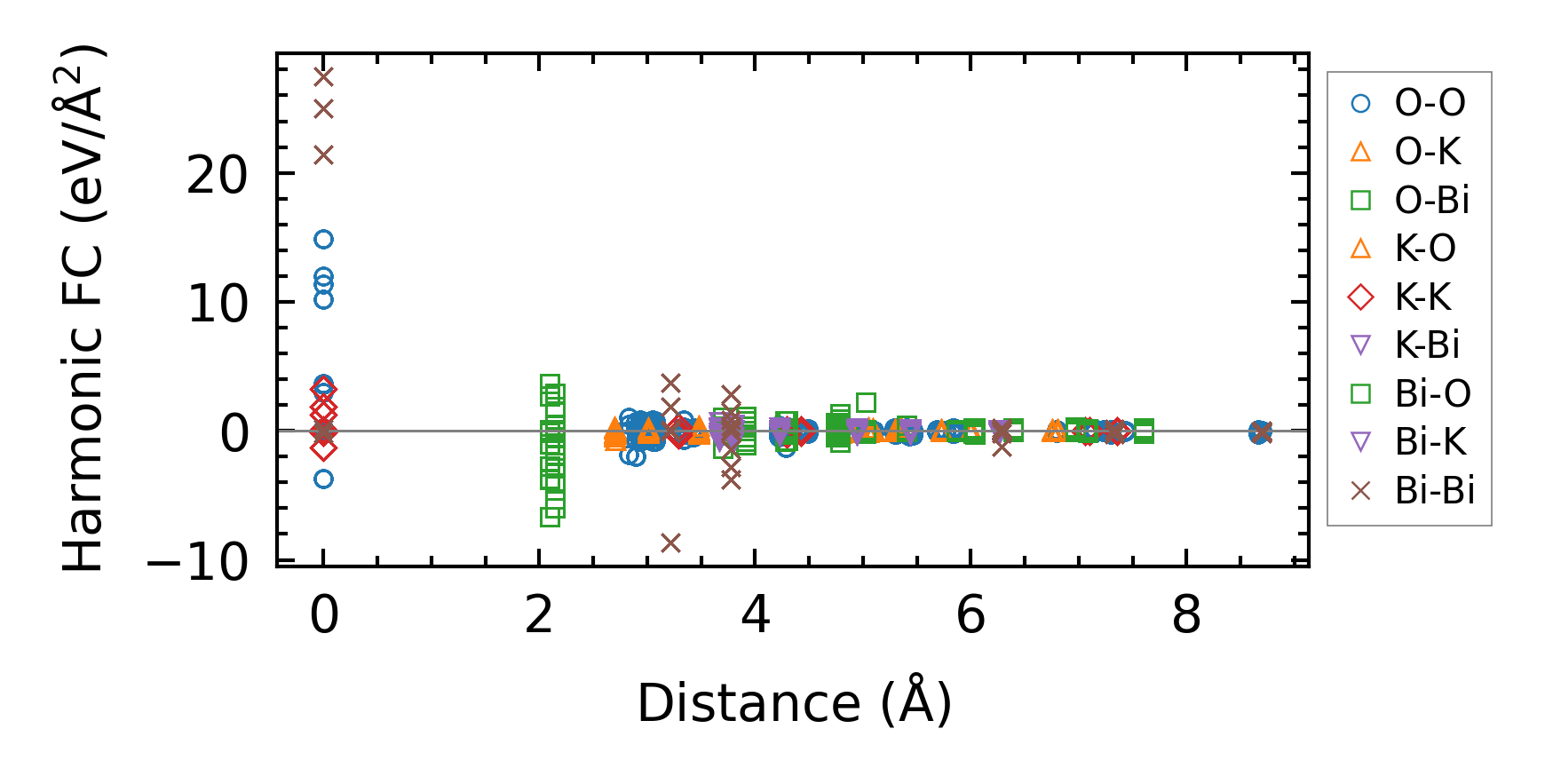

../../_images/fig_fc211032.png — (a) Force constants w.r.t atomic distance

Summary

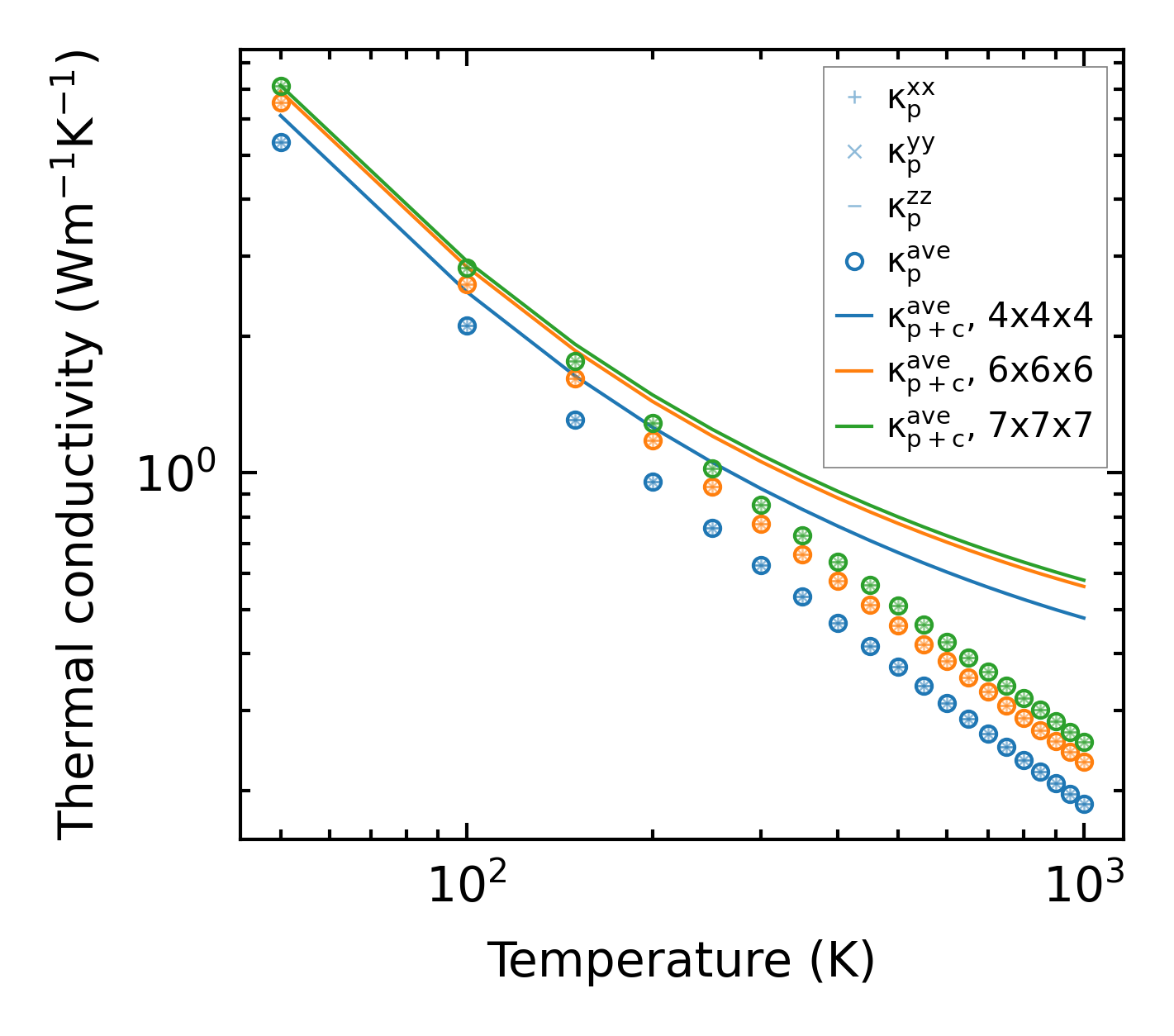

../../_images/fig_kappa8829.png — (a) Temperature-dependent lattice thermal conductivity

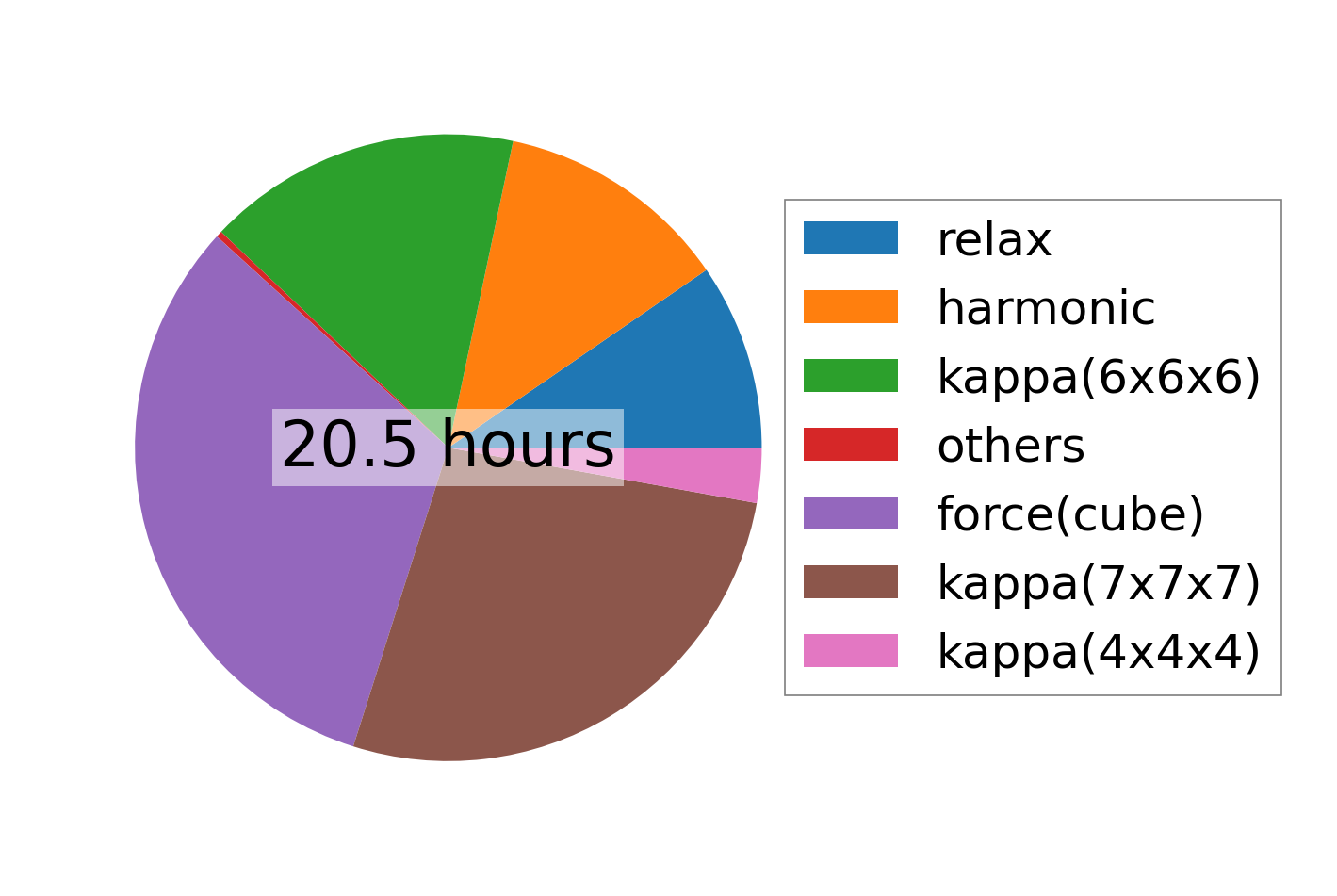

../../_images/fig_times19313.png — (b) Computation time
