mp-29266-2/CsS/anharm

Space group: Immm (71)
Link: Materials Project
Download: mp-29266-2.tar.gz

Equation of state

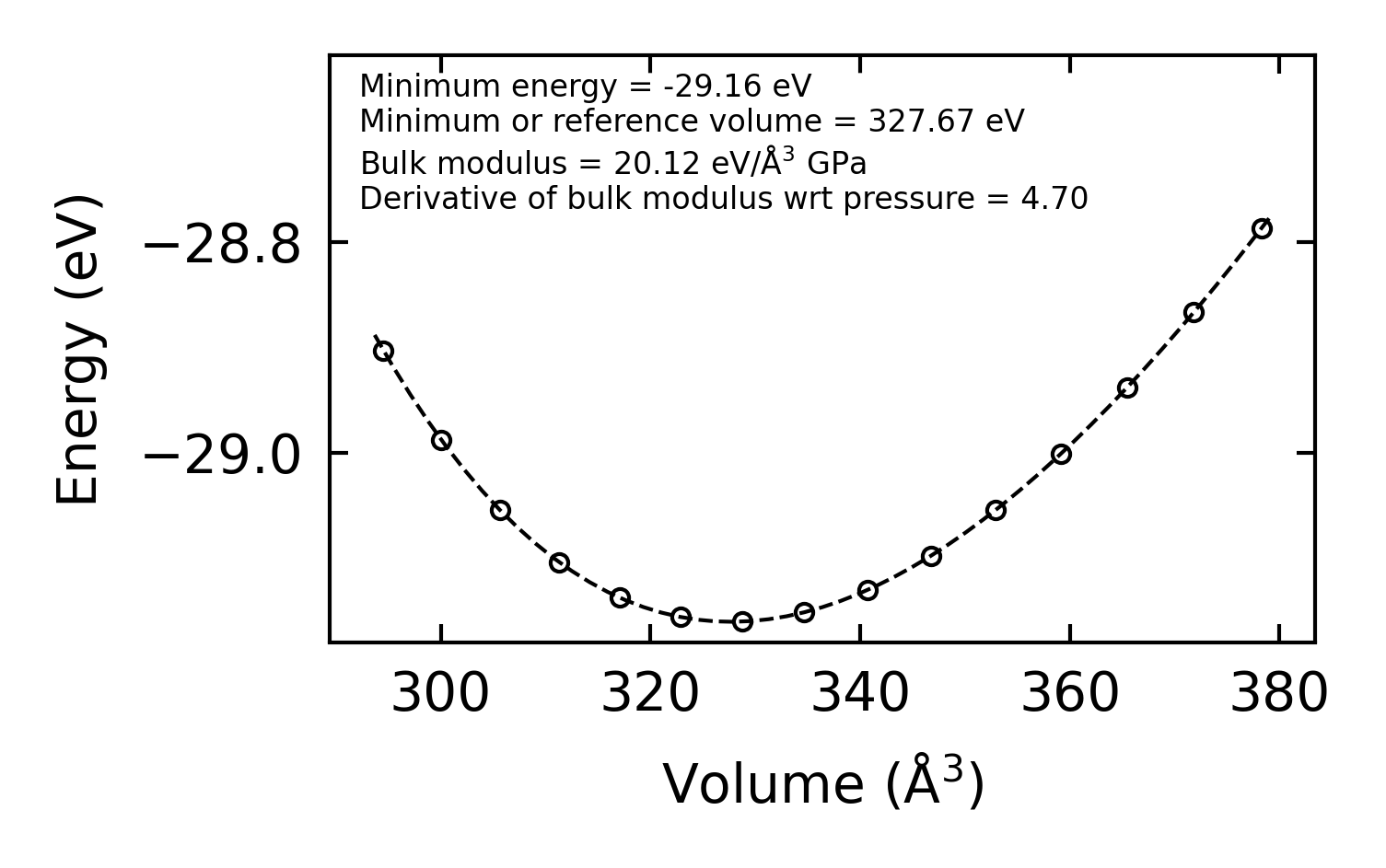

../../_images/fig_bm5600.png — (a) Equation of state

Harmonic properties

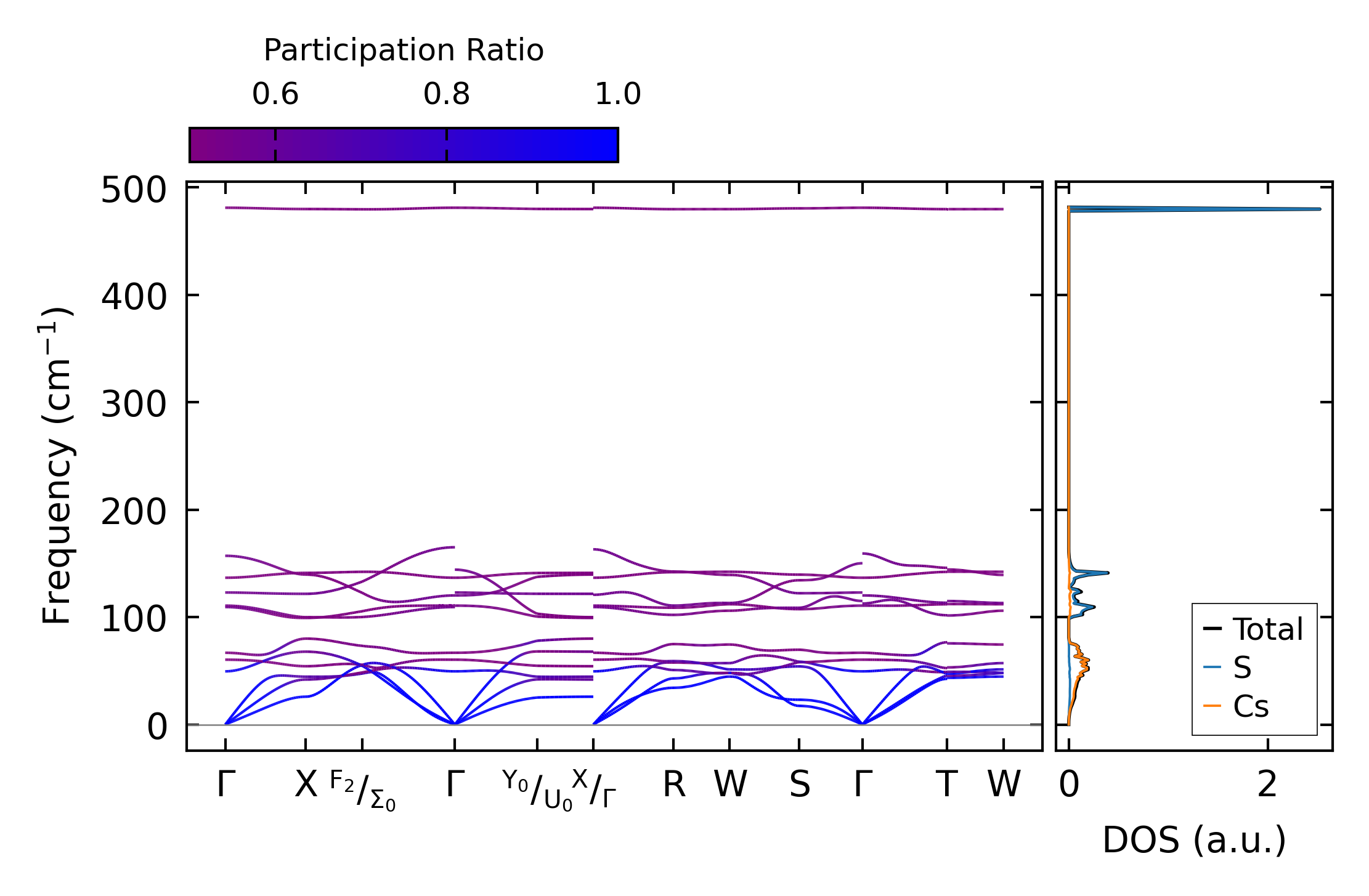

../../_images/fig_bandos_pr11470.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11470.png — (b) Thermodynamic properties

Grüneisen parameters

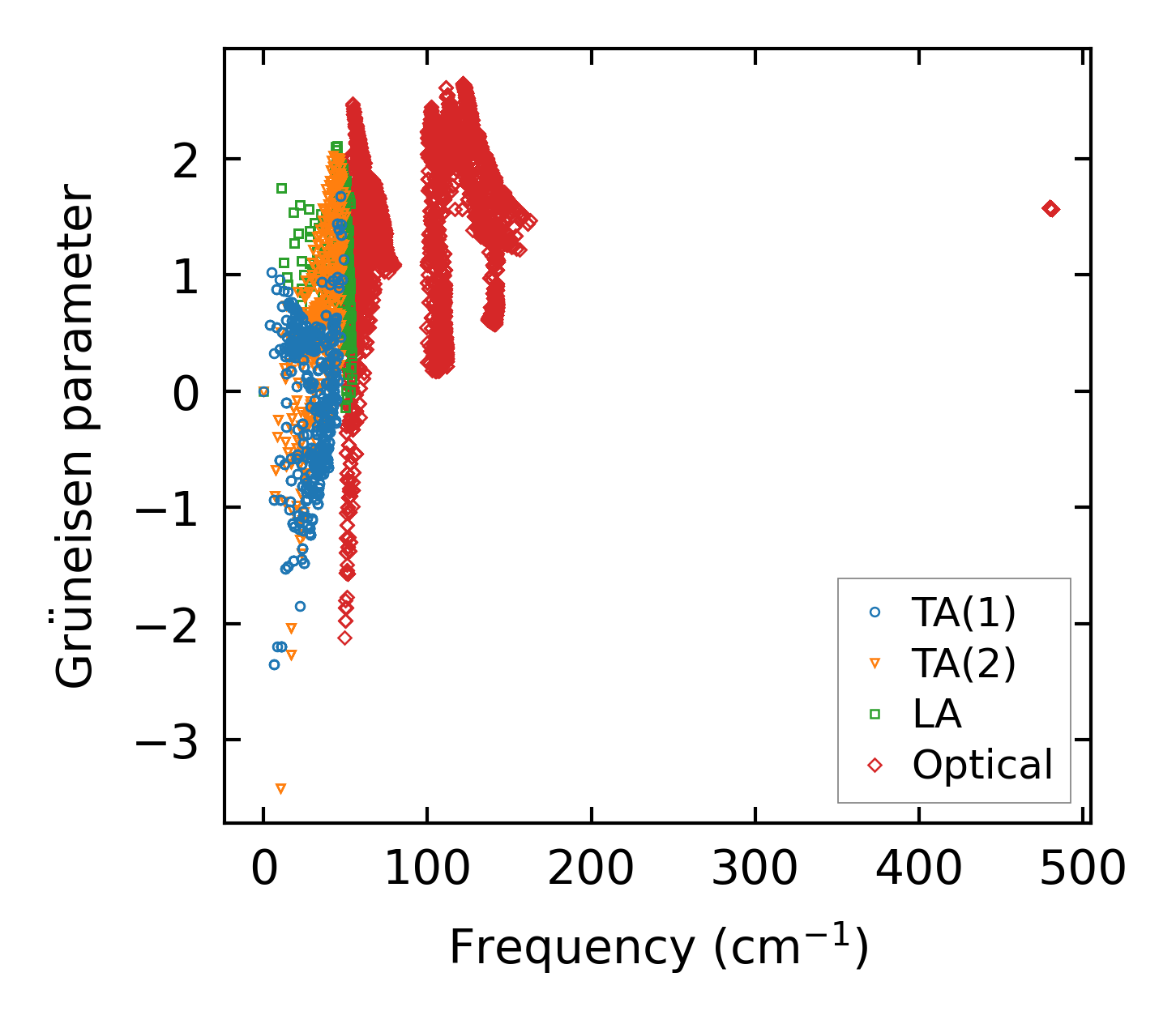

../../_images/fig_gru_all4754.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4754.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 13x13x13, supercell: 3x3x2

../../_images/fig_kappa8972.png — (a) Temperature-dependent lattice thermal conductivity

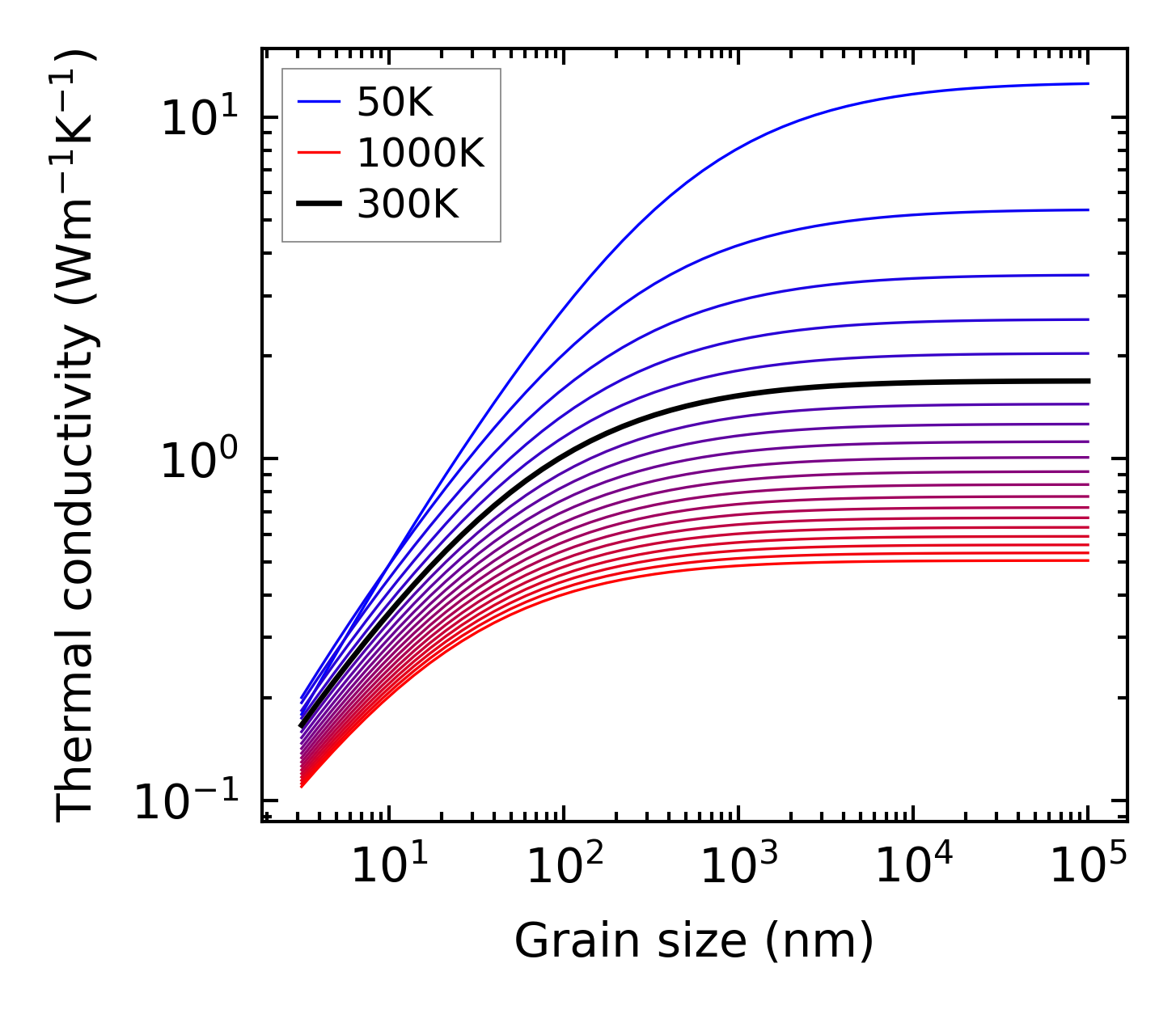

../../_images/fig_kappa_vs_grain_size4812.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4709.png — (a) Phonon lifetime due to phonon-phonon scattering

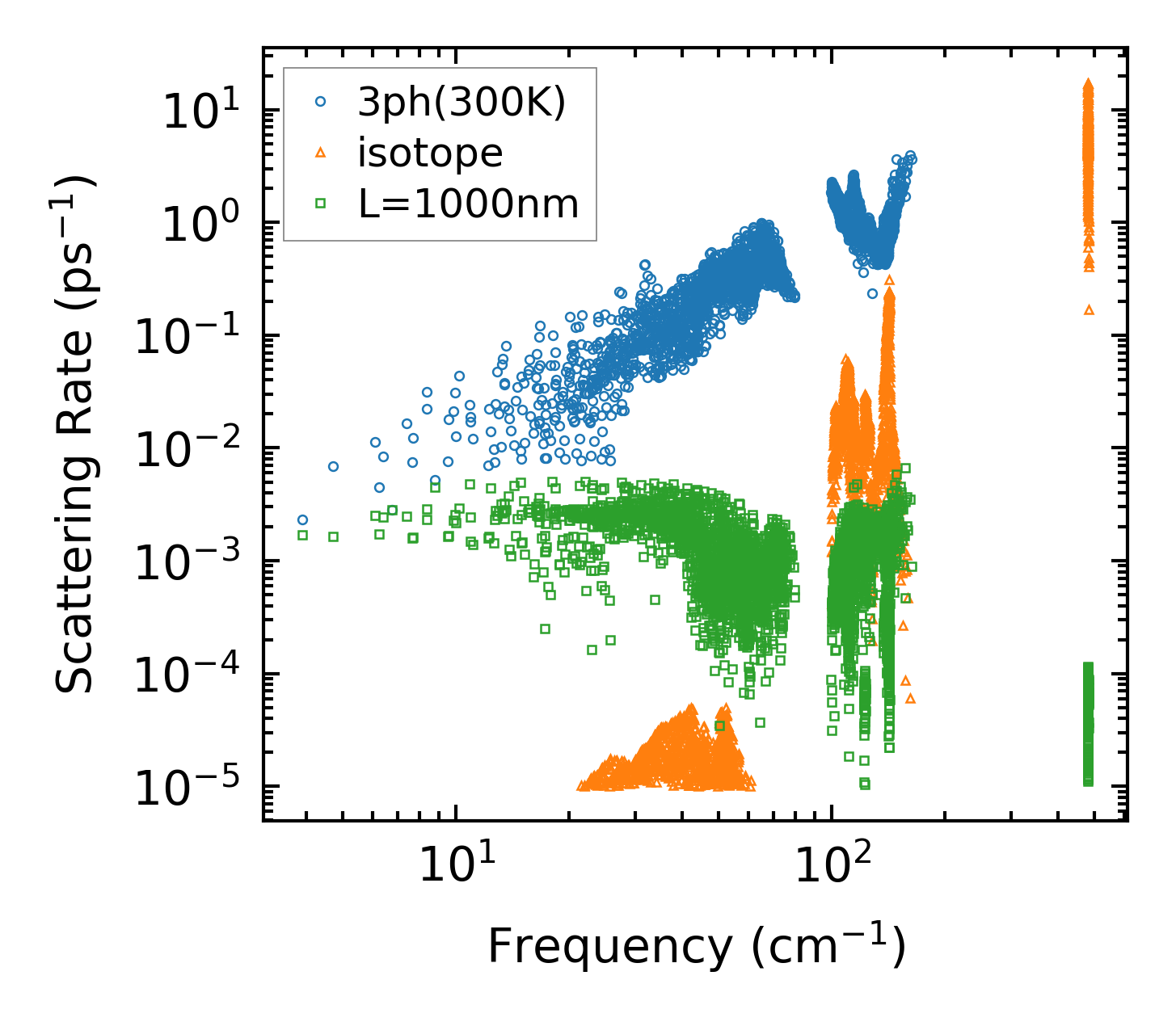

../../_images/fig_scat_rates4708.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

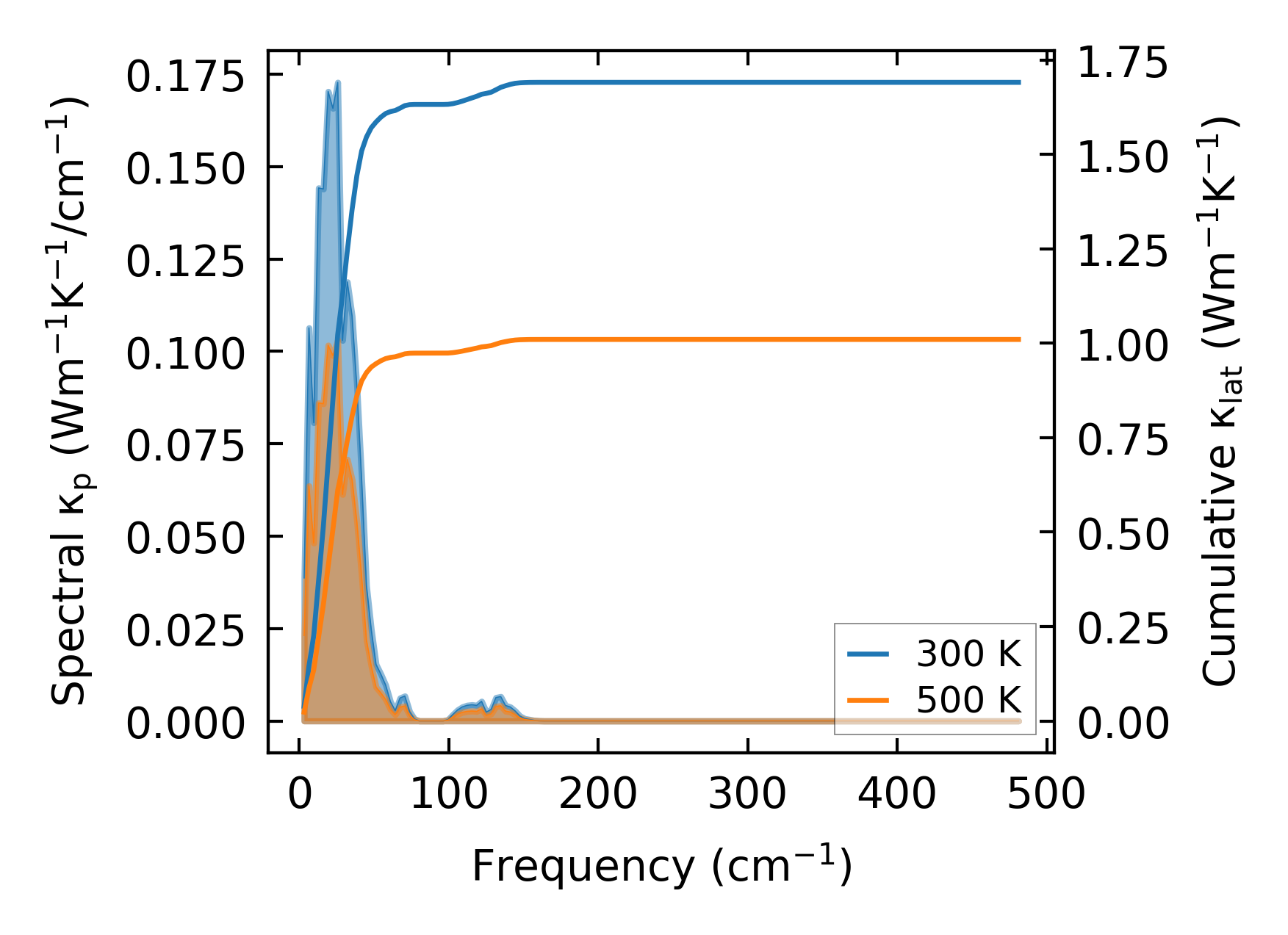

../../_images/fig_cumu_frequency4709.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

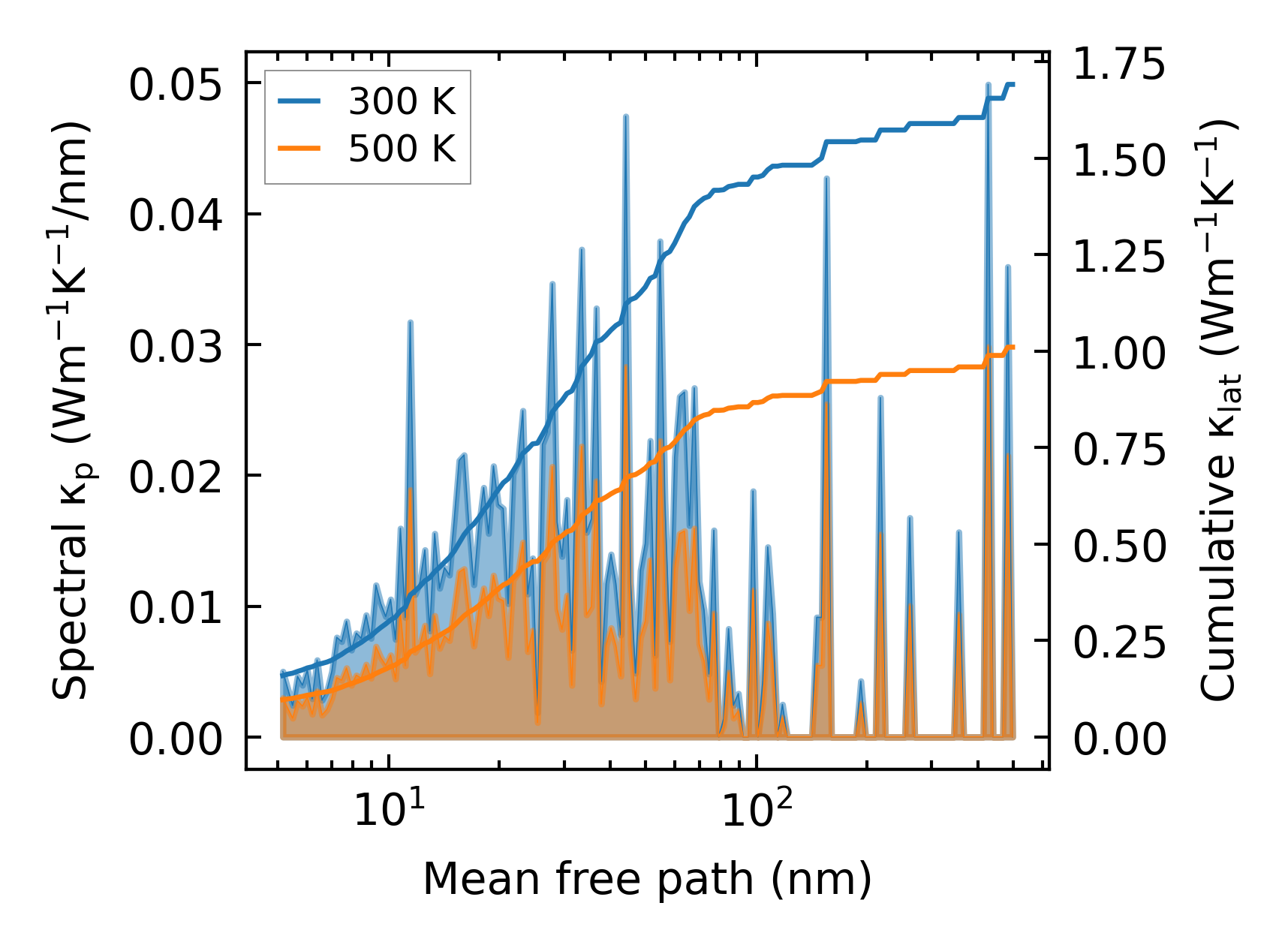

../../_images/fig_cumu_mfp4708.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

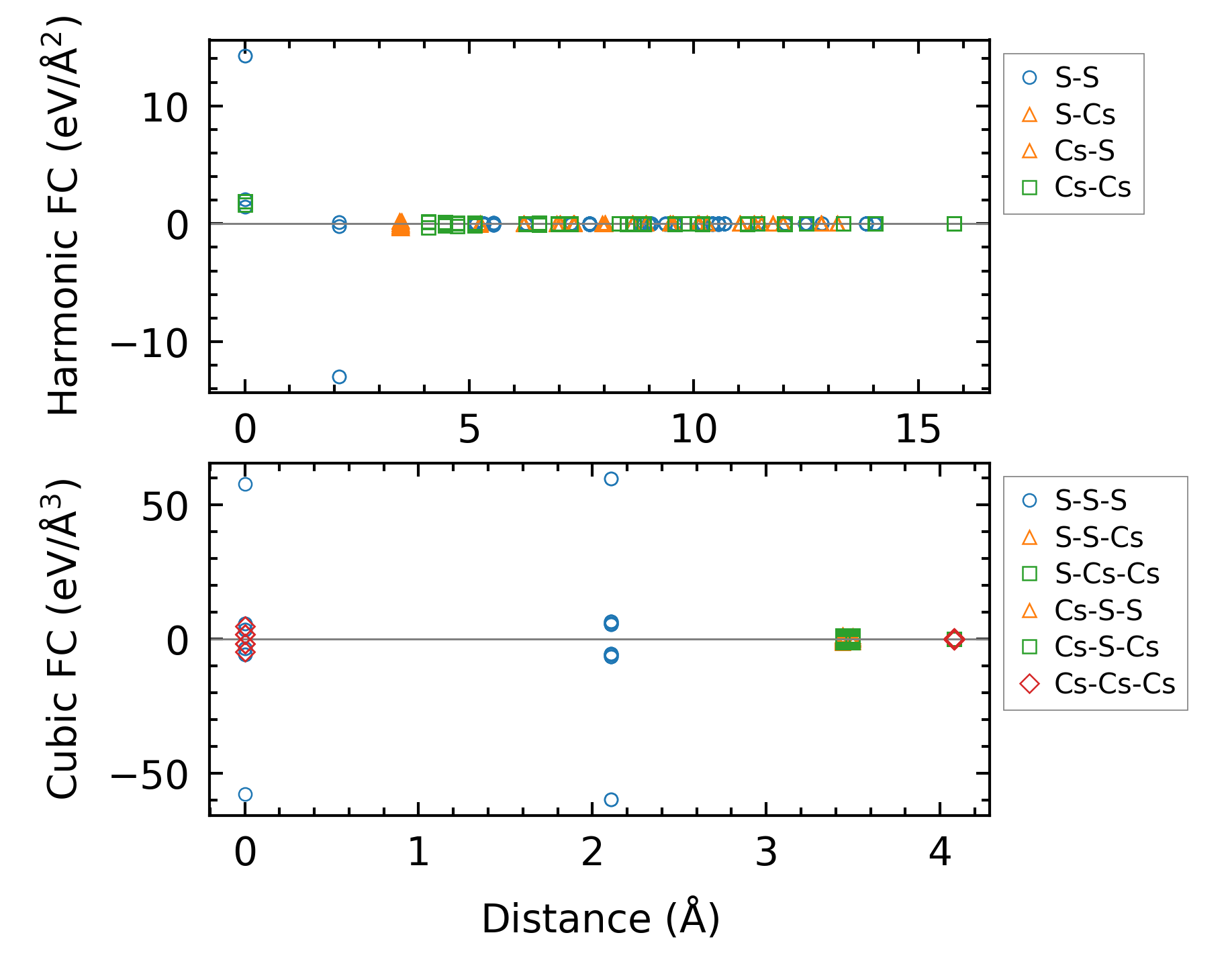

../../_images/fig_fc3285.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8973.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19546.png — (b) Computation time
