mp-29566/CsNaGe2/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-29566.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11252.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11252.png — (b) Thermodynamic properties

Grüneisen parameters

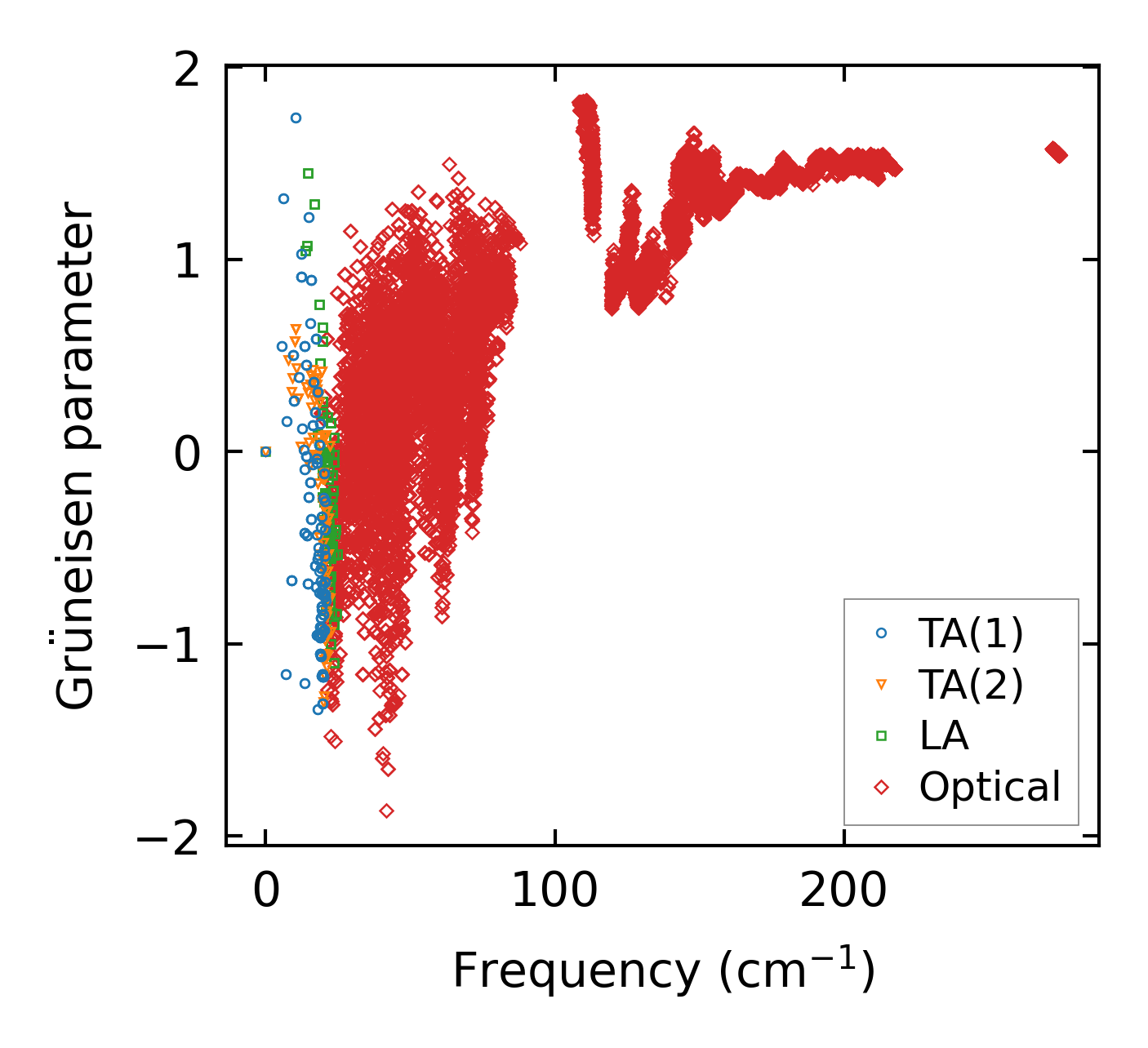

../../_images/fig_gru_all4650.png — (a) Grüneisen parameters

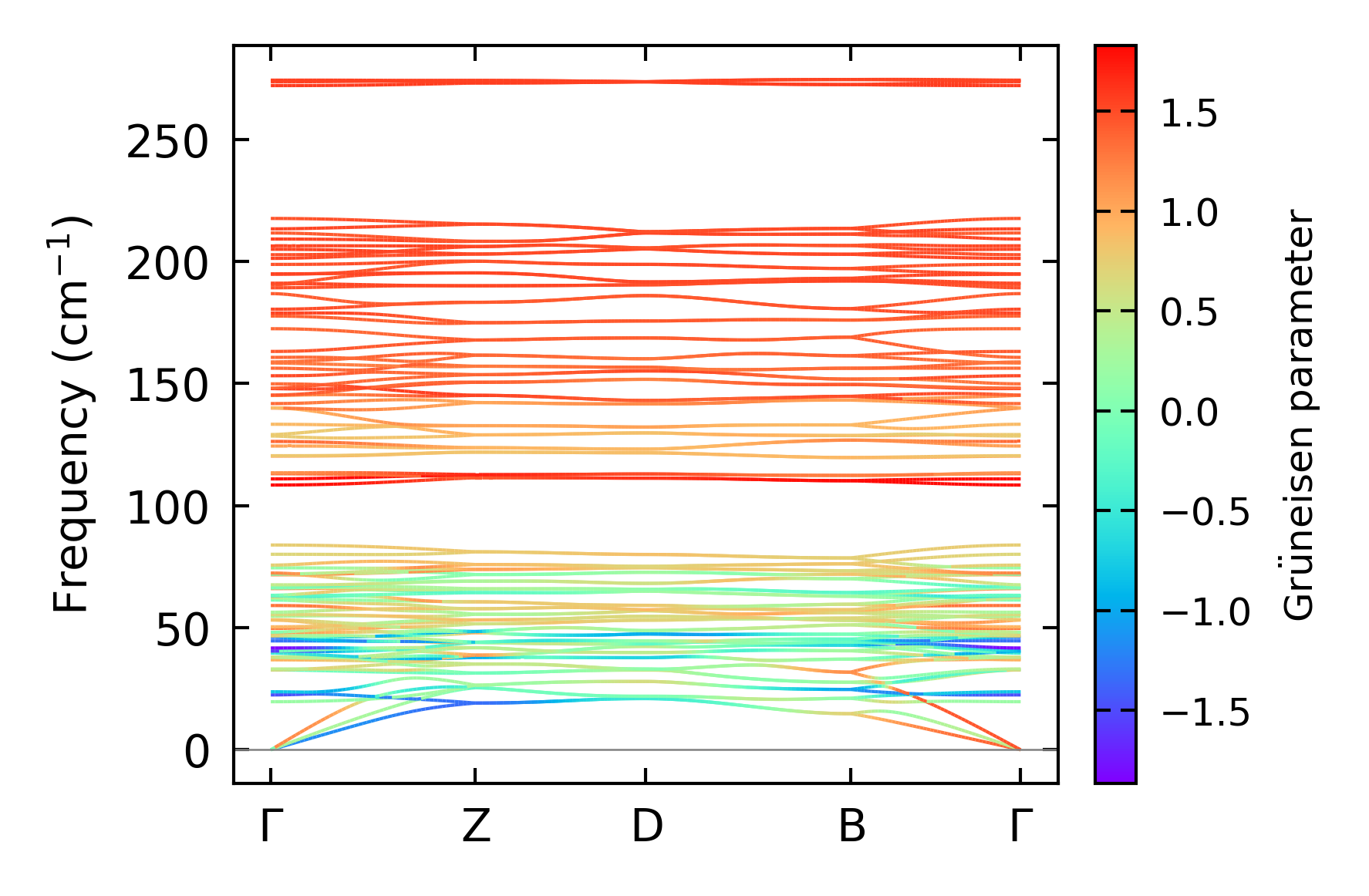

../../_images/fig_gruneisen4650.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x7x5, supercell: 2x2x1

../../_images/fig_kappa8777.png — (a) Temperature-dependent lattice thermal conductivity

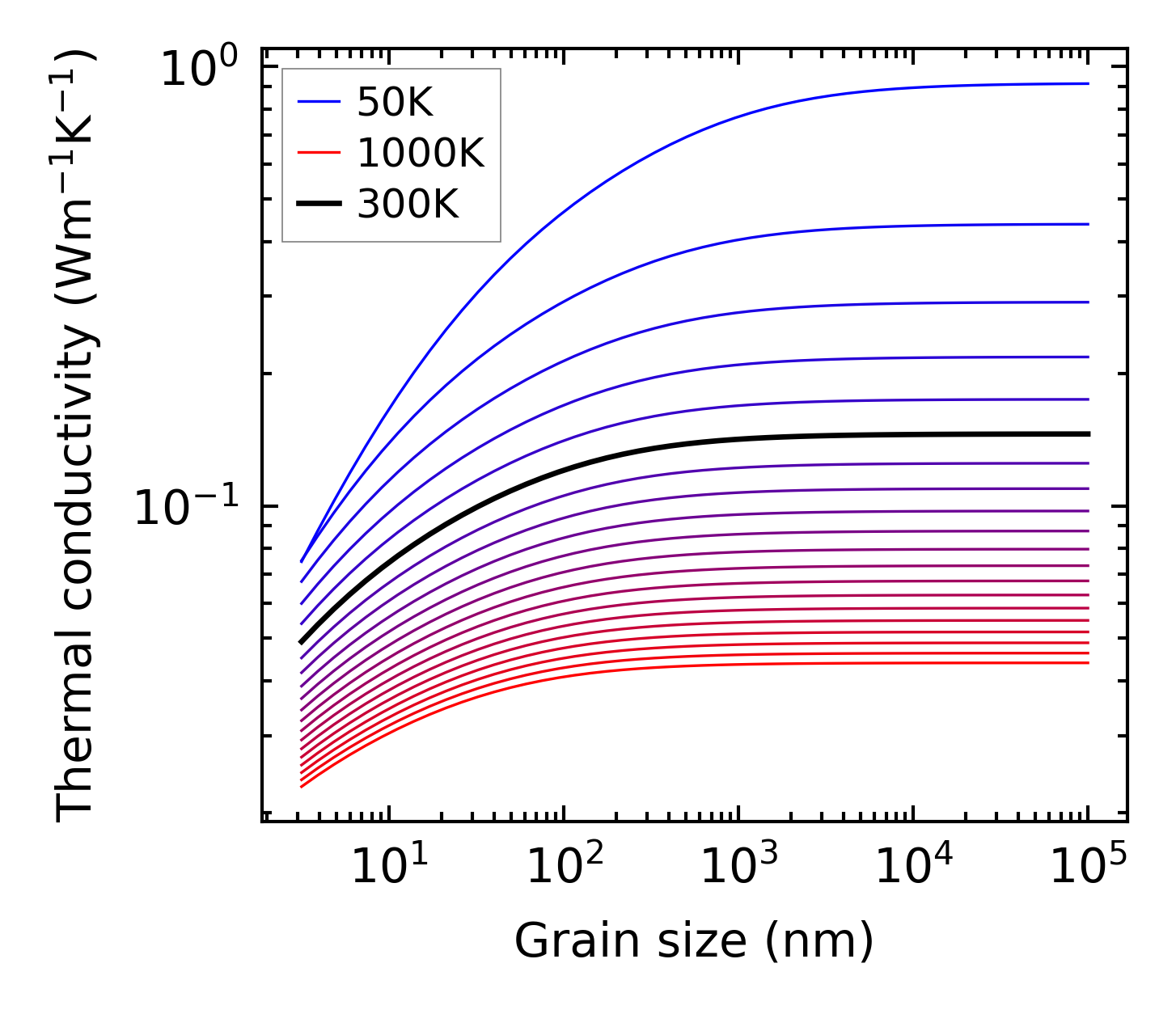

../../_images/fig_kappa_vs_grain_size4707.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

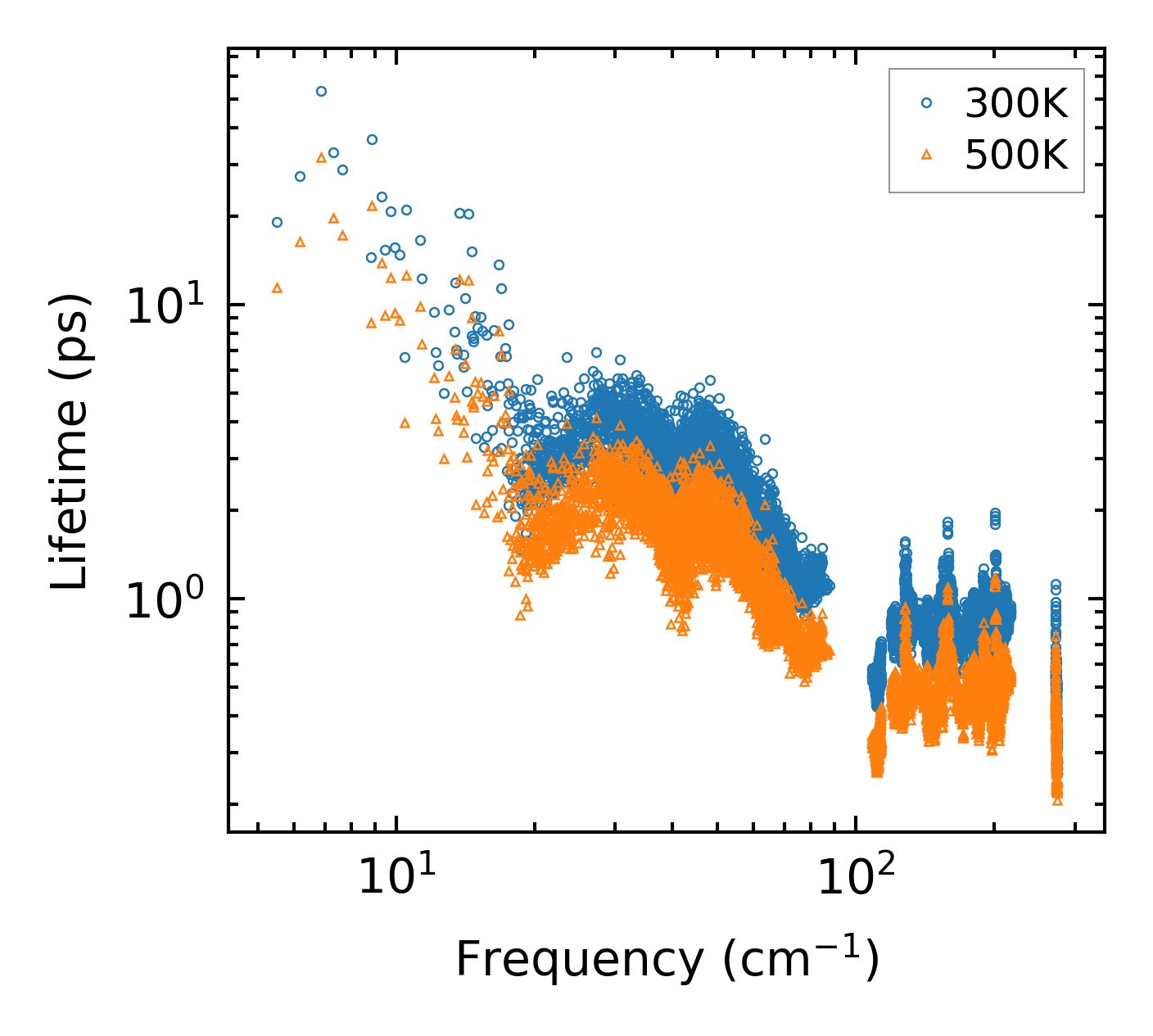

../../_images/fig_lifetime4606.png — (a) Phonon lifetime due to phonon-phonon scattering

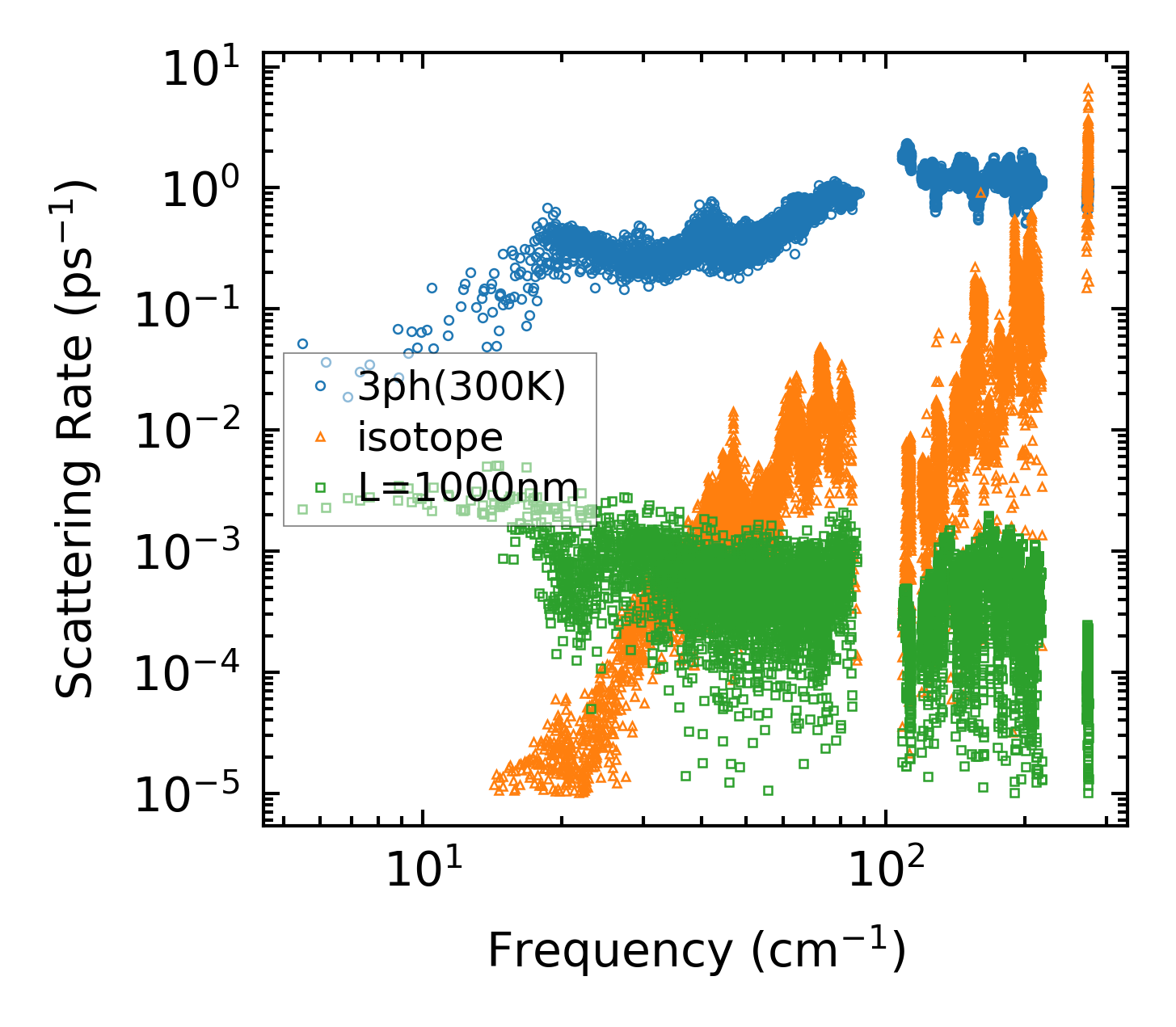

../../_images/fig_scat_rates4605.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

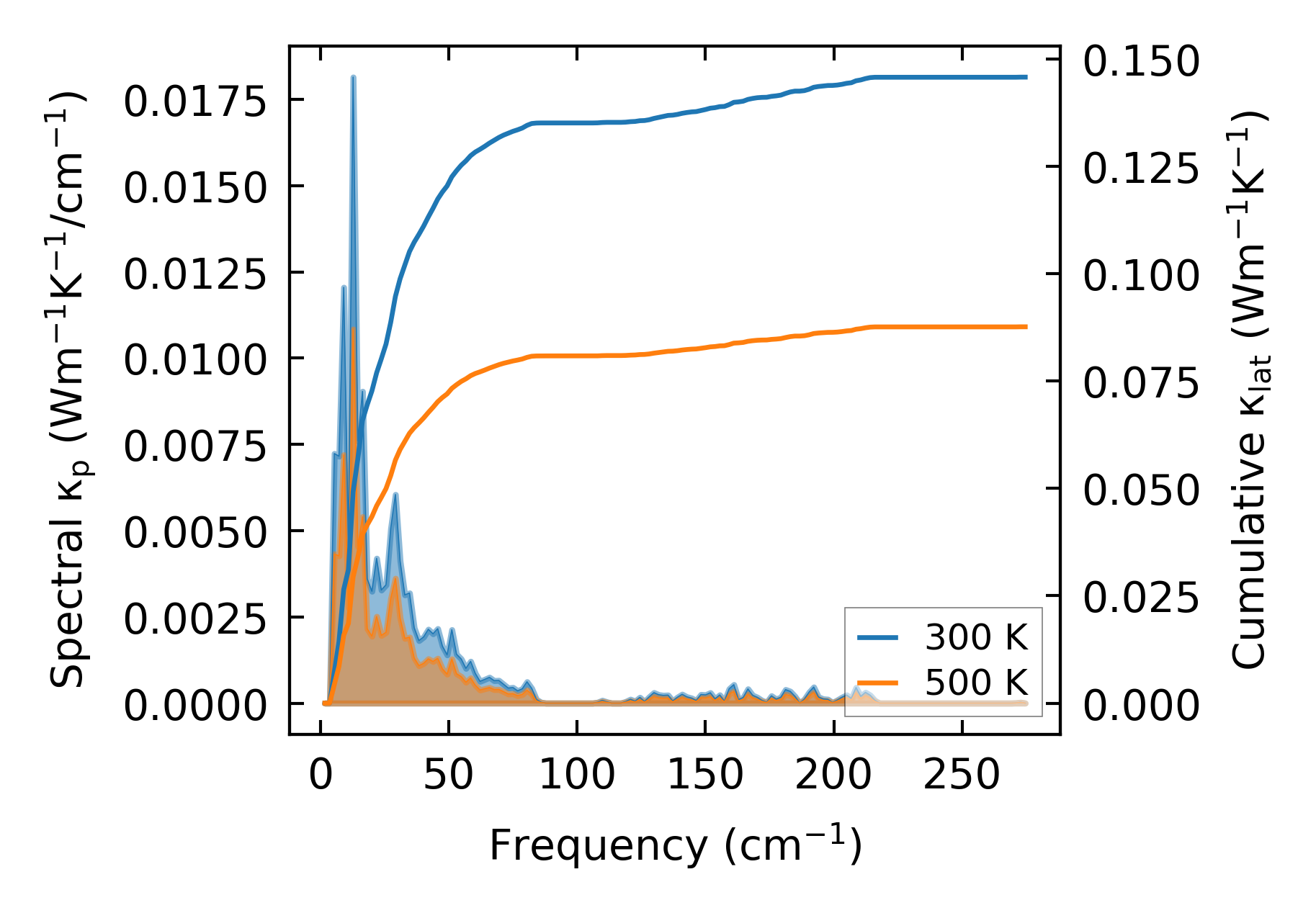

../../_images/fig_cumu_frequency4606.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

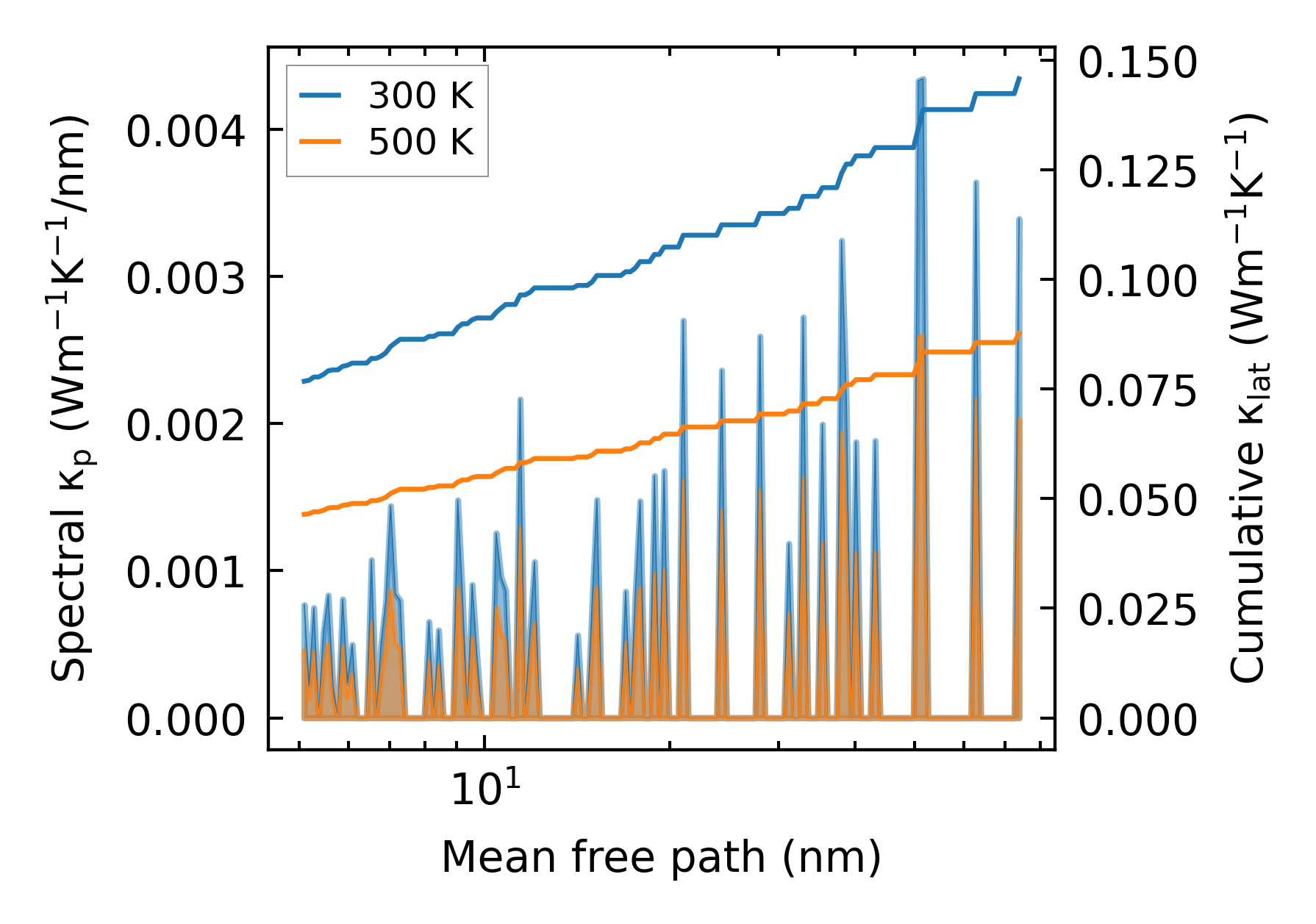

../../_images/fig_cumu_mfp4605.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

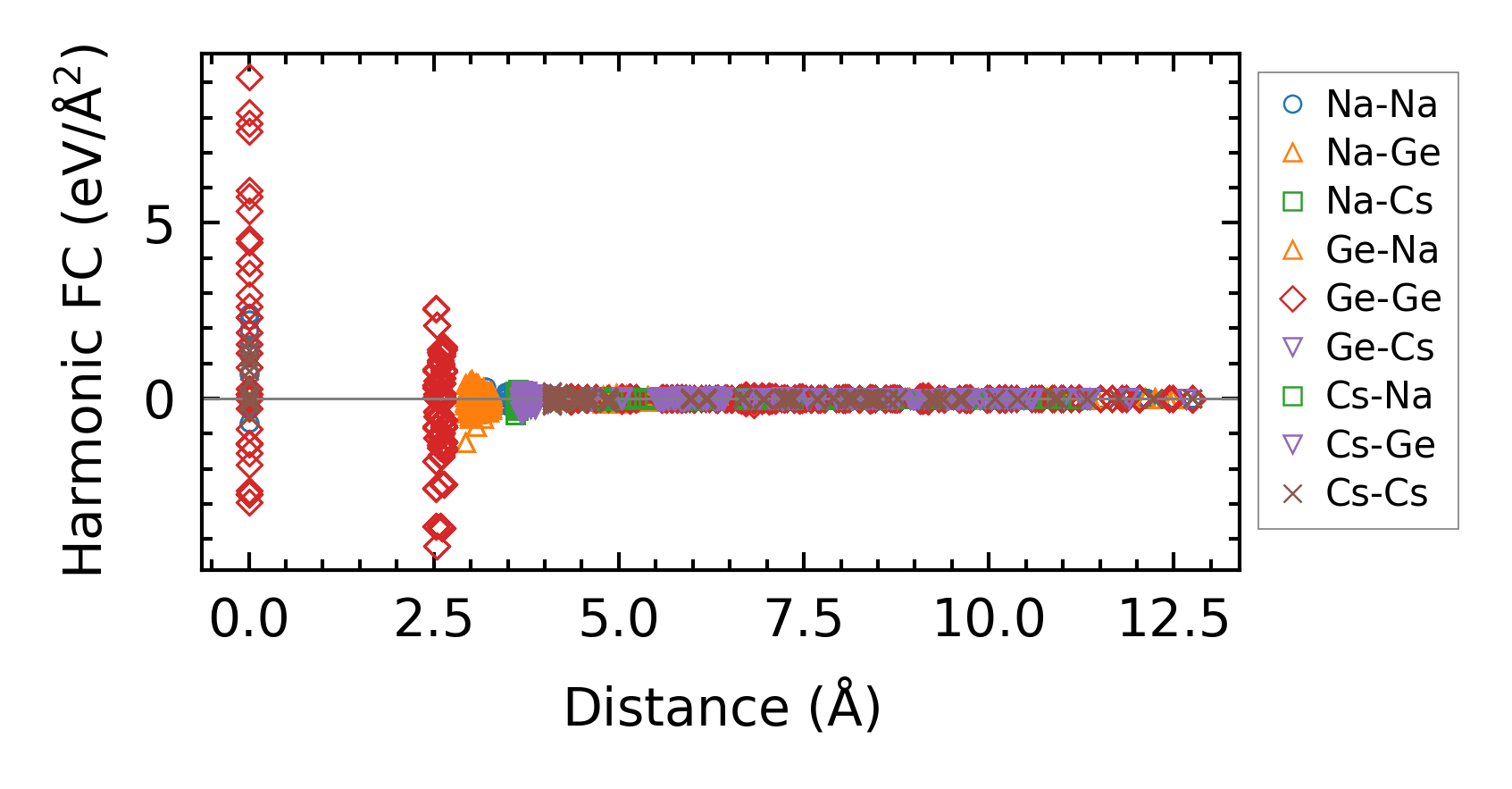

../../_images/fig_fc210968.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8778.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19209.png — (b) Computation time
