mp-29849/Ag3SnP7/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-29849.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11014.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11014.png — (b) Thermodynamic properties

Grüneisen parameters

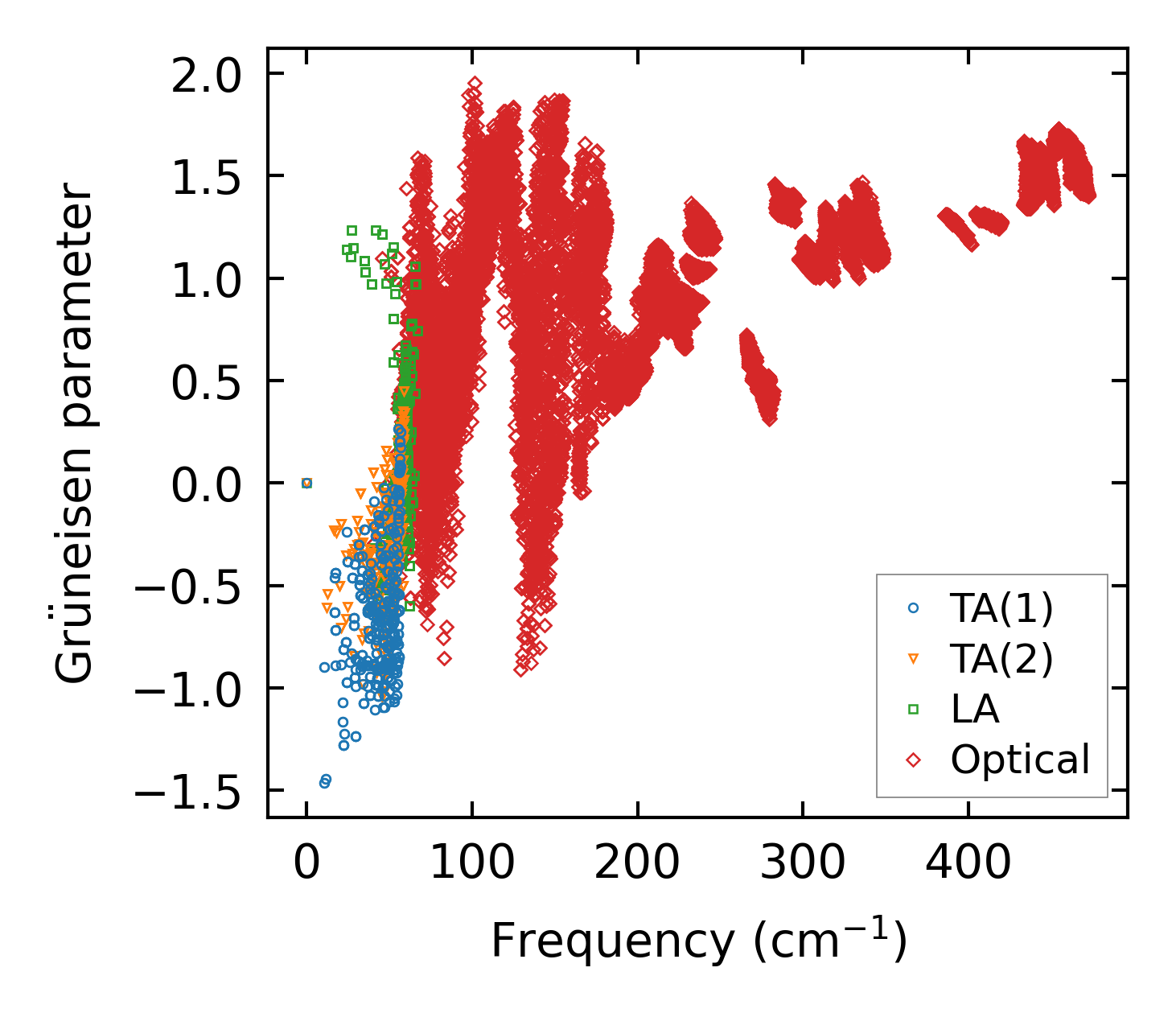

../../_images/fig_gru_all4519.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4519.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x6x11, supercell: 2x1x2

../../_images/fig_kappa8531.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4574.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

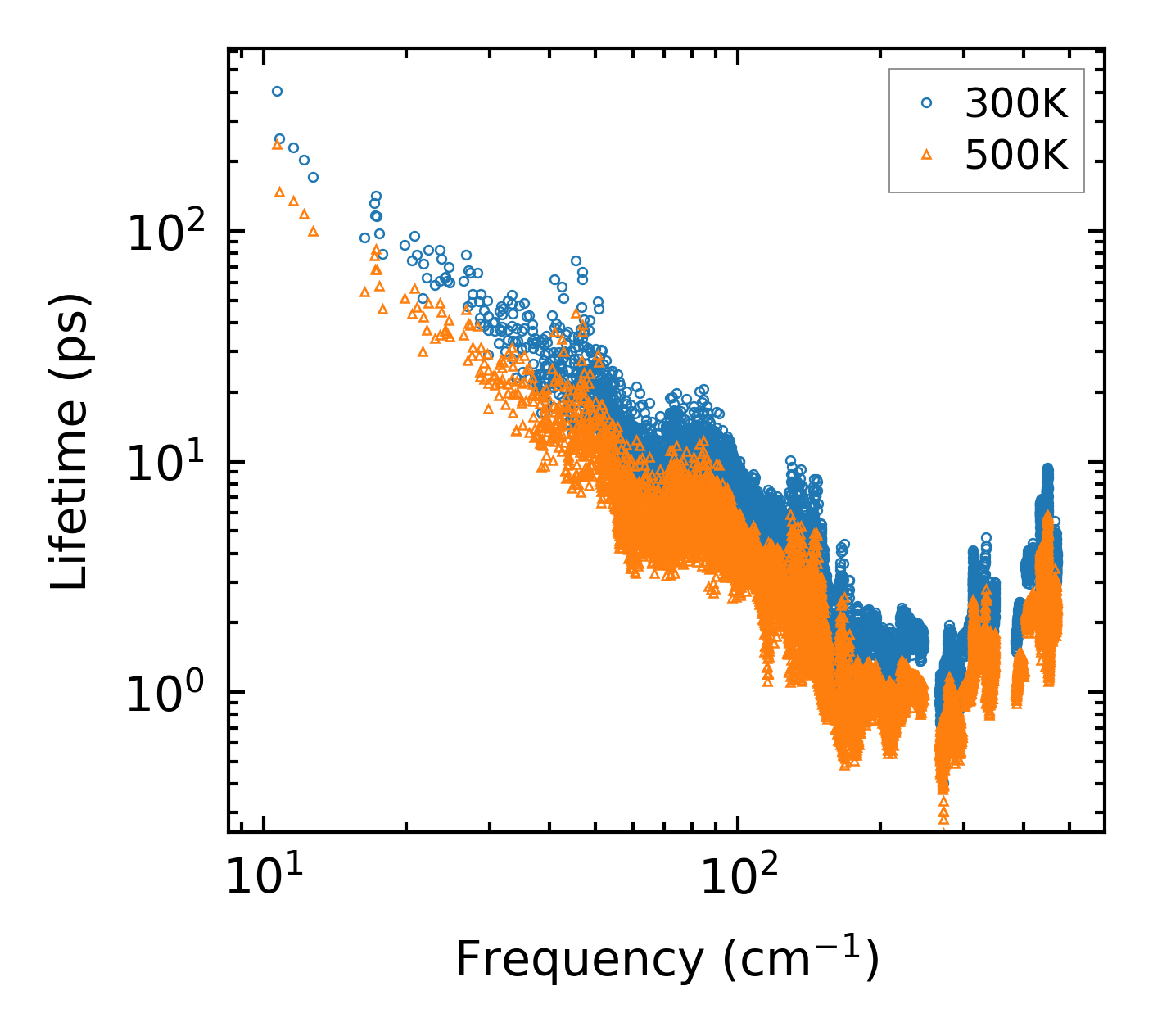

../../_images/fig_lifetime4475.png — (a) Phonon lifetime due to phonon-phonon scattering

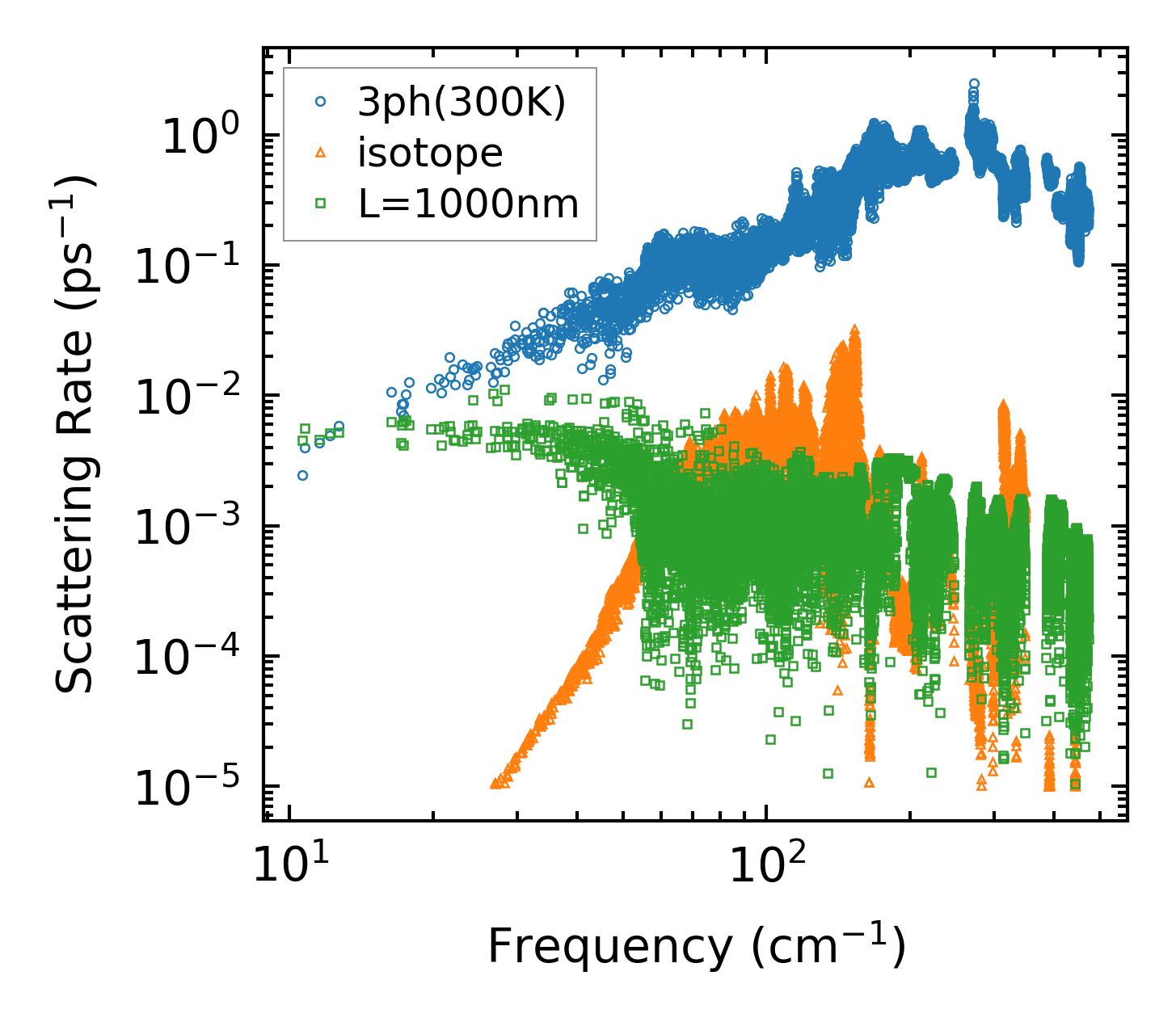

../../_images/fig_scat_rates4474.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

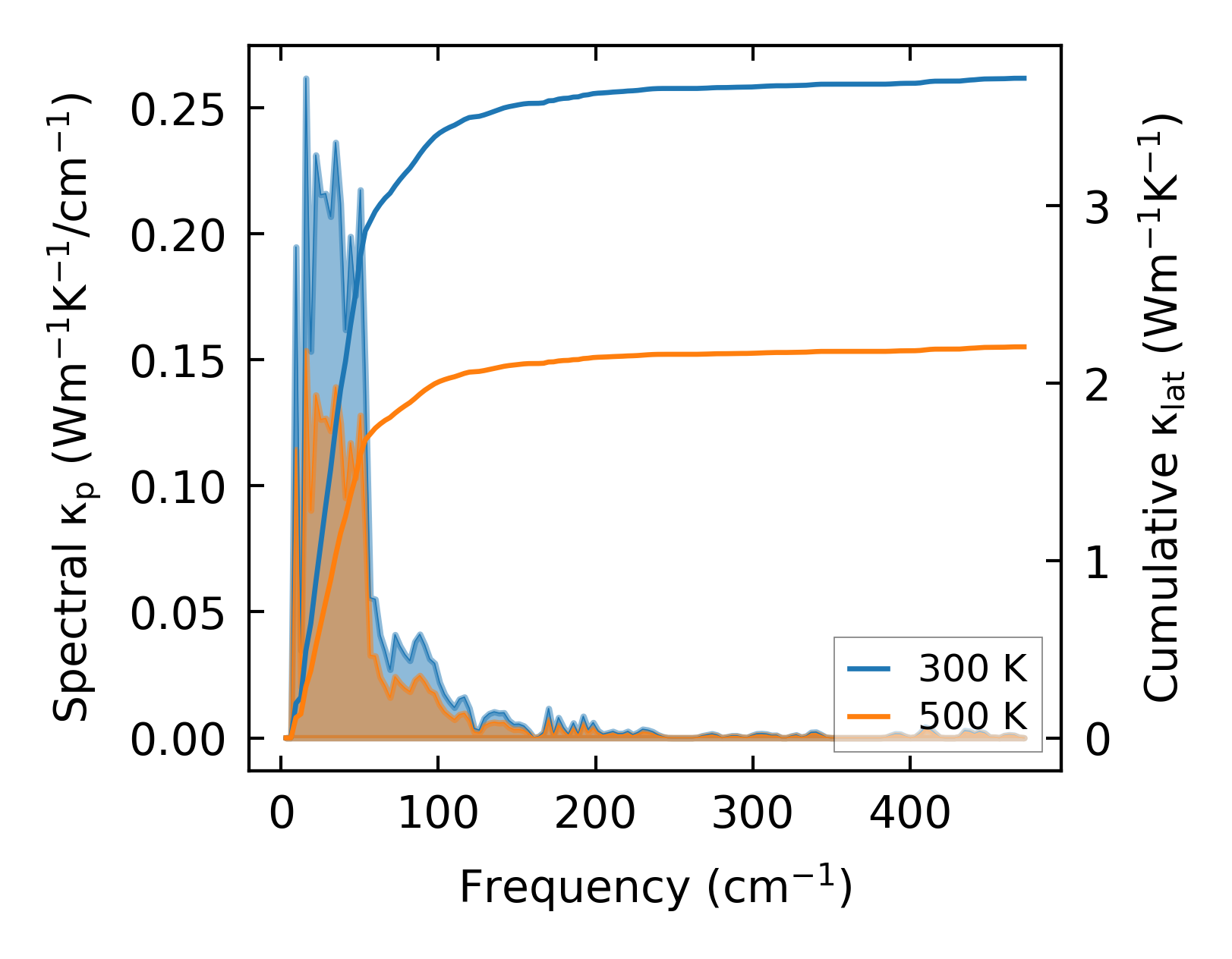

../../_images/fig_cumu_frequency4475.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

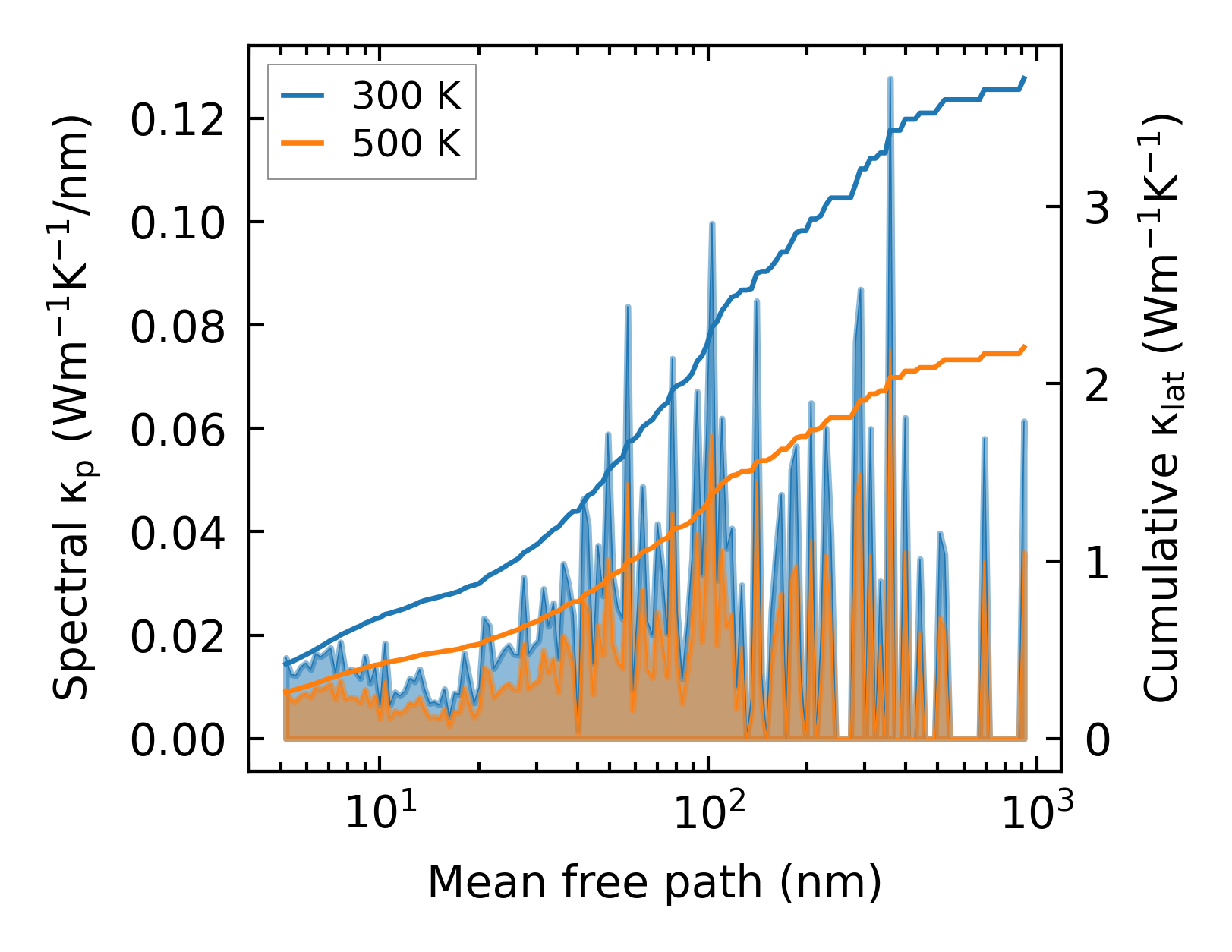

../../_images/fig_cumu_mfp4474.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

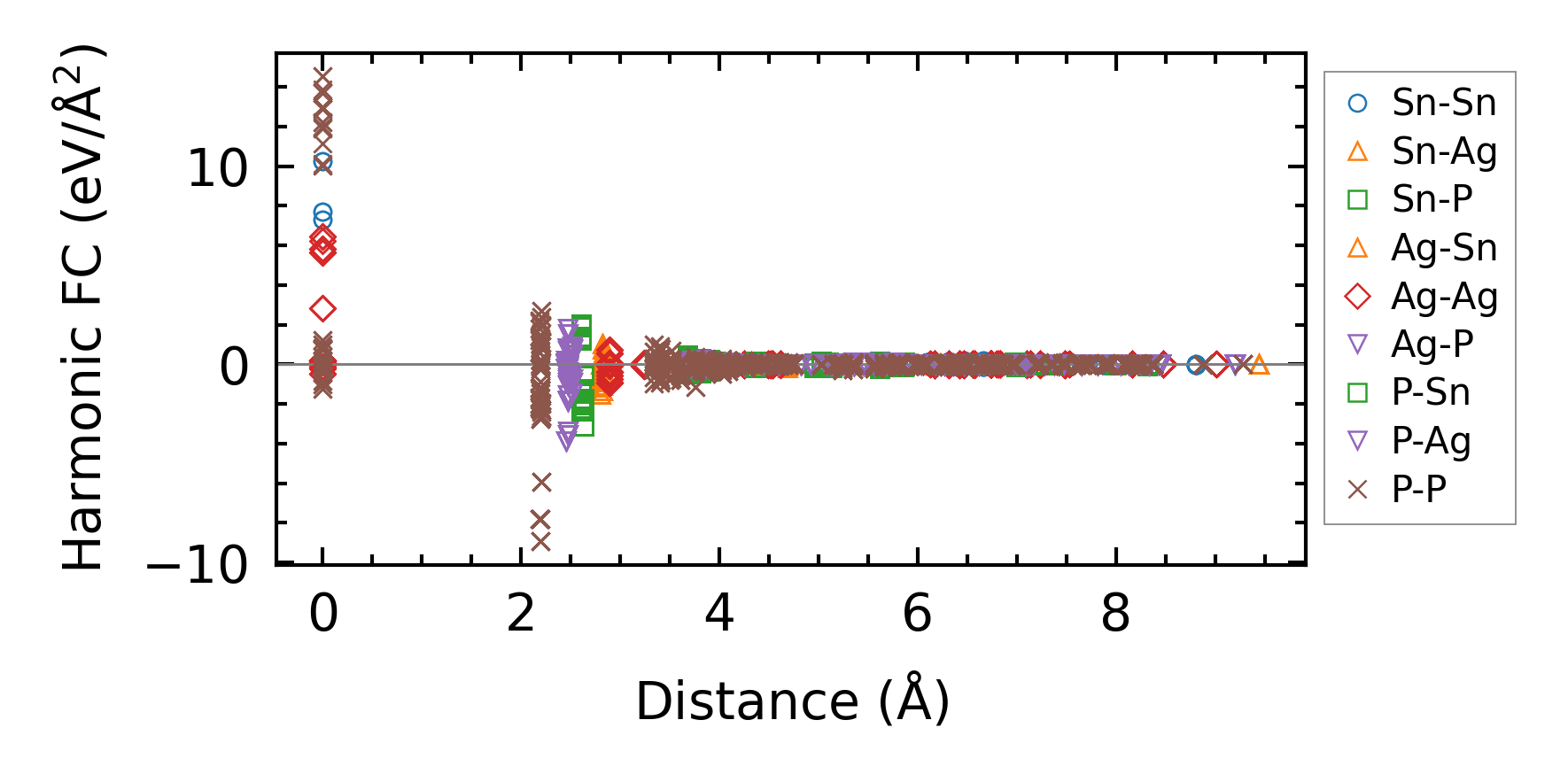

../../_images/fig_fc210738.png — (a) Force constants w.r.t atomic distance

Summary

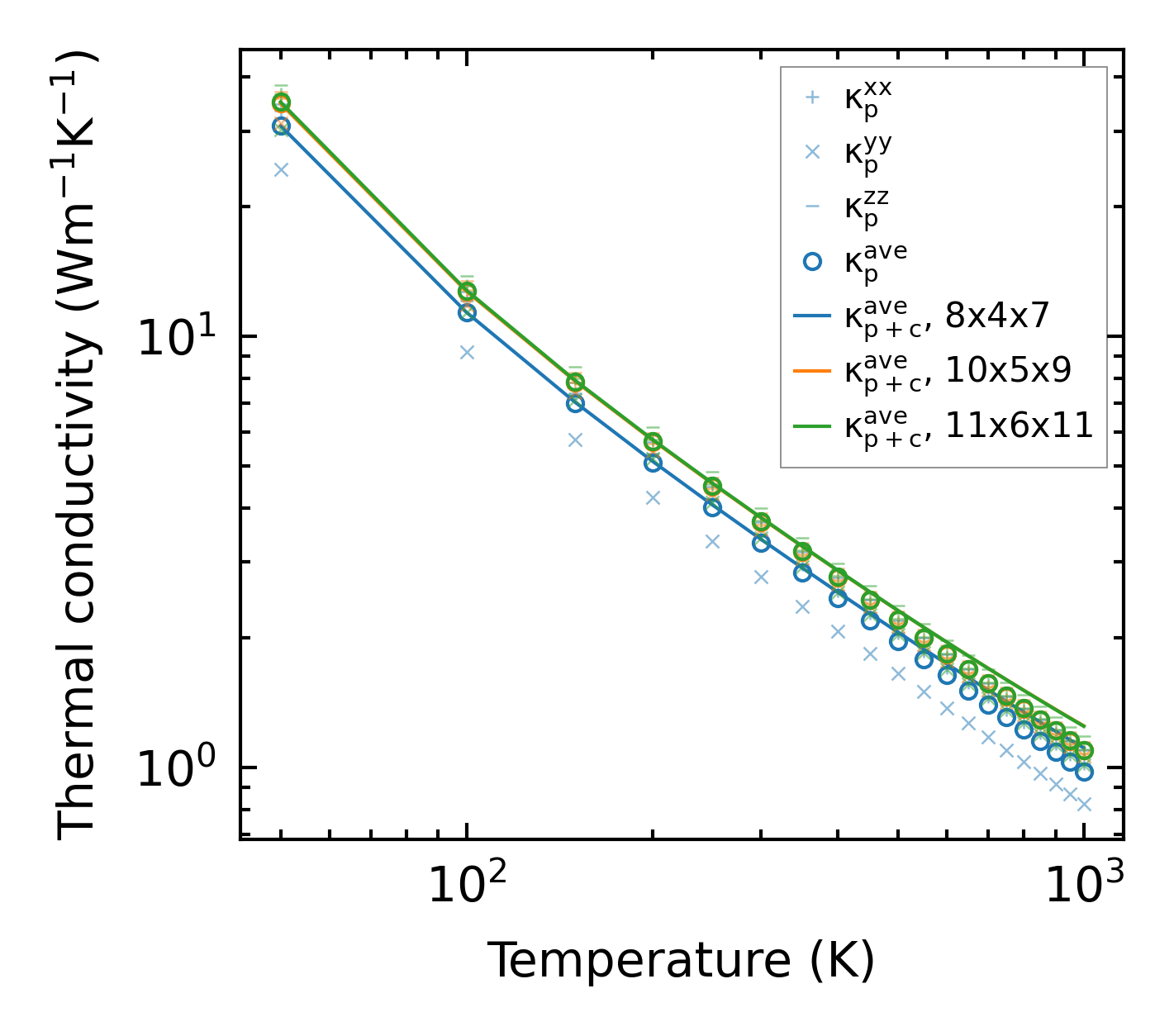

../../_images/fig_kappa8532.png — (a) Temperature-dependent lattice thermal conductivity

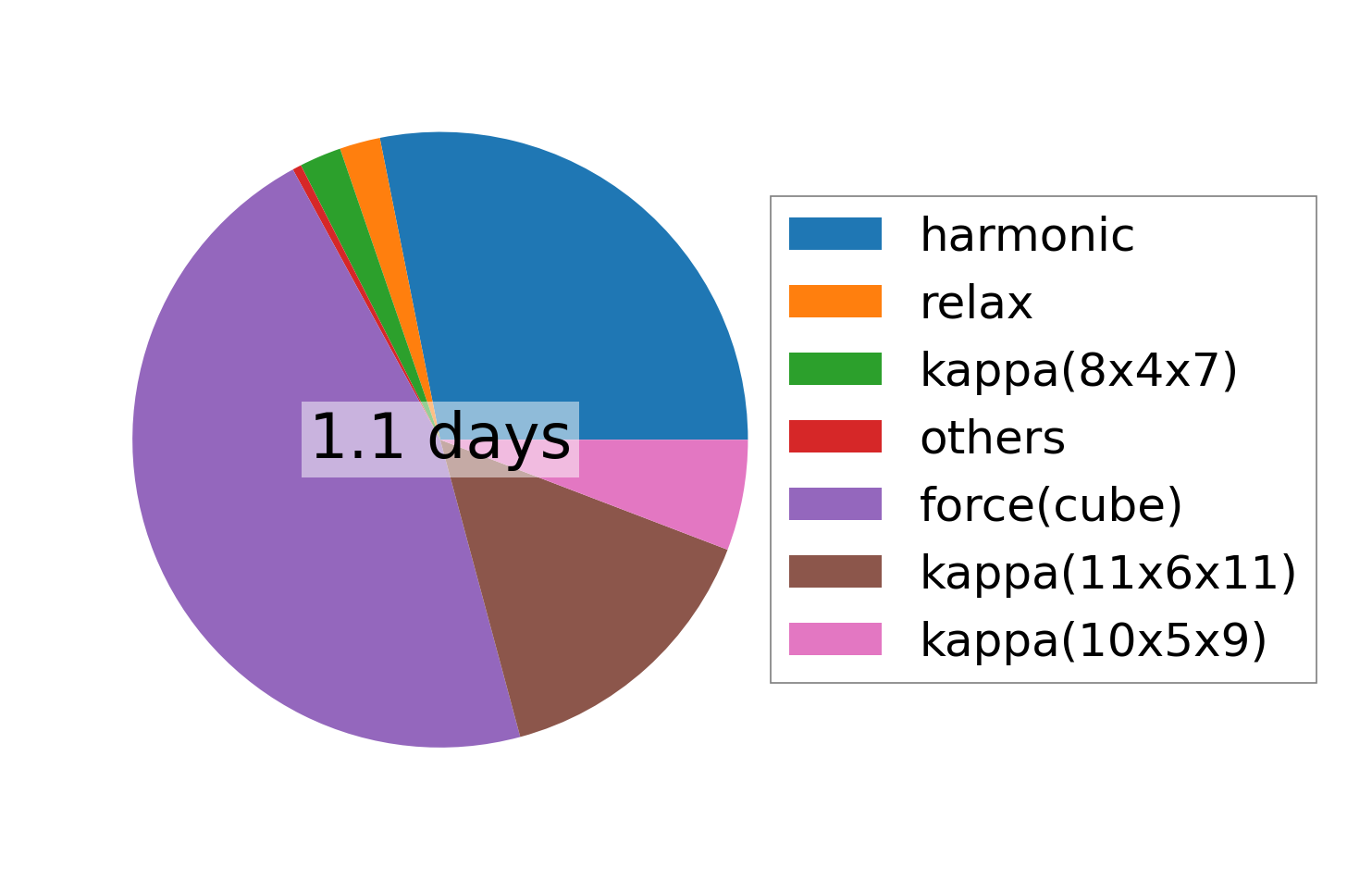

../../_images/fig_times18813.png — (b) Computation time
