mp-29375/Na3InS3/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-29375.tar.gz

Equation of state

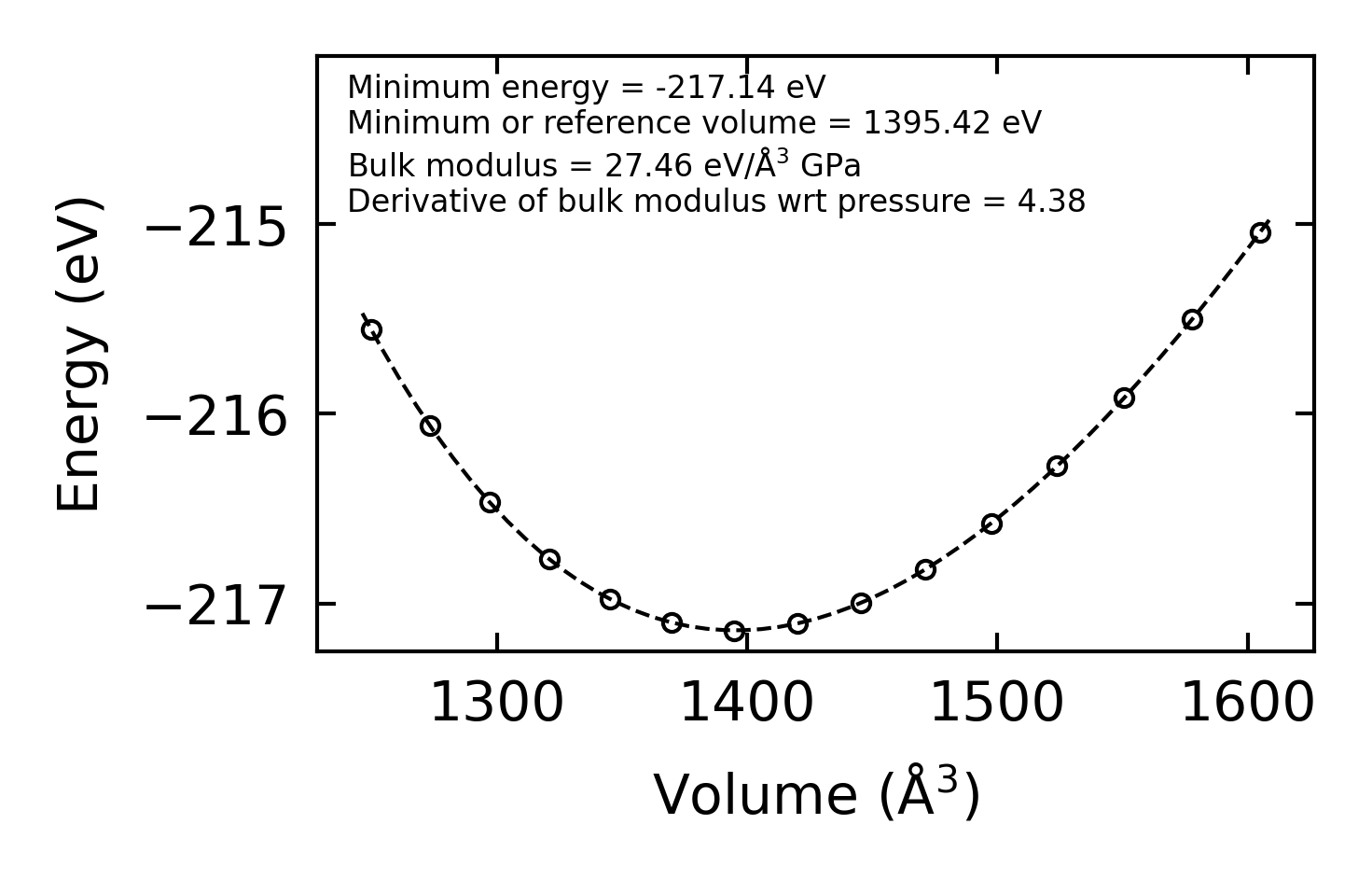

../../_images/fig_bm5461.png — (a) Equation of state

Harmonic properties

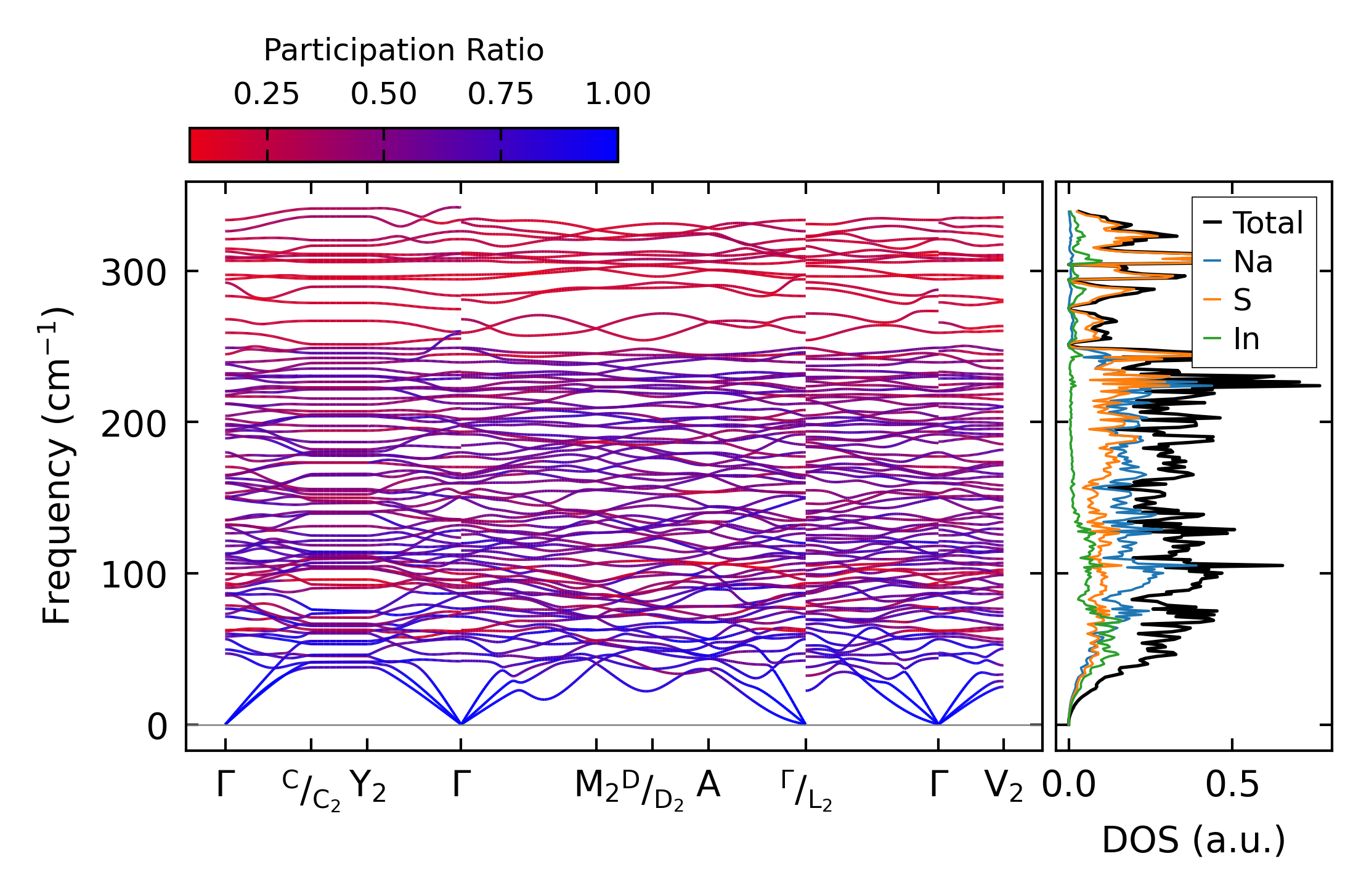

../../_images/fig_bandos_pr11168.png — (a) Phonon dispersion with participation ratio and DOS

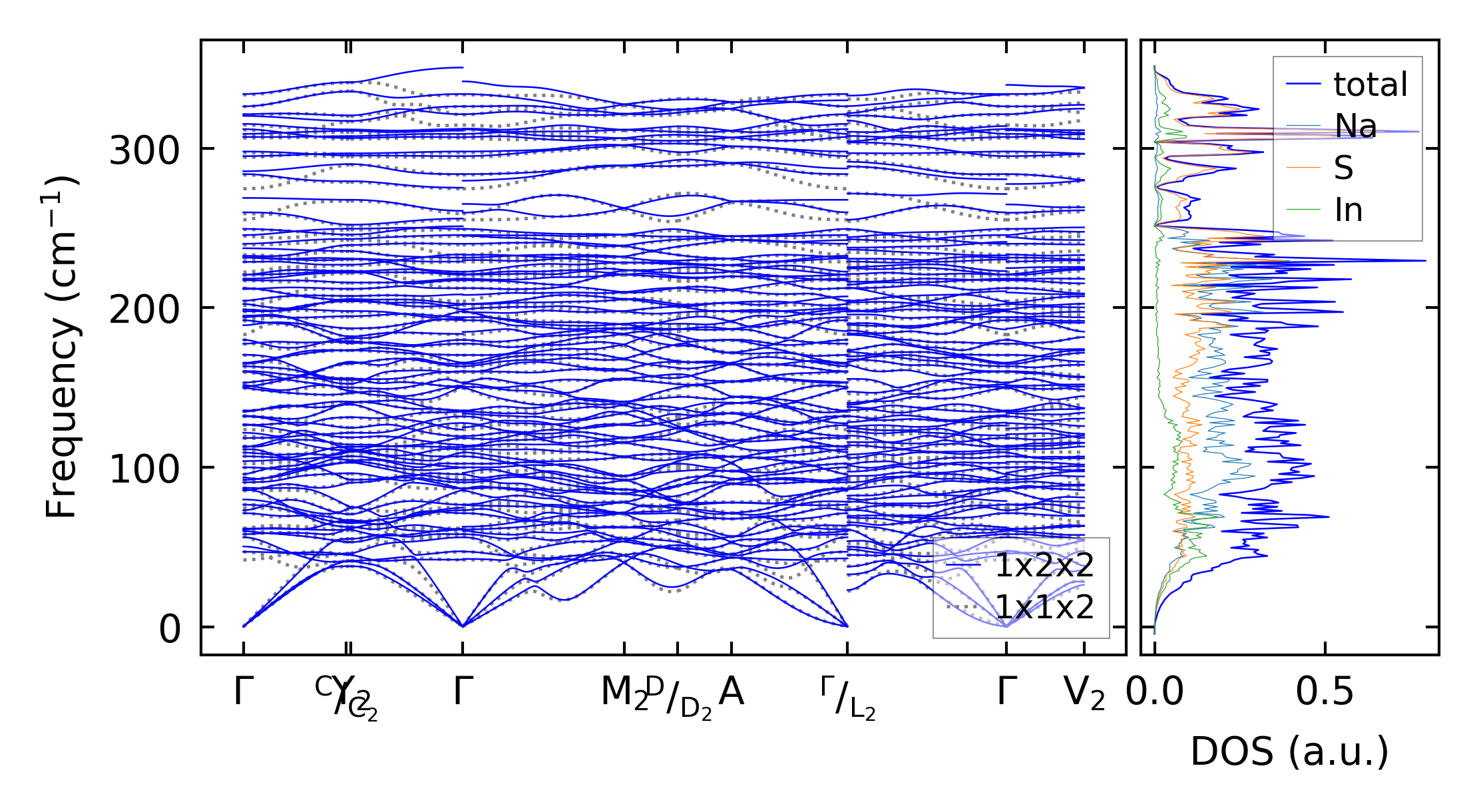

../../_images/fig_bandos15135.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo11168.png — (c) Thermodynamic properties

Grüneisen parameters

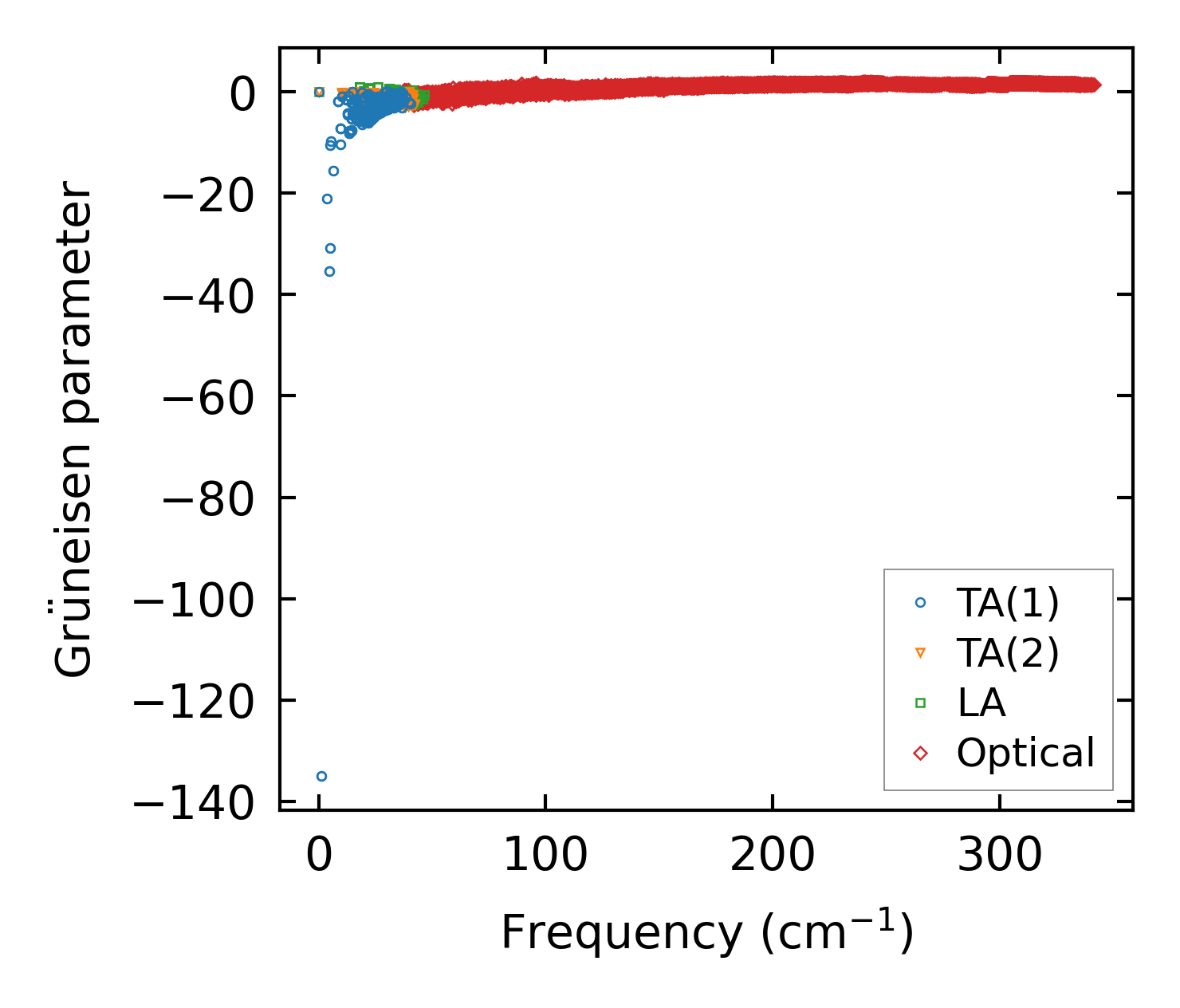

../../_images/fig_gru_all4604.png — (a) Grüneisen parameters

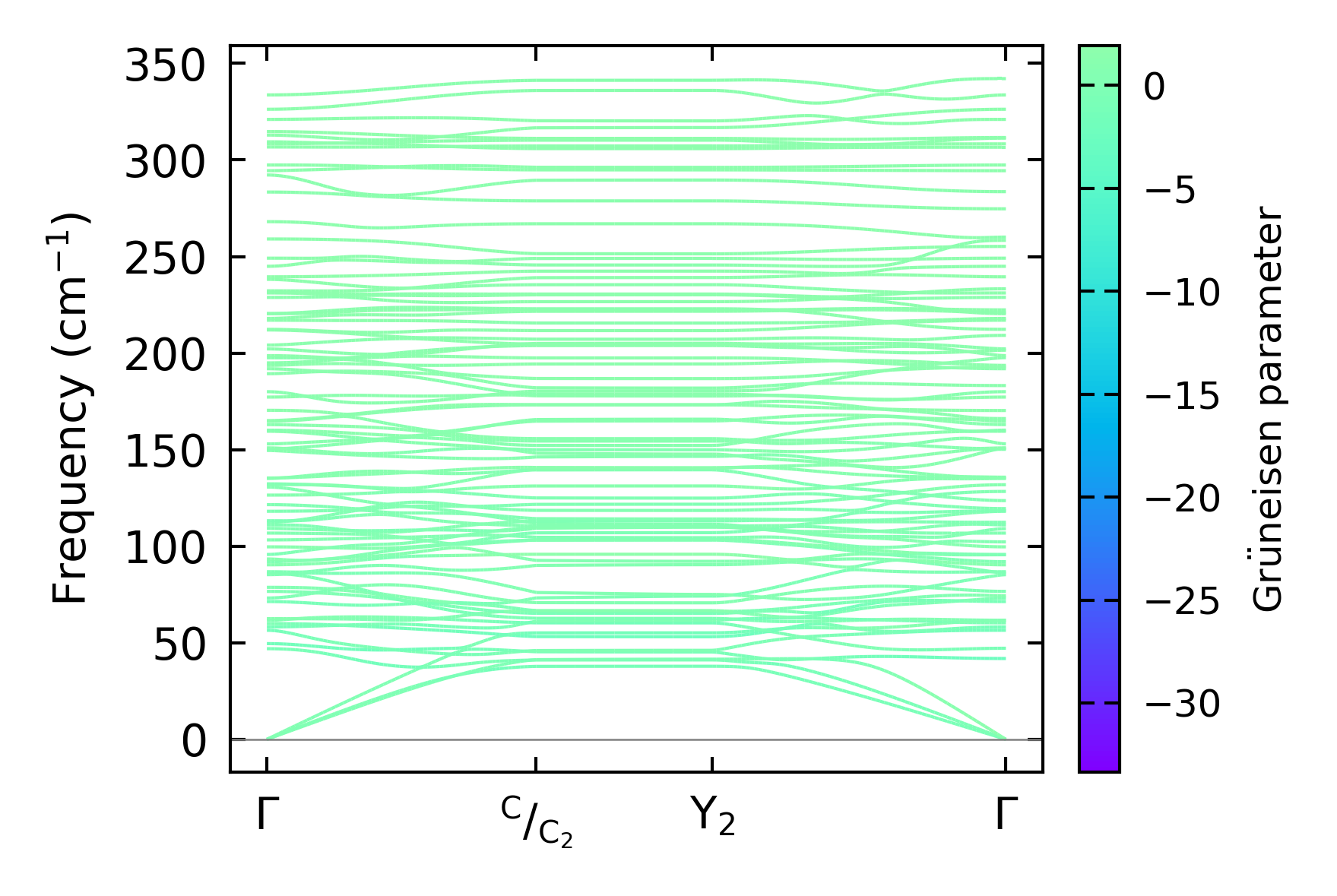

../../_images/fig_gruneisen4604.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x10, supercell: 1x1x2

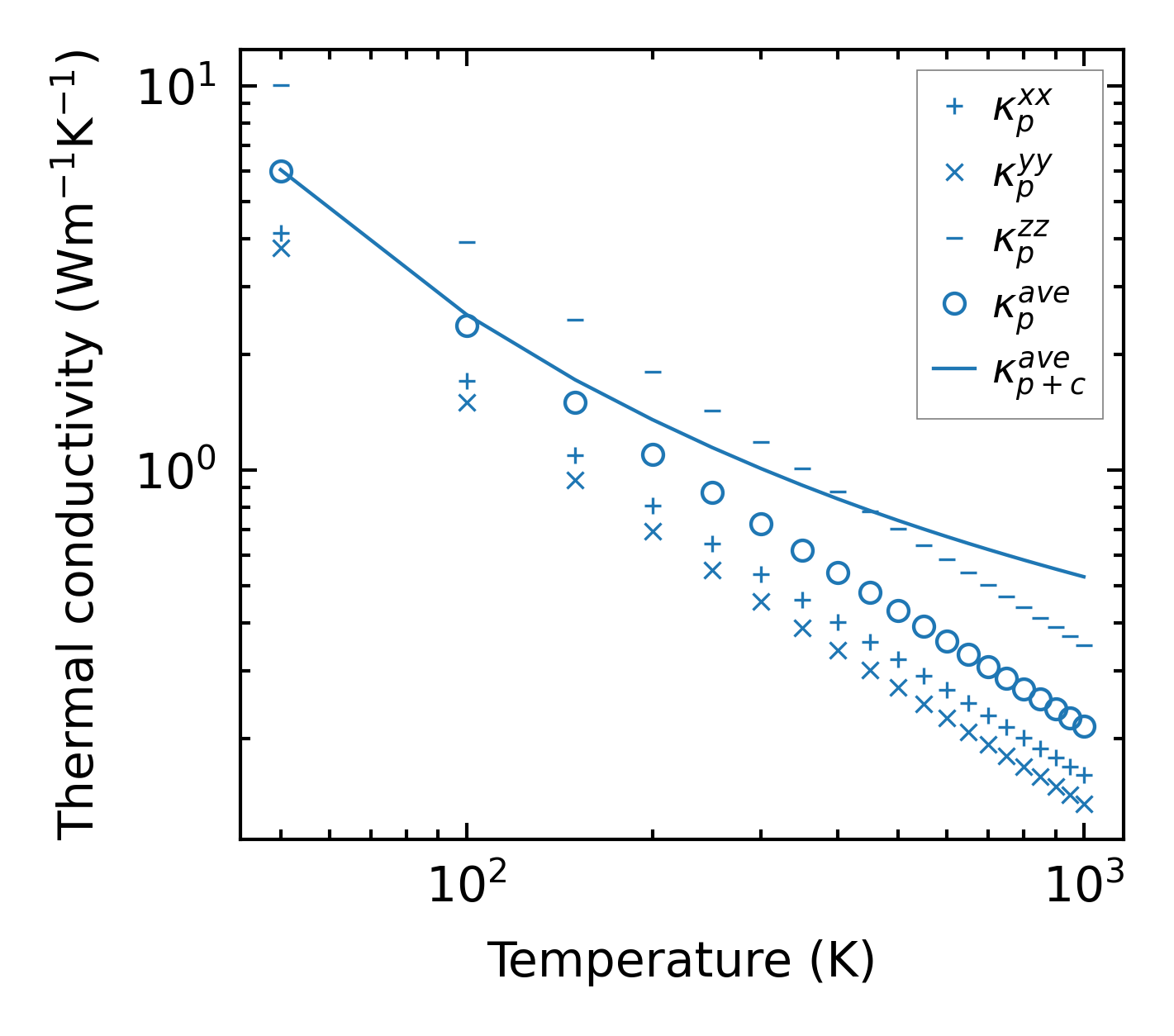

../../_images/fig_kappa8690.png — (a) Temperature-dependent lattice thermal conductivity

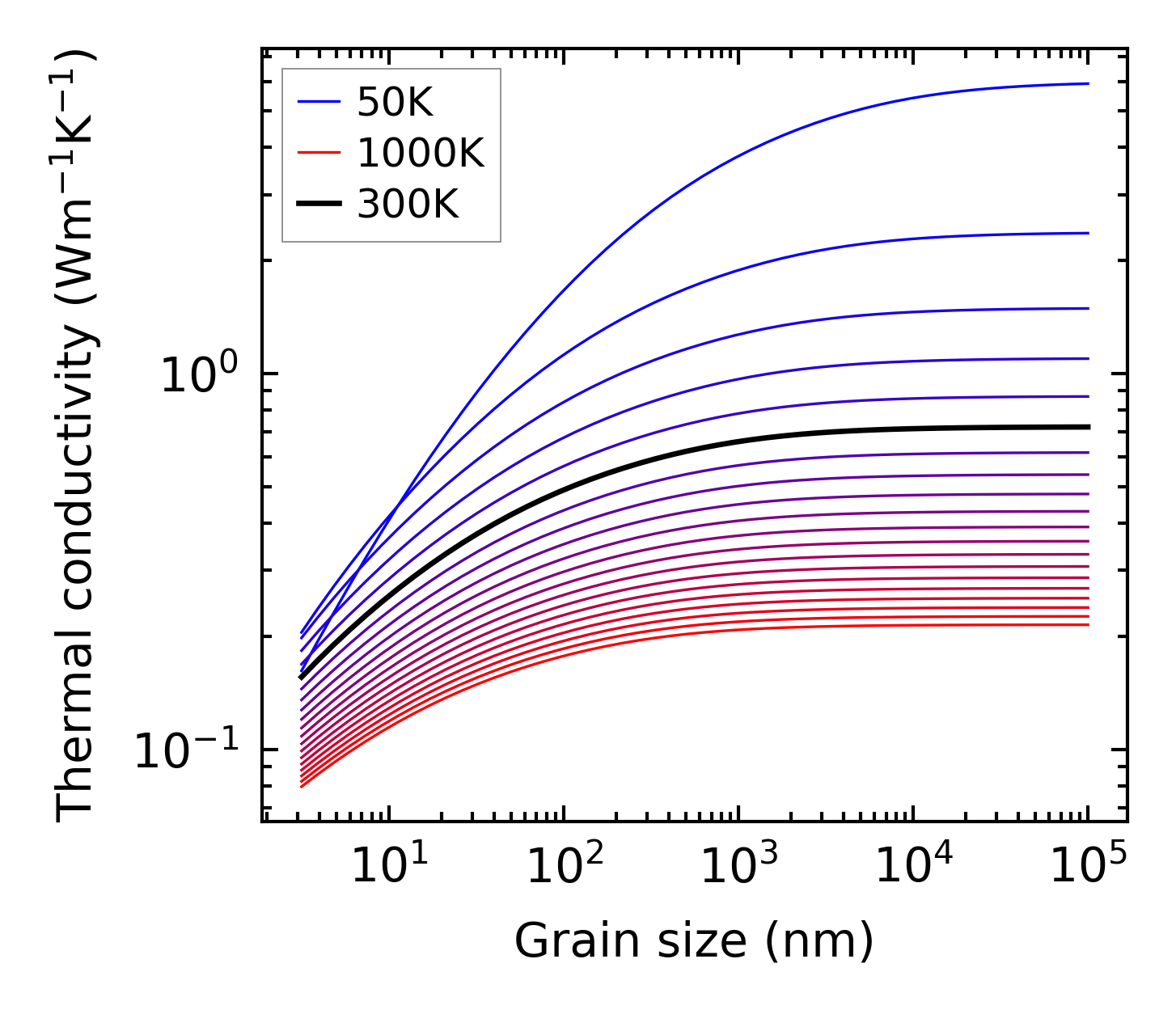

../../_images/fig_kappa_vs_grain_size4661.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

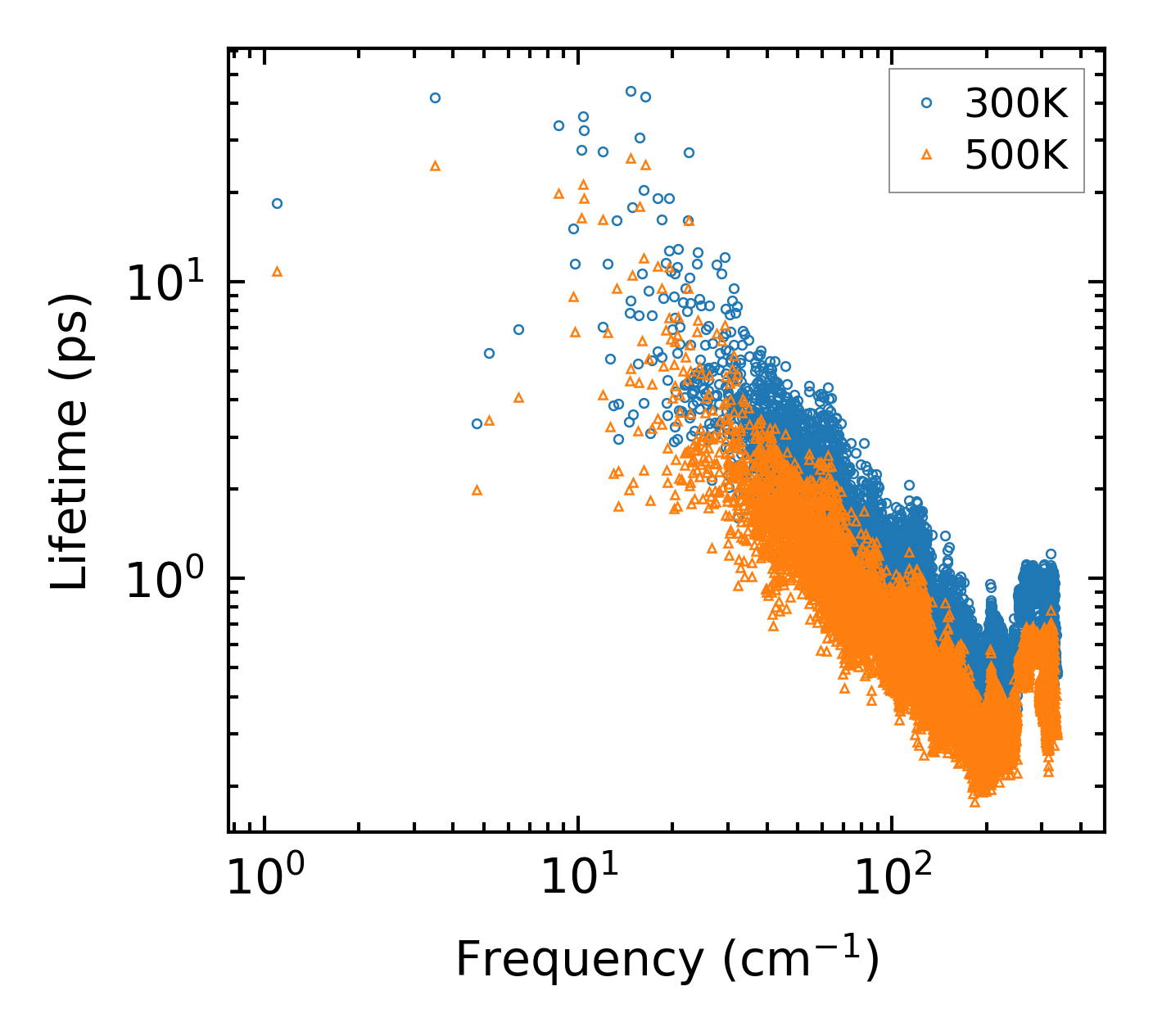

../../_images/fig_lifetime4560.png — (a) Phonon lifetime due to phonon-phonon scattering

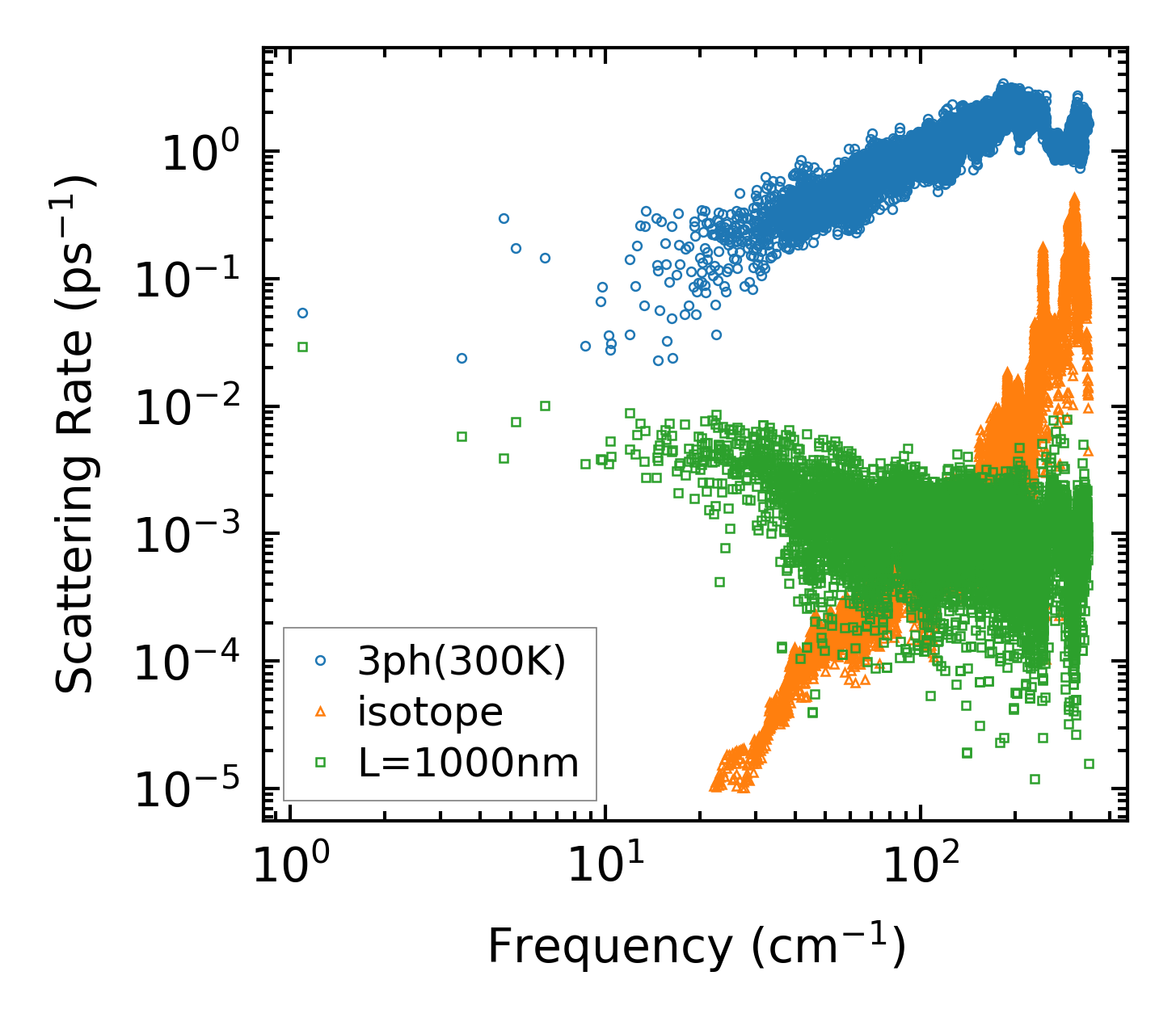

../../_images/fig_scat_rates4559.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

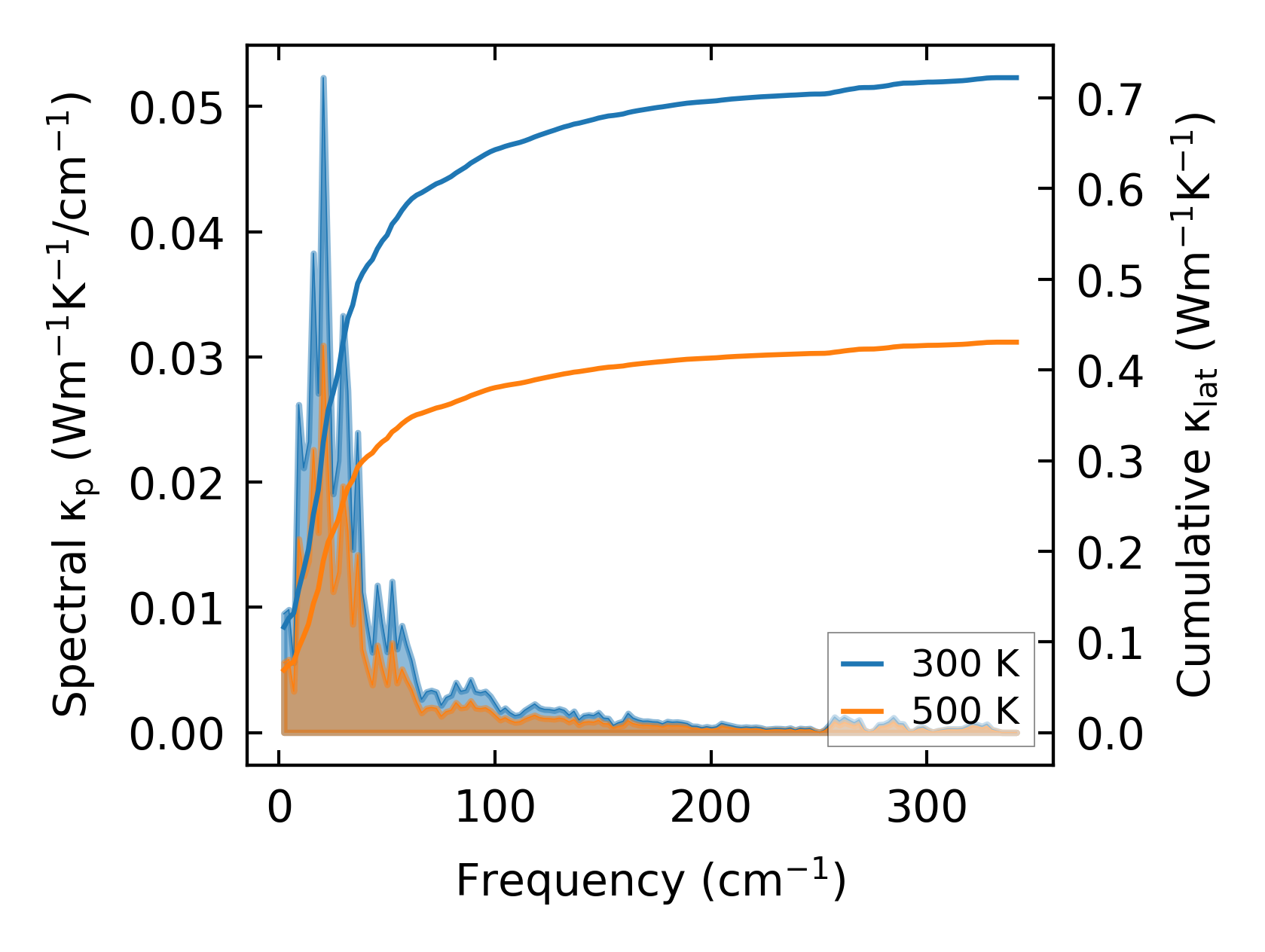

../../_images/fig_cumu_frequency4560.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

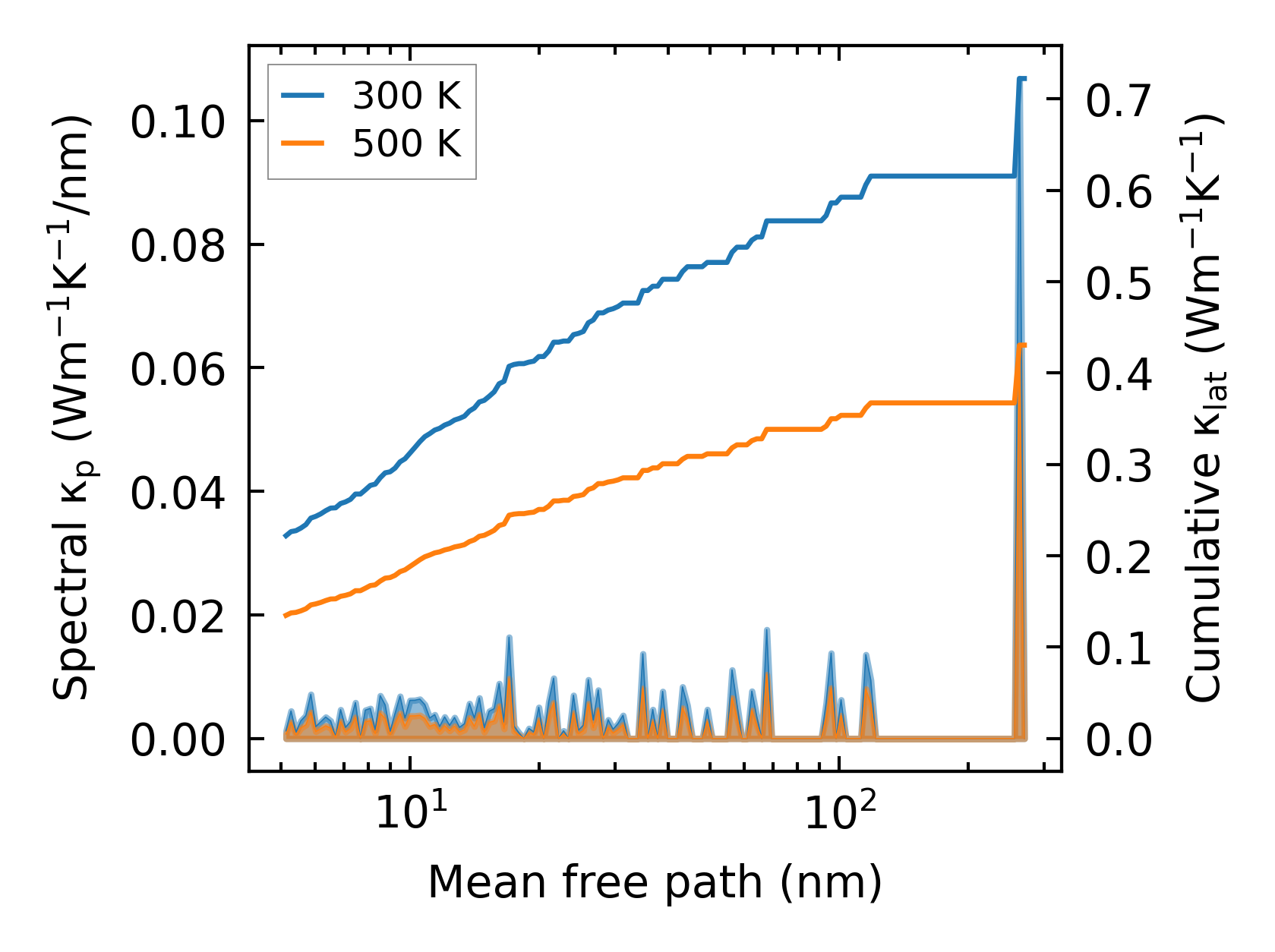

../../_images/fig_cumu_mfp4559.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

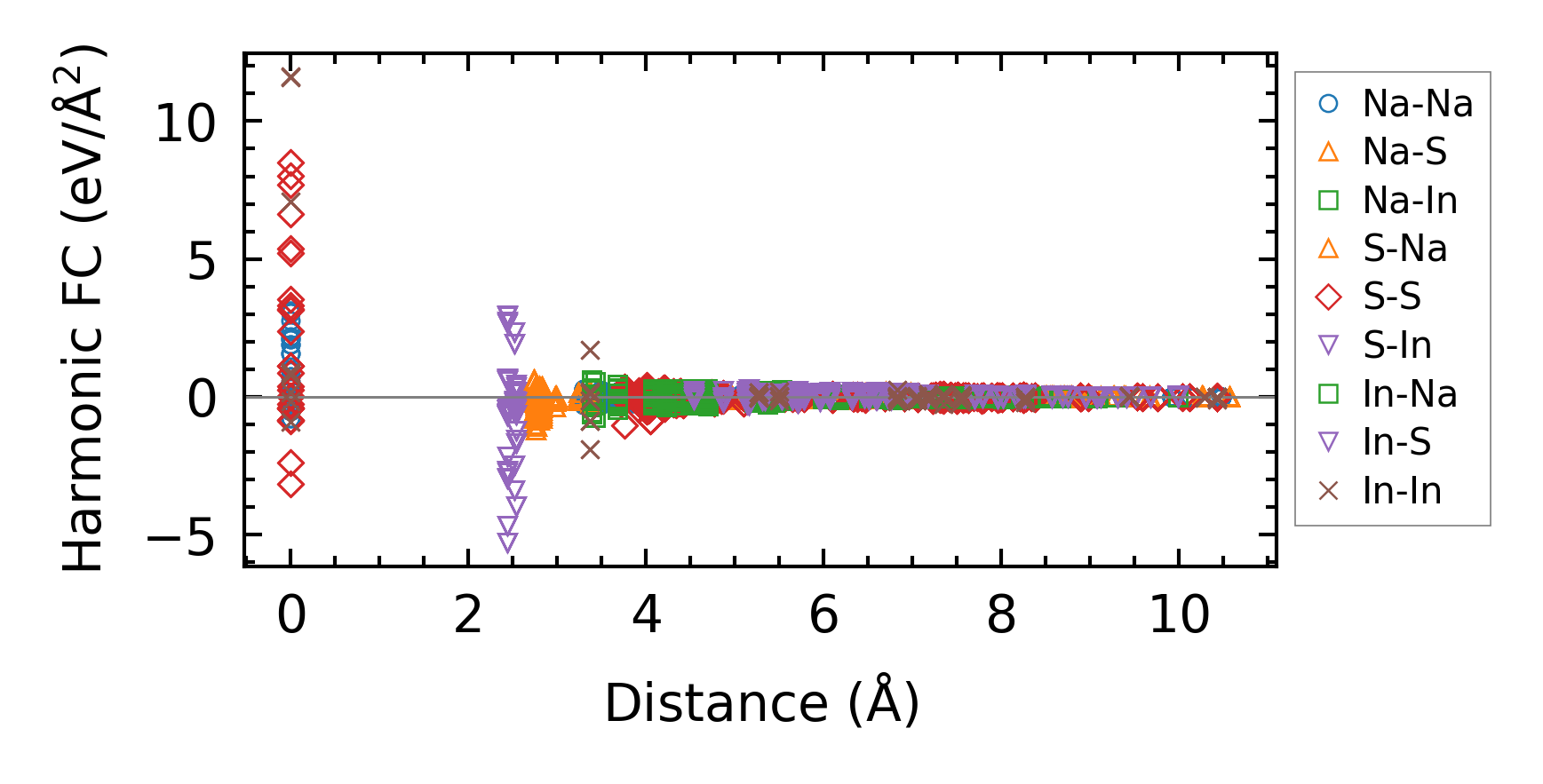

../../_images/fig_fc210885.png — (a) Force constants w.r.t atomic distance

Summary

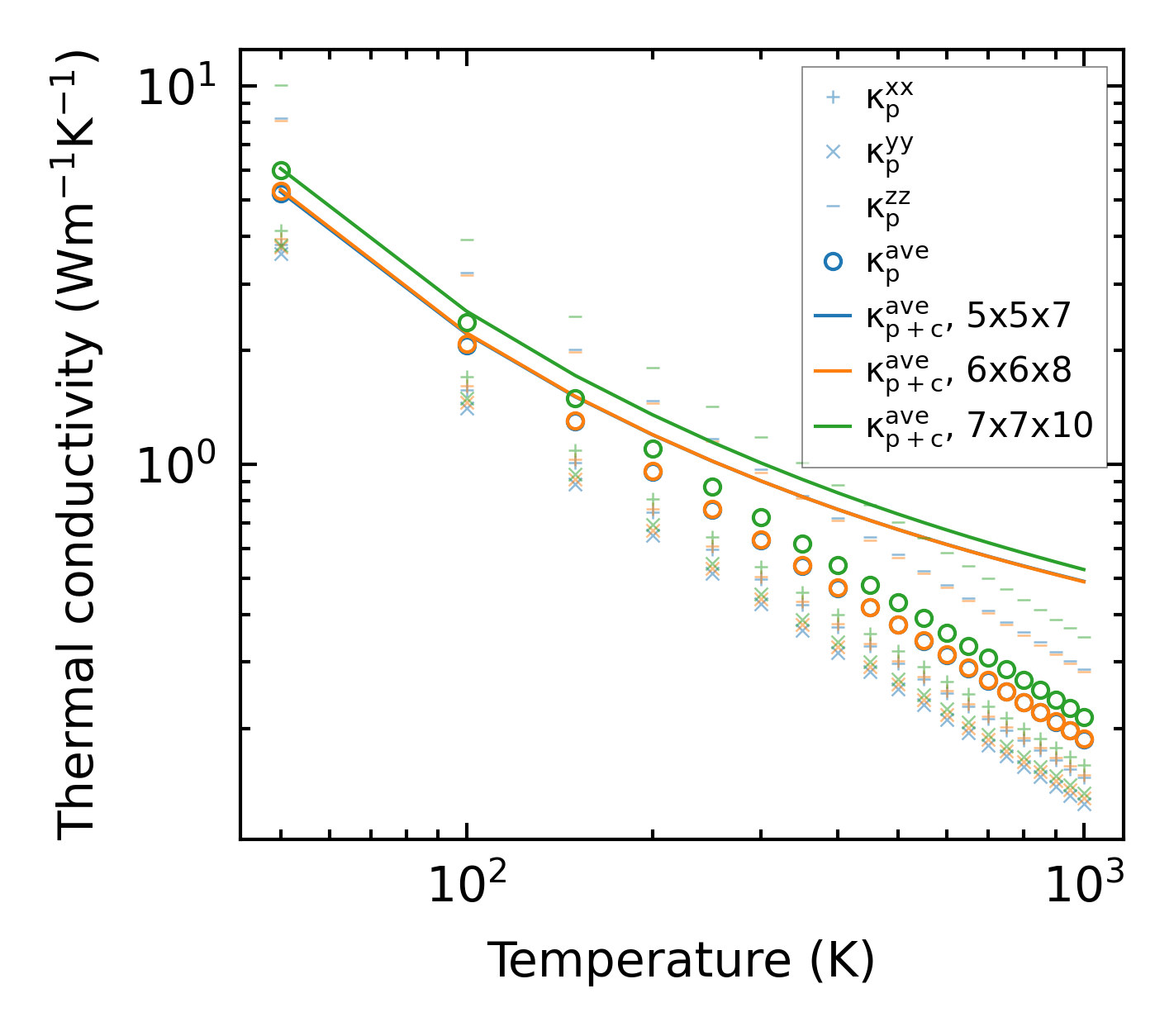

../../_images/fig_kappa8691.png — (a) Temperature-dependent lattice thermal conductivity

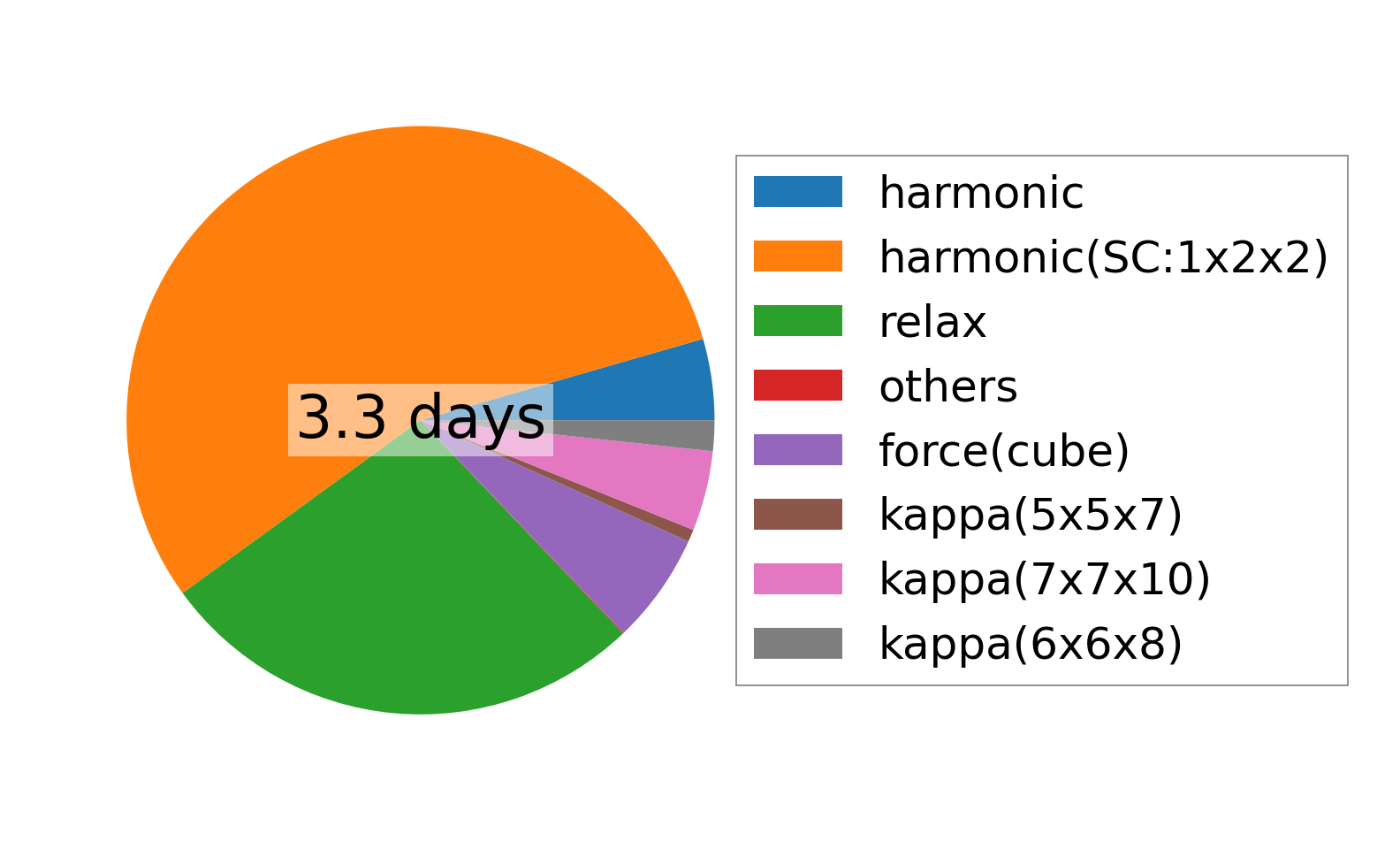

../../_images/fig_times19090.png — (b) Computation time
