mp-7995/Mg2BO3F/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-7995.tar.gz

Harmonic properties

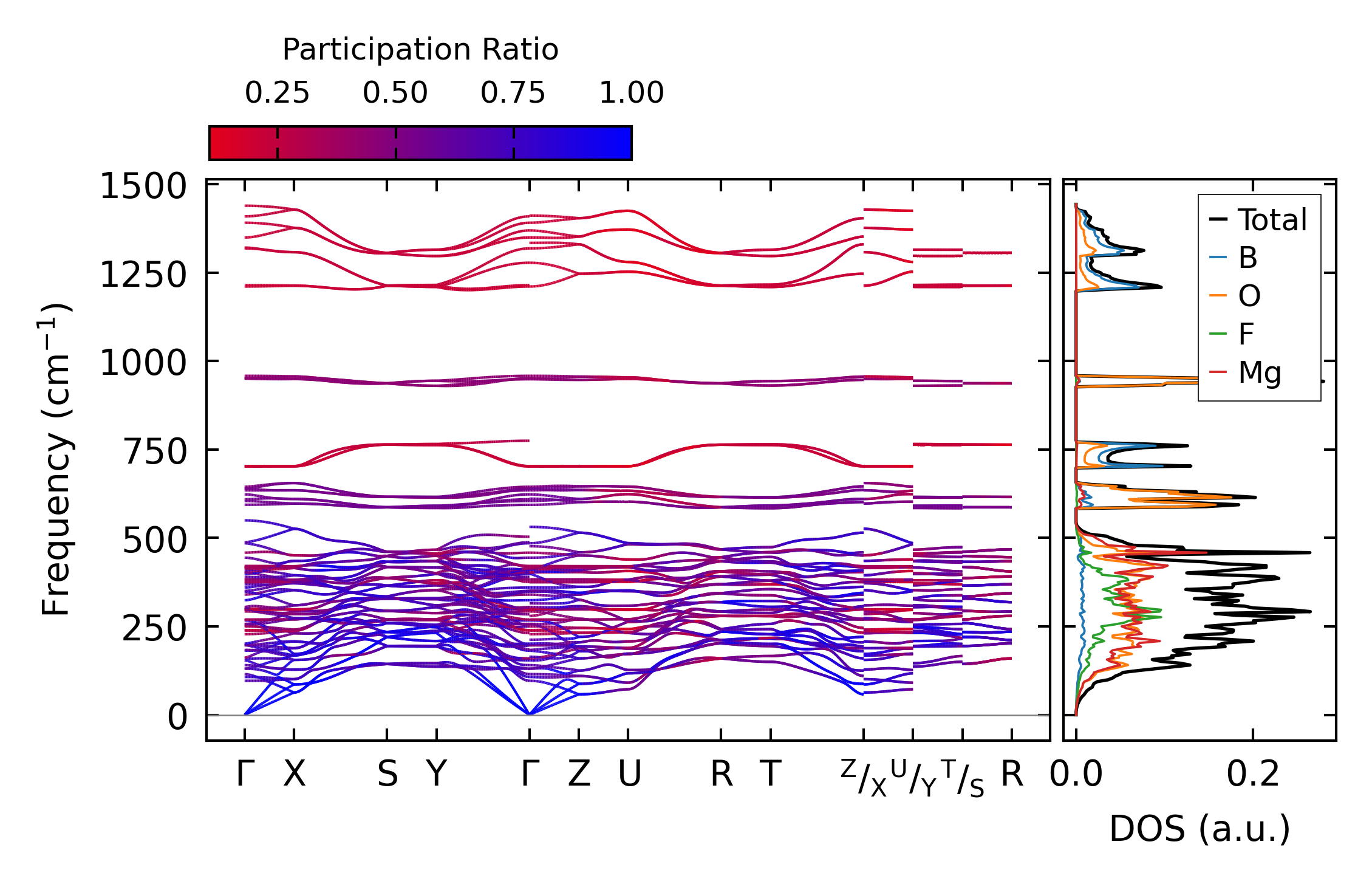

../../_images/fig_bandos_pr4413.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4413.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1904.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1904.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x23x7, supercell: 1x4x1

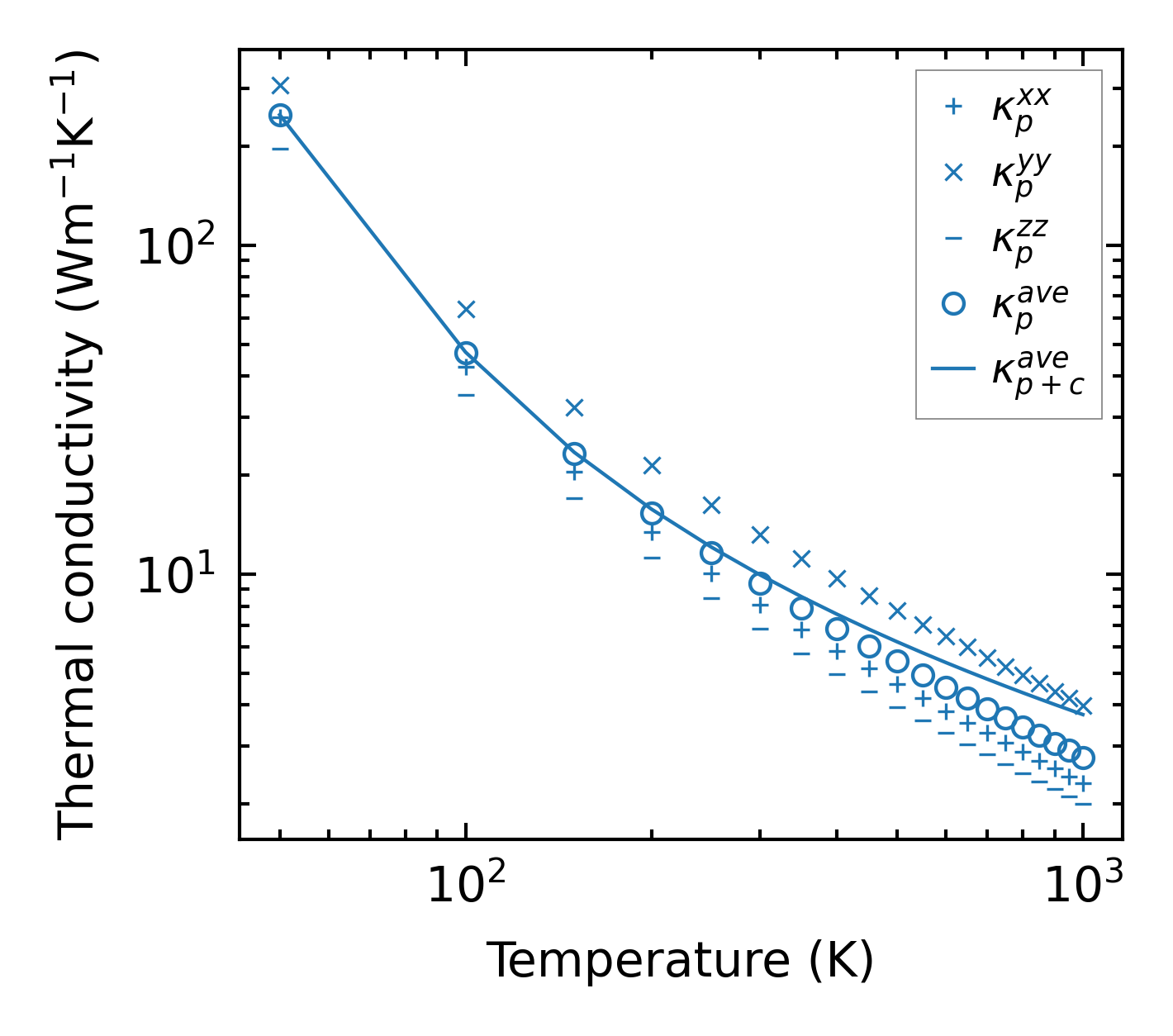

../../_images/fig_kappa3646.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1931.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

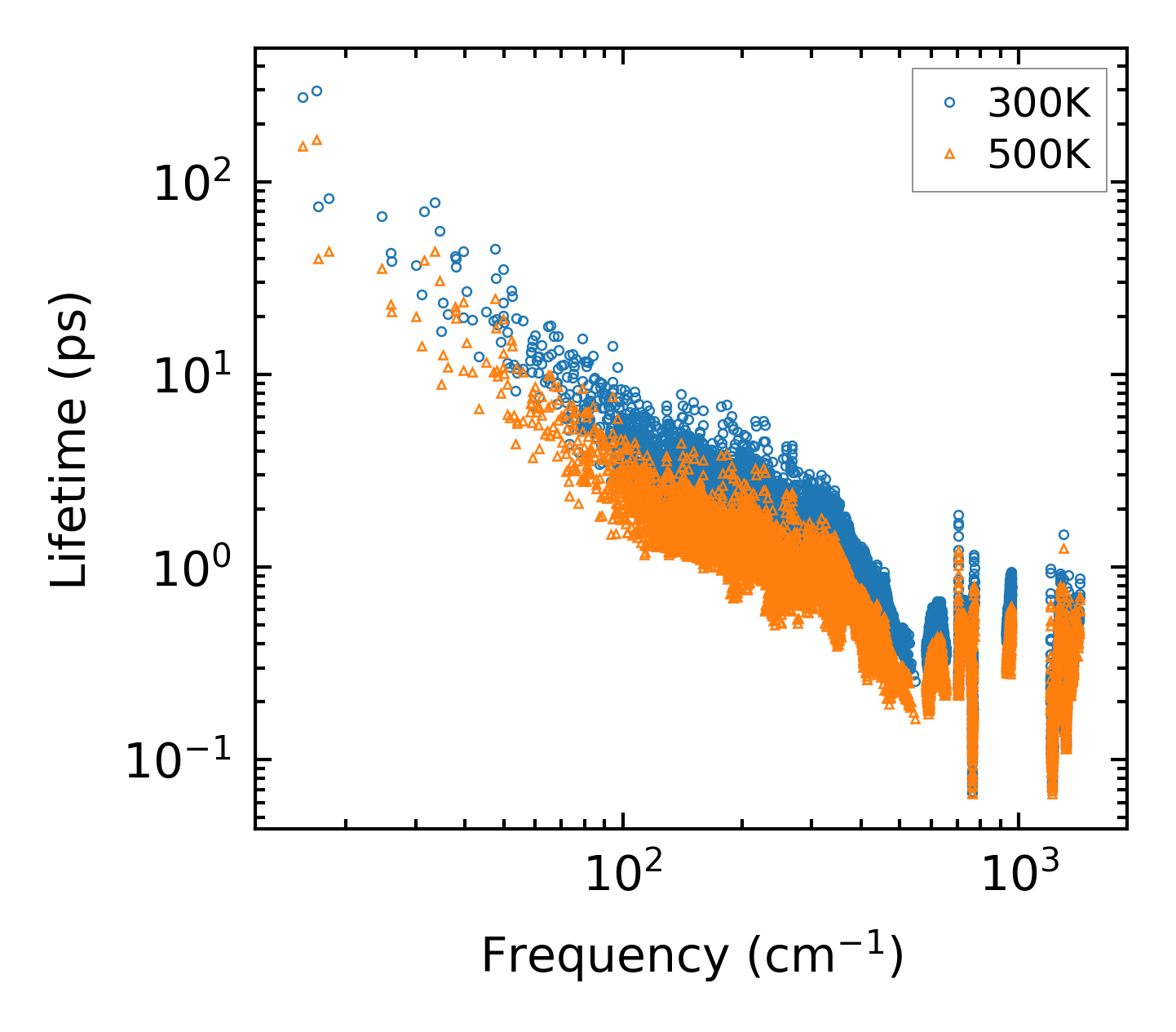

../../_images/fig_lifetime1893.png — (a) Phonon lifetime due to phonon-phonon scattering

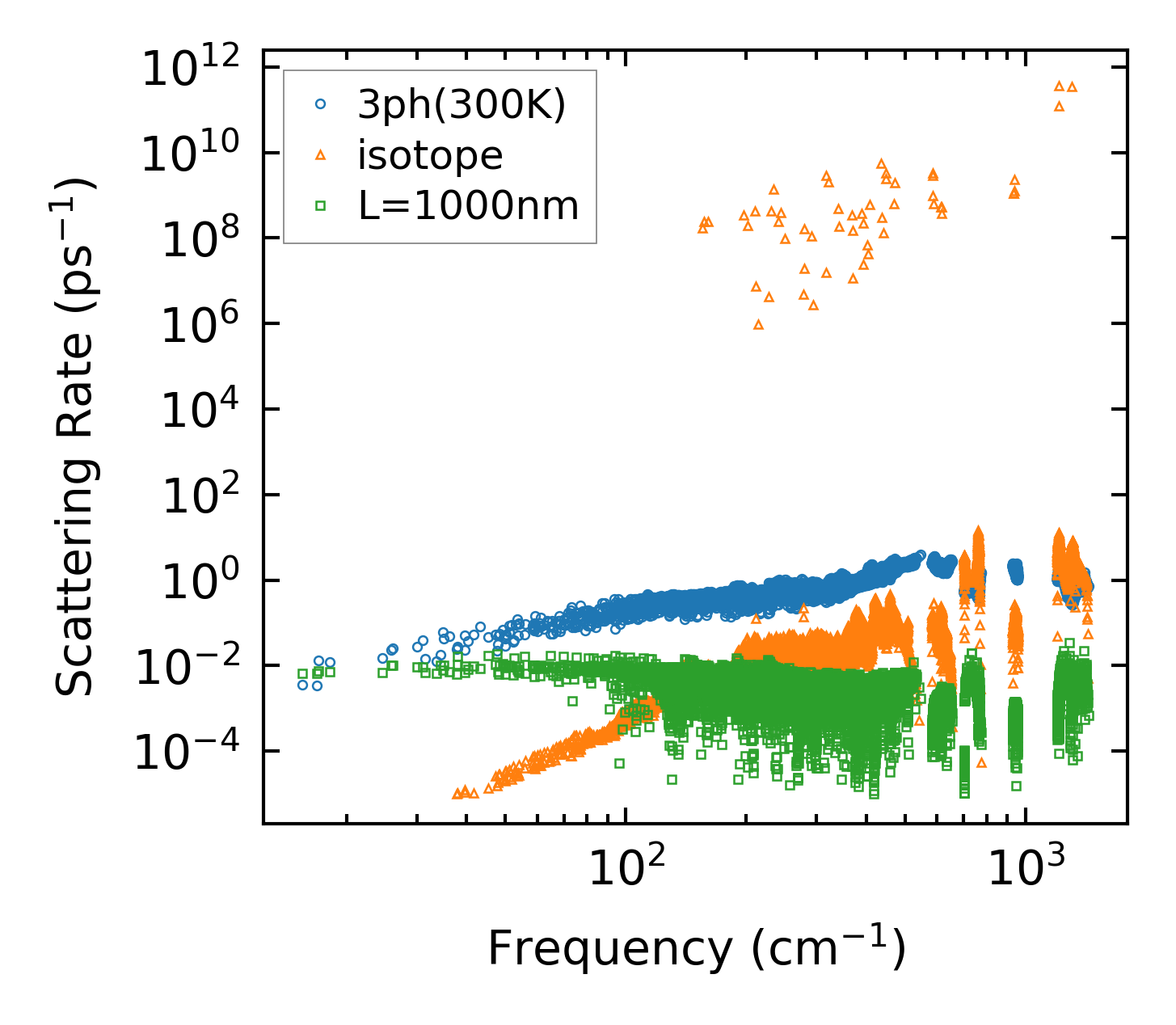

../../_images/fig_scat_rates1892.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

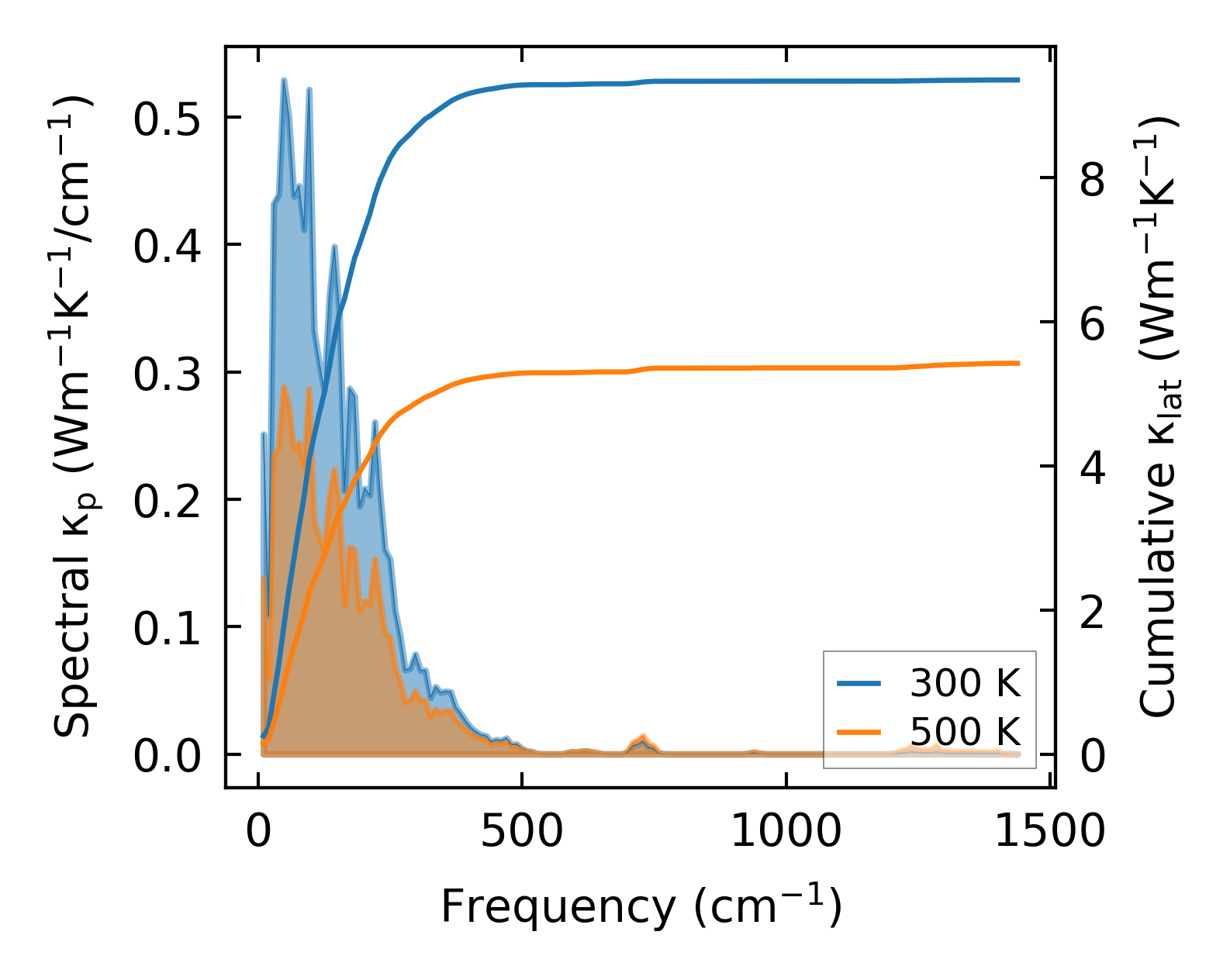

../../_images/fig_cumu_frequency1893.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1893.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

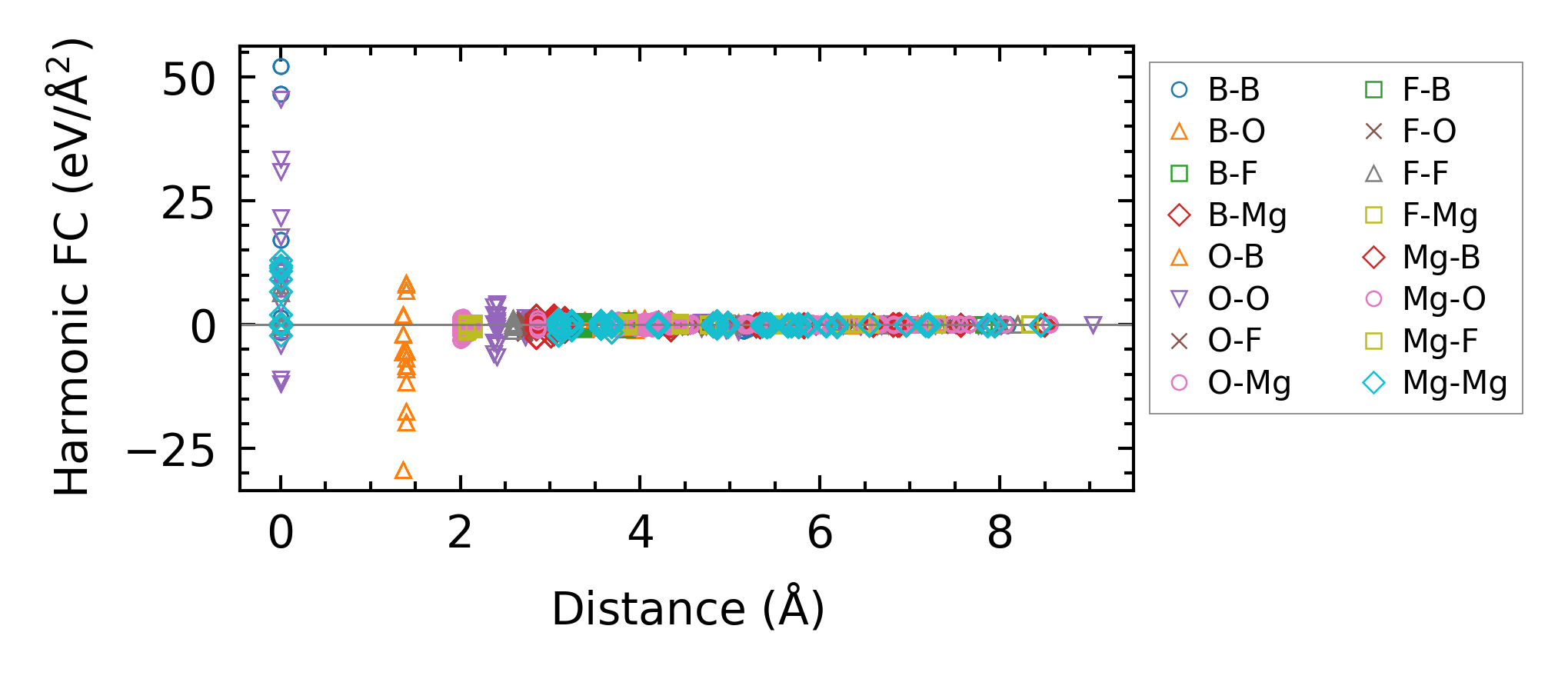

../../_images/fig_fc24226.png — (a) Force constants w.r.t atomic distance

Summary

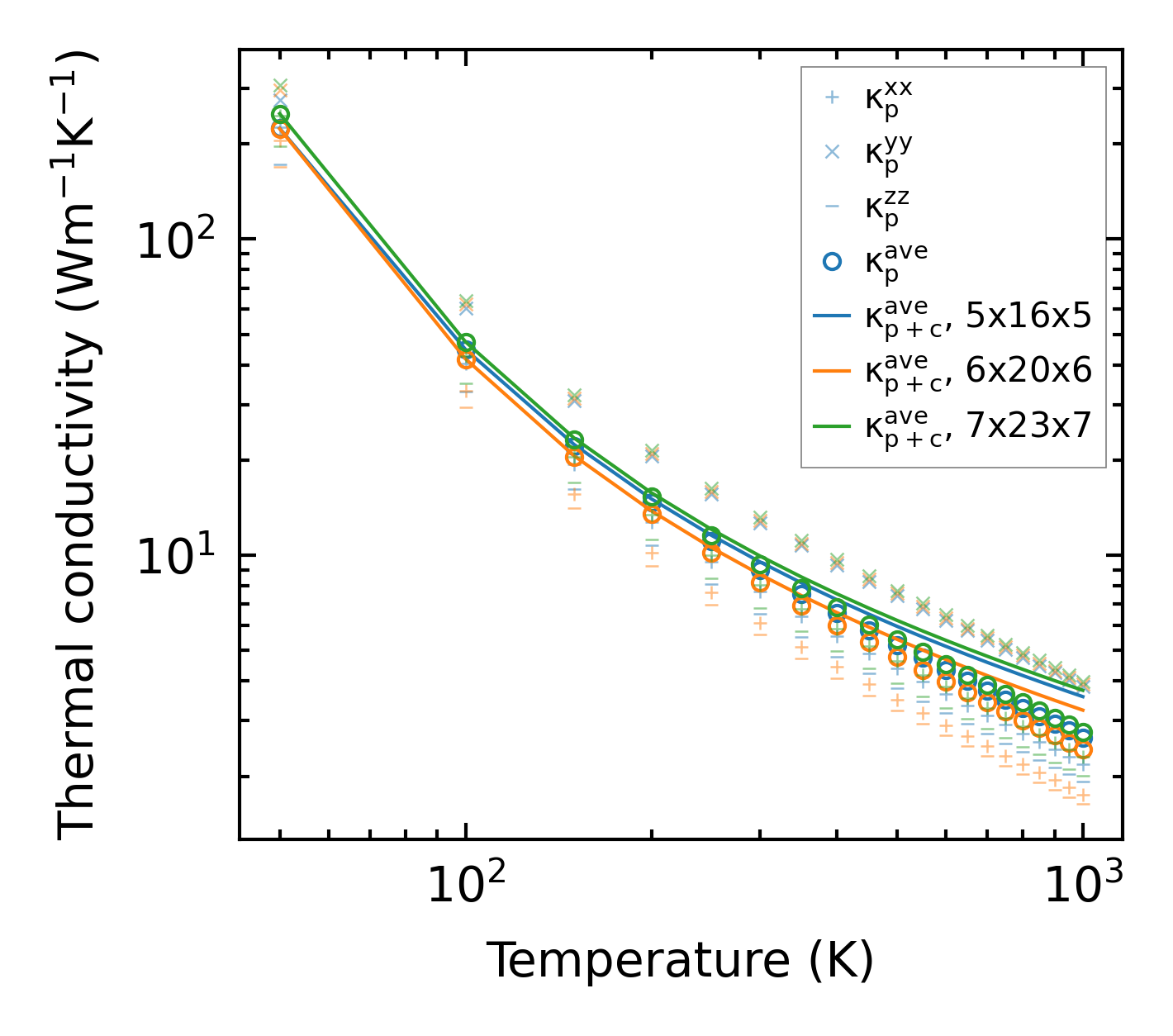

../../_images/fig_kappa3647.png — (a) Temperature-dependent lattice thermal conductivity

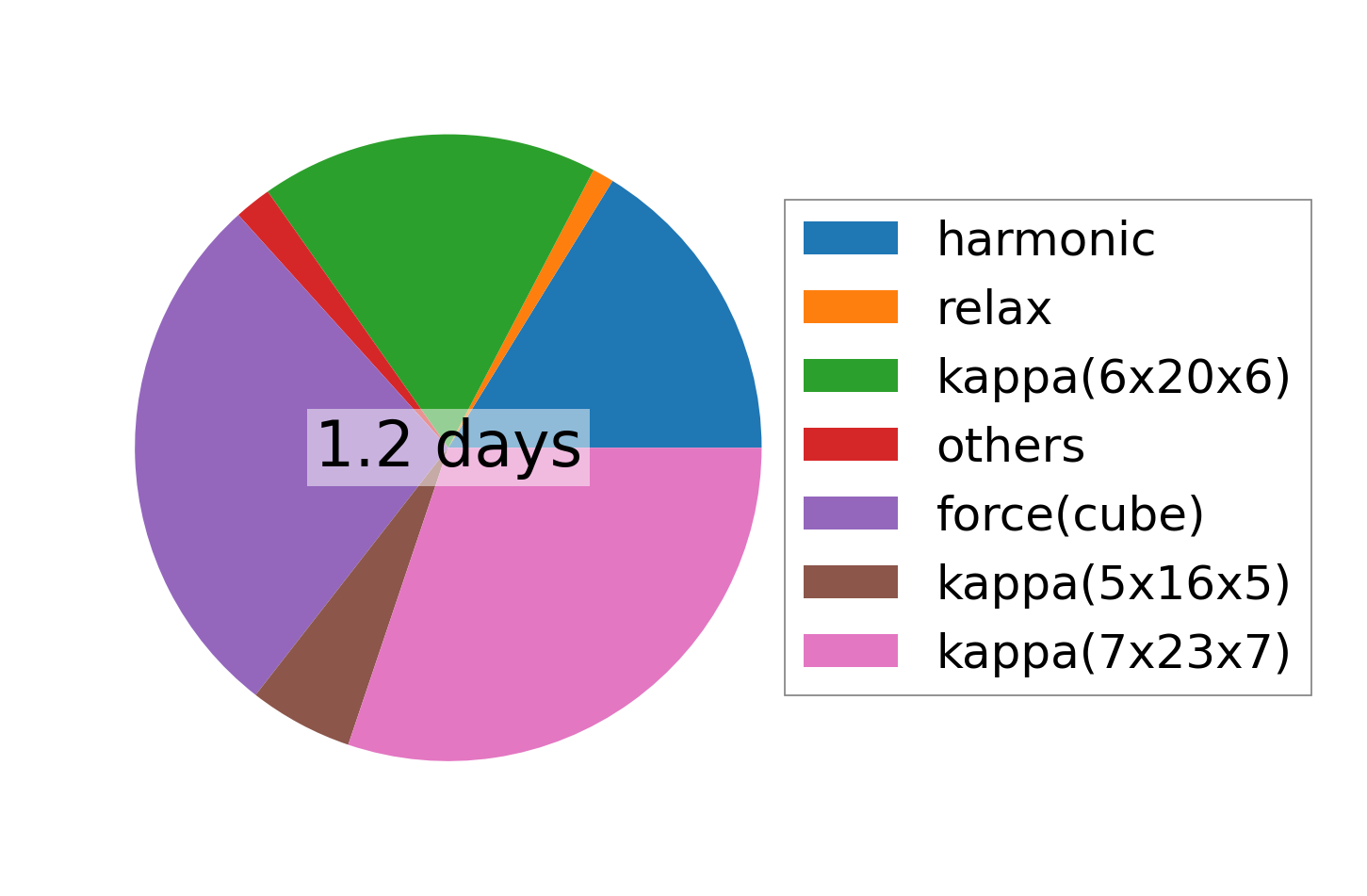

../../_images/fig_times7844.png — (b) Computation time
