mp-7077/KAuS/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-7077.tar.gz

Harmonic properties

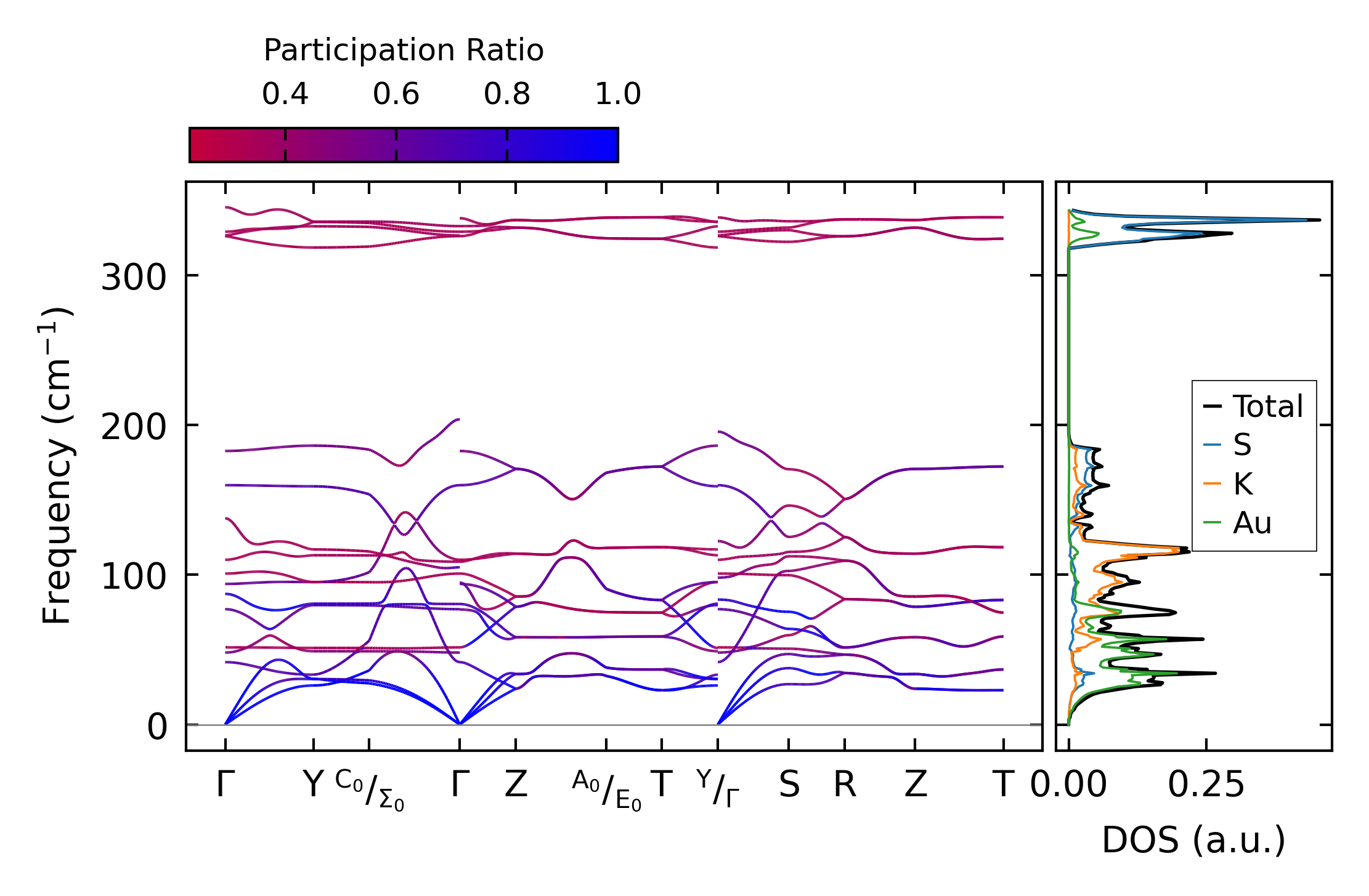

../../_images/fig_bandos_pr4791.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4791.png — (b) Thermodynamic properties

Grüneisen parameters

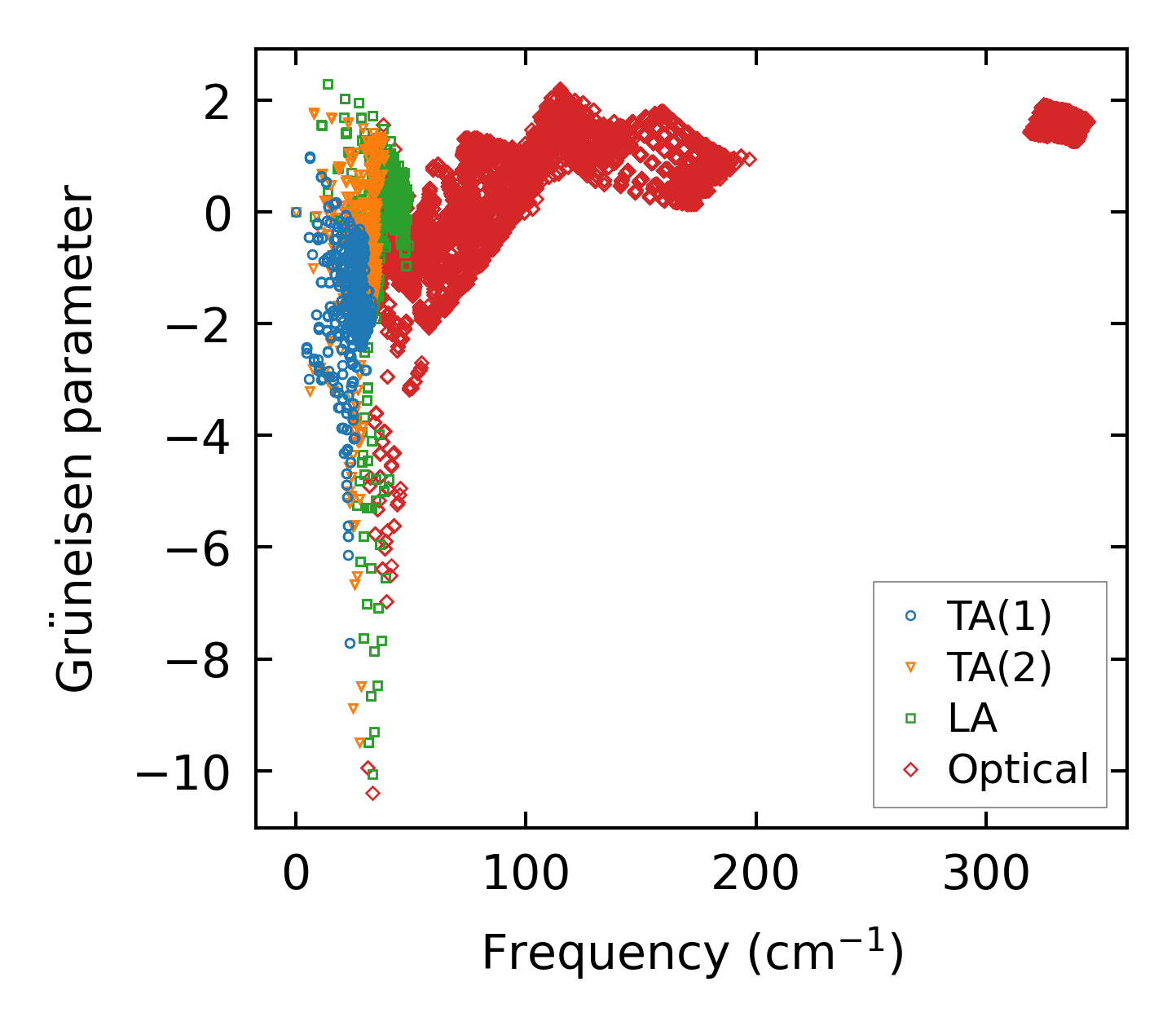

../../_images/fig_gru_all2064.png — (a) Grüneisen parameters

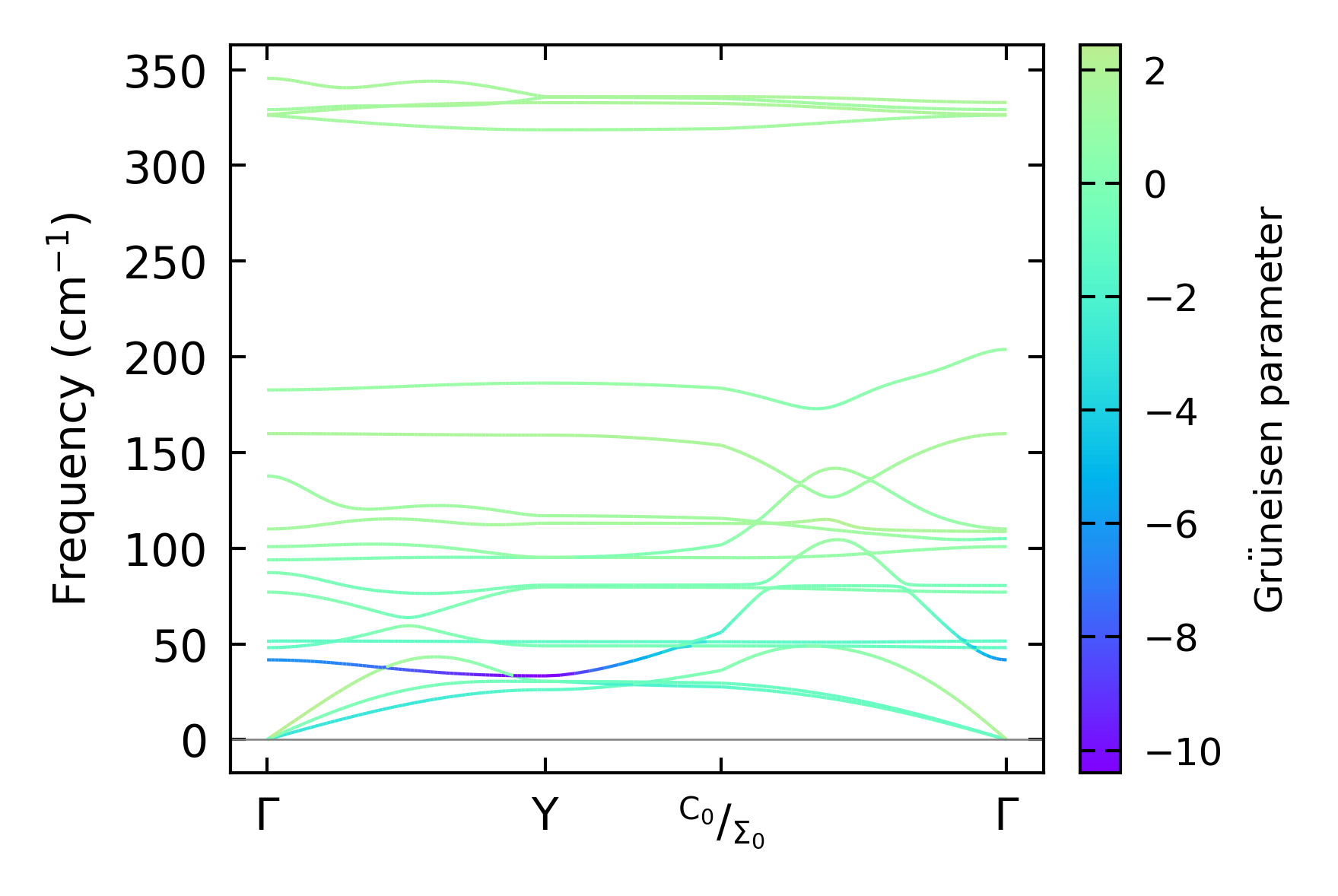

../../_images/fig_gruneisen2064.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x11, supercell: 3x2x2

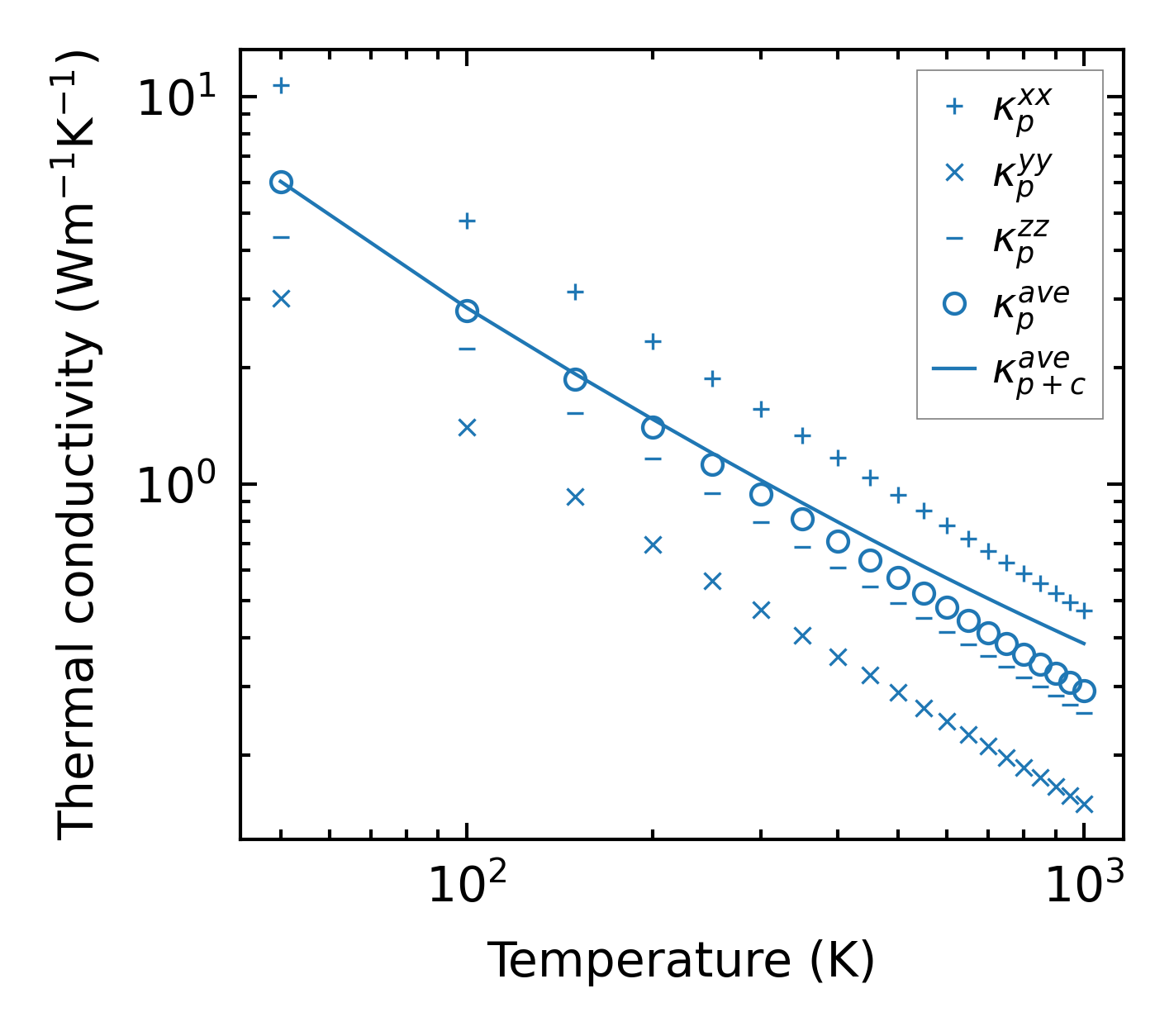

../../_images/fig_kappa3957.png — (a) Temperature-dependent lattice thermal conductivity

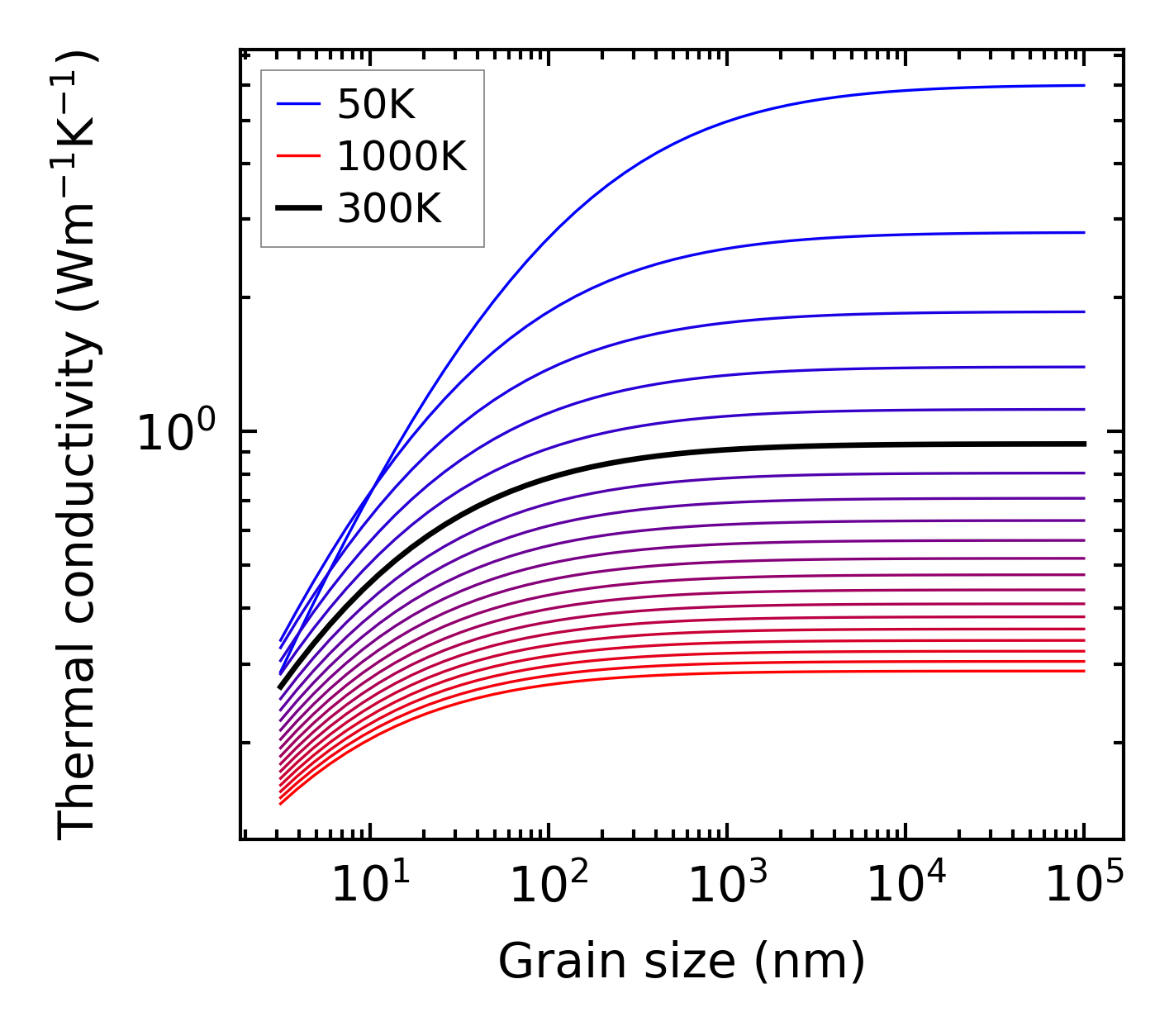

../../_images/fig_kappa_vs_grain_size2095.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2051.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2050.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

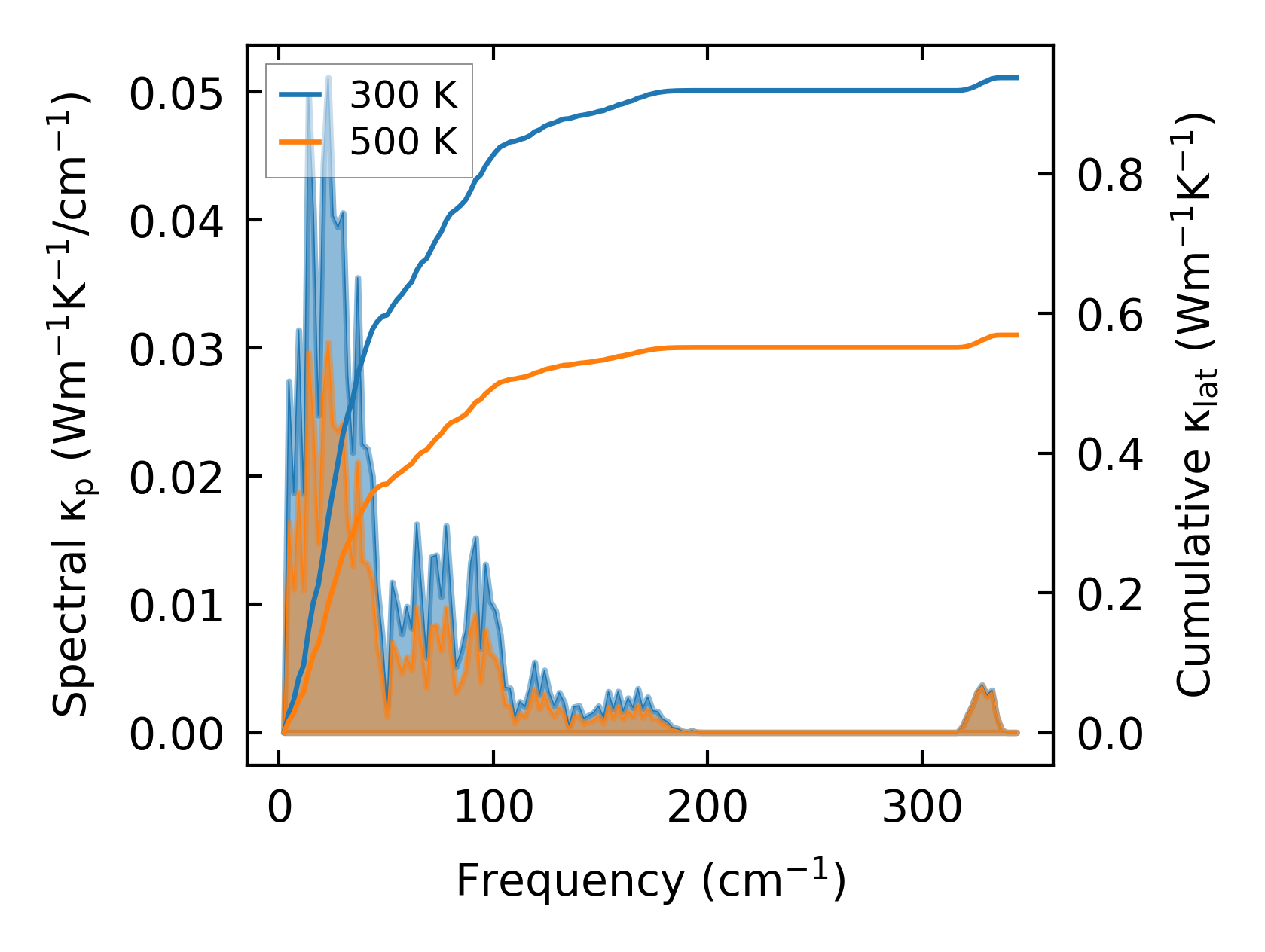

../../_images/fig_cumu_frequency2051.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2051.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24602.png — (a) Force constants w.r.t atomic distance

Summary

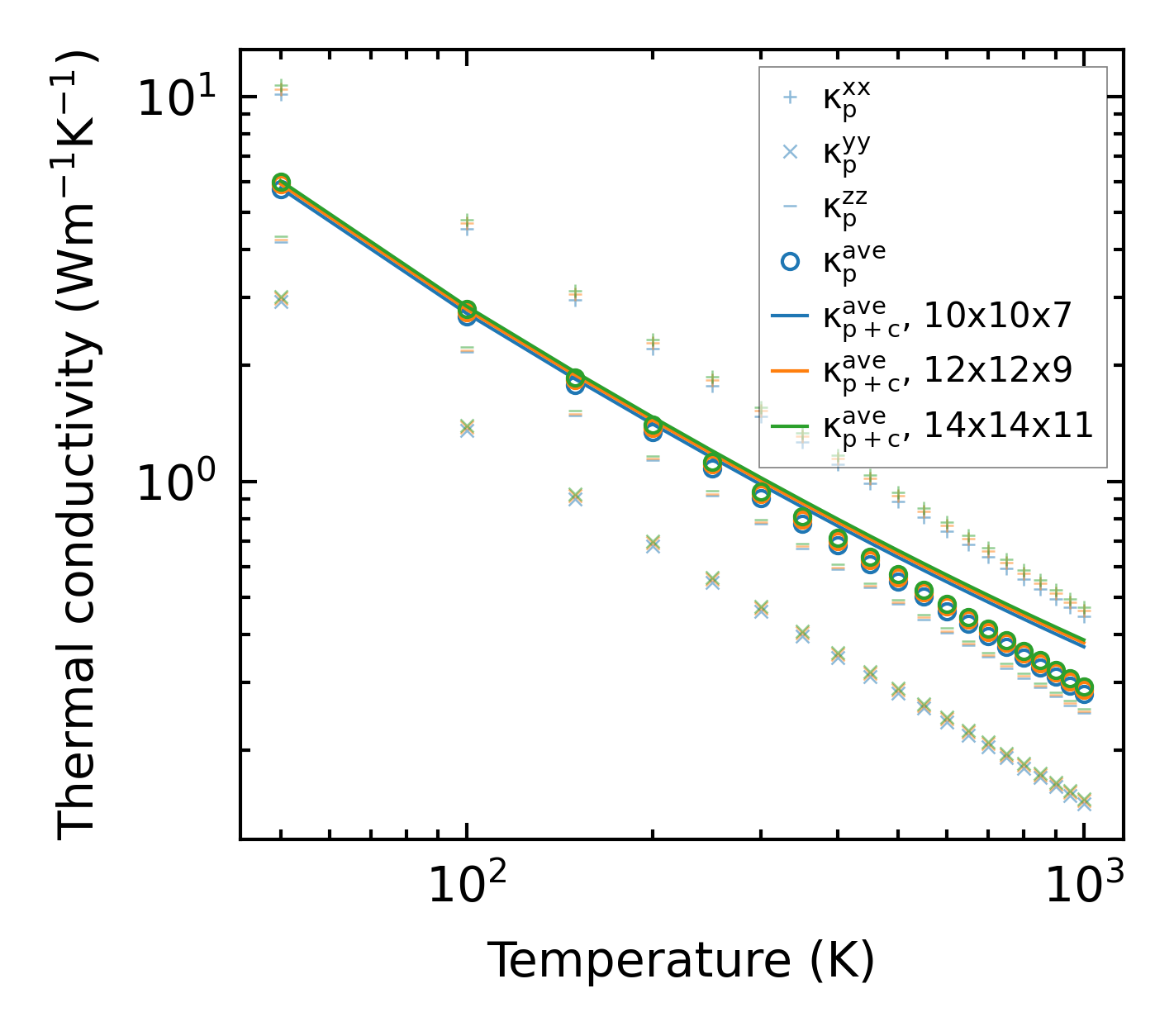

../../_images/fig_kappa3958.png — (a) Temperature-dependent lattice thermal conductivity

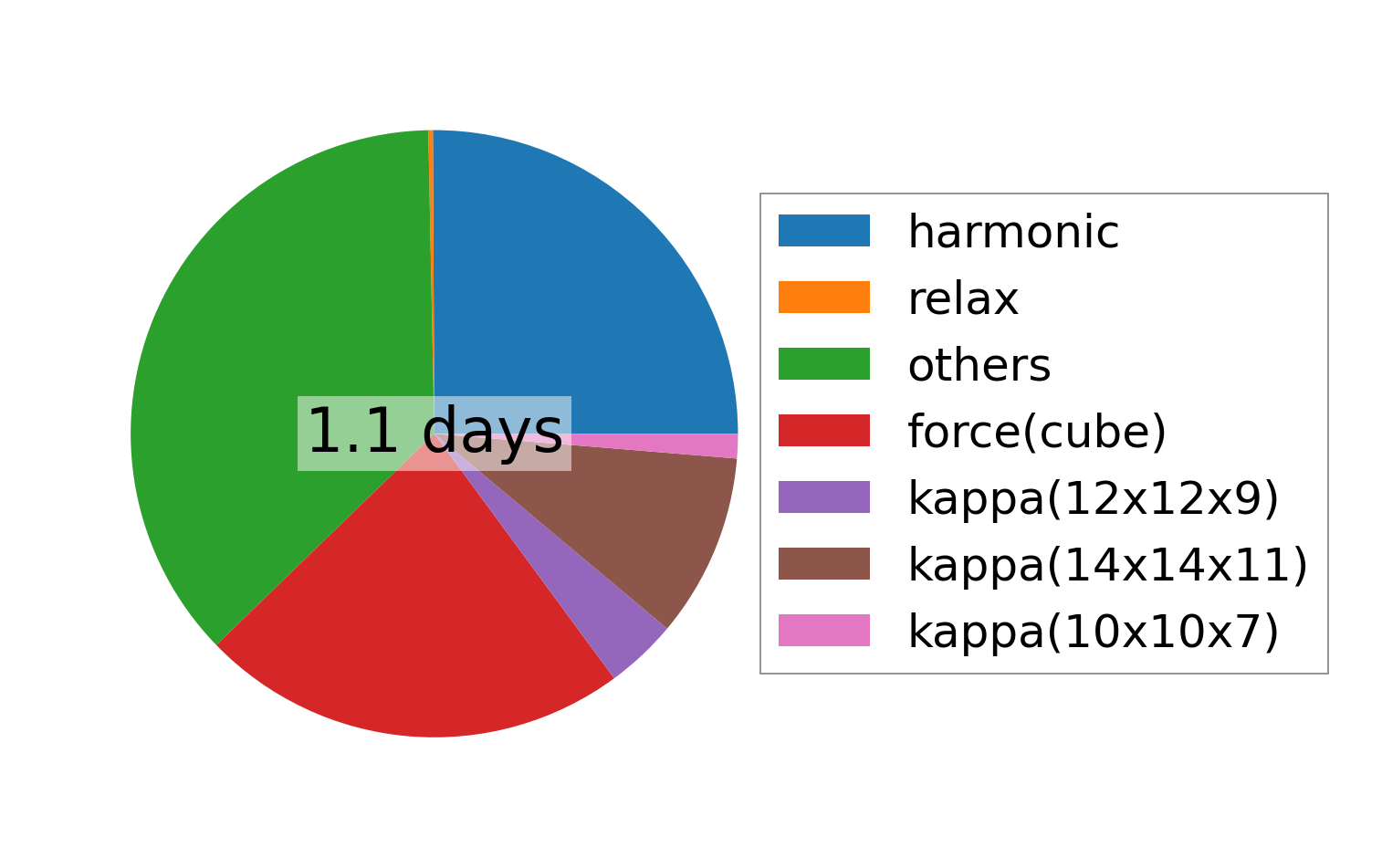

../../_images/fig_times8495.png — (b) Computation time
