mp-7949-2/Rb2GeF6/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-7949-2.tar.gz

Equation of state

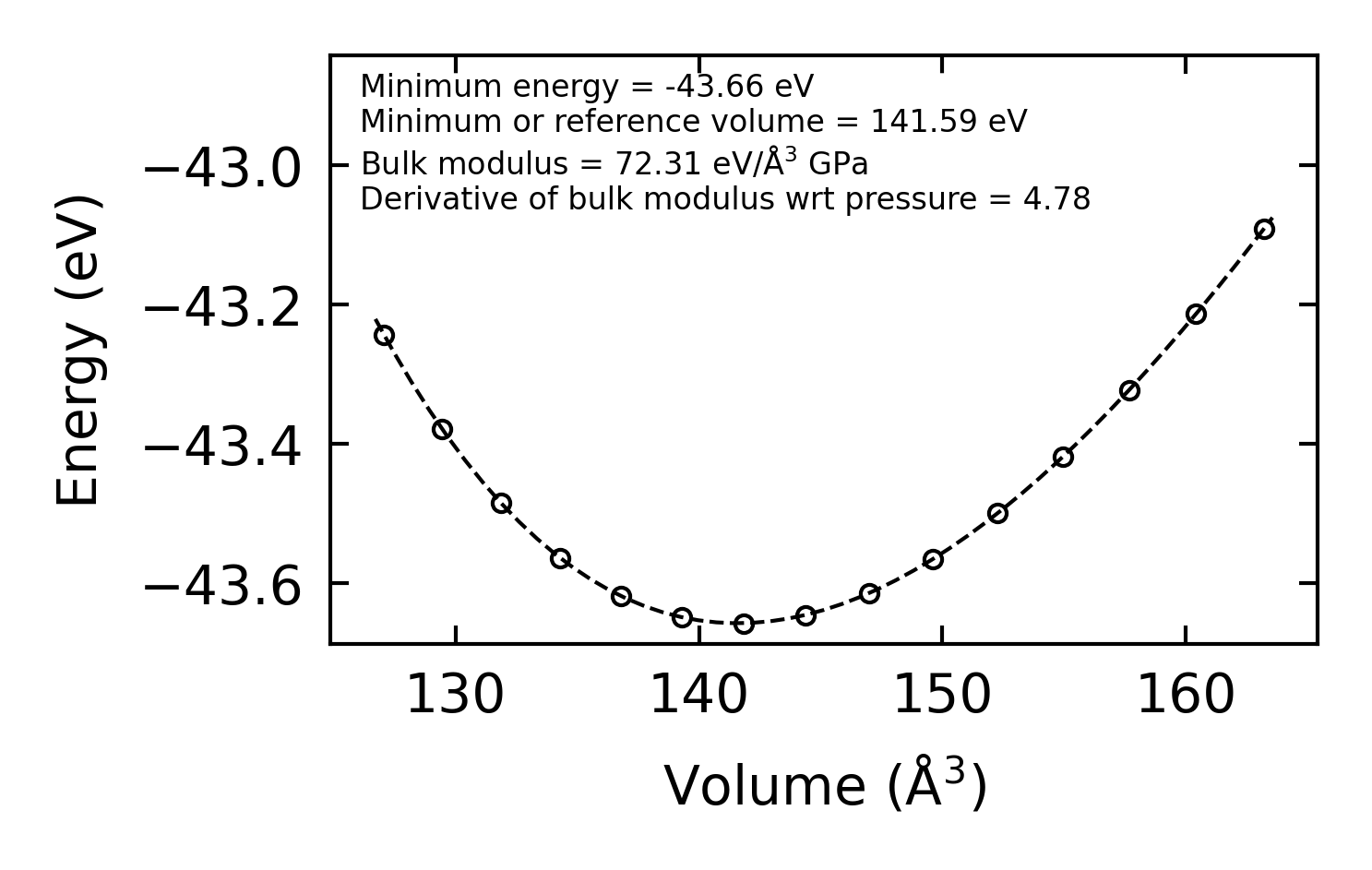

../../_images/fig_bm2198.png — (a) Equation of state

Harmonic properties

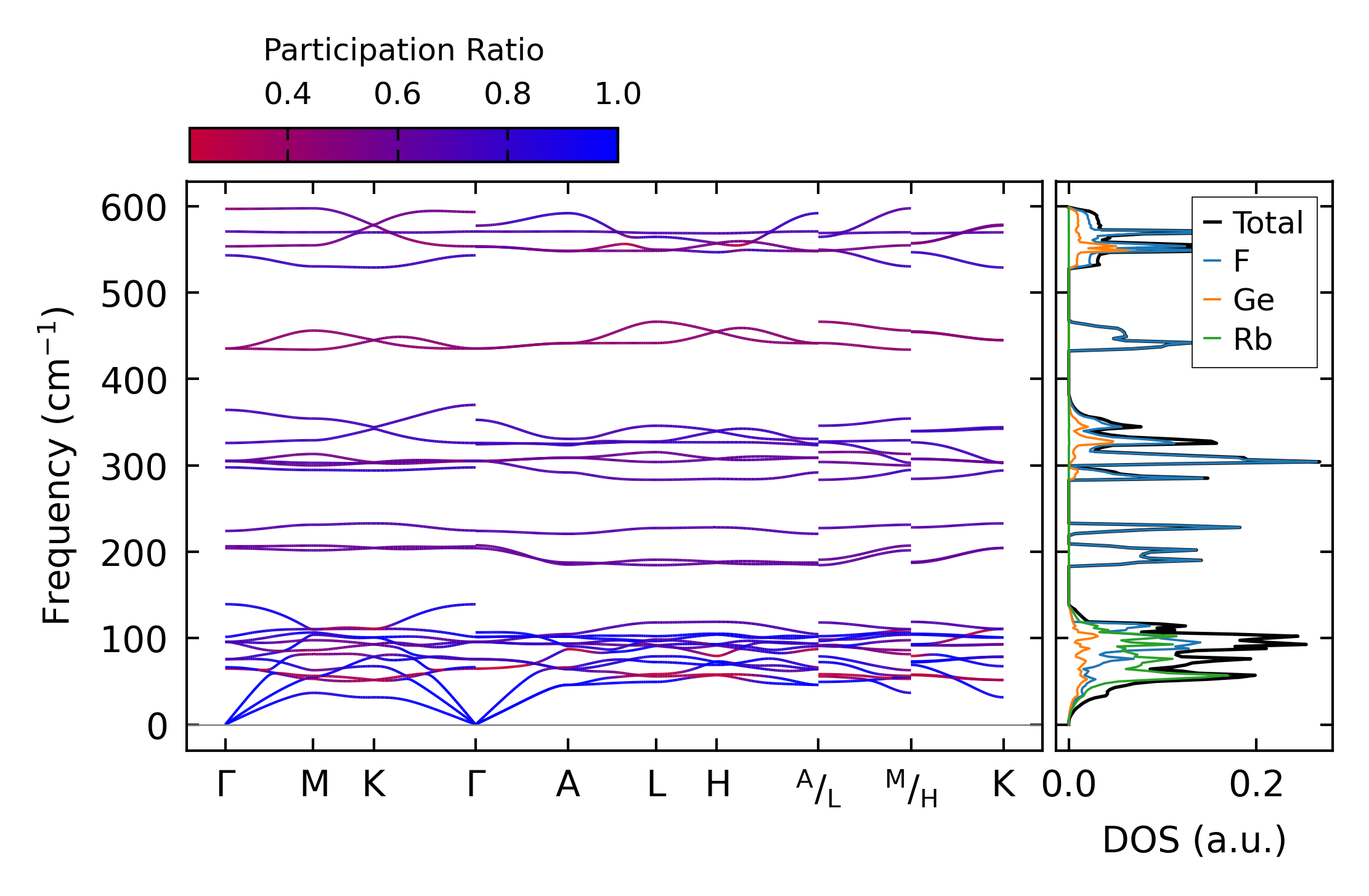

../../_images/fig_bandos_pr4393.png — (a) Phonon dispersion with participation ratio and DOS

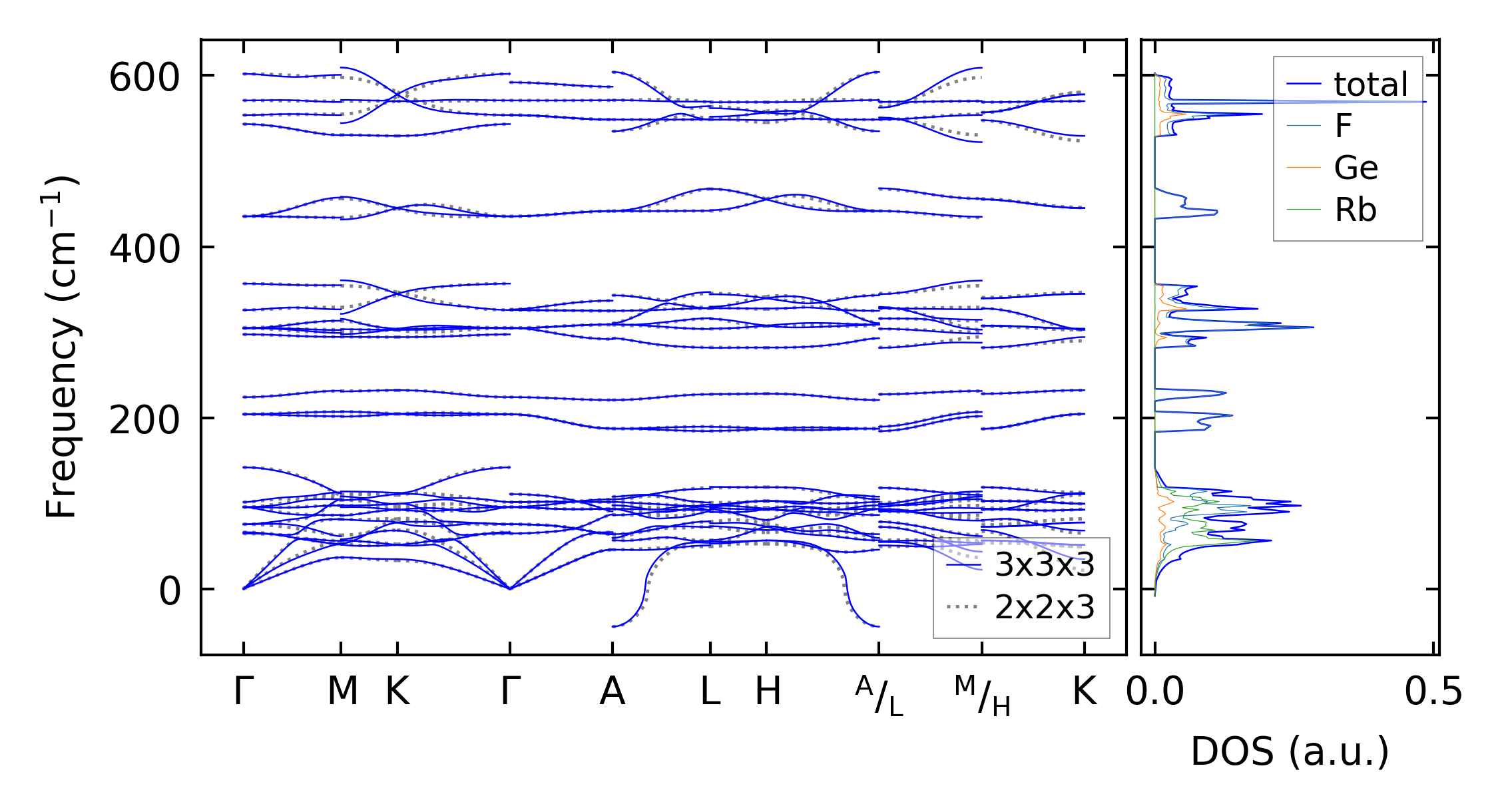

../../_images/fig_bandos6142.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo4393.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1889.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1889.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x15, supercell: 2x2x3

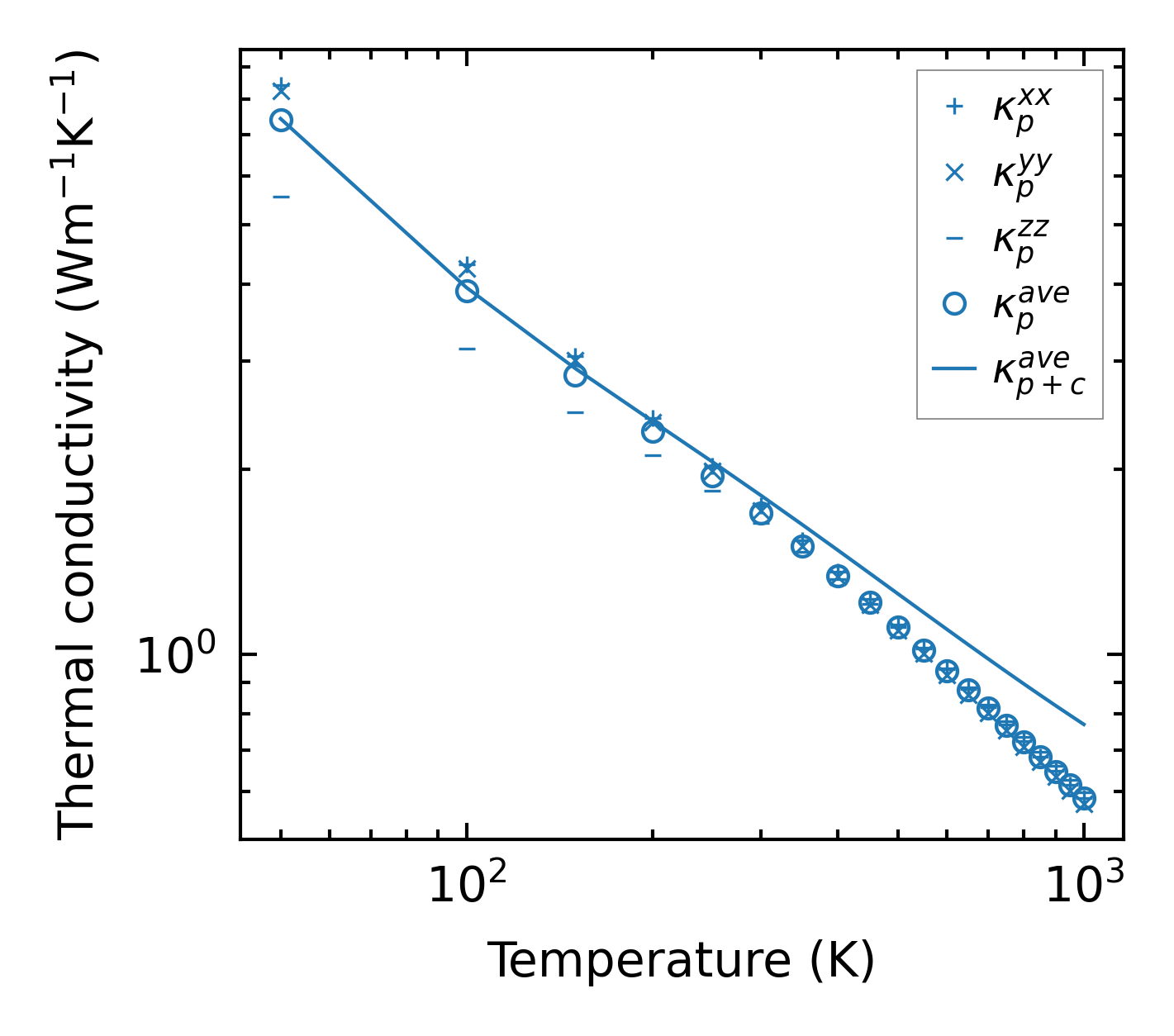

../../_images/fig_kappa3618.png — (a) Temperature-dependent lattice thermal conductivity

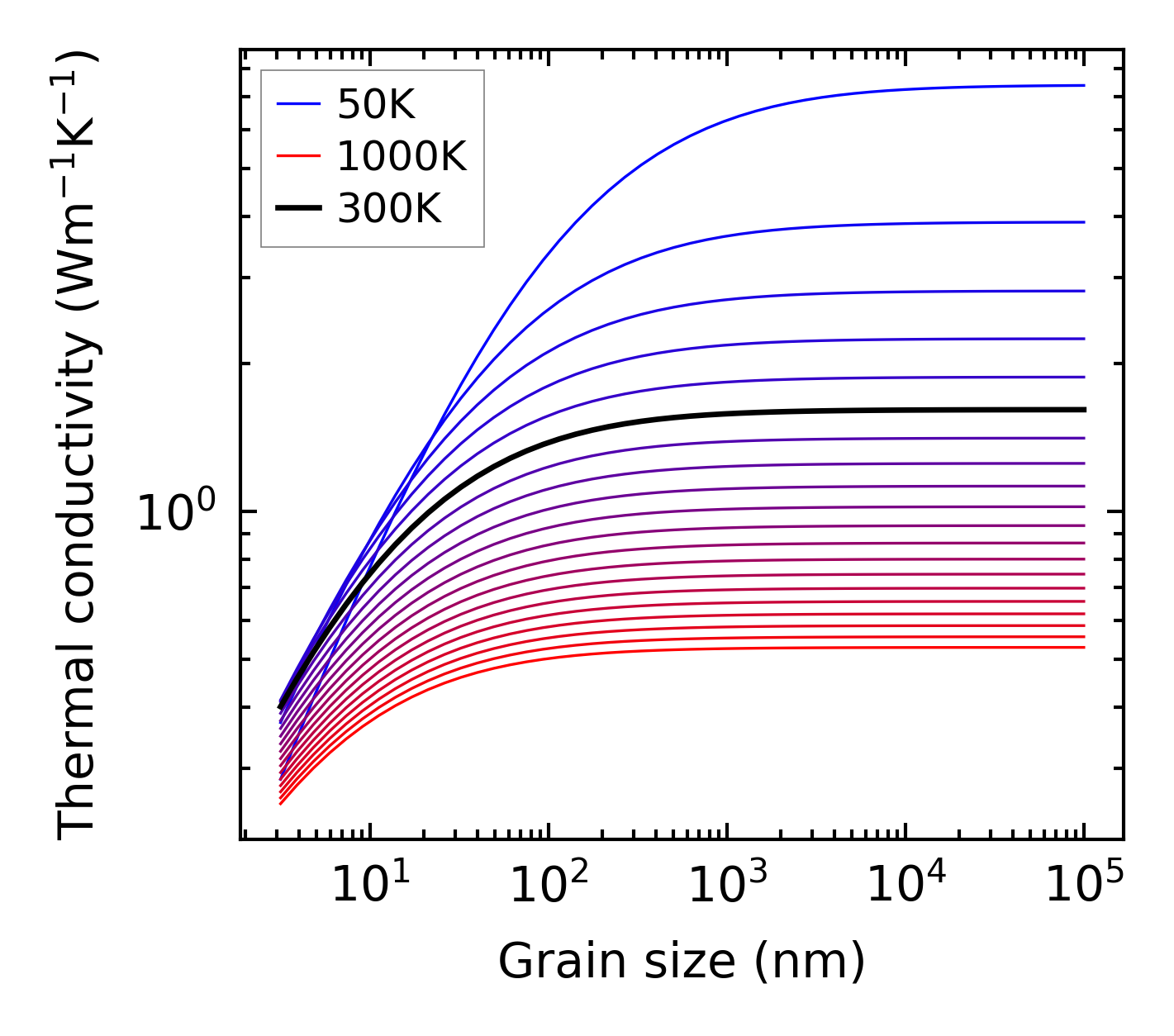

../../_images/fig_kappa_vs_grain_size1916.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1878.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1877.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1878.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

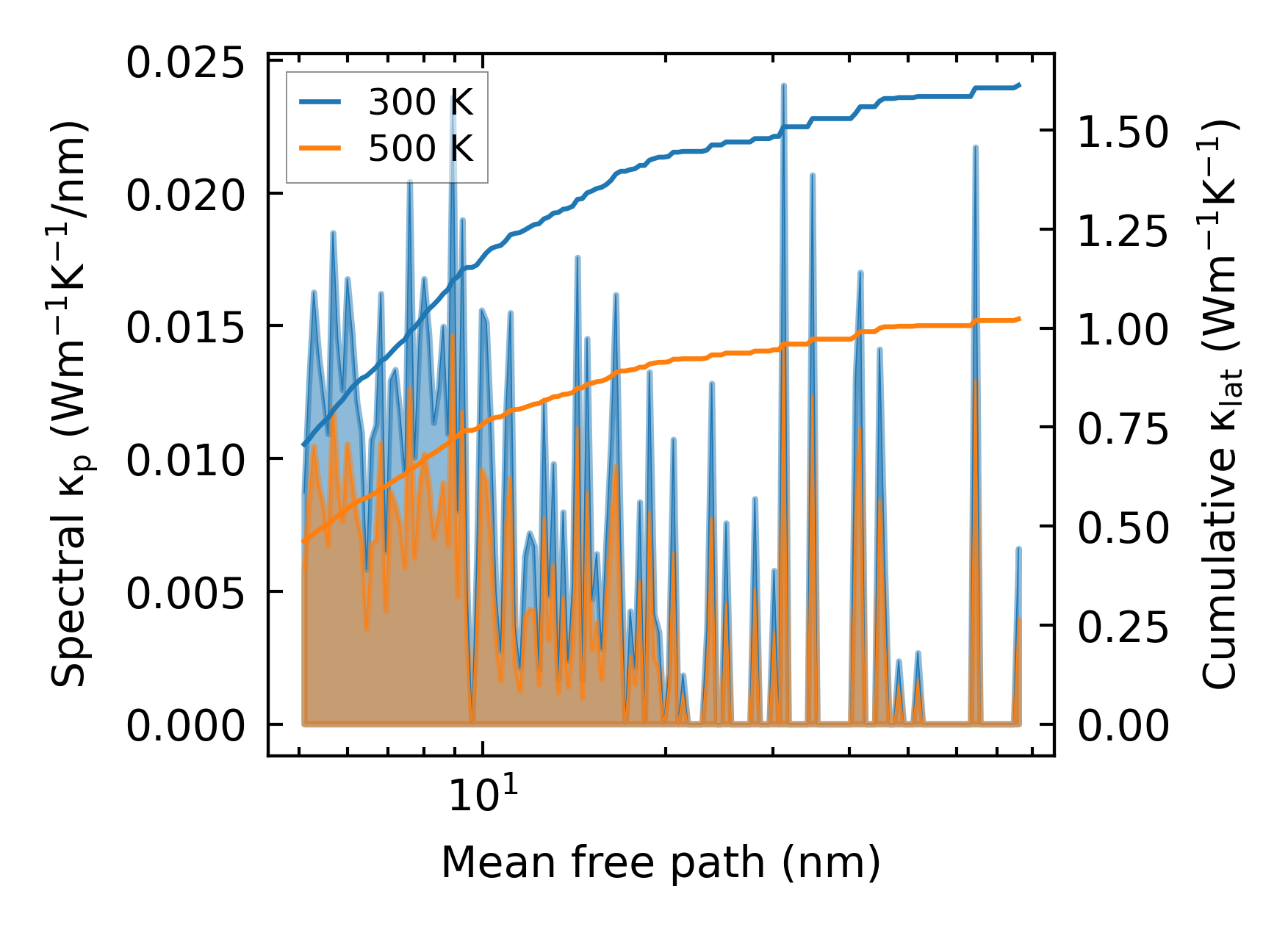

../../_images/fig_cumu_mfp1878.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24206.png — (a) Force constants w.r.t atomic distance

Summary

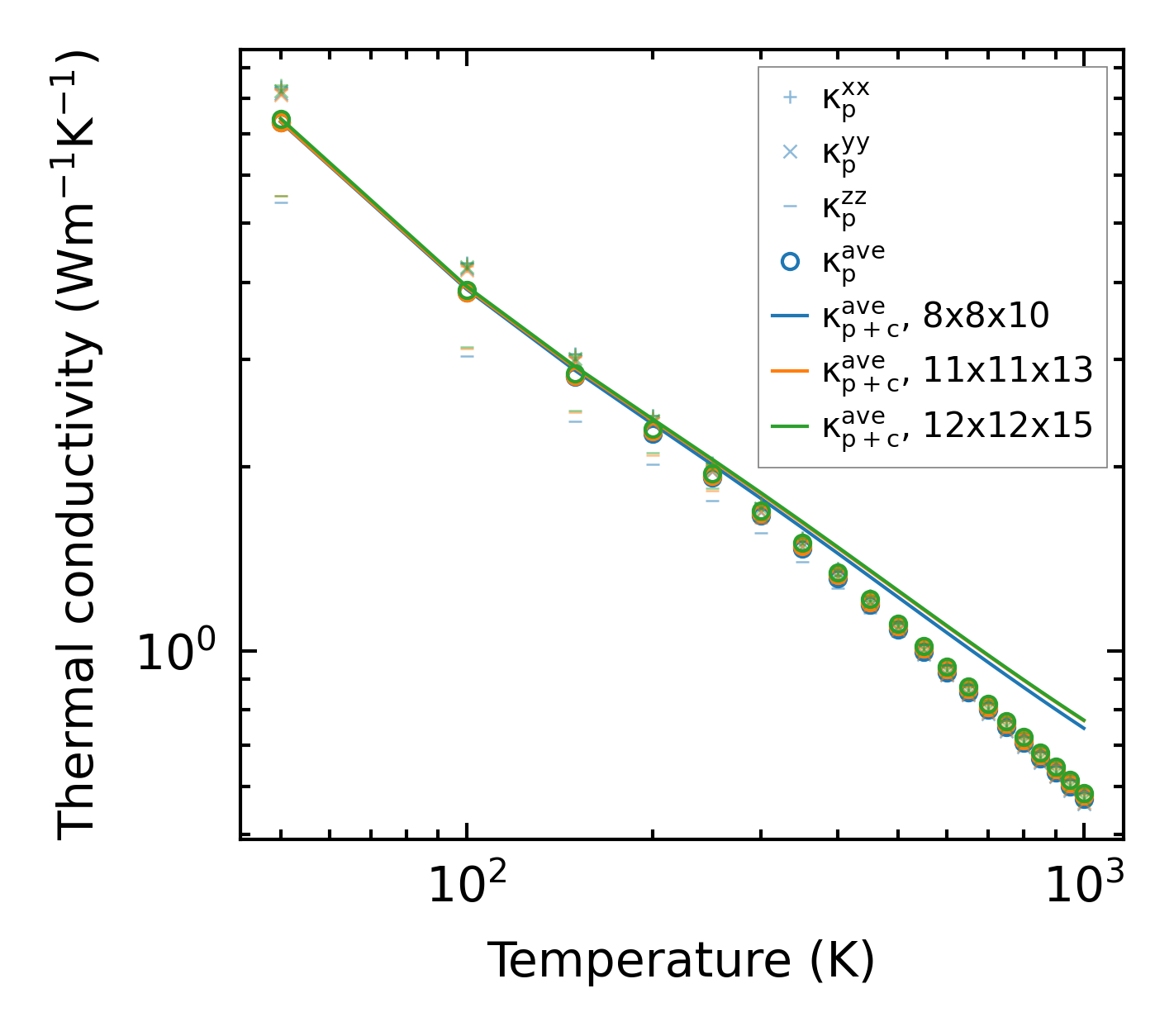

../../_images/fig_kappa3619.png — (a) Temperature-dependent lattice thermal conductivity

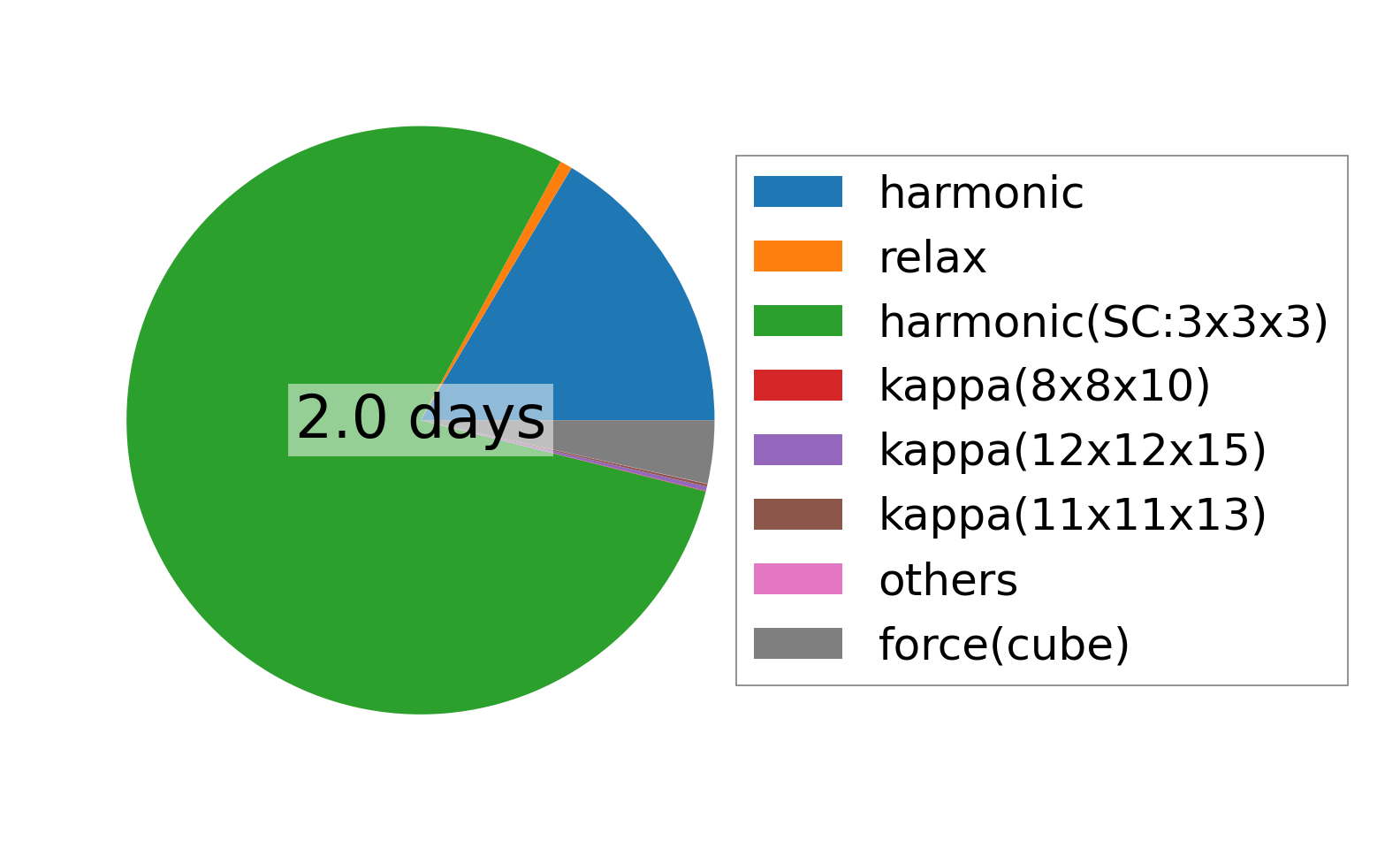

../../_images/fig_times7815.png — (b) Computation time
