mp-7982/Mg2SiO4/anharm

Space group: Pbam (55)
Link: Materials Project
Download: mp-7982.tar.gz

Harmonic properties

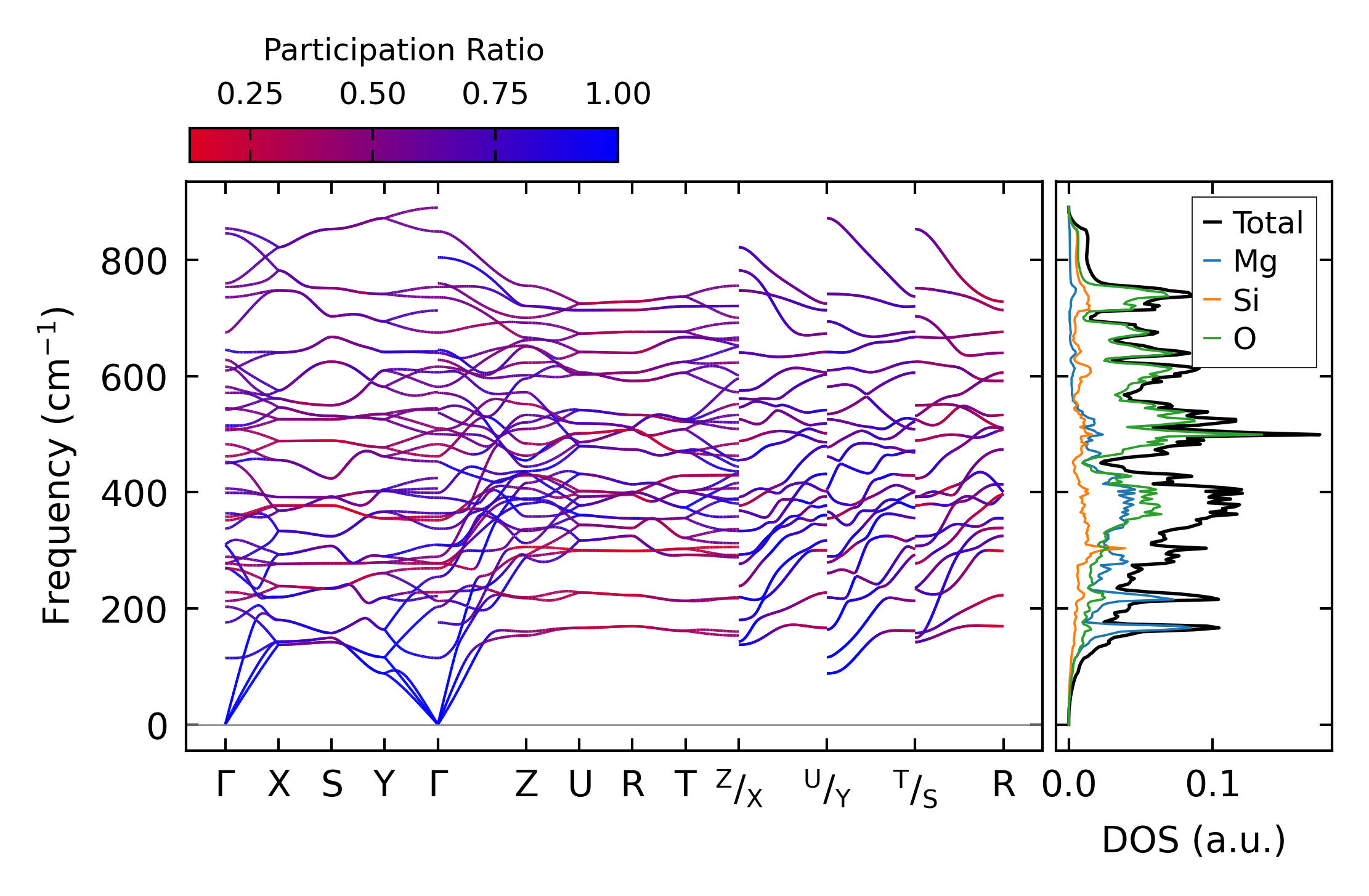

../../_images/fig_bandos_pr4410.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4410.png — (b) Thermodynamic properties

Grüneisen parameters

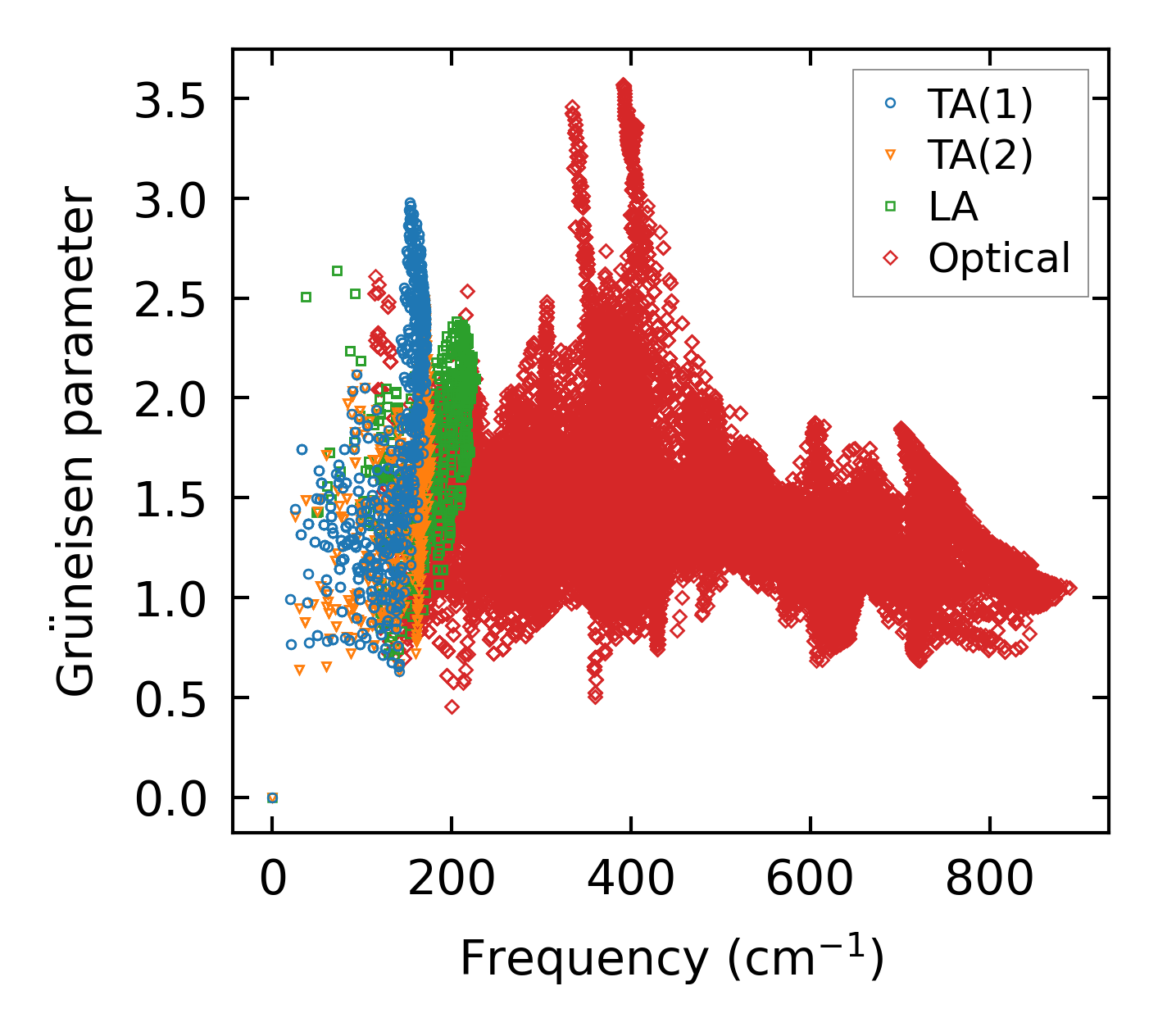

../../_images/fig_gru_all1901.png — (a) Grüneisen parameters

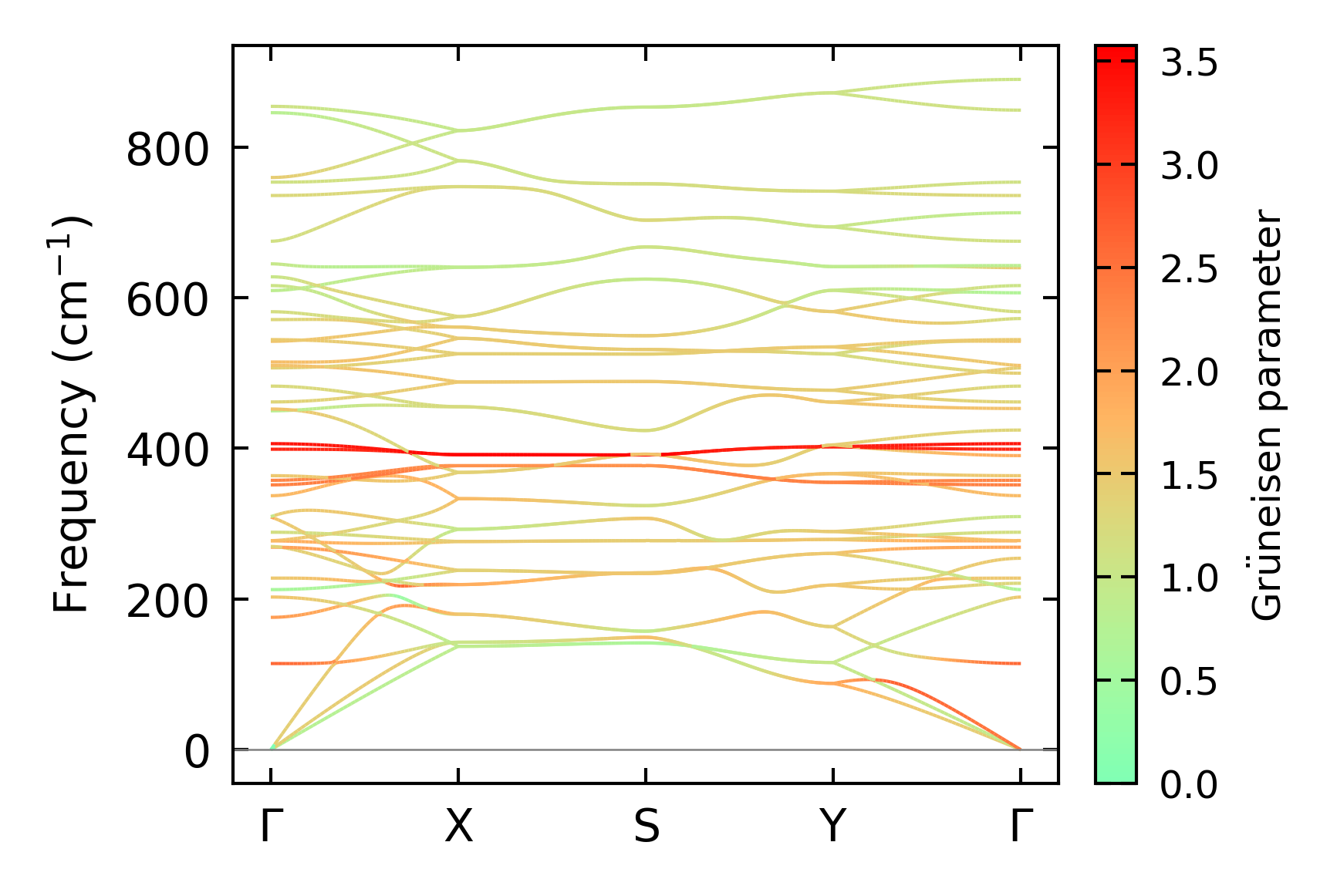

../../_images/fig_gruneisen1901.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x8x25, supercell: 2x1x4

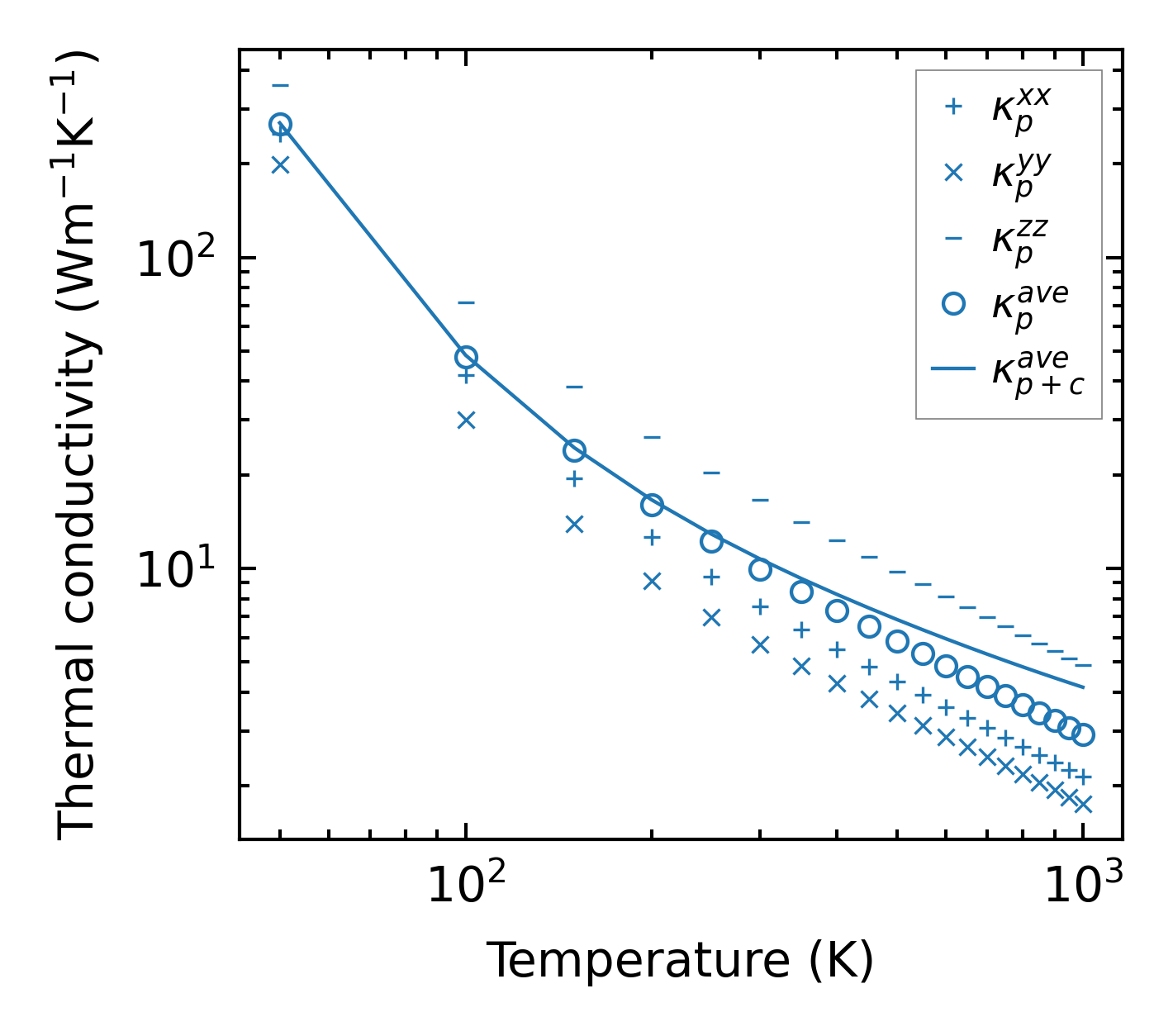

../../_images/fig_kappa3641.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1928.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

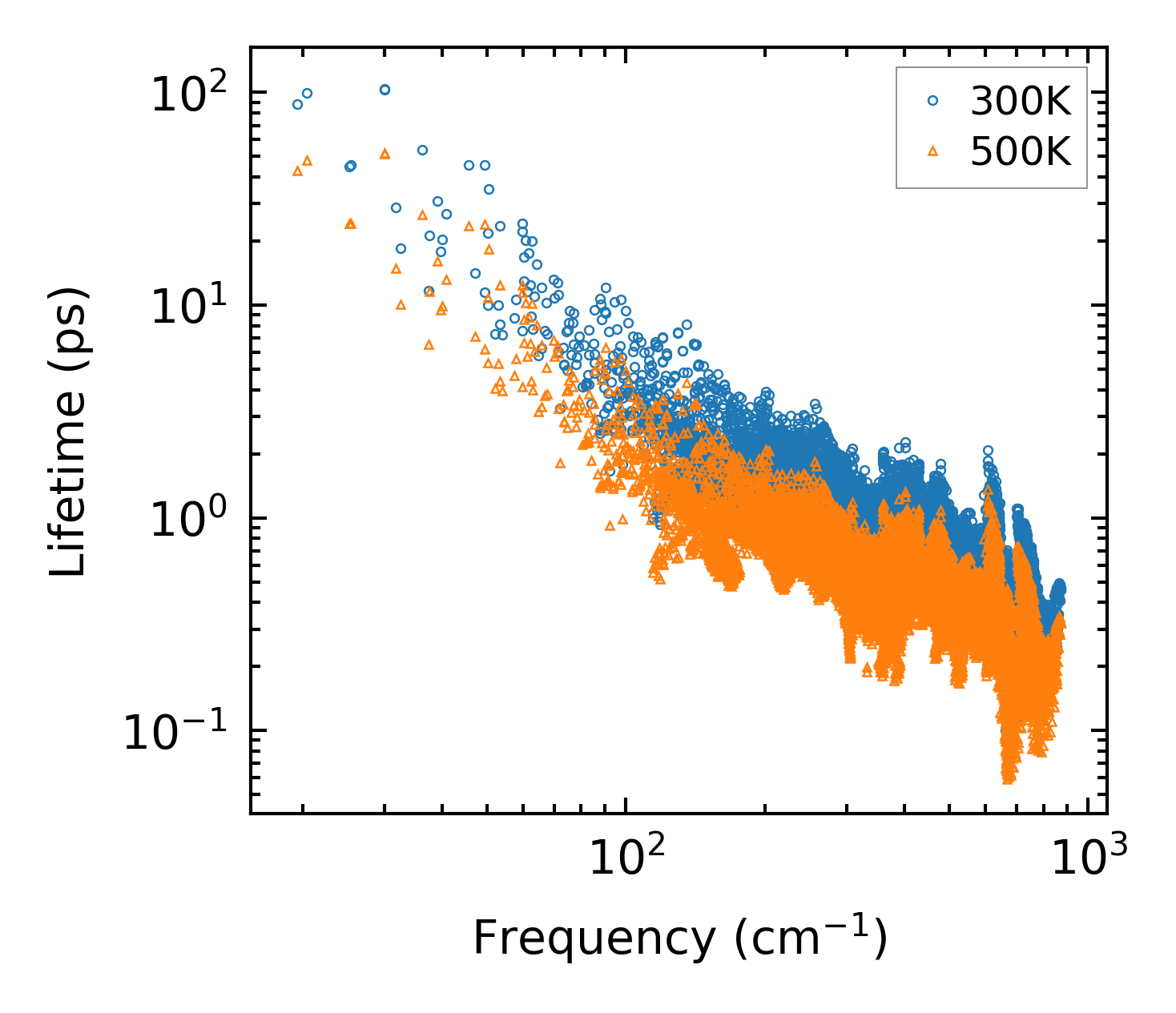

../../_images/fig_lifetime1890.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1889.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

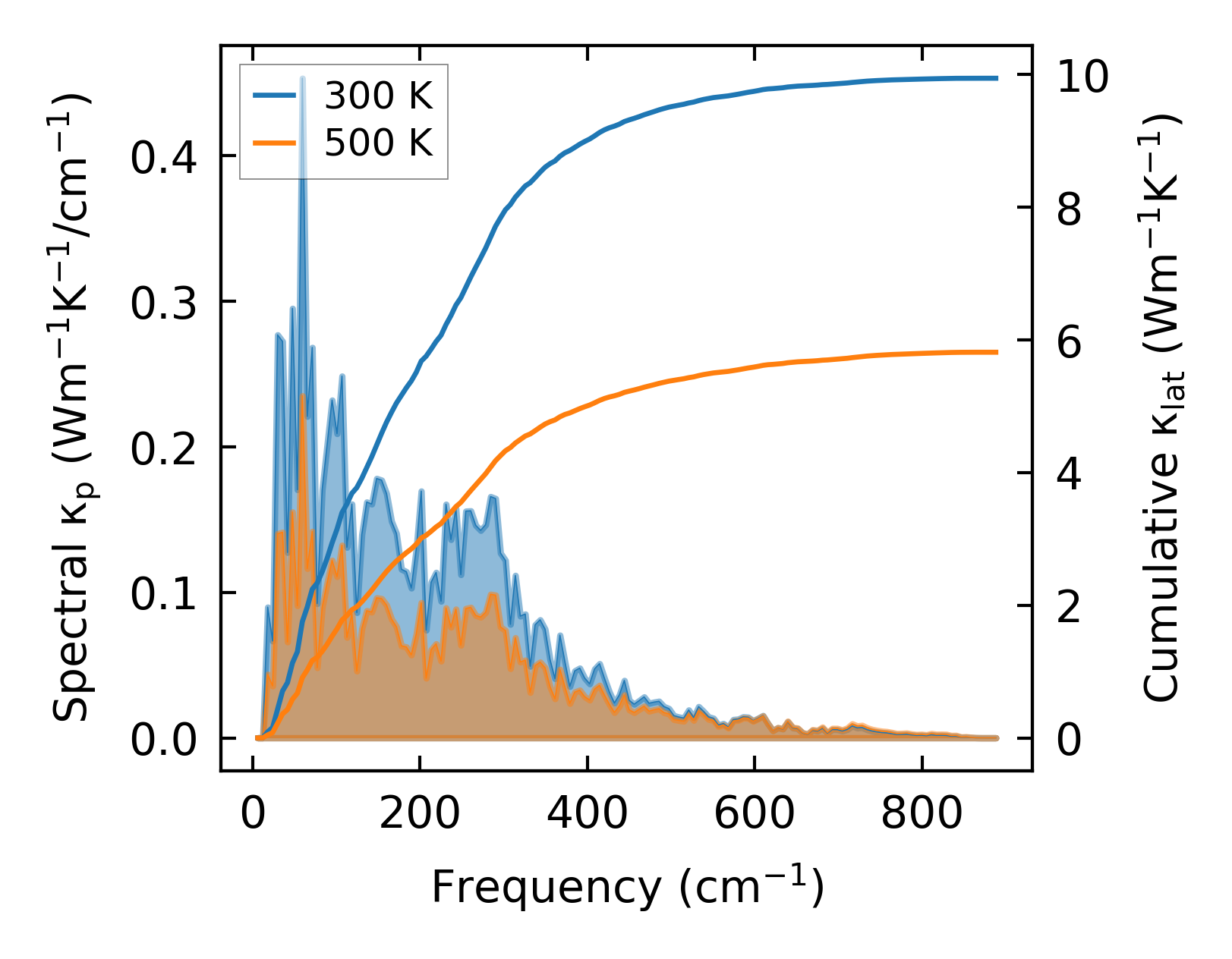

../../_images/fig_cumu_frequency1890.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1890.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24223.png — (a) Force constants w.r.t atomic distance

Summary

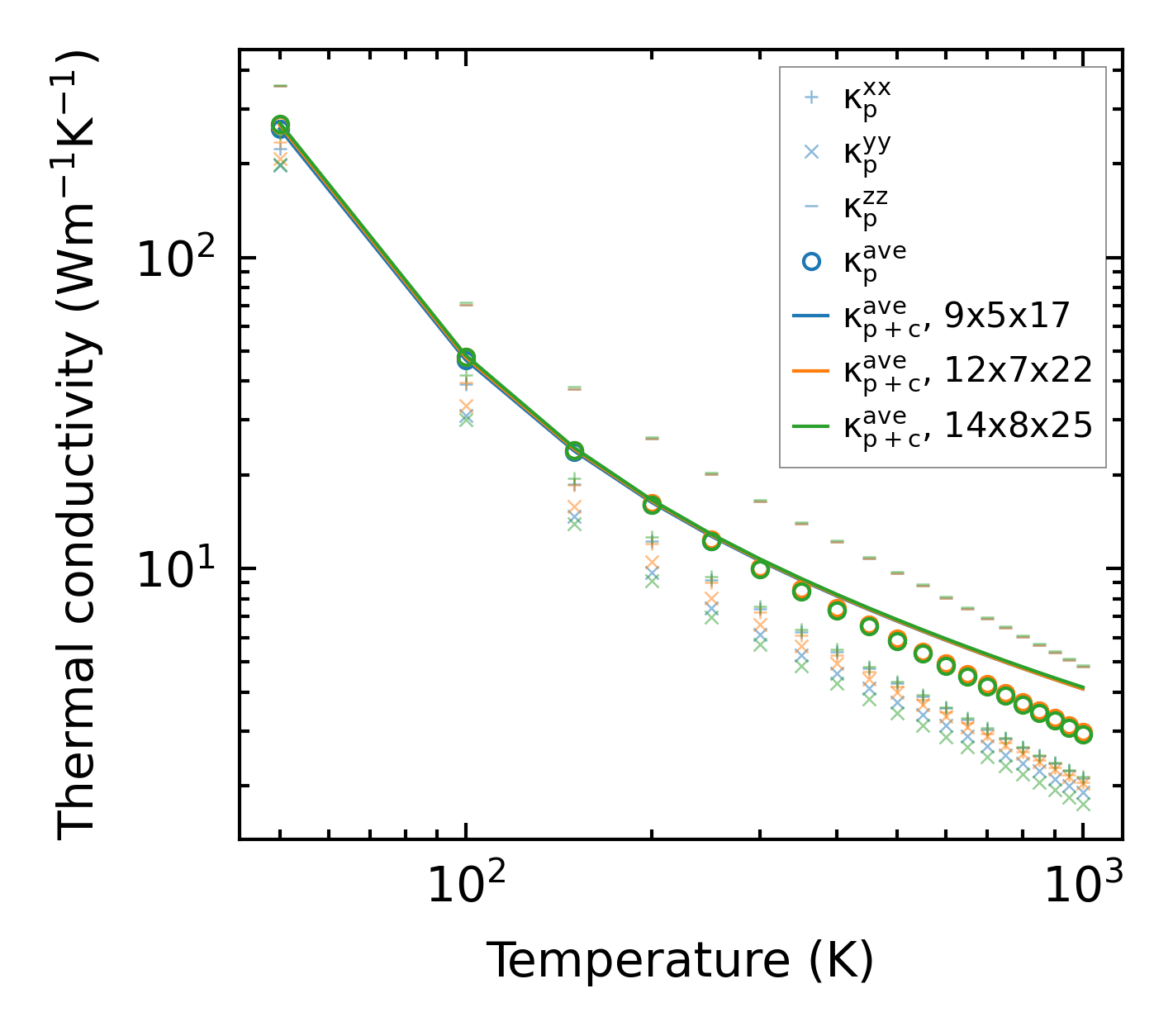

../../_images/fig_kappa3642.png — (a) Temperature-dependent lattice thermal conductivity

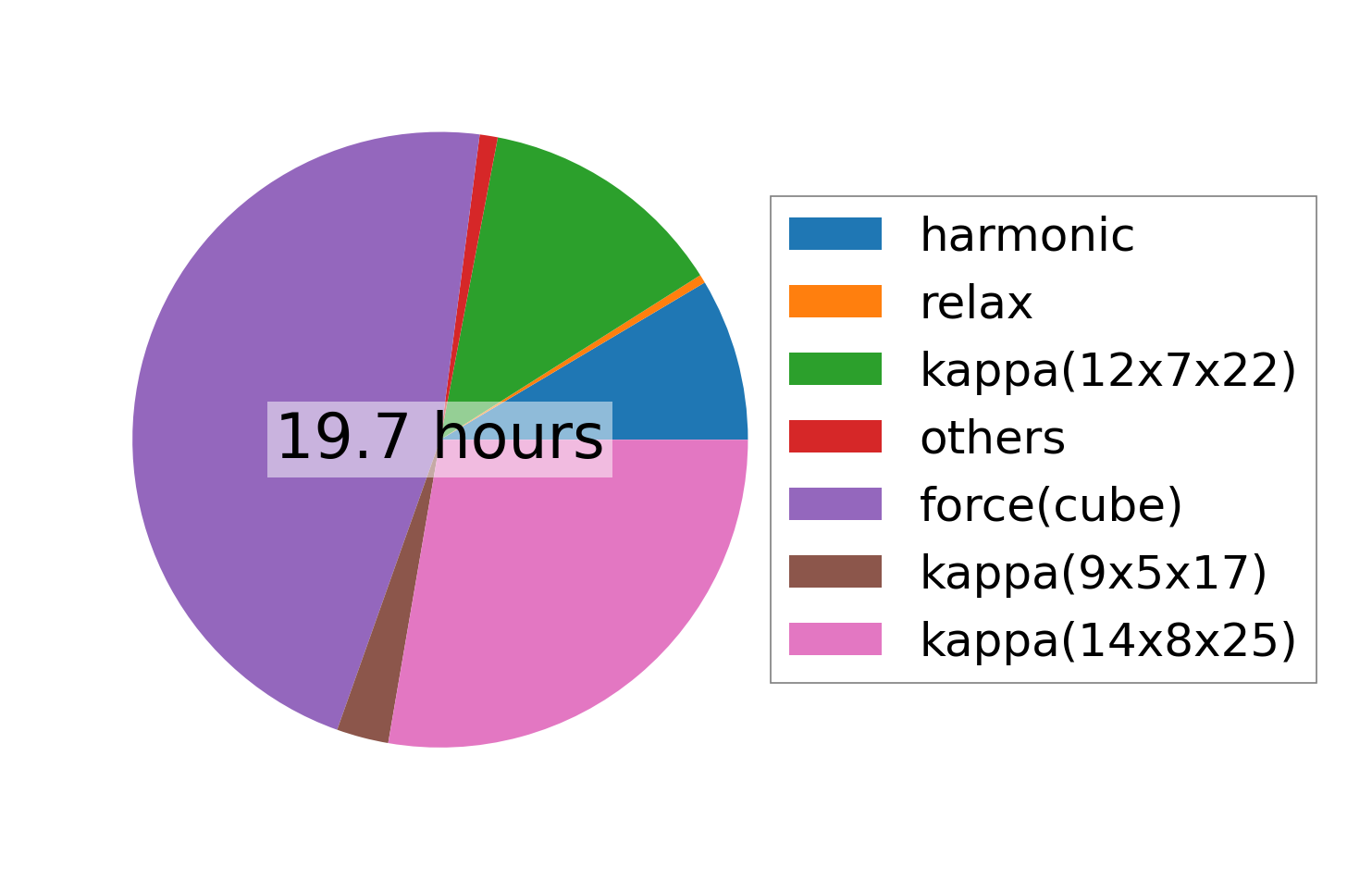

../../_images/fig_times7836.png — (b) Computation time
