mp-7904/CdP4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-7904.tar.gz

Harmonic properties

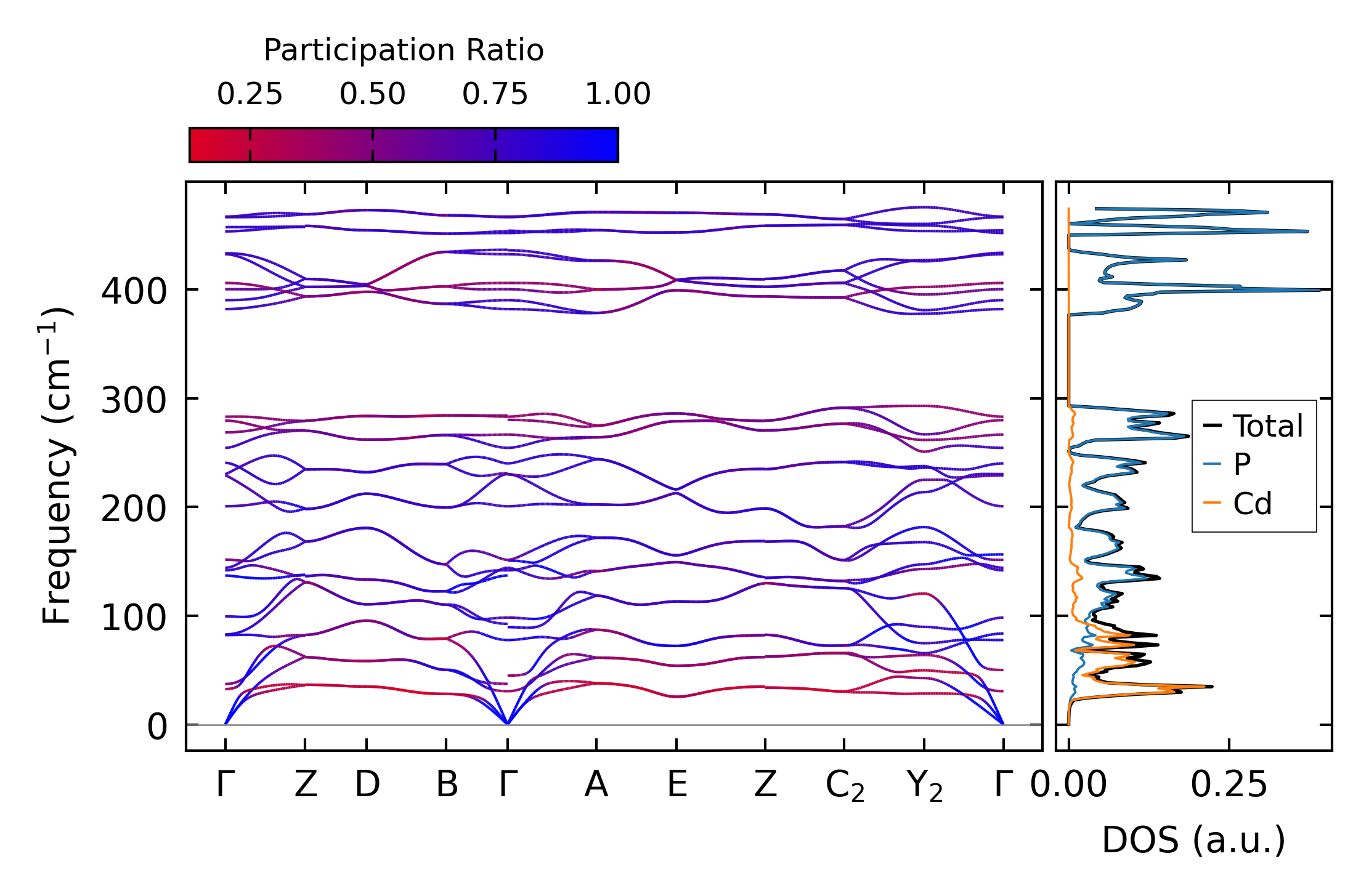

../../_images/fig_bandos_pr4360.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4360.png — (b) Thermodynamic properties

Grüneisen parameters

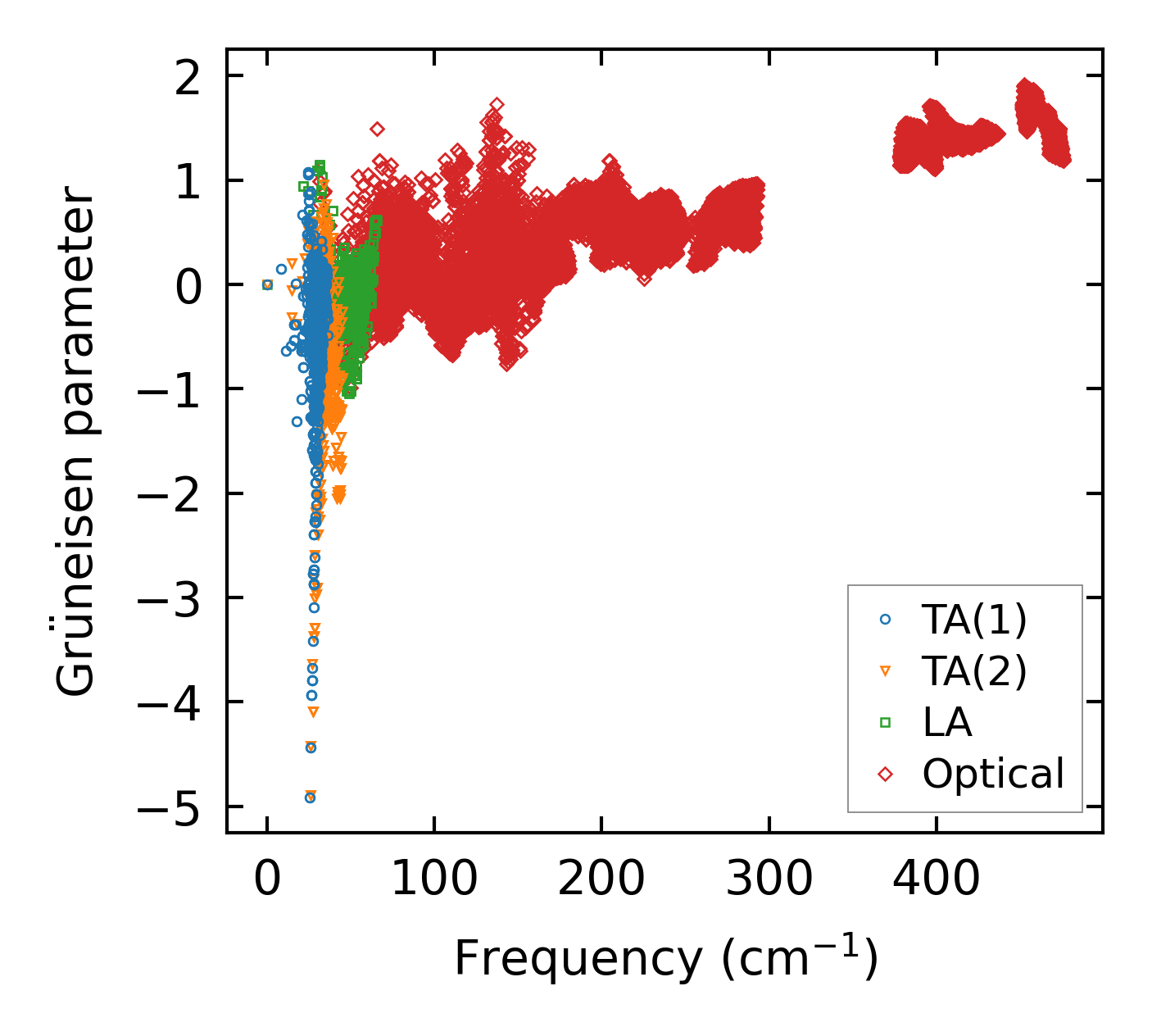

../../_images/fig_gru_all1868.png — (a) Grüneisen parameters

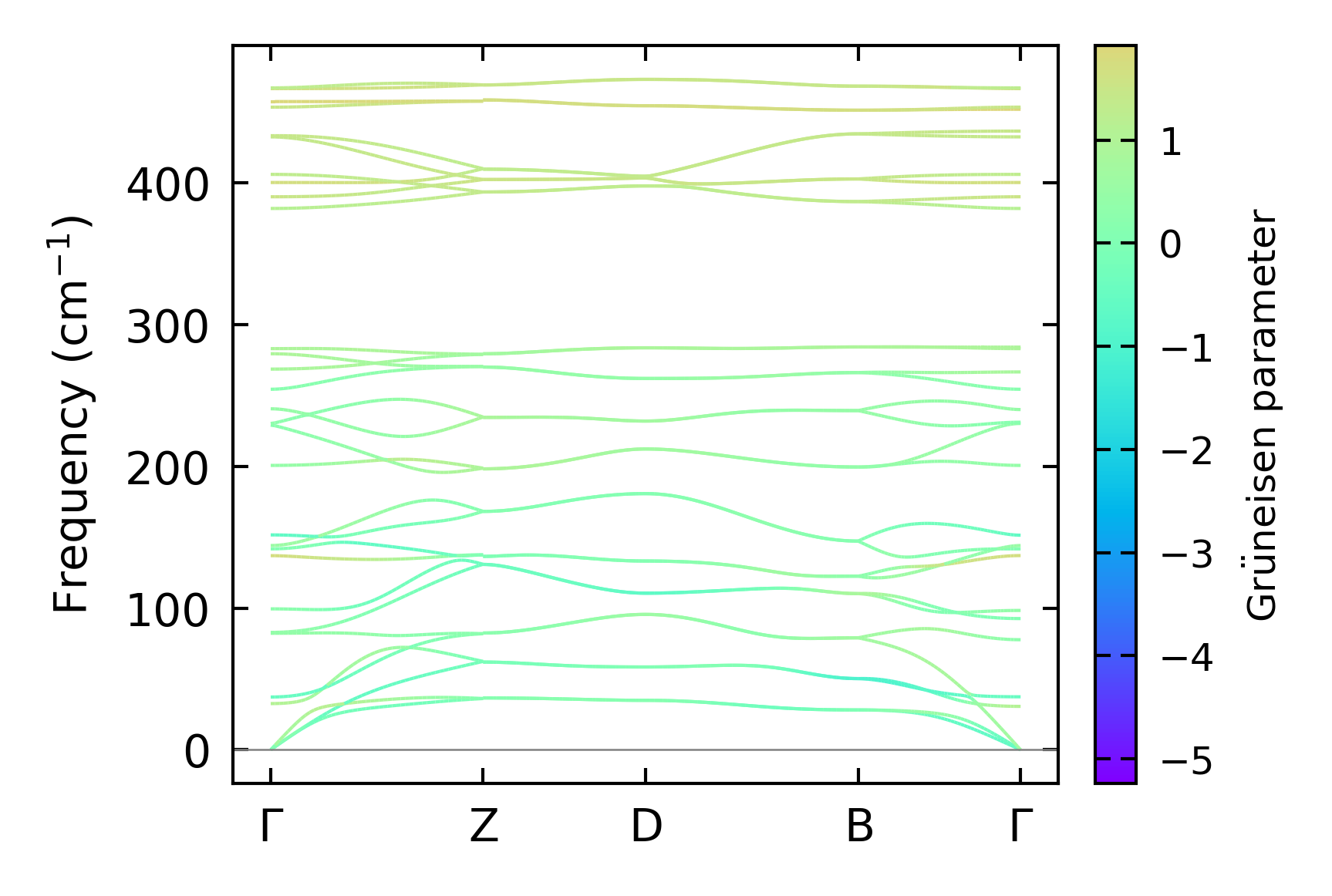

../../_images/fig_gruneisen1868.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x14x9, supercell: 2x3x2

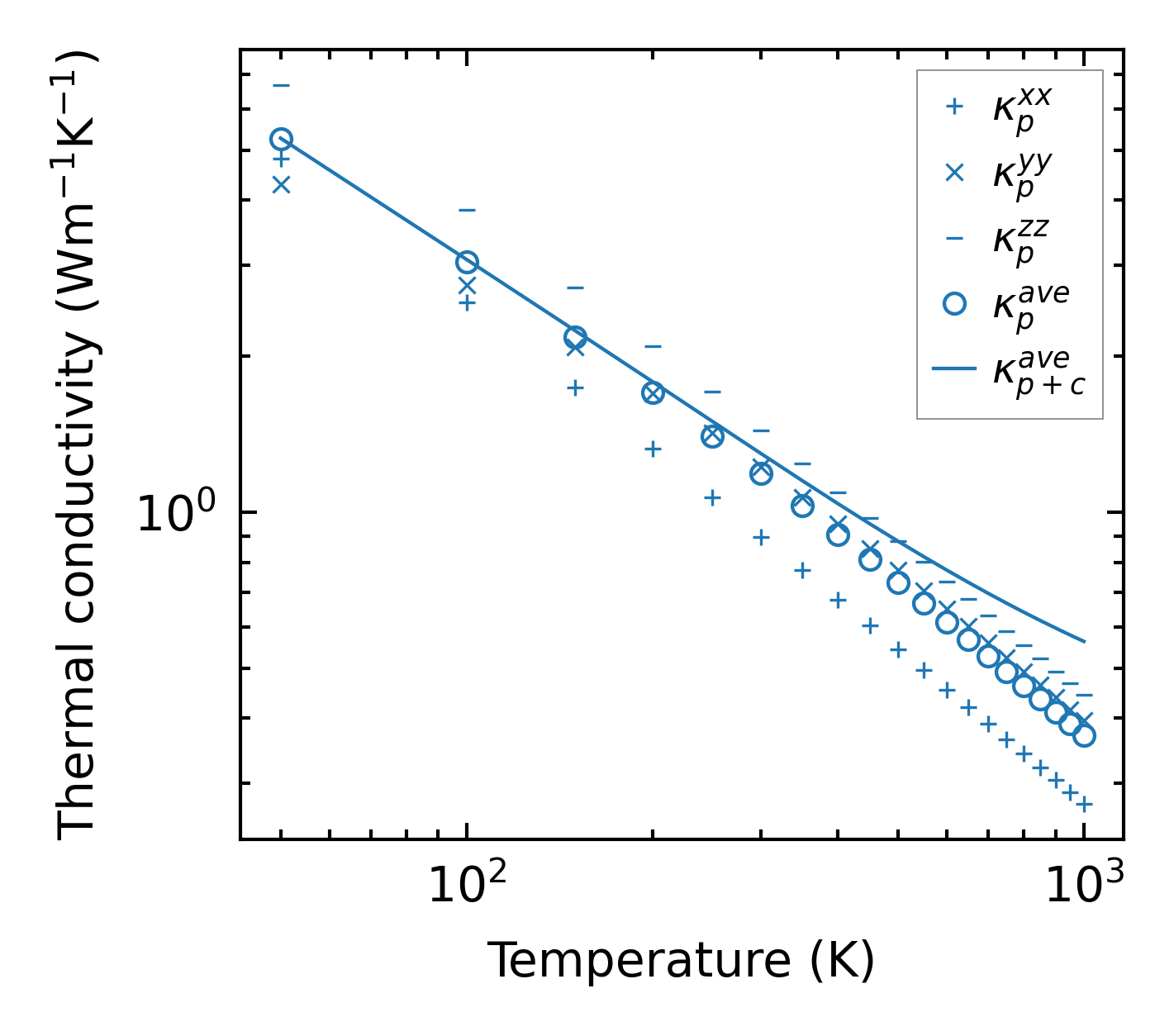

../../_images/fig_kappa3579.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1896.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

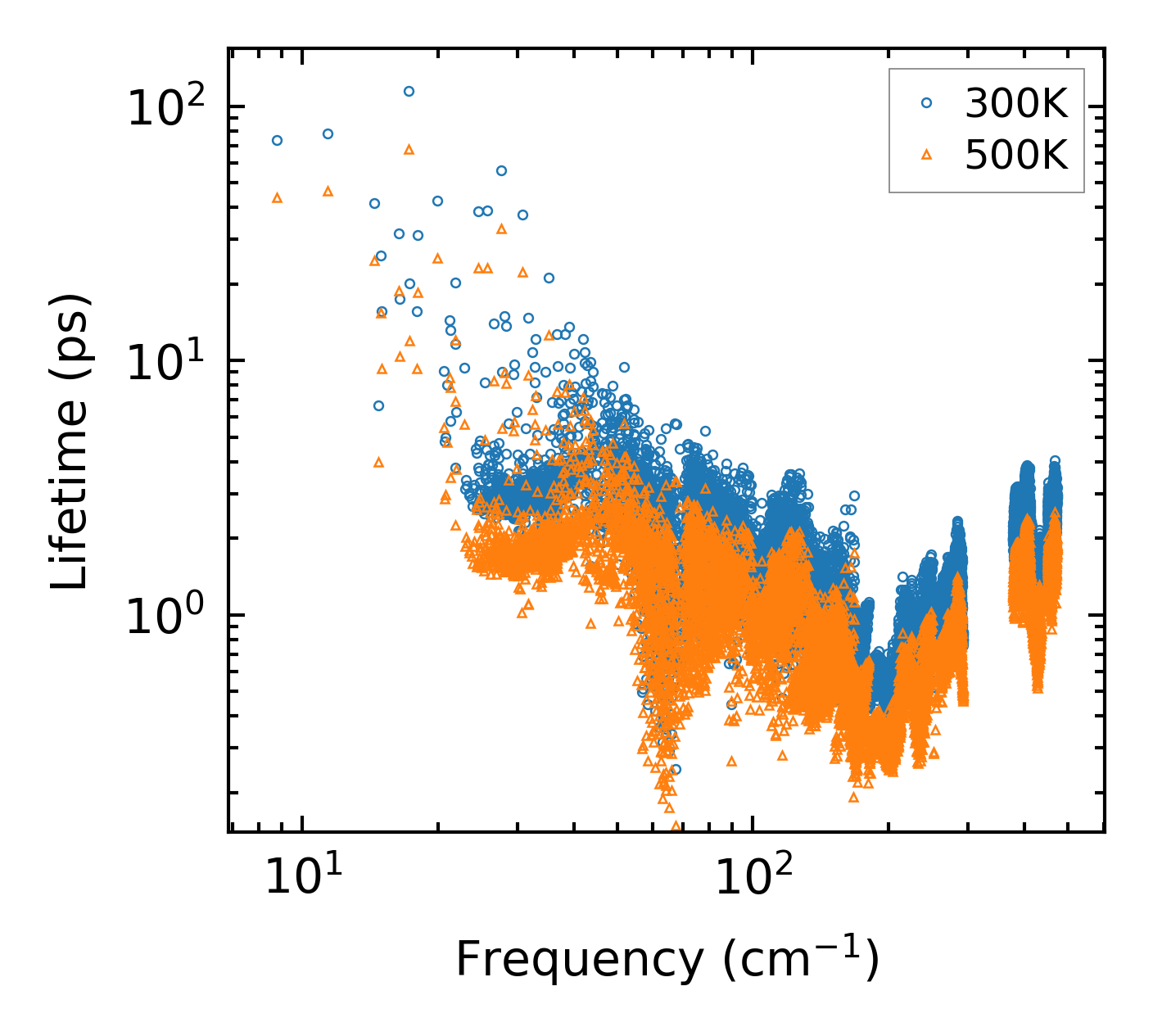

../../_images/fig_lifetime1858.png — (a) Phonon lifetime due to phonon-phonon scattering

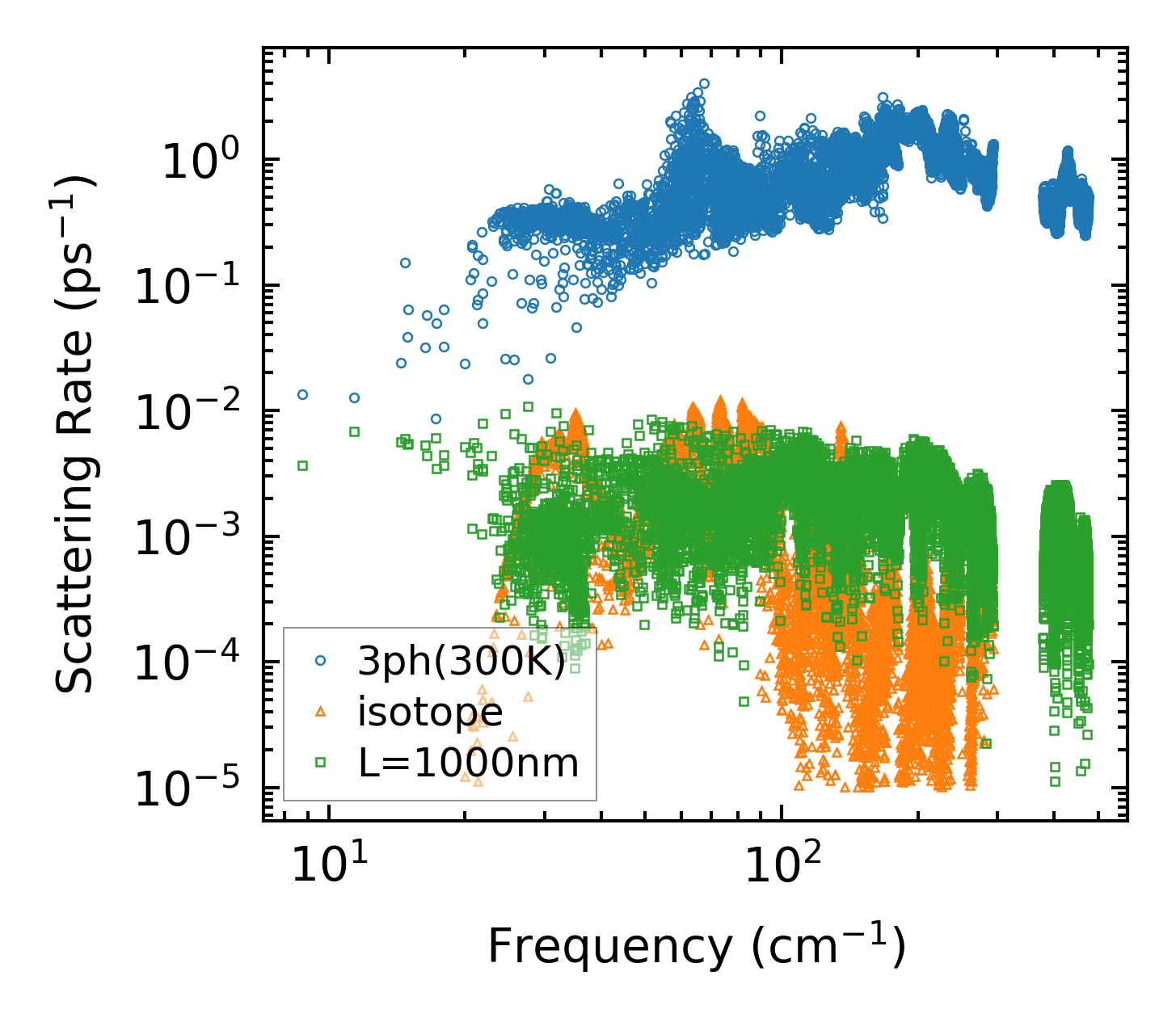

../../_images/fig_scat_rates1857.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

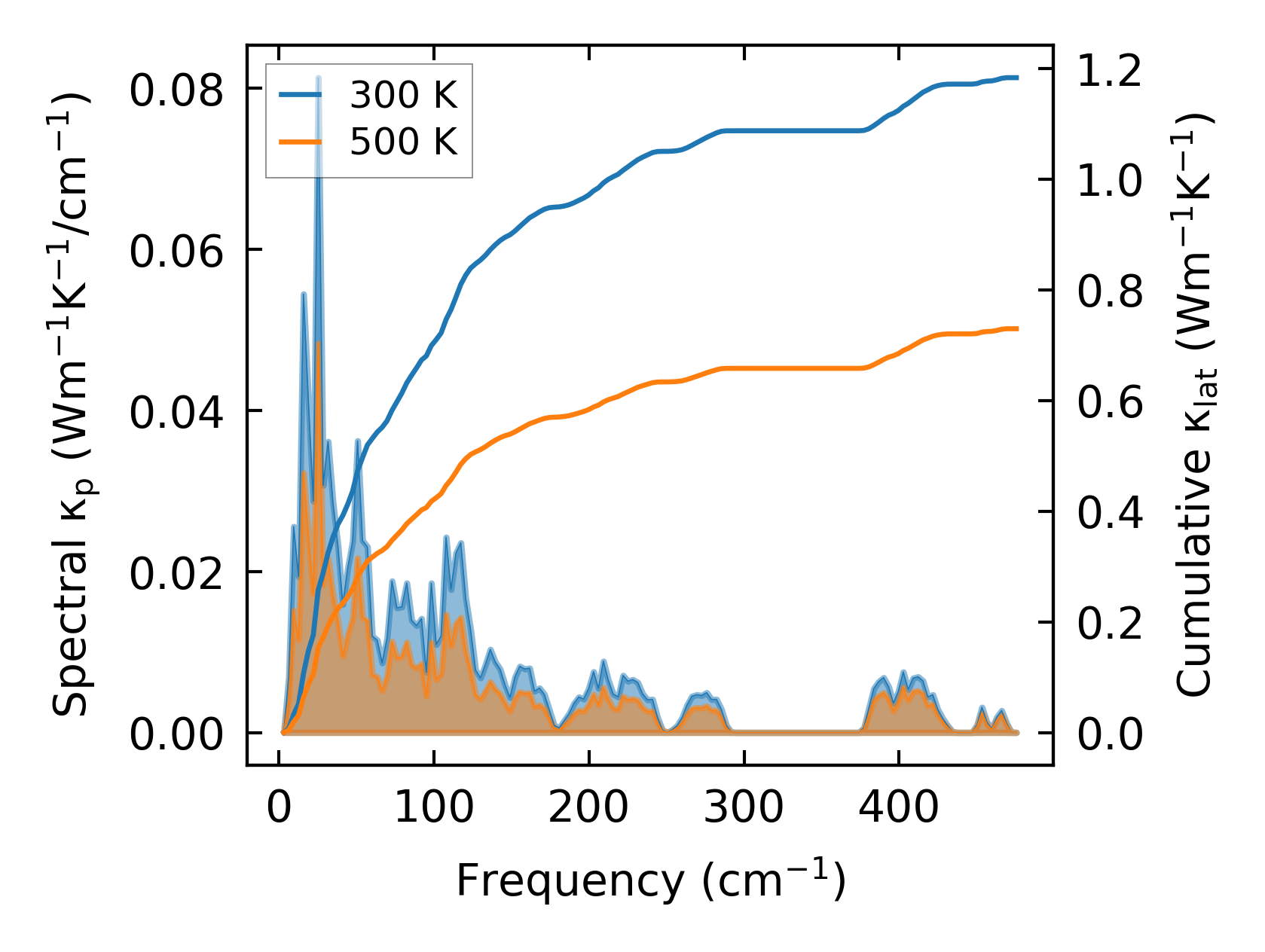

../../_images/fig_cumu_frequency1858.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

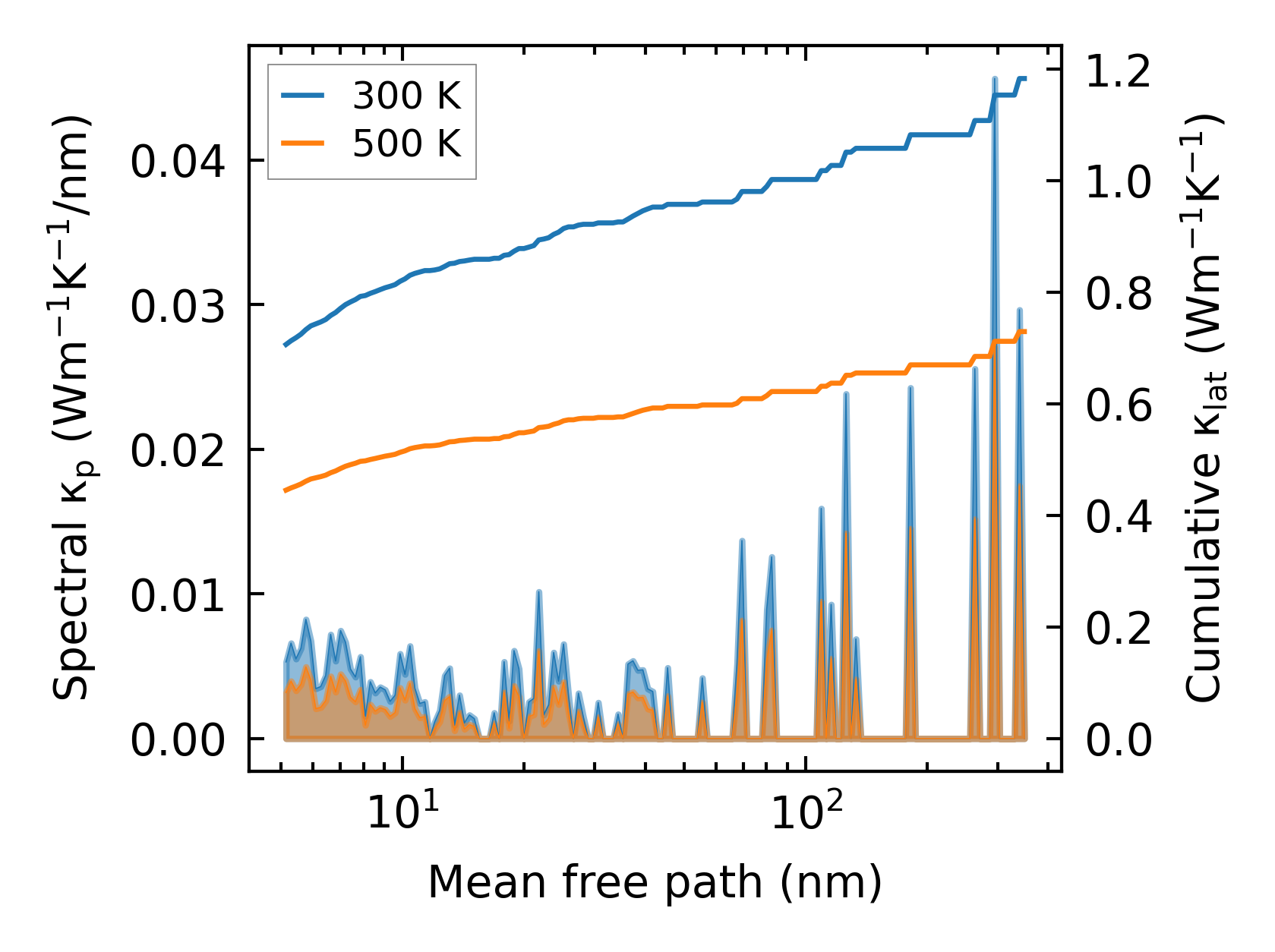

../../_images/fig_cumu_mfp1858.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

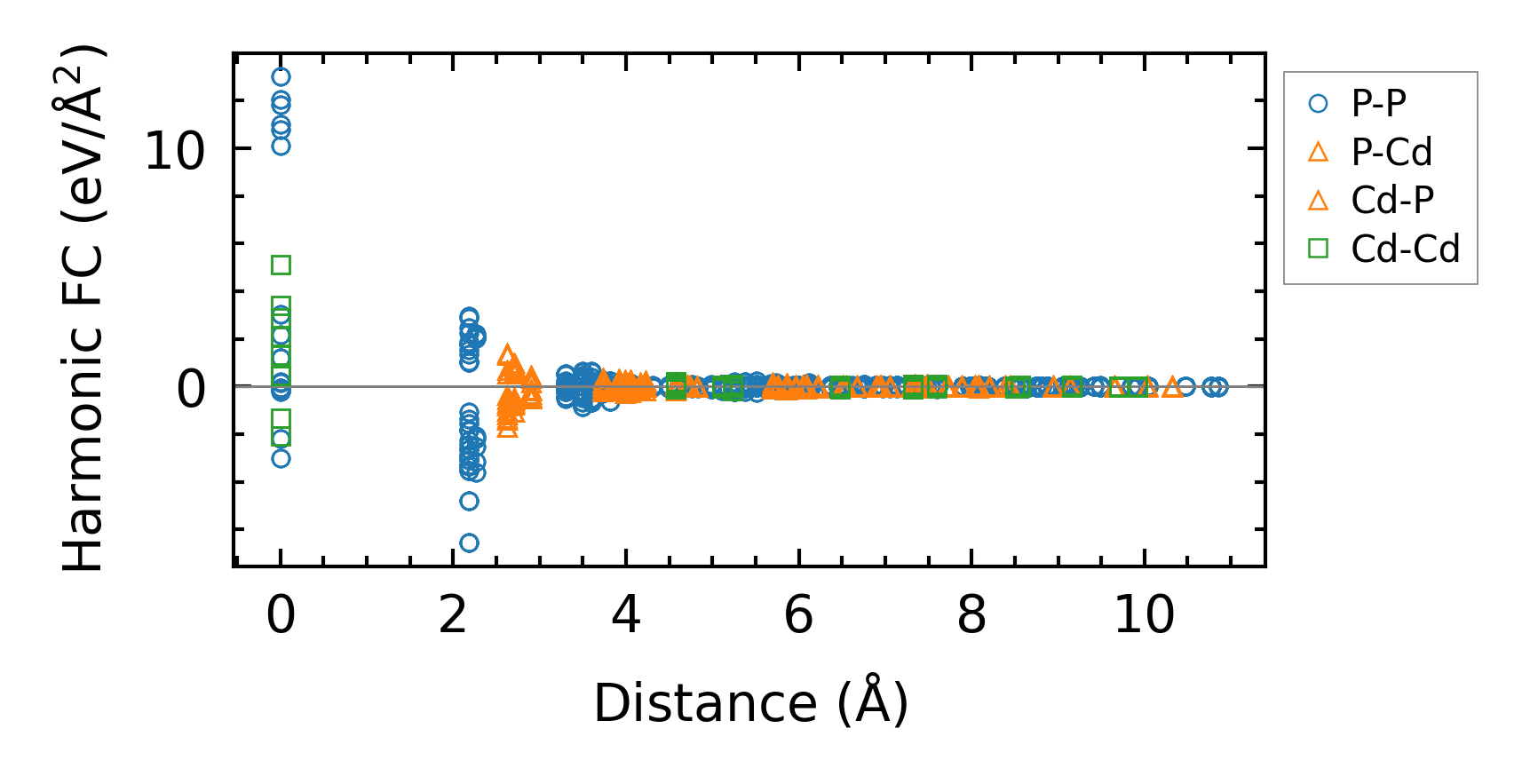

../../_images/fig_fc24173.png — (a) Force constants w.r.t atomic distance

Summary

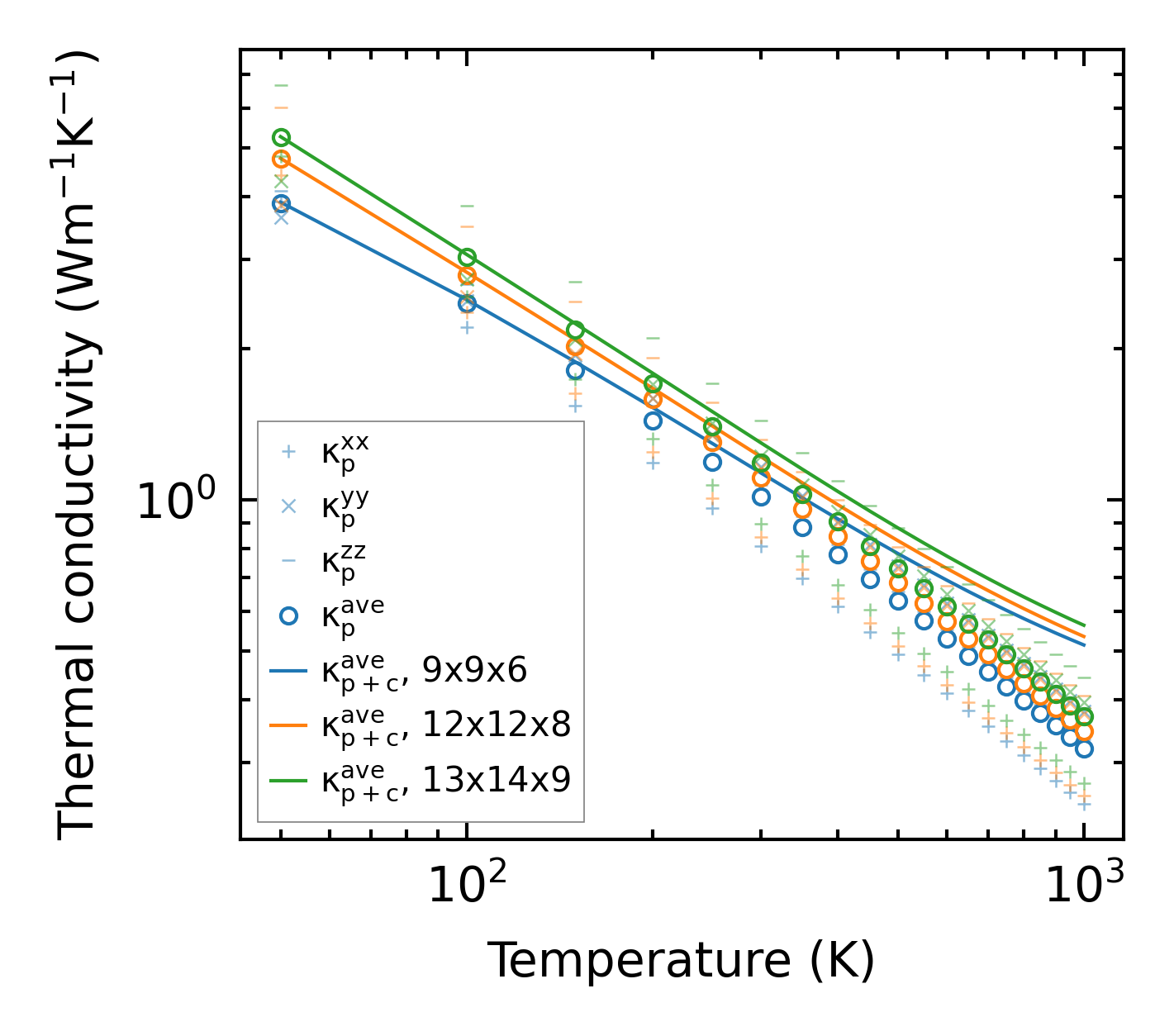

../../_images/fig_kappa3580.png — (a) Temperature-dependent lattice thermal conductivity

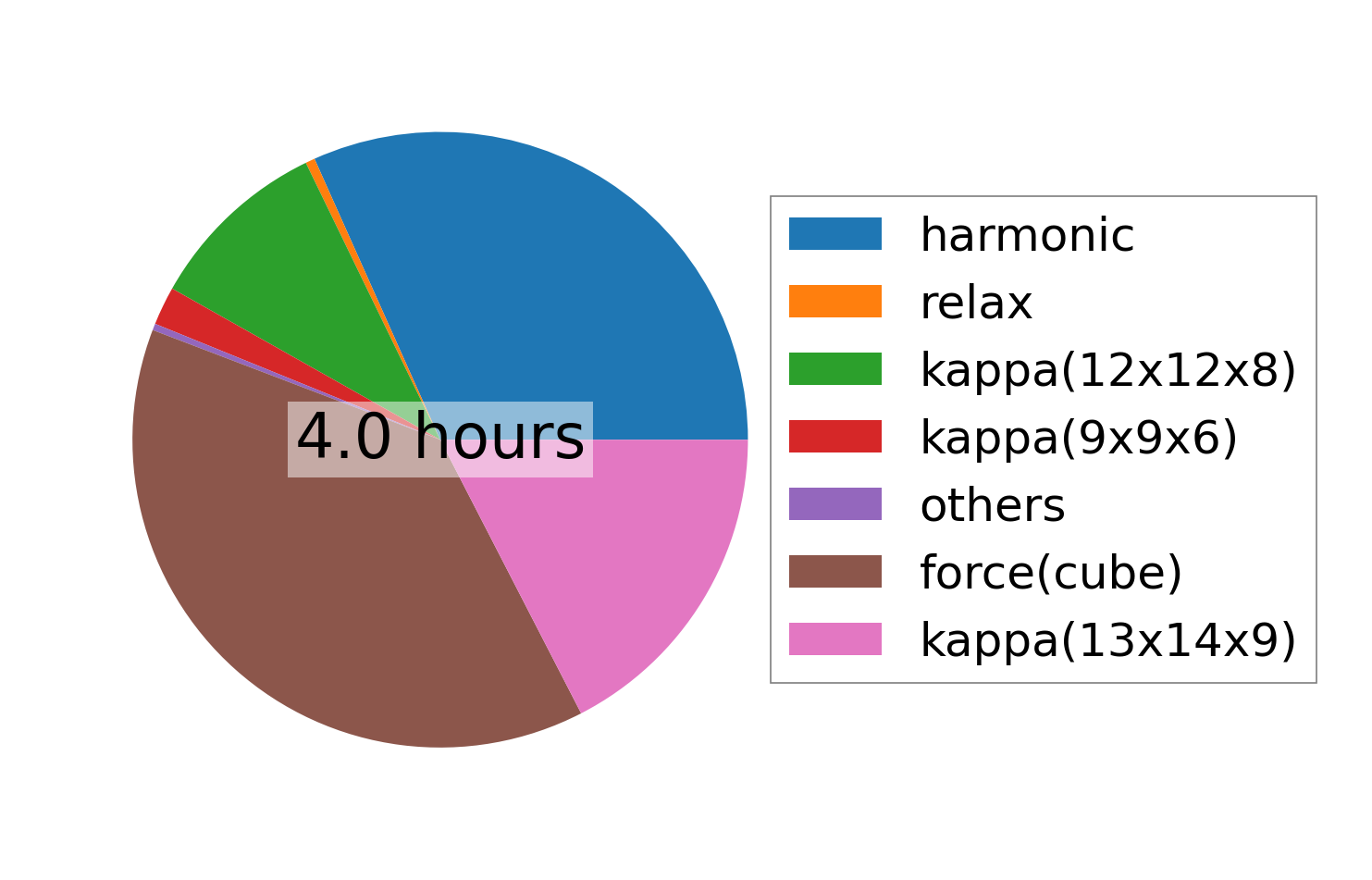

../../_images/fig_times7782.png — (b) Computation time
