mp-7129-2/Rb2TiCu2S4/anharm

Space group: P4_2/mcm (132)
Link: Materials Project
Download: mp-7129-2.tar.gz

Equation of state

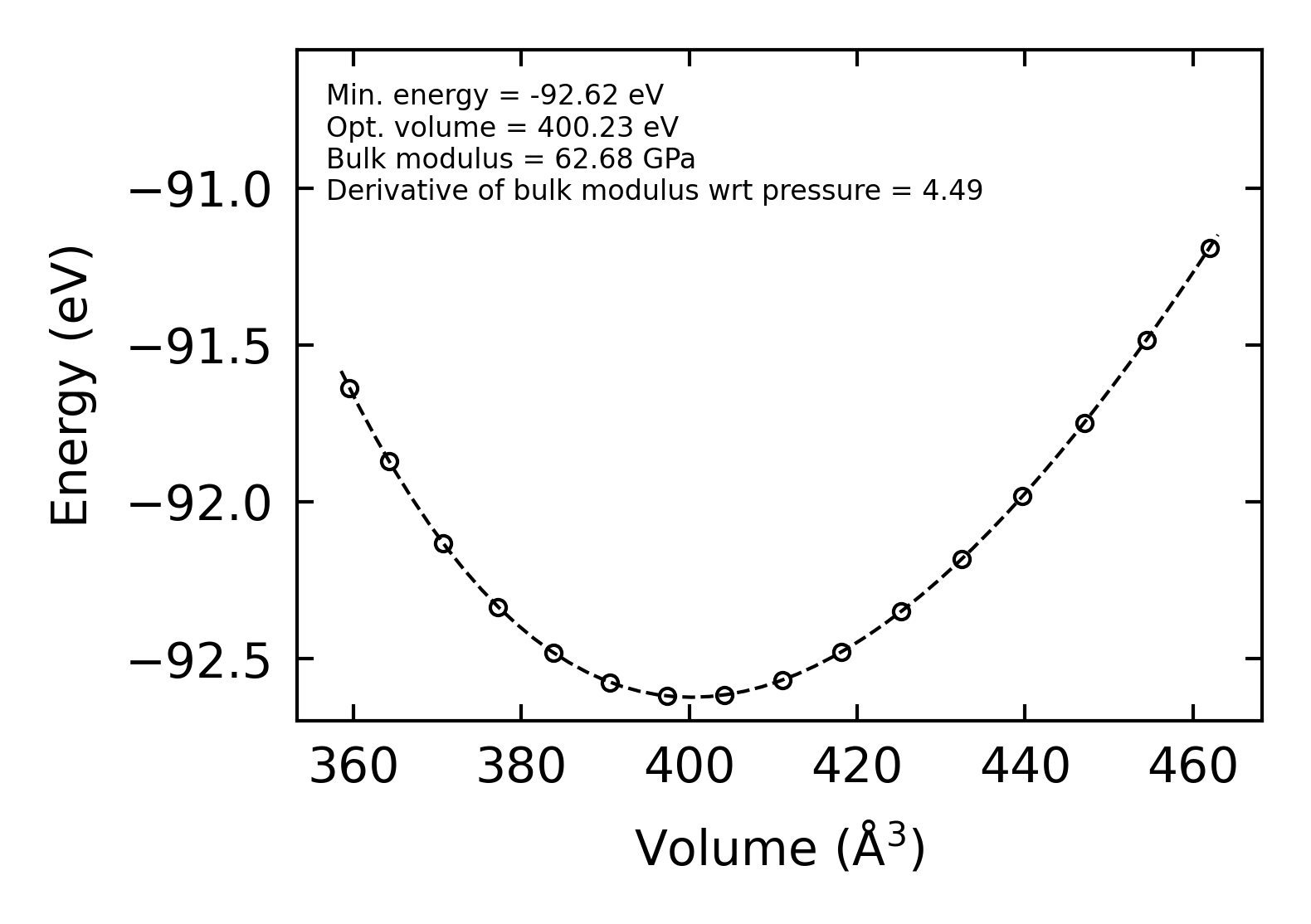

../../_images/fig_bm2384.png — (a) Equation of state

Harmonic properties

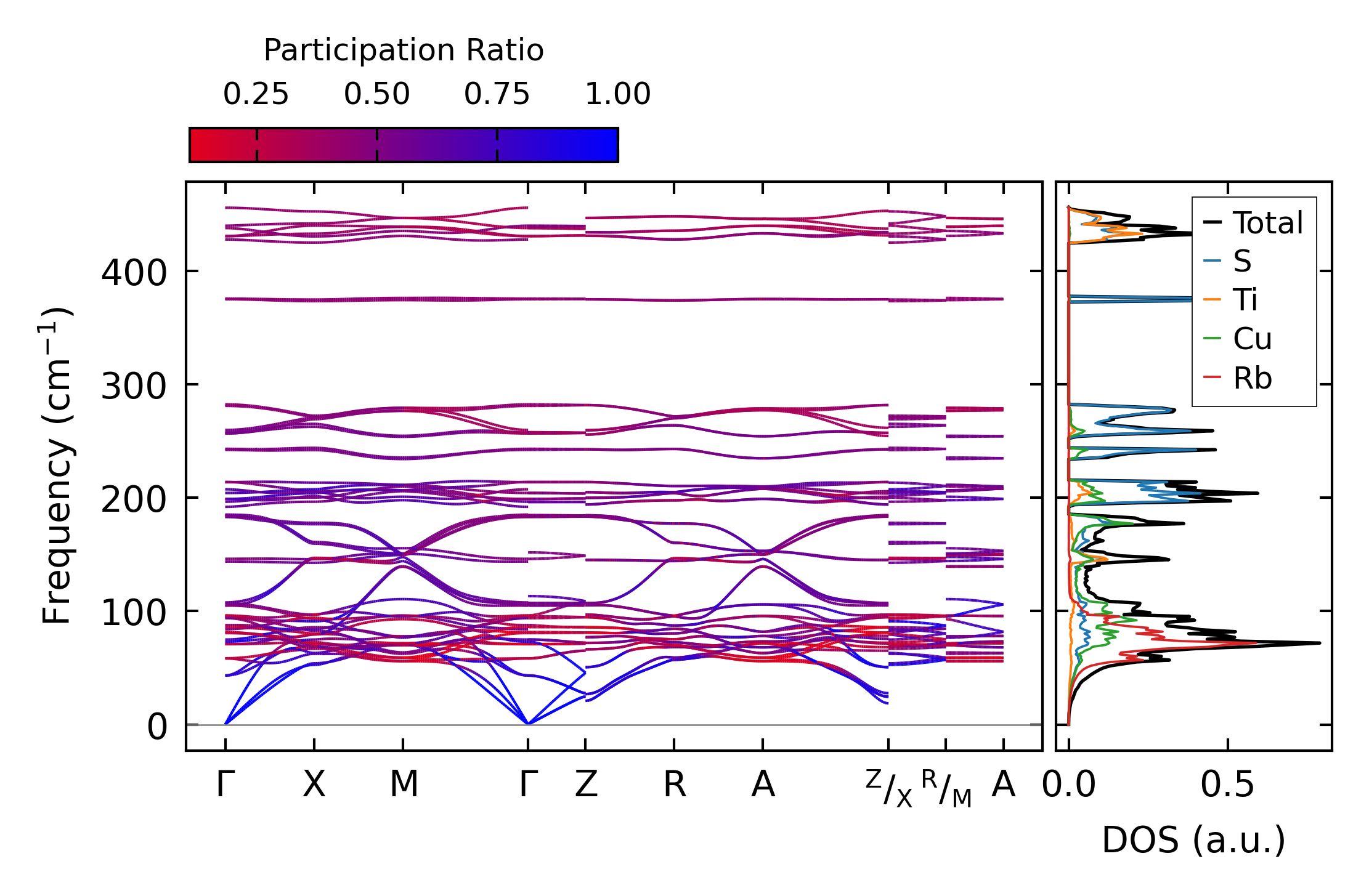

../../_images/fig_bandos_pr4808.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4808.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2073.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2073.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x5, supercell: 2x2x1

../../_images/fig_kappa3975.png — (a) Temperature-dependent lattice thermal conductivity

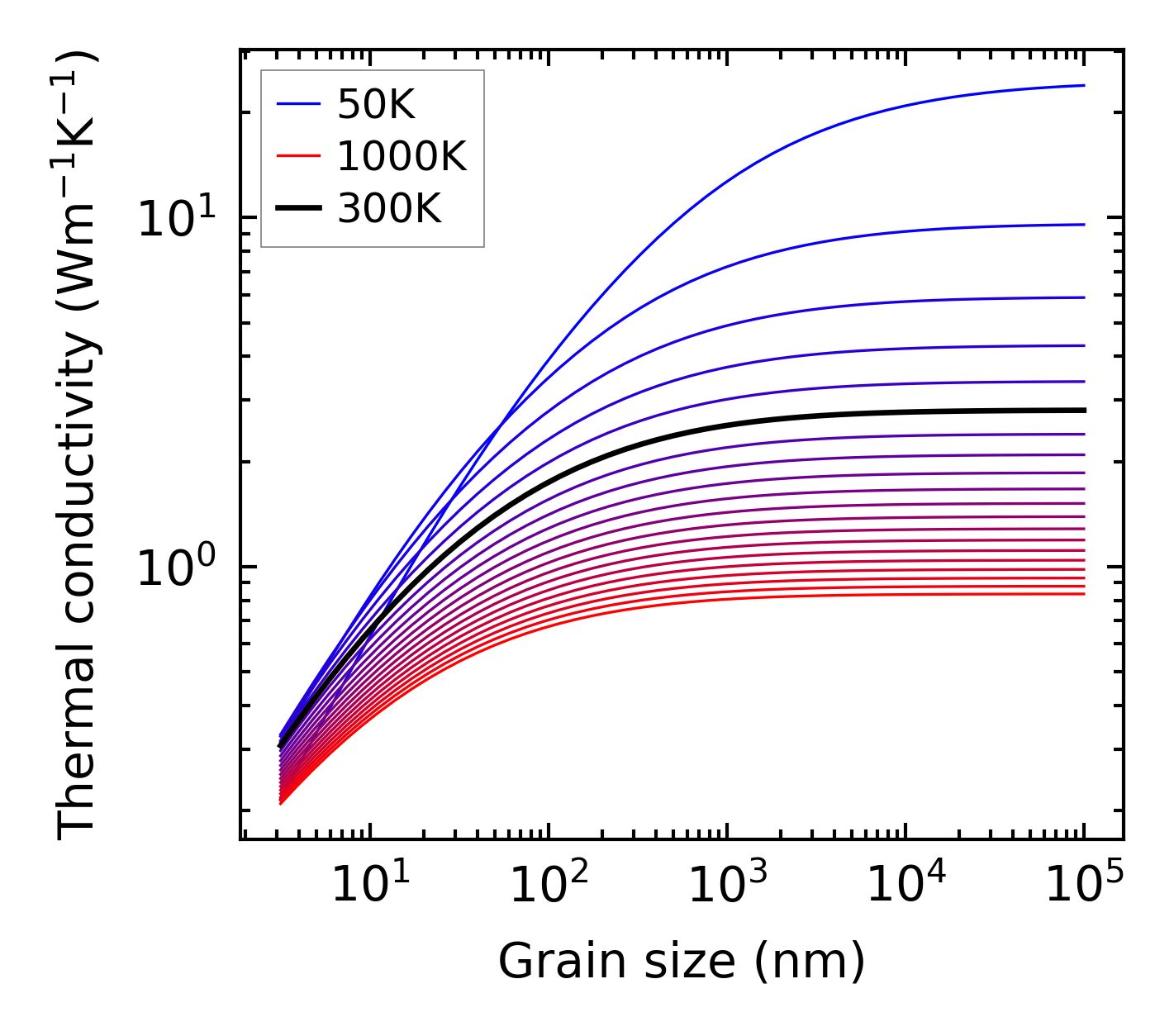

../../_images/fig_kappa_vs_grain_size2104.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2060.png — (a) Phonon lifetime due to phonon-phonon scattering

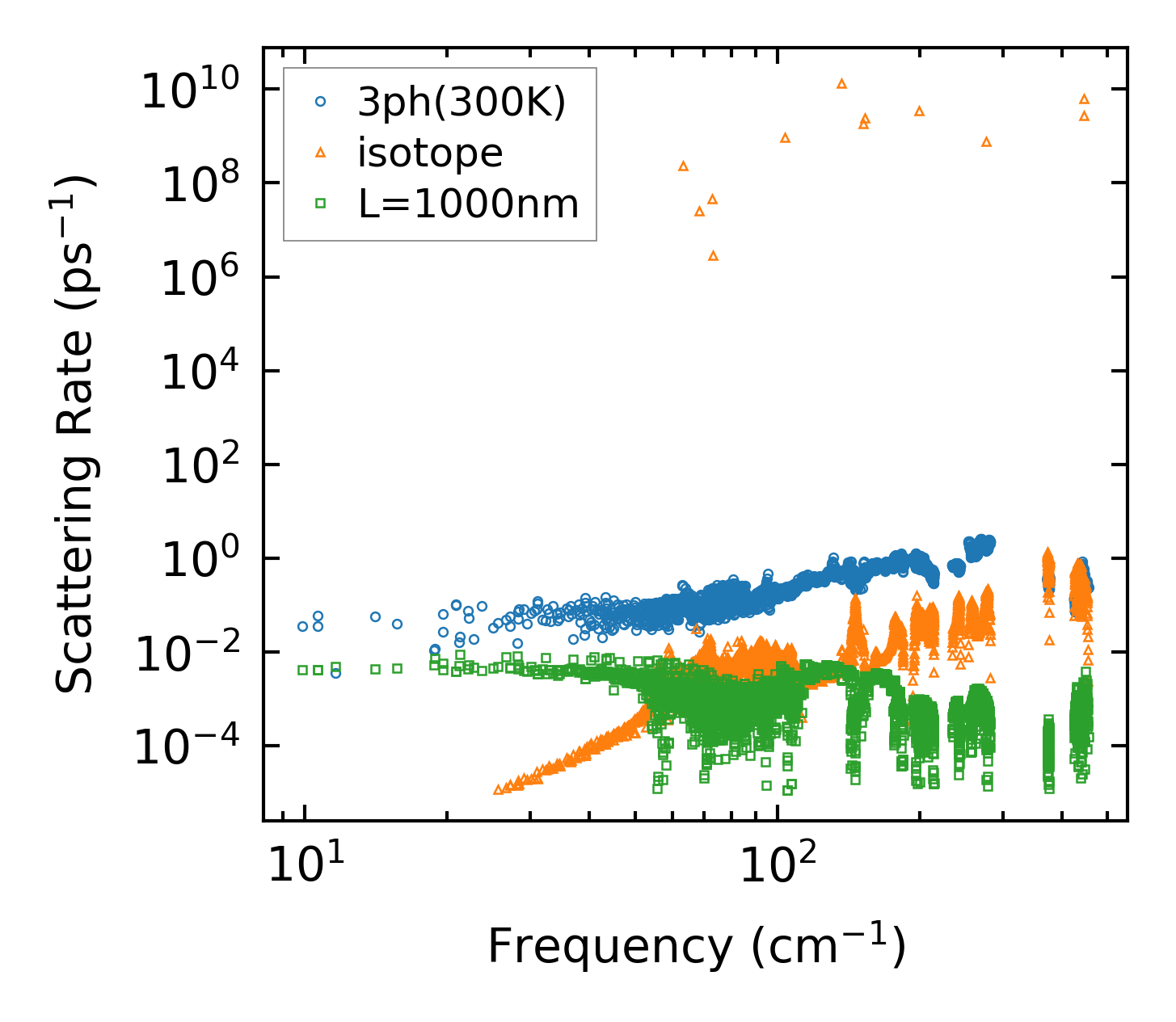

../../_images/fig_scat_rates2059.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

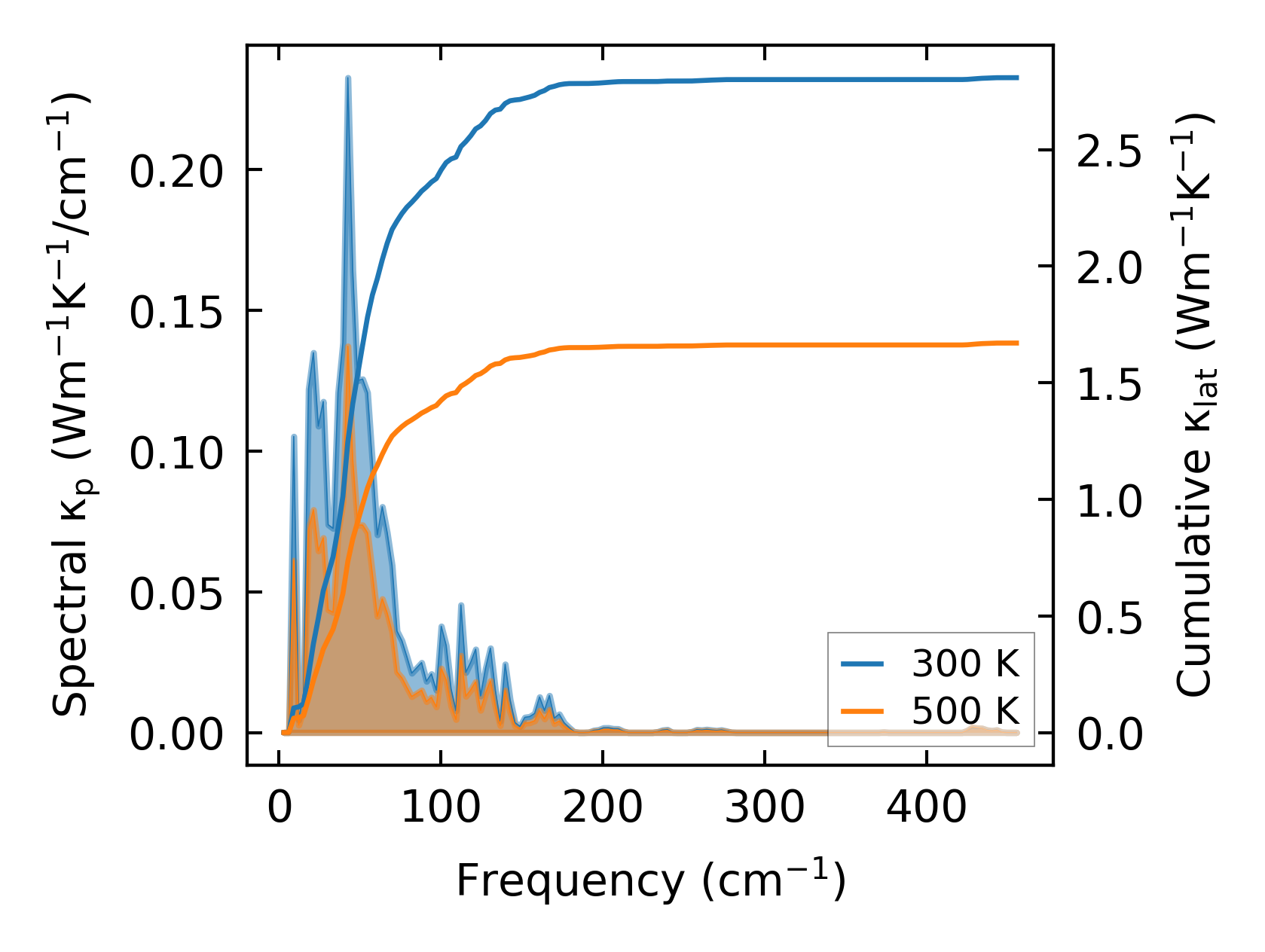

../../_images/fig_cumu_frequency2060.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

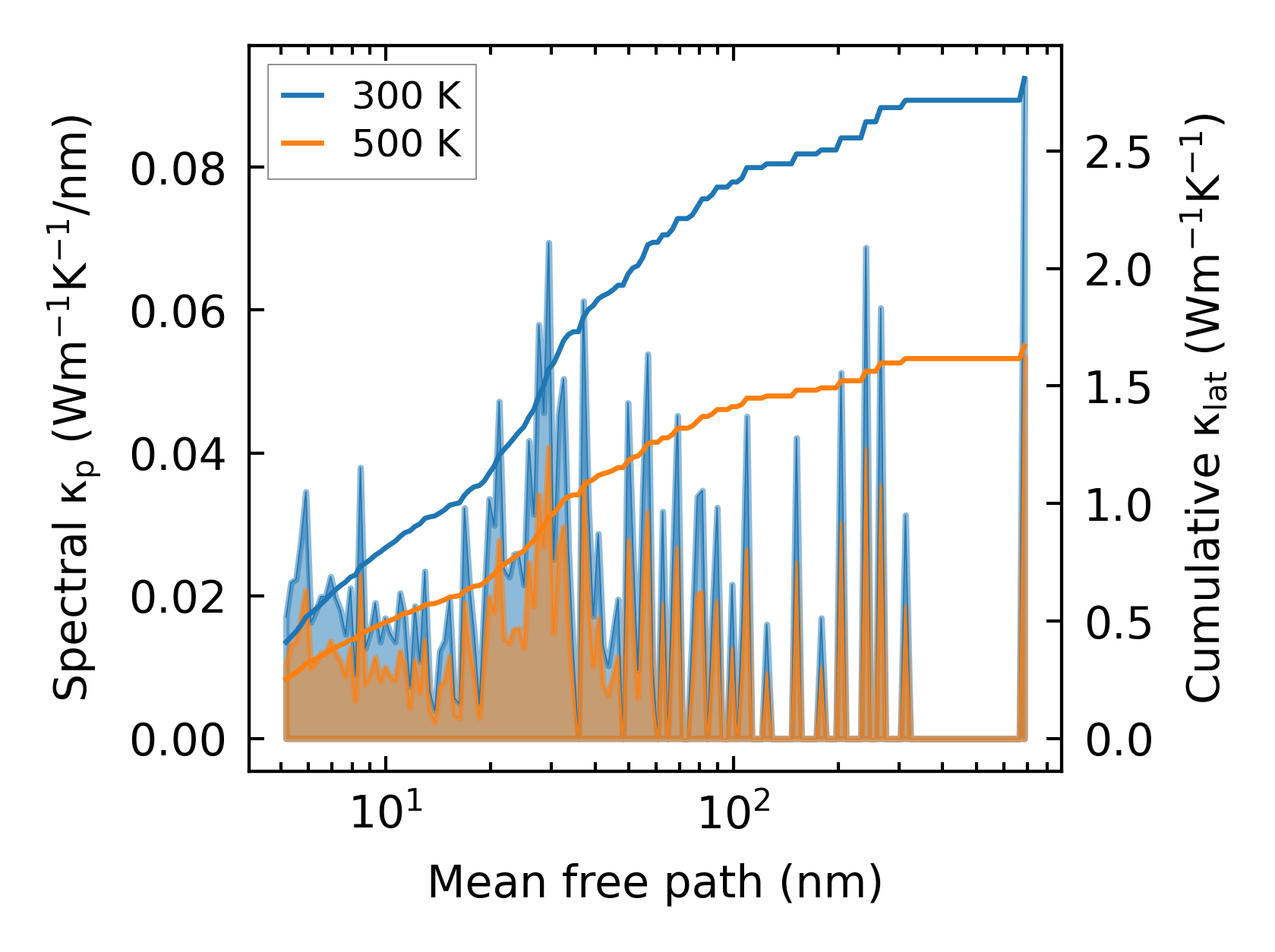

../../_images/fig_cumu_mfp2060.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

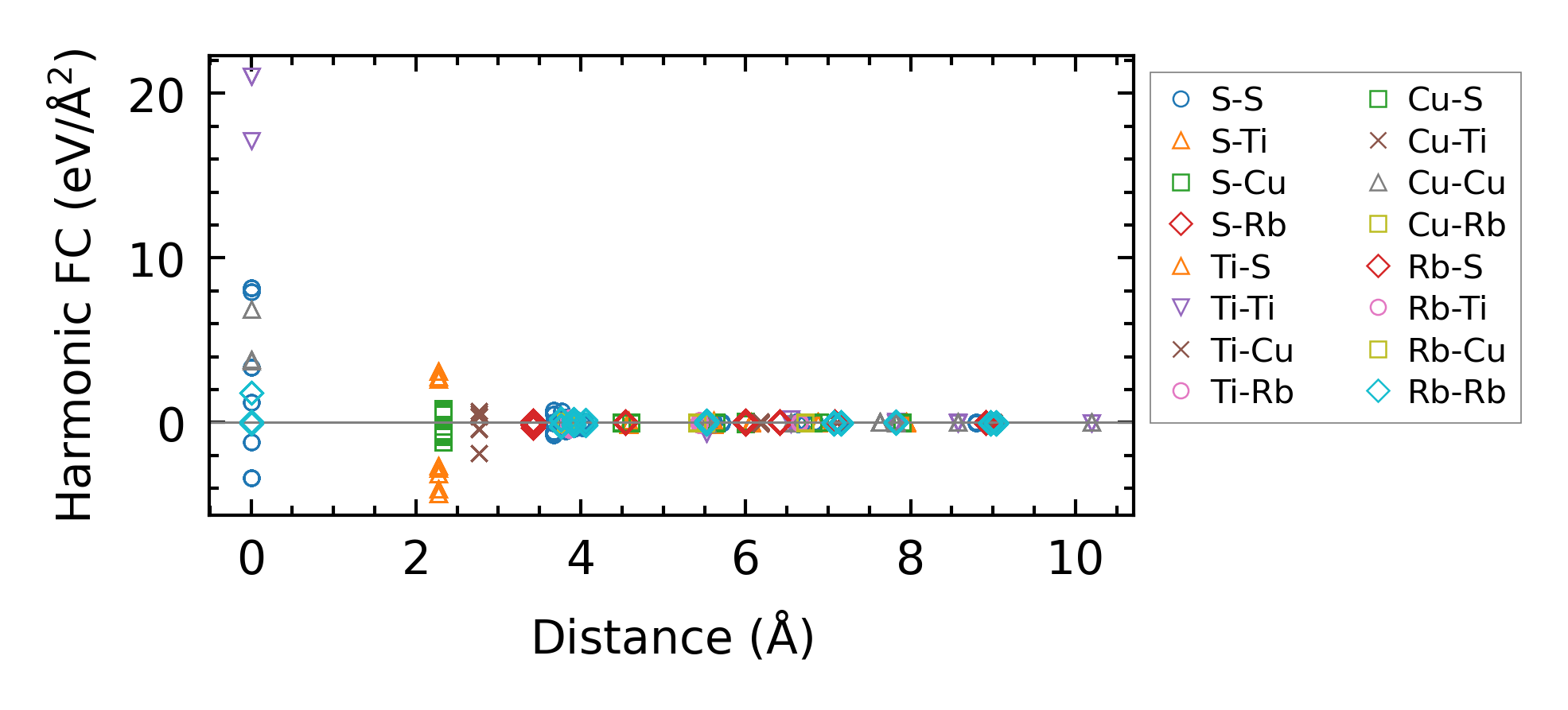

../../_images/fig_fc24619.png — (a) Force constants w.r.t atomic distance

Summary

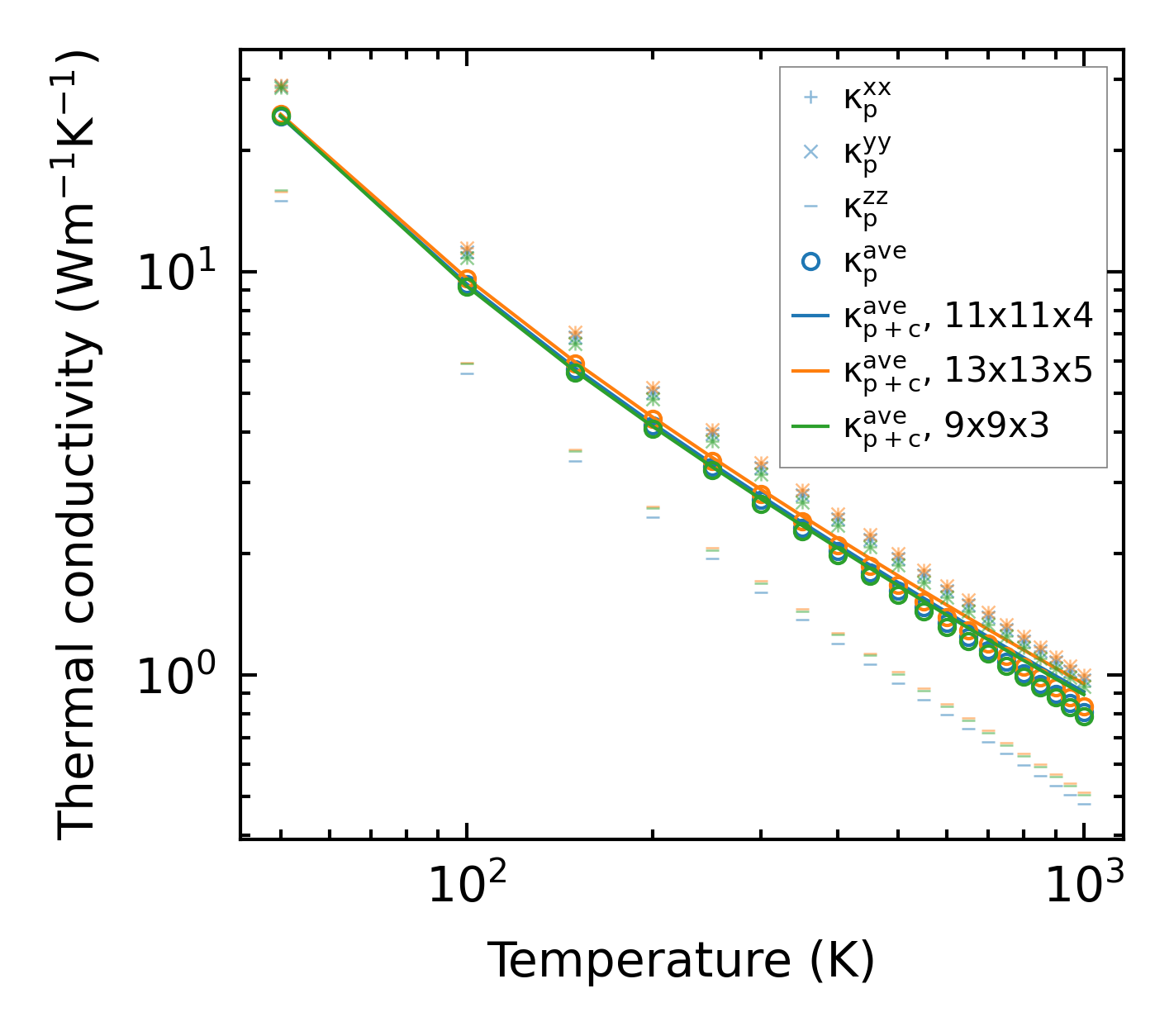

../../_images/fig_kappa3976.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times8515.png — (b) Computation time
