mp-7954/Nd2O3/anharm

Space group: P6/mmm (191)
Link: Materials Project
Download: mp-7954.tar.gz

Harmonic properties

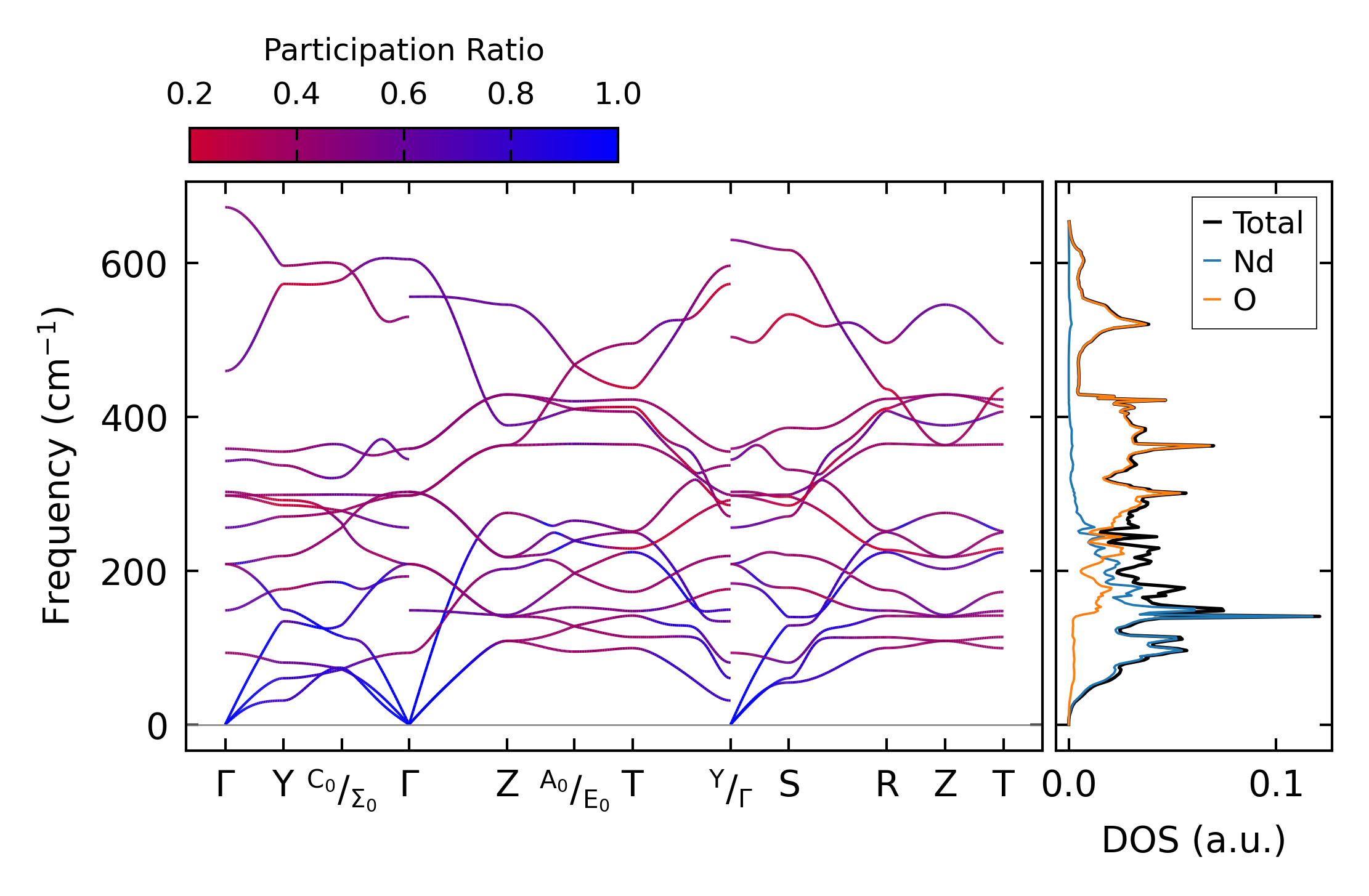

../../_images/fig_bandos_pr4396.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4396.png — (b) Thermodynamic properties

Grüneisen parameters

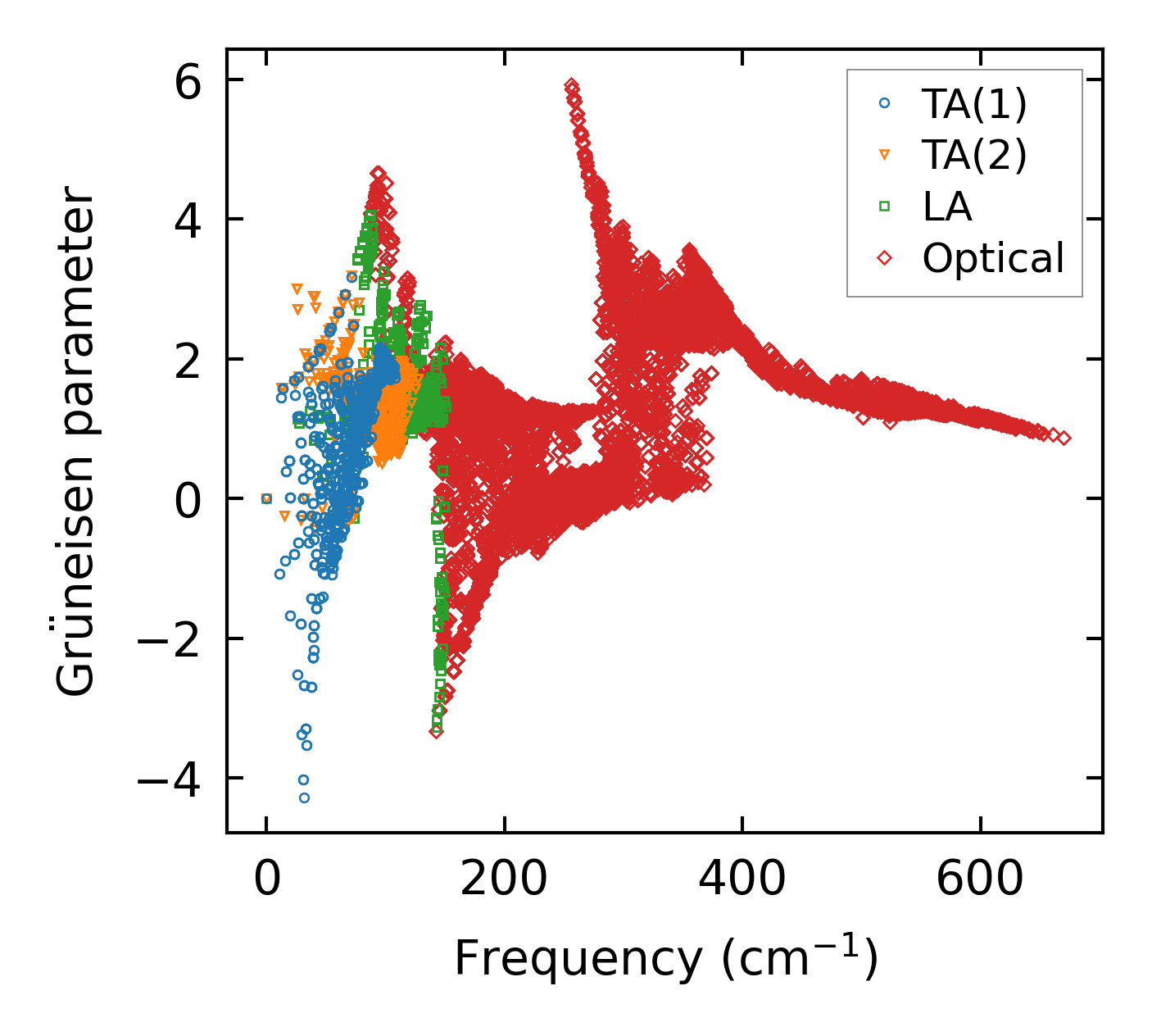

../../_images/fig_gru_all1892.png — (a) Grüneisen parameters

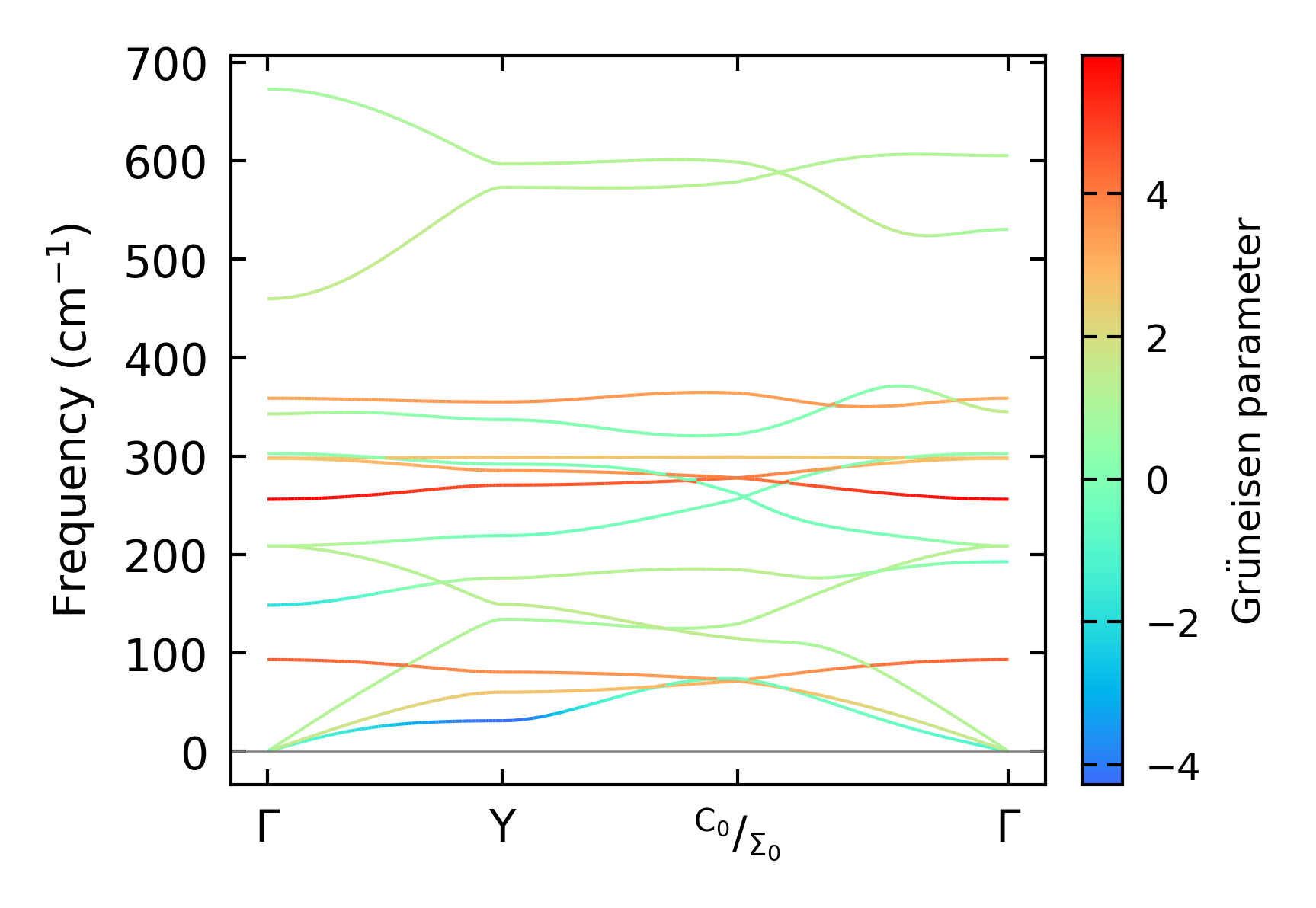

../../_images/fig_gruneisen1892.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x23, supercell: 2x1x4

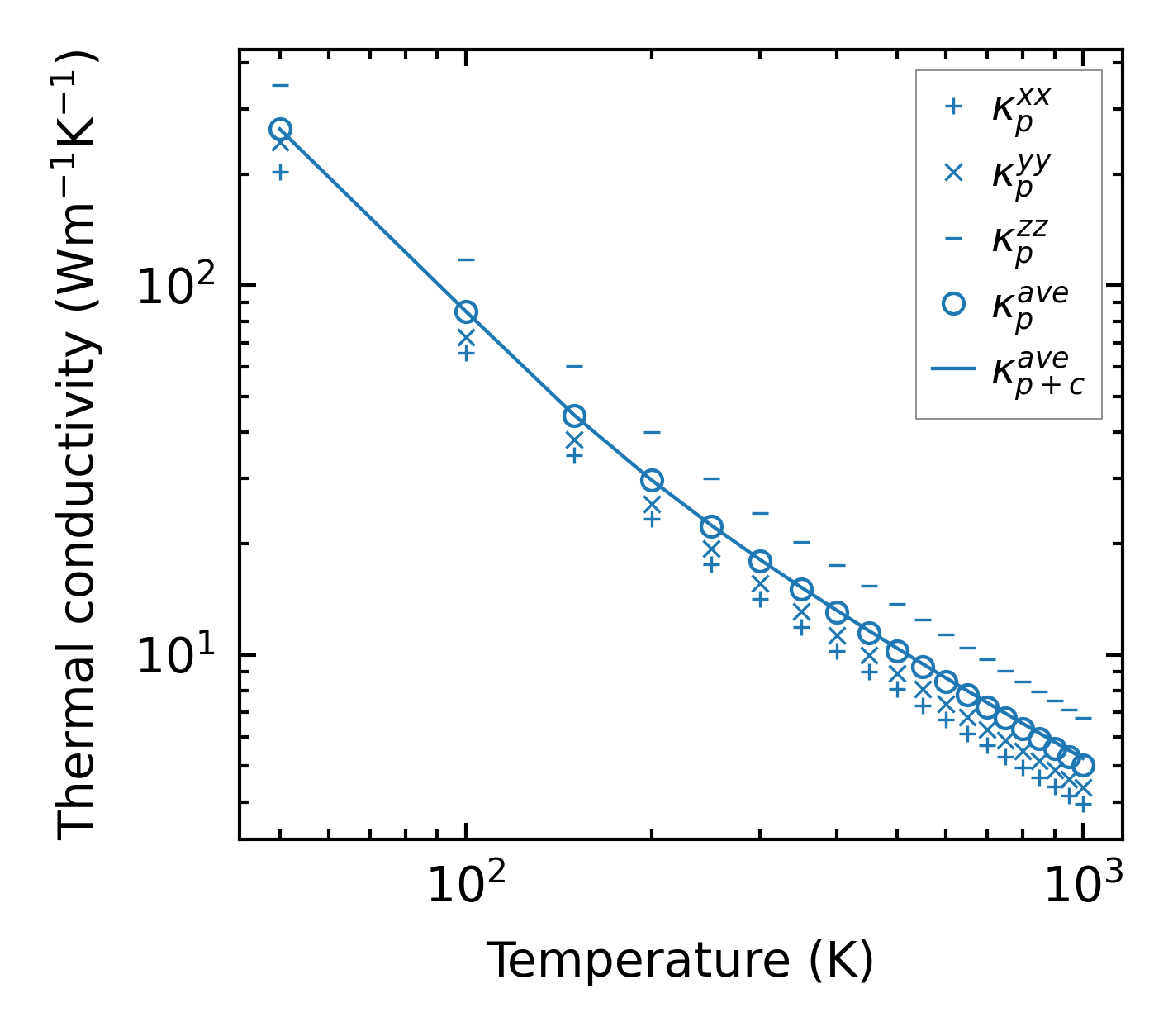

../../_images/fig_kappa3624.png — (a) Temperature-dependent lattice thermal conductivity

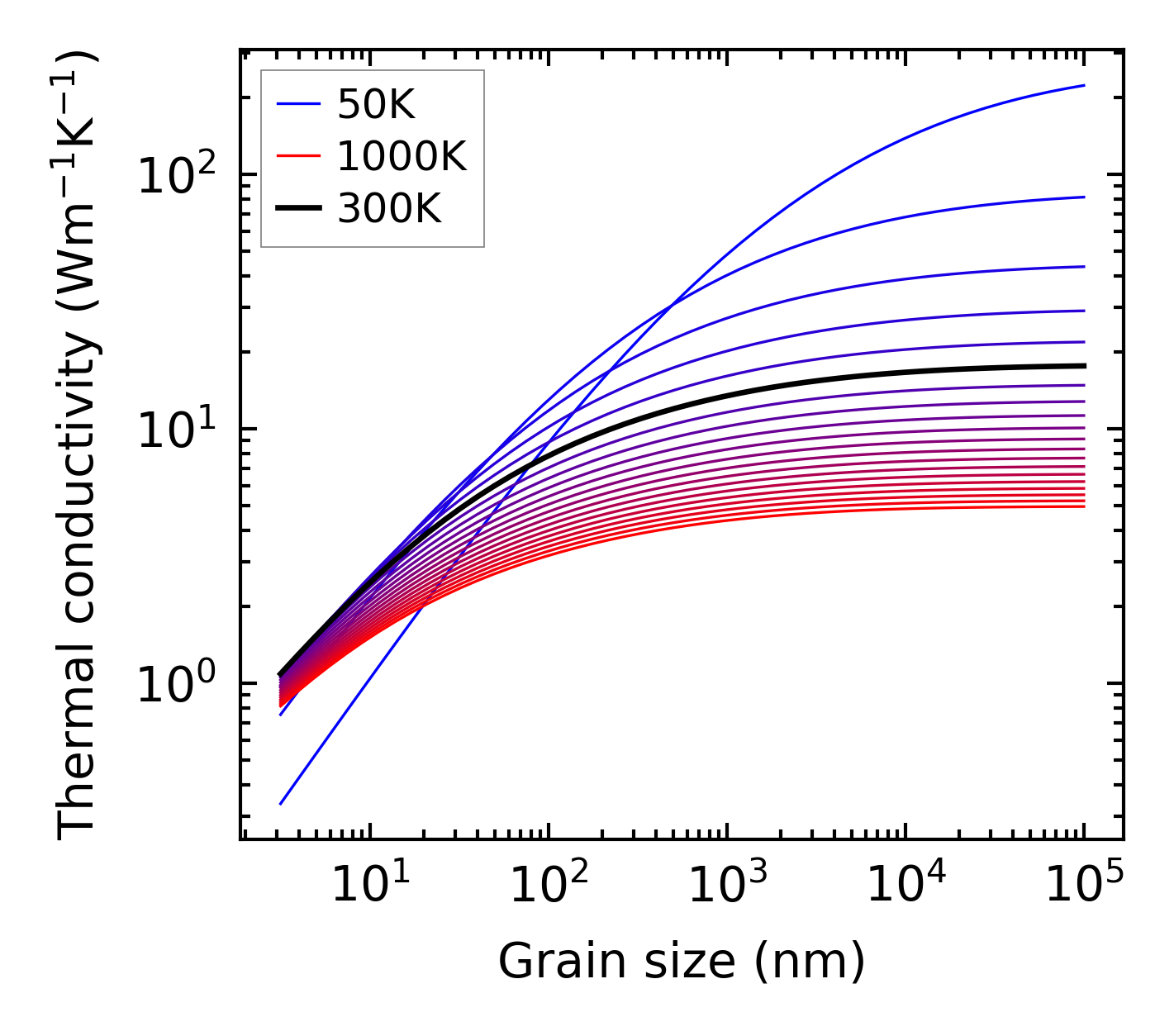

../../_images/fig_kappa_vs_grain_size1919.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1881.png — (a) Phonon lifetime due to phonon-phonon scattering

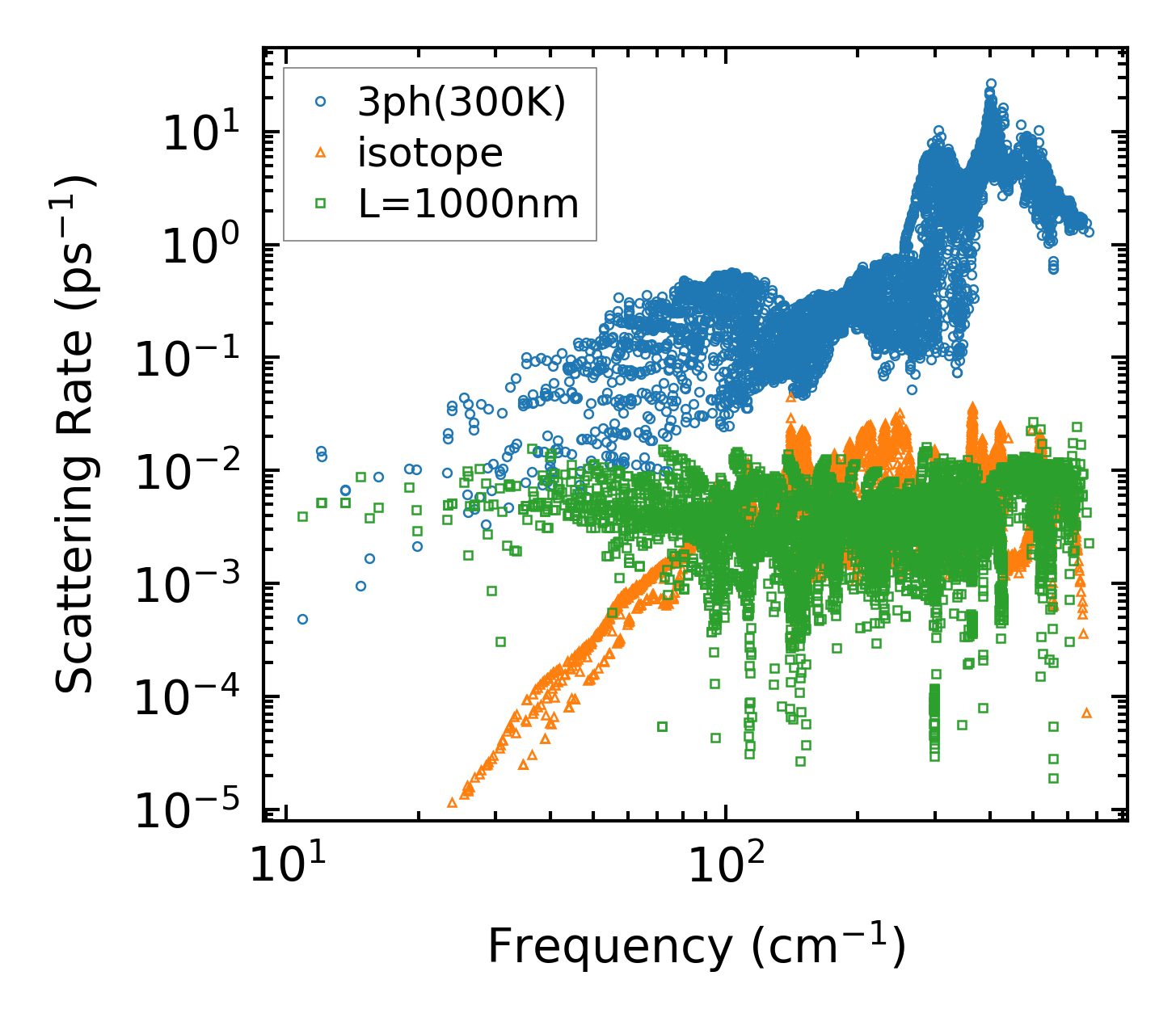

../../_images/fig_scat_rates1880.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1881.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1881.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

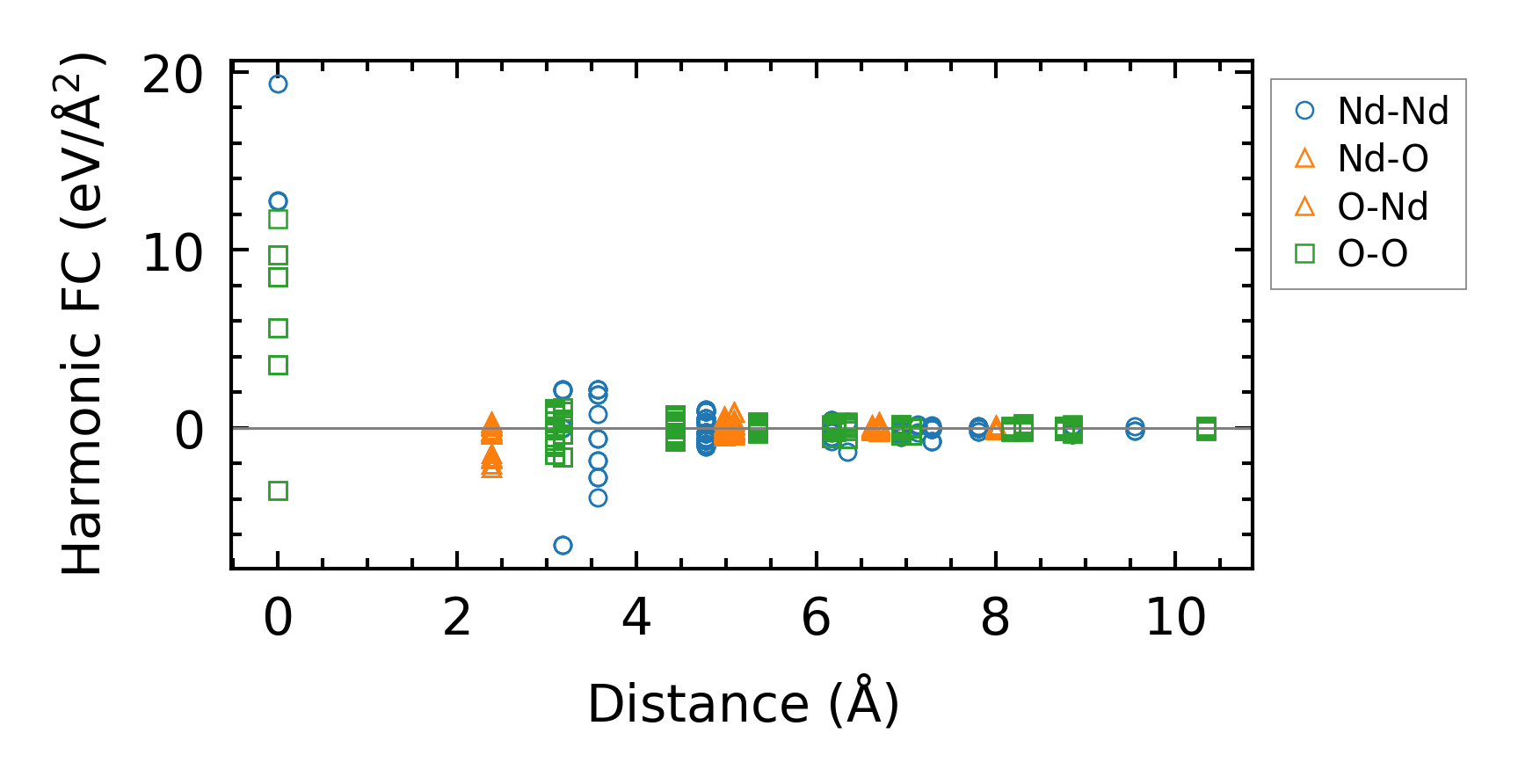

../../_images/fig_fc24209.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3625.png — (a) Temperature-dependent lattice thermal conductivity

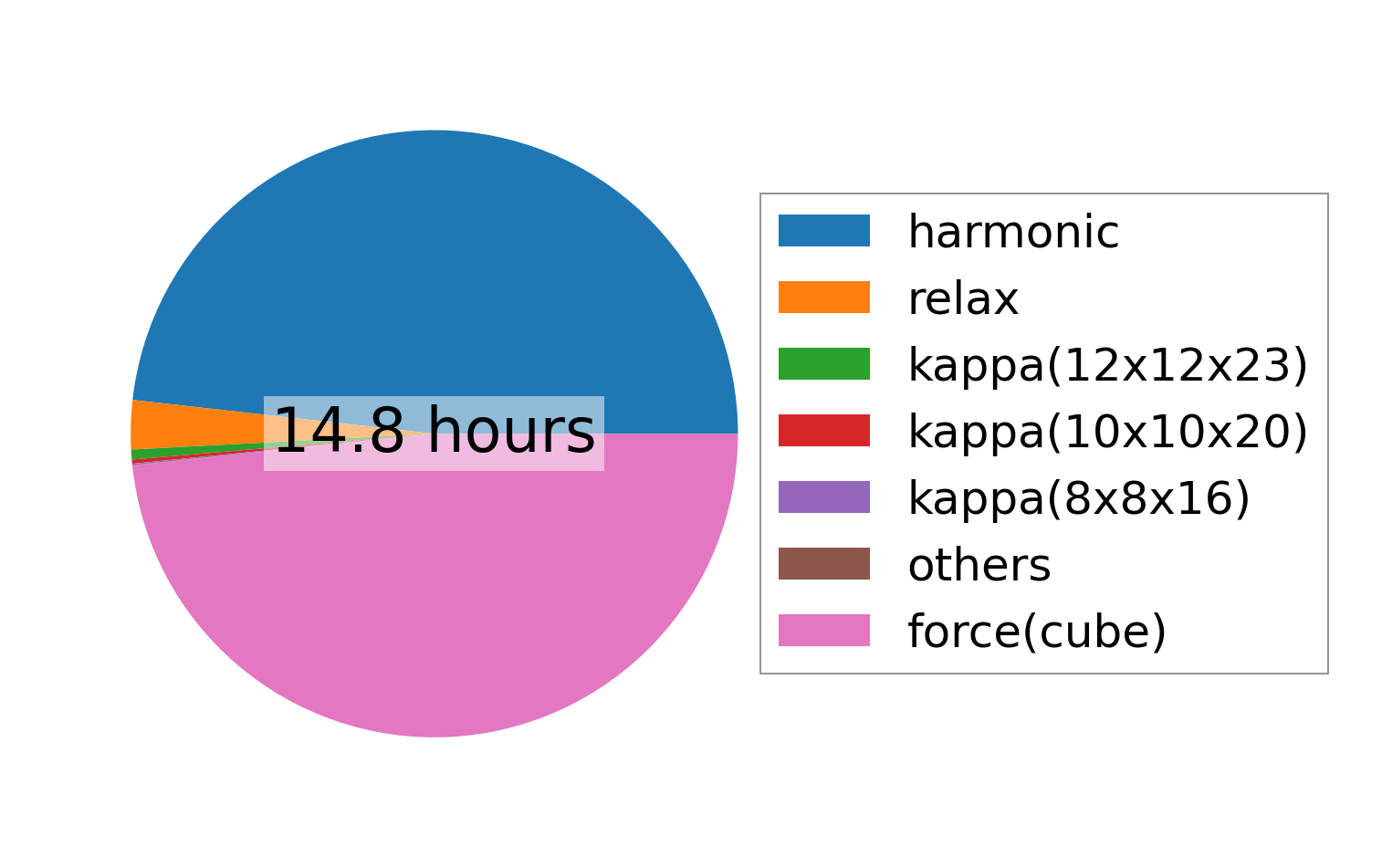

../../_images/fig_times7818.png — (b) Computation time
