mp-7392/Na2AgSb/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-7392.tar.gz

Harmonic properties

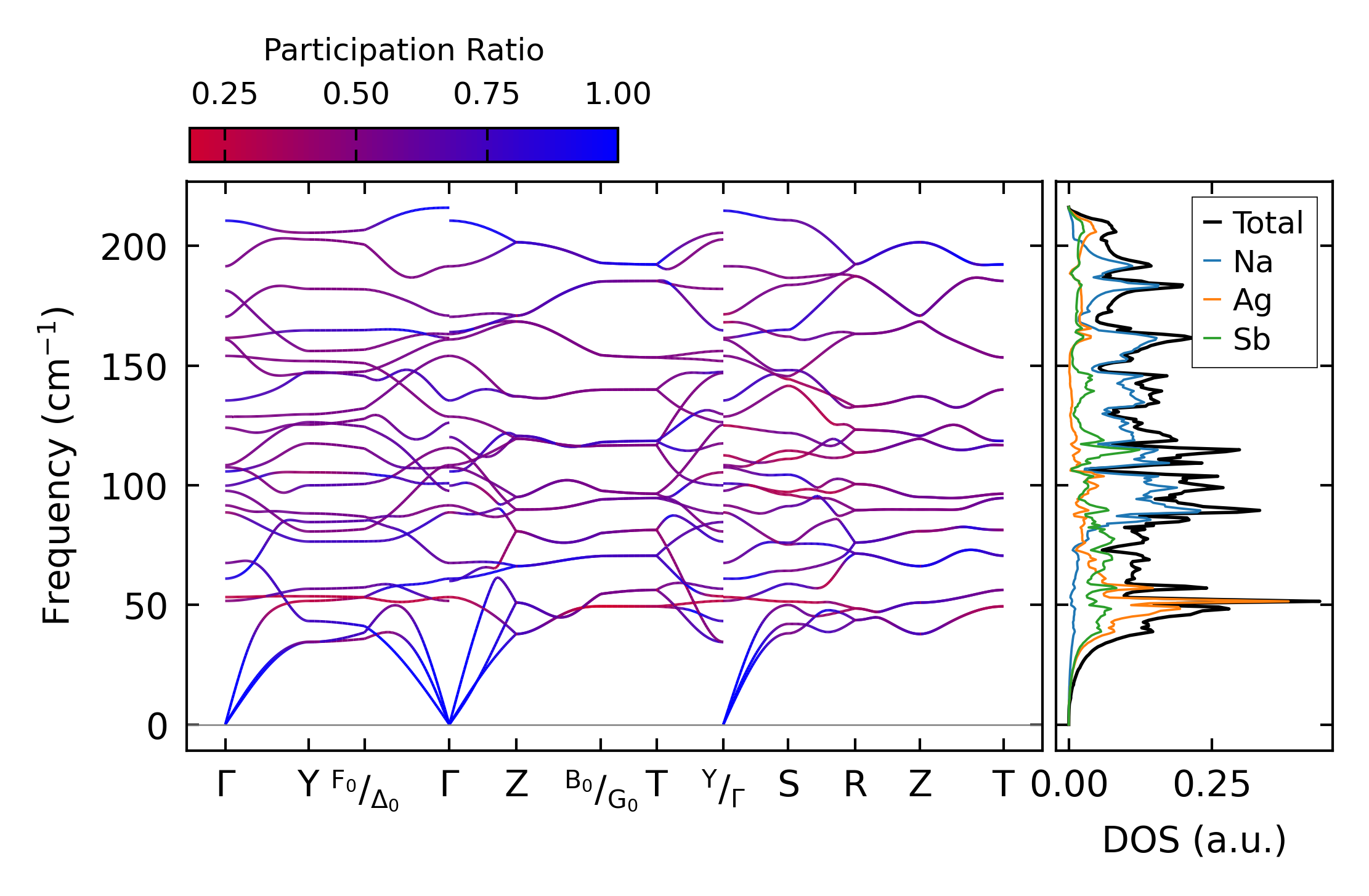

../../_images/fig_bandos_pr4526.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4526.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1942.png — (a) Grüneisen parameters

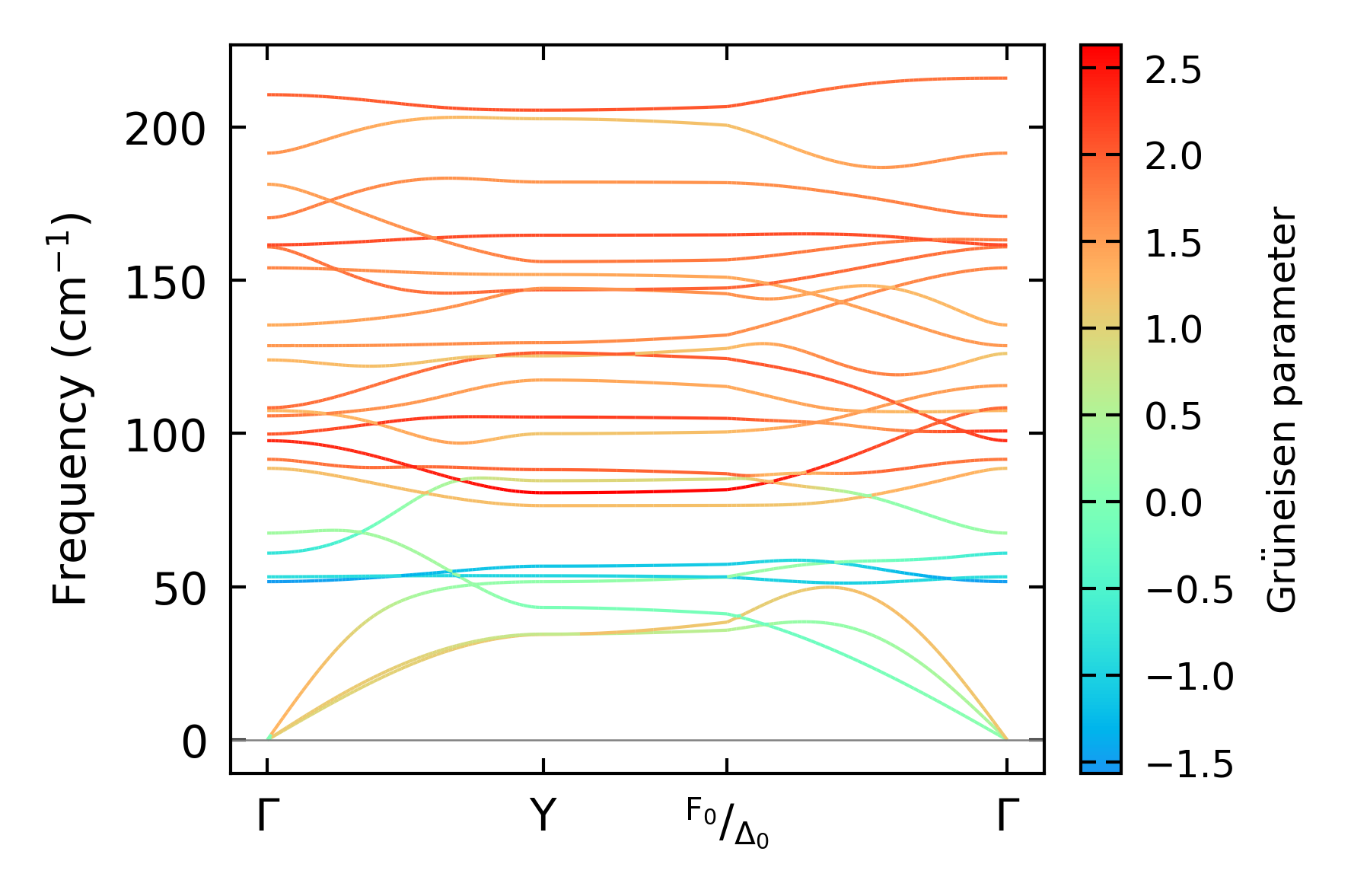

../../_images/fig_gruneisen1942.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x2

../../_images/fig_kappa3719.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1969.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

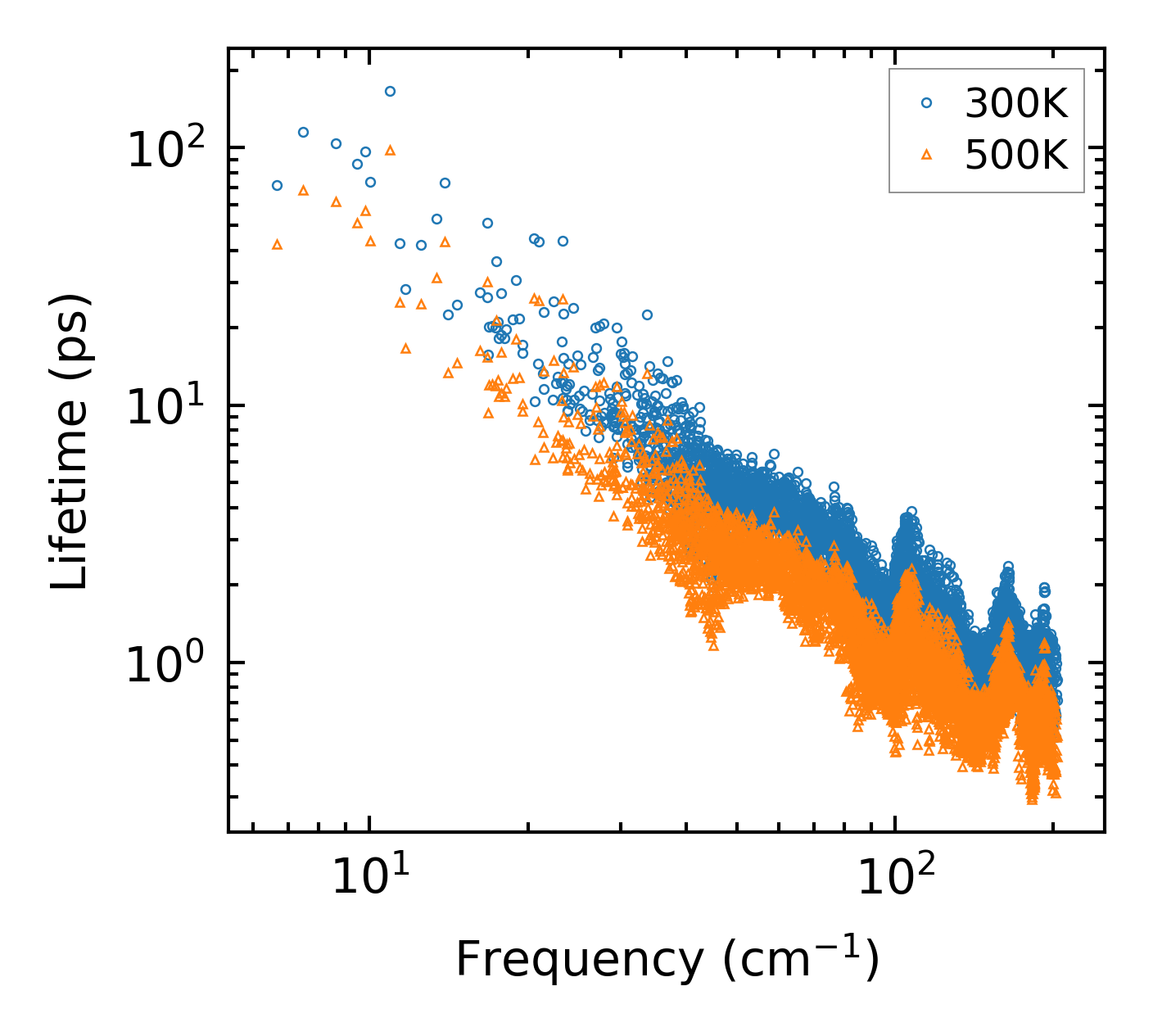

../../_images/fig_lifetime1931.png — (a) Phonon lifetime due to phonon-phonon scattering

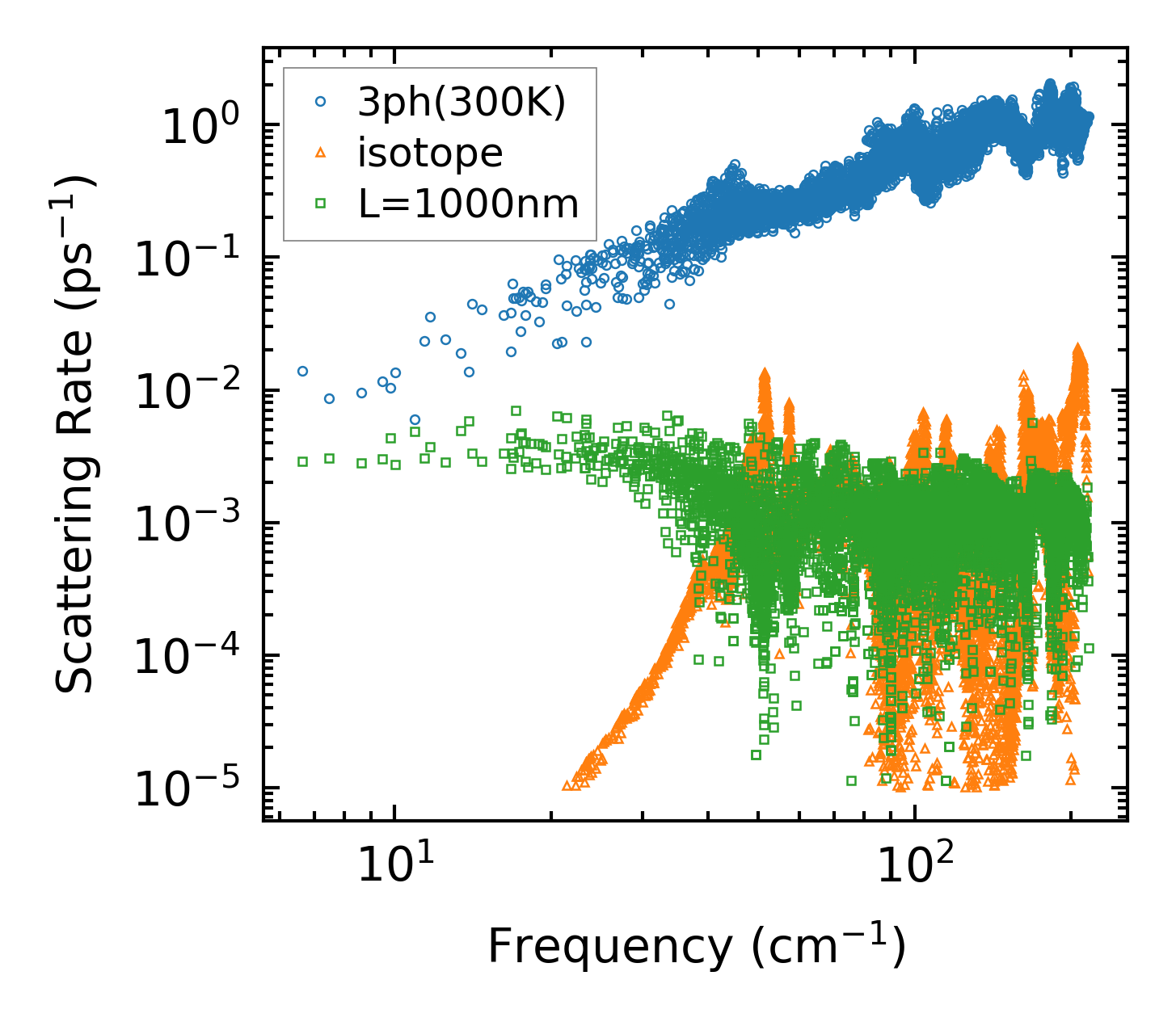

../../_images/fig_scat_rates1930.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

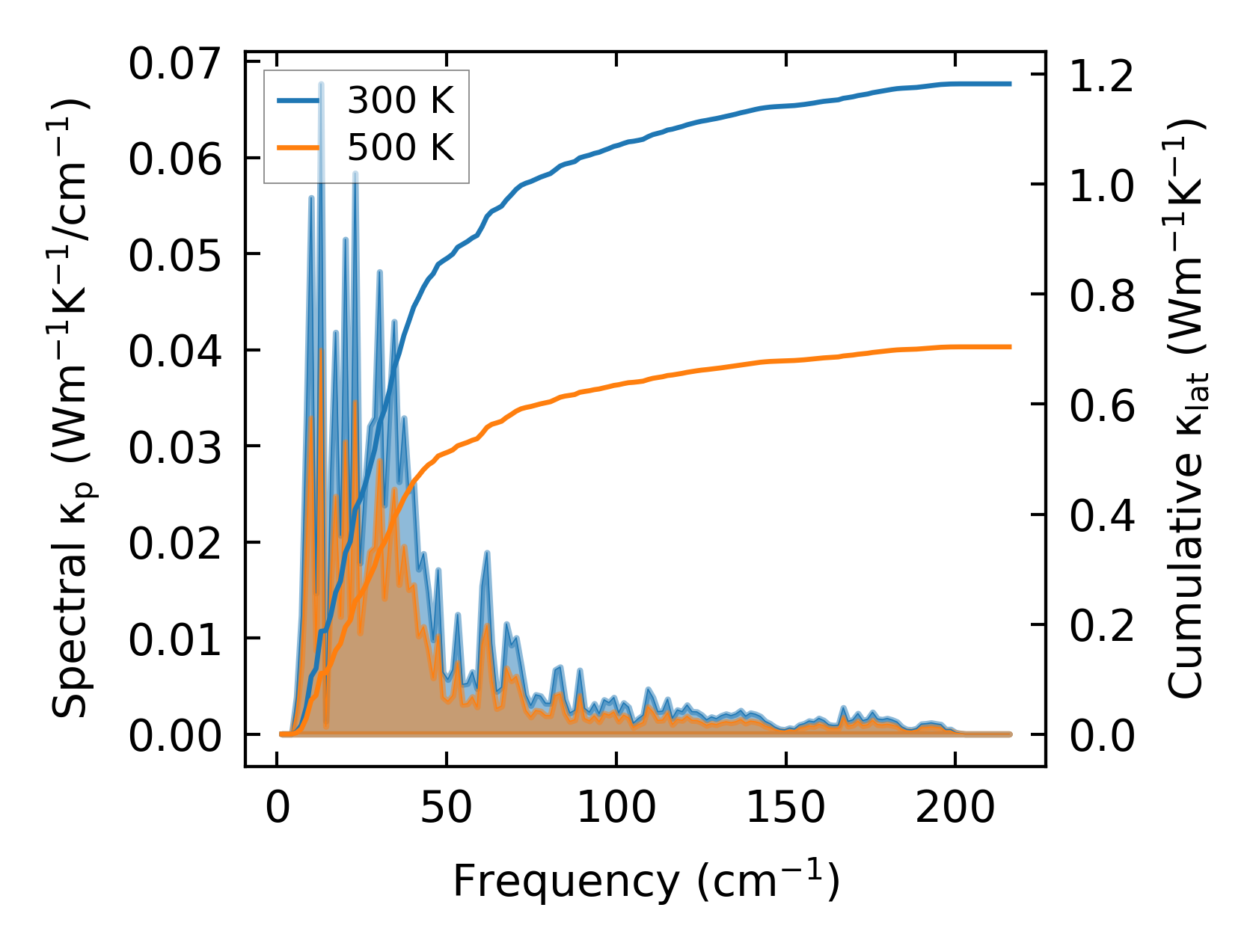

../../_images/fig_cumu_frequency1931.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

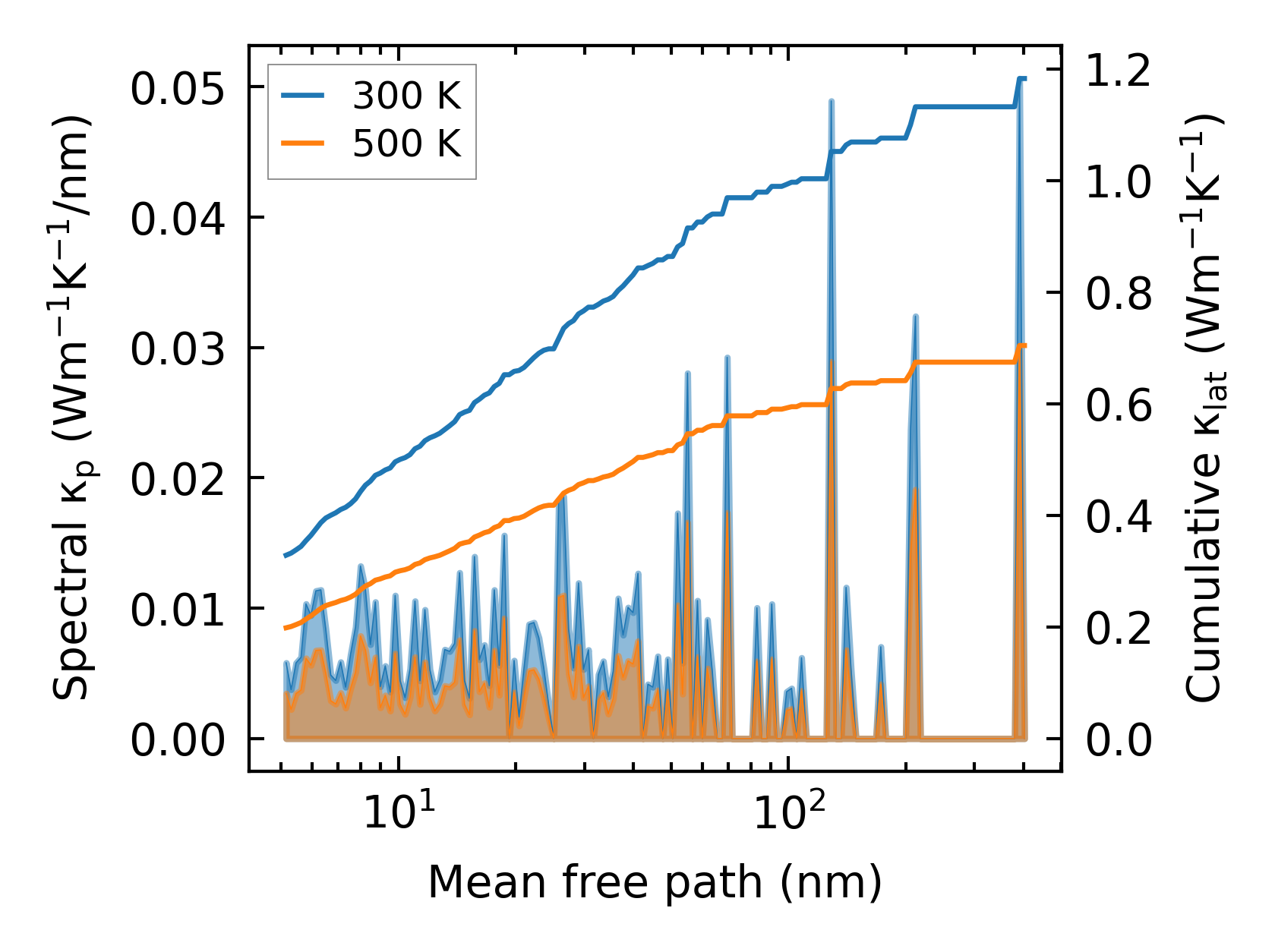

../../_images/fig_cumu_mfp1931.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24338.png — (a) Force constants w.r.t atomic distance

Summary

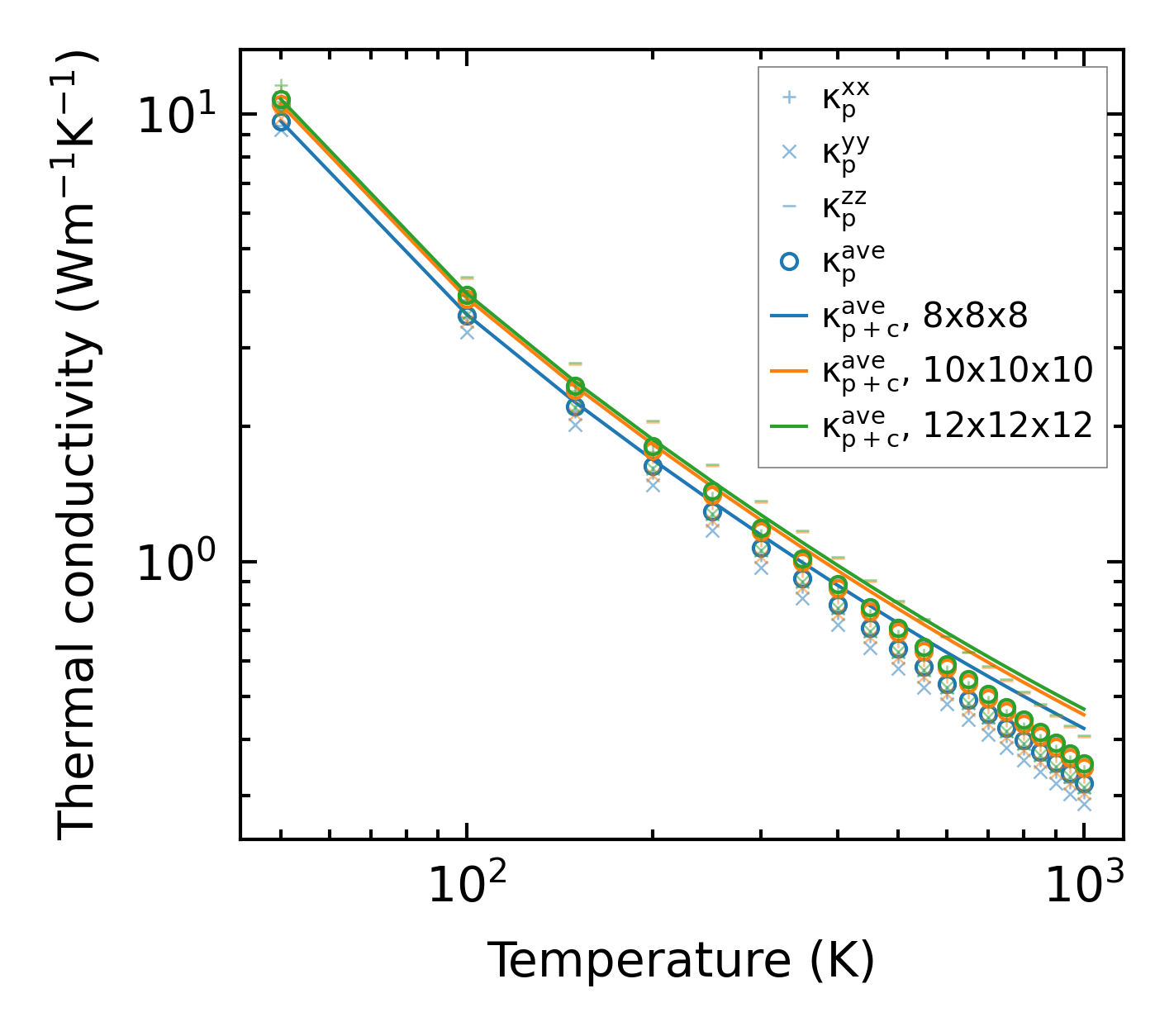

../../_images/fig_kappa3720.png — (a) Temperature-dependent lattice thermal conductivity

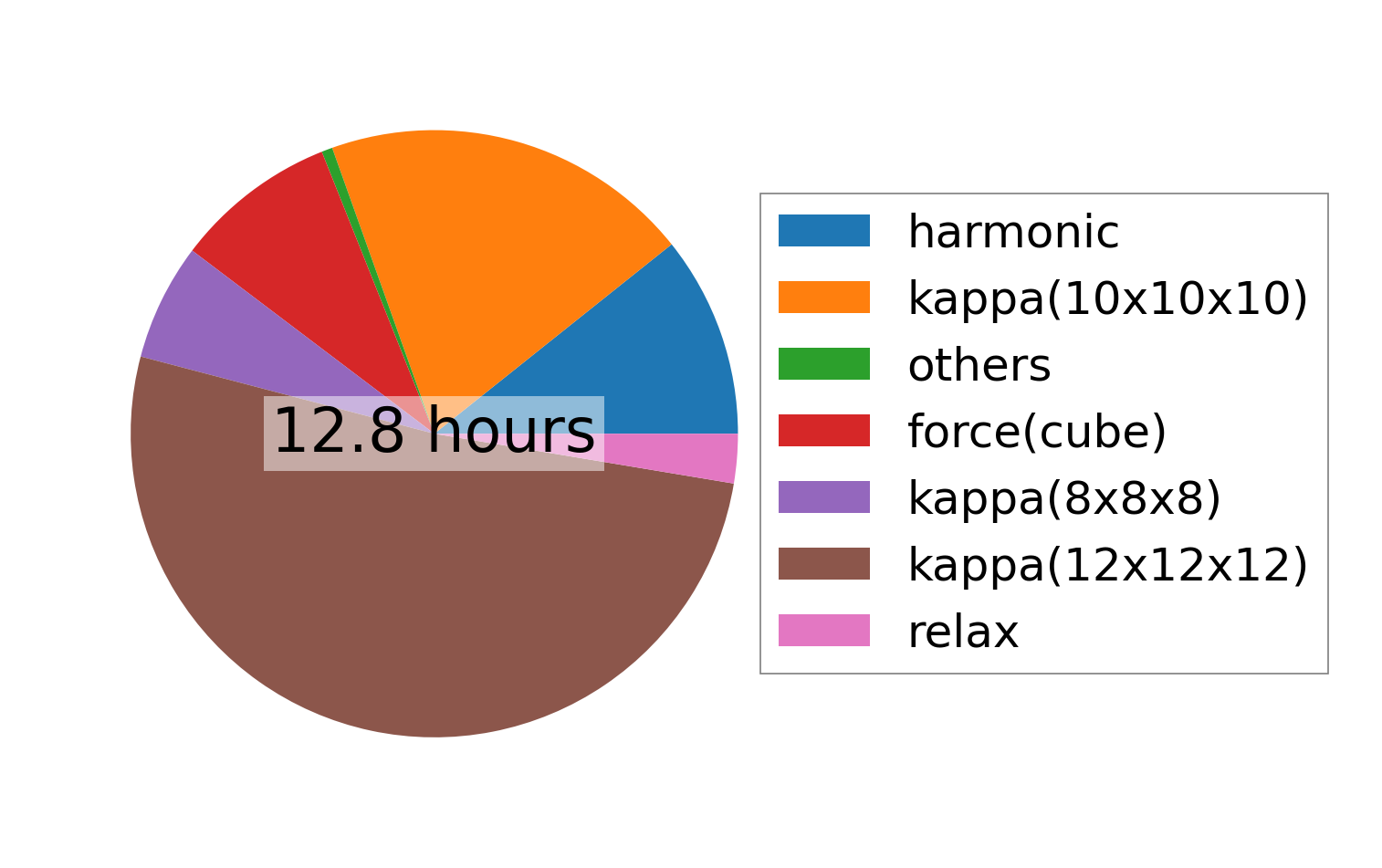

../../_images/fig_times8071.png — (b) Computation time
