mp-7430/CaCd2Sb2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-7430.tar.gz

Harmonic properties

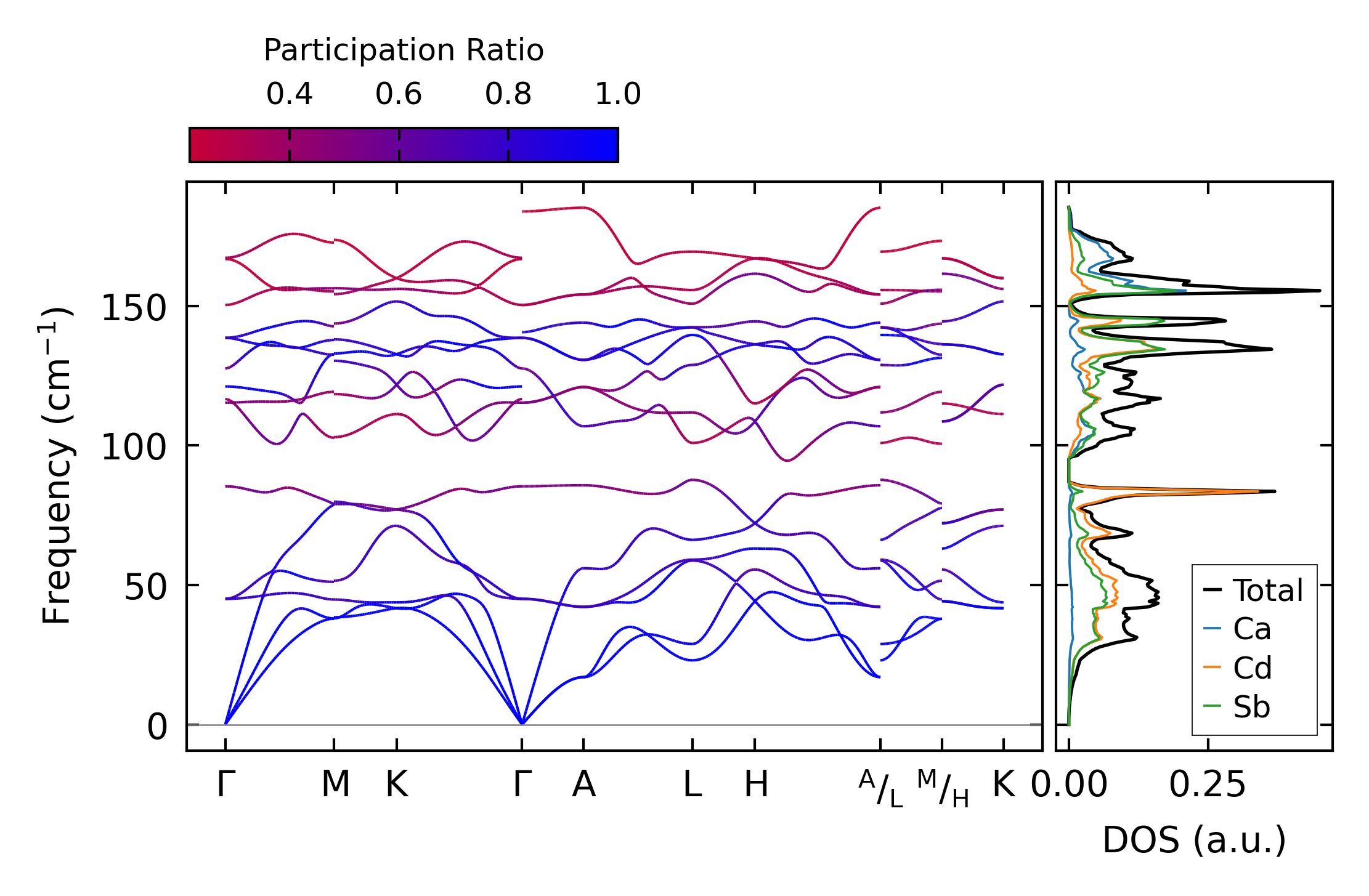

../../_images/fig_bandos_pr4532.png — (a) Phonon dispersion with participation ratio and DOS

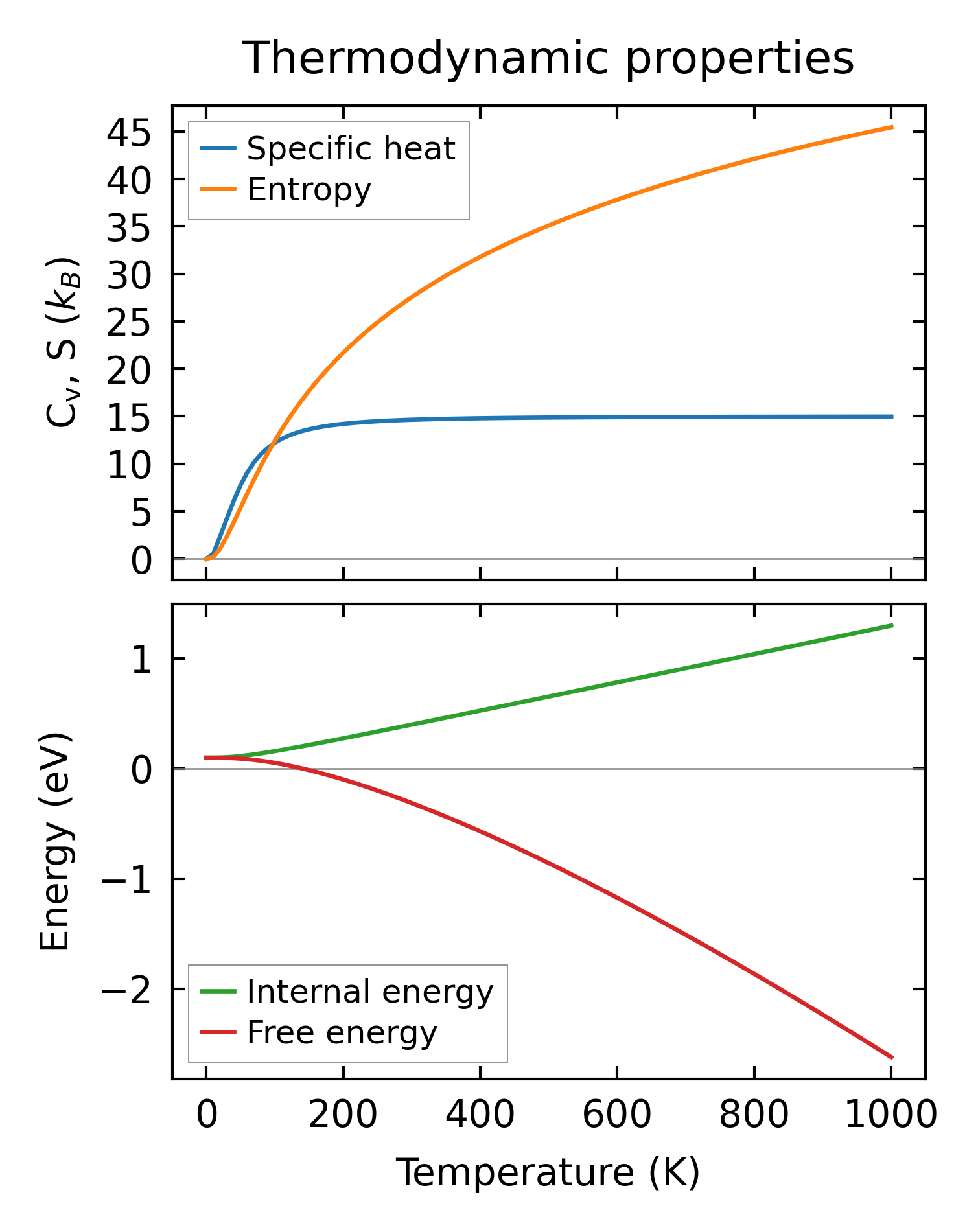

../../_images/fig_thermo4532.png — (b) Thermodynamic properties

Grüneisen parameters

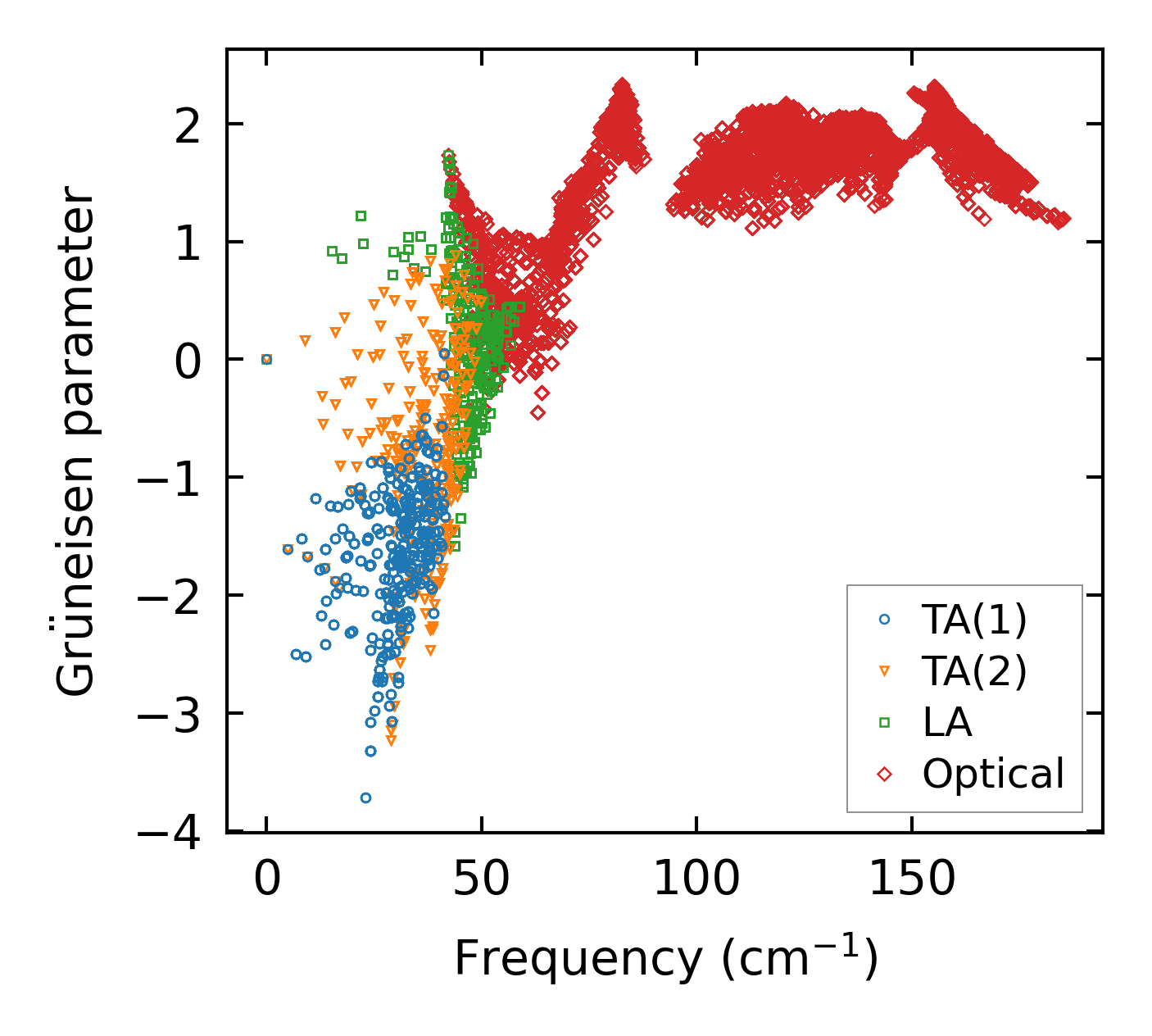

../../_images/fig_gru_all1946.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1946.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x10, supercell: 3x3x2

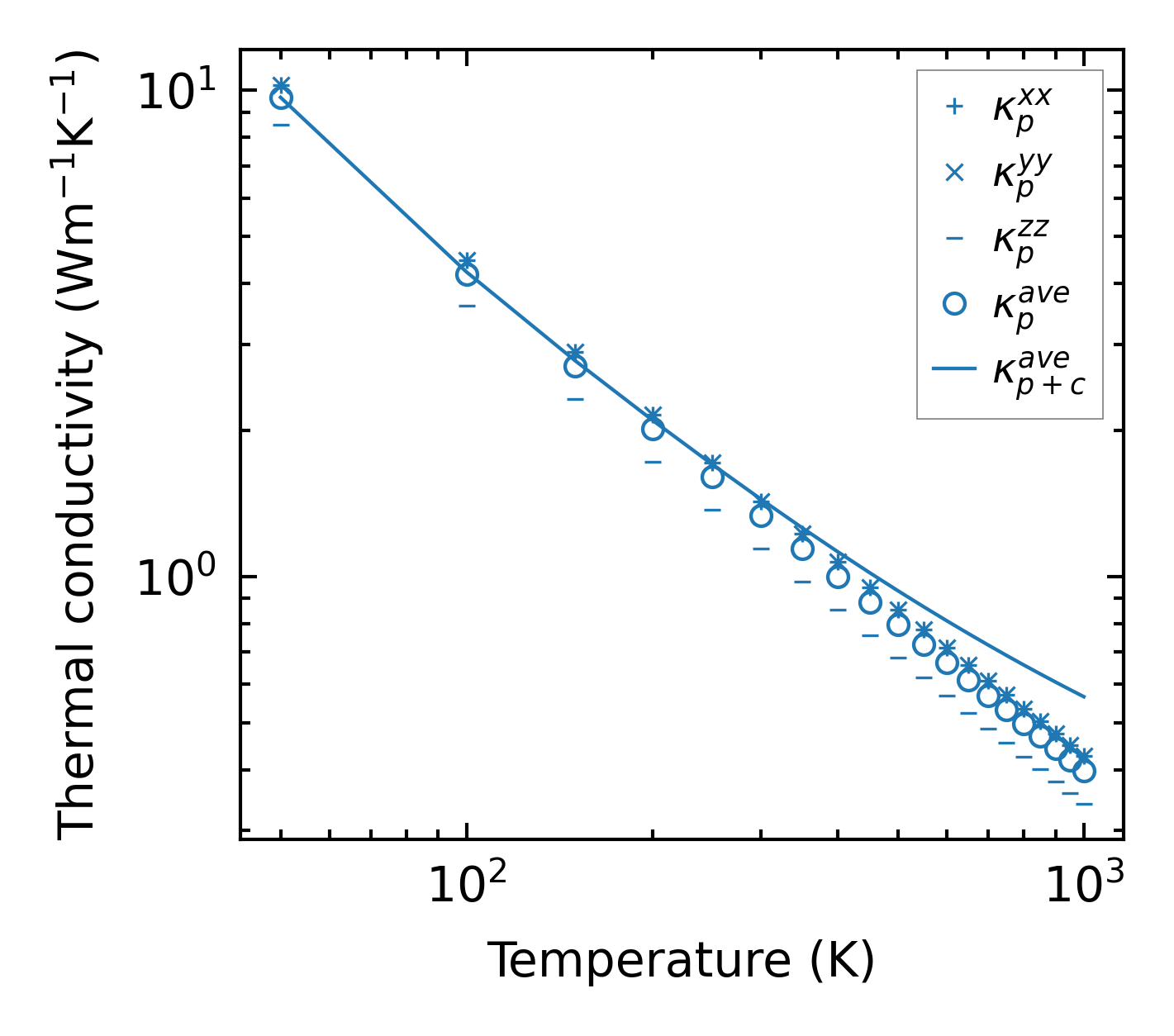

../../_images/fig_kappa3726.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1973.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

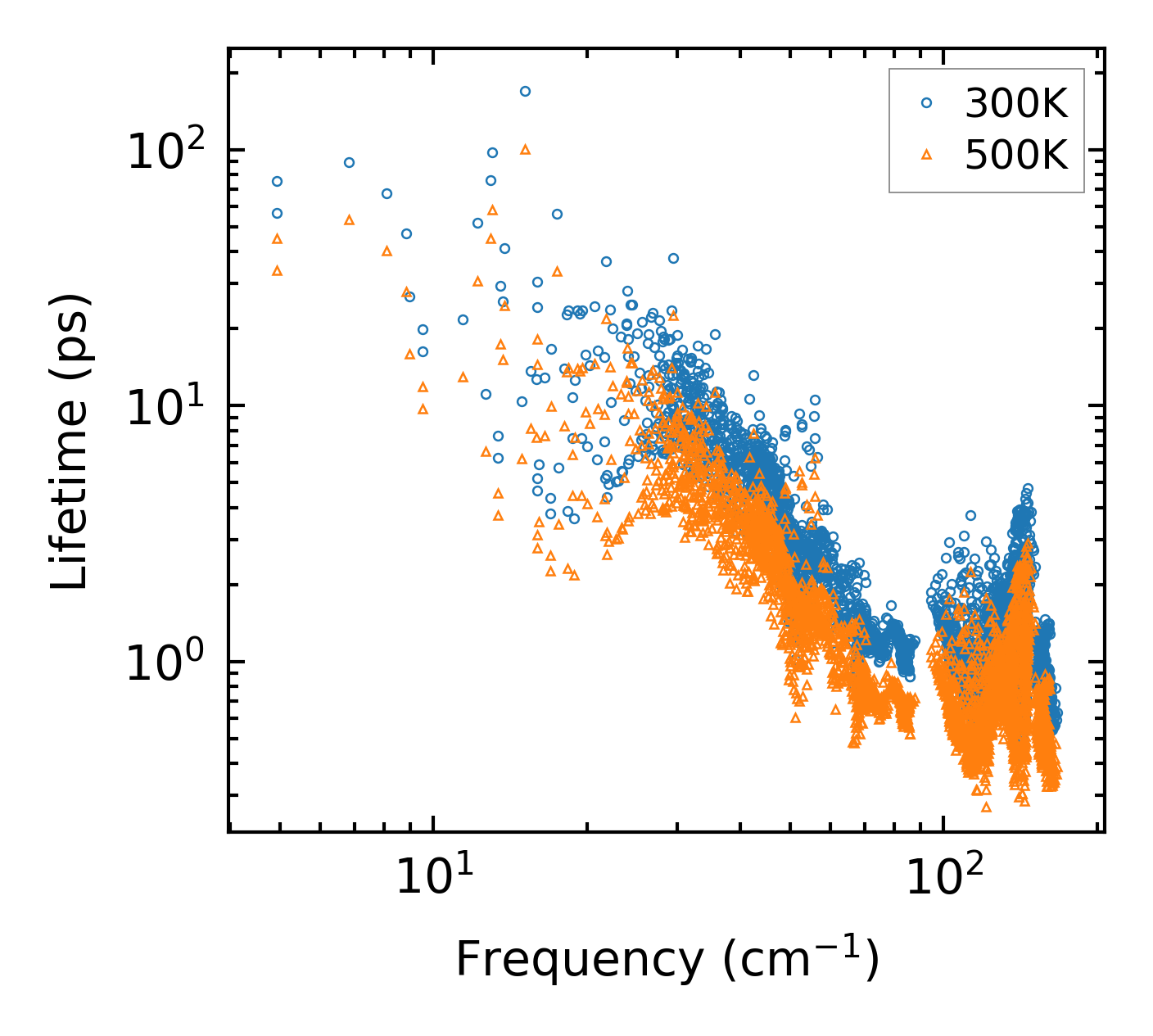

../../_images/fig_lifetime1935.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1934.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1935.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1935.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

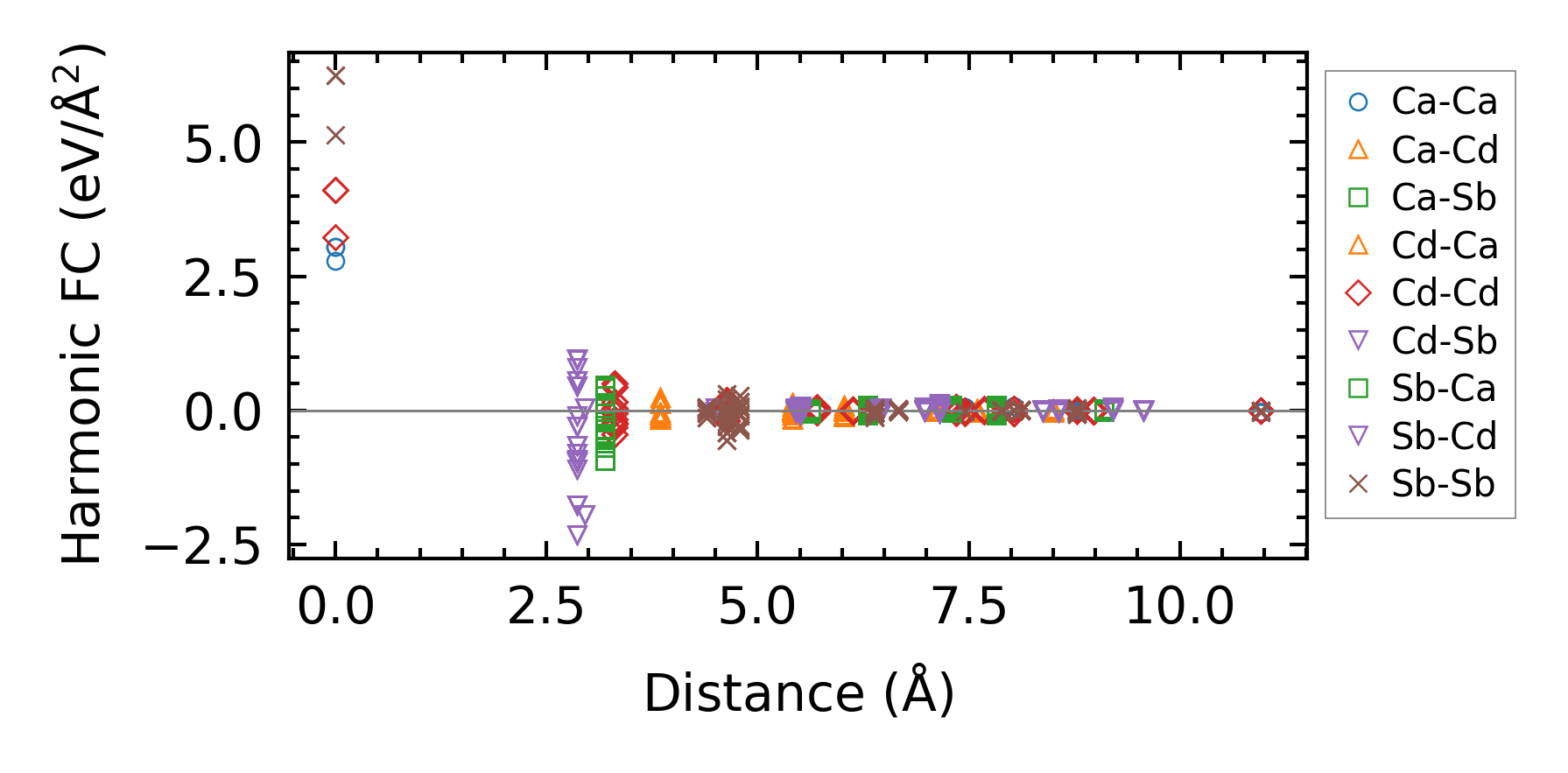

../../_images/fig_fc24344.png — (a) Force constants w.r.t atomic distance

Summary

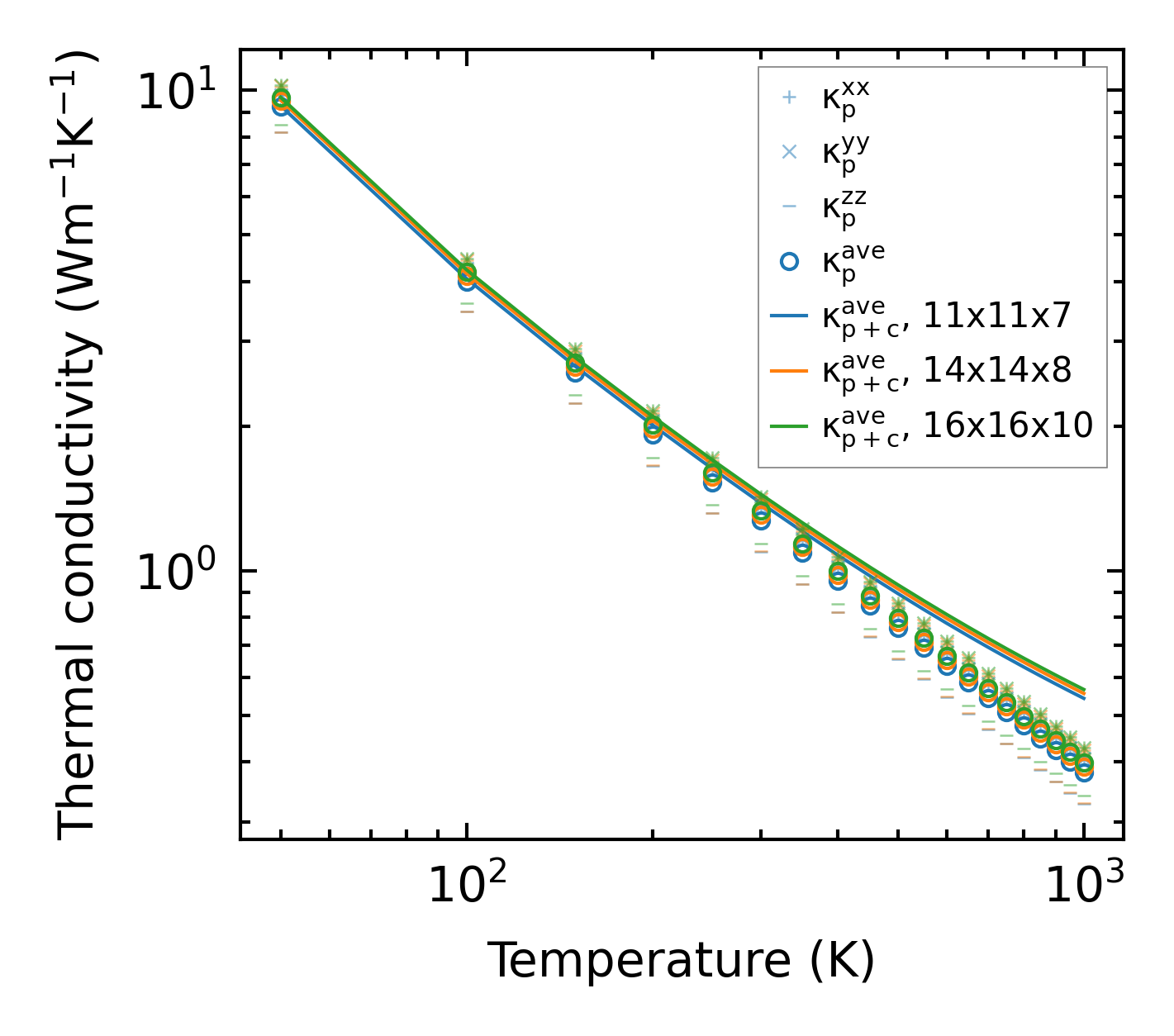

../../_images/fig_kappa3727.png — (a) Temperature-dependent lattice thermal conductivity

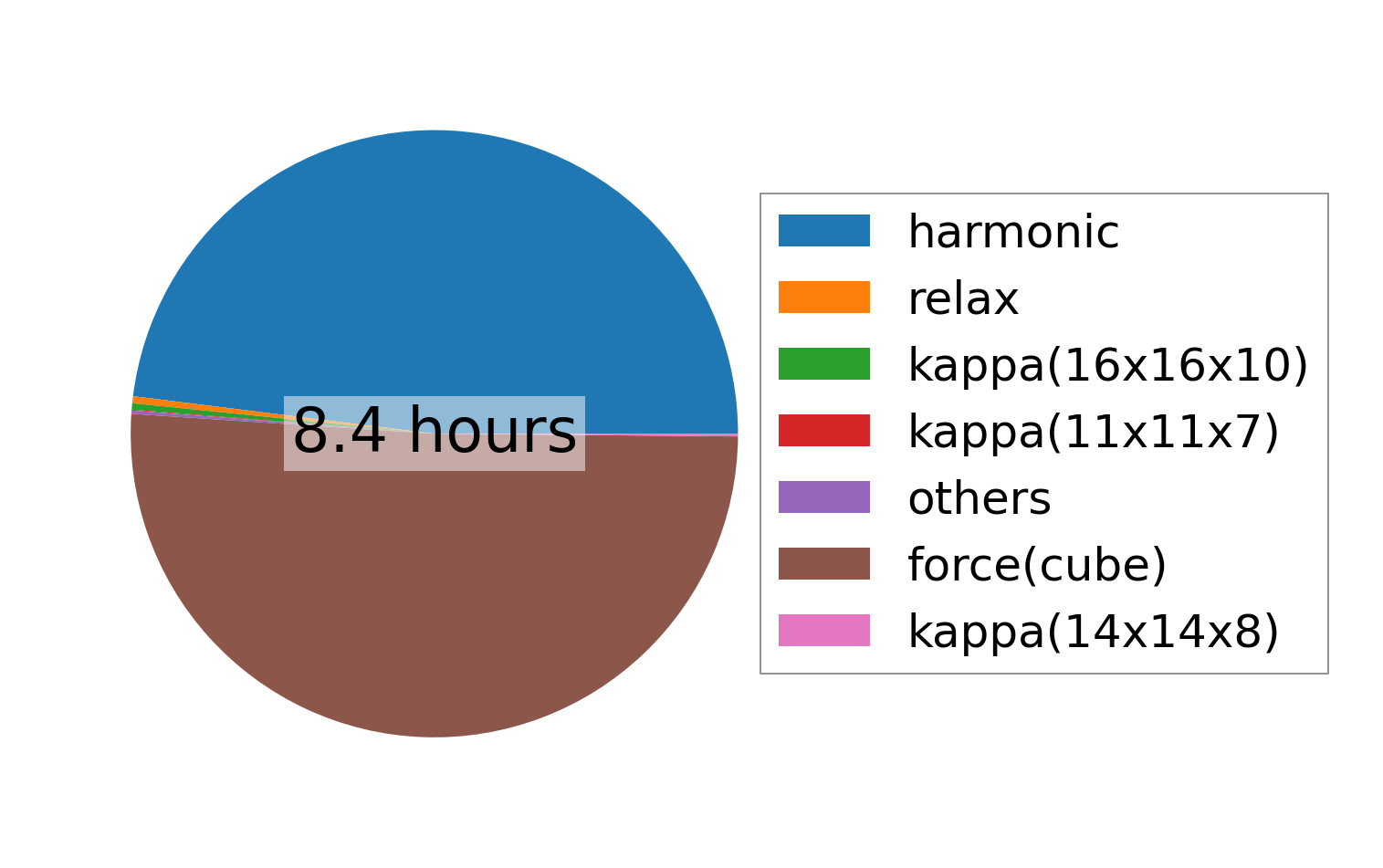

../../_images/fig_times8080.png — (b) Computation time
