mp-7748-3/NaAlO2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-7748-3.tar.gz

Harmonic properties

../../_images/fig_bandos_pr4649.png — (a) Phonon dispersion with participation ratio and DOS

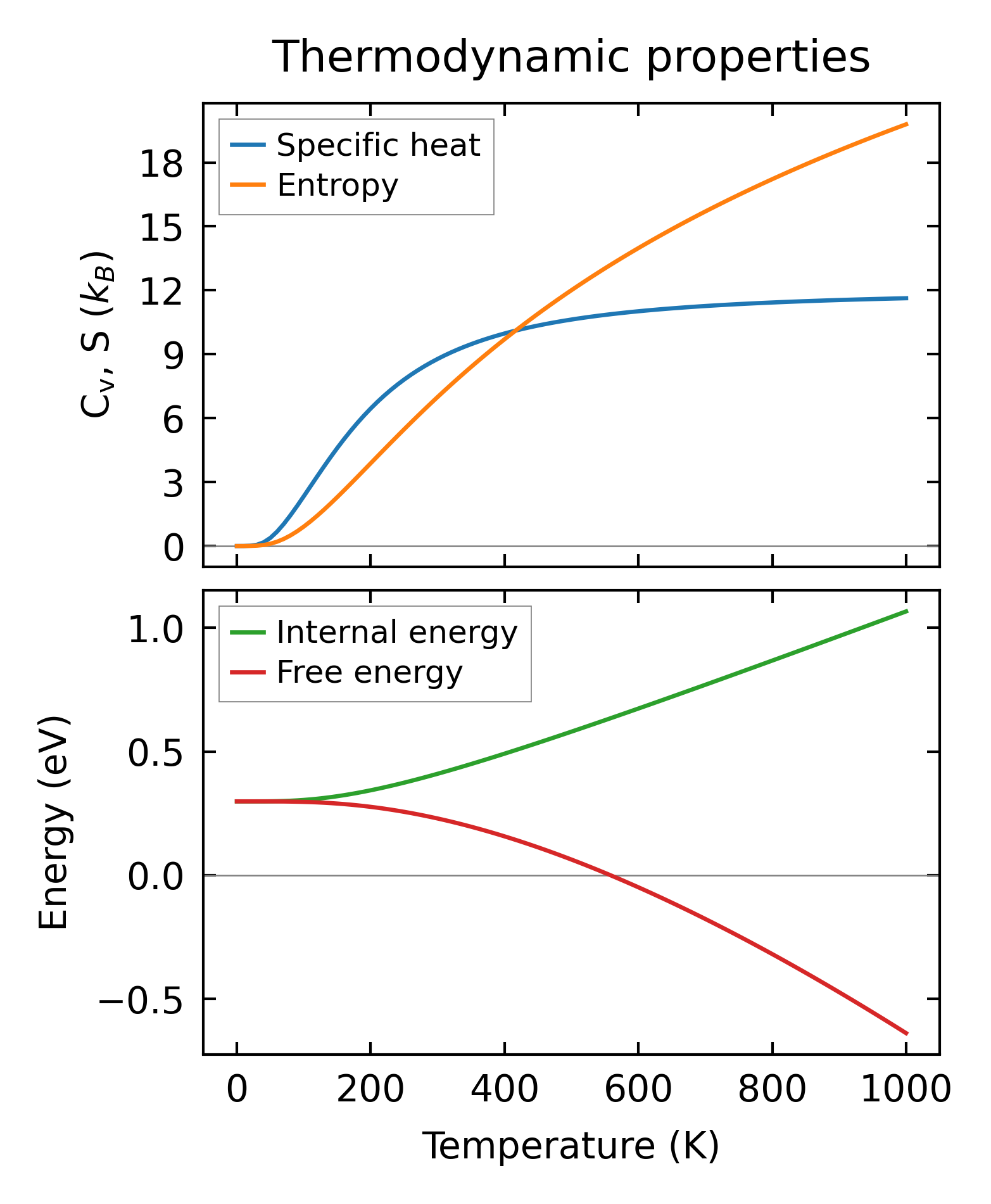

../../_images/fig_thermo4649.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2013.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2013.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 21x21x21, supercell: 3x3x1

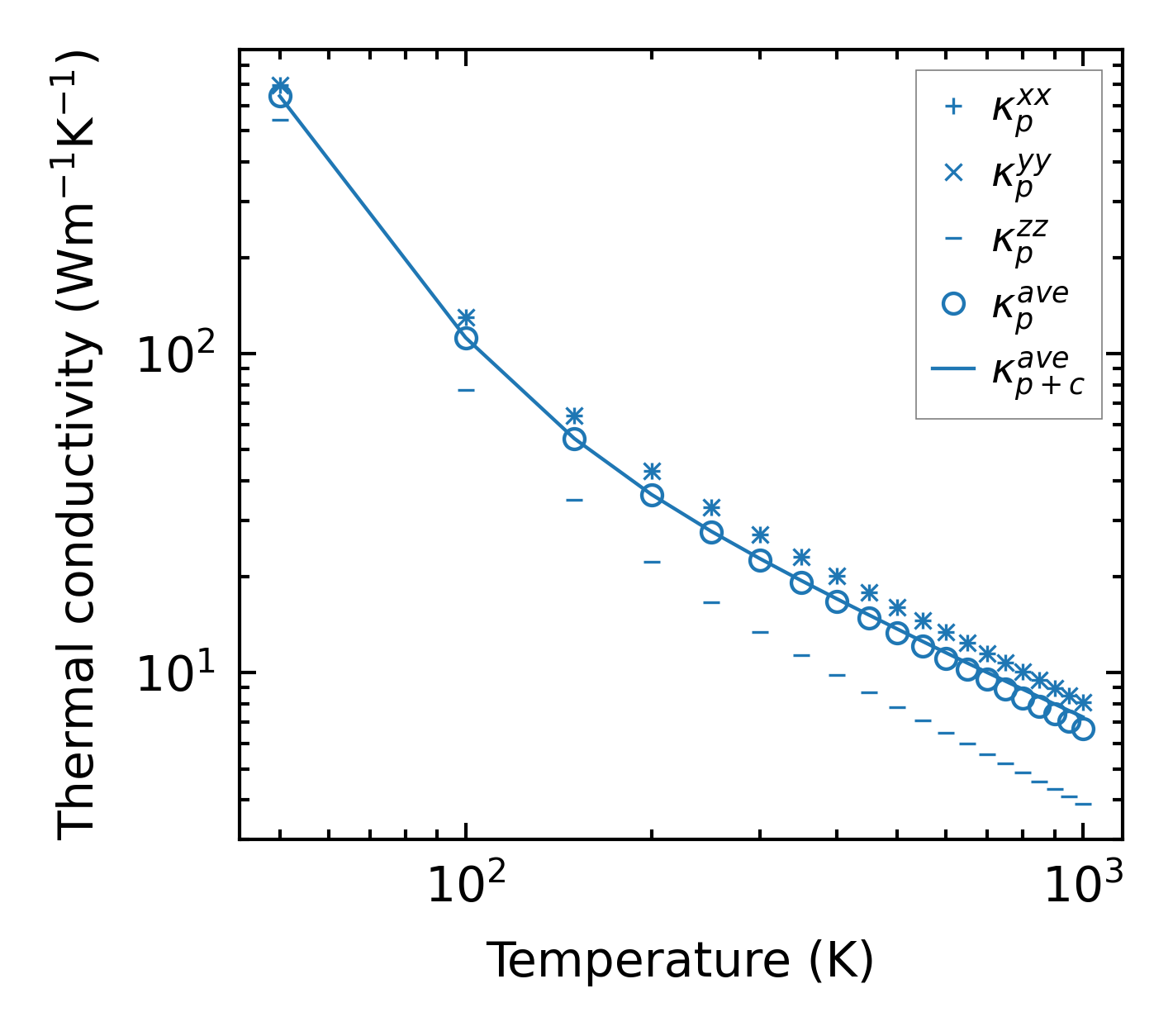

../../_images/fig_kappa3854.png — (a) Temperature-dependent lattice thermal conductivity

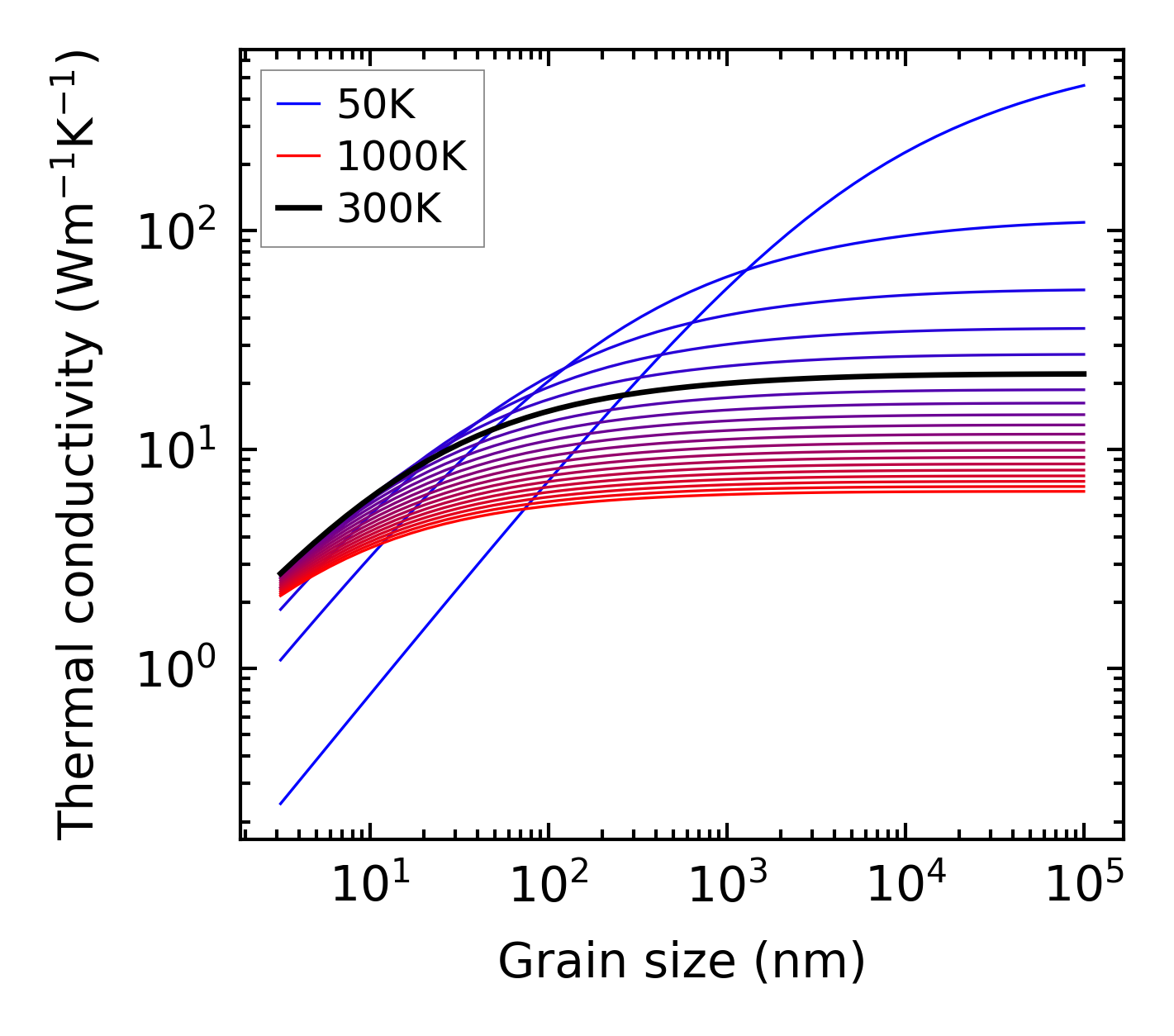

../../_images/fig_kappa_vs_grain_size2040.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

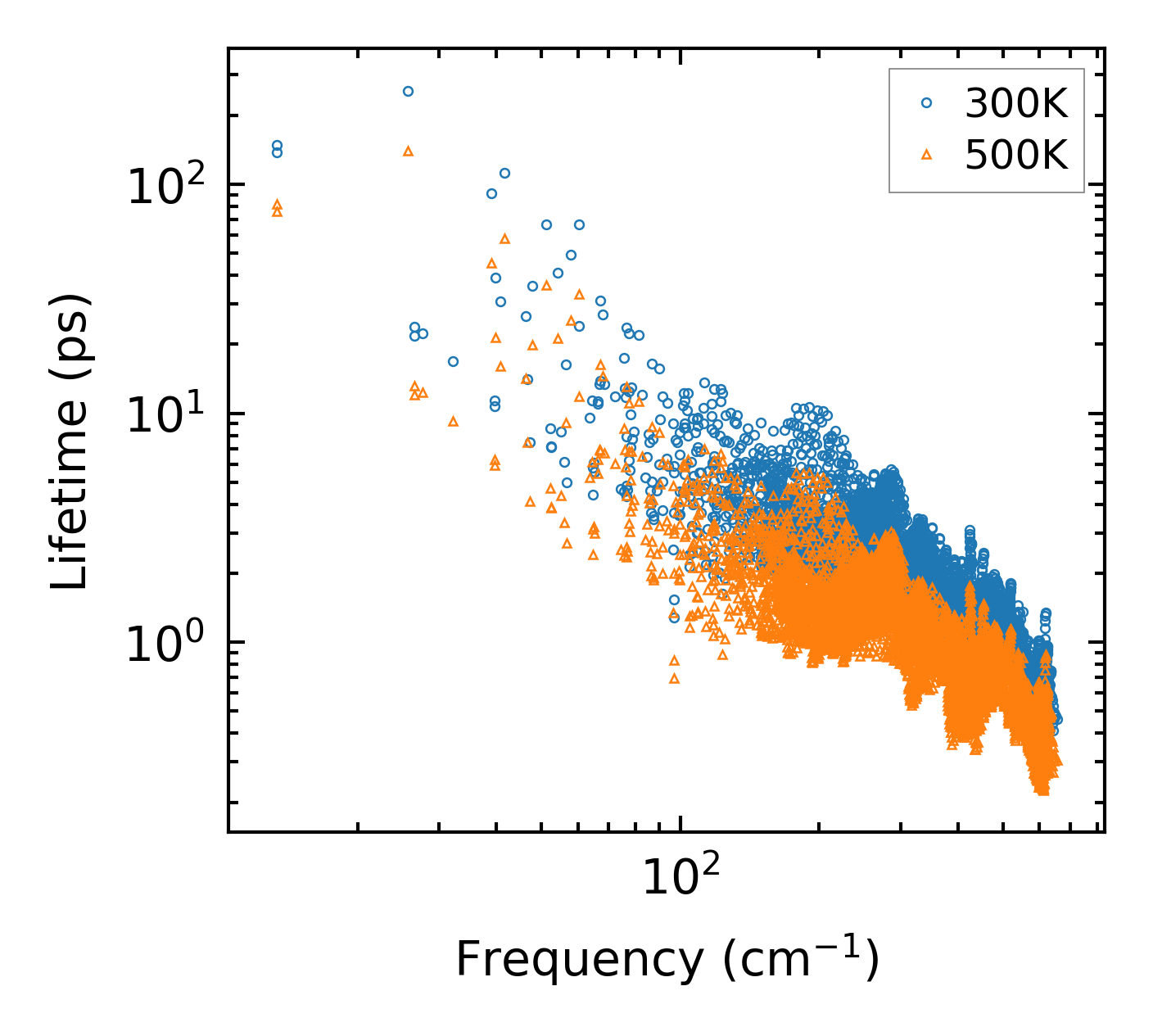

../../_images/fig_lifetime2000.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1999.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

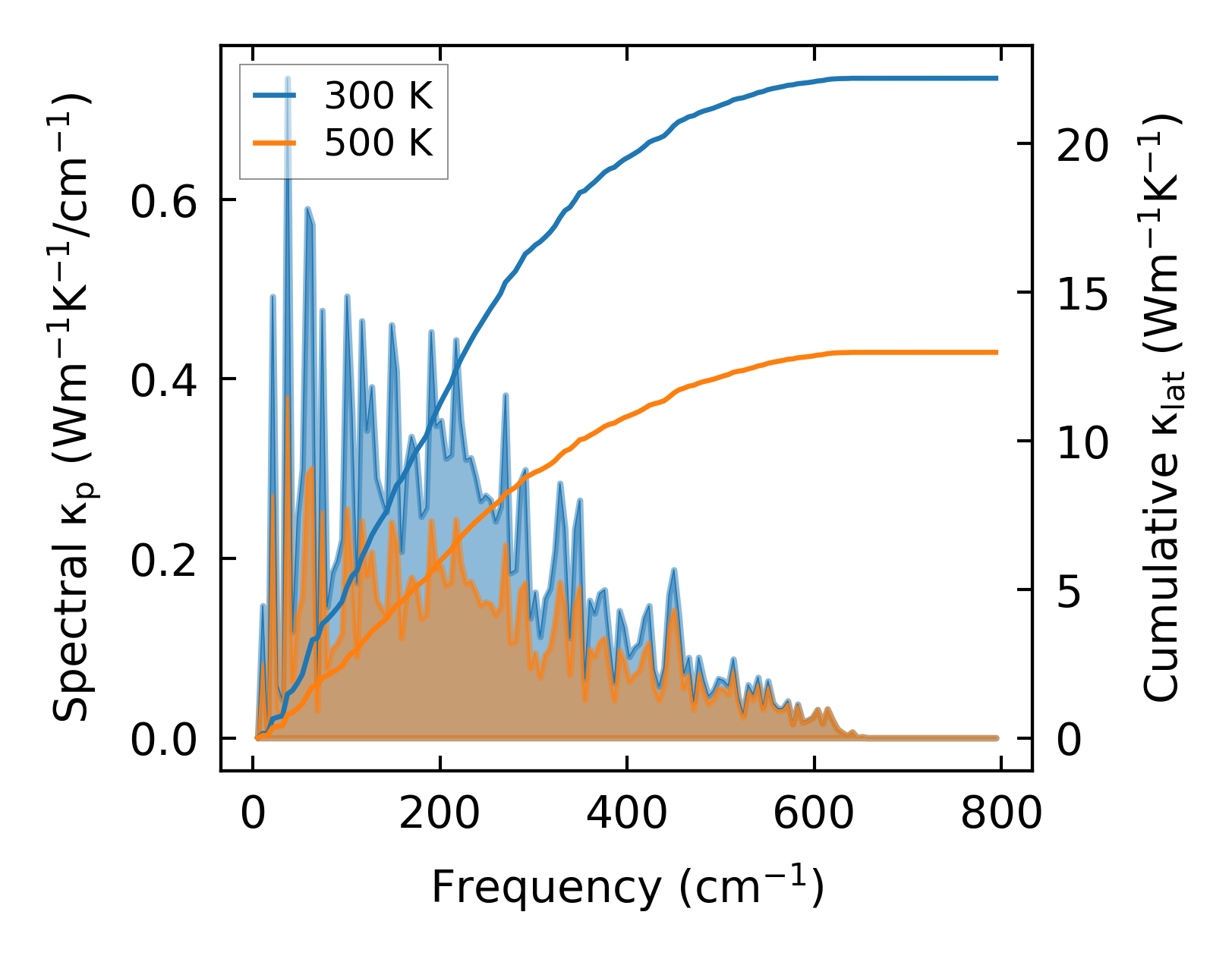

../../_images/fig_cumu_frequency2000.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

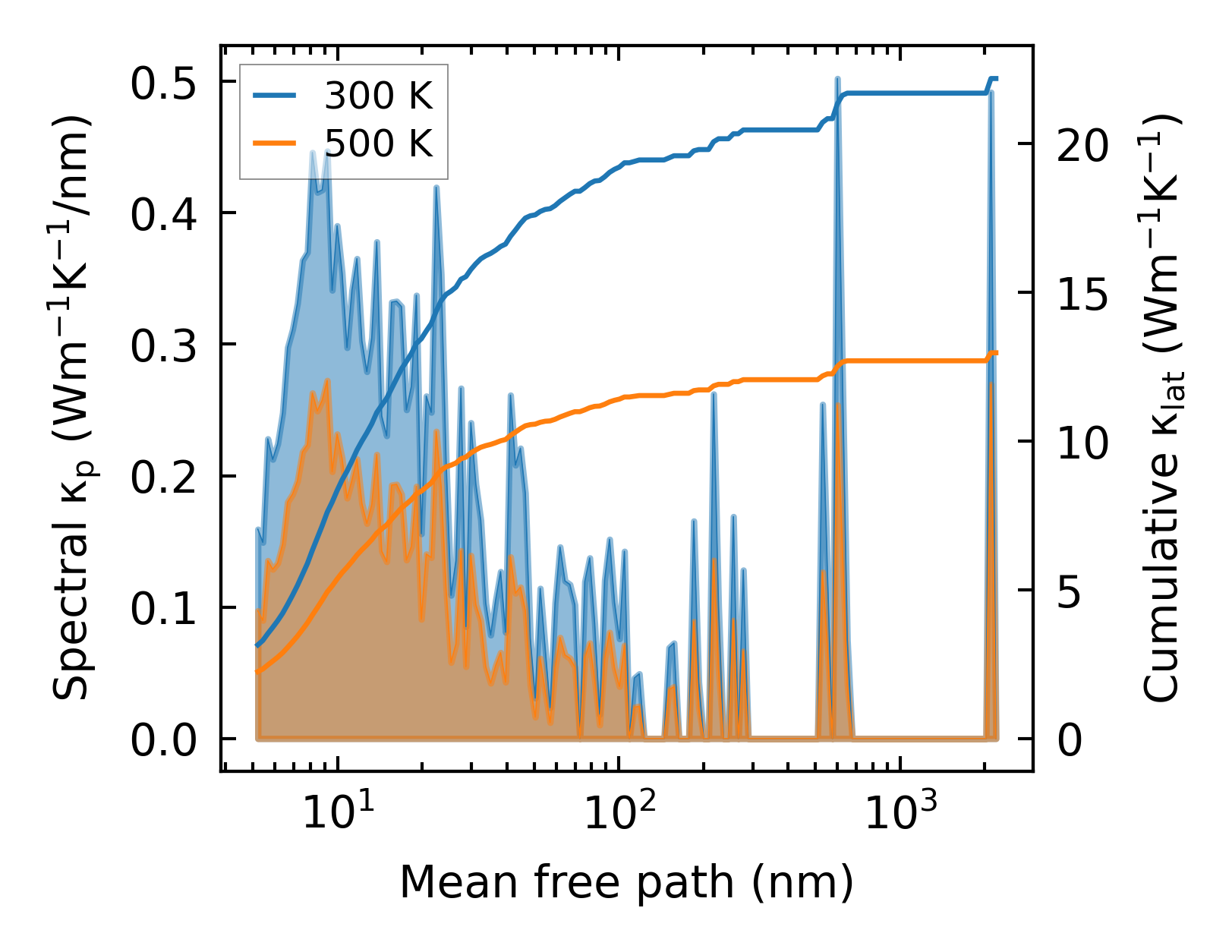

../../_images/fig_cumu_mfp2000.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24461.png — (a) Force constants w.r.t atomic distance

Summary

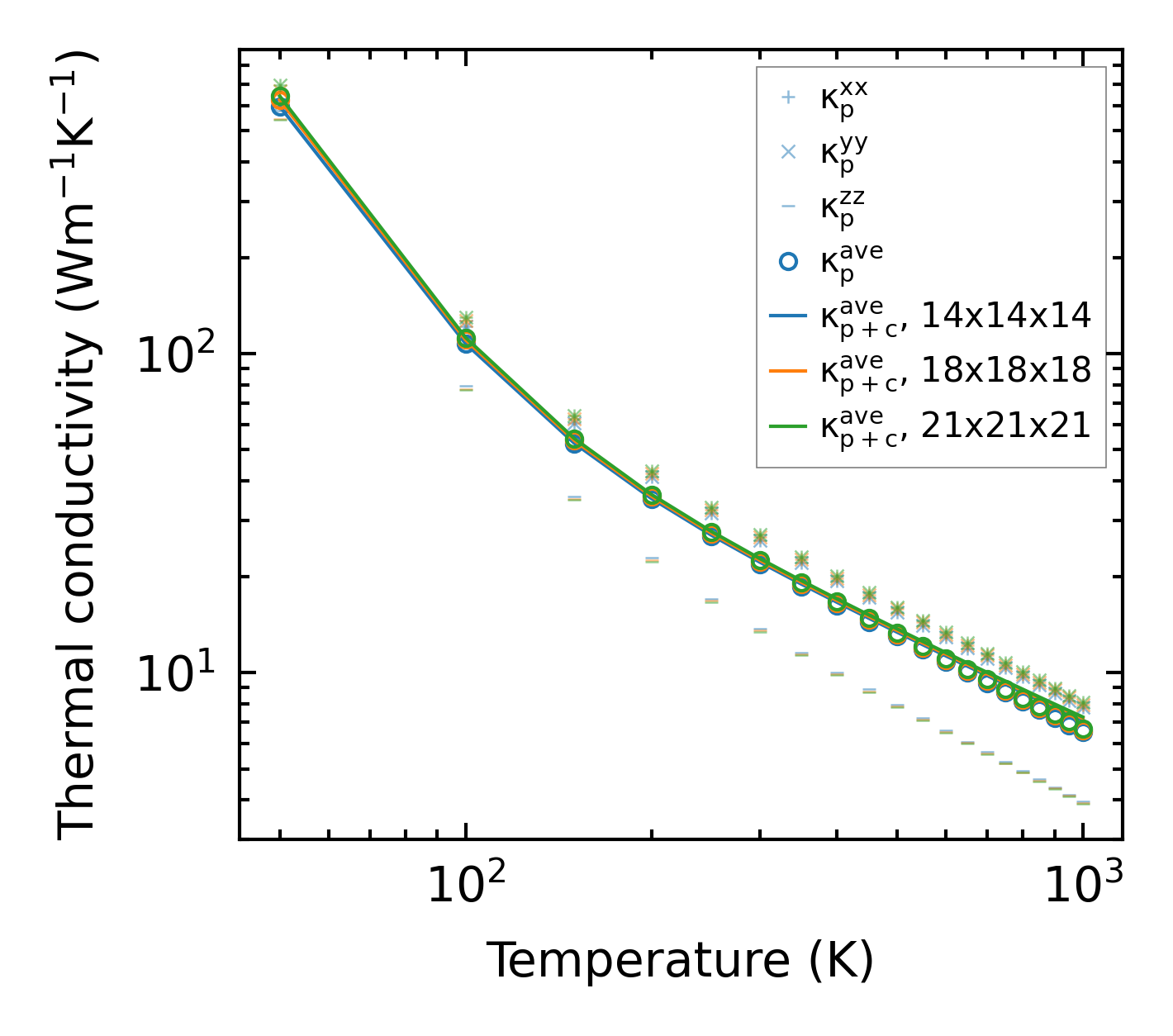

../../_images/fig_kappa3855.png — (a) Temperature-dependent lattice thermal conductivity

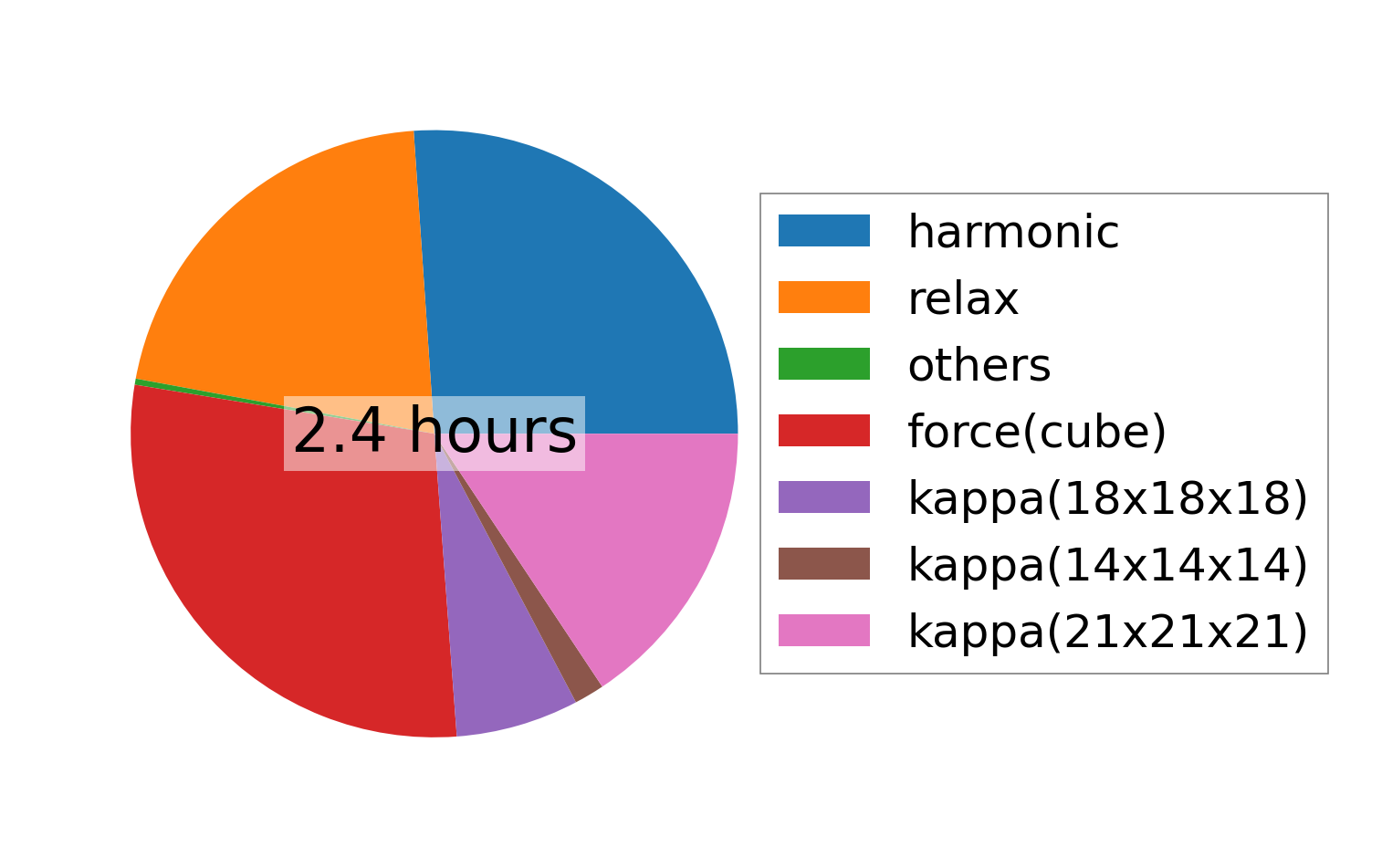

../../_images/fig_times8247.png — (b) Computation time
