mp-7652/Na5TlO4/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-7652.tar.gz

Harmonic properties

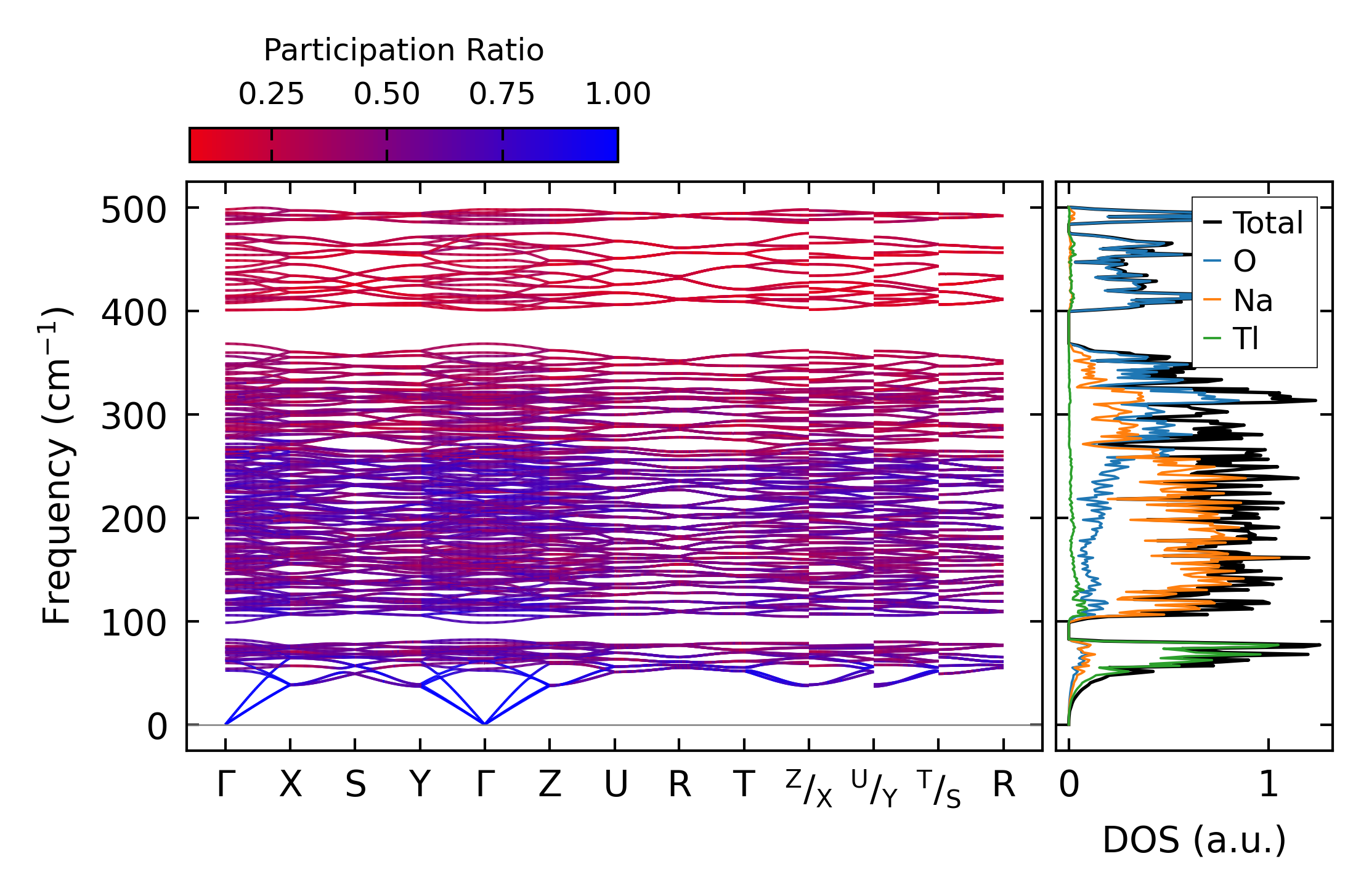

../../_images/fig_bandos_pr4620.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4620.png — (b) Thermodynamic properties

Grüneisen parameters

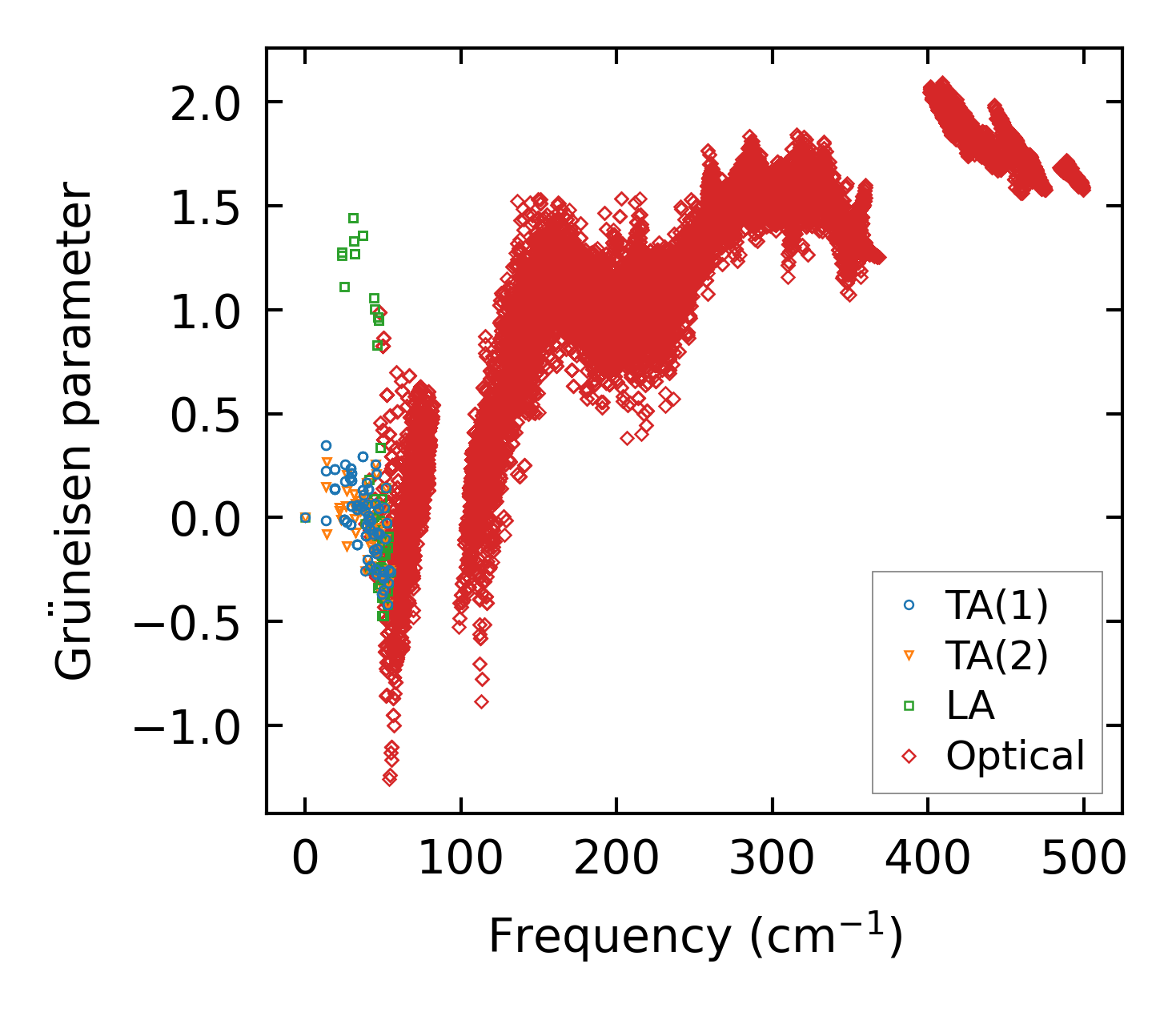

../../_images/fig_gru_all1998.png — (a) Grüneisen parameters

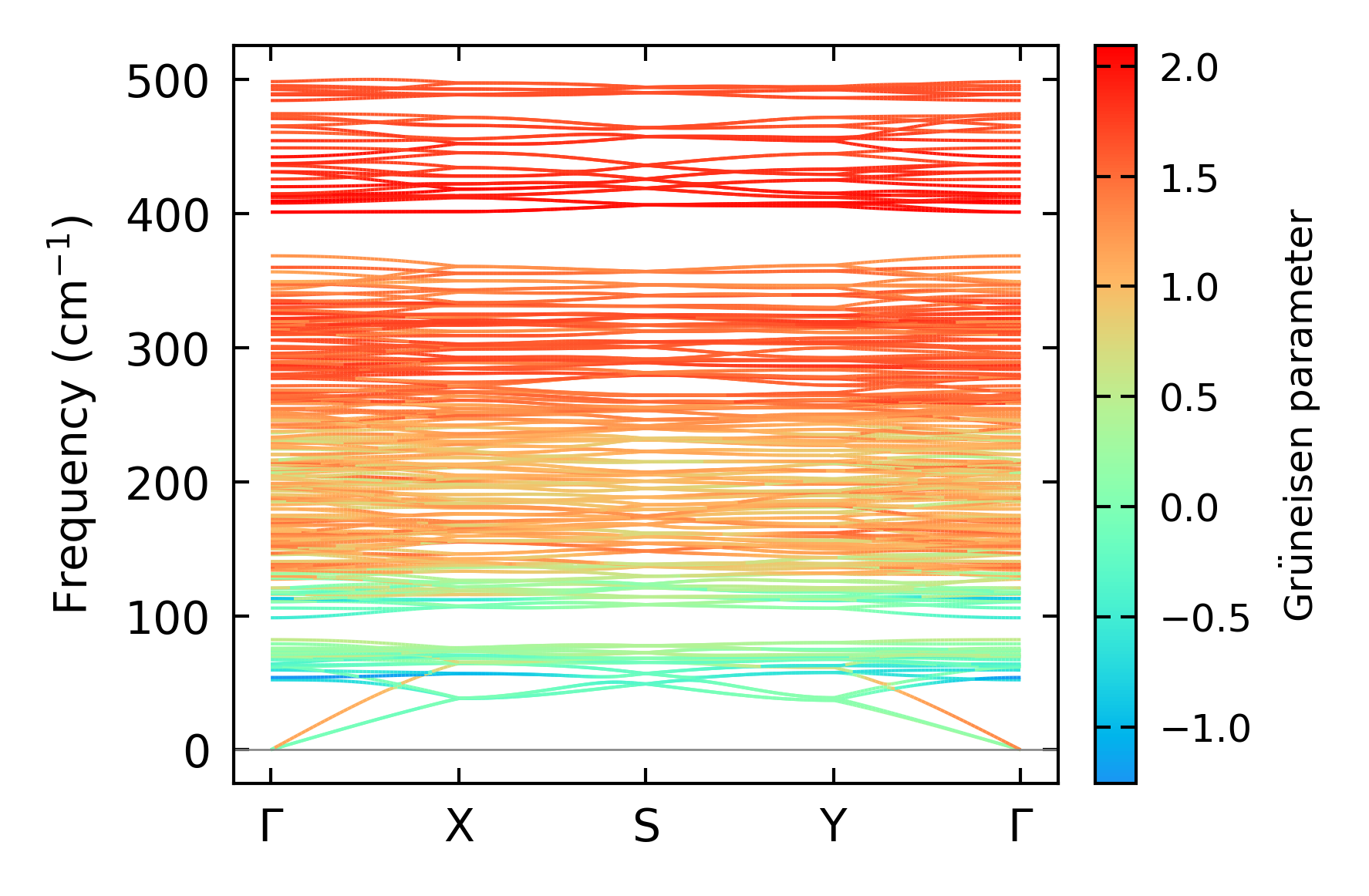

../../_images/fig_gruneisen1998.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 1x1x1

../../_images/fig_kappa3827.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2025.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1987.png — (a) Phonon lifetime due to phonon-phonon scattering

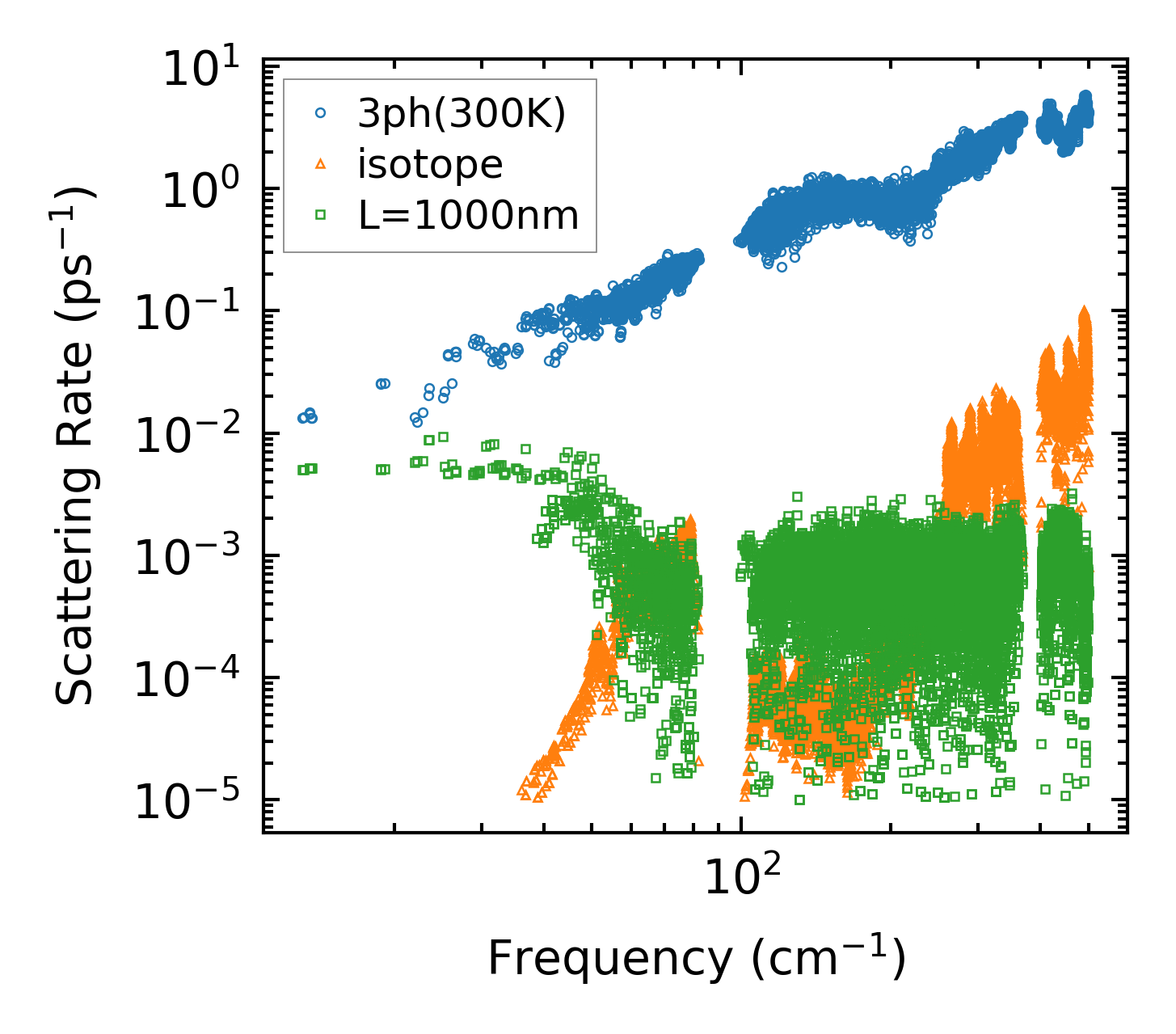

../../_images/fig_scat_rates1986.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

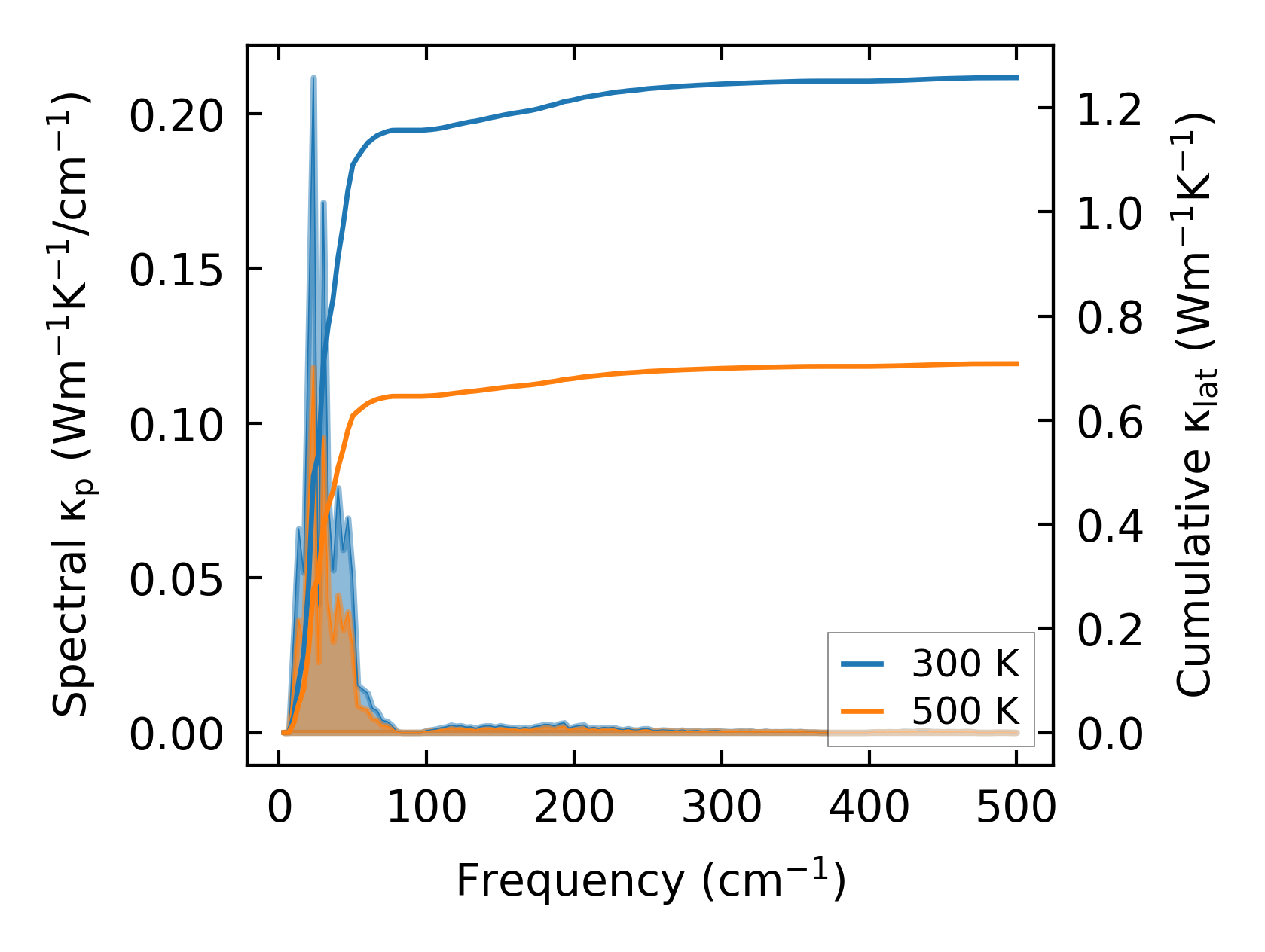

../../_images/fig_cumu_frequency1987.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

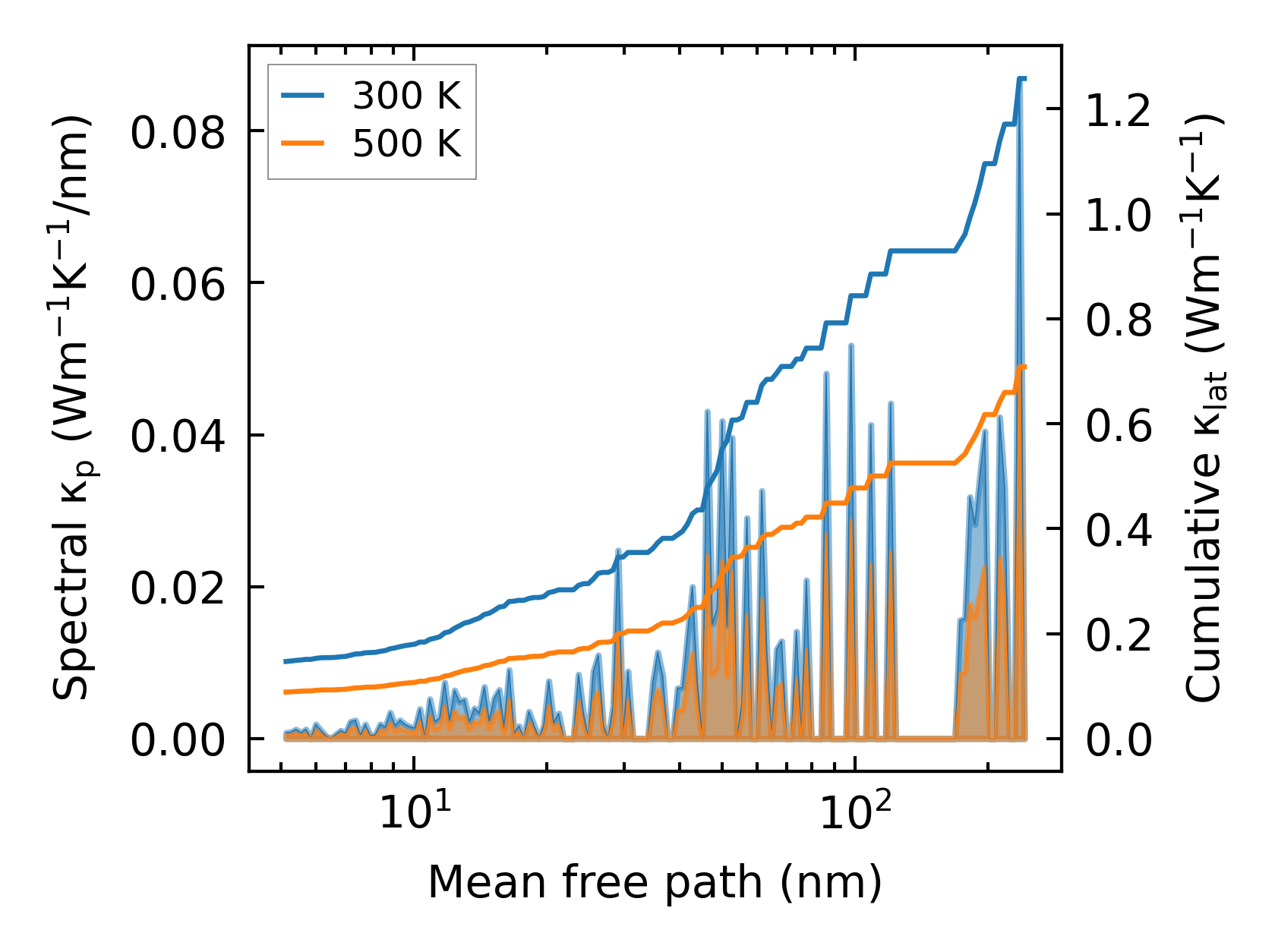

../../_images/fig_cumu_mfp1987.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

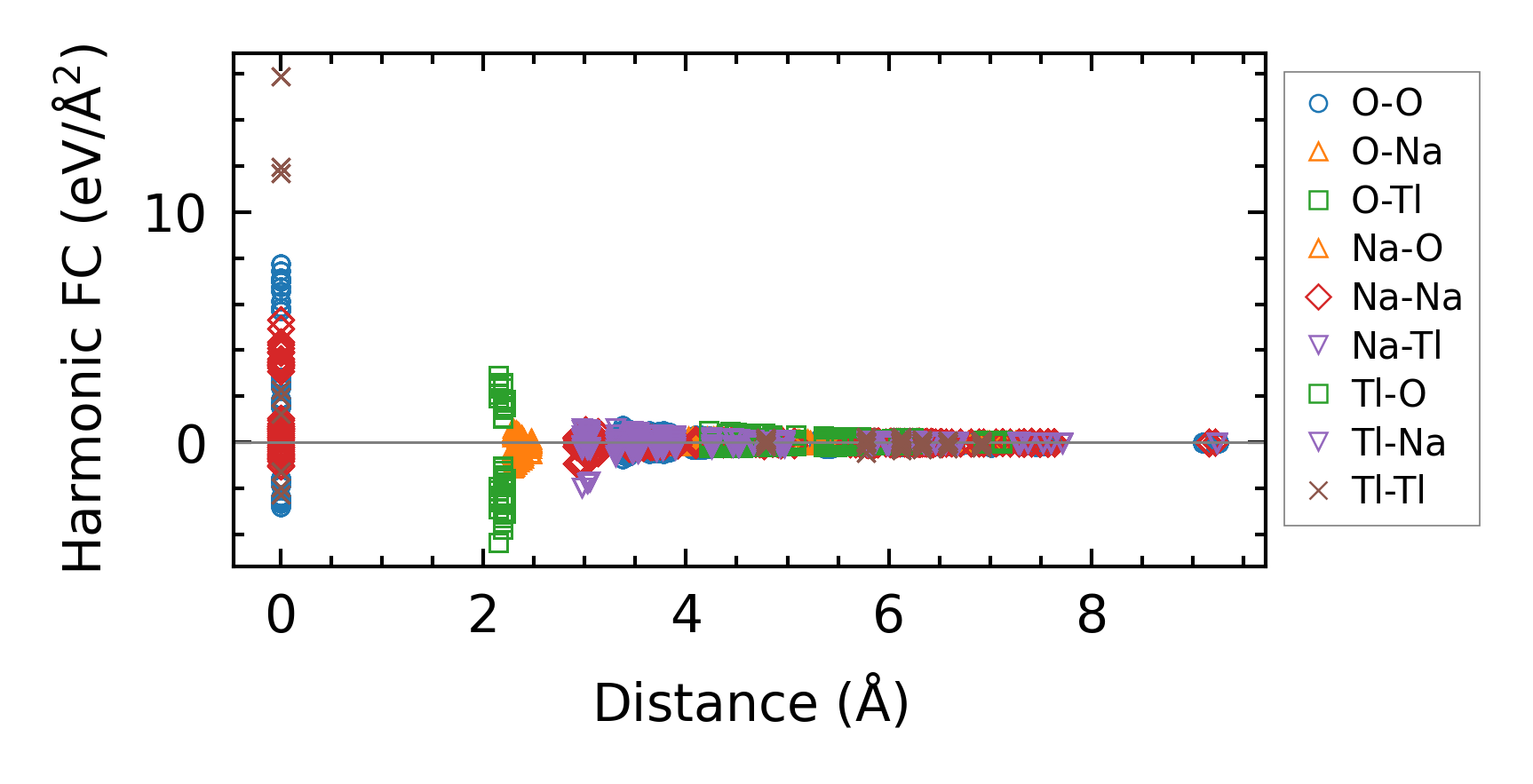

../../_images/fig_fc24432.png — (a) Force constants w.r.t atomic distance

Summary

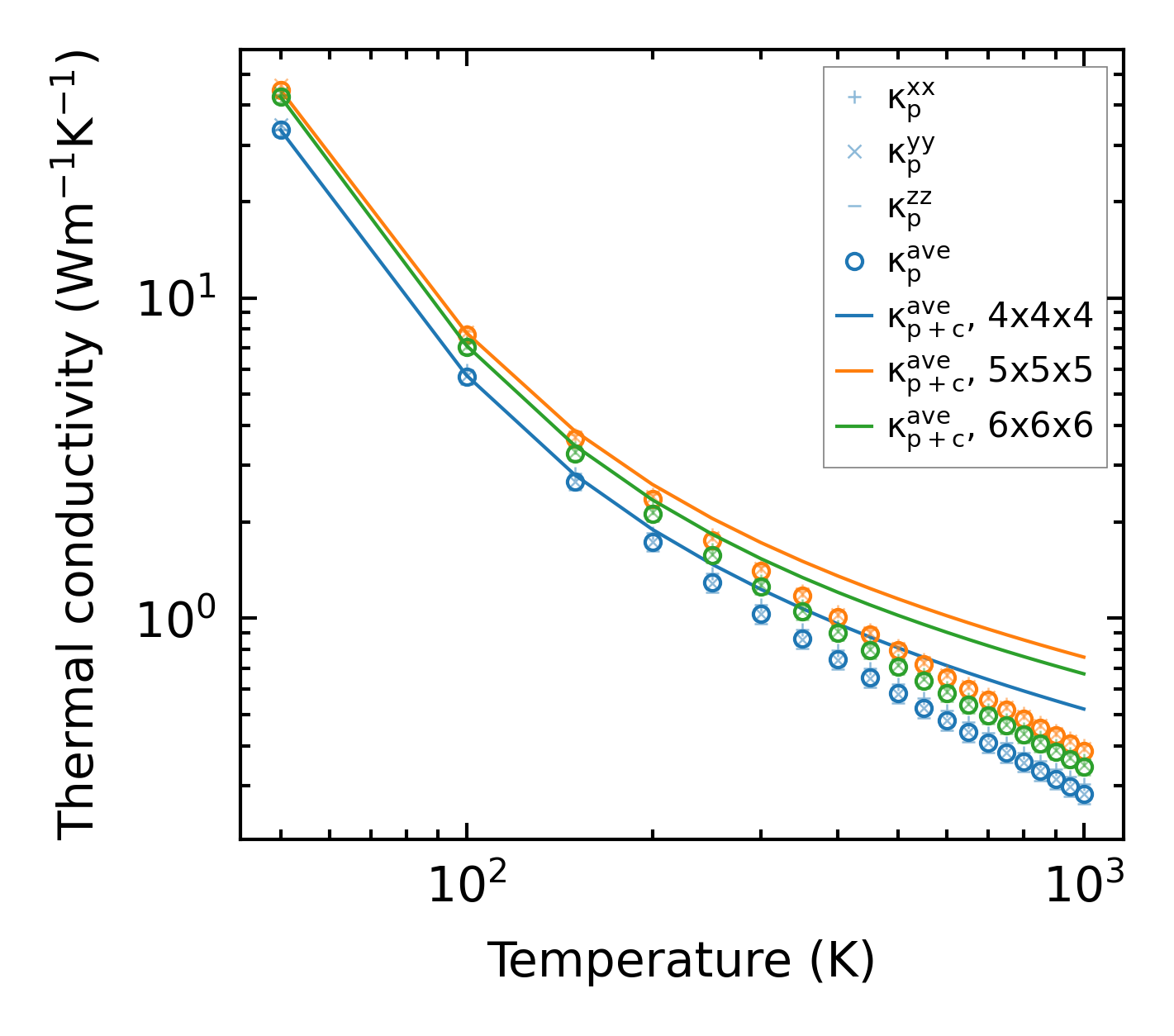

../../_images/fig_kappa3828.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times8210.png — (b) Computation time
