mp-7773/Na2AsAu/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-7773.tar.gz

Harmonic properties

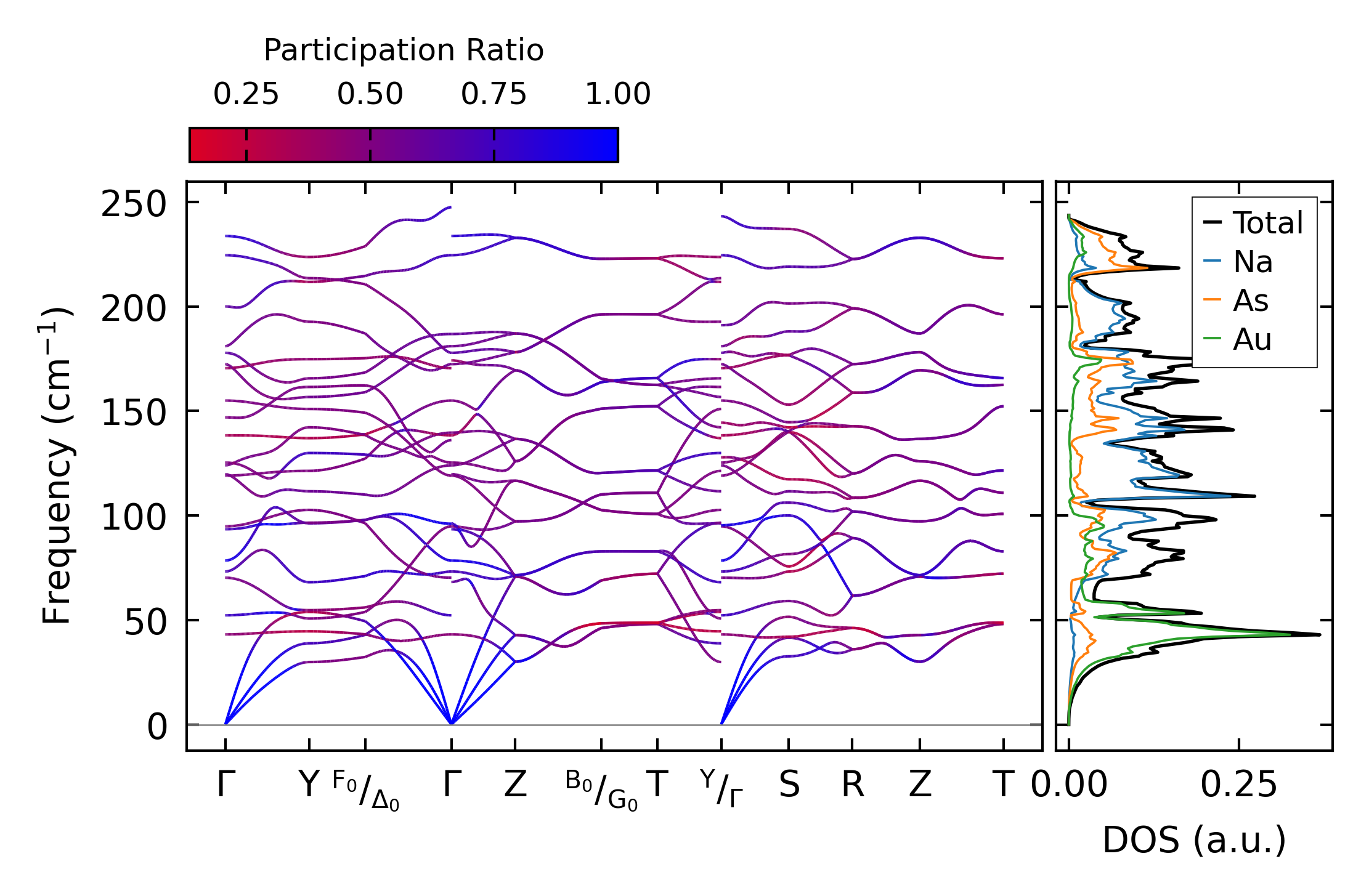

../../_images/fig_bandos_pr4656.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4656.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2020.png — (a) Grüneisen parameters

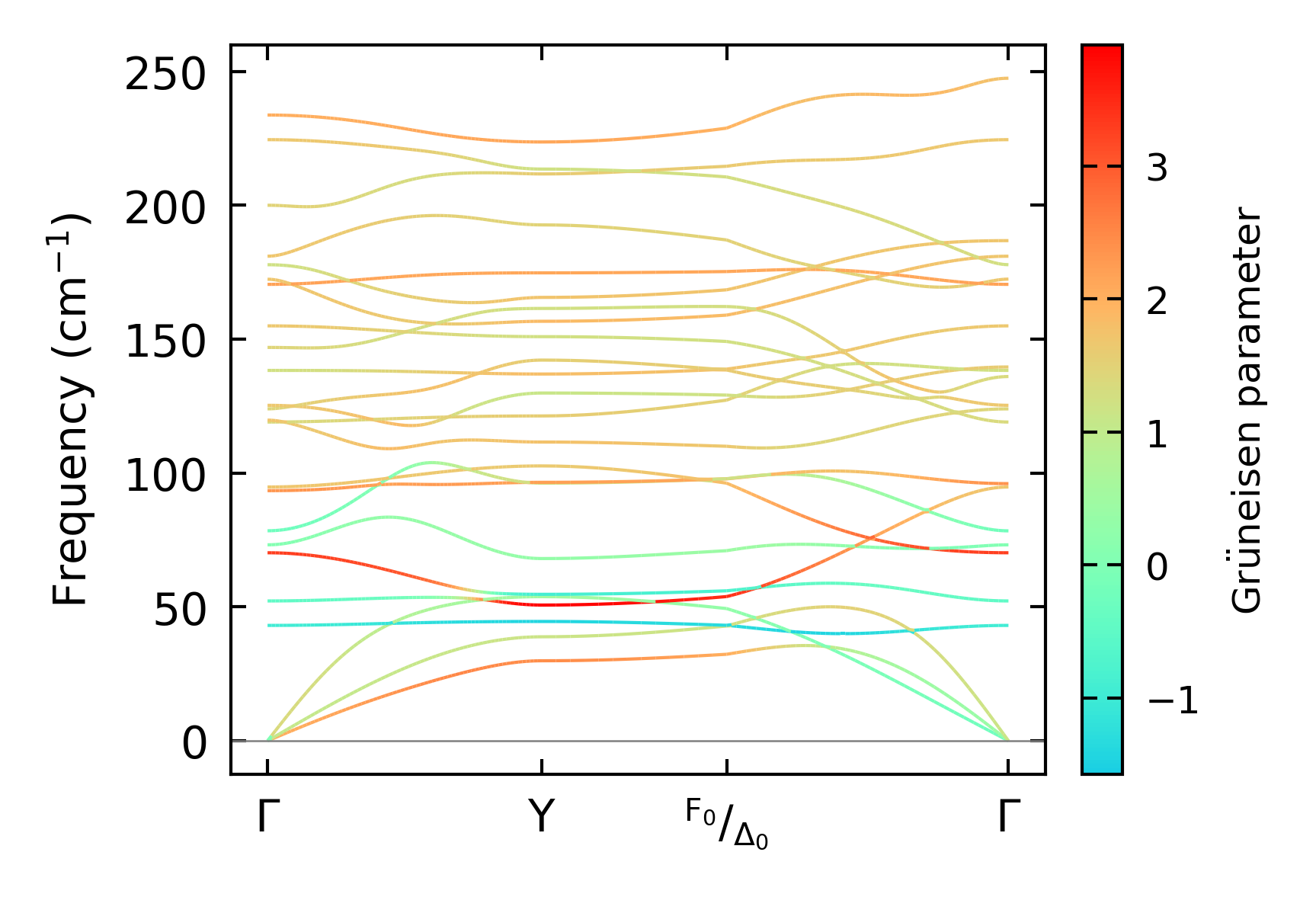

../../_images/fig_gruneisen2020.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x2

../../_images/fig_kappa3867.png — (a) Temperature-dependent lattice thermal conductivity

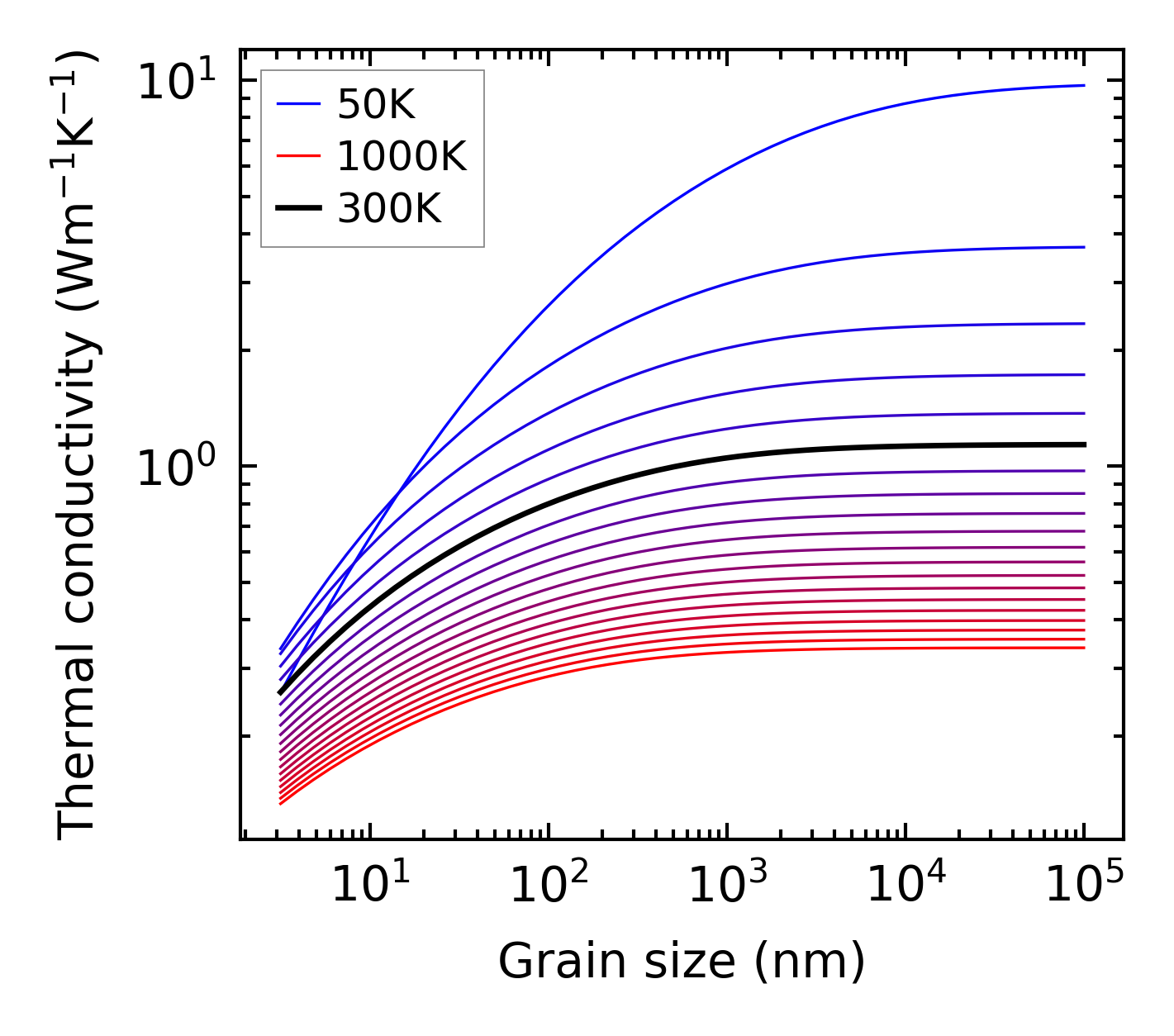

../../_images/fig_kappa_vs_grain_size2047.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

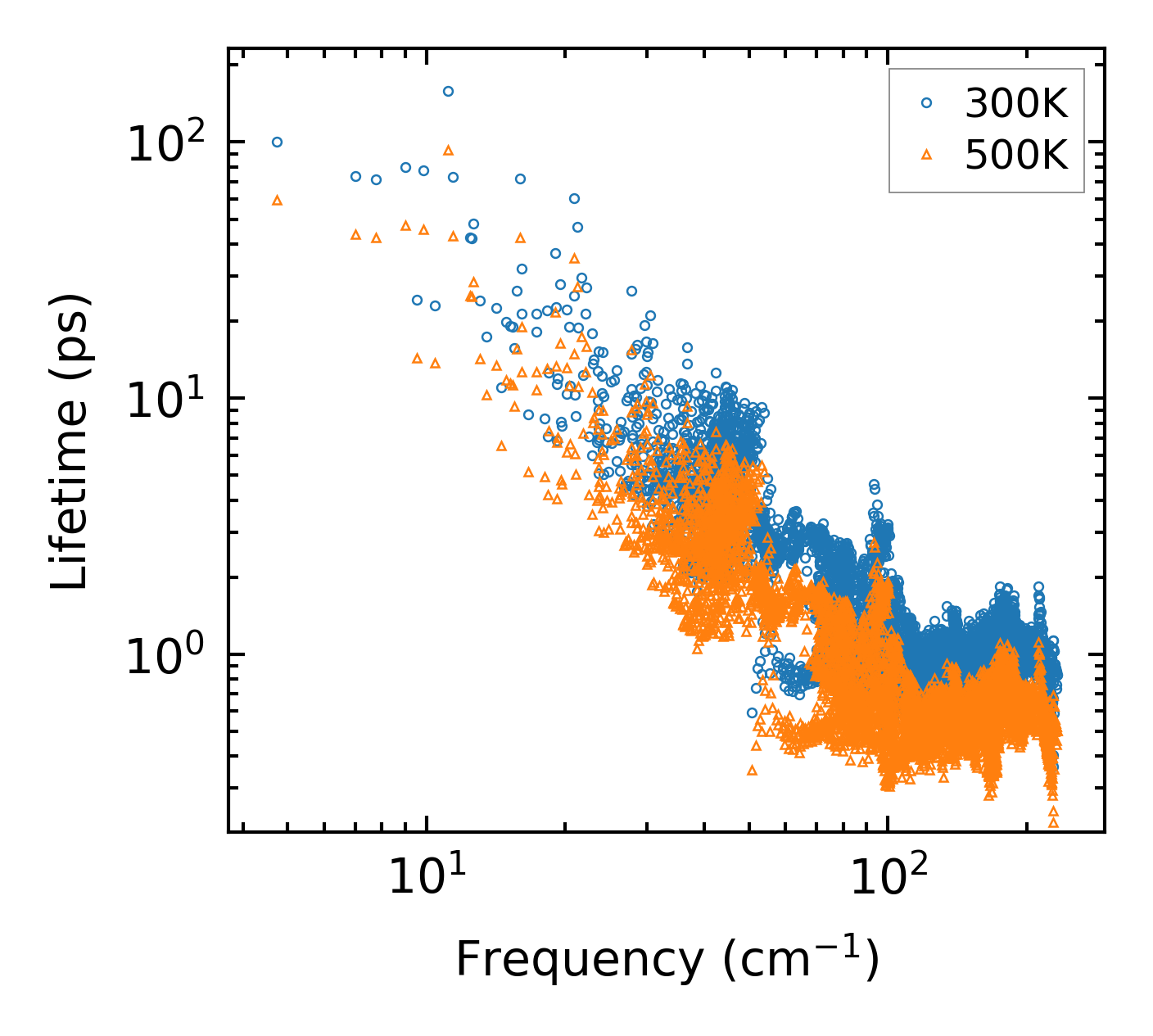

../../_images/fig_lifetime2007.png — (a) Phonon lifetime due to phonon-phonon scattering

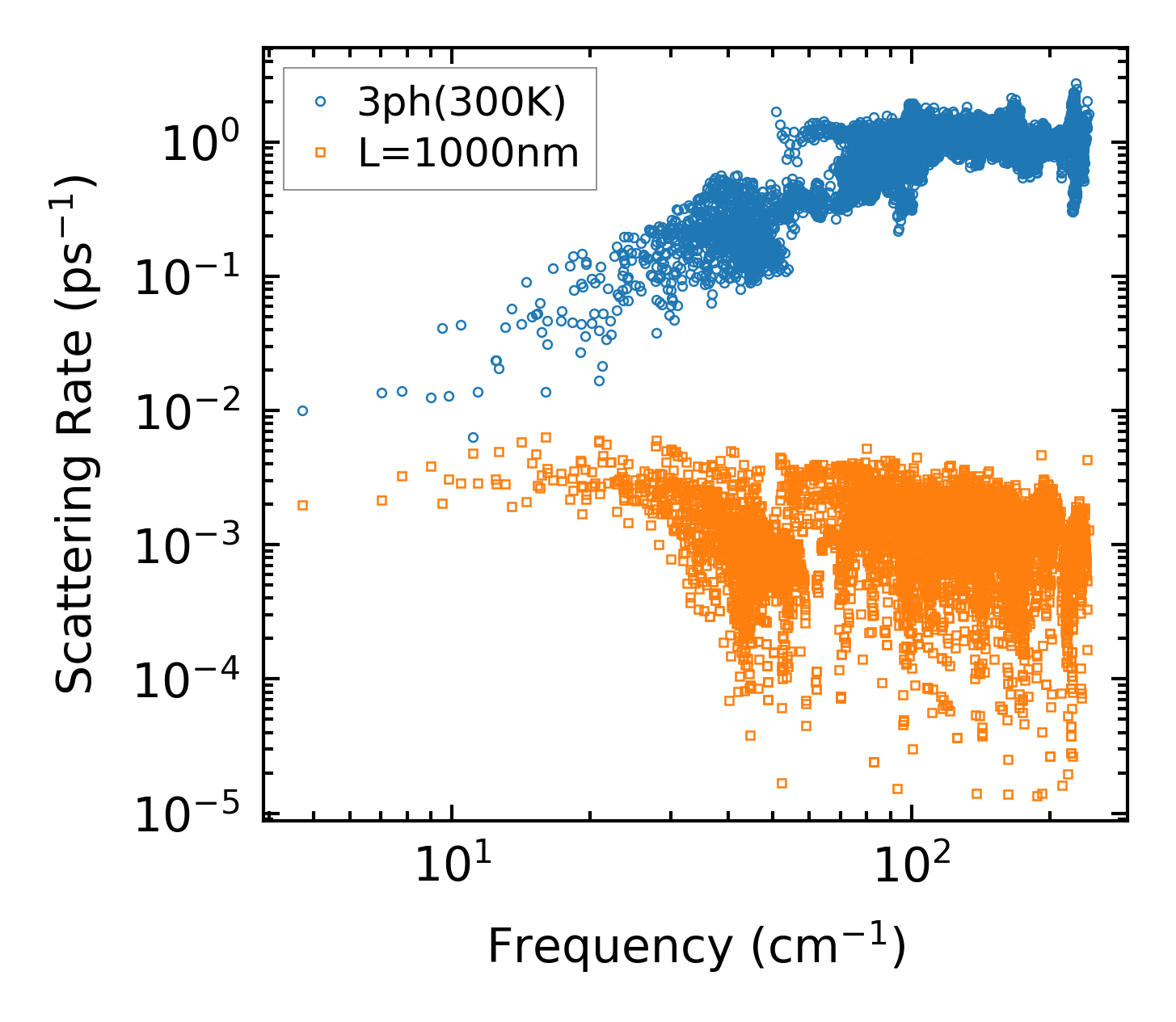

../../_images/fig_scat_rates2006.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2007.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

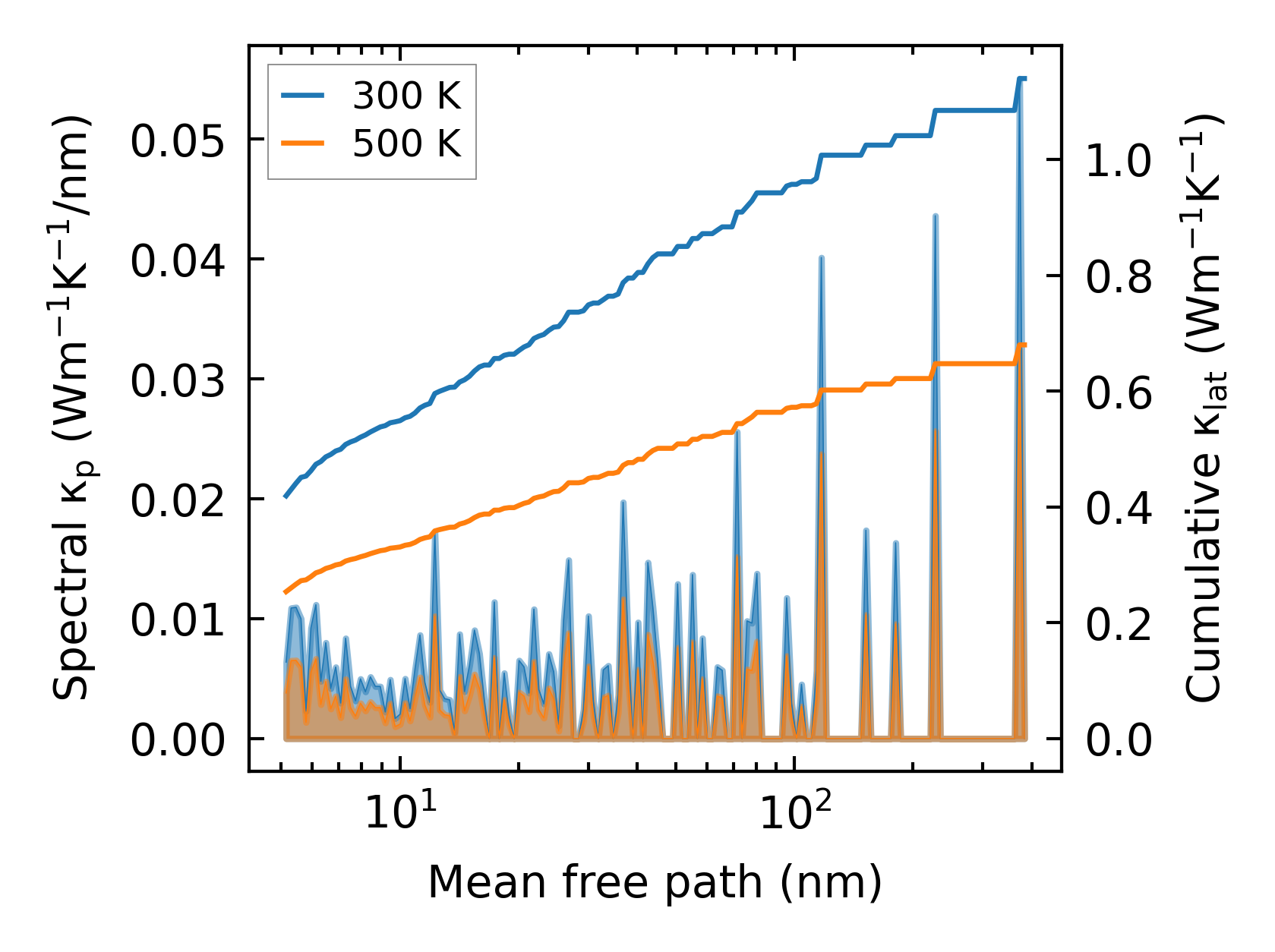

../../_images/fig_cumu_mfp2007.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

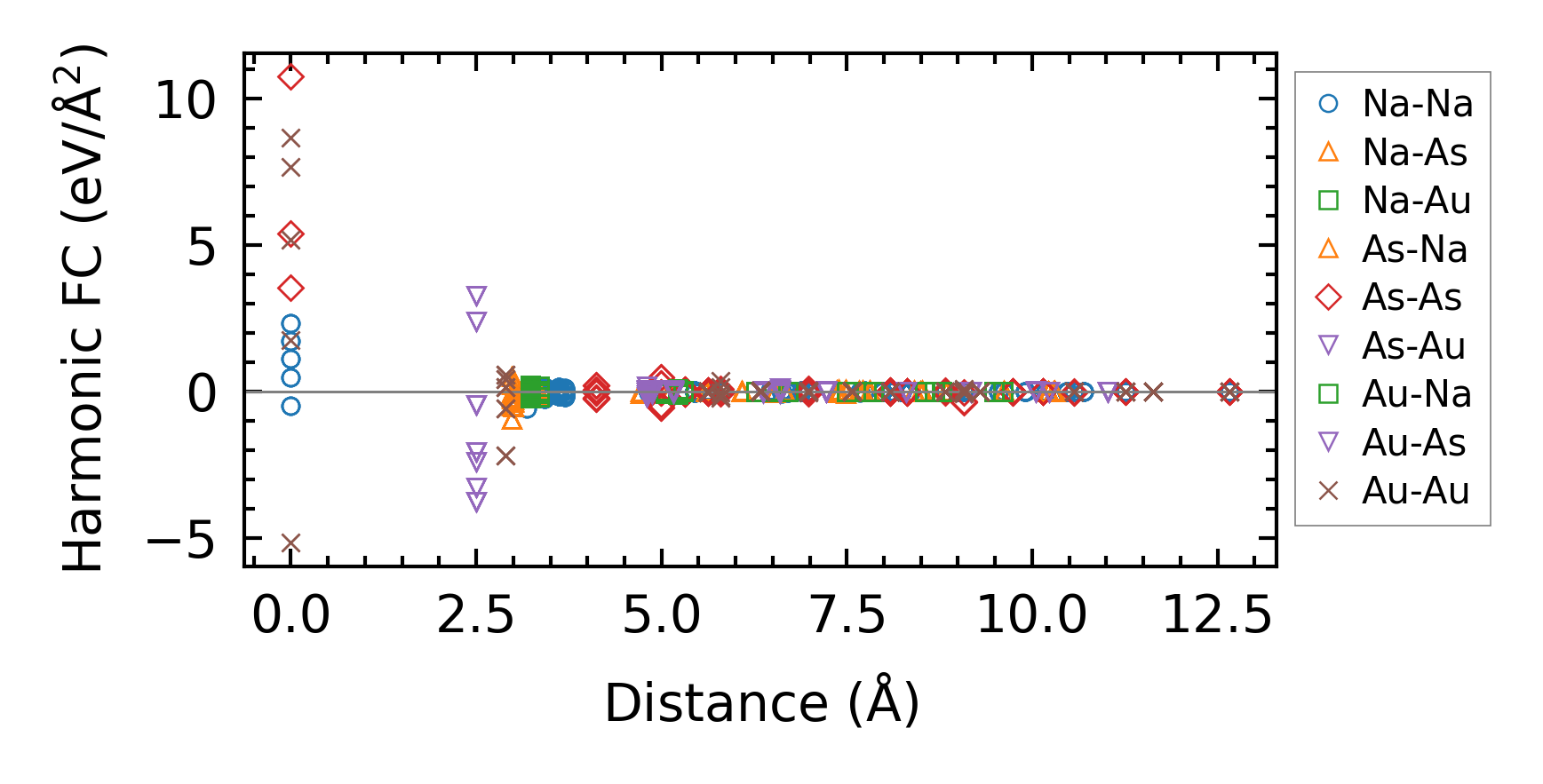

../../_images/fig_fc24467.png — (a) Force constants w.r.t atomic distance

Summary

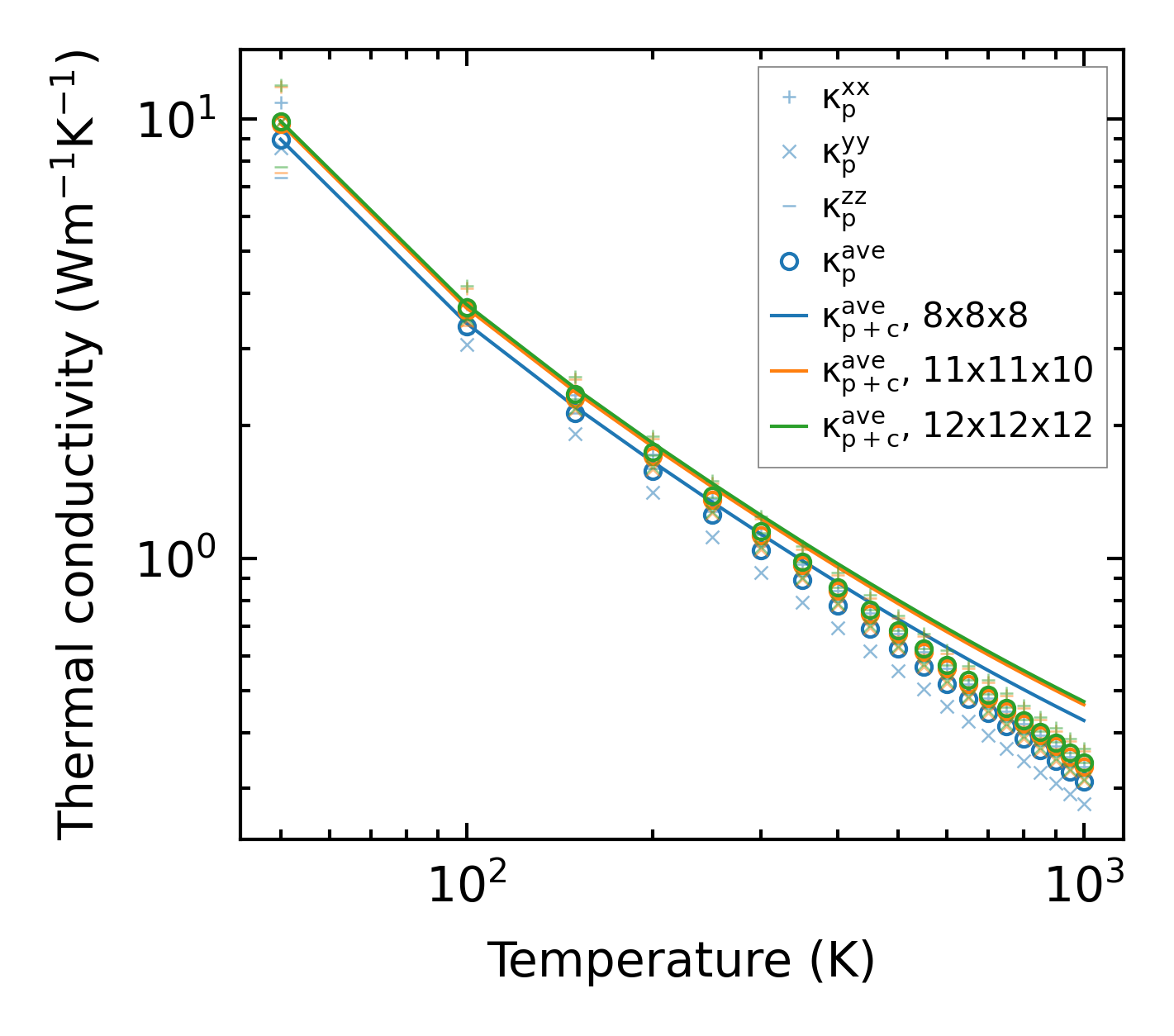

../../_images/fig_kappa3868.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times8257.png — (b) Computation time
