mp-7289-2/K2Te3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-7289-2.tar.gz

Equation of state

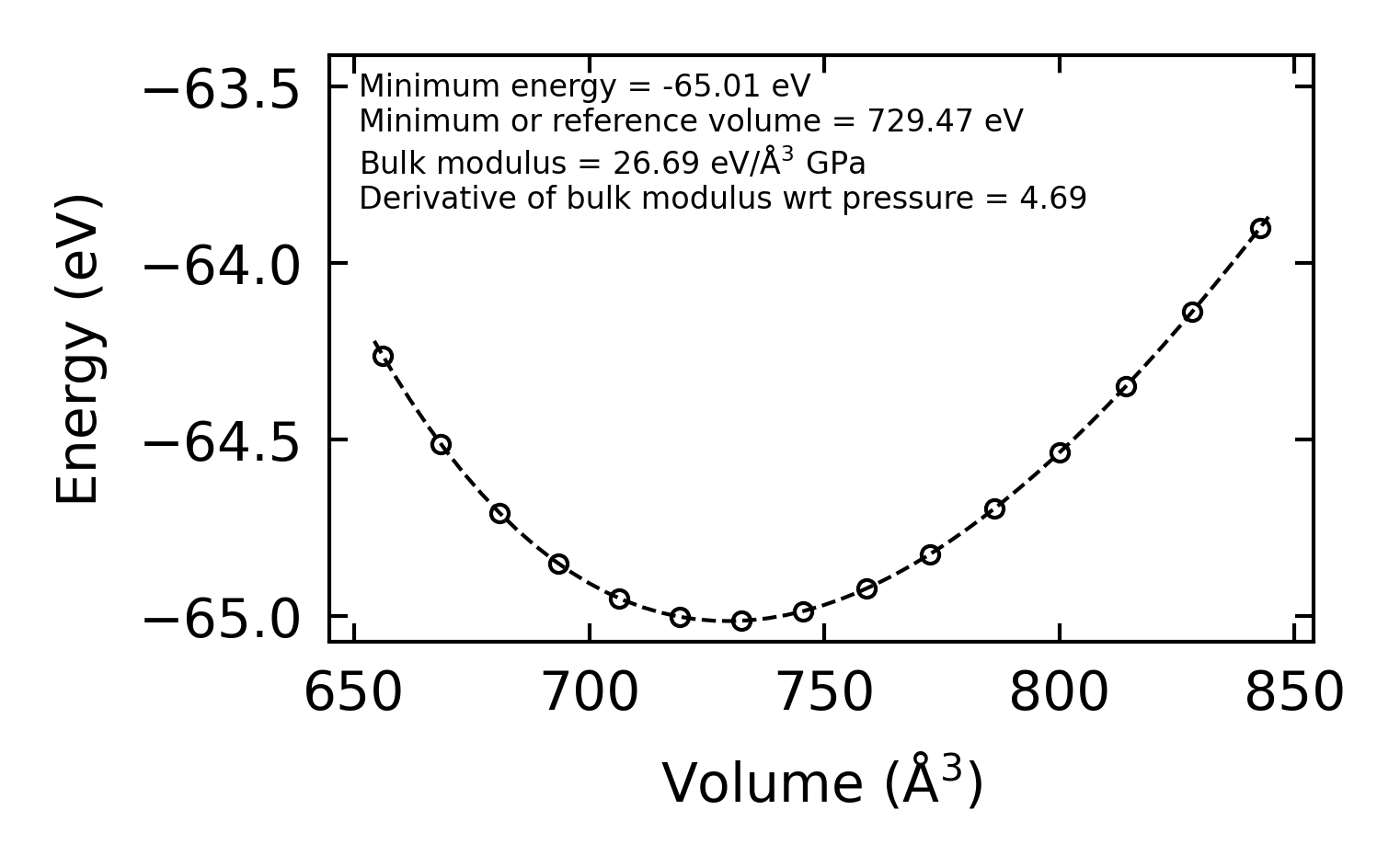

../../_images/fig_bm2244.png — (a) Equation of state

Harmonic properties

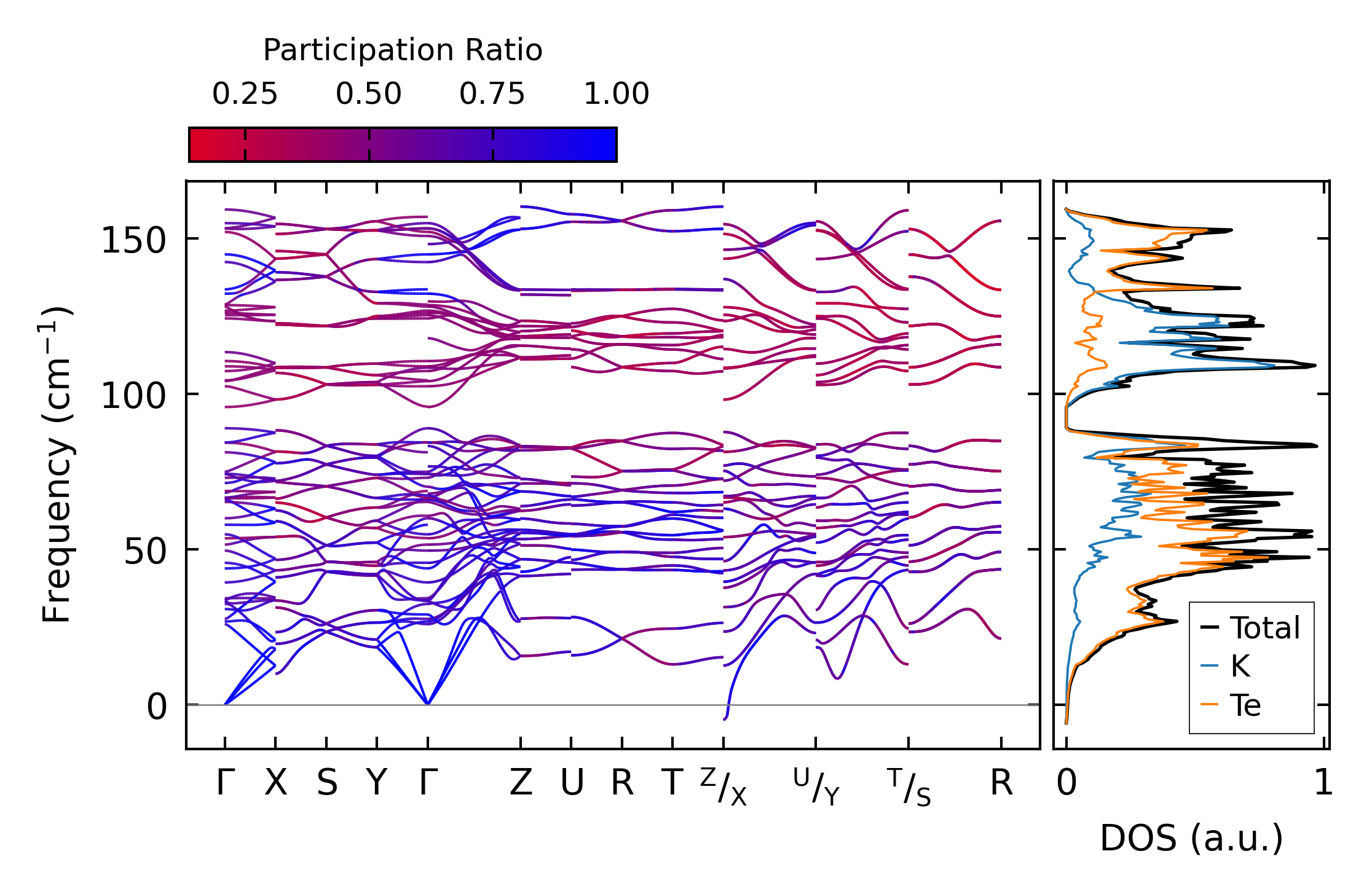

../../_images/fig_bandos_pr4502.png — (a) Phonon dispersion with participation ratio and DOS

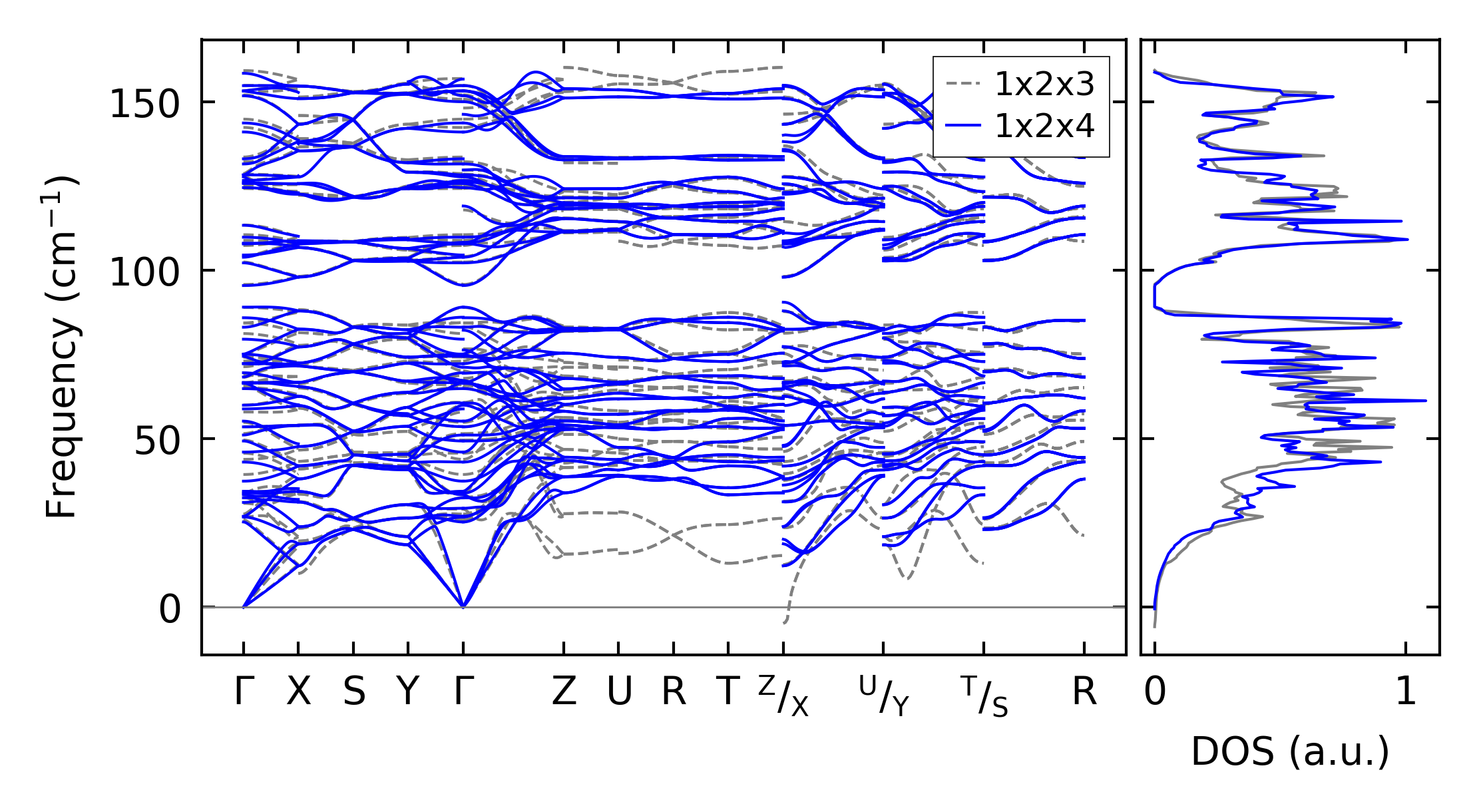

../../_images/fig_bandos6334.png — (b) Phonon dispersion and DOS

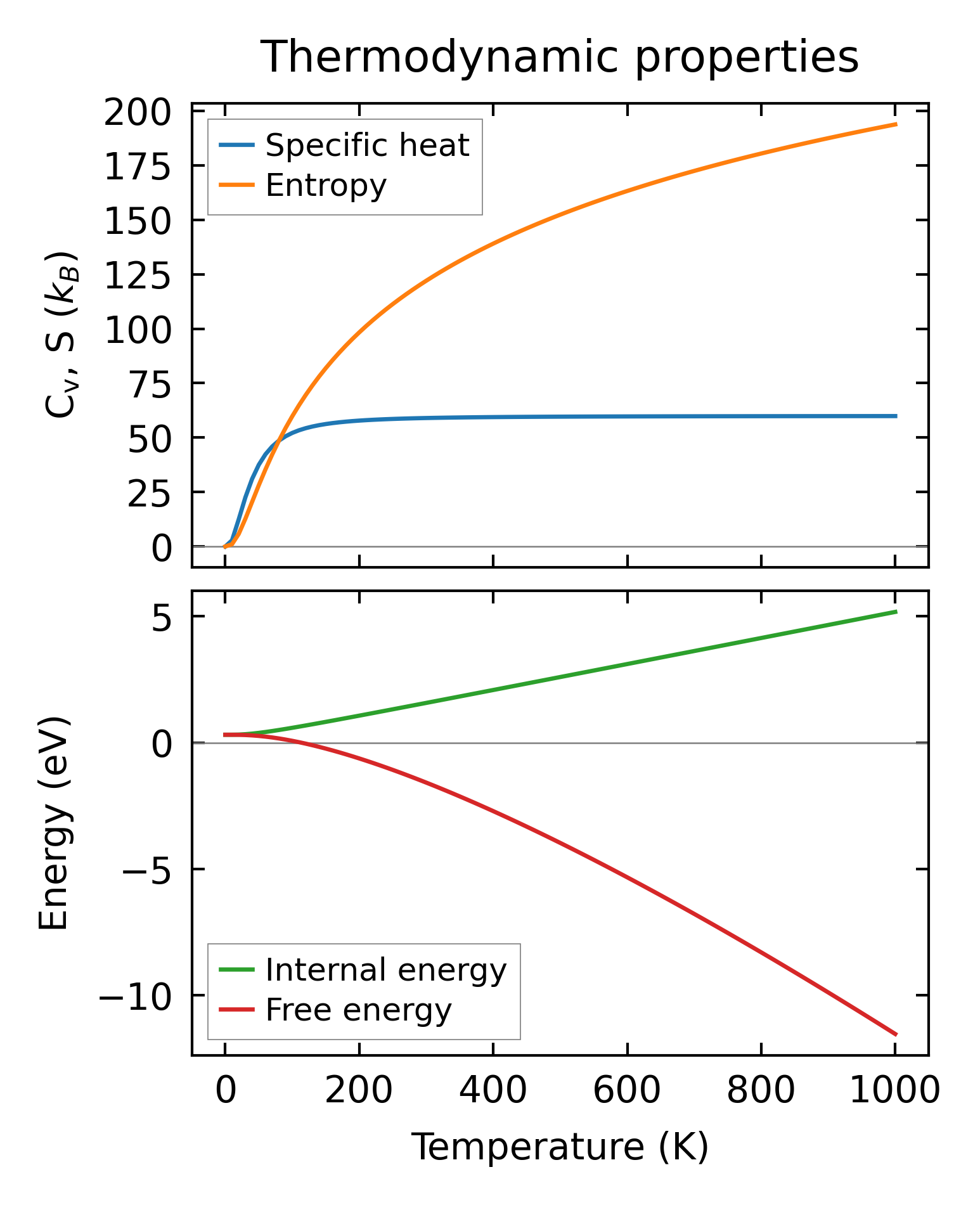

../../_images/fig_thermo4502.png — (c) Thermodynamic properties

Grüneisen parameters

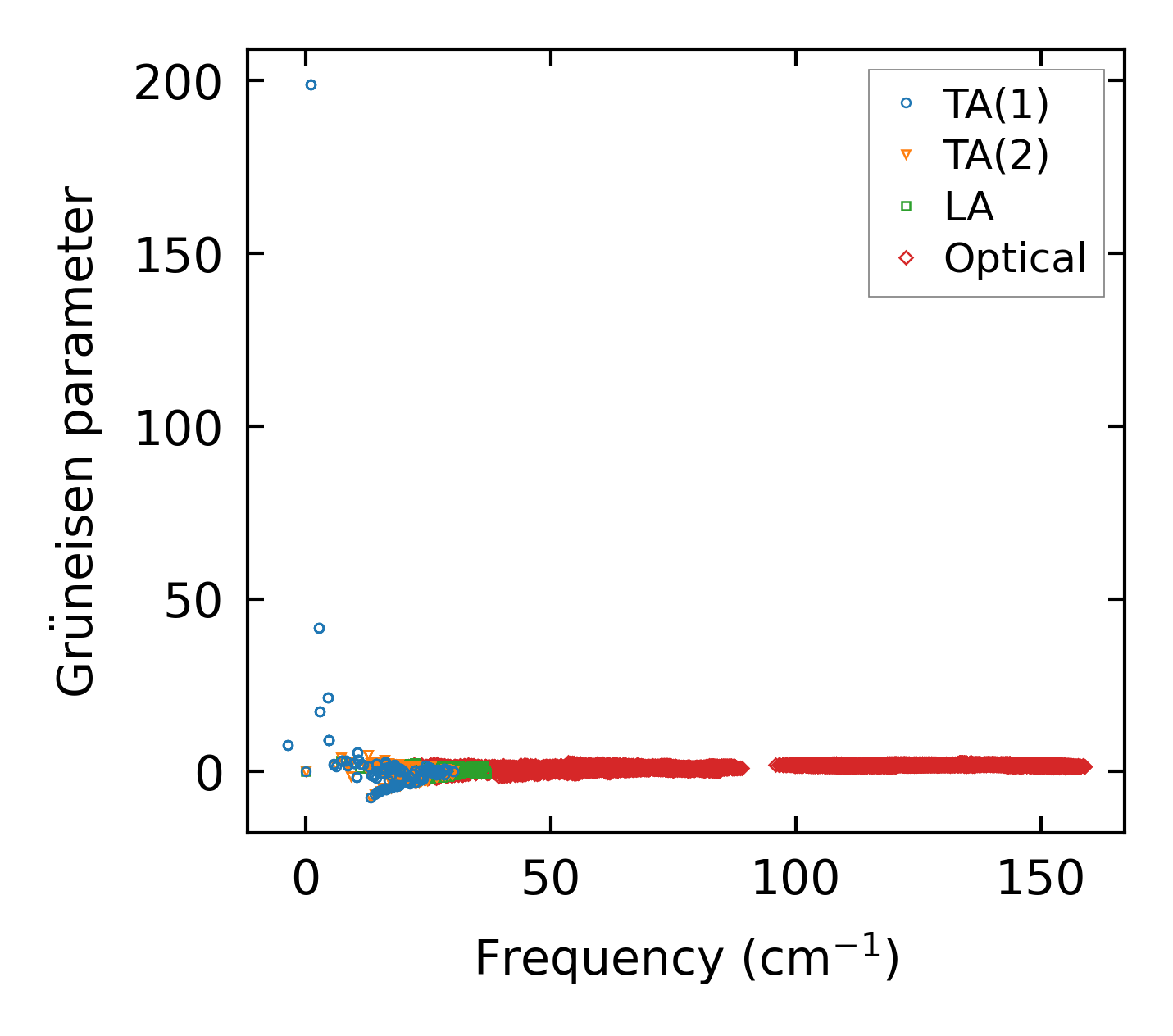

../../_images/fig_gru_all1929.png — (a) Grüneisen parameters

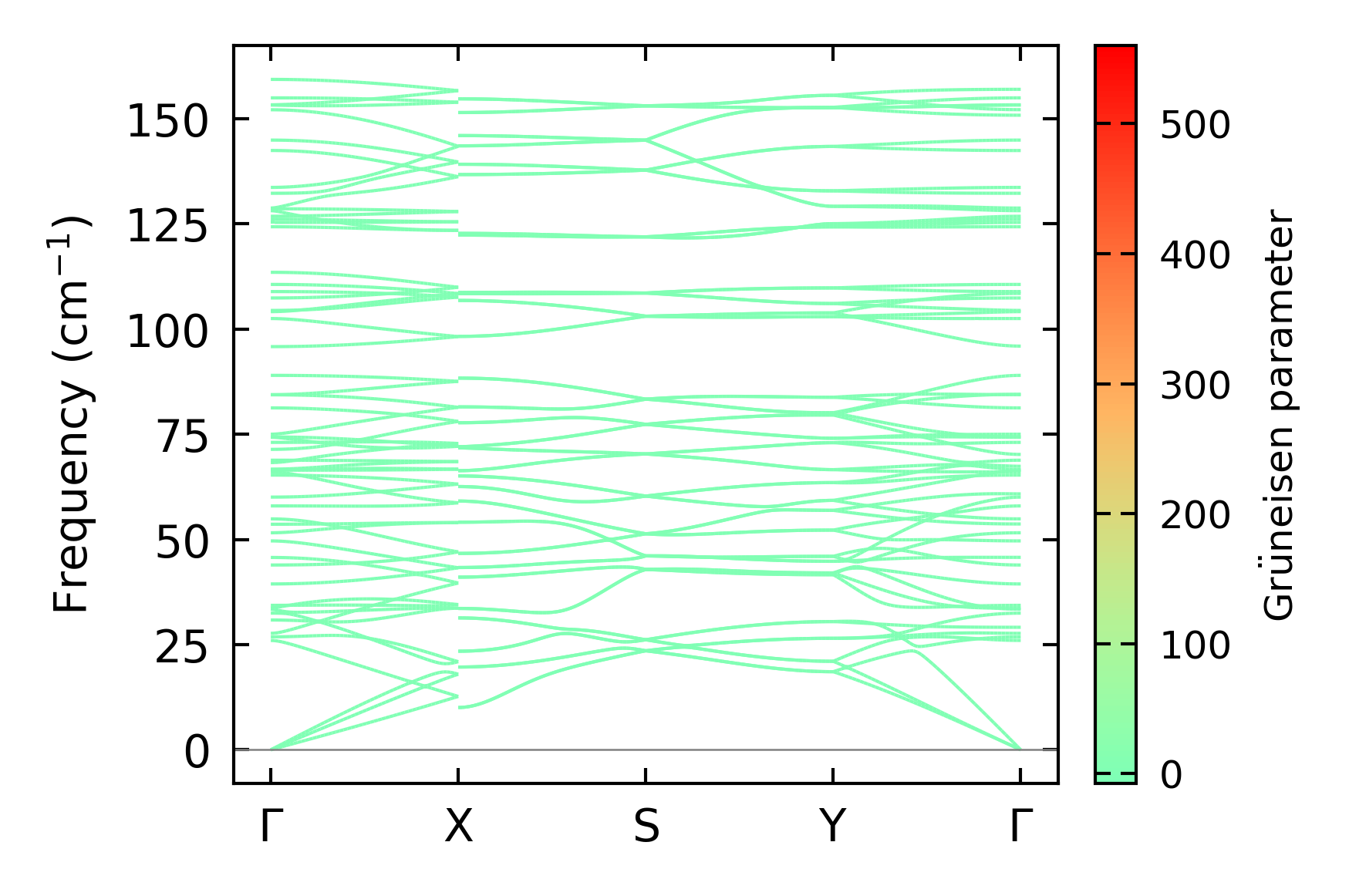

../../_images/fig_gruneisen1929.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x4 — q-mesh: 4x7x16, supercell: 1x2x4

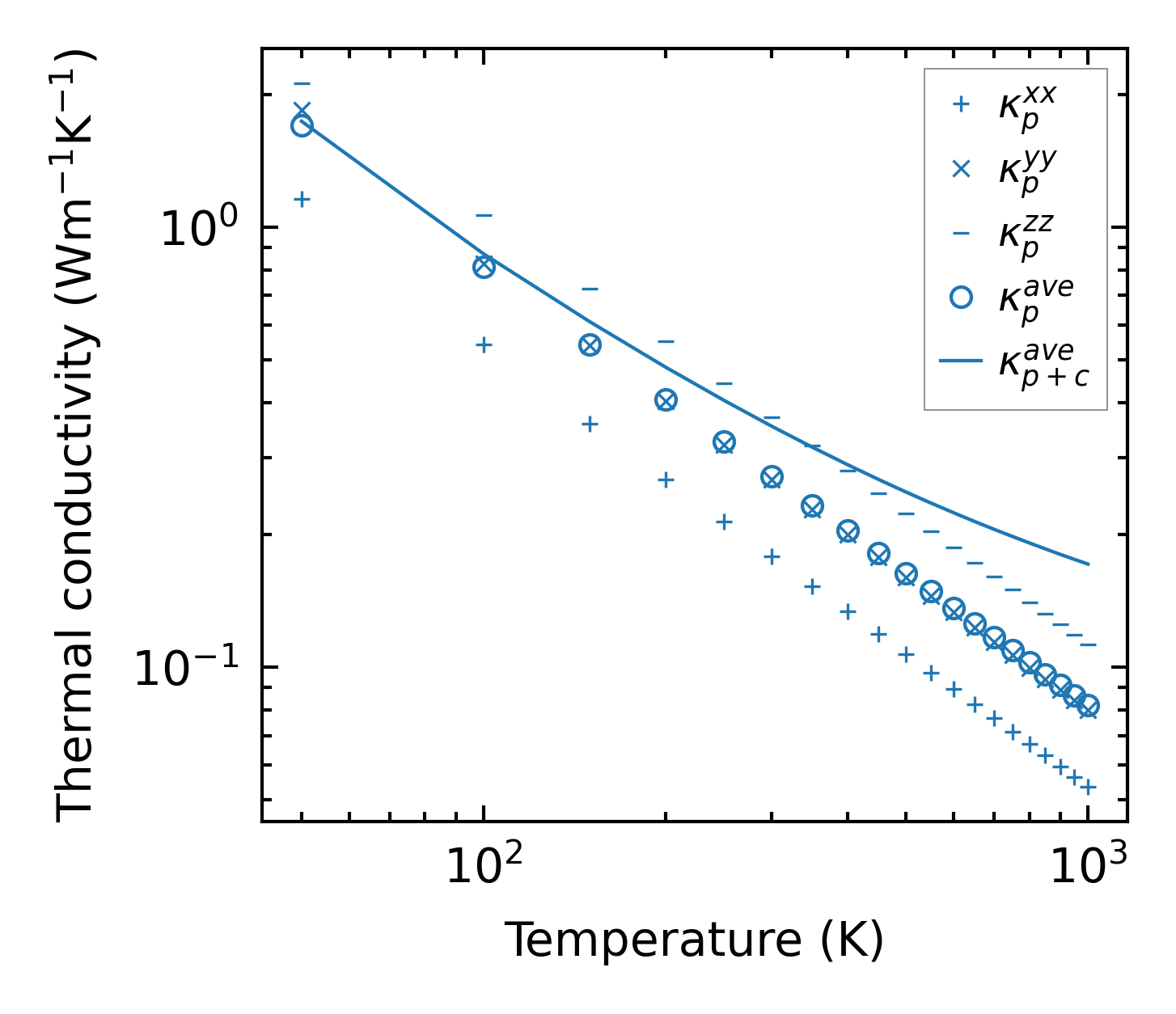

../../_images/fig_kappa3694.png — (a) Temperature-dependent lattice thermal conductivity

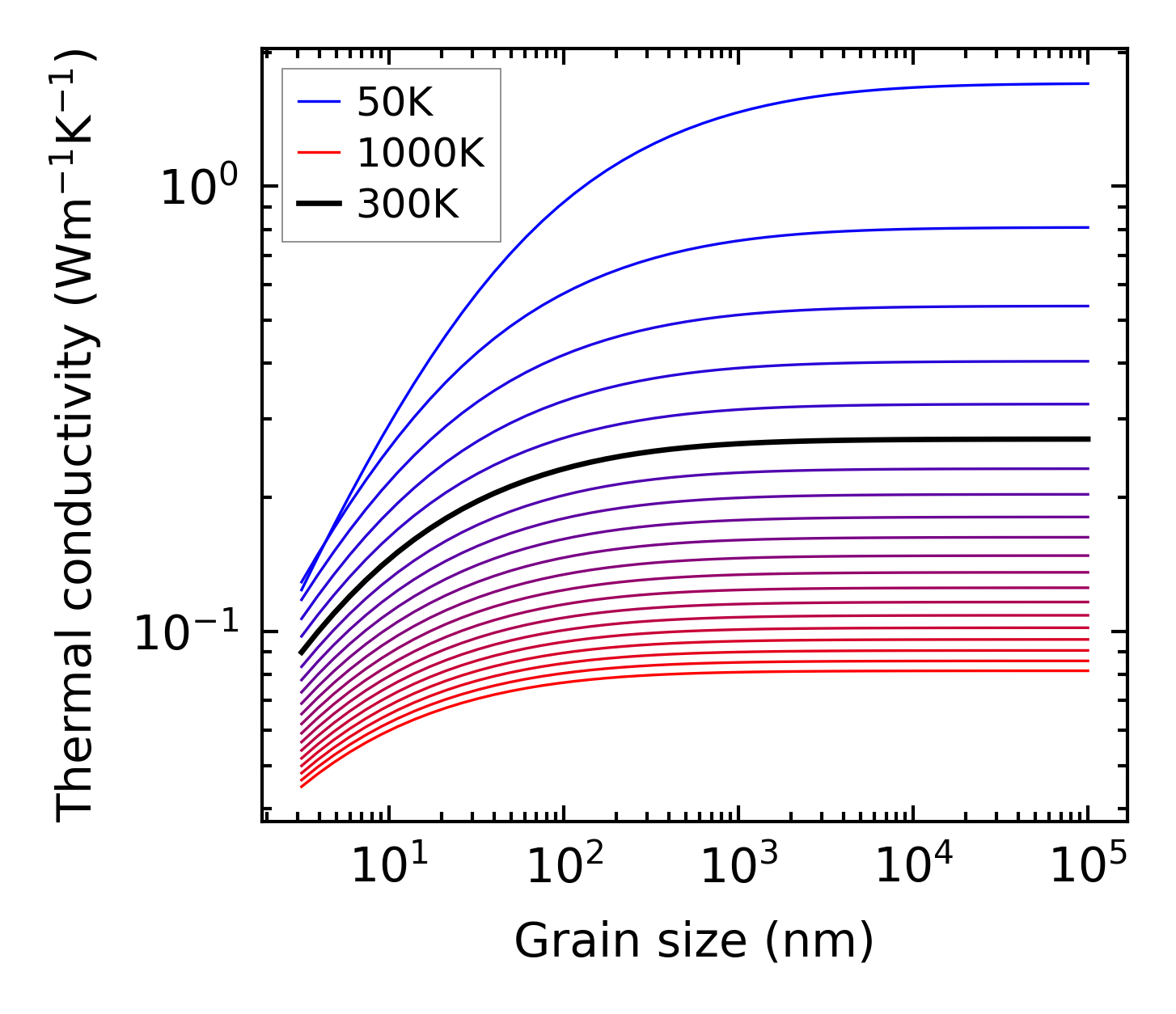

../../_images/fig_kappa_vs_grain_size1956.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

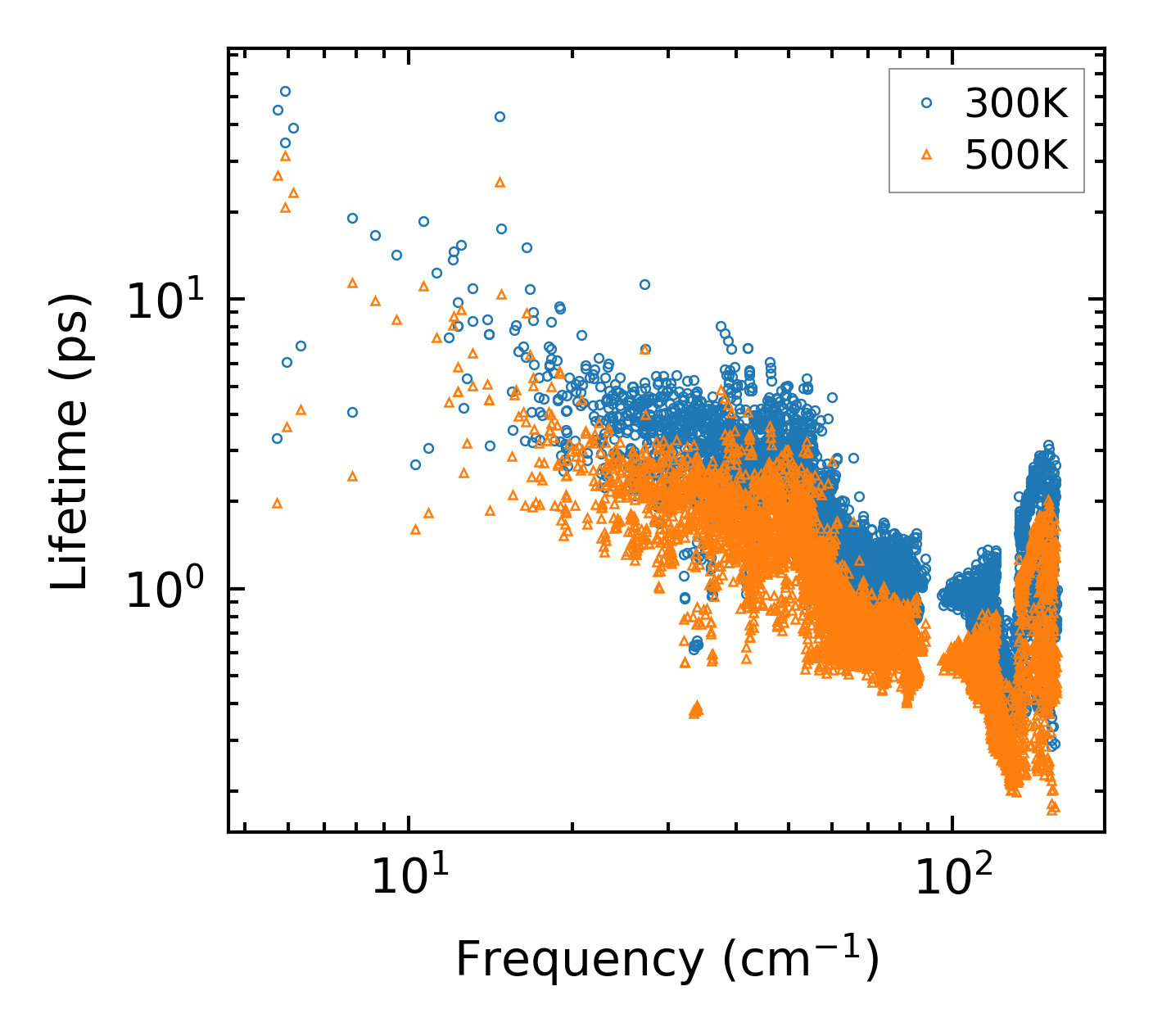

../../_images/fig_lifetime1918.png — (a) Phonon lifetime due to phonon-phonon scattering

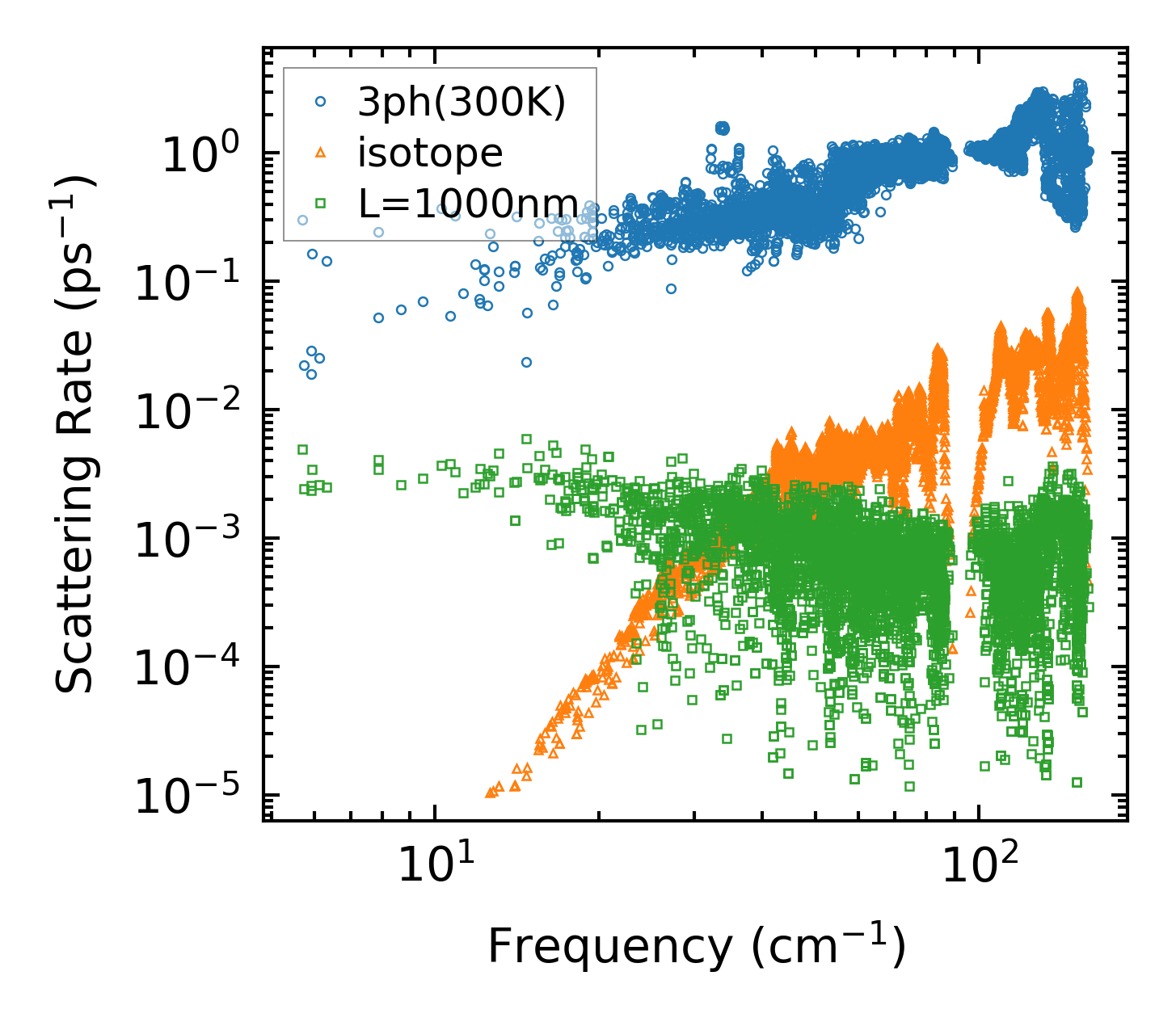

../../_images/fig_scat_rates1917.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

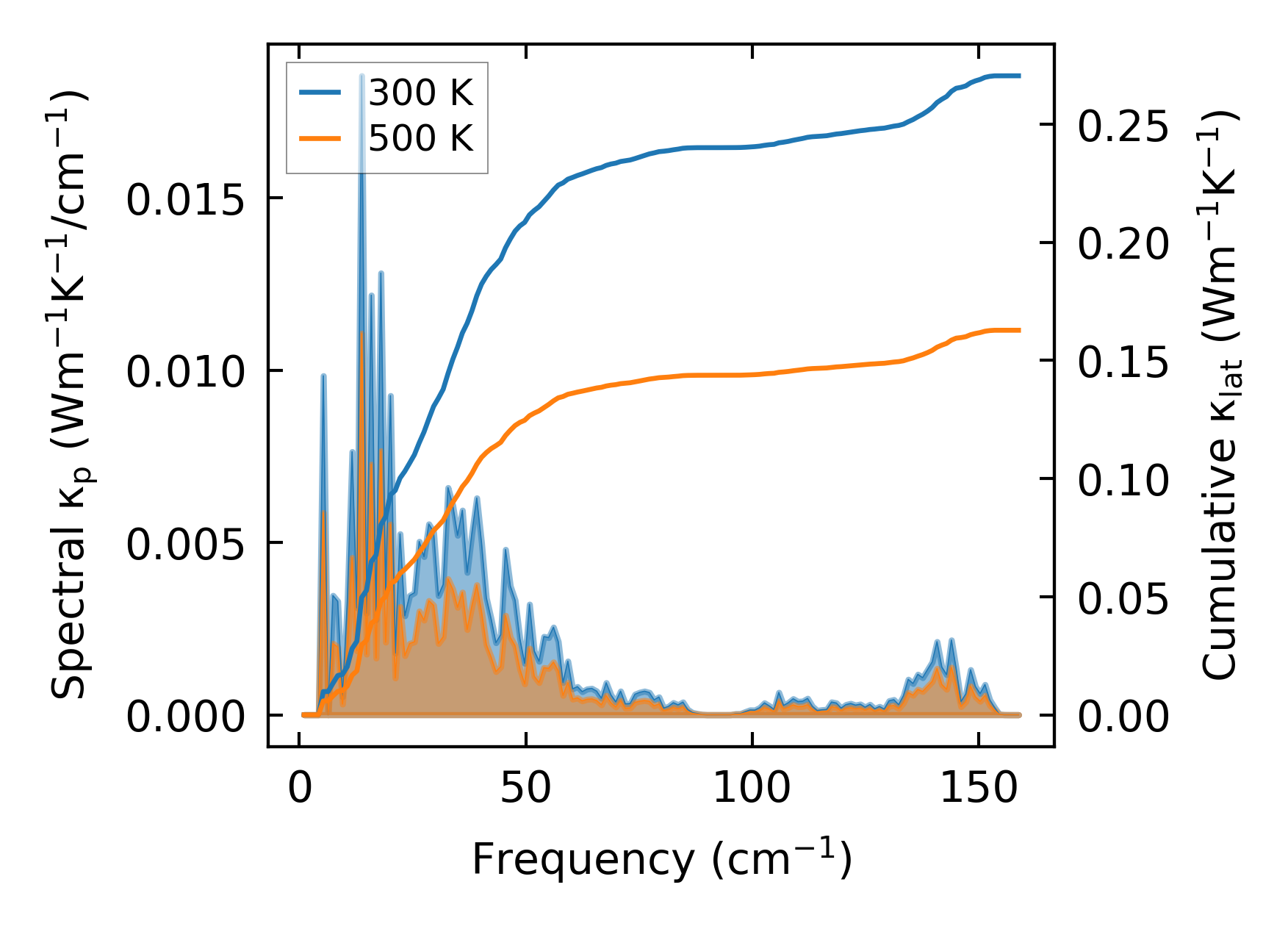

../../_images/fig_cumu_frequency1918.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

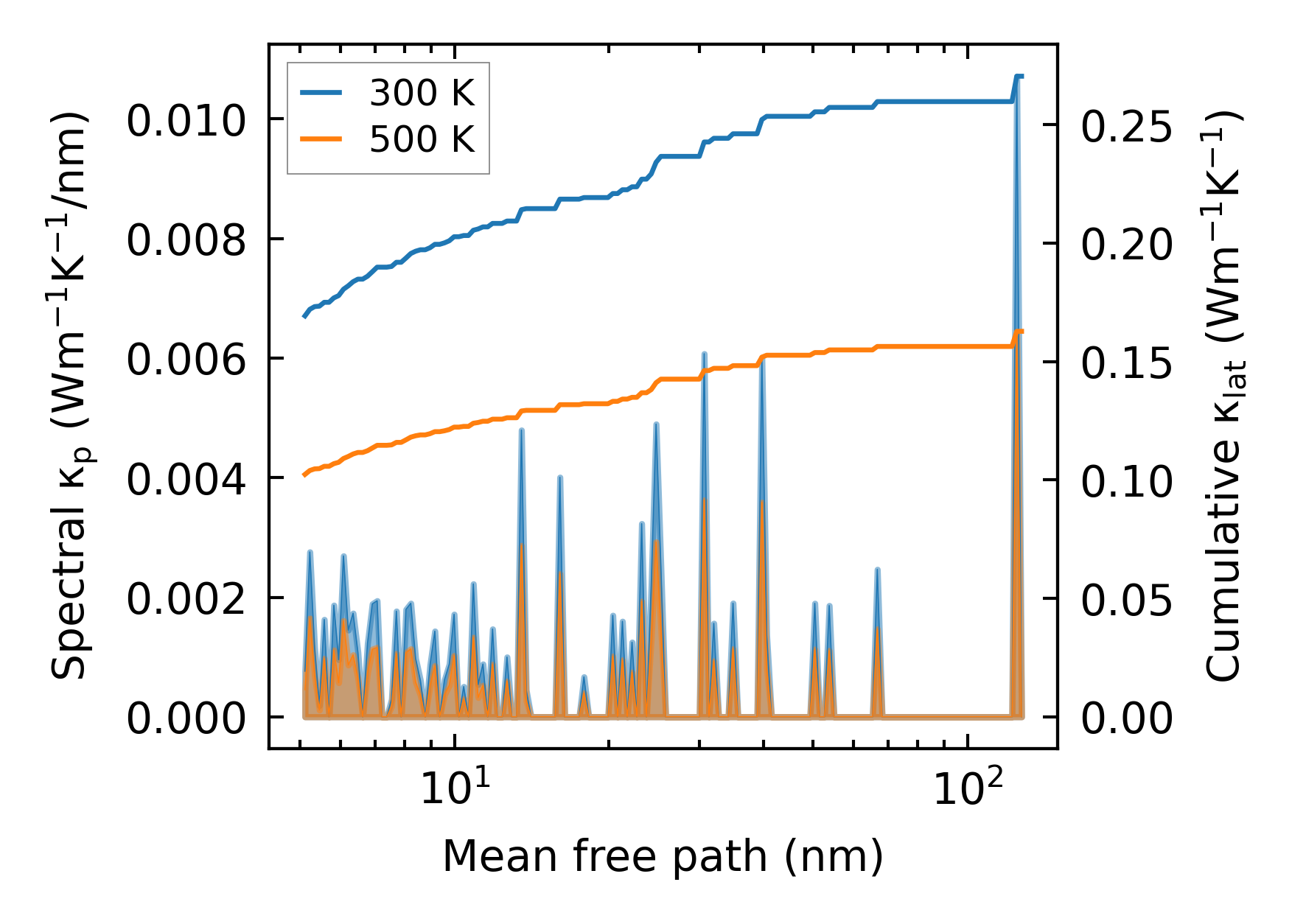

../../_images/fig_cumu_mfp1918.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

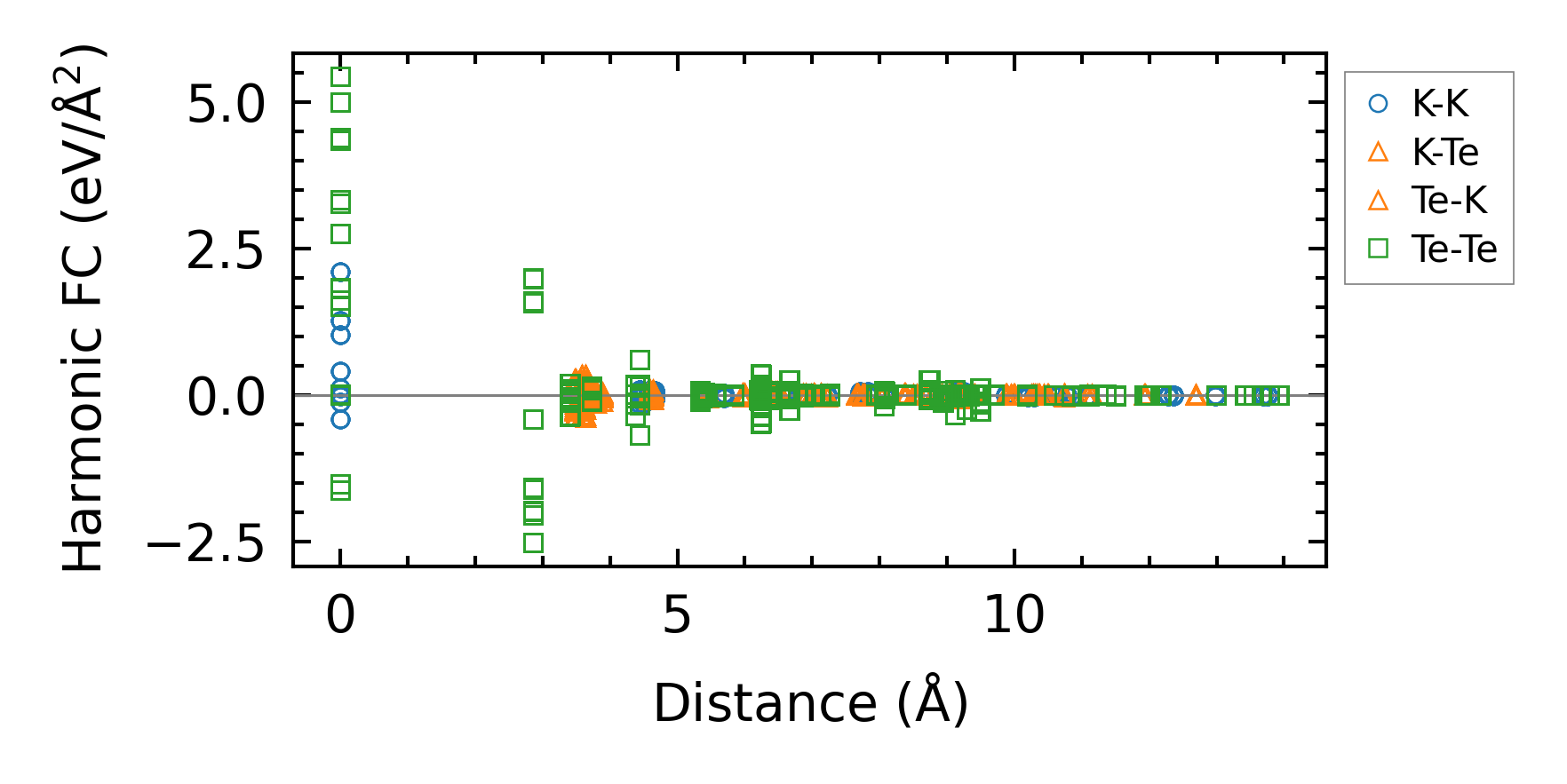

../../_images/fig_fc24314.png — (a) Force constants w.r.t atomic distance

Summary

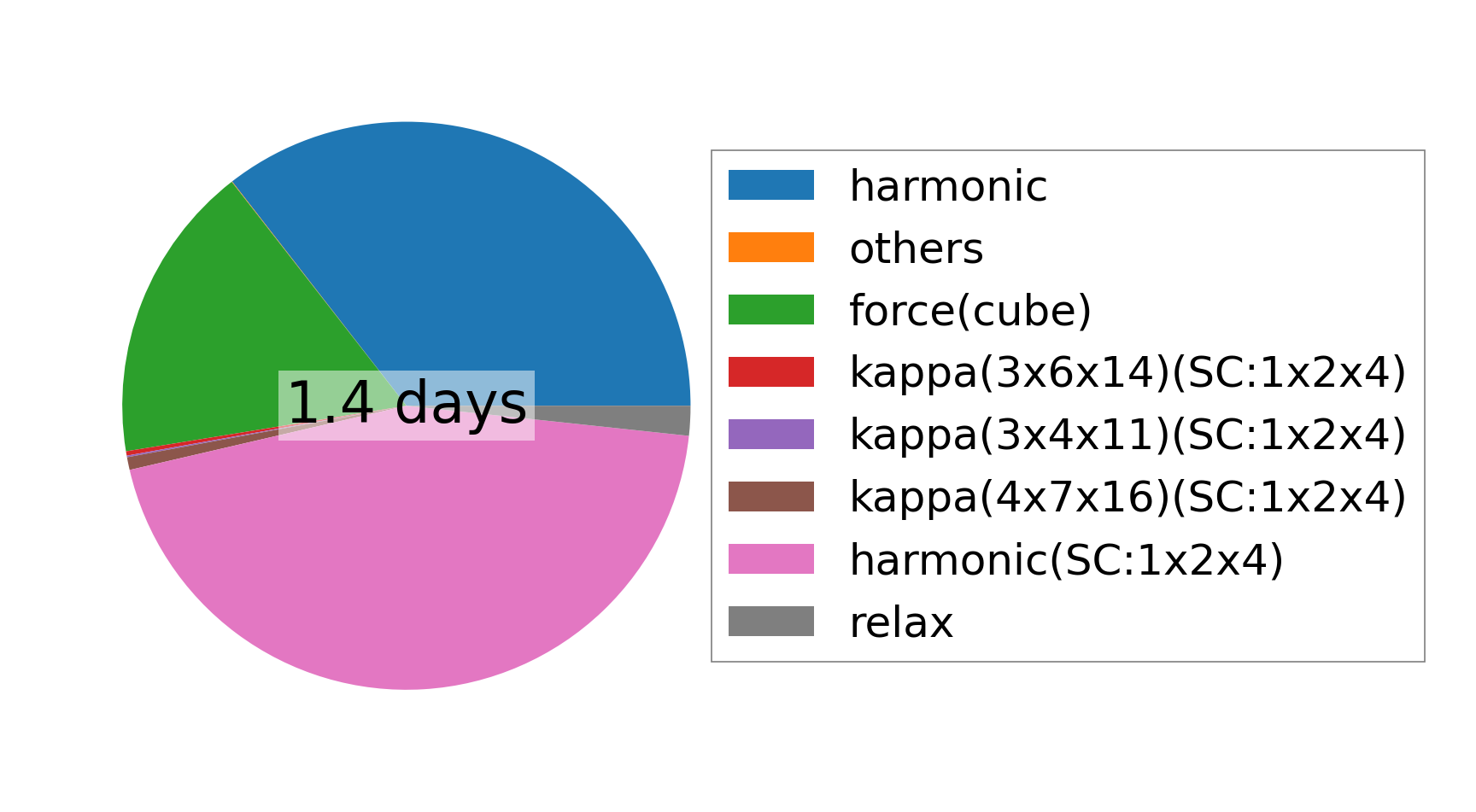

../../_images/fig_times8041.png — (a) Computation time
