mp-7951/ThSe2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-7951.tar.gz

Harmonic properties

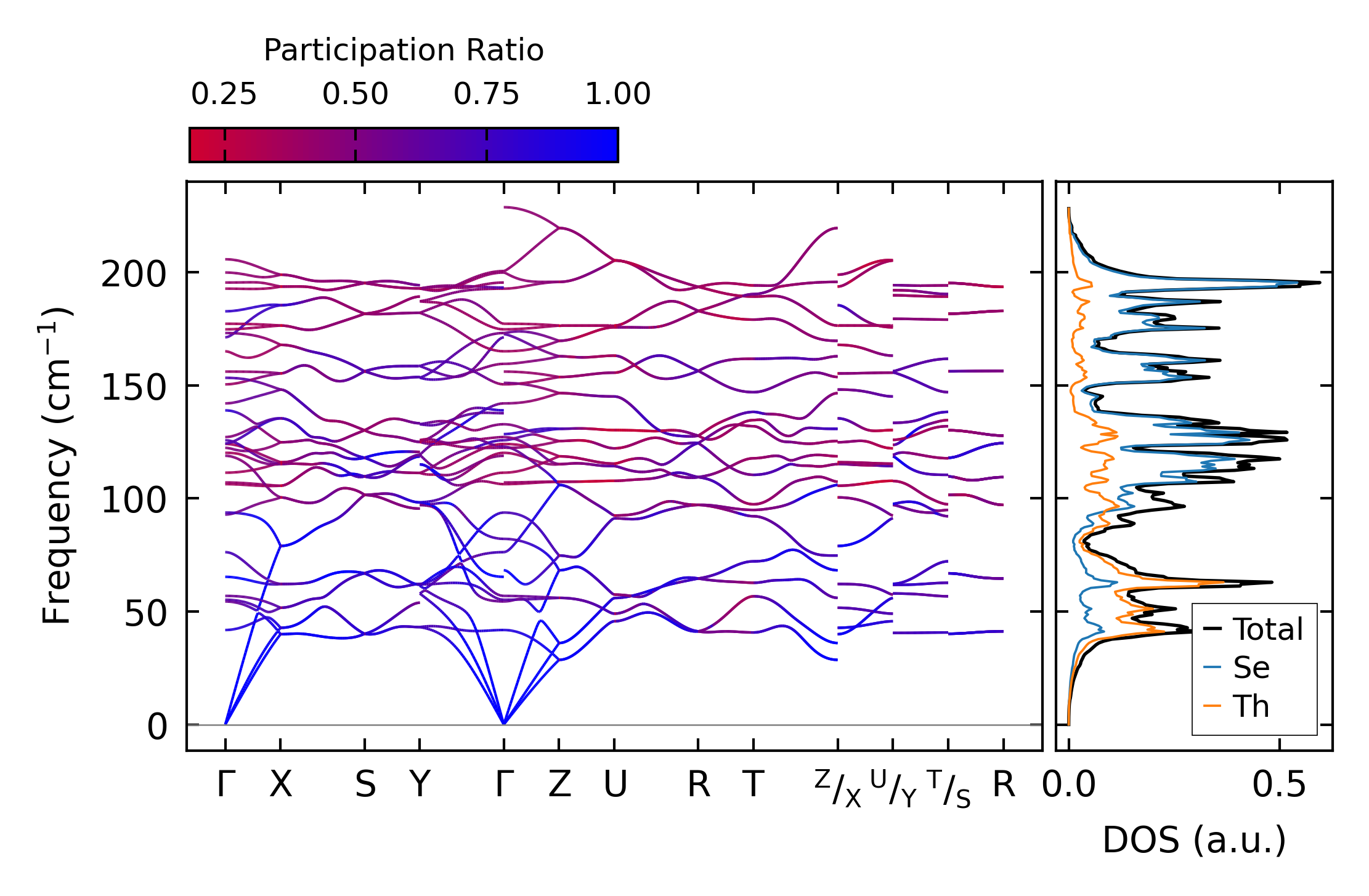

../../_images/fig_bandos_pr4395.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4395.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1891.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1891.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x16x7, supercell: 2x3x2

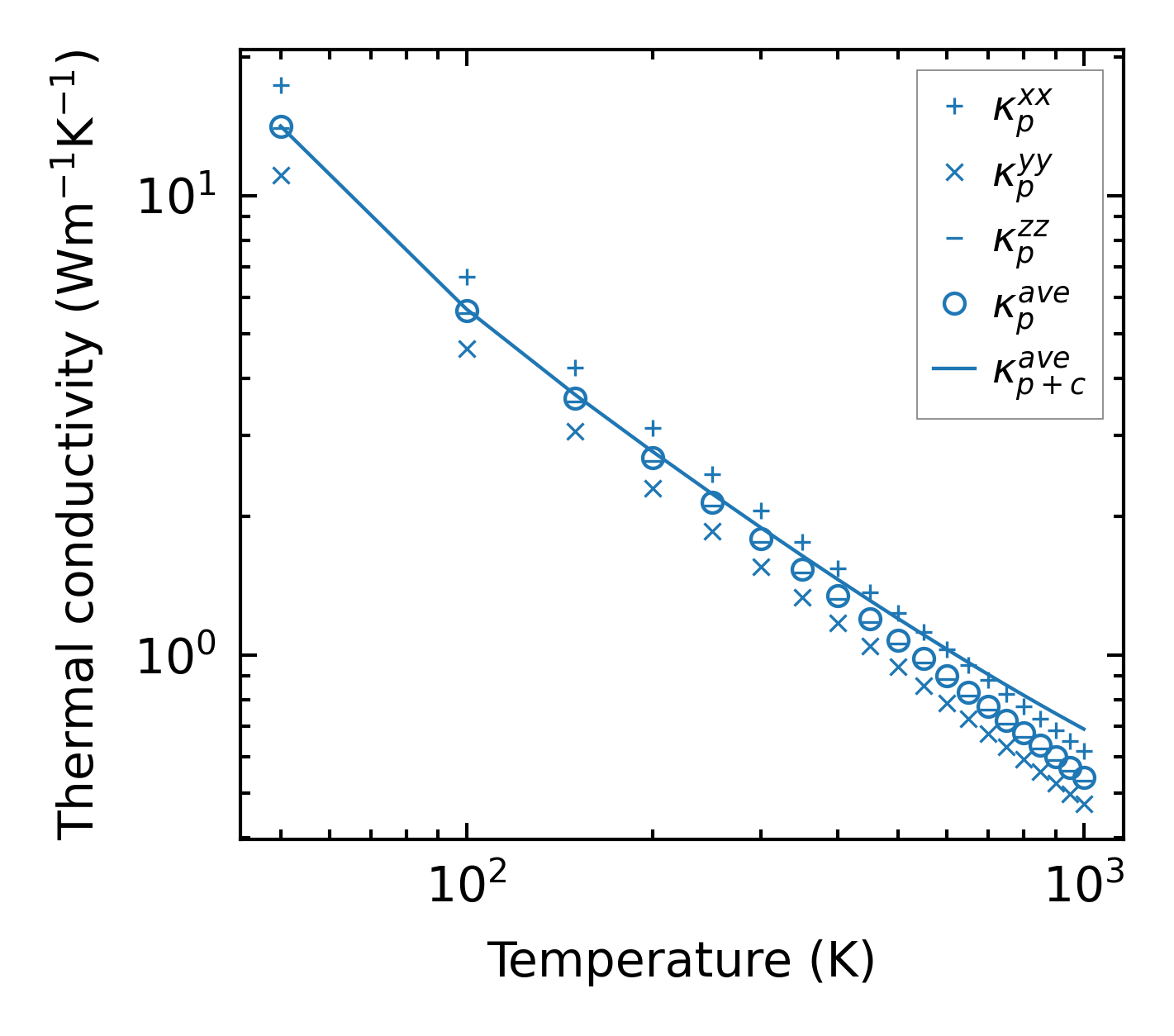

../../_images/fig_kappa3622.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1918.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

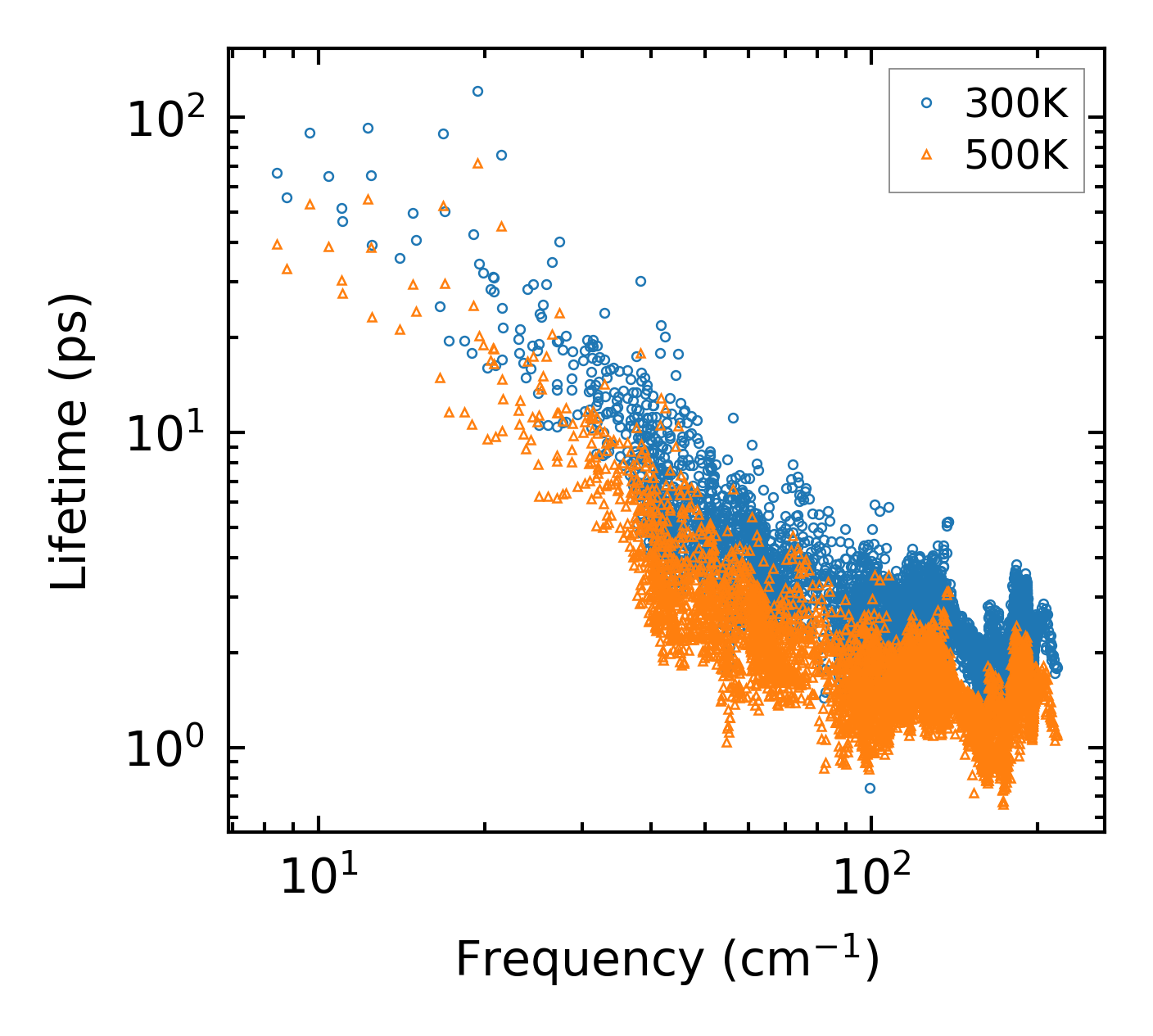

../../_images/fig_lifetime1880.png — (a) Phonon lifetime due to phonon-phonon scattering

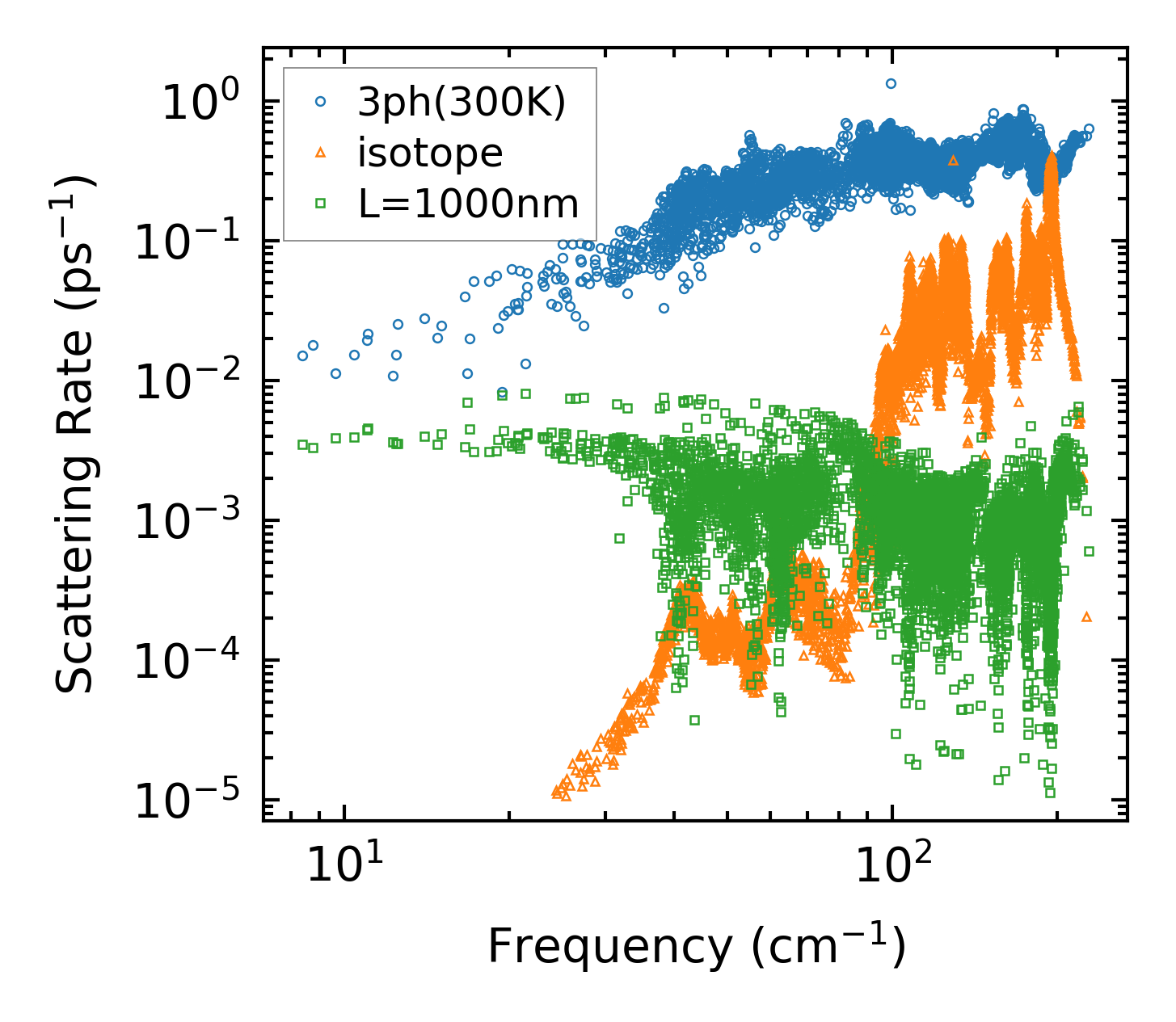

../../_images/fig_scat_rates1879.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

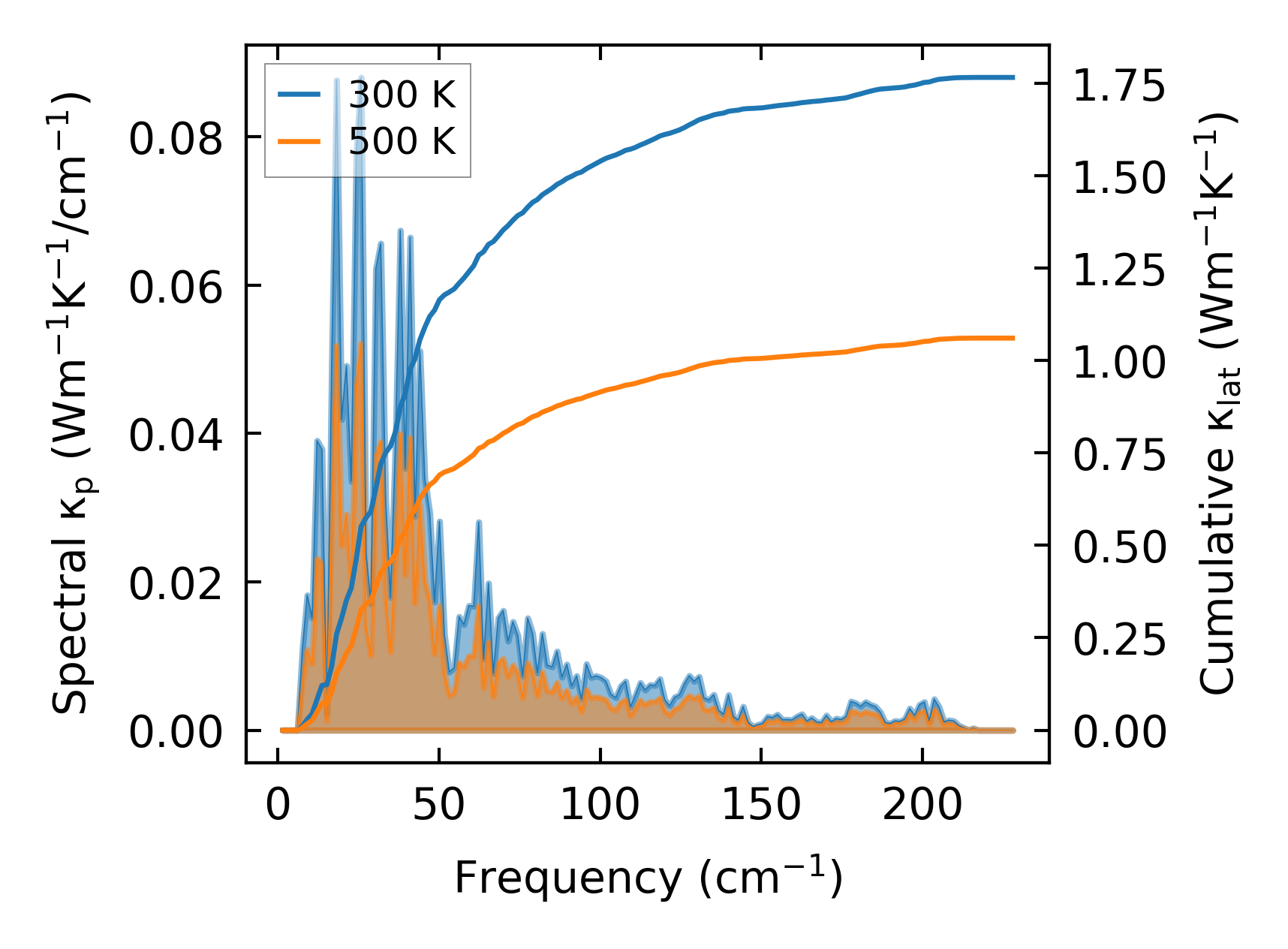

../../_images/fig_cumu_frequency1880.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1880.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

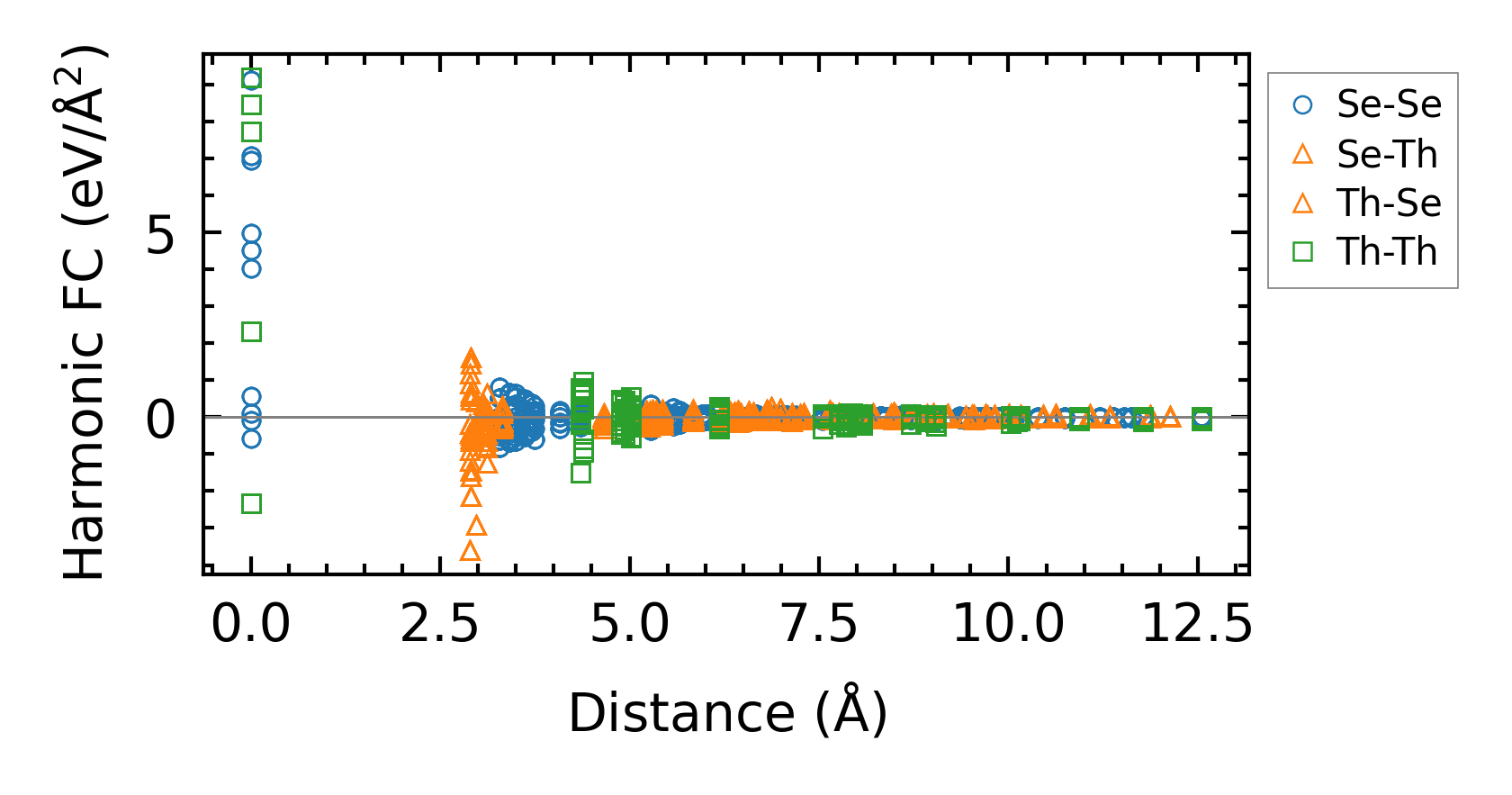

../../_images/fig_fc24208.png — (a) Force constants w.r.t atomic distance

Summary

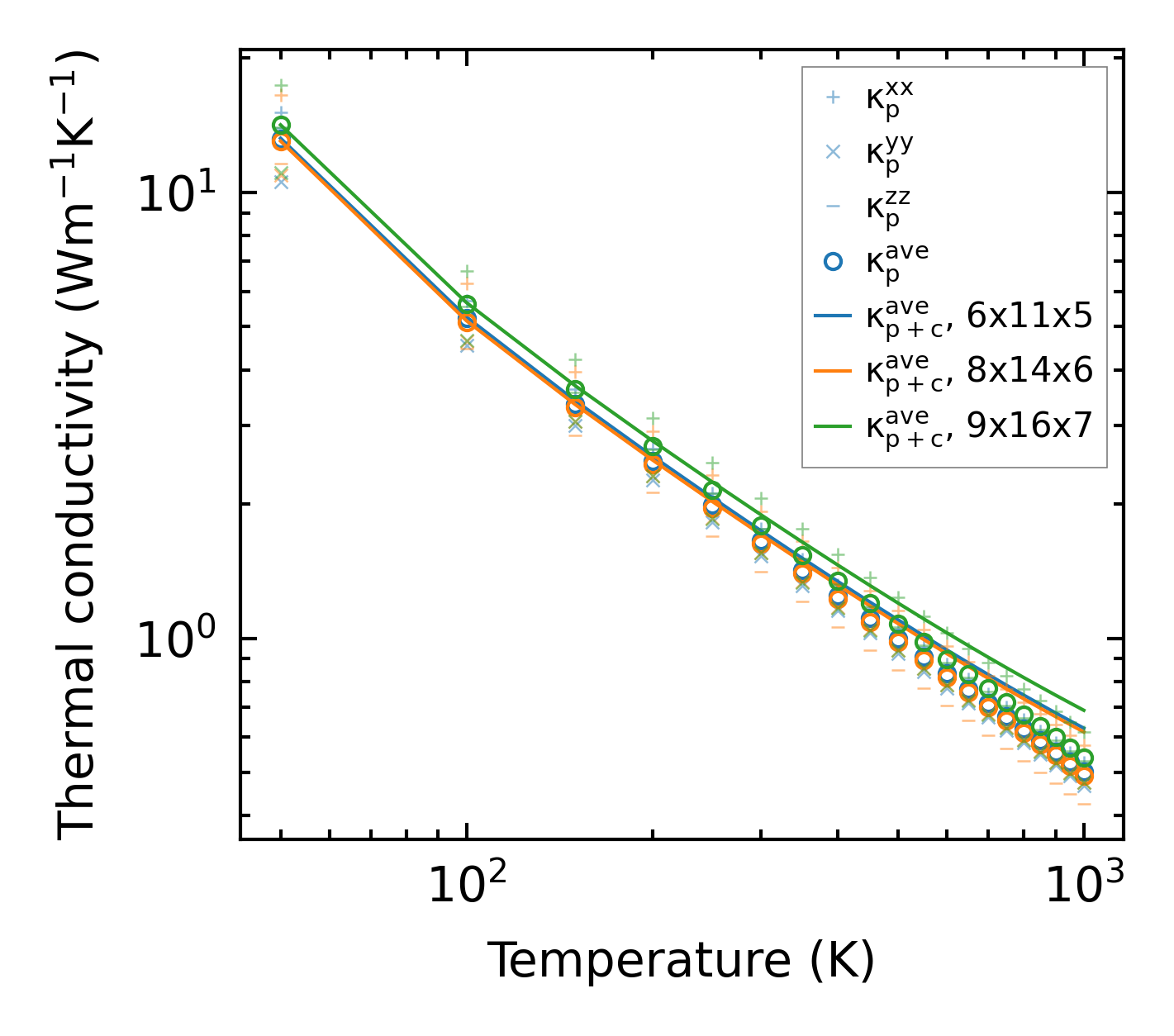

../../_images/fig_kappa3623.png — (a) Temperature-dependent lattice thermal conductivity

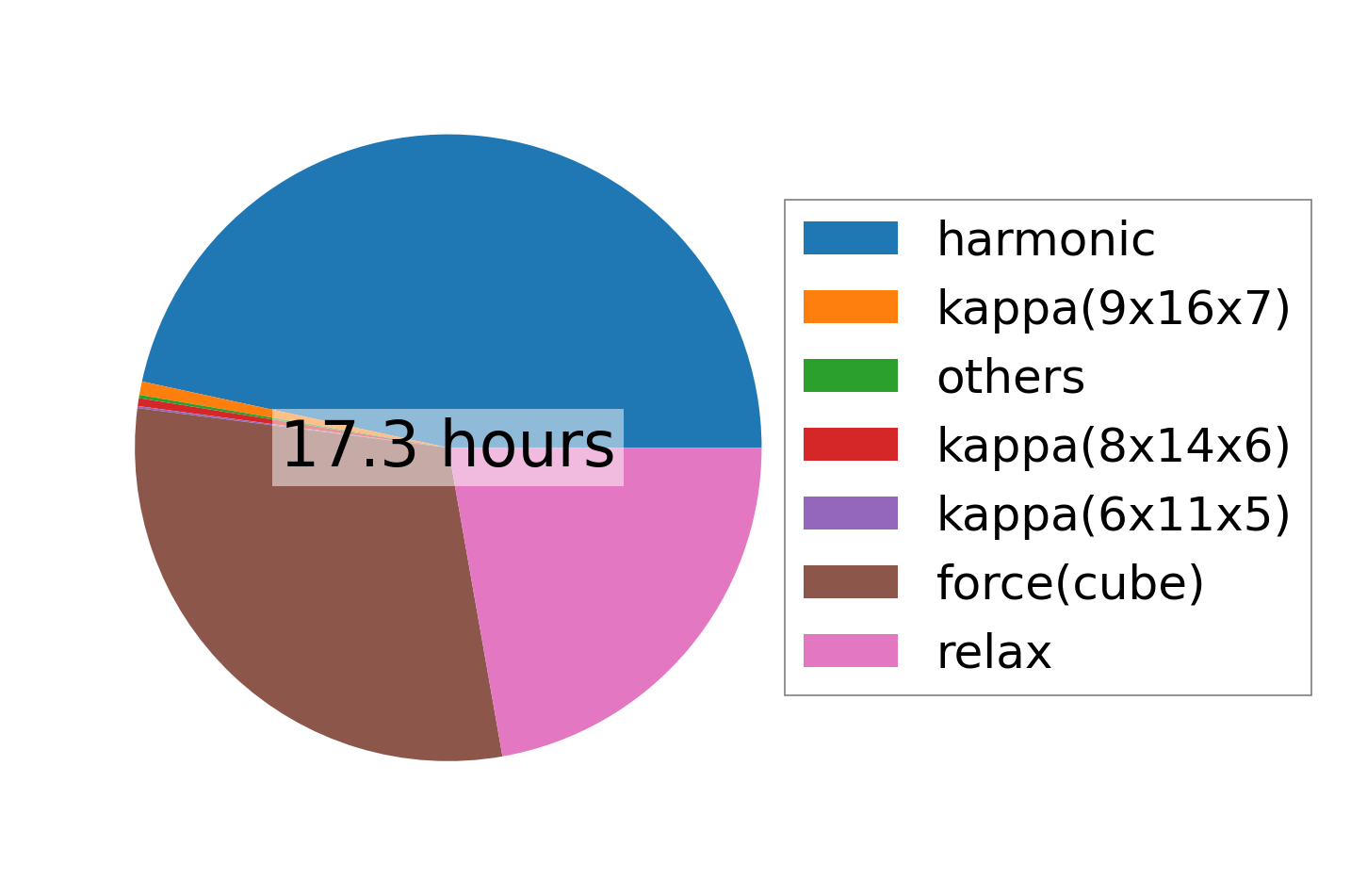

../../_images/fig_times7817.png — (b) Computation time
