mp-7752-2/Sr3SbN/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-7752-2.tar.gz

Equation of state

../../_images/fig_bm2323.png — (a) Equation of state

Harmonic properties

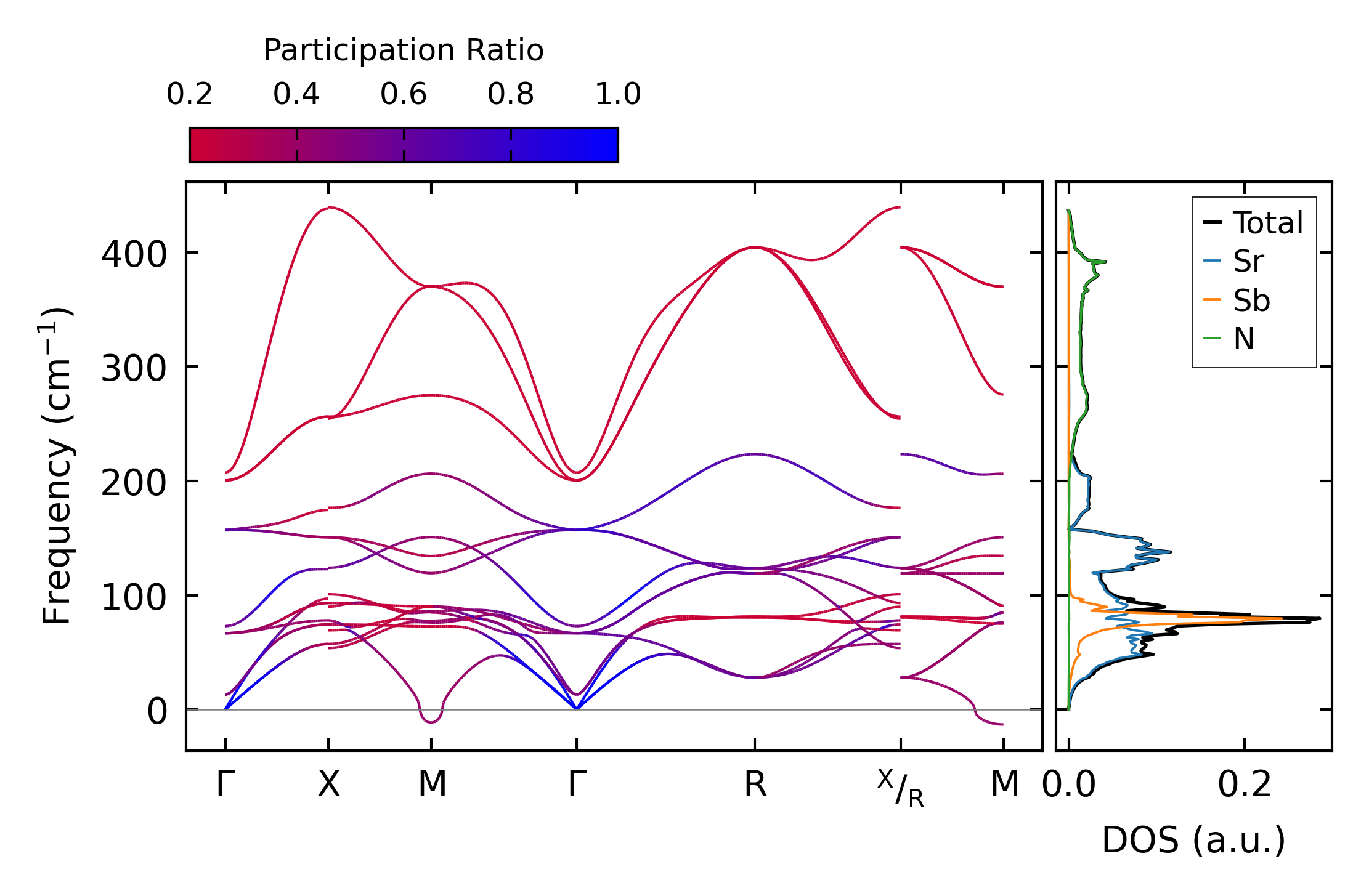

../../_images/fig_bandos_pr4650.png — (a) Phonon dispersion with participation ratio and DOS

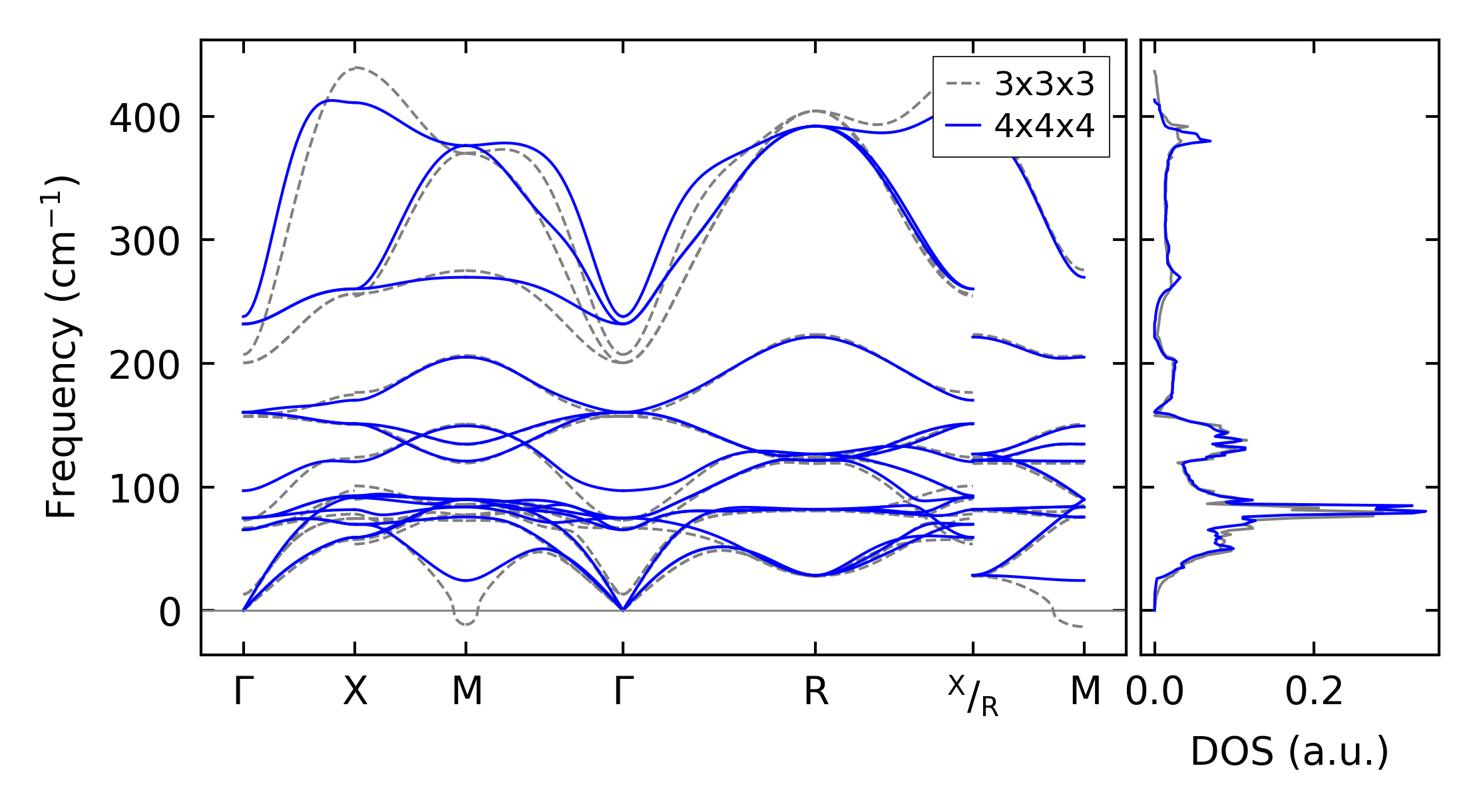

../../_images/fig_bandos6467.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo4650.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2014.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2014.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon, supercell 4x4x4 — q-mesh: 13x13x13, supercell: 4x4x4

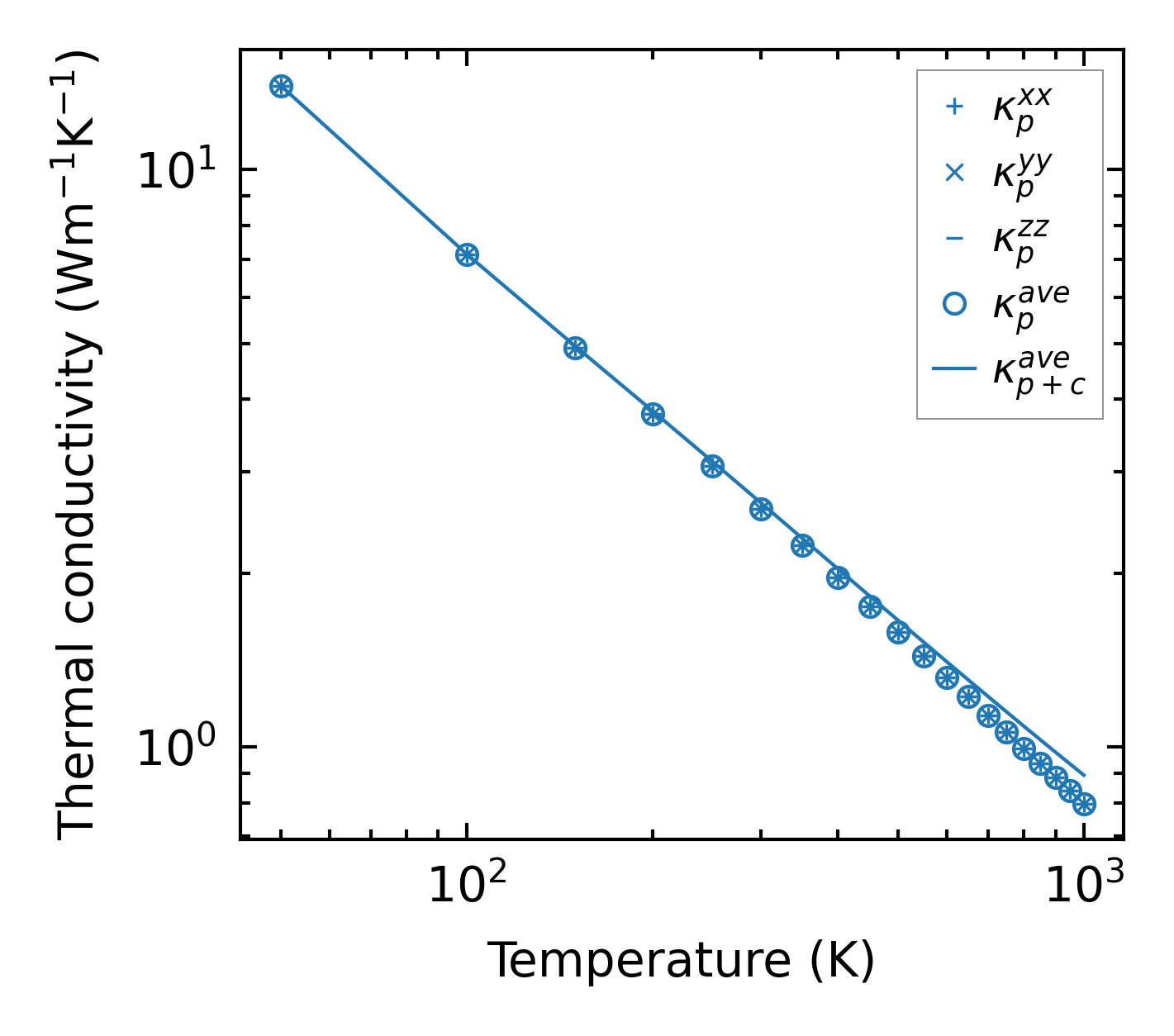

../../_images/fig_kappa3856.png — (a) Temperature-dependent lattice thermal conductivity

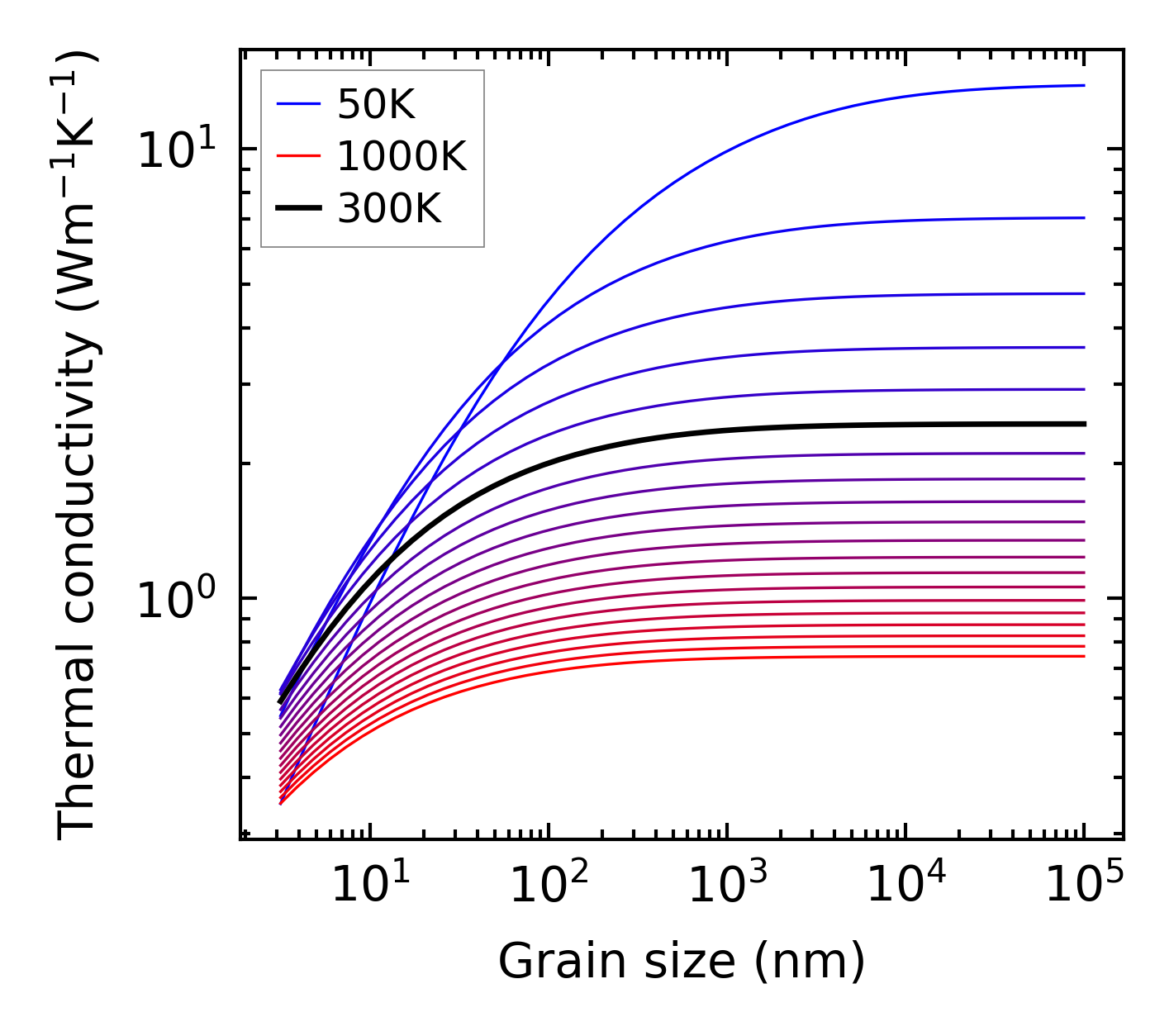

../../_images/fig_kappa_vs_grain_size2041.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2001.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2000.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

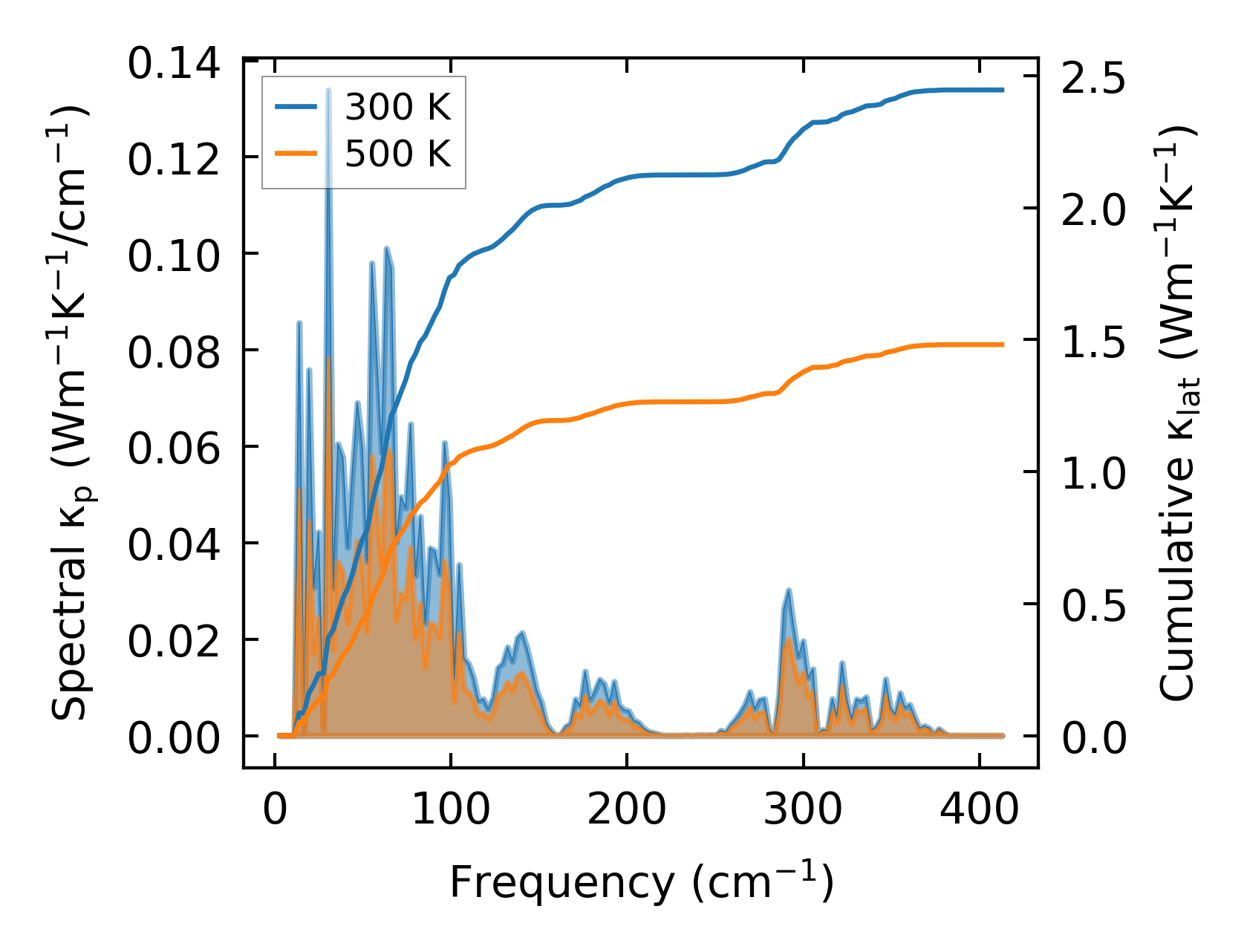

../../_images/fig_cumu_frequency2001.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

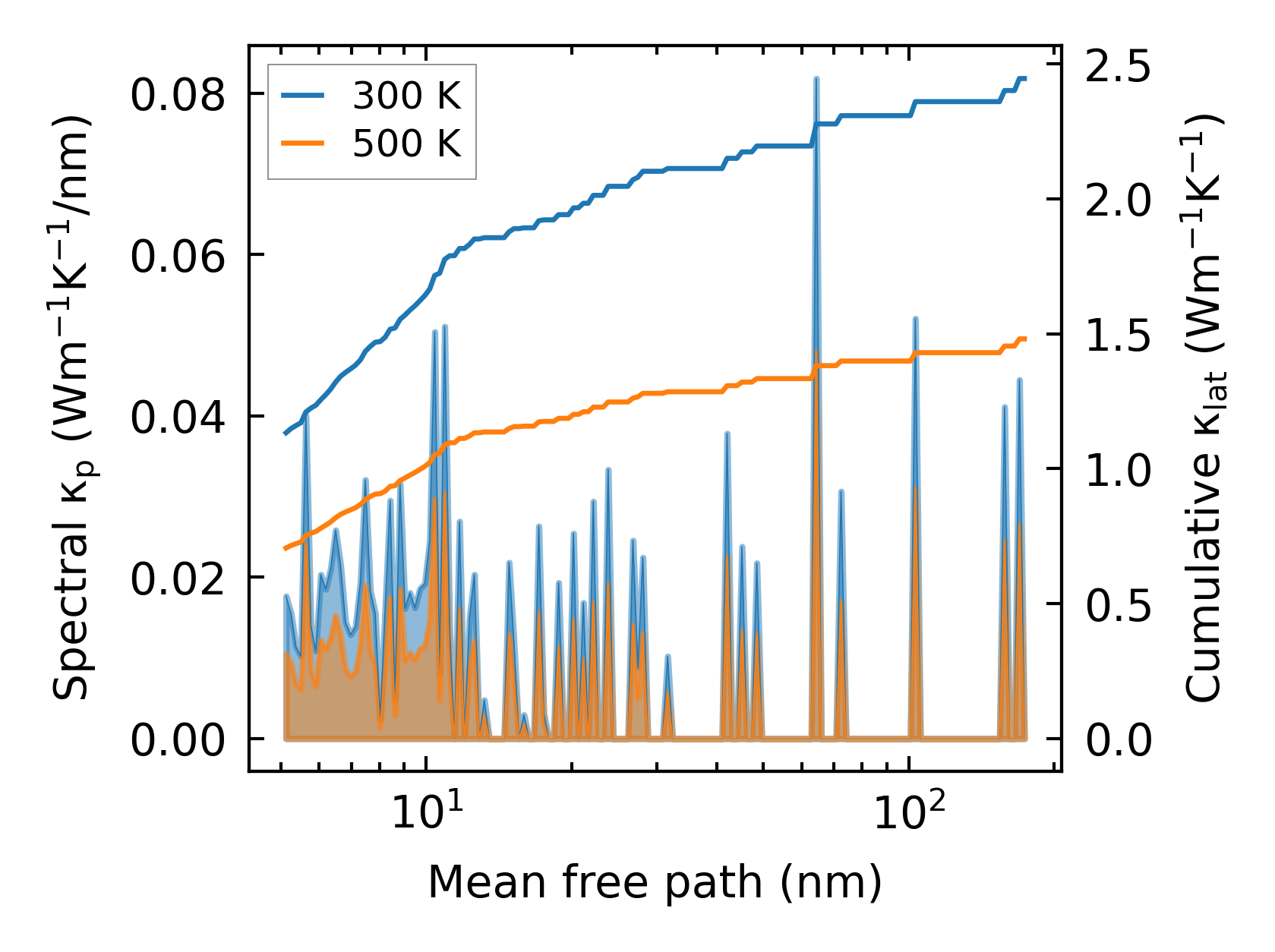

../../_images/fig_cumu_mfp2001.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

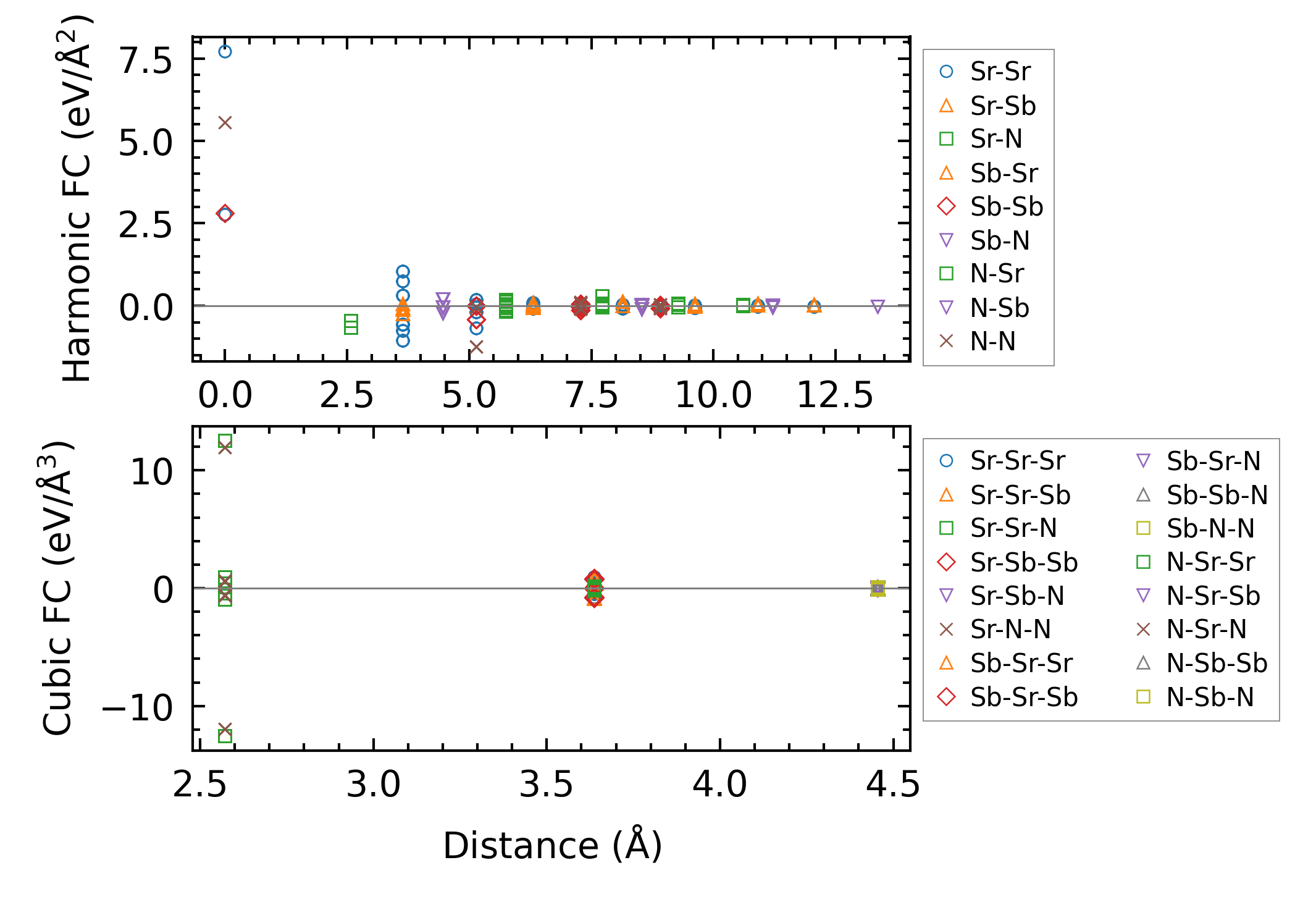

../../_images/fig_fc3188.png — (a) Force constants w.r.t atomic distance

Summary

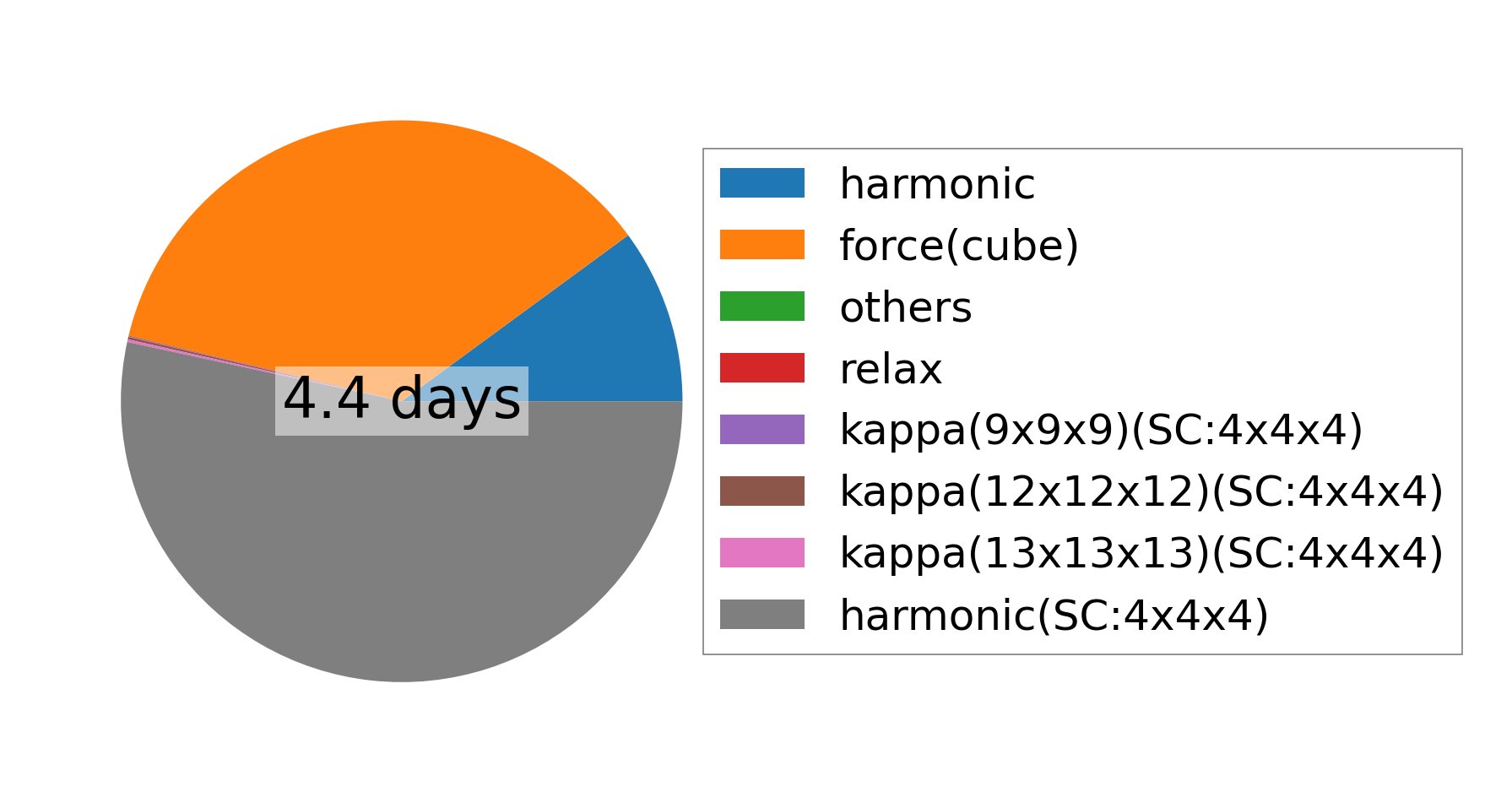

../../_images/fig_times8249.png — (a) Computation time
