mp-7288/Sc2SO2/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-7288.tar.gz

Harmonic properties

../../_images/fig_bandos_pr4501.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4501.png — (b) Thermodynamic properties

Grüneisen parameters

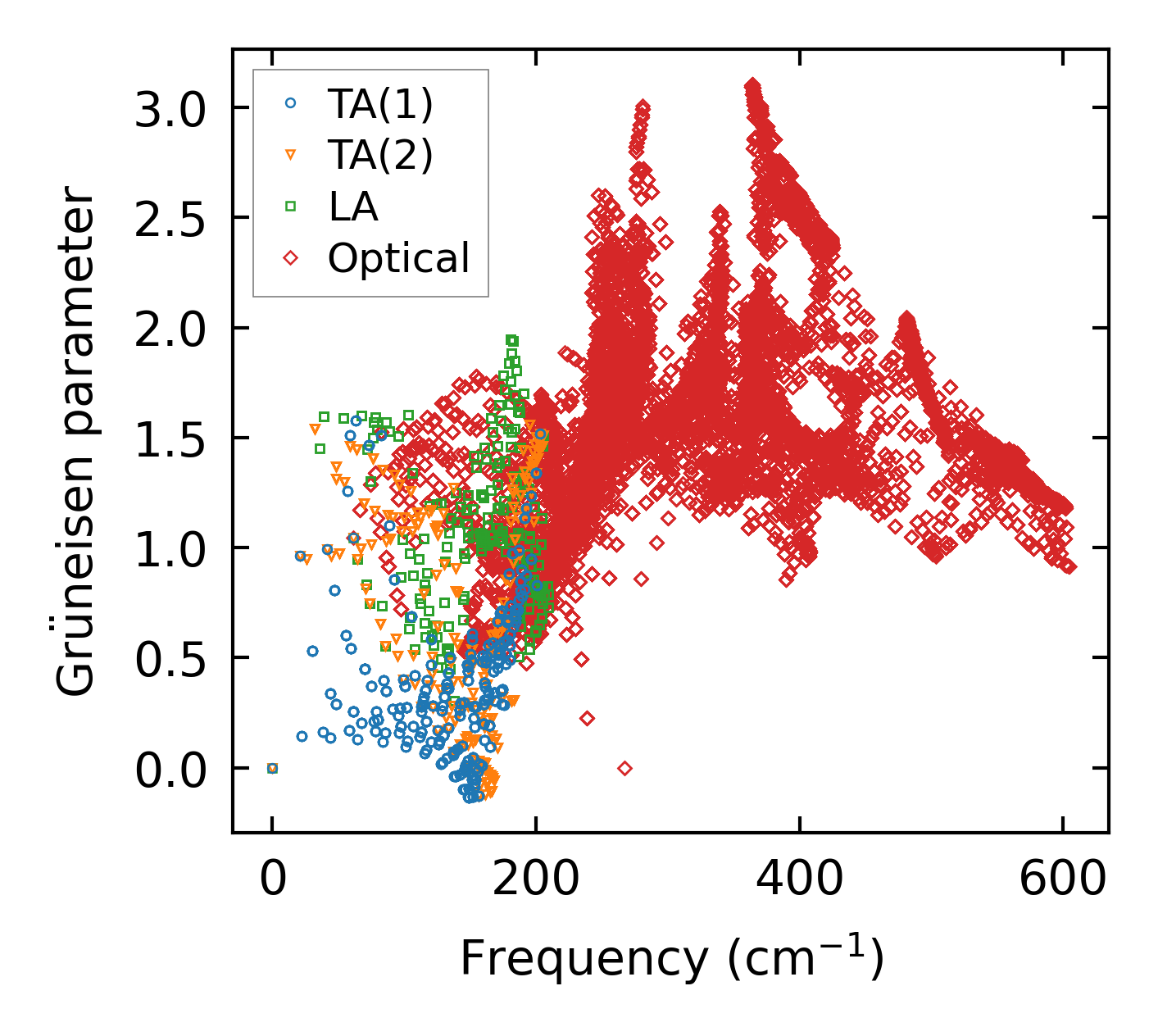

../../_images/fig_gru_all1928.png — (a) Grüneisen parameters

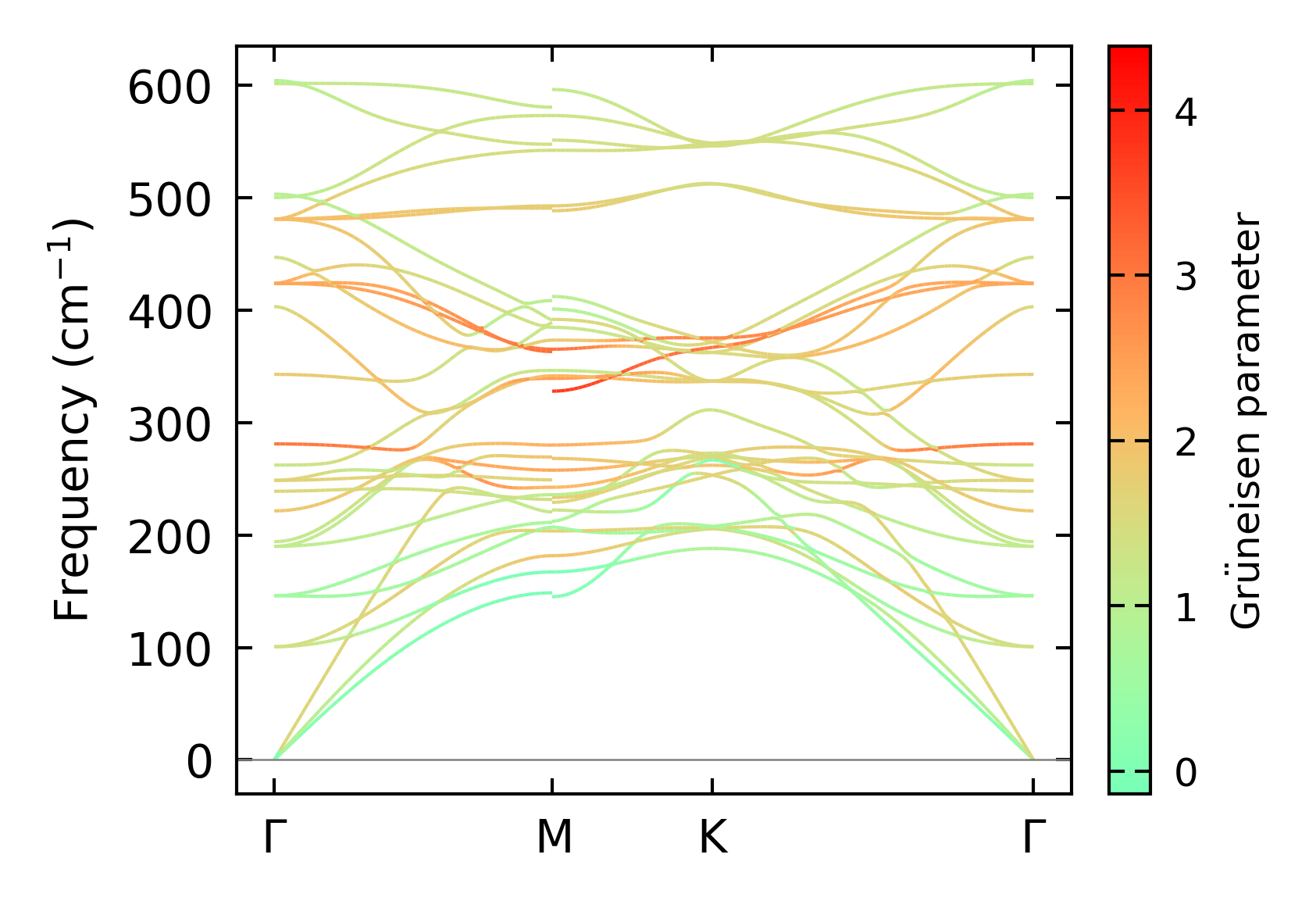

../../_images/fig_gruneisen1928.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 21x21x6, supercell: 3x3x1

../../_images/fig_kappa3692.png — (a) Temperature-dependent lattice thermal conductivity

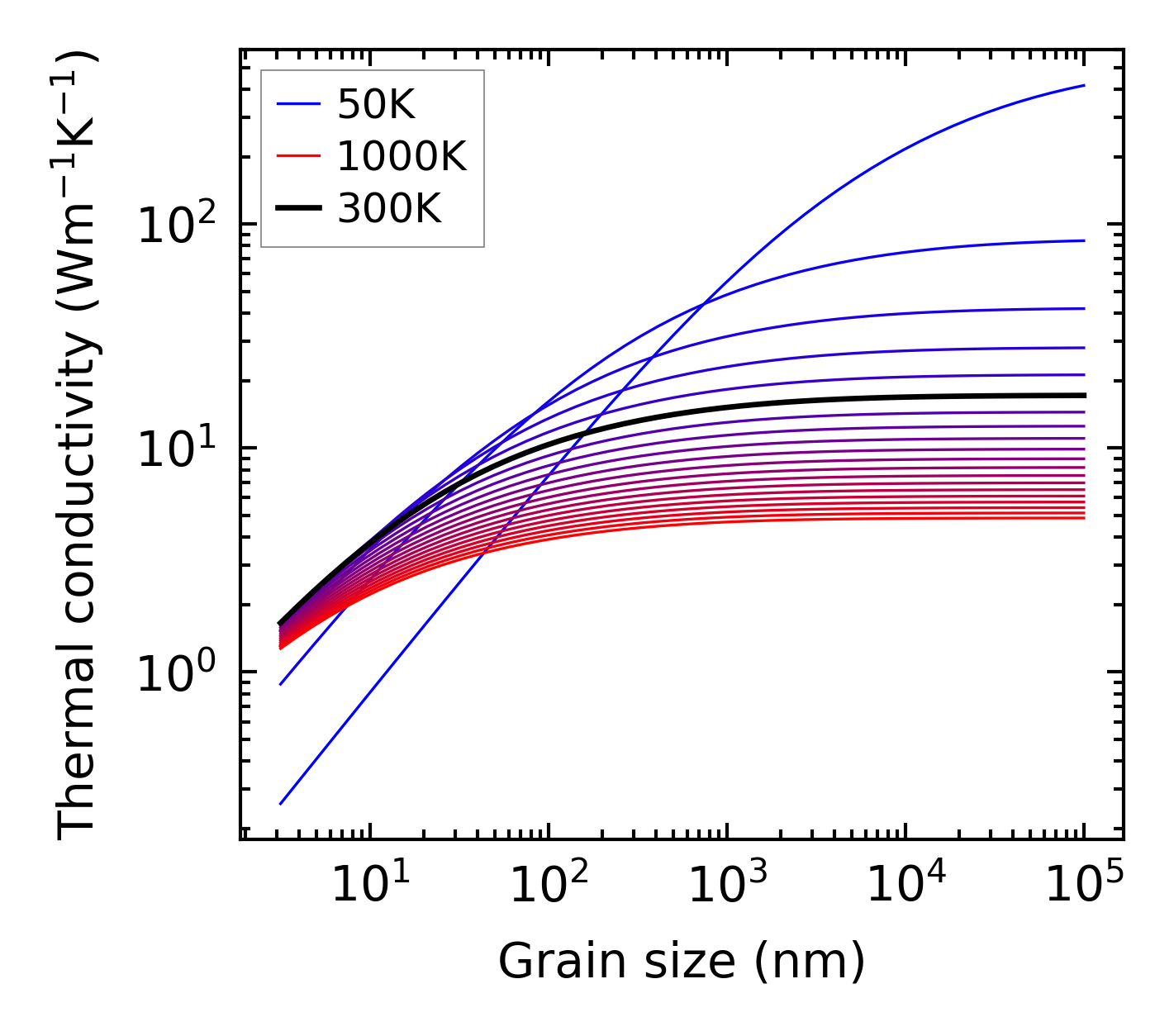

../../_images/fig_kappa_vs_grain_size1955.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1917.png — (a) Phonon lifetime due to phonon-phonon scattering

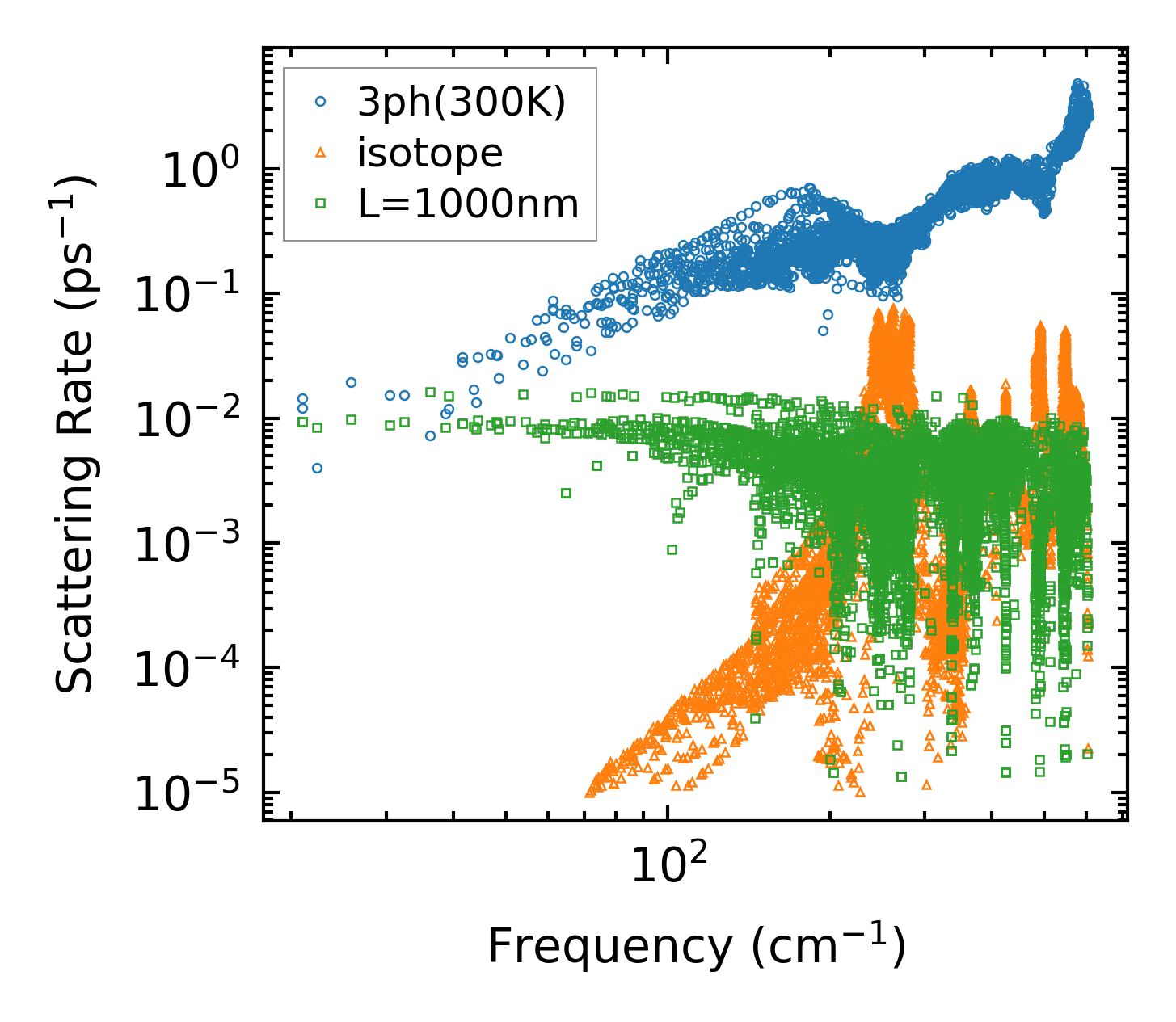

../../_images/fig_scat_rates1916.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

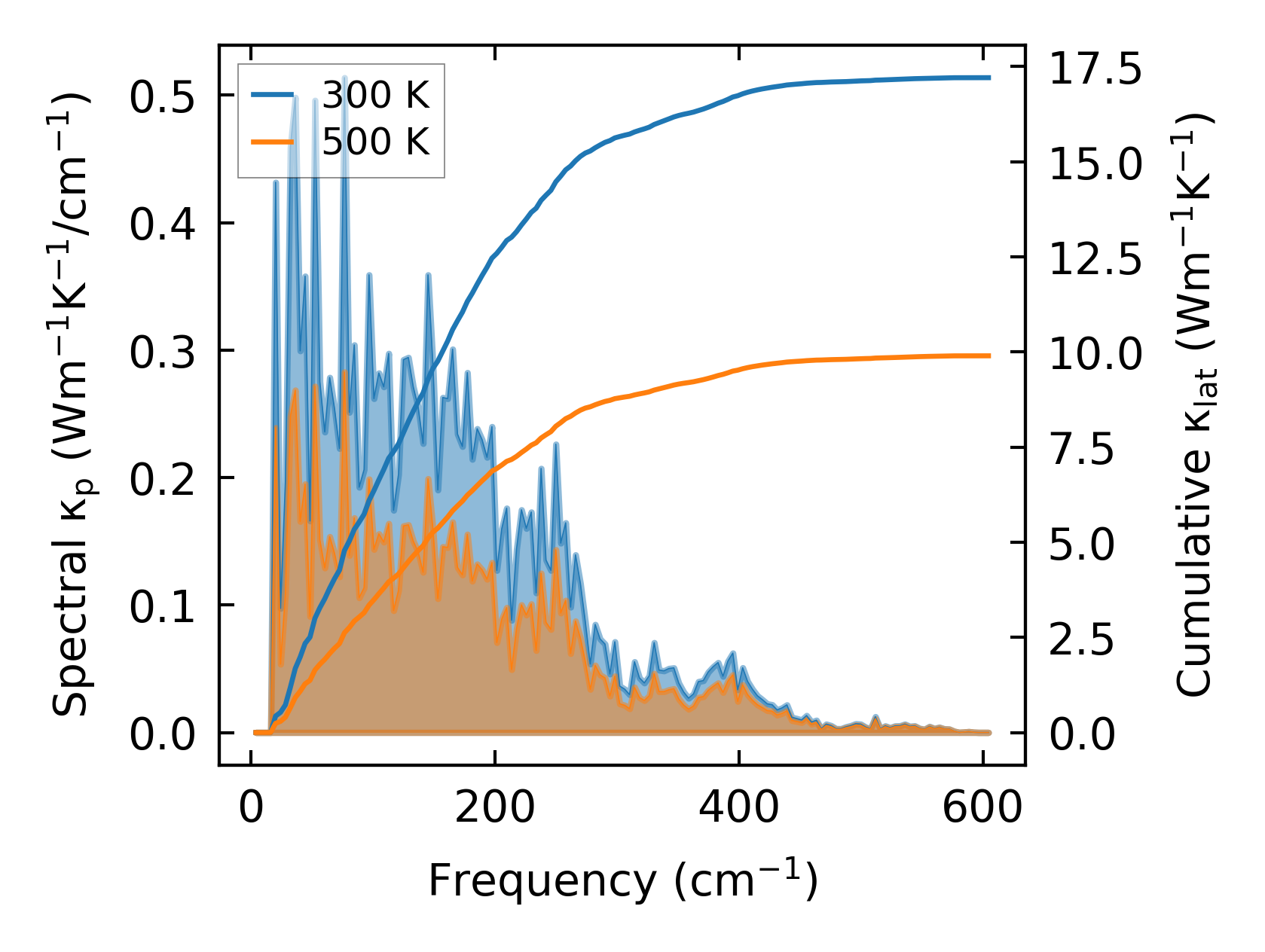

../../_images/fig_cumu_frequency1917.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

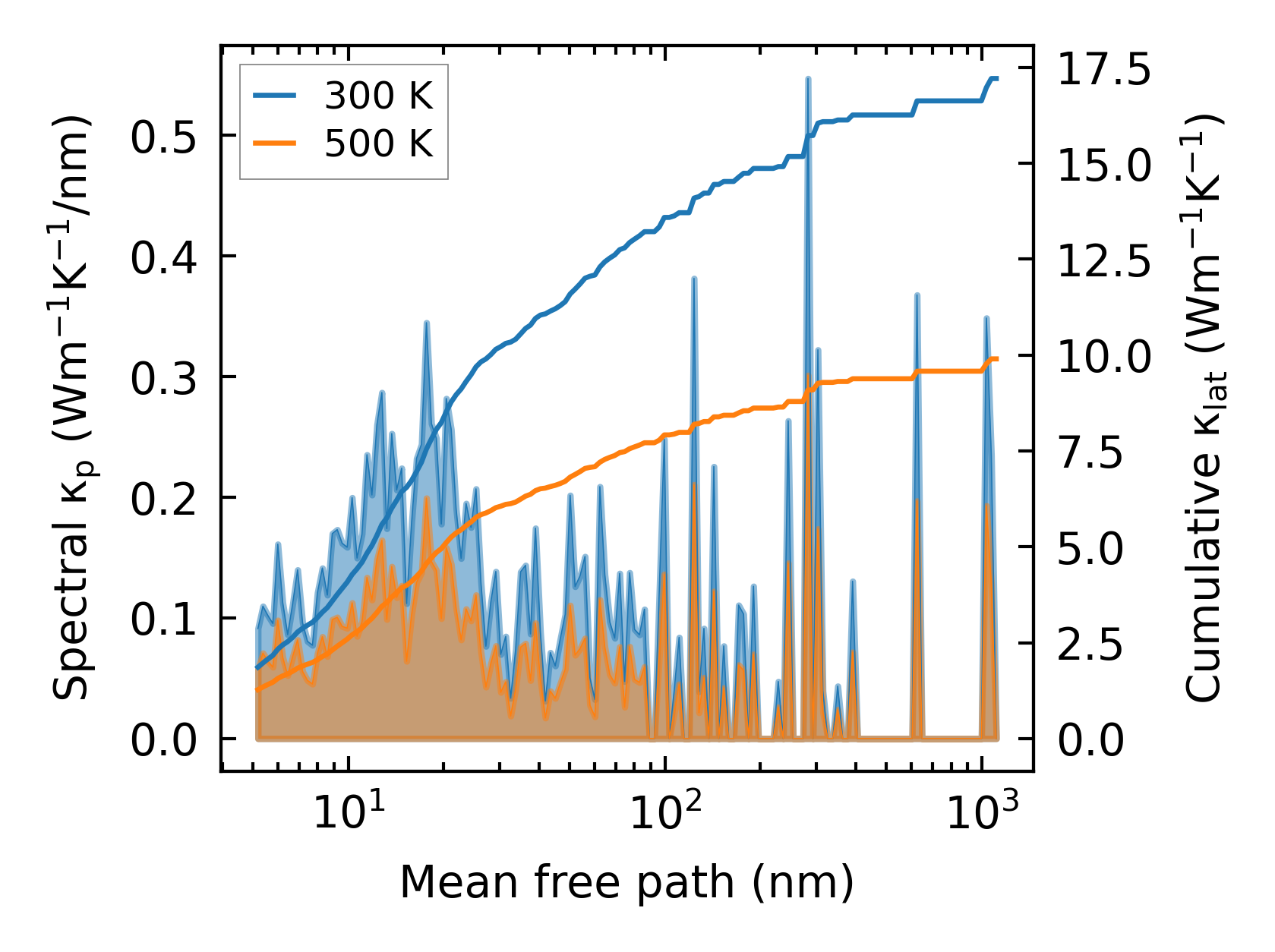

../../_images/fig_cumu_mfp1917.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24313.png — (a) Force constants w.r.t atomic distance

Summary

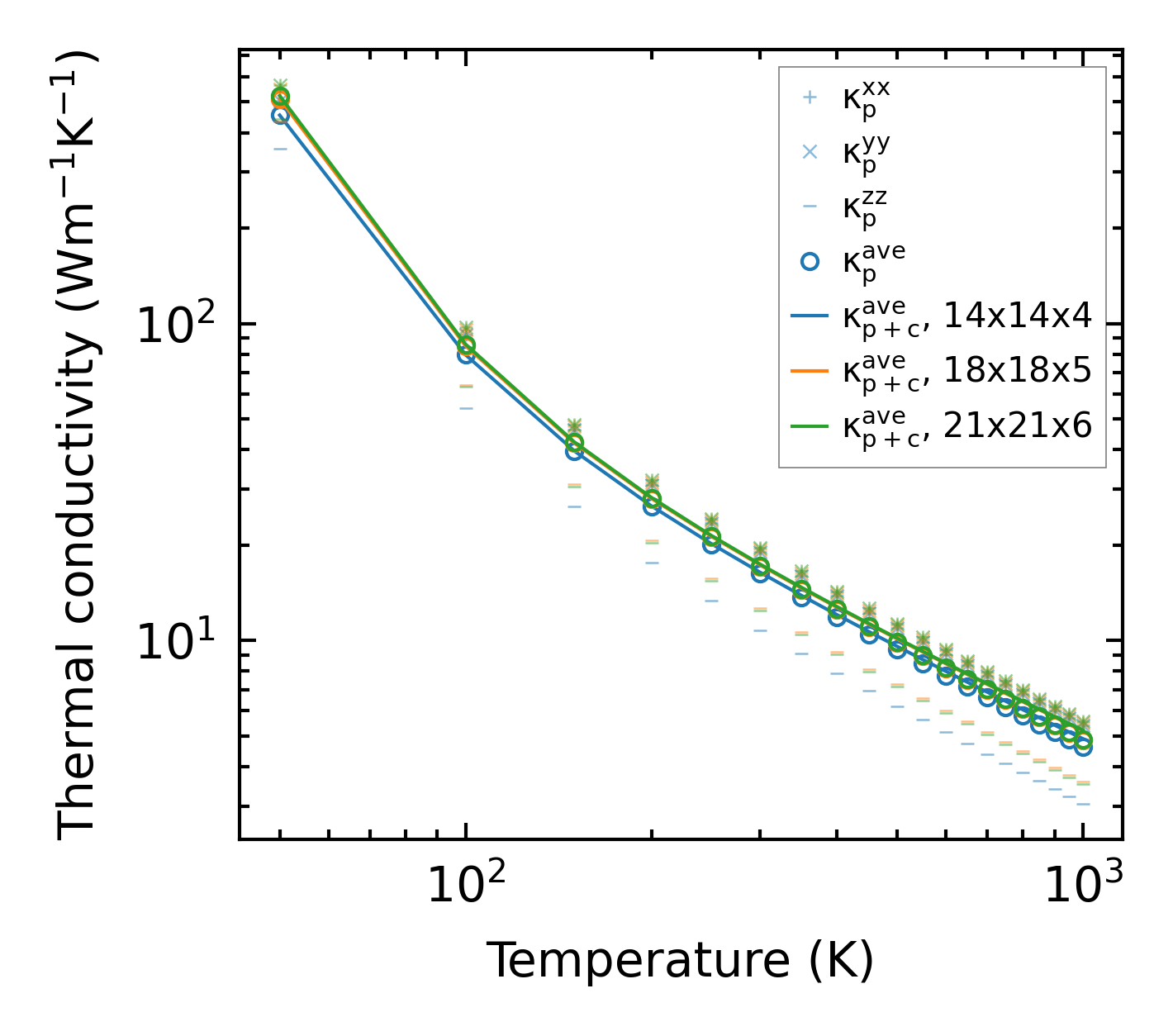

../../_images/fig_kappa3693.png — (a) Temperature-dependent lattice thermal conductivity

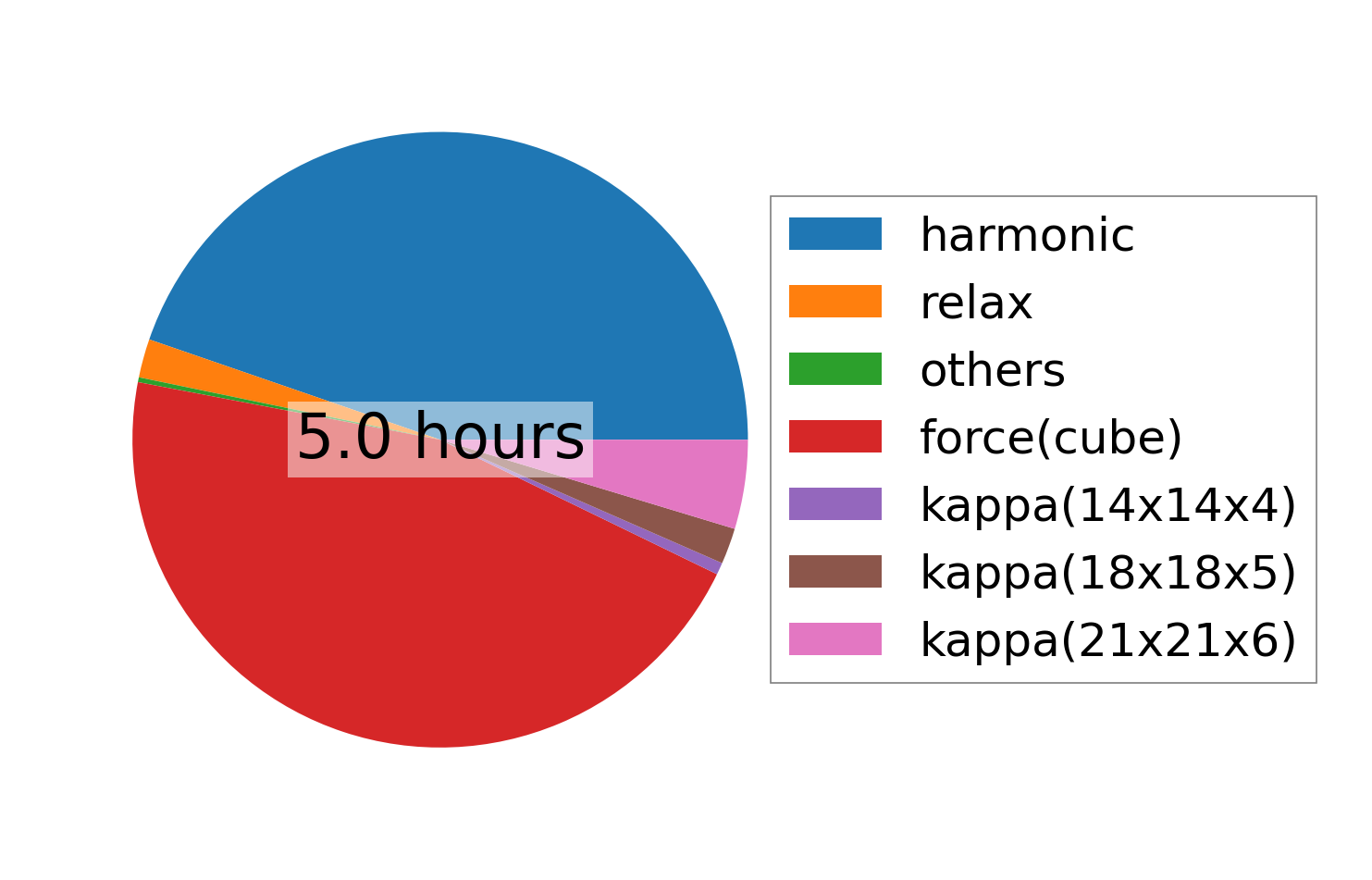

../../_images/fig_times8039.png — (b) Computation time
