mp-7929/Rb2PtS2/anharm

Space group: Immm (71)
Link: Materials Project
Download: mp-7929.tar.gz

Harmonic properties

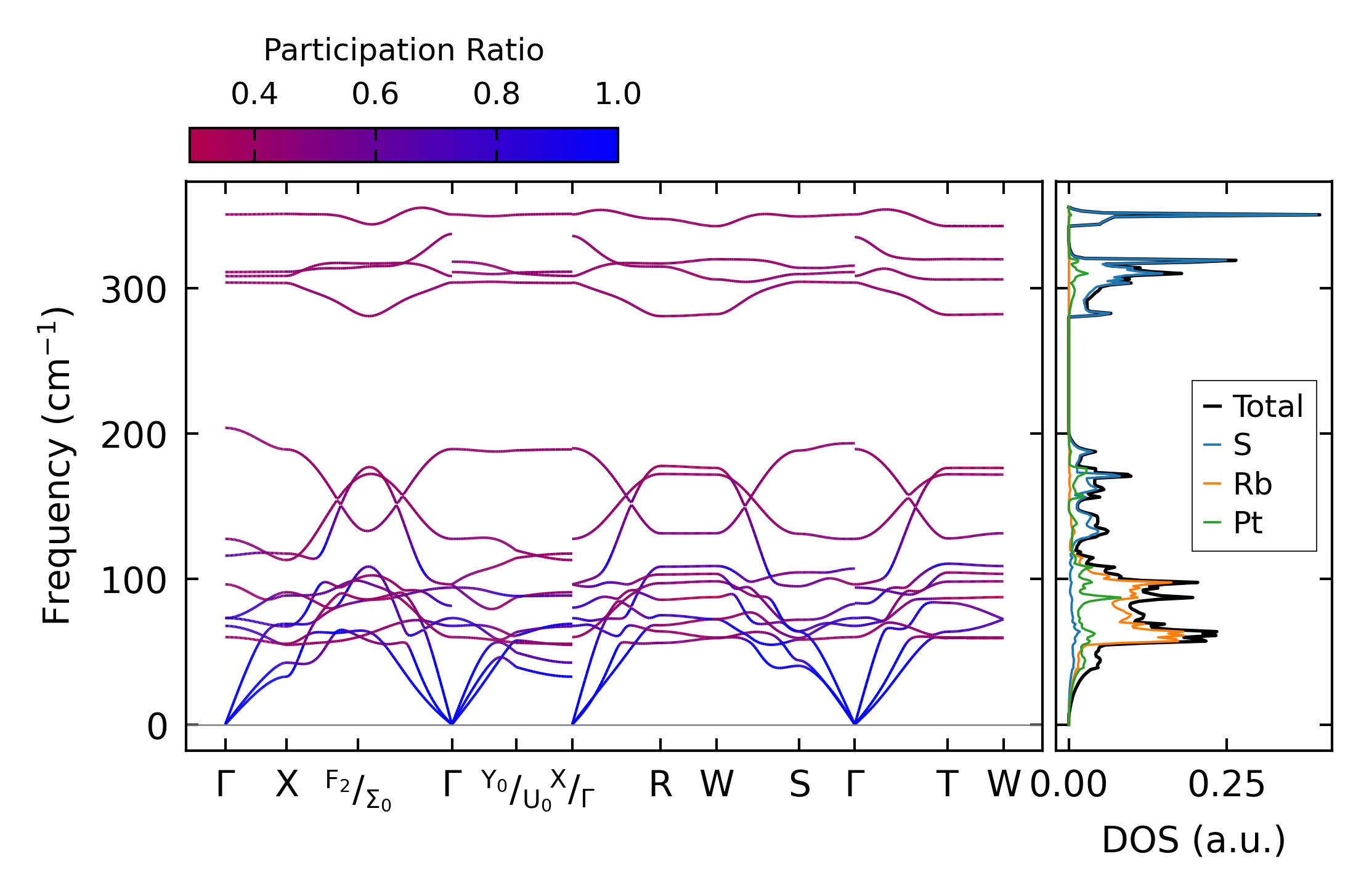

../../_images/fig_bandos_pr4380.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4380.png — (b) Thermodynamic properties

Grüneisen parameters

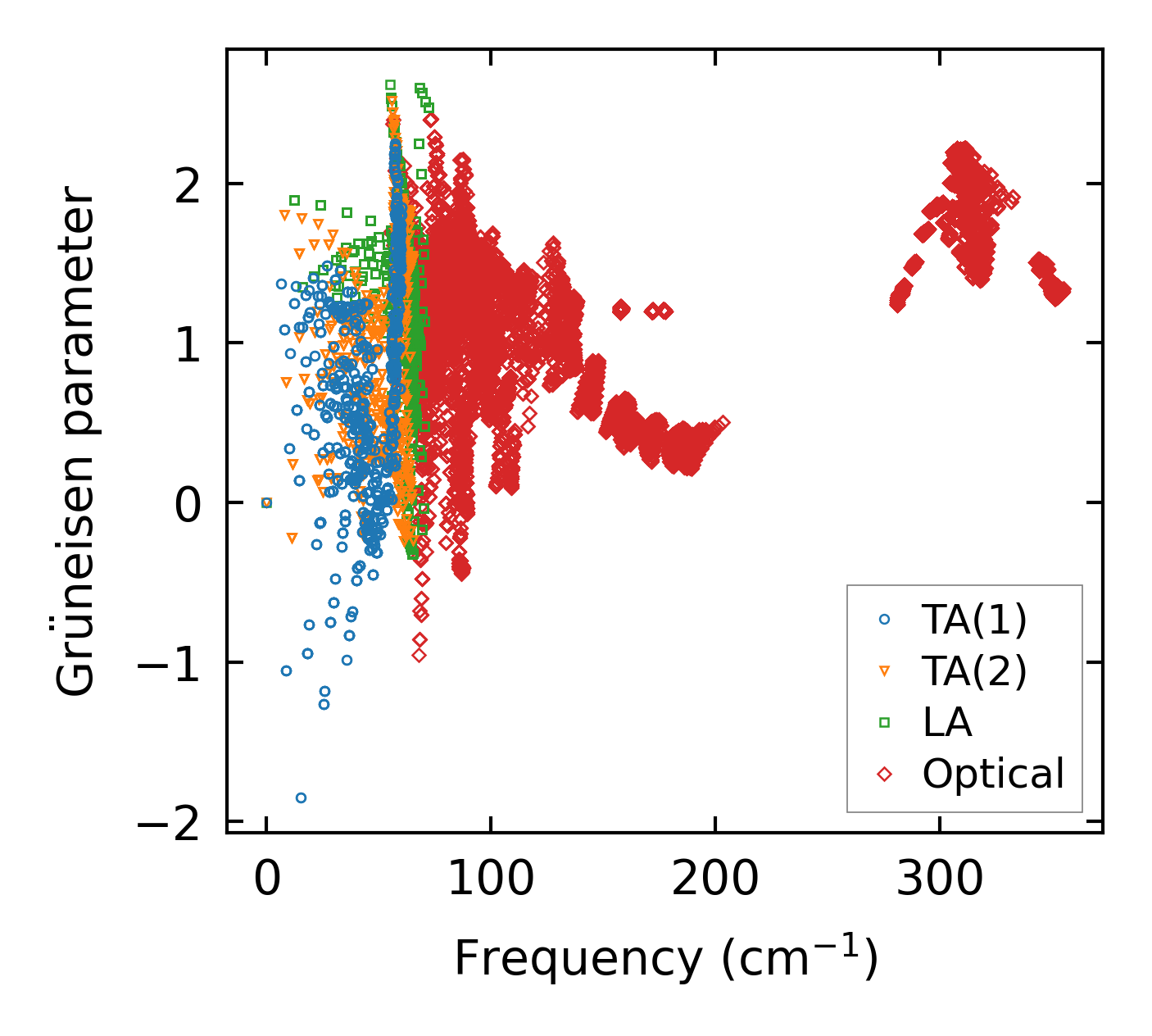

../../_images/fig_gru_all1877.png — (a) Grüneisen parameters

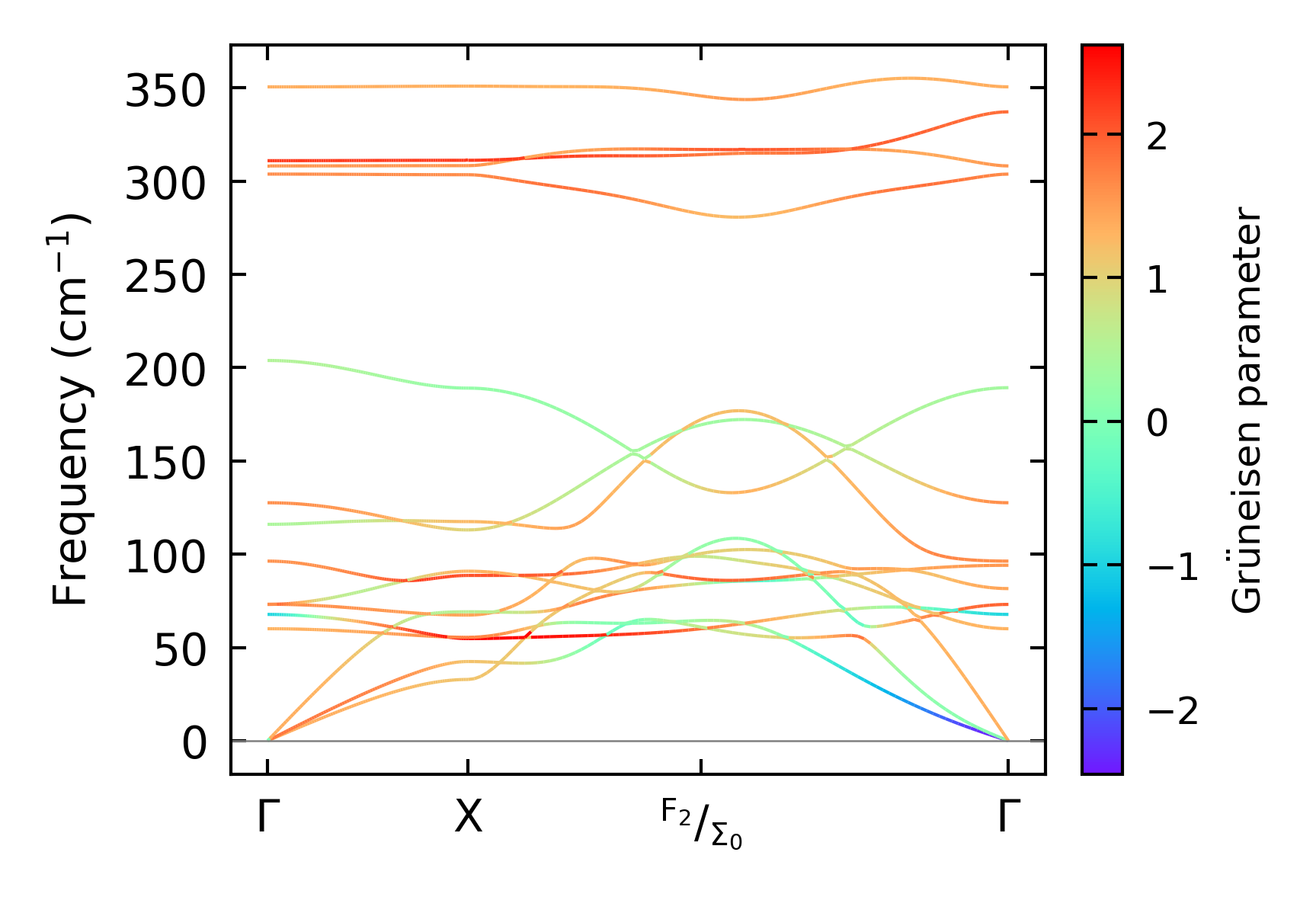

../../_images/fig_gruneisen1877.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 3x2x2

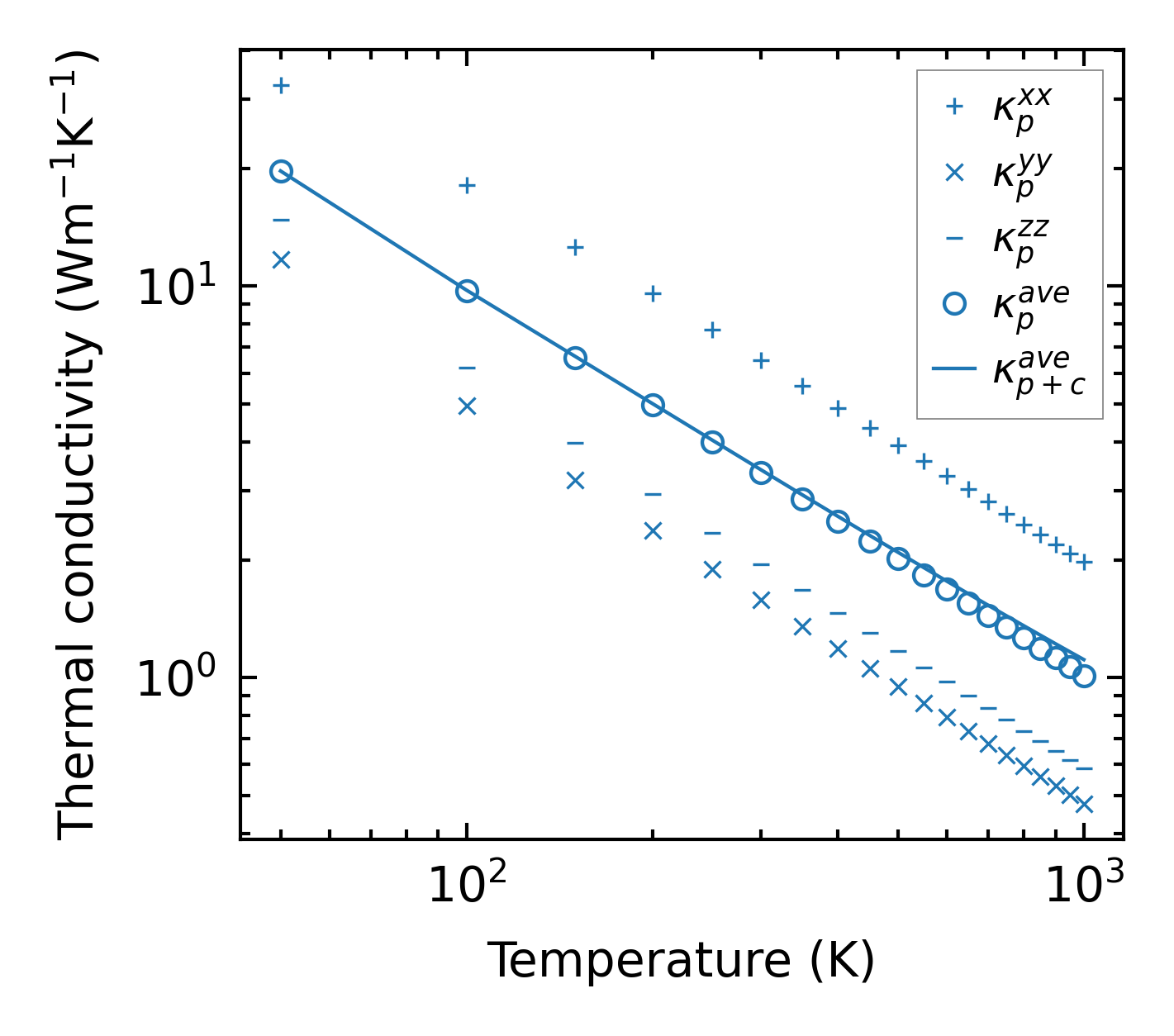

../../_images/fig_kappa3596.png — (a) Temperature-dependent lattice thermal conductivity

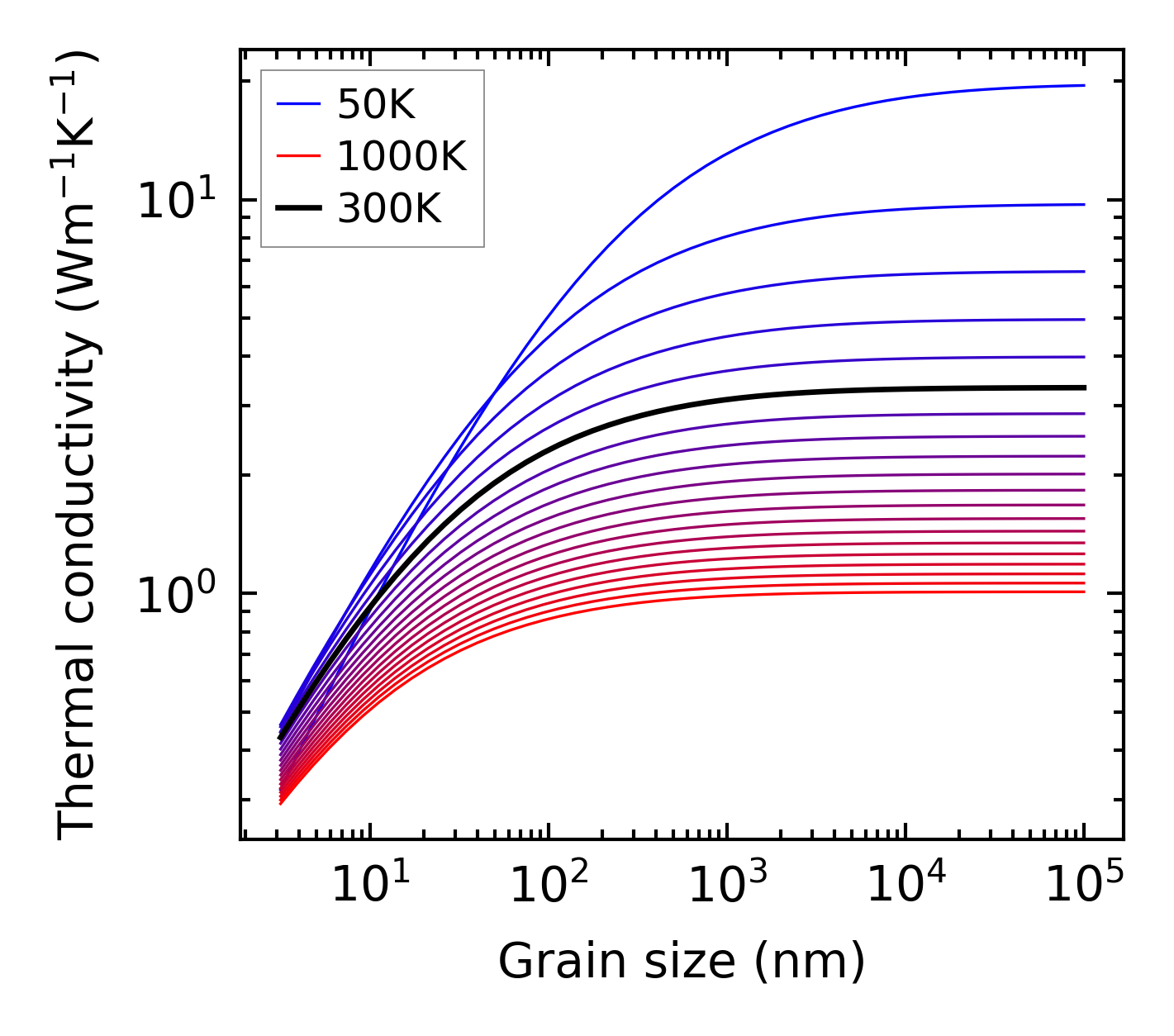

../../_images/fig_kappa_vs_grain_size1905.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

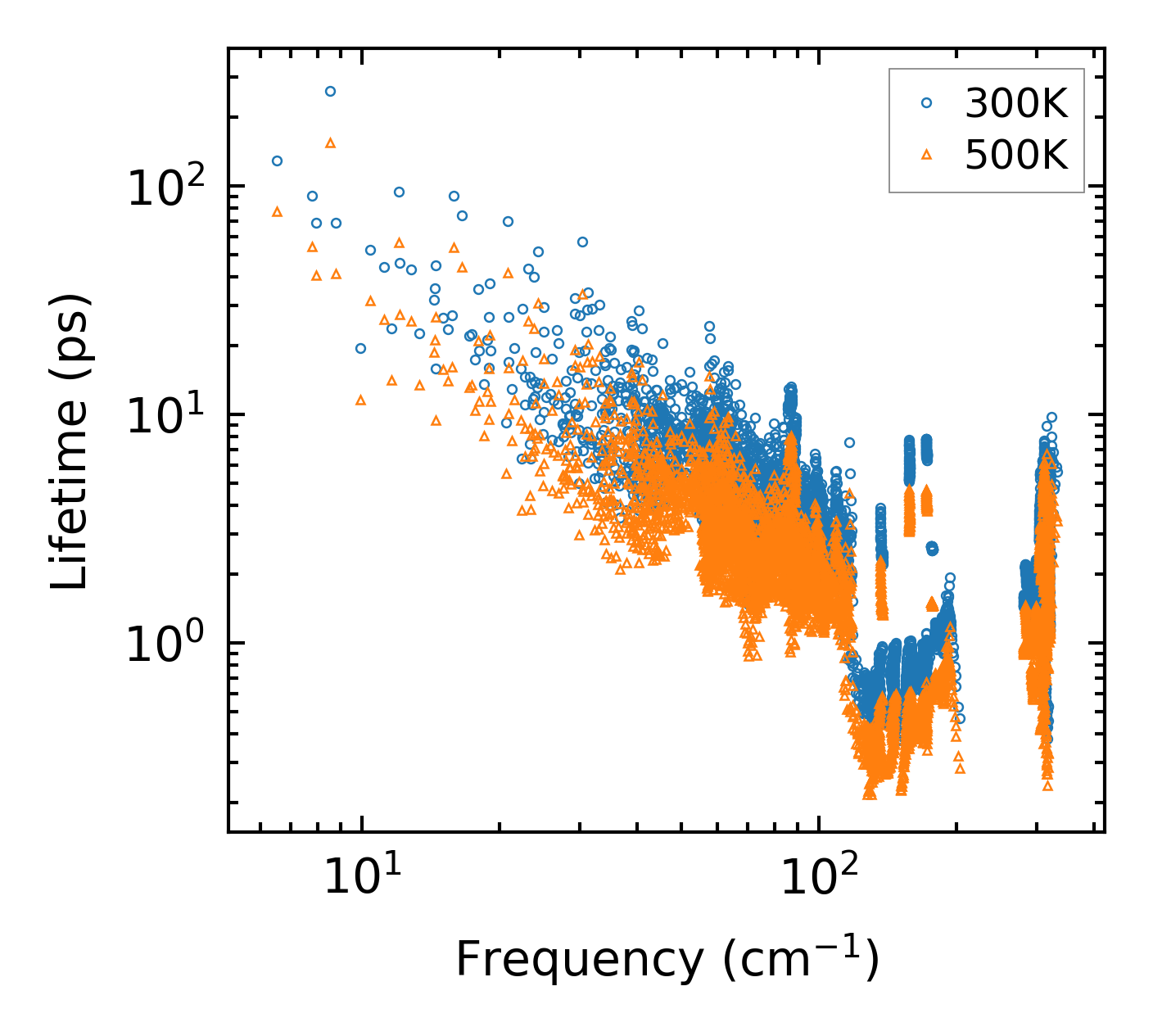

../../_images/fig_lifetime1867.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1866.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1867.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

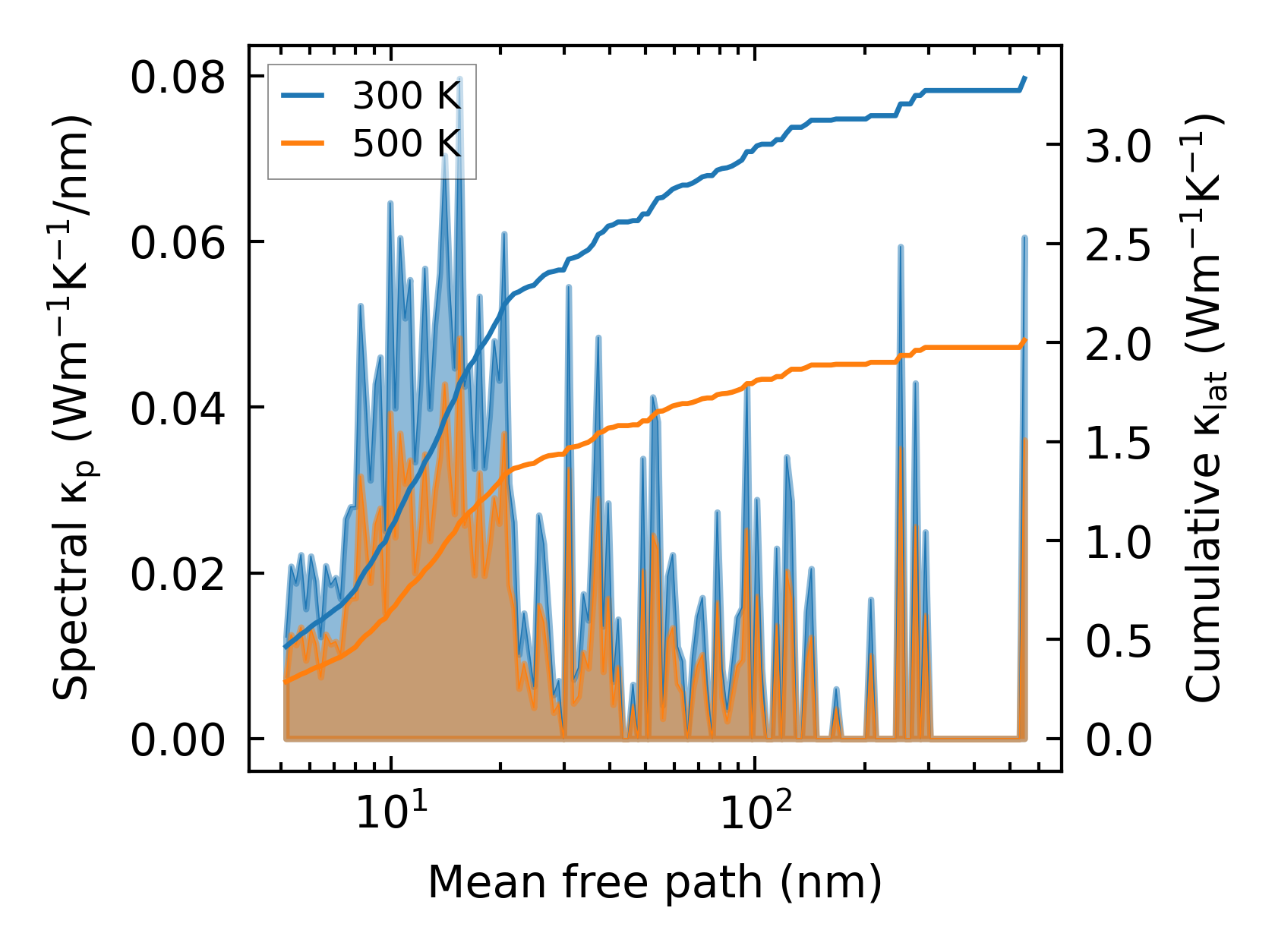

../../_images/fig_cumu_mfp1867.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24193.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3597.png — (a) Temperature-dependent lattice thermal conductivity

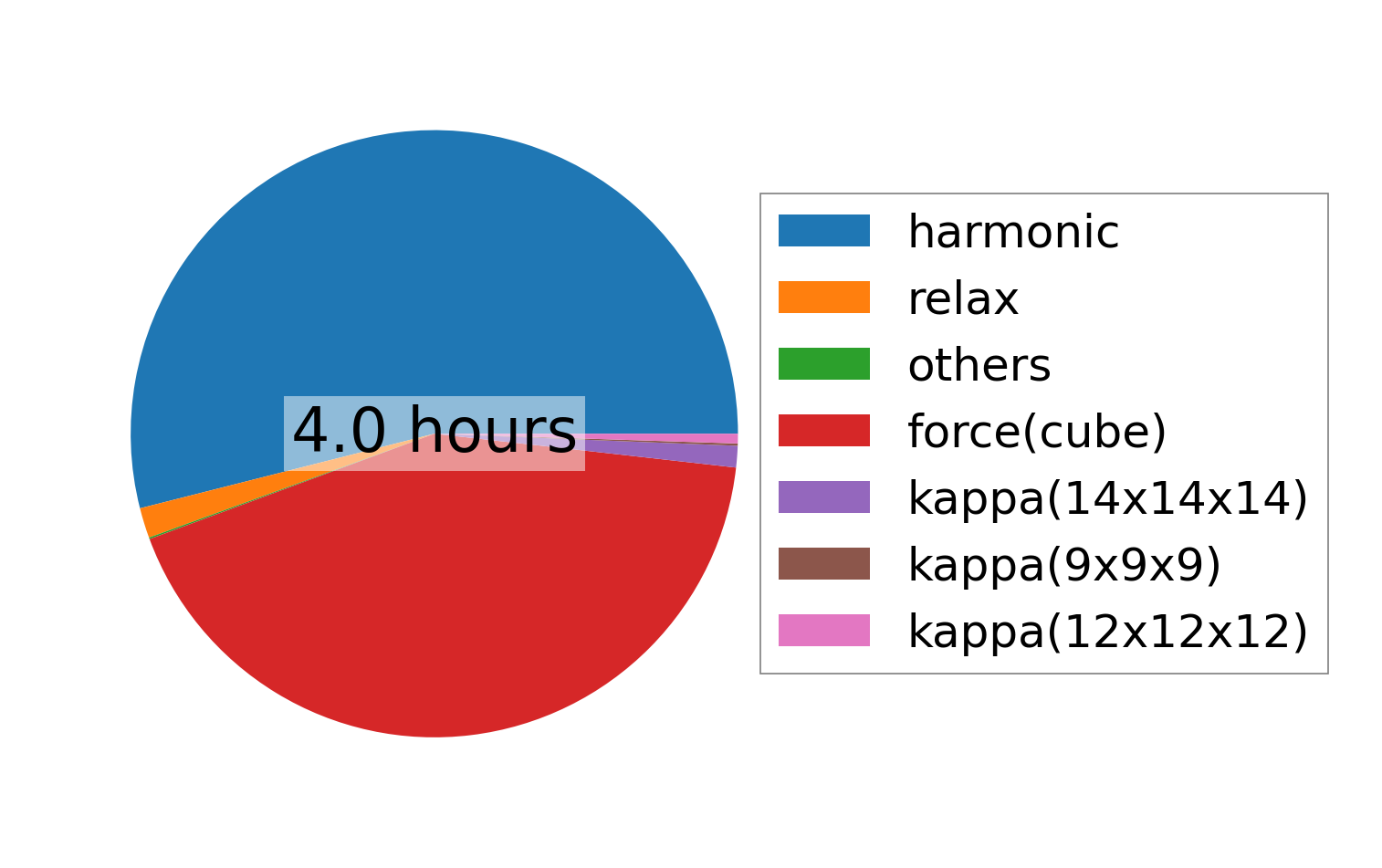

../../_images/fig_times7802.png — (b) Computation time
