mp-7691-2/YB4Mo/anharm

Space group: Pbam (55)
Link: Materials Project
Download: mp-7691-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr4633.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4633.png — (b) Thermodynamic properties

Grüneisen parameters

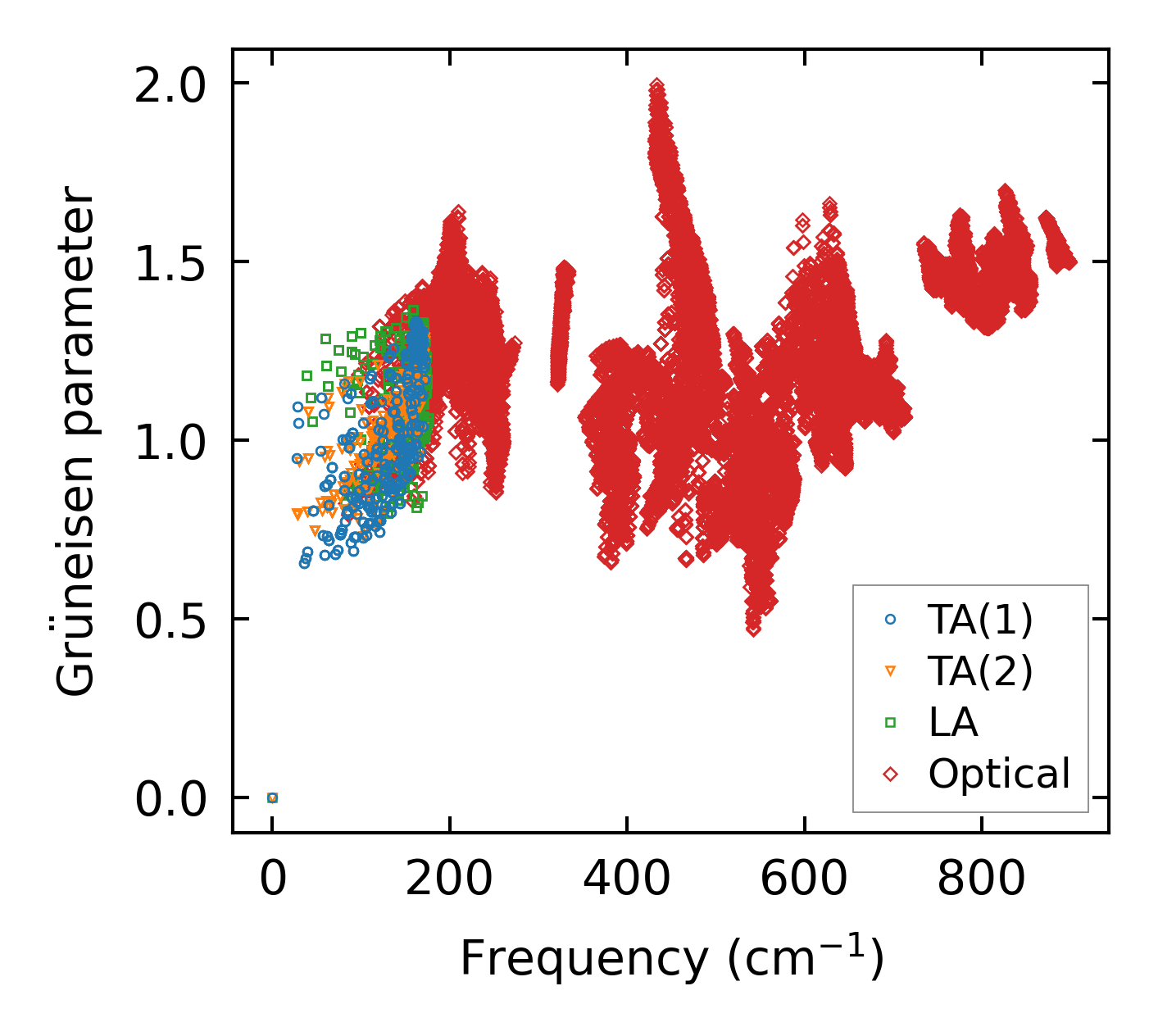

../../_images/fig_gru_all2004.png — (a) Grüneisen parameters

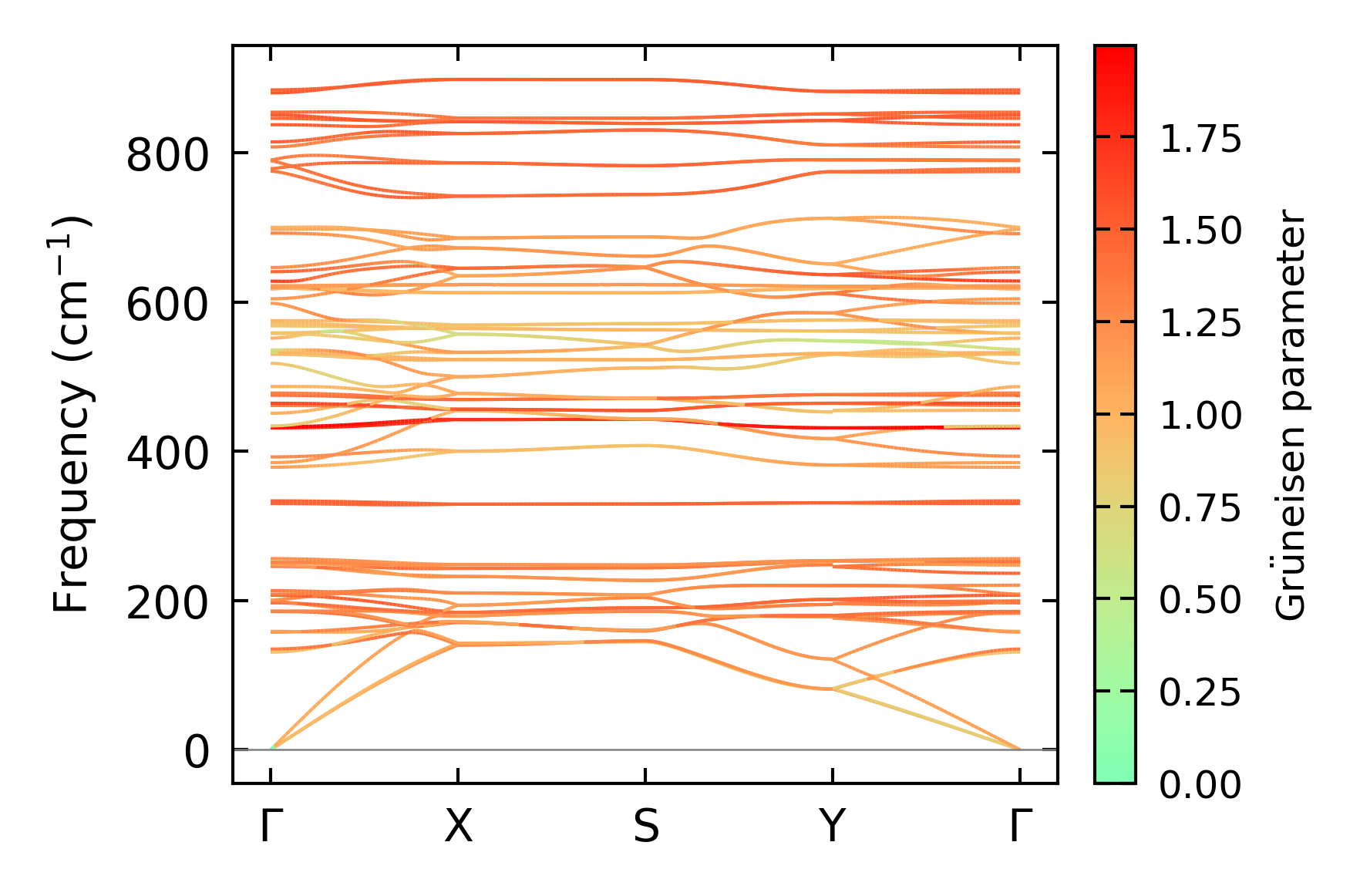

../../_images/fig_gruneisen2004.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x6x20, supercell: 2x1x3

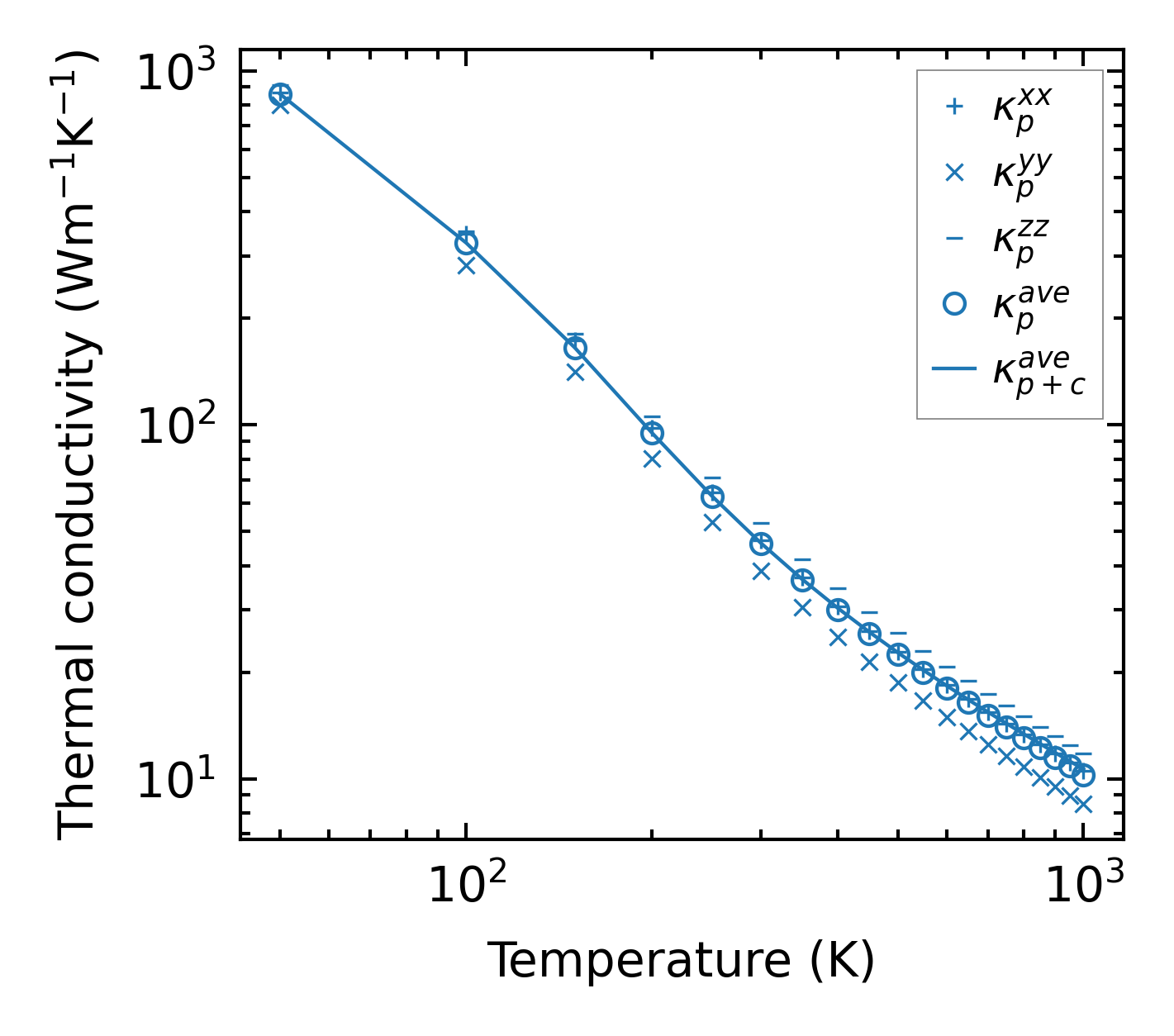

../../_images/fig_kappa3837.png — (a) Temperature-dependent lattice thermal conductivity

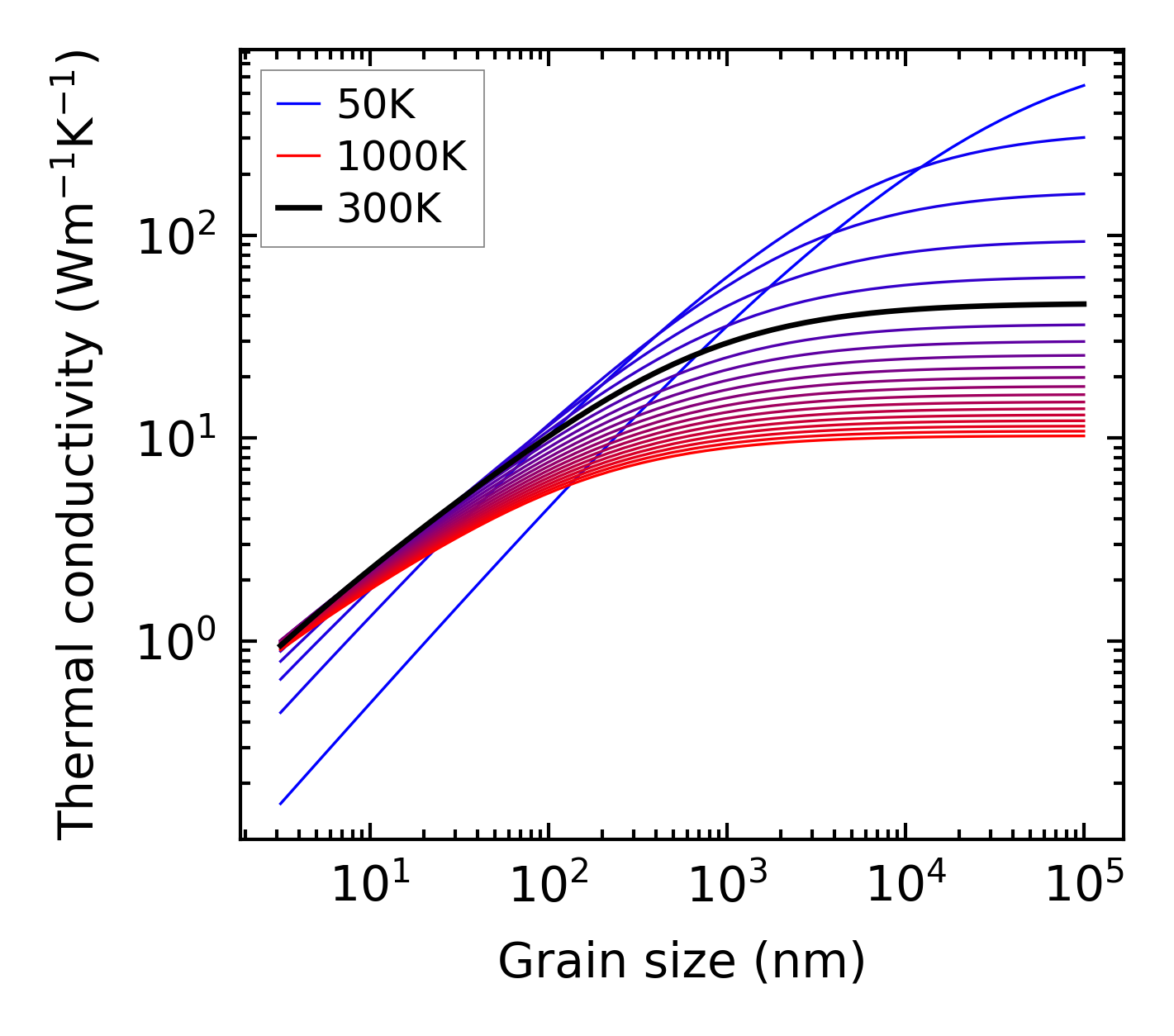

../../_images/fig_kappa_vs_grain_size2031.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

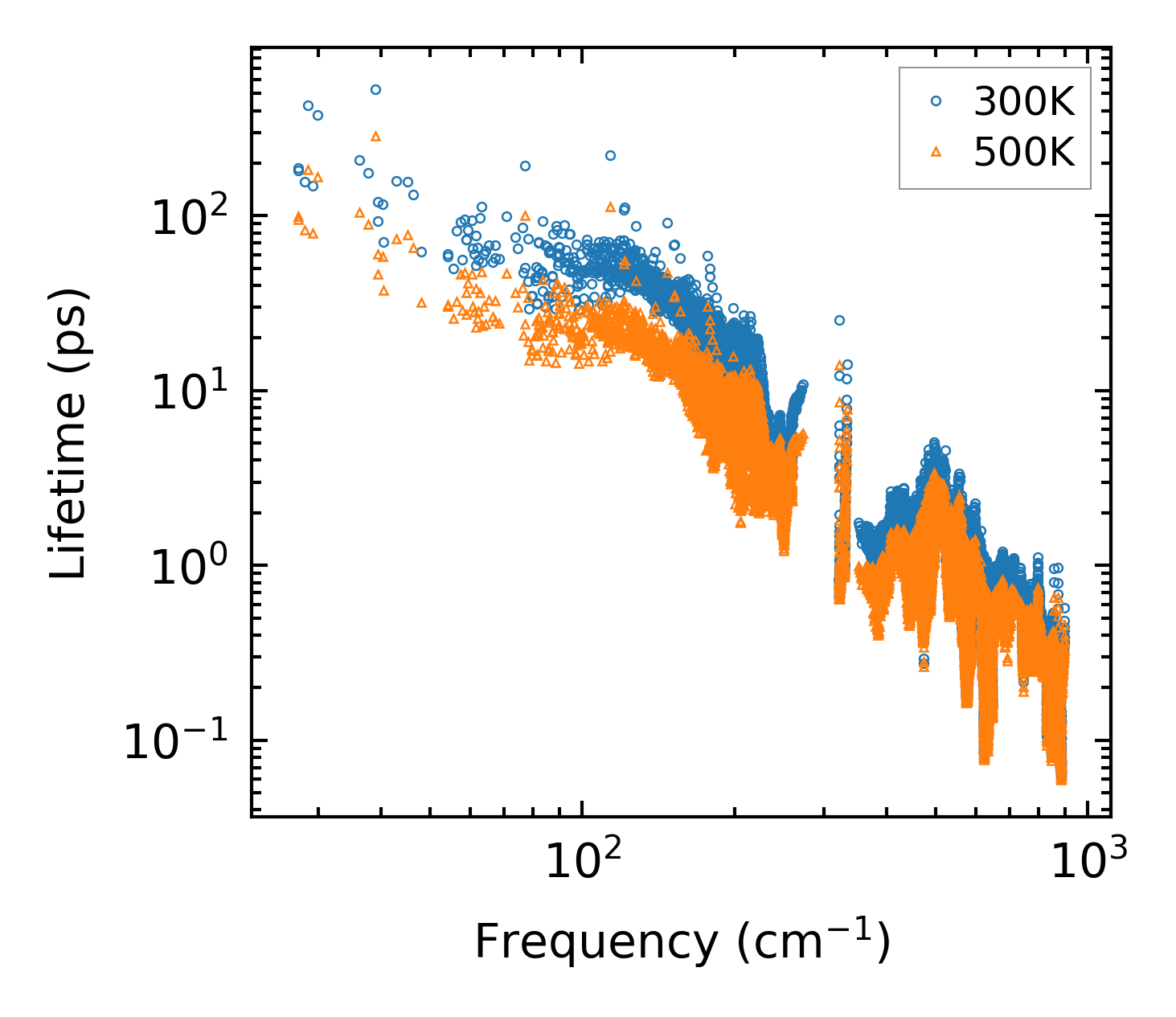

../../_images/fig_lifetime1992.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1991.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

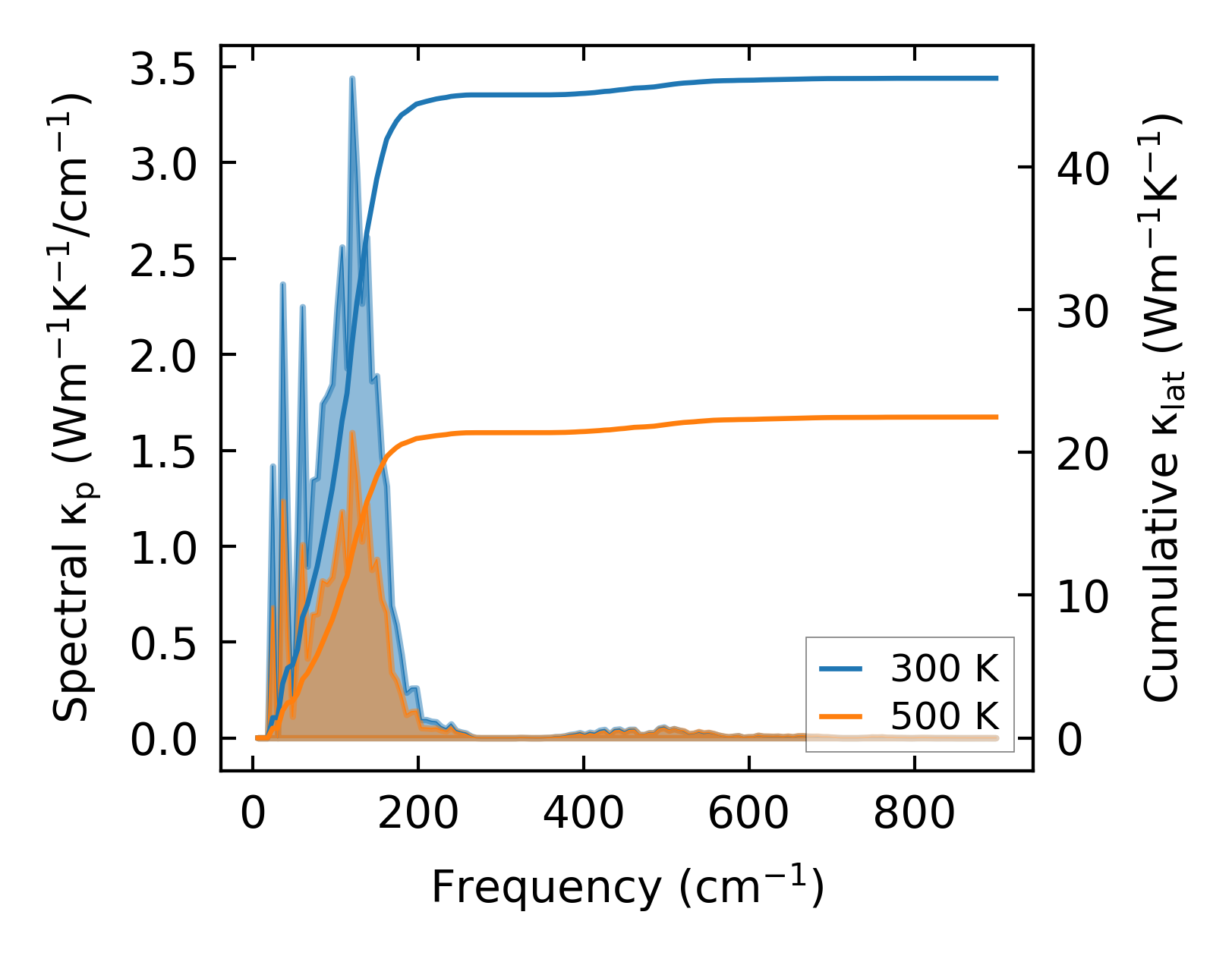

../../_images/fig_cumu_frequency1992.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1992.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24445.png — (a) Force constants w.r.t atomic distance

Summary

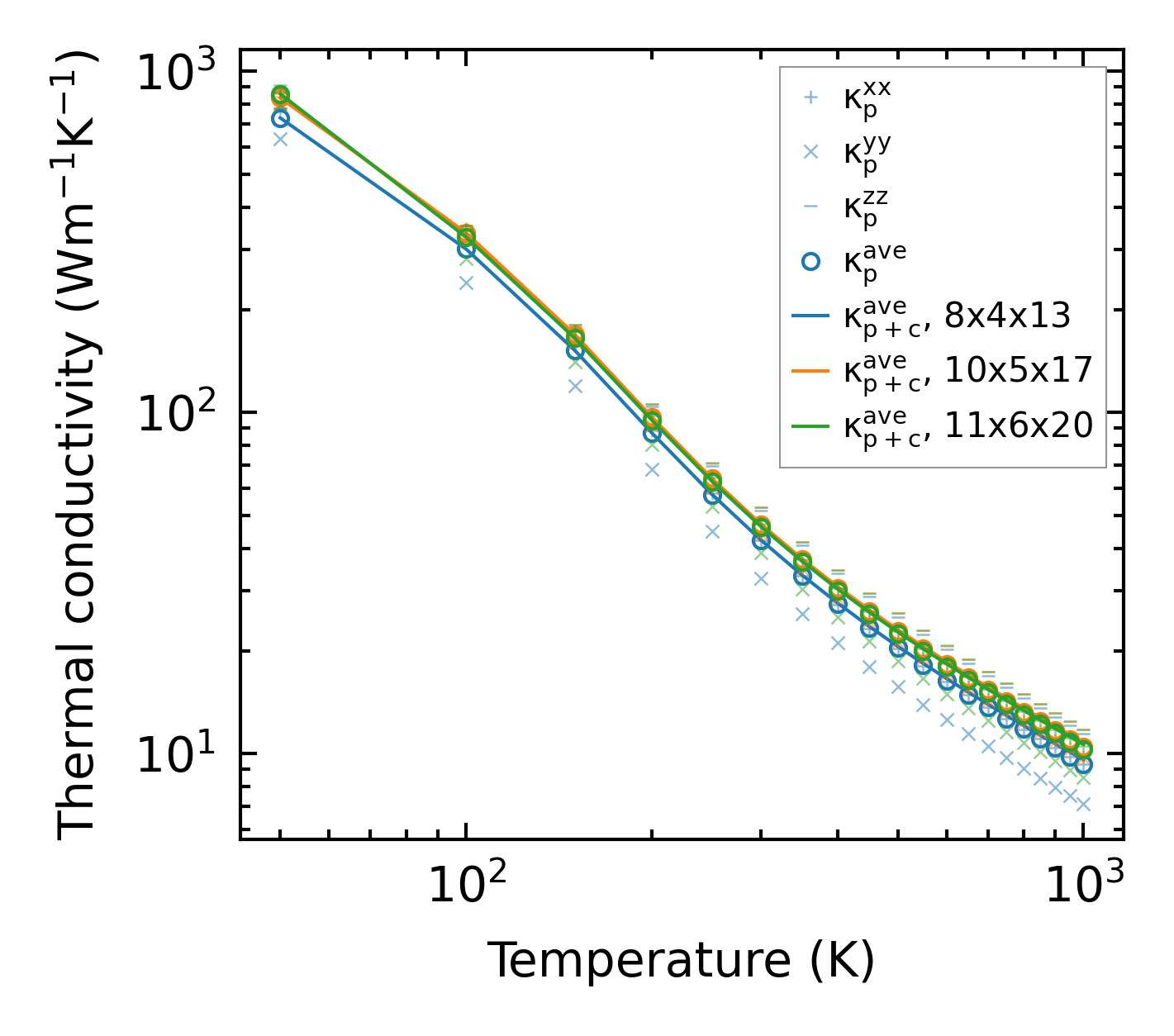

../../_images/fig_kappa3838.png — (a) Temperature-dependent lattice thermal conductivity

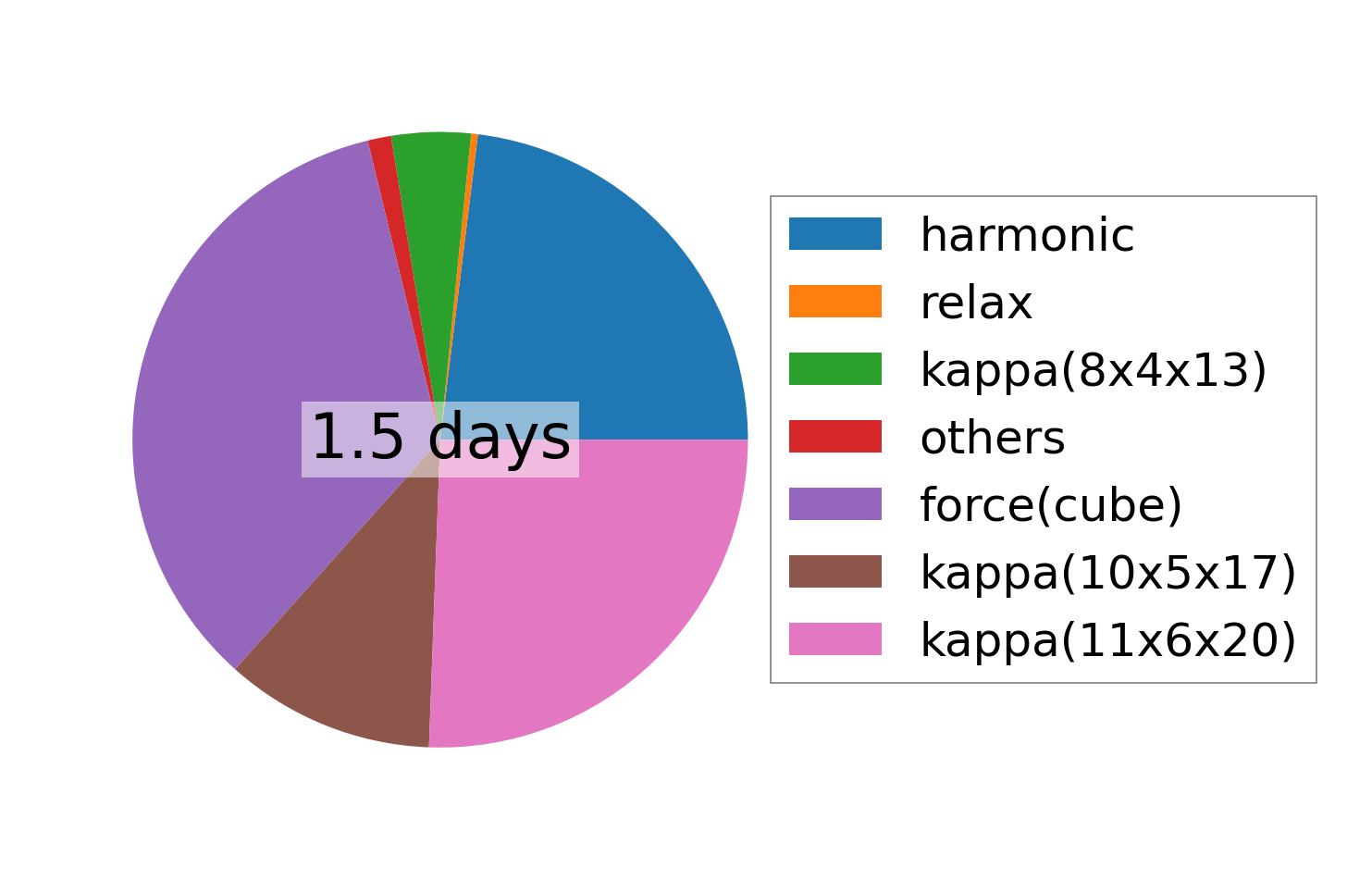

../../_images/fig_times8224.png — (b) Computation time
