mp-7899/BaCdO2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-7899.tar.gz

Harmonic properties

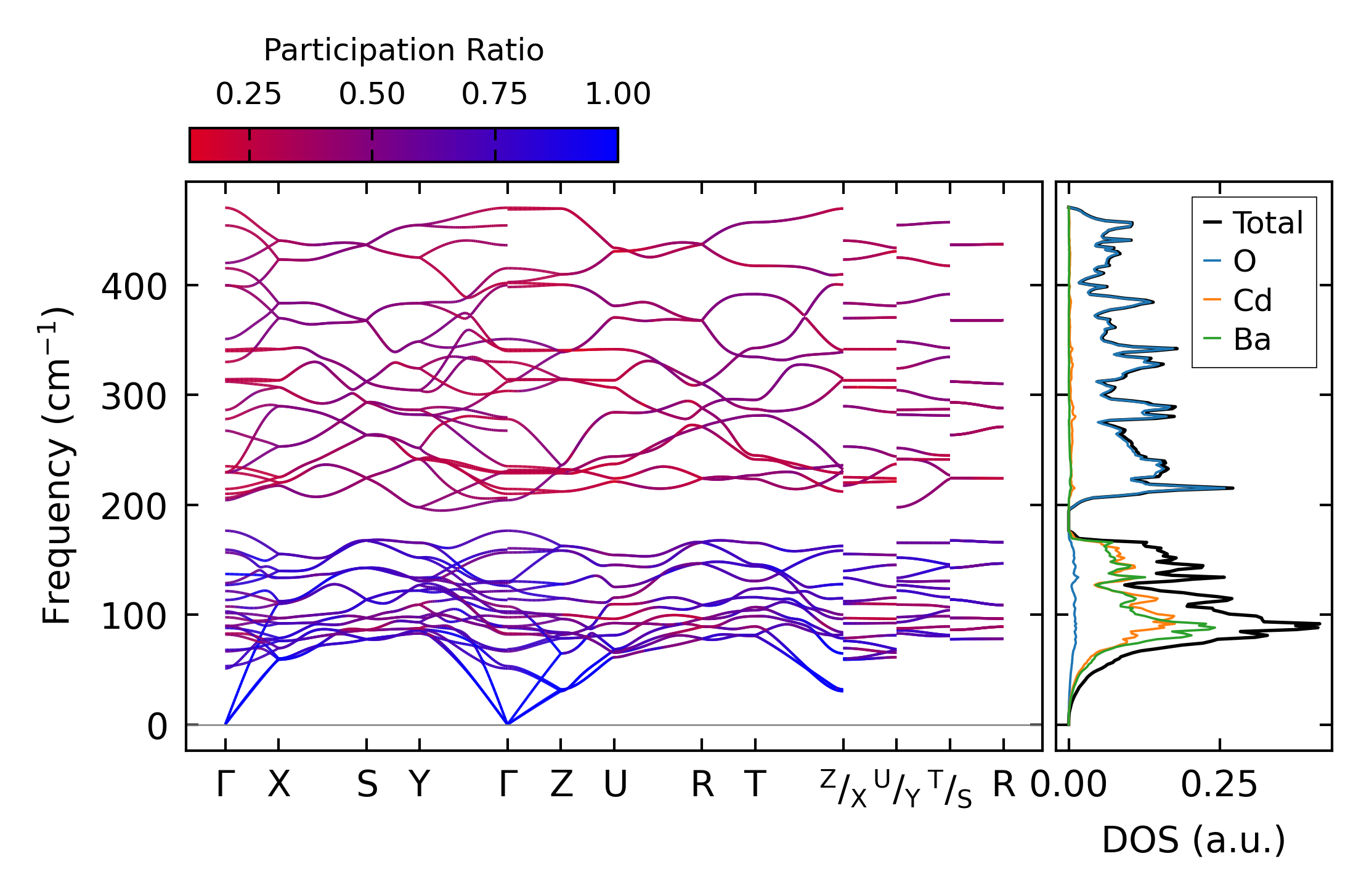

../../_images/fig_bandos_pr4358.png — (a) Phonon dispersion with participation ratio and DOS

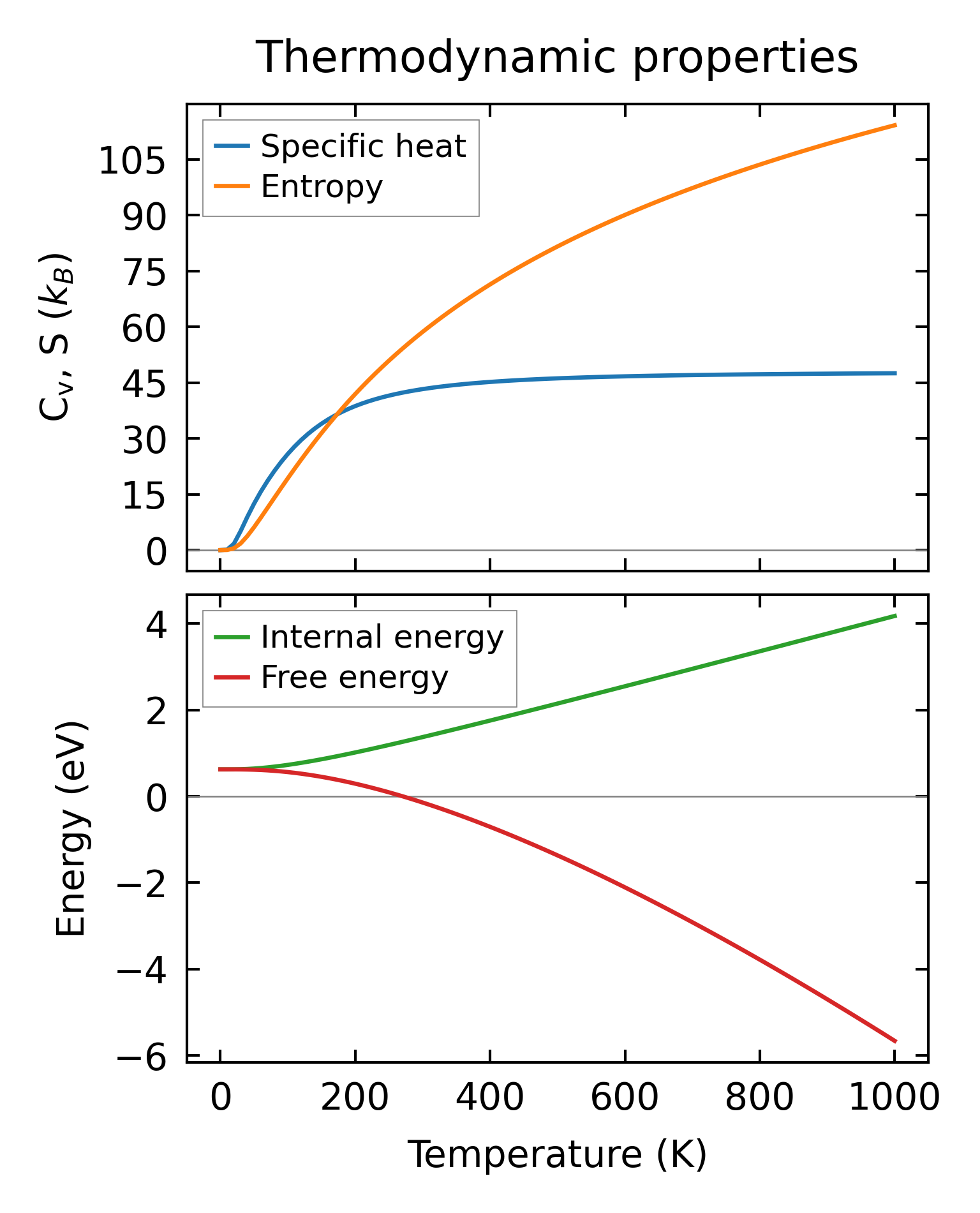

../../_images/fig_thermo4358.png — (b) Thermodynamic properties

Grüneisen parameters

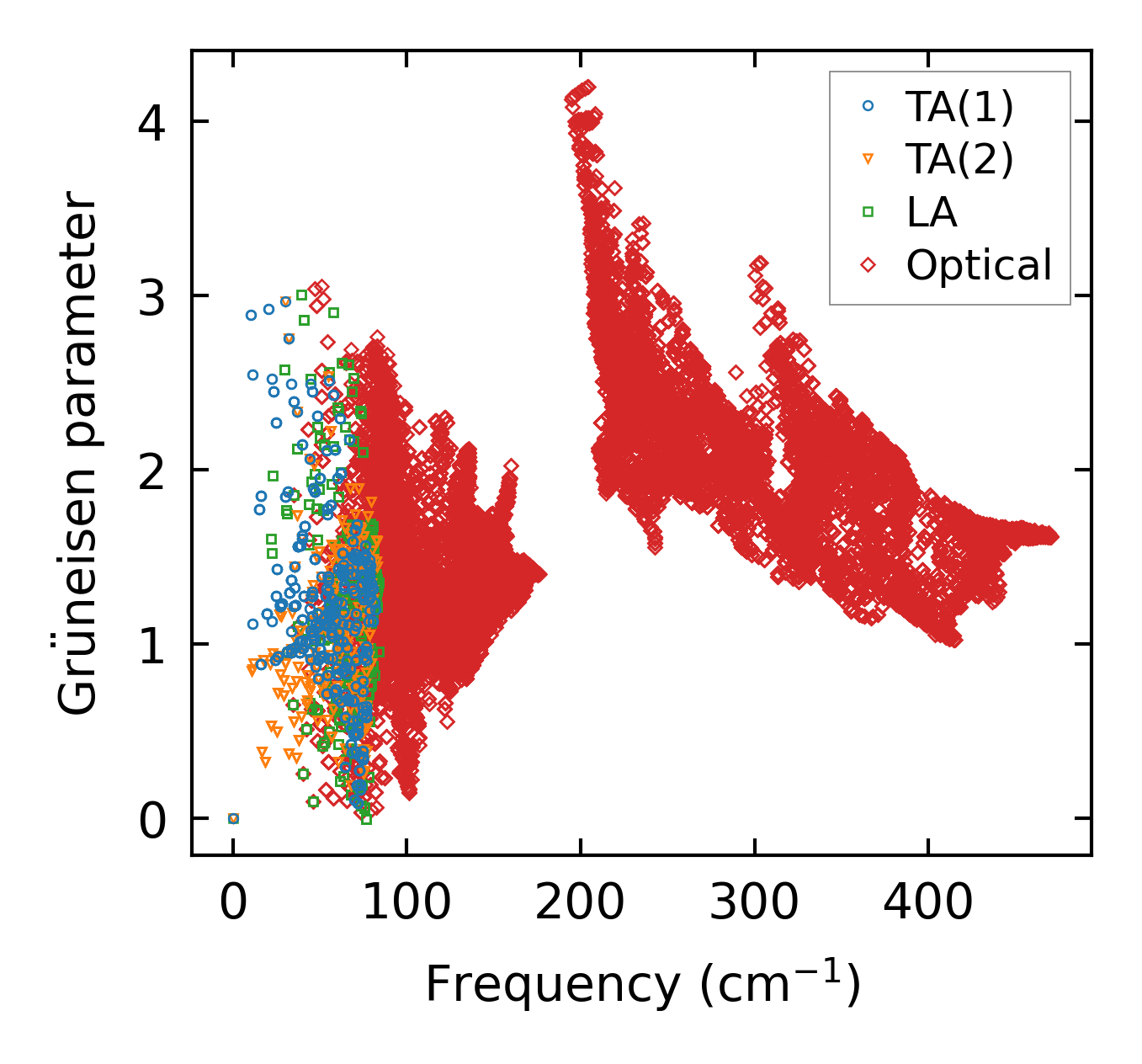

../../_images/fig_gru_all1866.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1866.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x19x6, supercell: 2x4x1

../../_images/fig_kappa3575.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1894.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

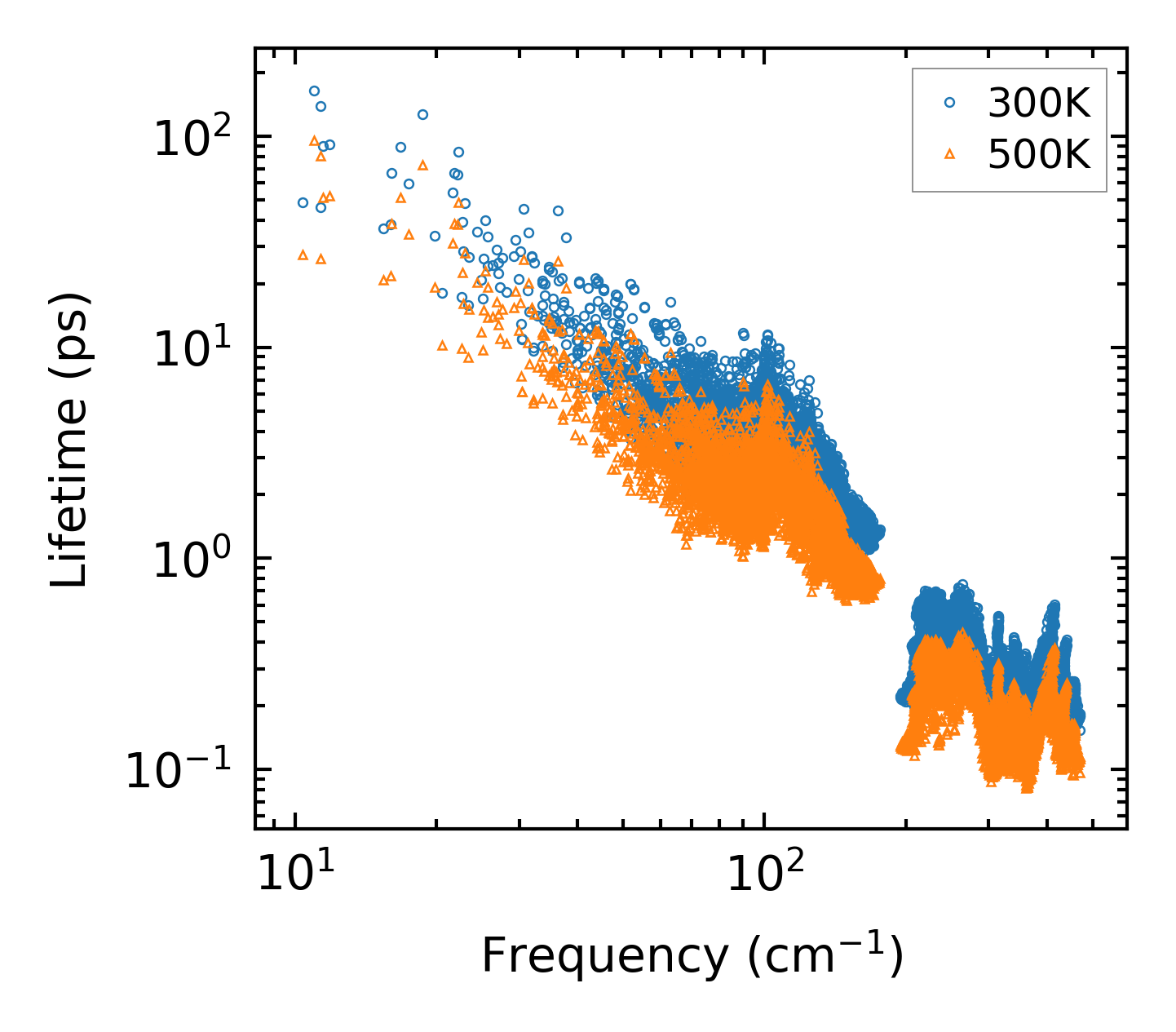

../../_images/fig_lifetime1856.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1855.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

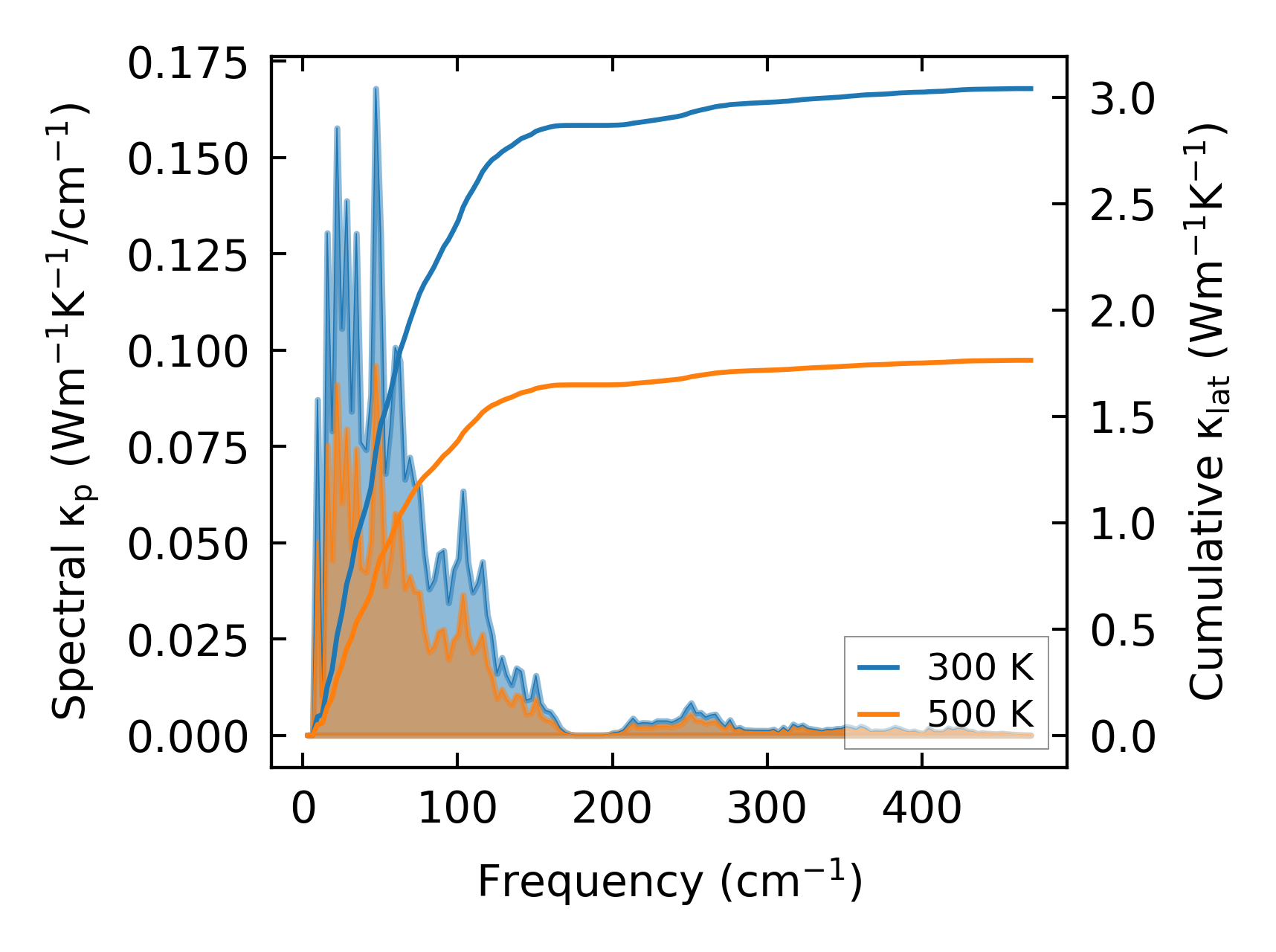

../../_images/fig_cumu_frequency1856.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

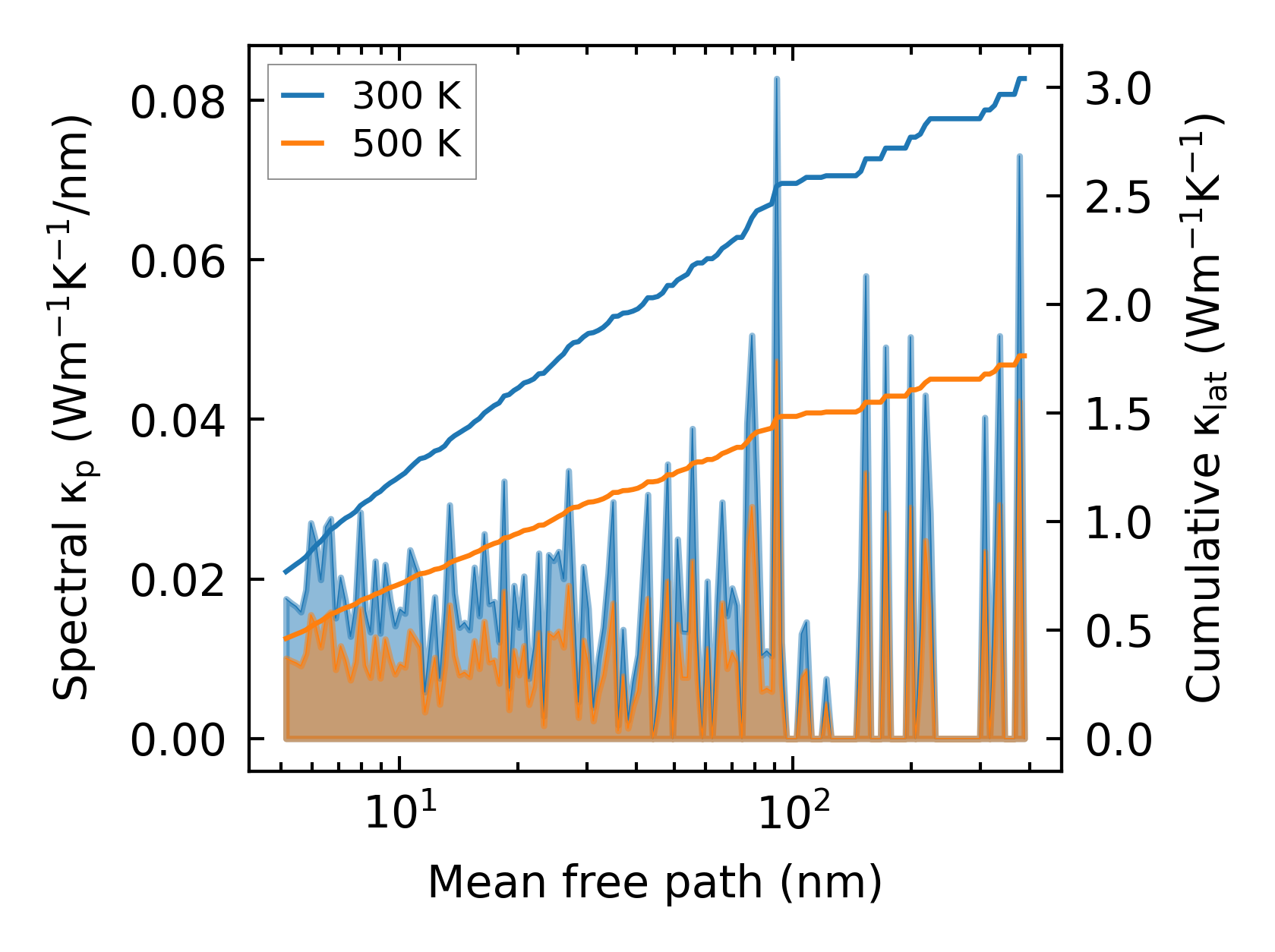

../../_images/fig_cumu_mfp1856.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24171.png — (a) Force constants w.r.t atomic distance

Summary

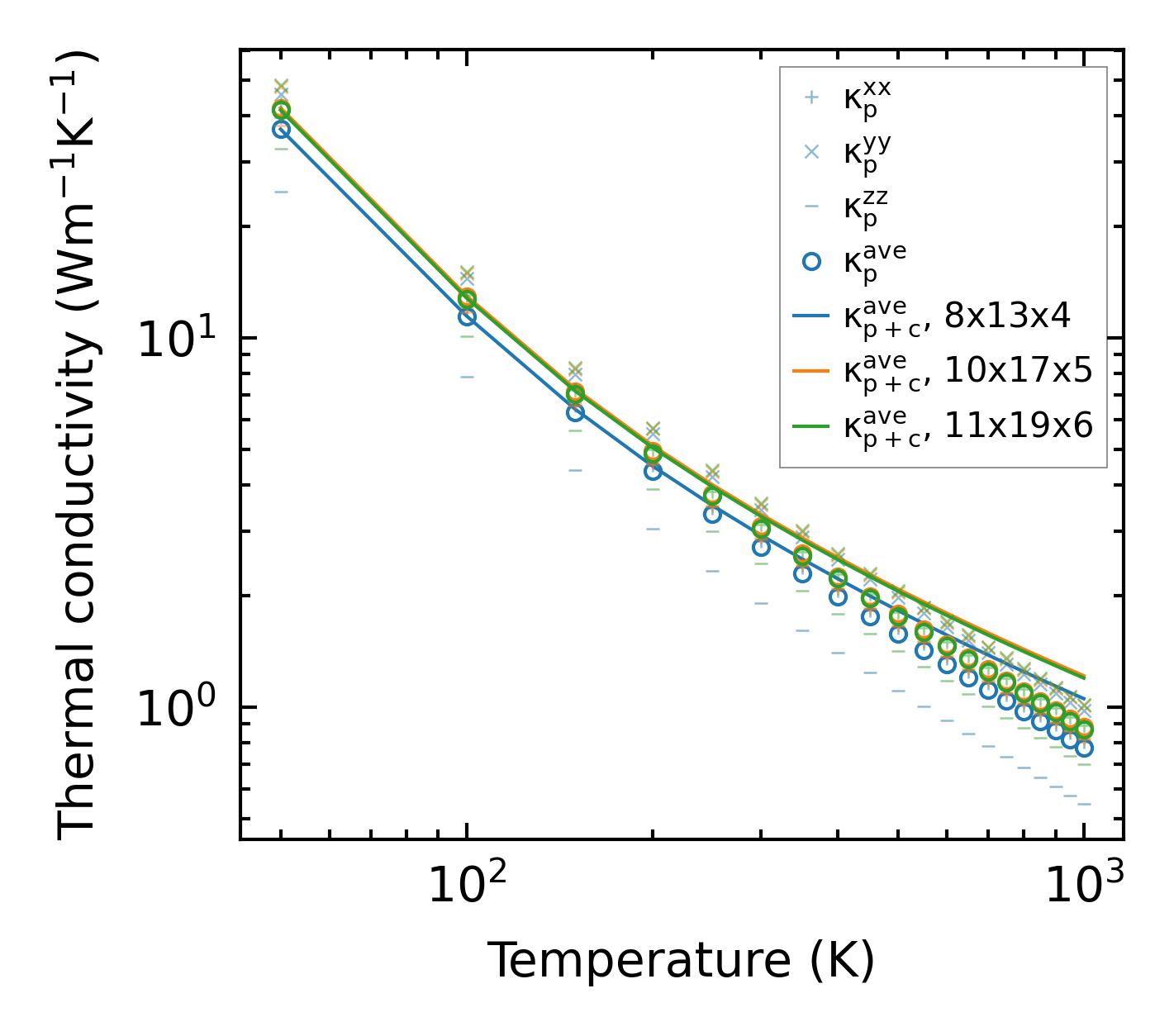

../../_images/fig_kappa3576.png — (a) Temperature-dependent lattice thermal conductivity

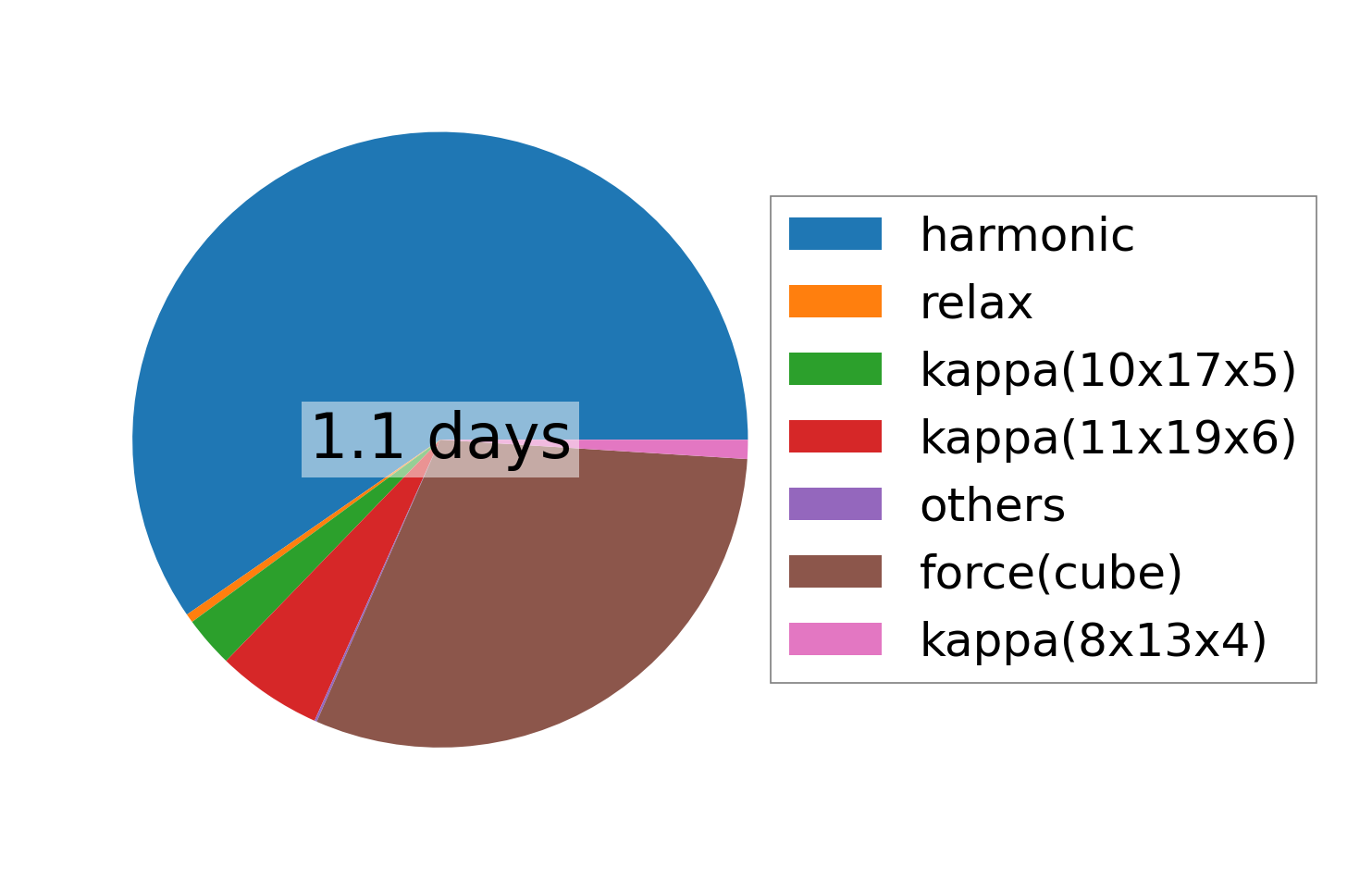

../../_images/fig_times7780.png — (b) Computation time
