mp-7469-2/NaCuO/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-7469-2.tar.gz

Harmonic properties

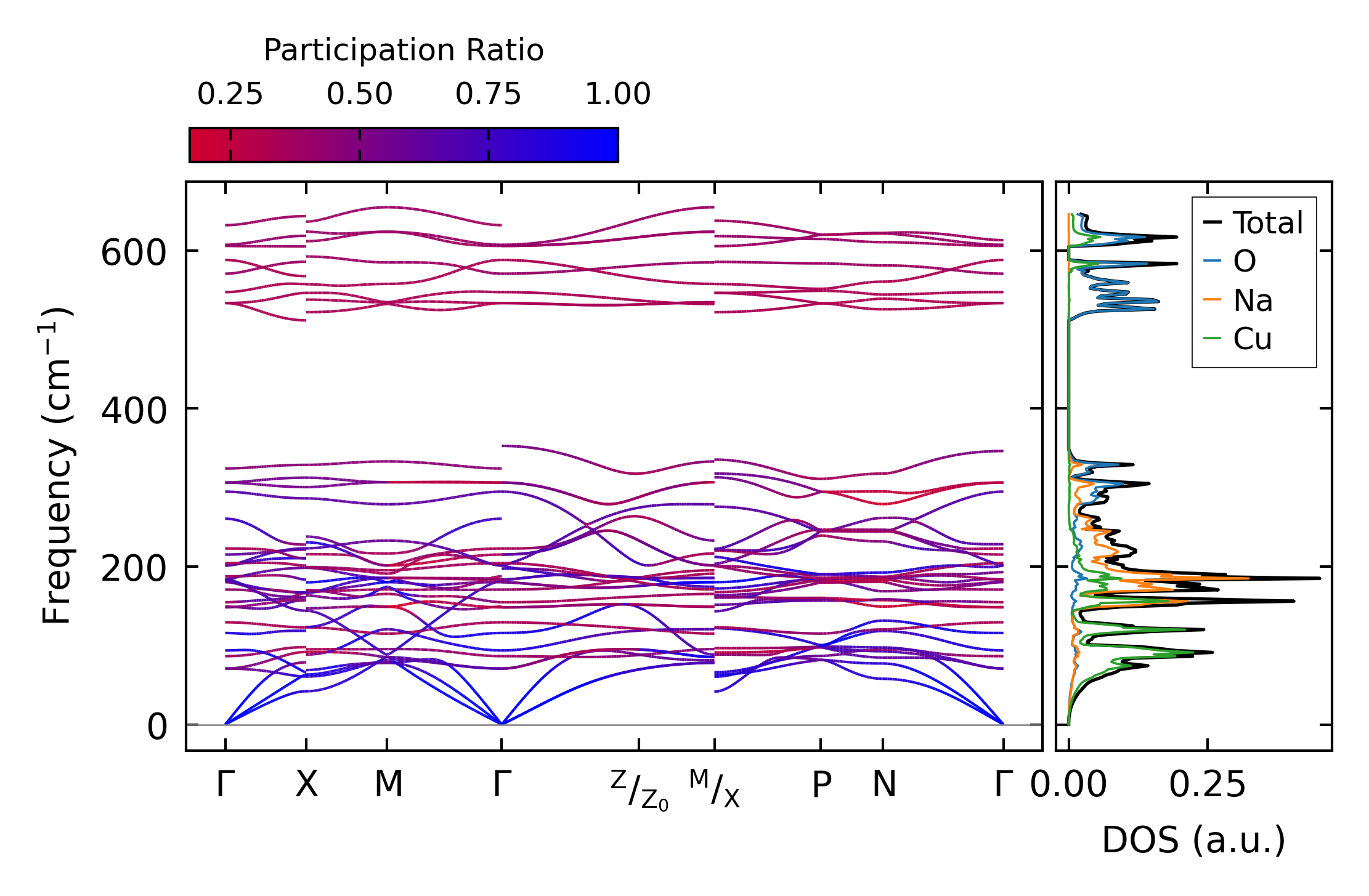

../../_images/fig_bandos_pr4554.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4554.png — (b) Thermodynamic properties

Grüneisen parameters

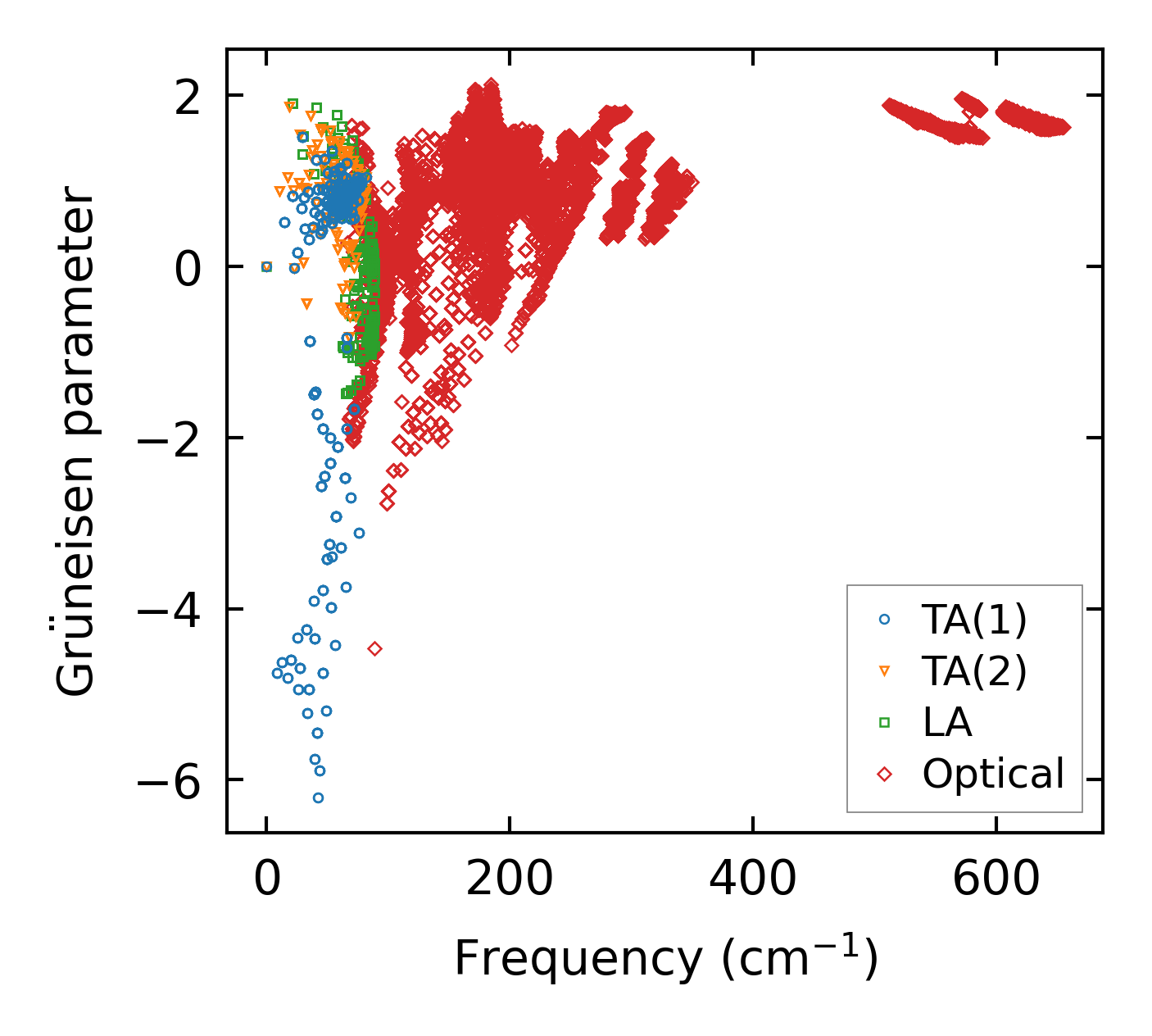

../../_images/fig_gru_all1955.png — (a) Grüneisen parameters

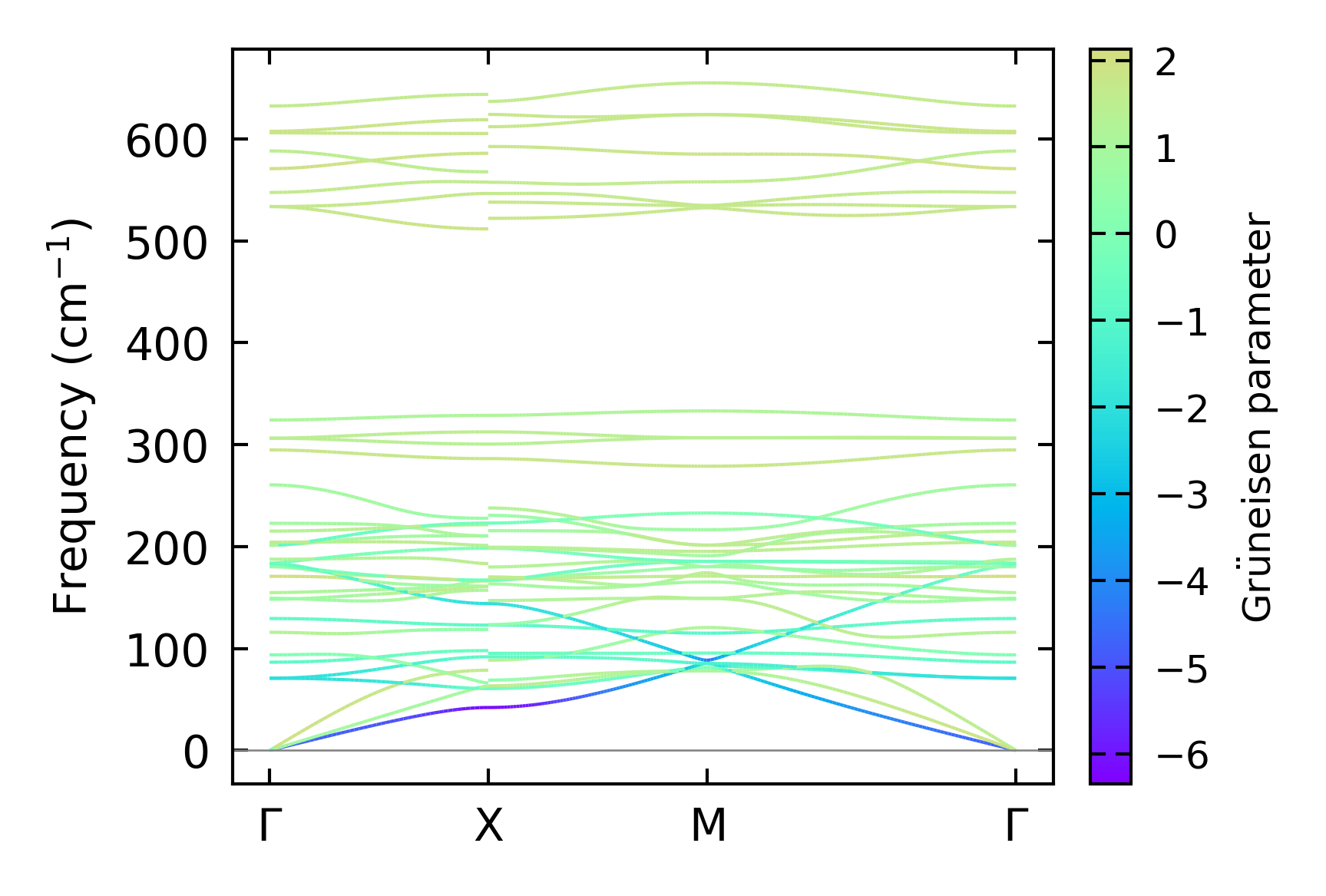

../../_images/fig_gruneisen1955.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 1x1x2

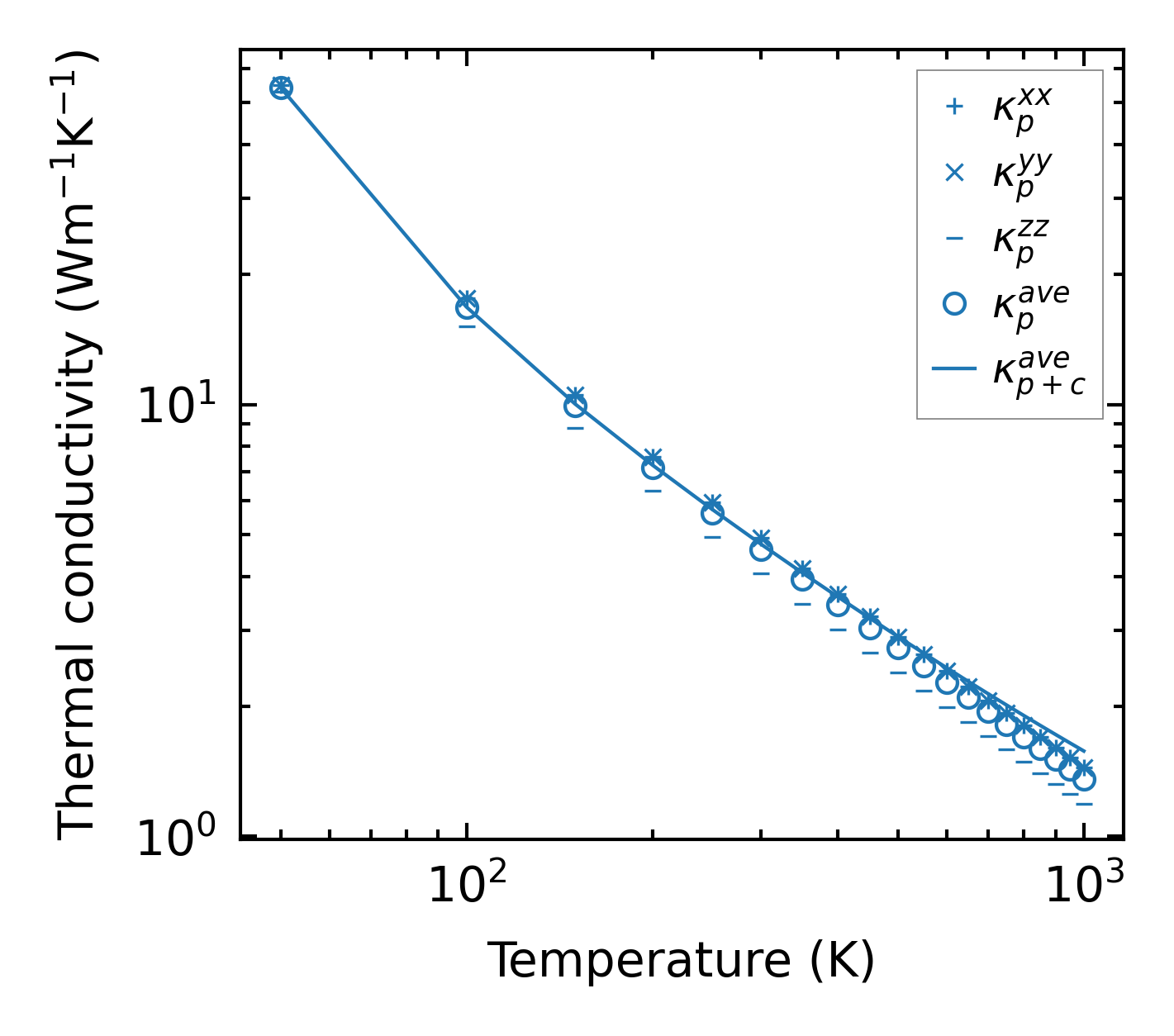

../../_images/fig_kappa3744.png — (a) Temperature-dependent lattice thermal conductivity

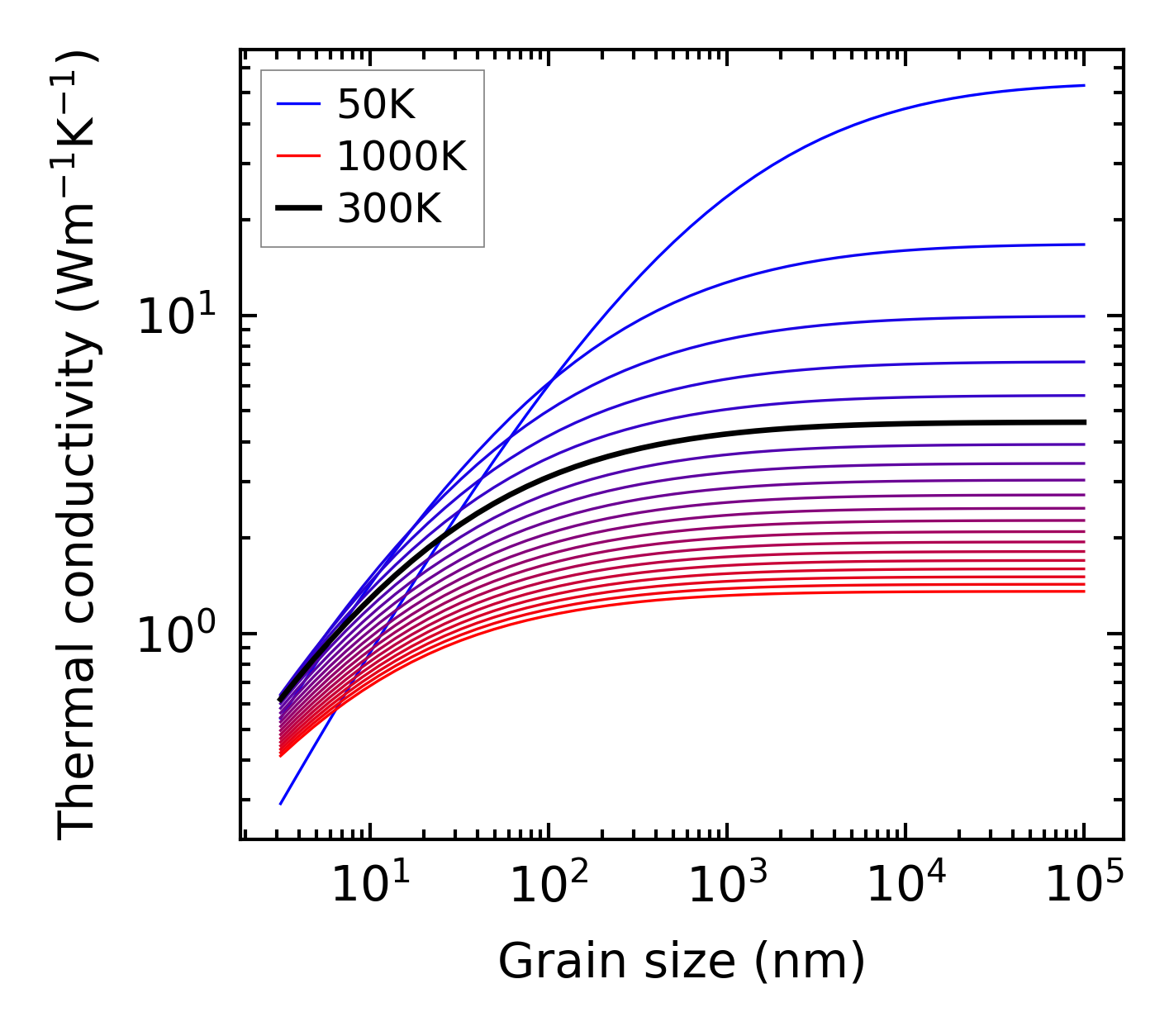

../../_images/fig_kappa_vs_grain_size1982.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

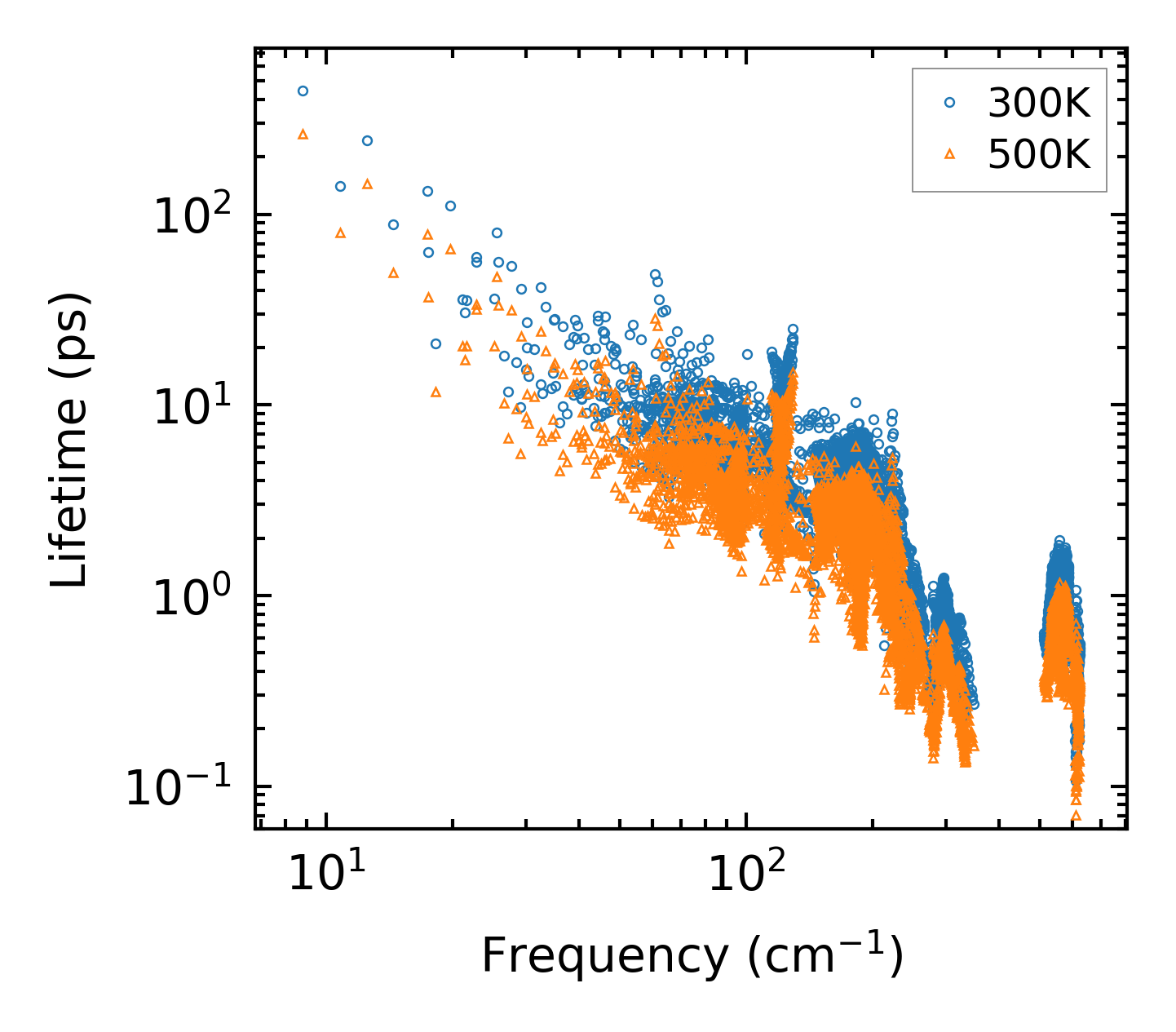

../../_images/fig_lifetime1944.png — (a) Phonon lifetime due to phonon-phonon scattering

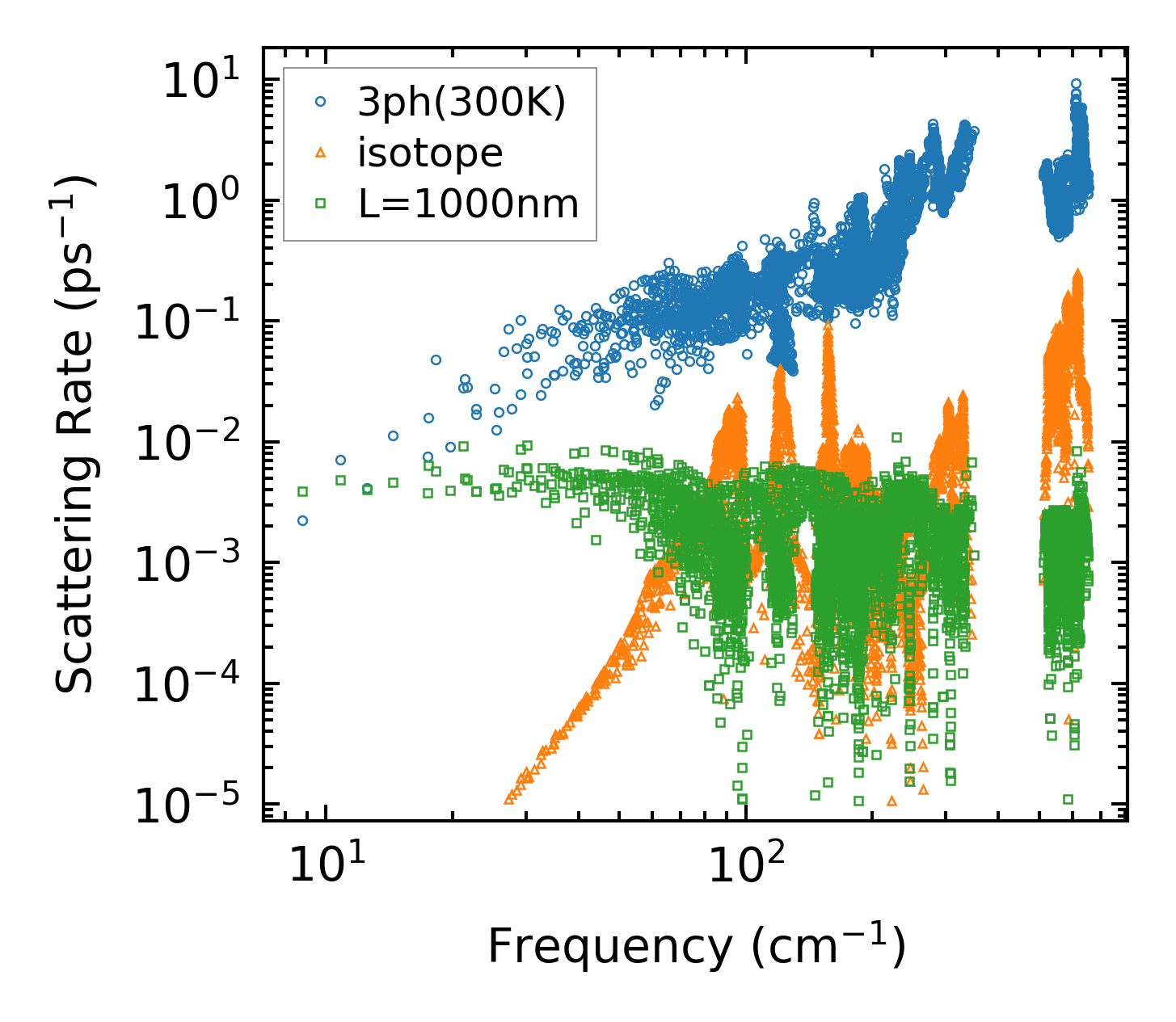

../../_images/fig_scat_rates1943.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

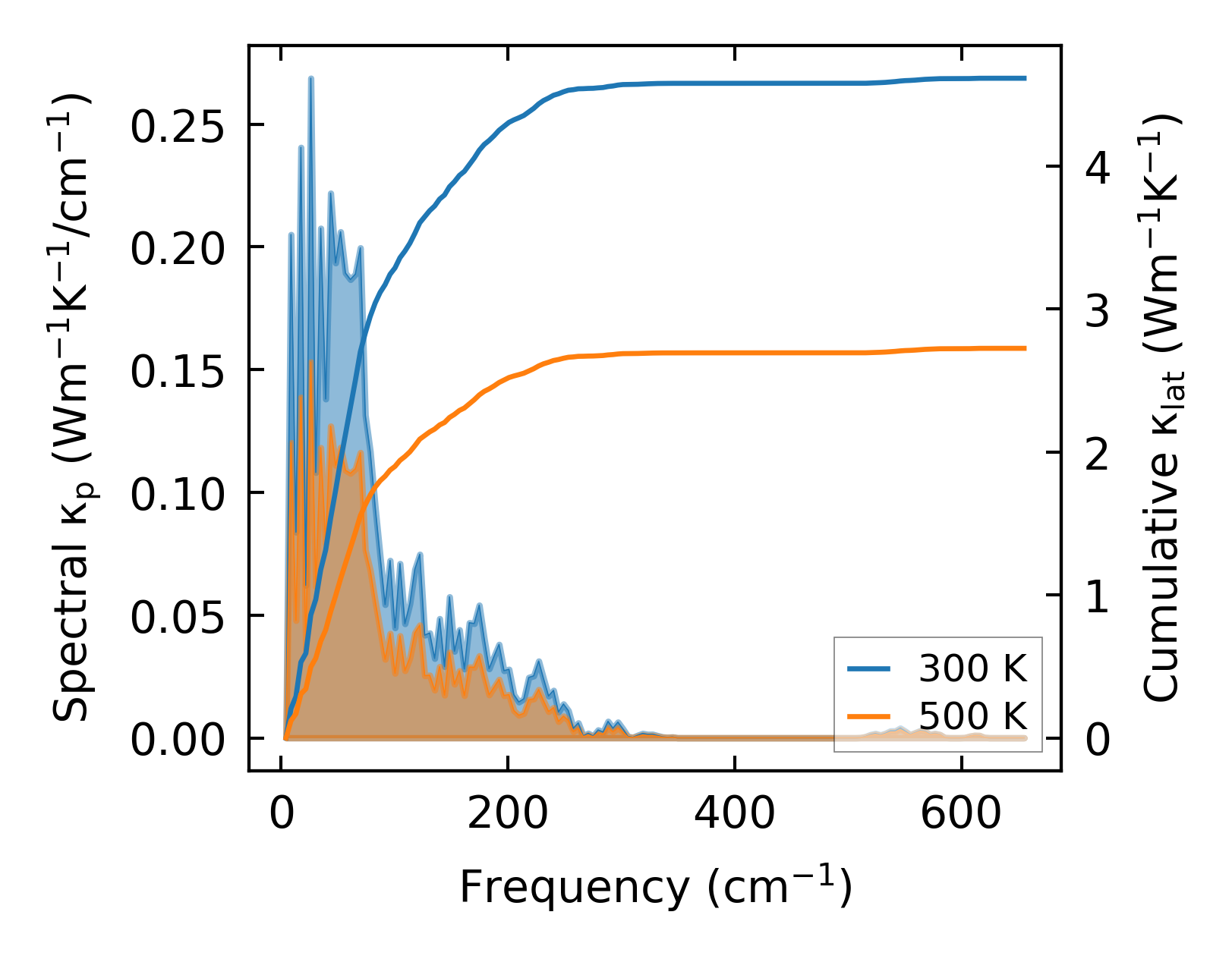

../../_images/fig_cumu_frequency1944.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

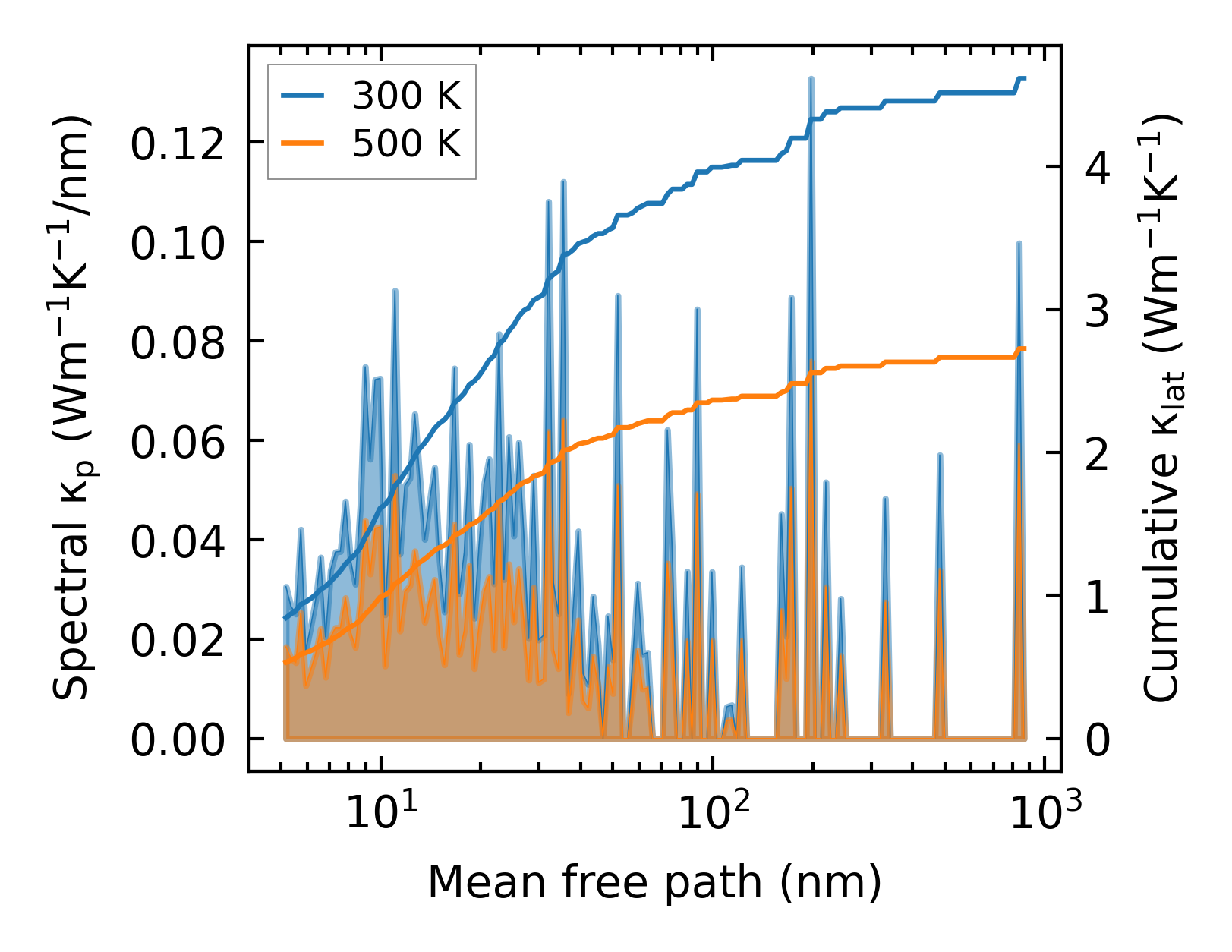

../../_images/fig_cumu_mfp1944.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

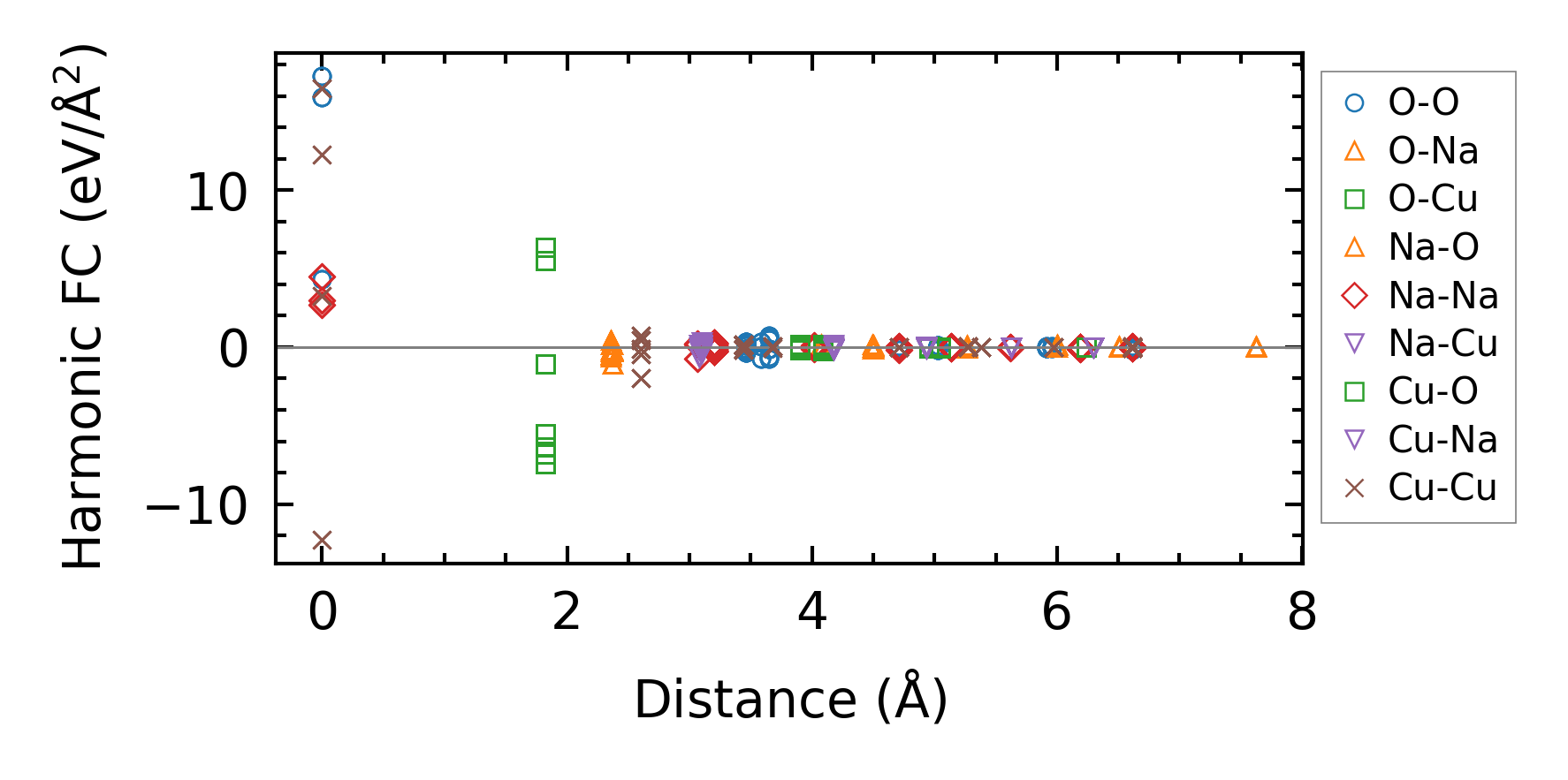

../../_images/fig_fc24366.png — (a) Force constants w.r.t atomic distance

Summary

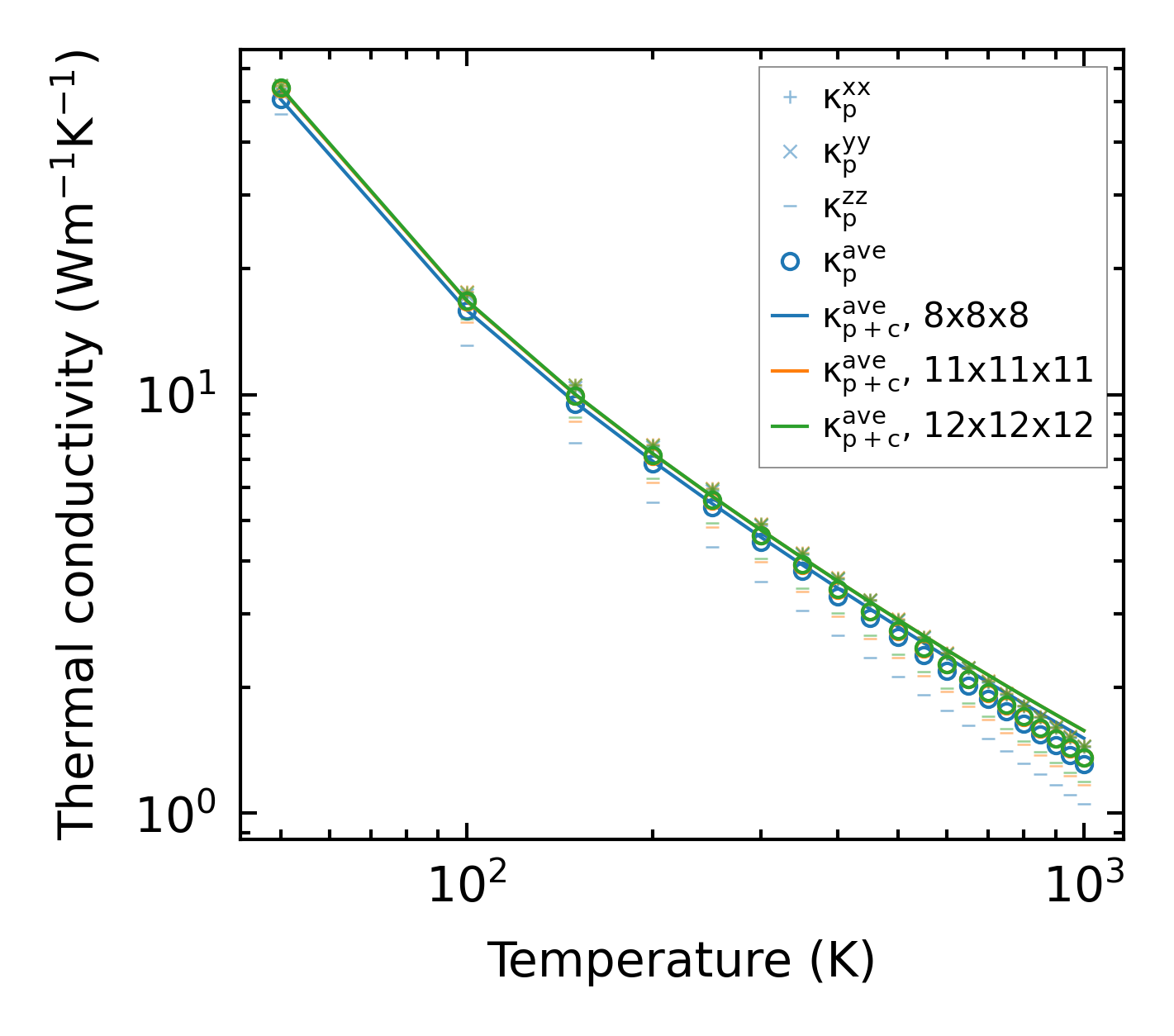

../../_images/fig_kappa3745.png — (a) Temperature-dependent lattice thermal conductivity

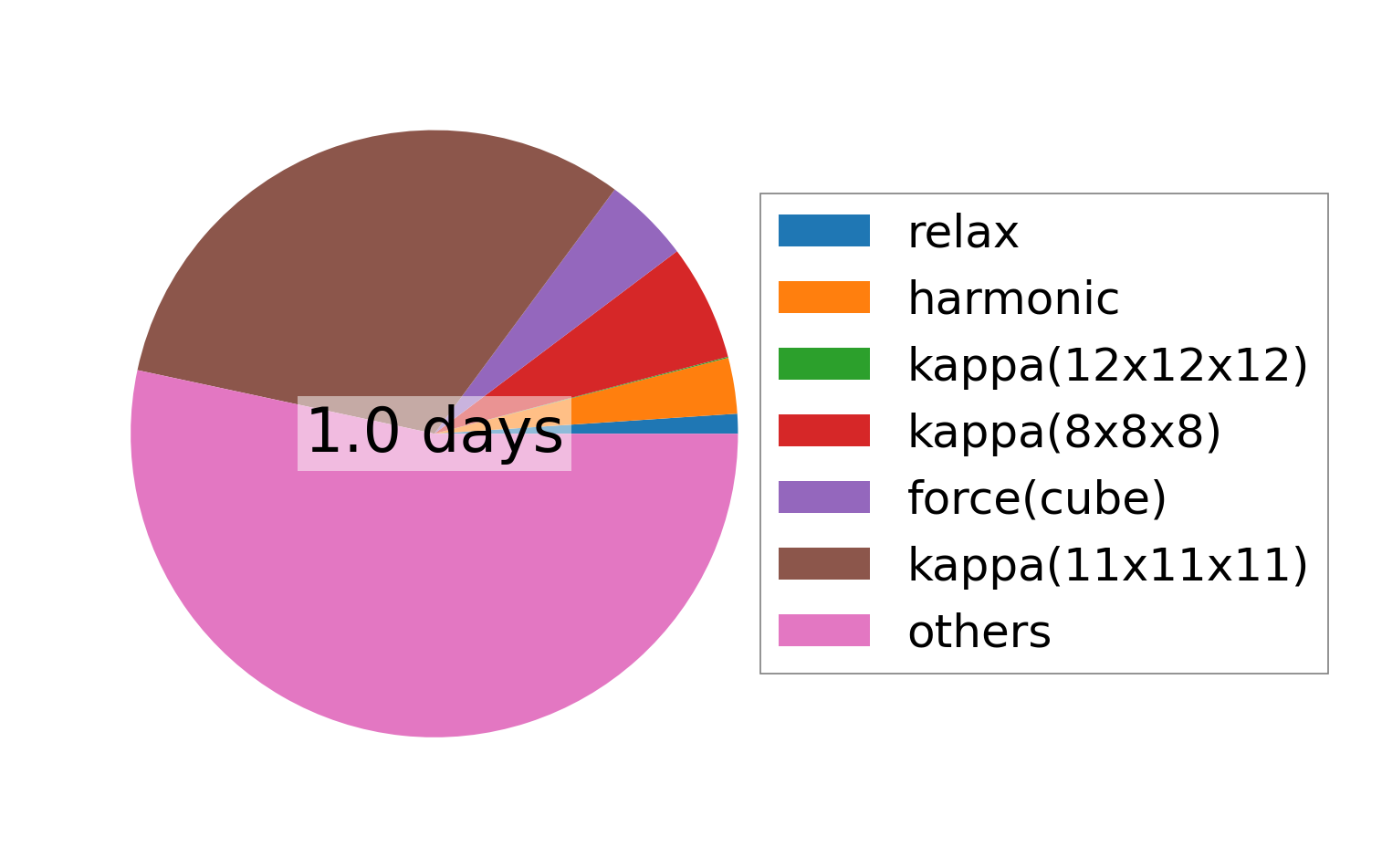

../../_images/fig_times8108.png — (b) Computation time
