mp-7100/LaOF/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-7100.tar.gz

Harmonic properties

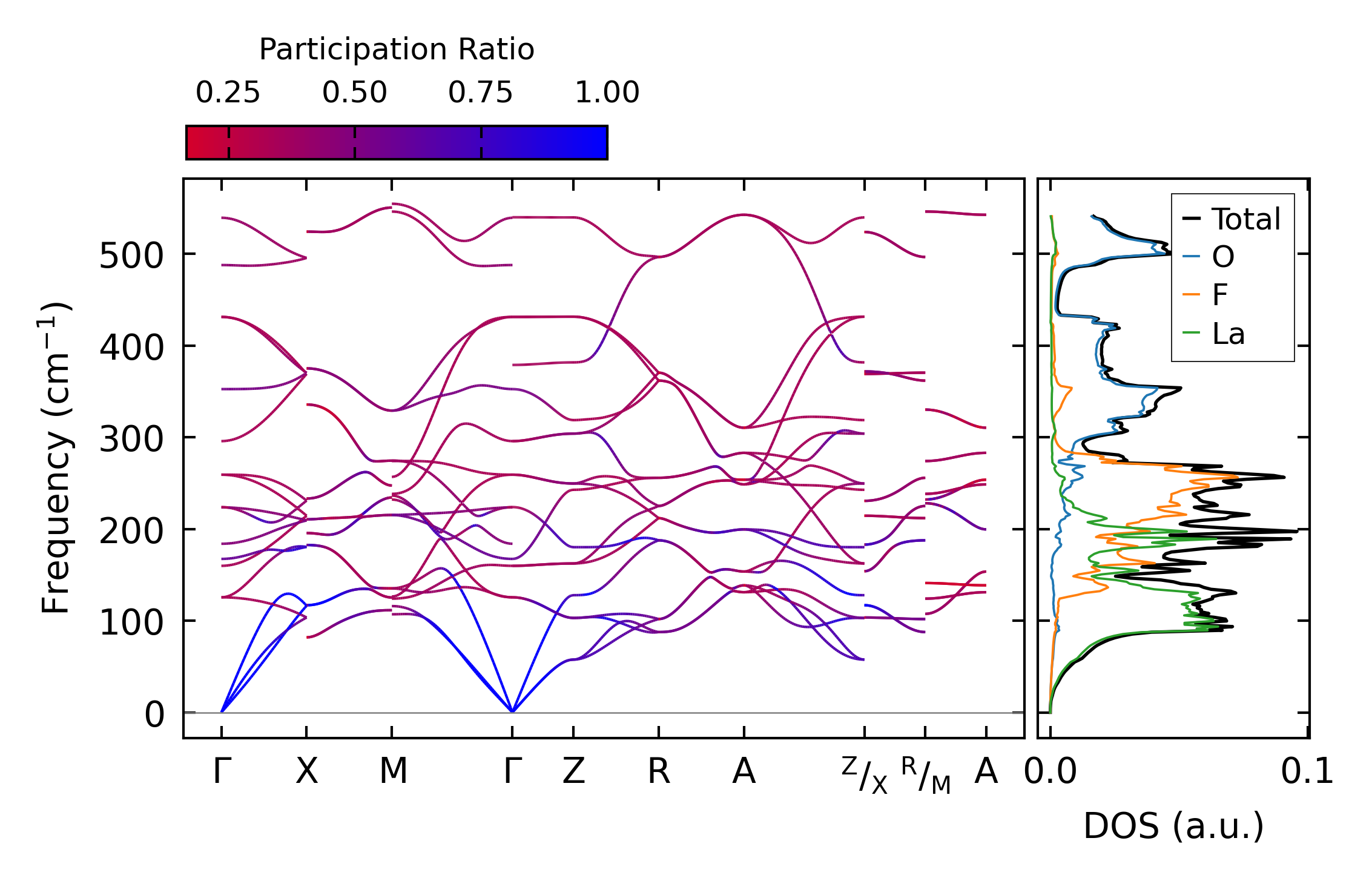

../../_images/fig_bandos_pr4800.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4800.png — (b) Thermodynamic properties

Grüneisen parameters

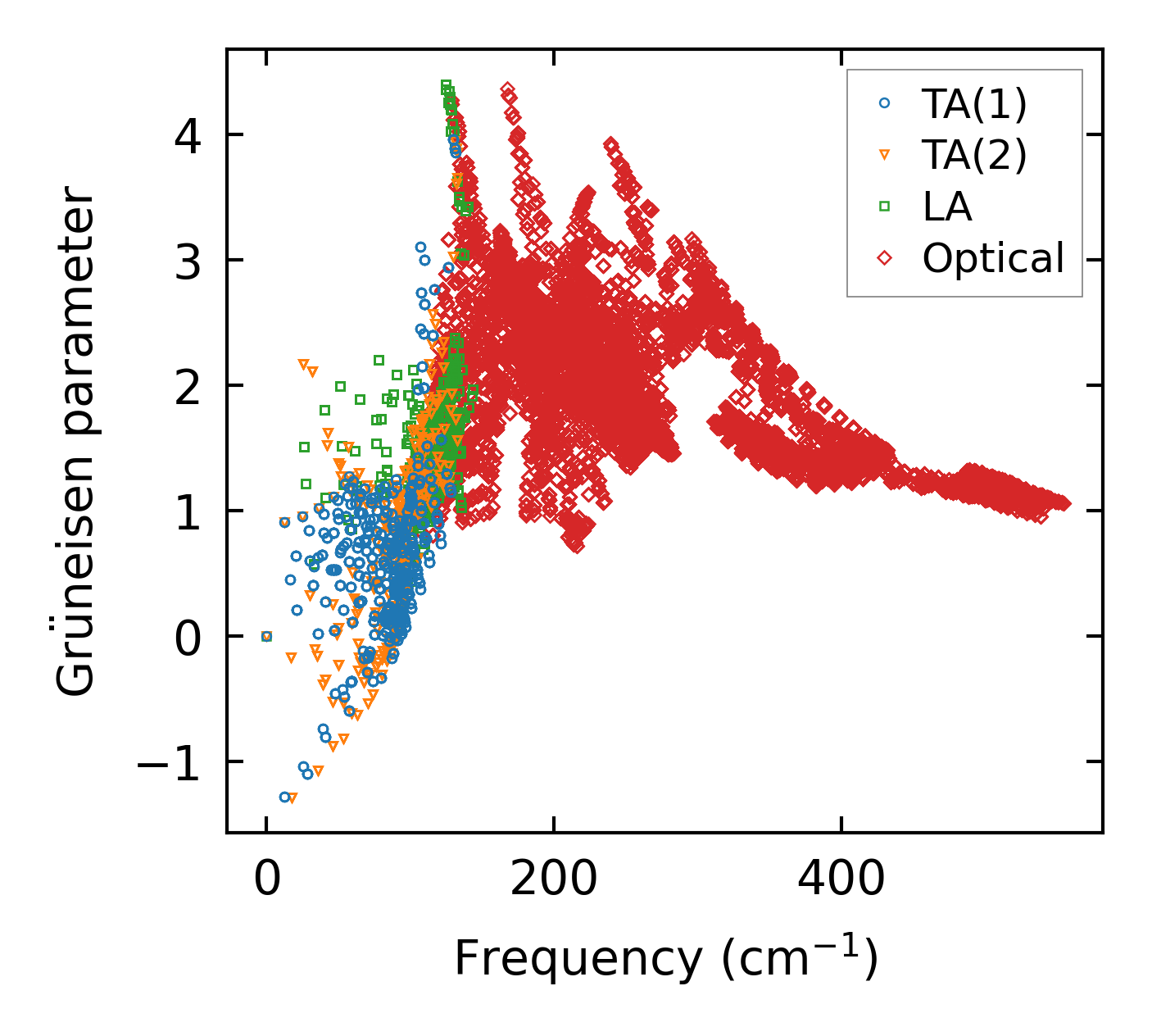

../../_images/fig_gru_all2069.png — (a) Grüneisen parameters

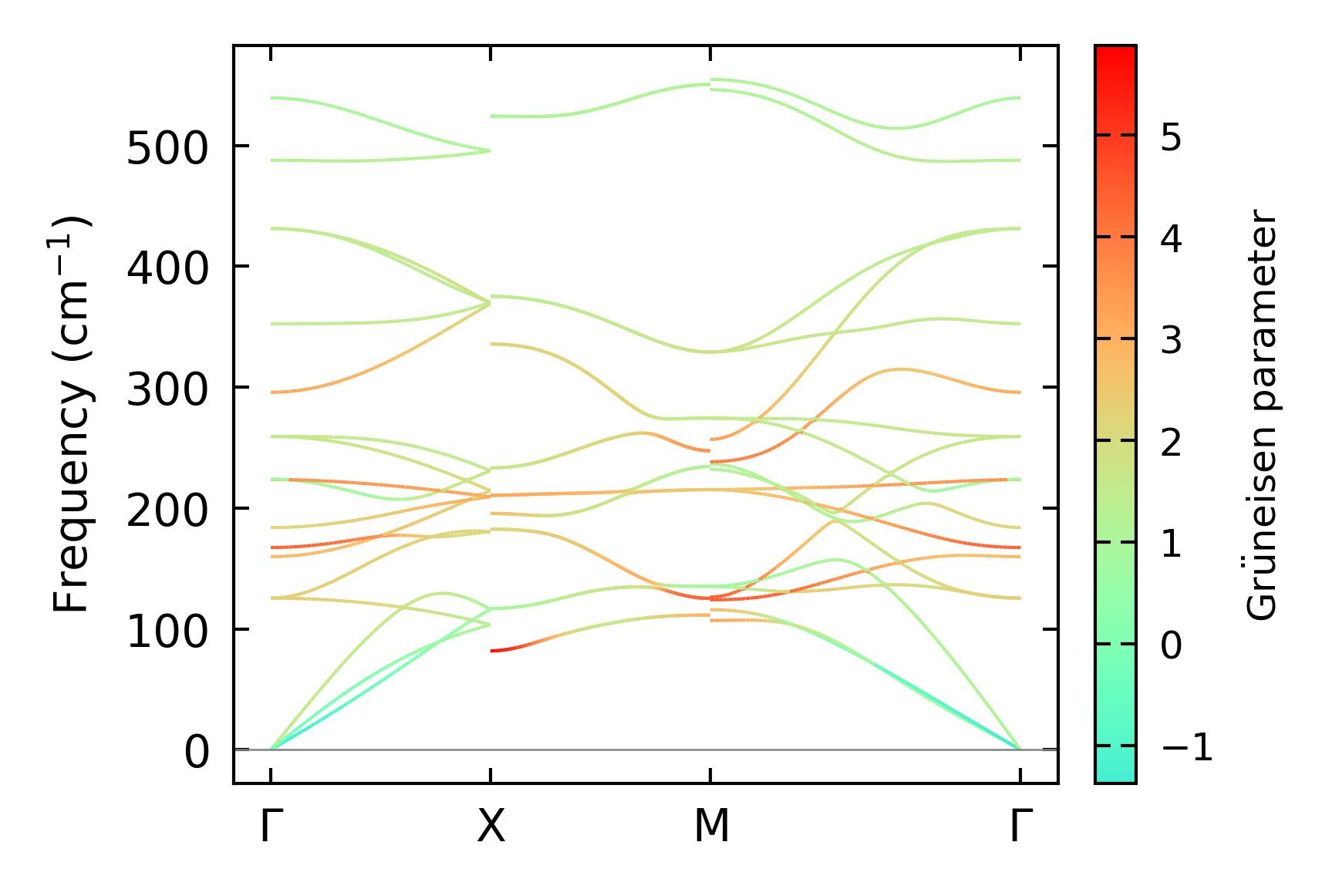

../../_images/fig_gruneisen2069.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x12, supercell: 3x3x2

../../_images/fig_kappa3967.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2100.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

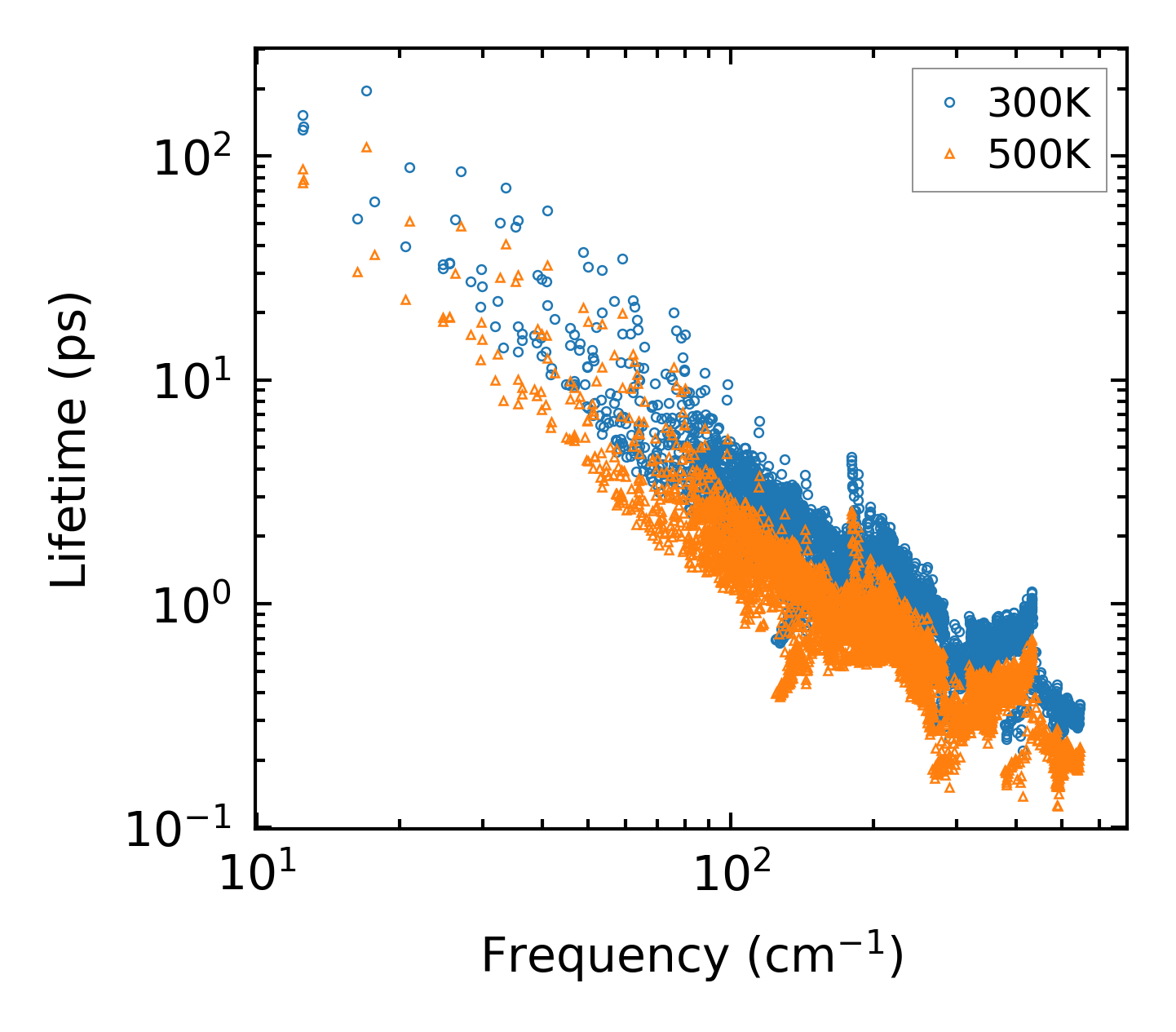

../../_images/fig_lifetime2056.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2055.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

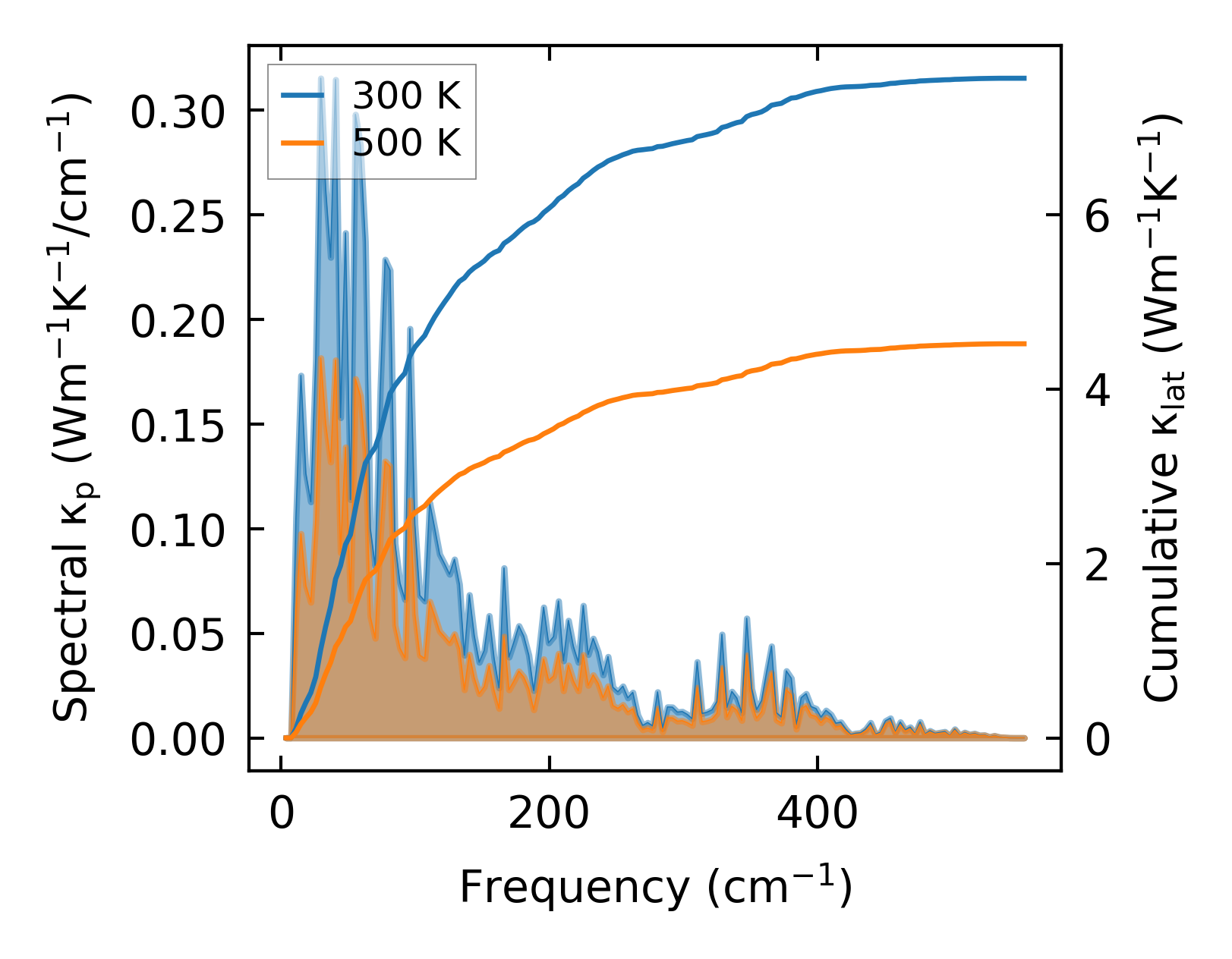

../../_images/fig_cumu_frequency2056.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

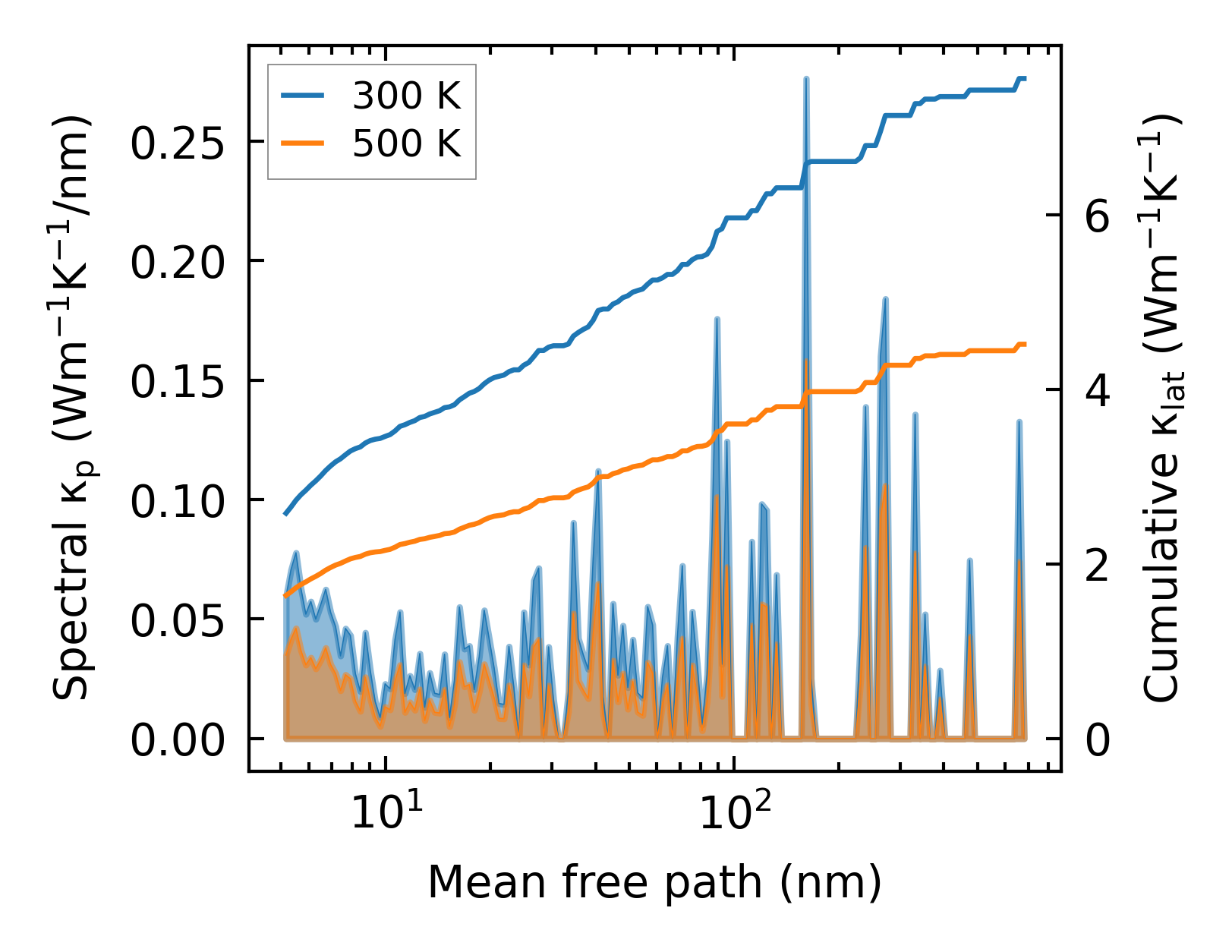

../../_images/fig_cumu_mfp2056.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

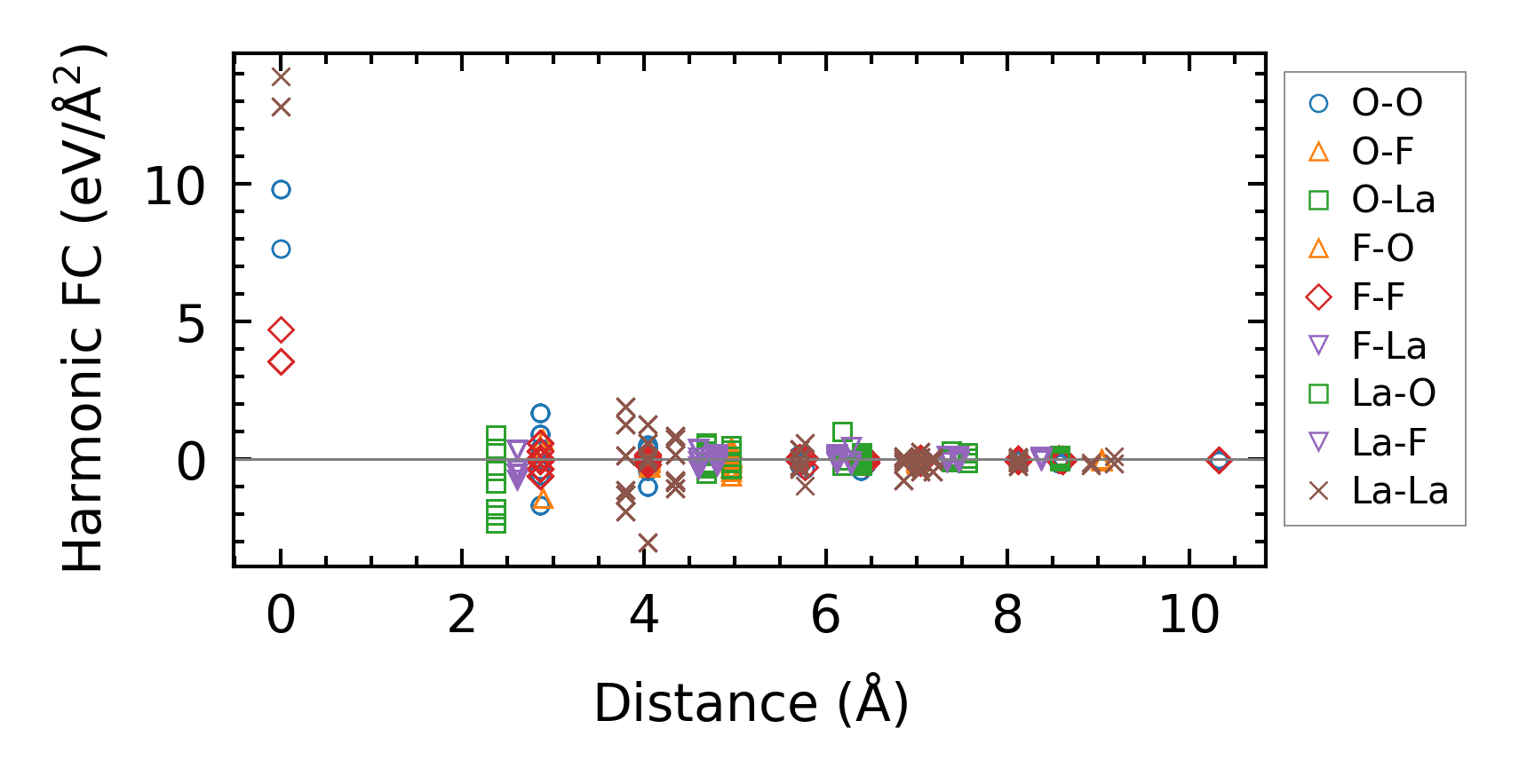

../../_images/fig_fc24611.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3968.png — (a) Temperature-dependent lattice thermal conductivity

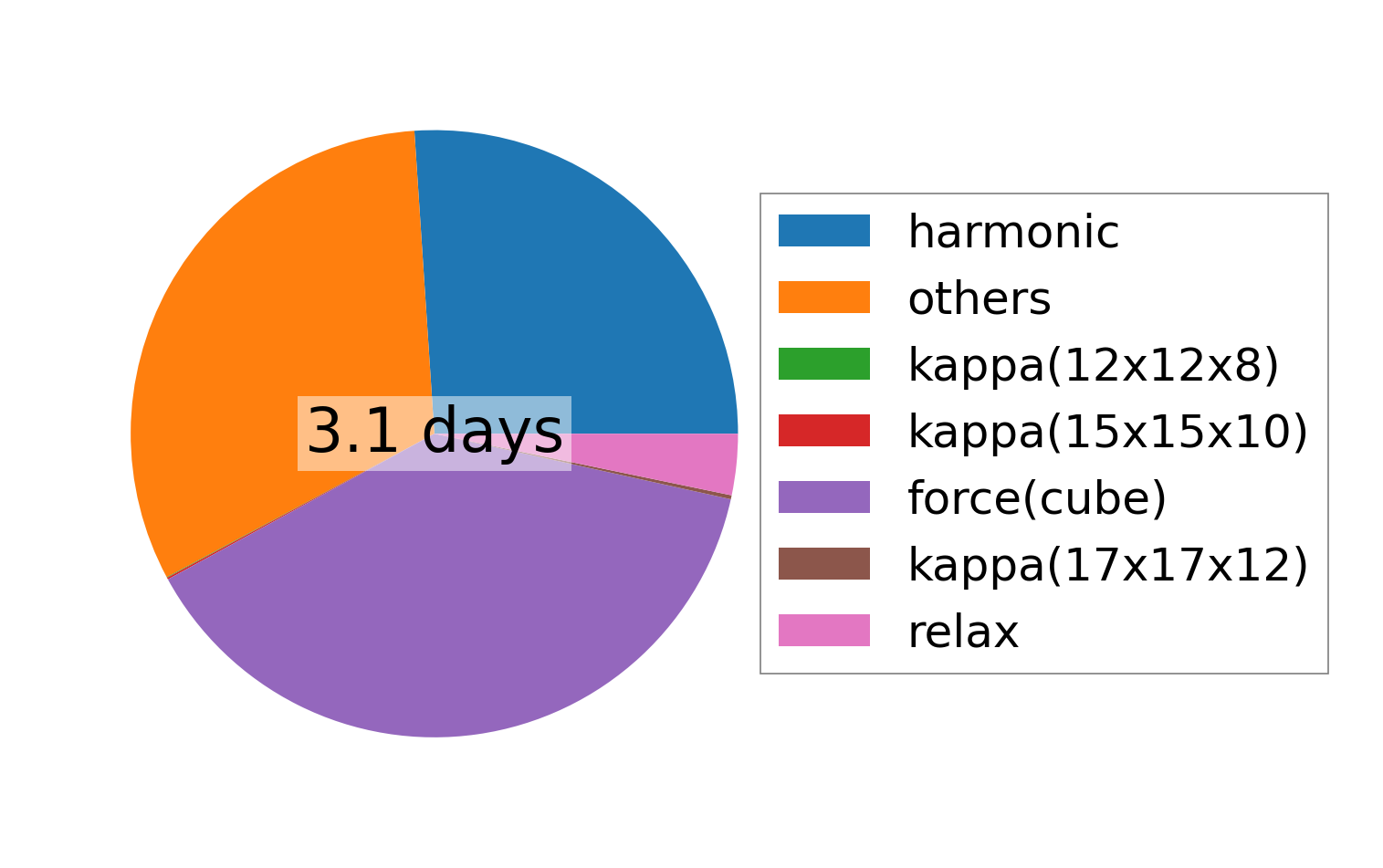

../../_images/fig_times8504.png — (b) Computation time
