mp-7791-2/Li2GeF6/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-7791-2.tar.gz

Equation of state

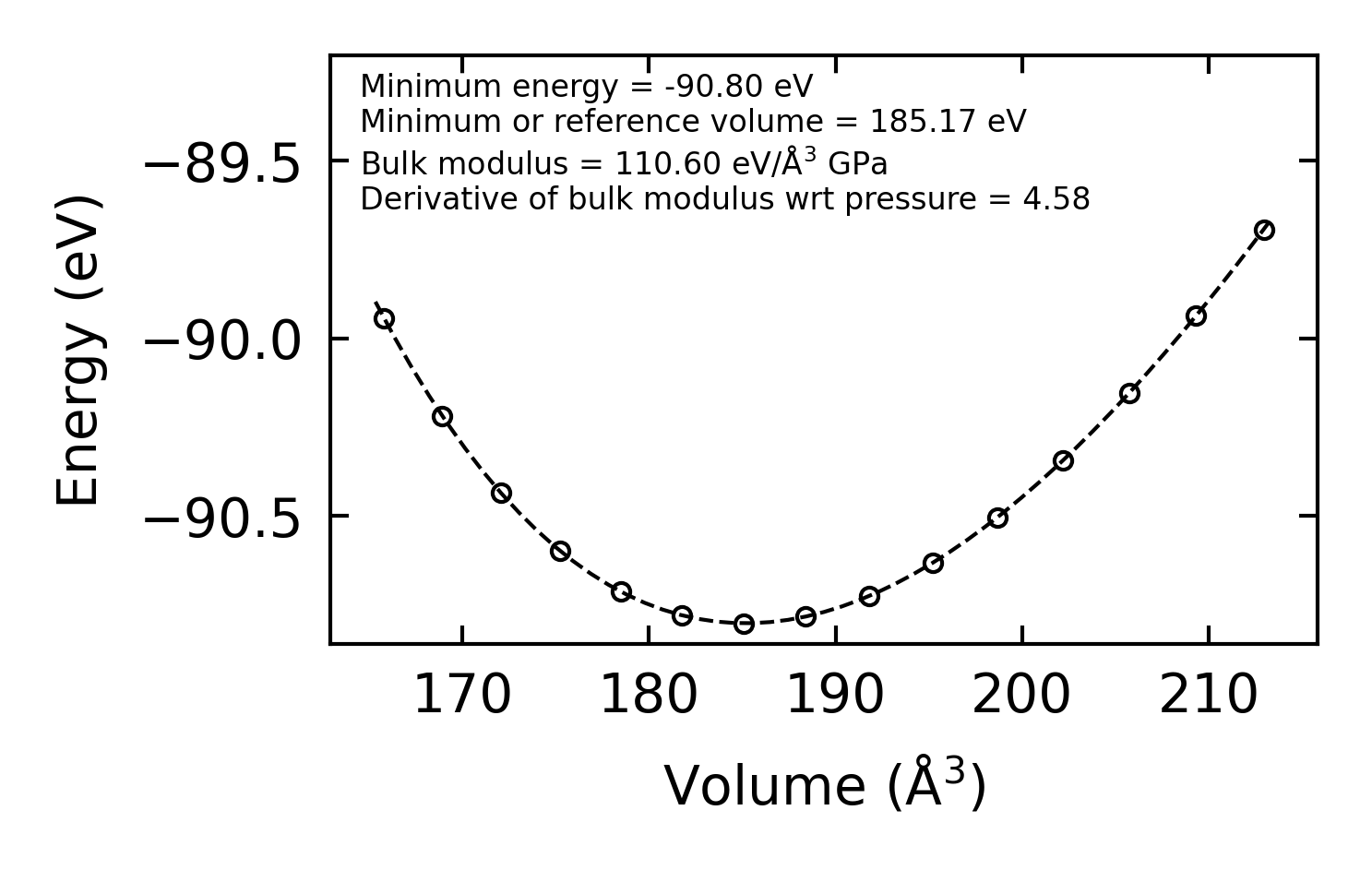

../../_images/fig_bm2326.png — (a) Equation of state

Harmonic properties

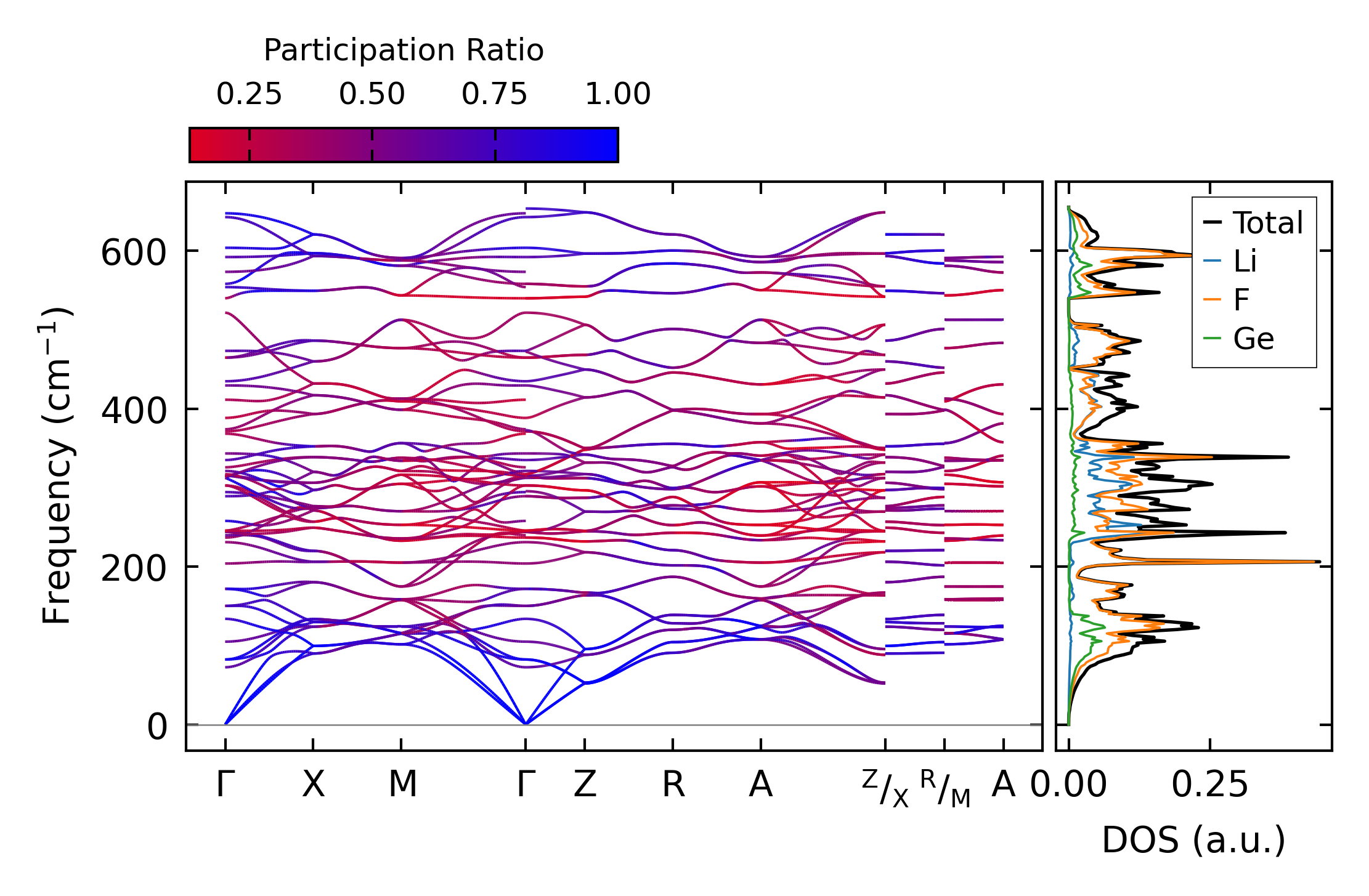

../../_images/fig_bandos_pr4661.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4661.png — (b) Thermodynamic properties

Grüneisen parameters

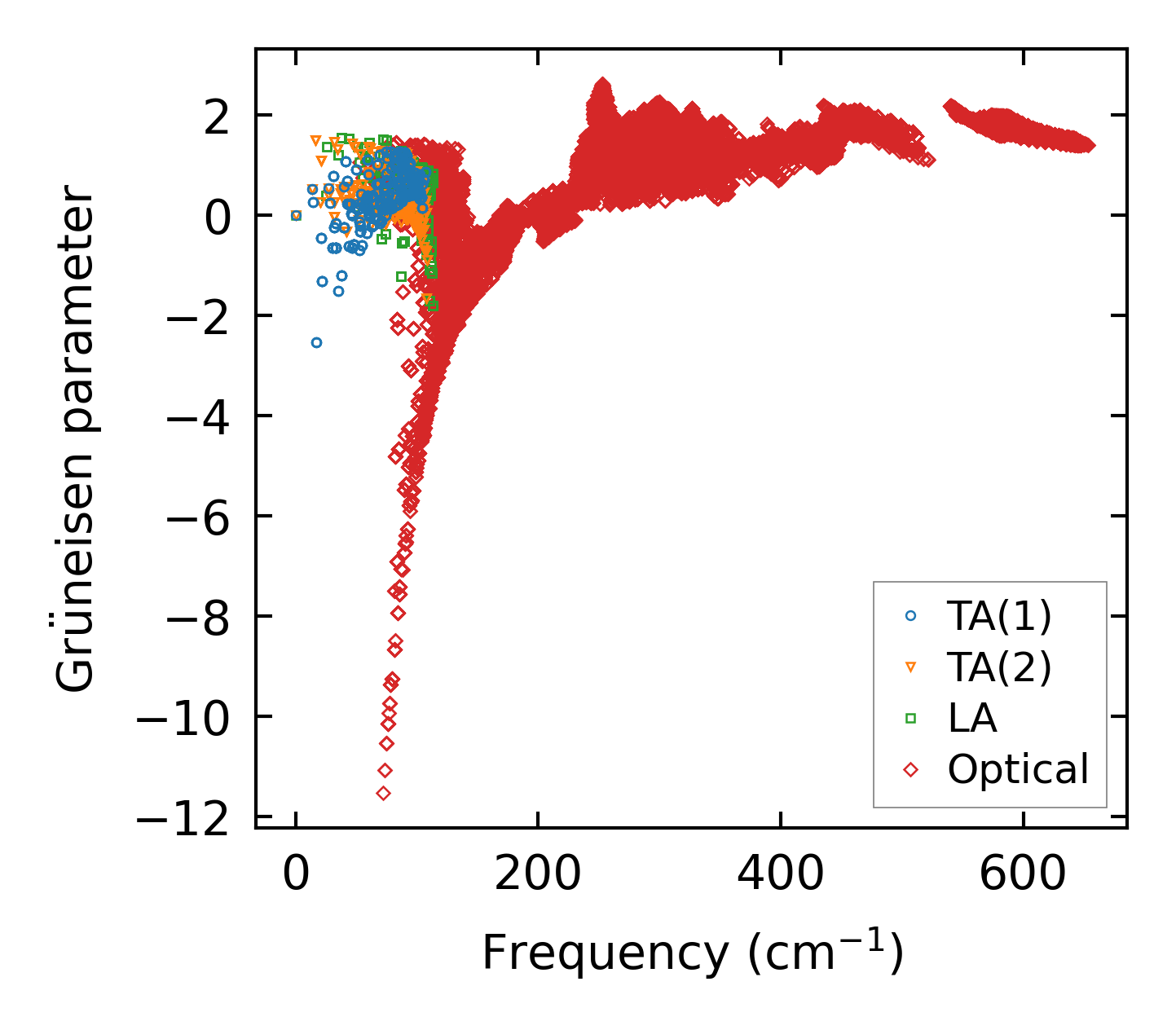

../../_images/fig_gru_all2024.png — (a) Grüneisen parameters

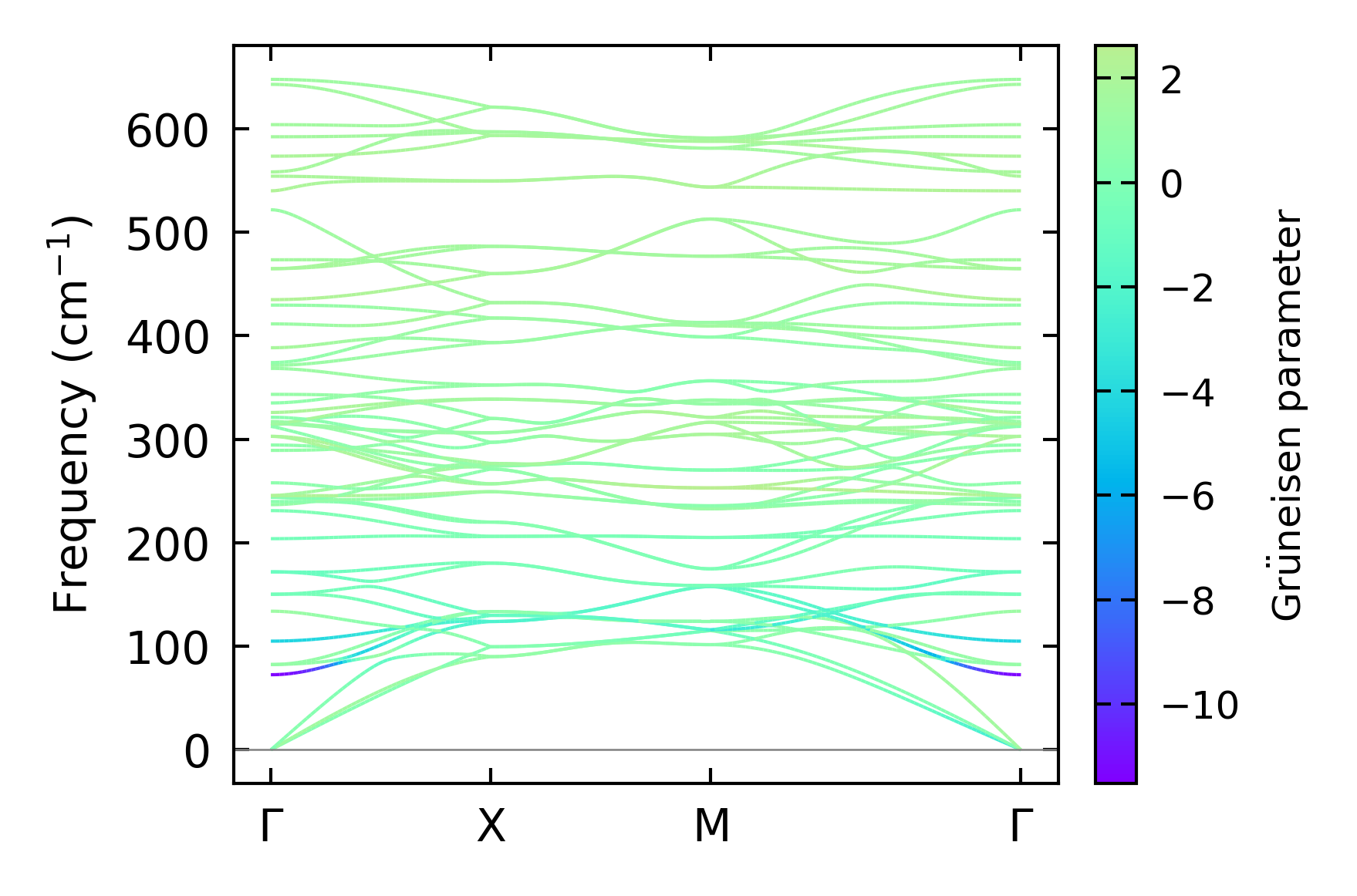

../../_images/fig_gruneisen2024.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x8, supercell: 2x2x2

../../_images/fig_kappa3875.png — (a) Temperature-dependent lattice thermal conductivity

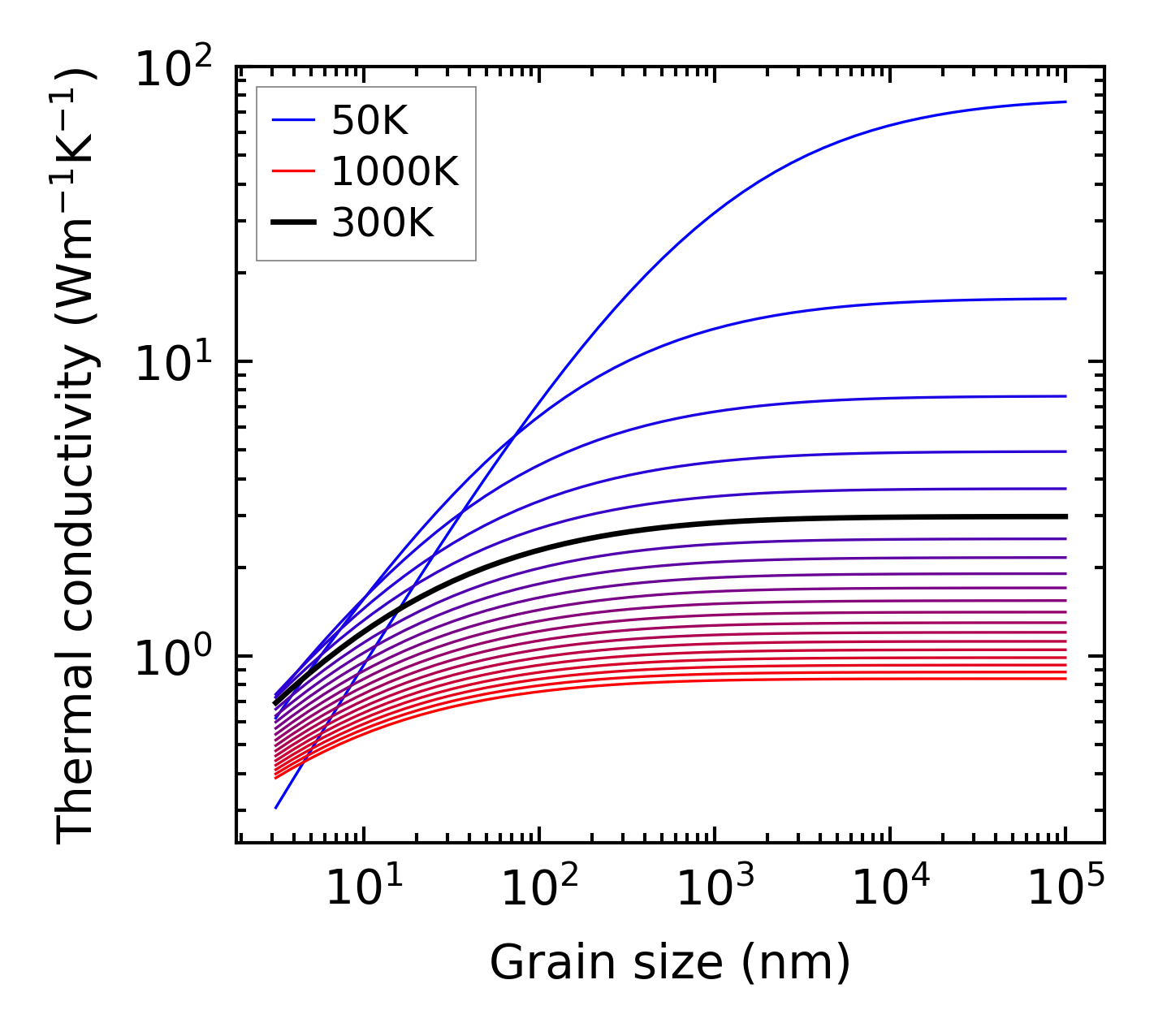

../../_images/fig_kappa_vs_grain_size2051.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 3x3x2 — q-mesh: 15x15x8, supercell: 3x3x2

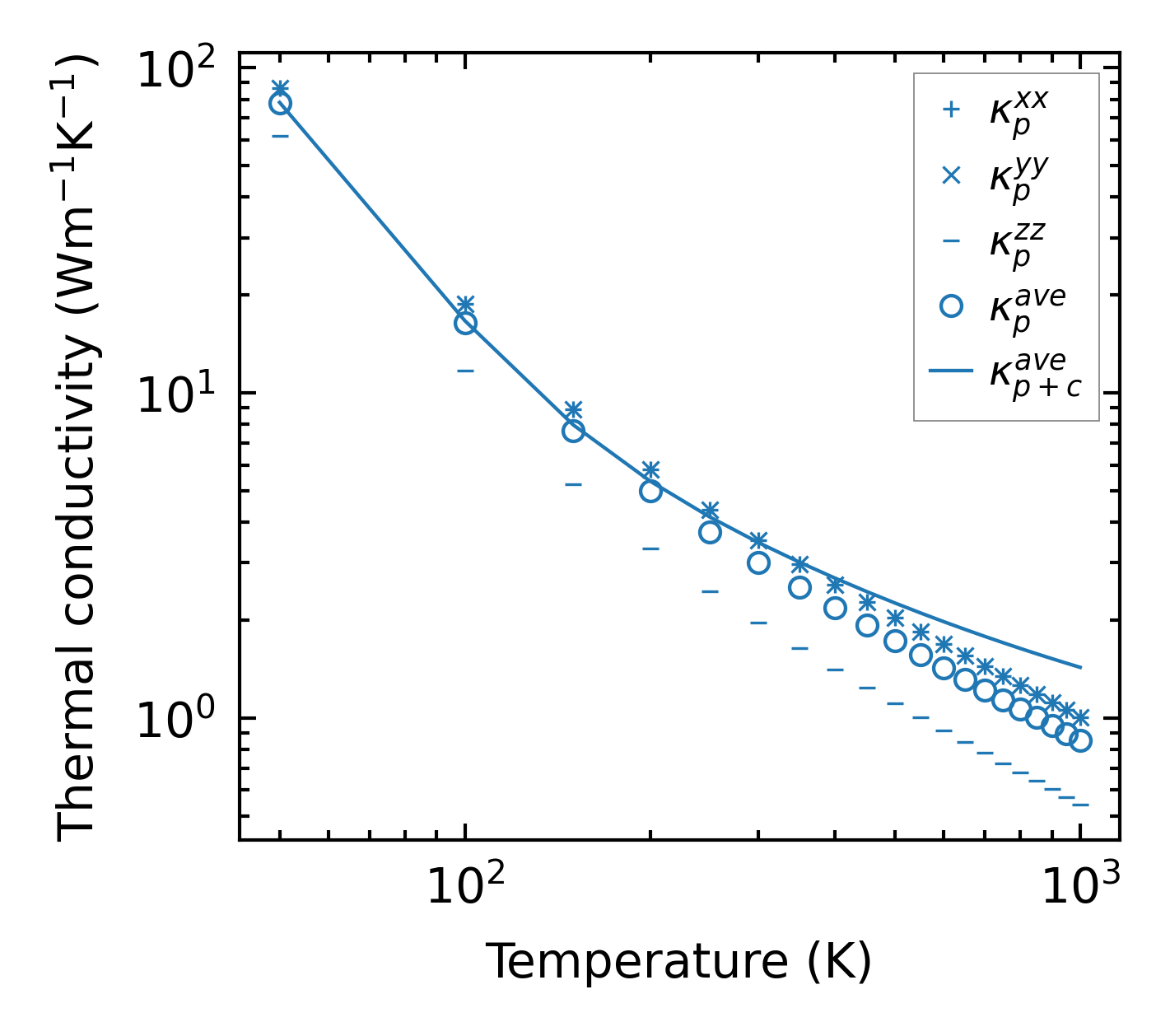

../../_images/fig_kappa3876.png — (a) Temperature-dependent lattice thermal conductivity

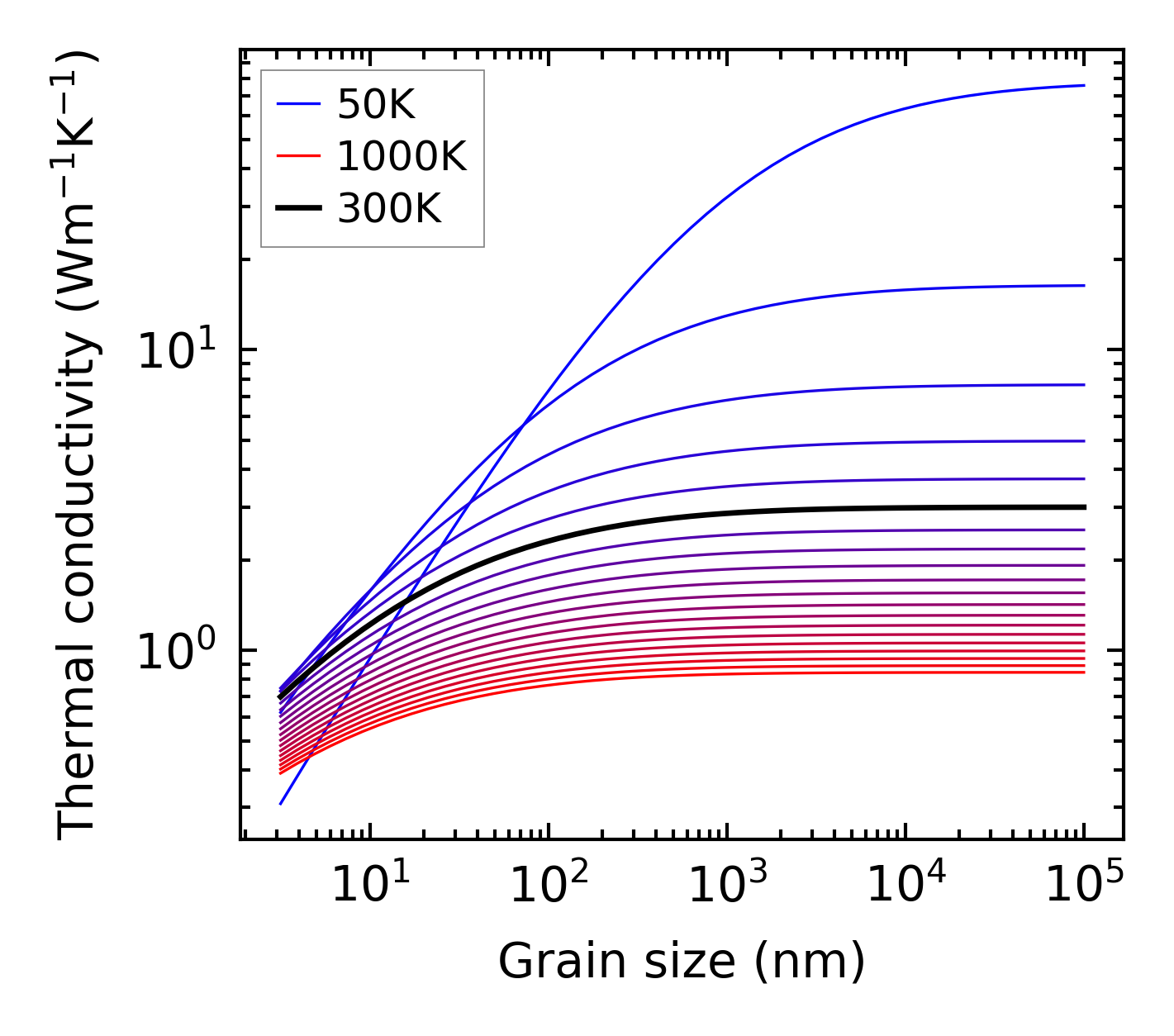

../../_images/fig_kappa_vs_grain_size2052.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

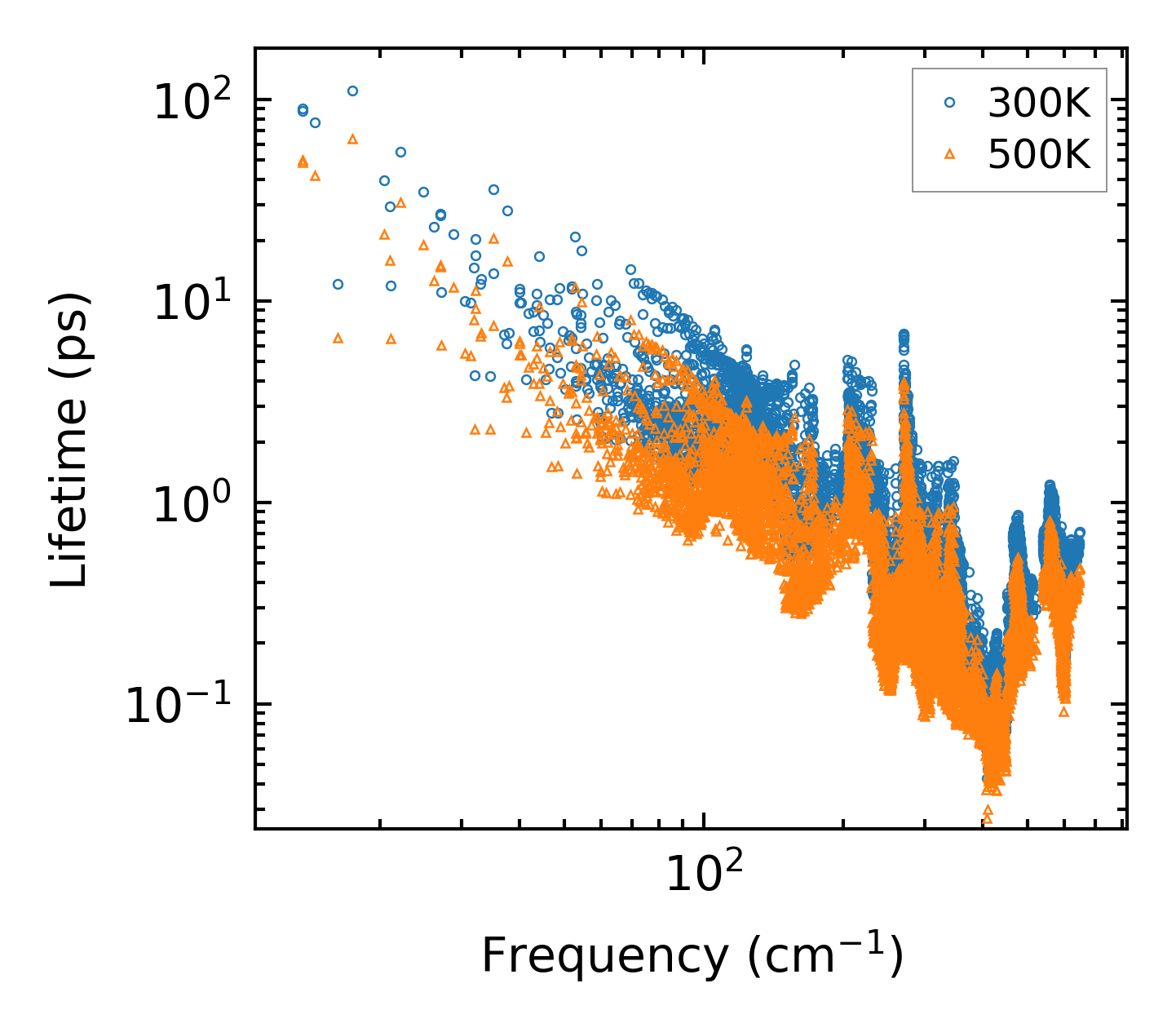

../../_images/fig_lifetime2011.png — (a) Phonon lifetime due to phonon-phonon scattering

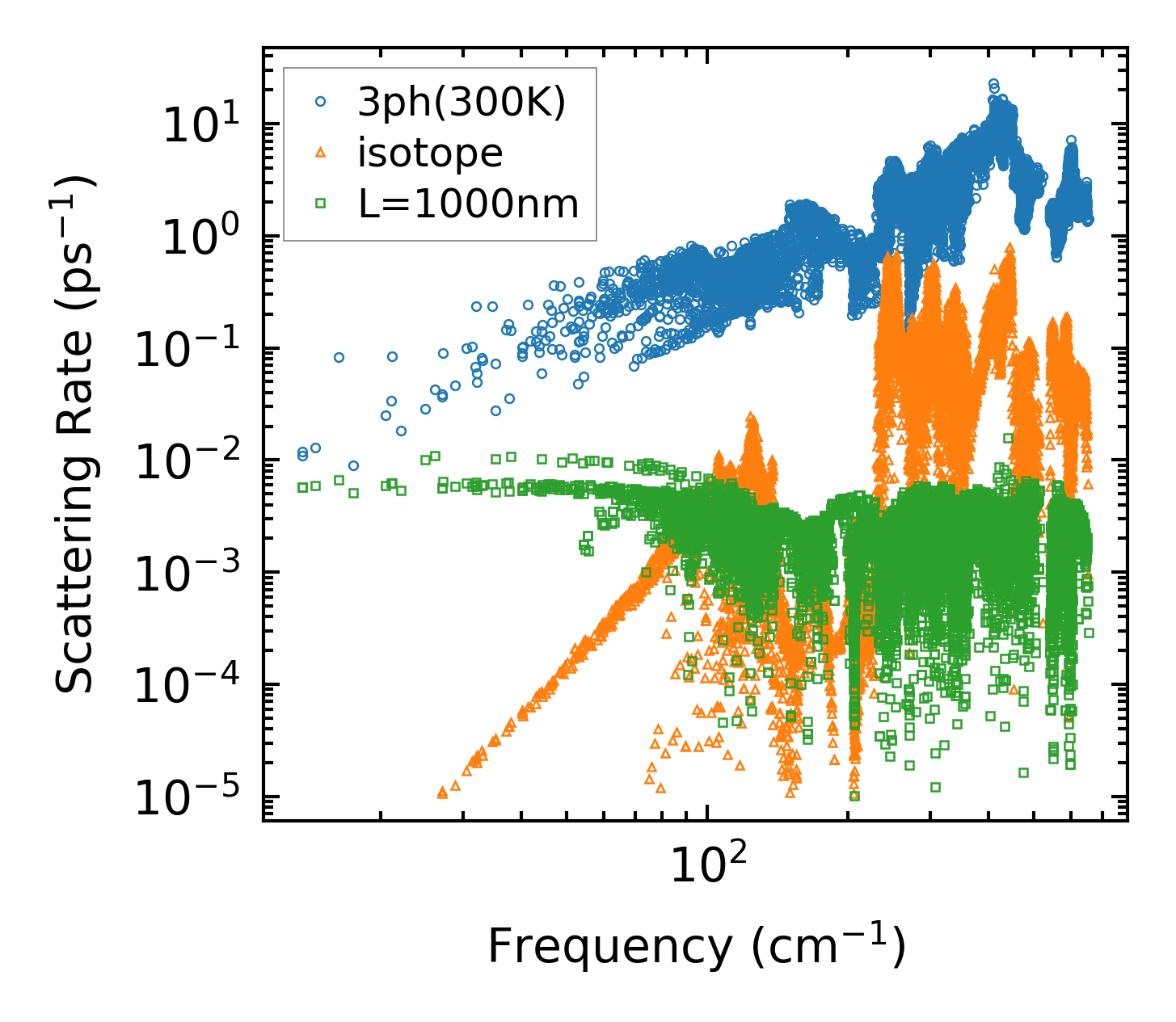

../../_images/fig_scat_rates2010.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

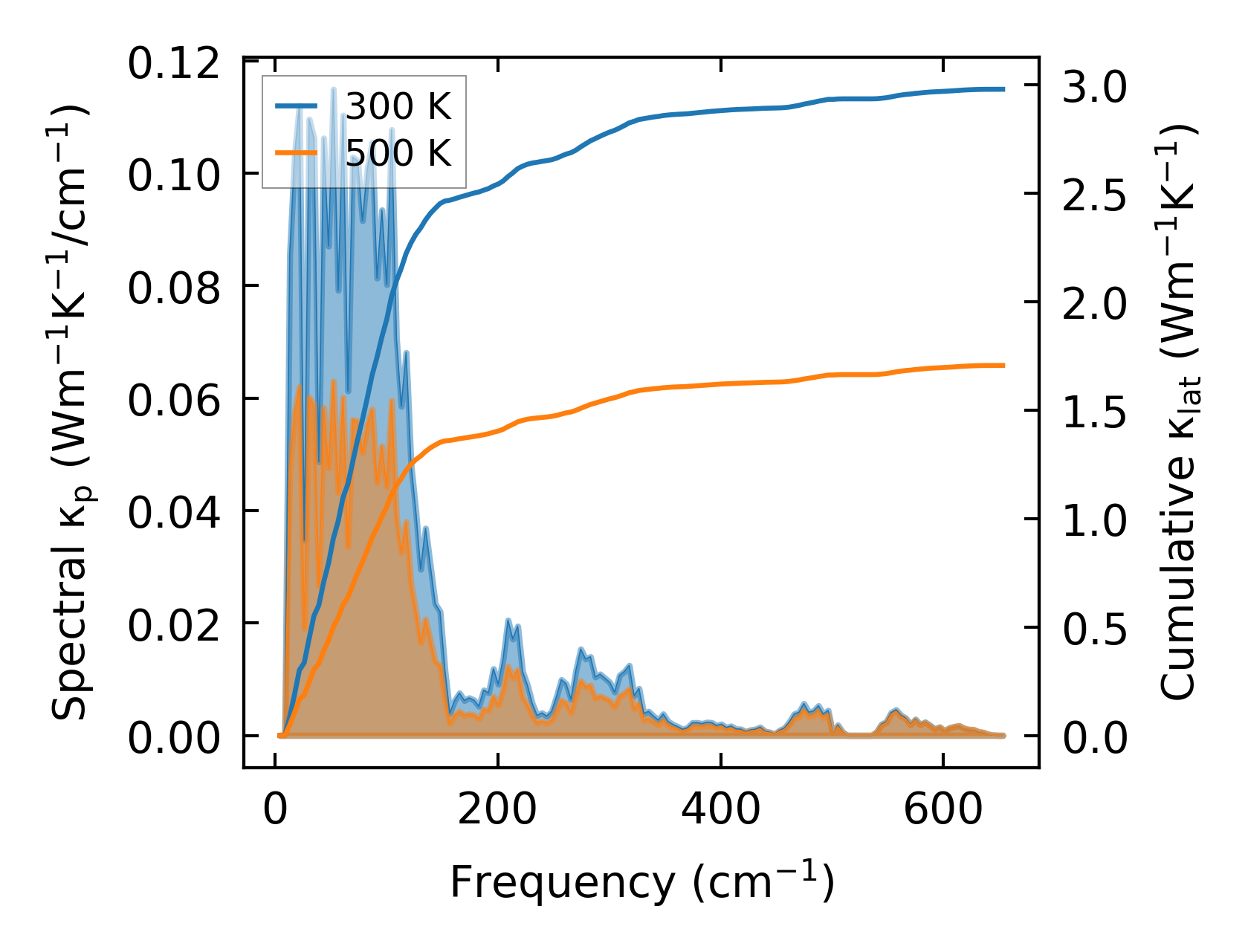

../../_images/fig_cumu_frequency2011.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

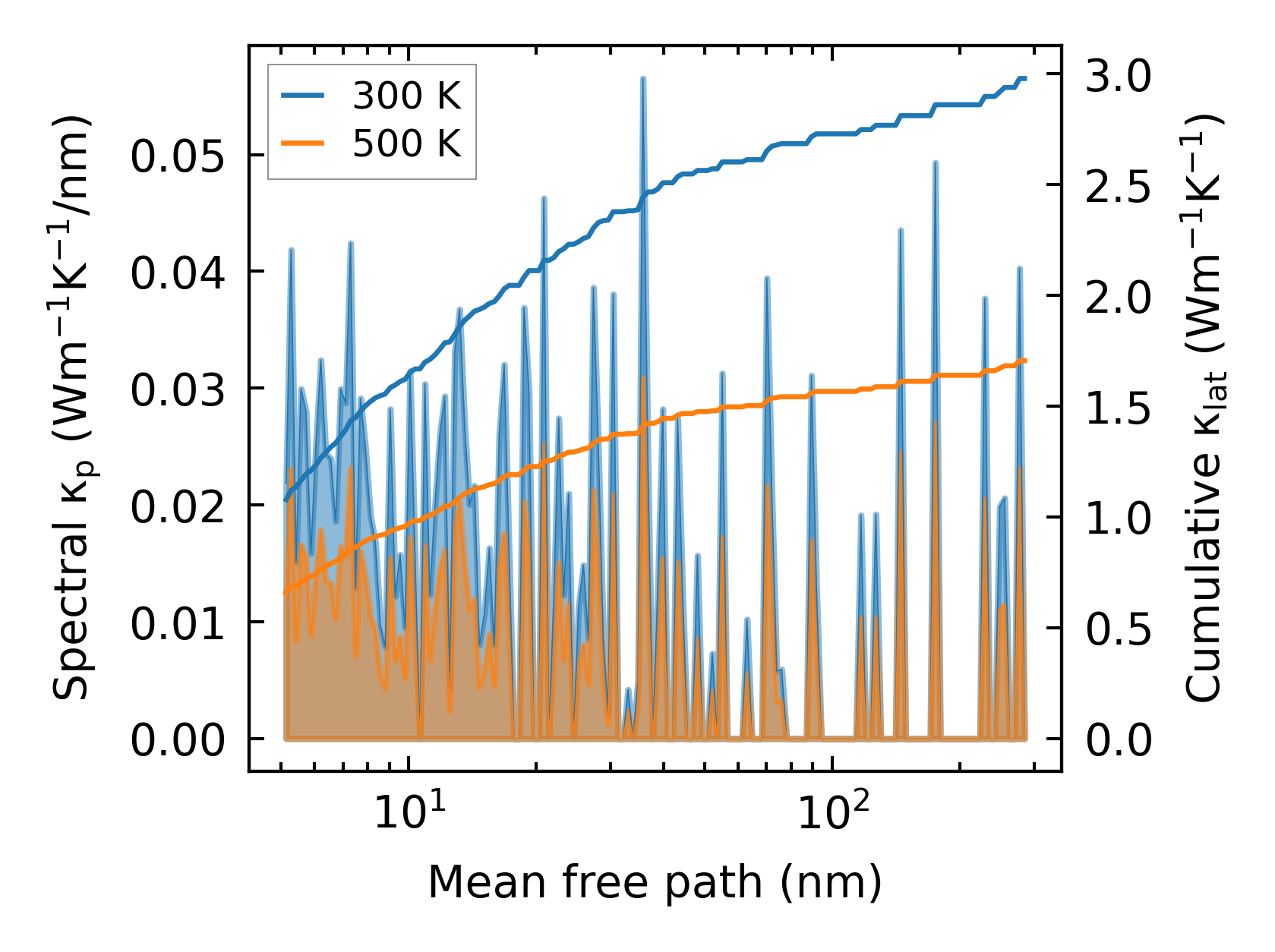

../../_images/fig_cumu_mfp2011.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

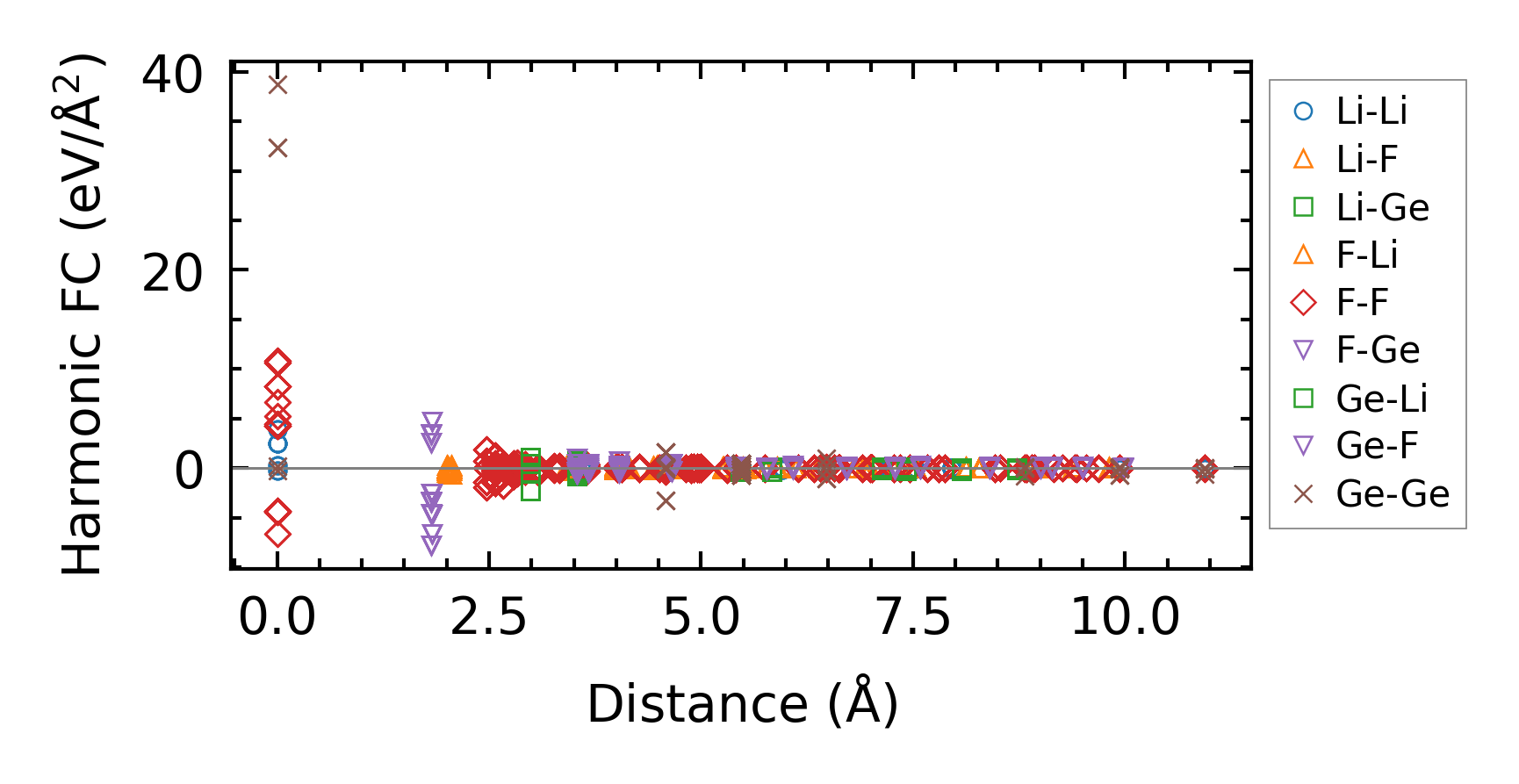

../../_images/fig_fc24472.png — (a) Force constants w.r.t atomic distance

Summary

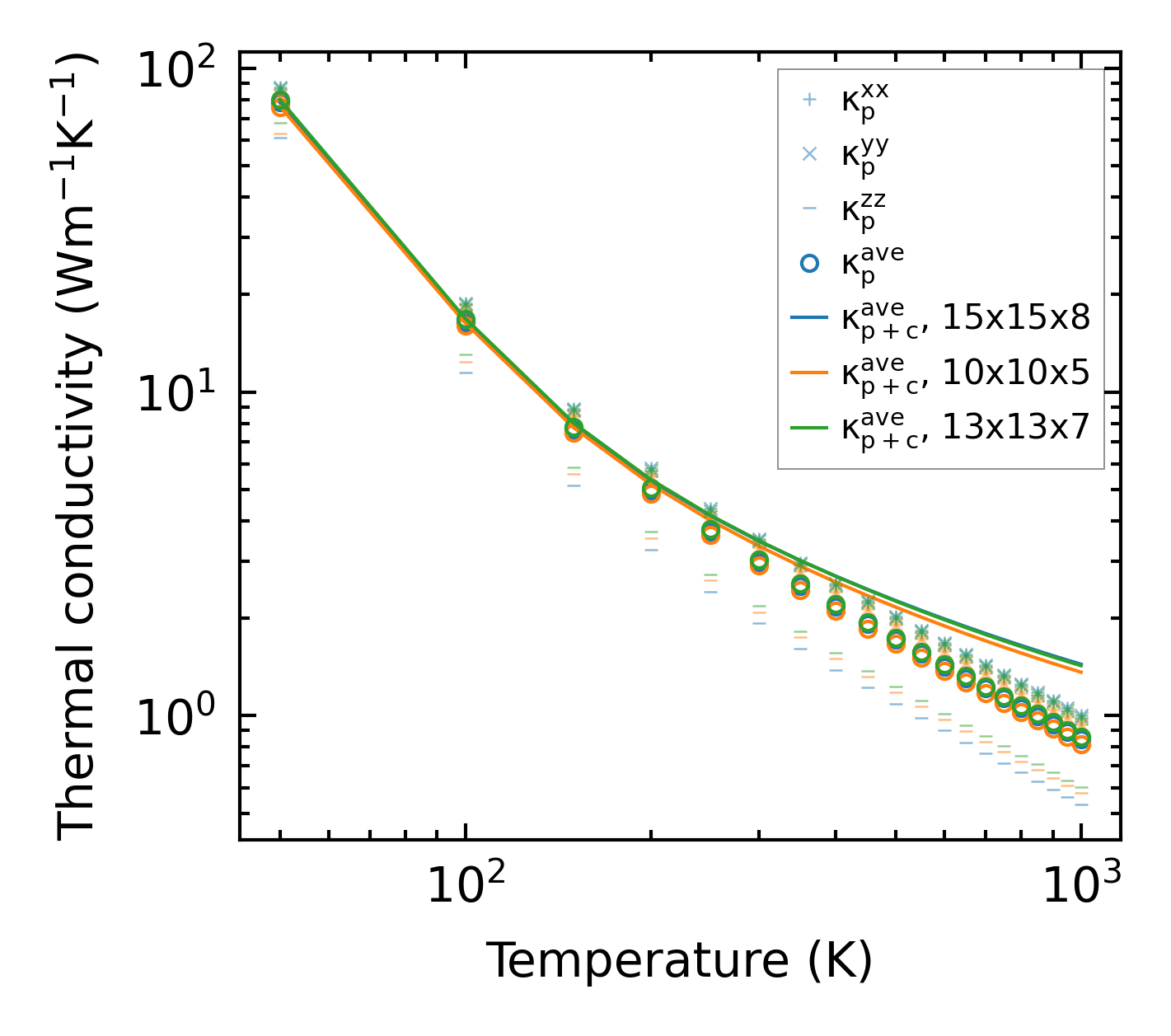

../../_images/fig_kappa3877.png — (a) Temperature-dependent lattice thermal conductivity

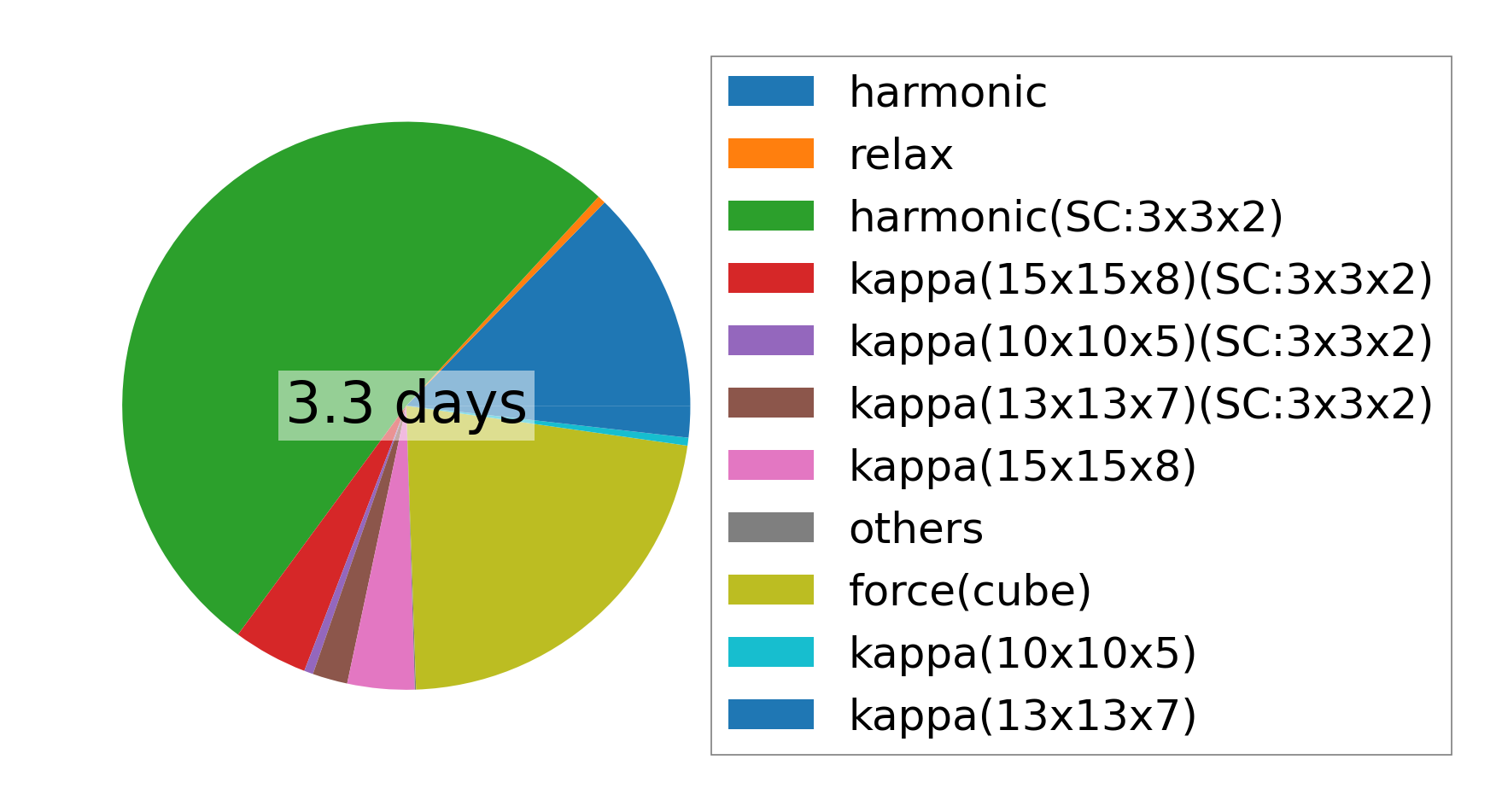

../../_images/fig_times8265.png — (b) Computation time
