mp-7608/Li2PdO2/anharm

Space group: Immm (71)
Link: Materials Project
Download: mp-7608.tar.gz

Harmonic properties

../../_images/fig_bandos_pr4593.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4593.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1985.png — (a) Grüneisen parameters

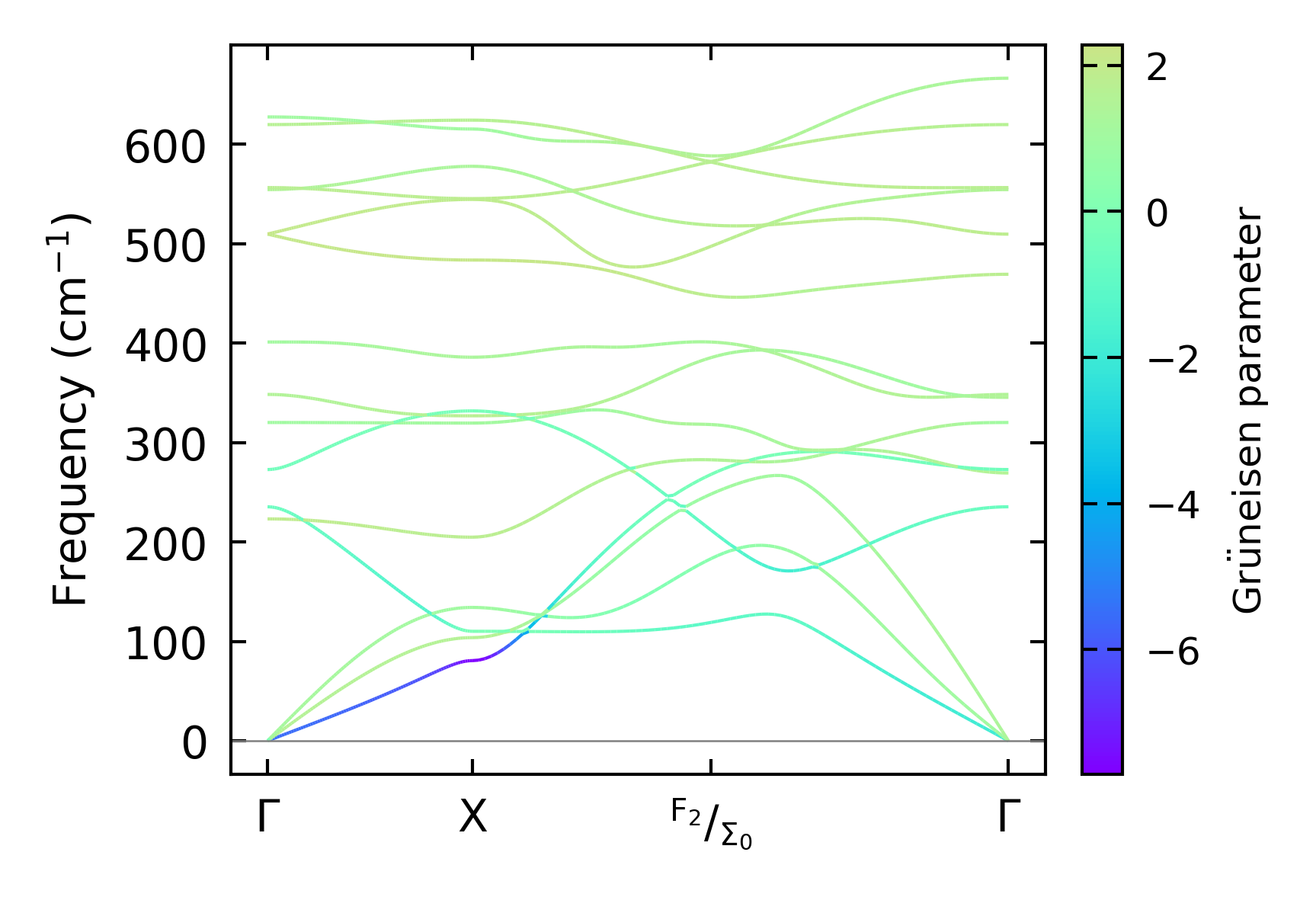

../../_images/fig_gruneisen1985.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x19, supercell: 4x3x1

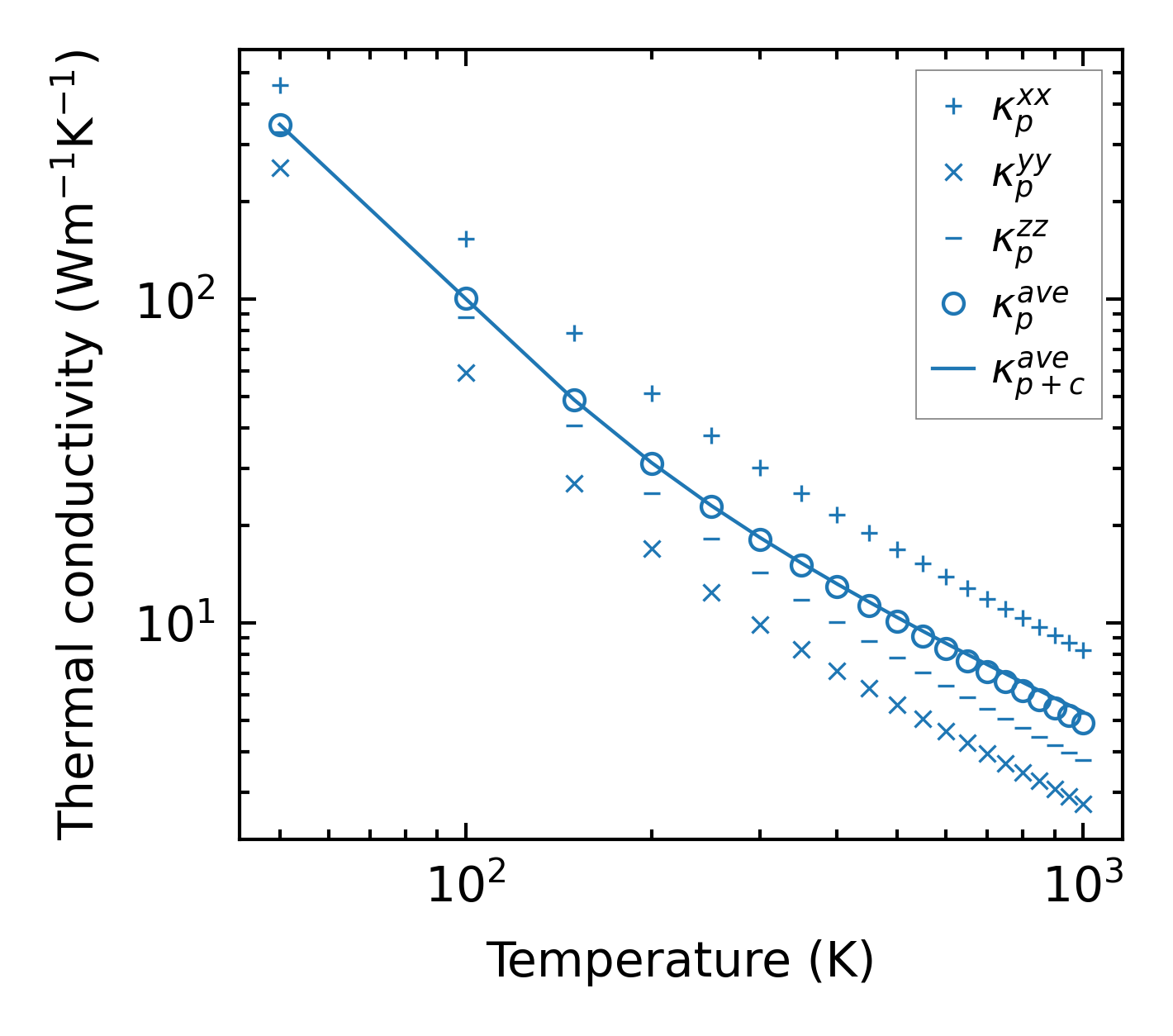

../../_images/fig_kappa3802.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2012.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

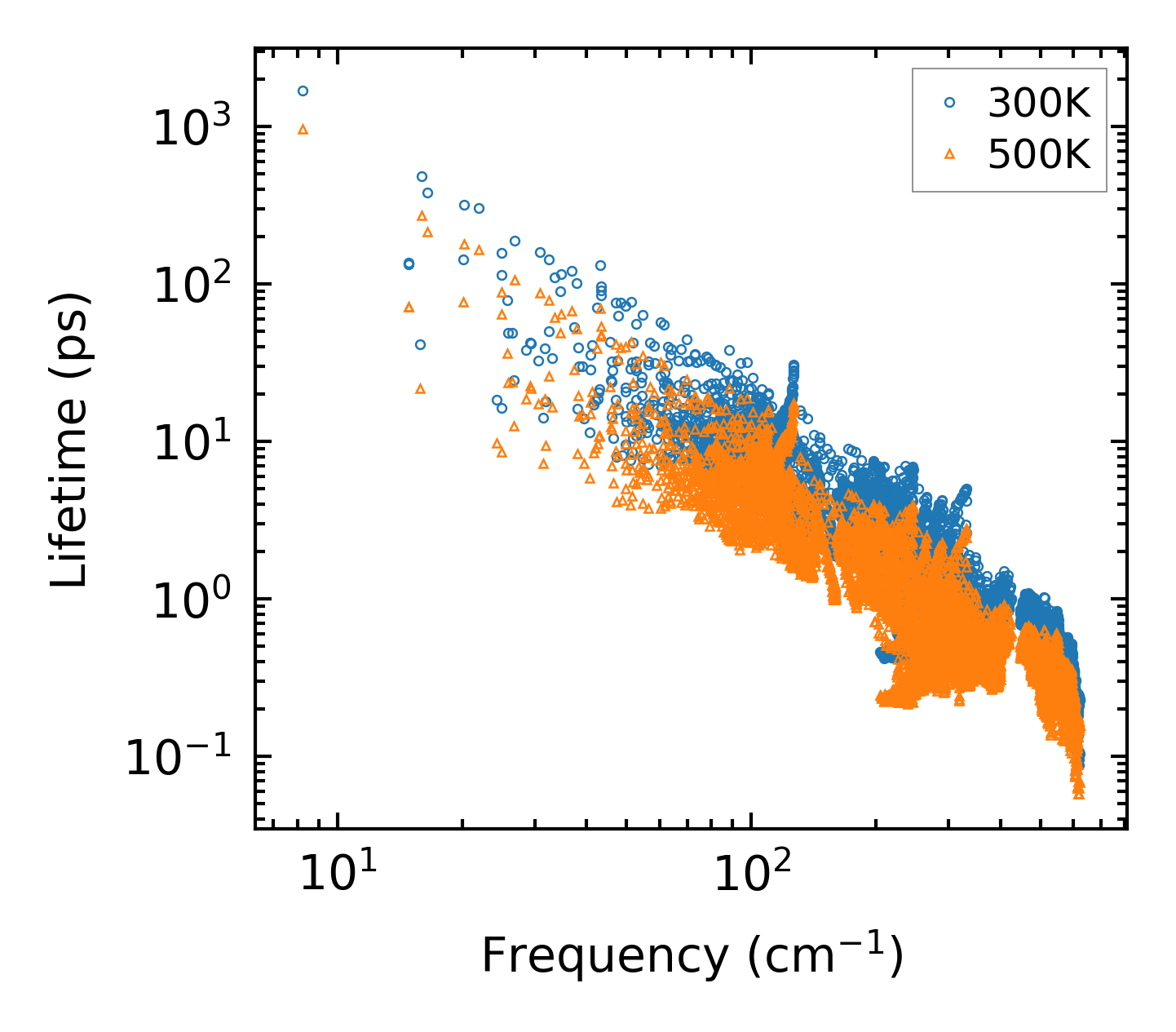

../../_images/fig_lifetime1974.png — (a) Phonon lifetime due to phonon-phonon scattering

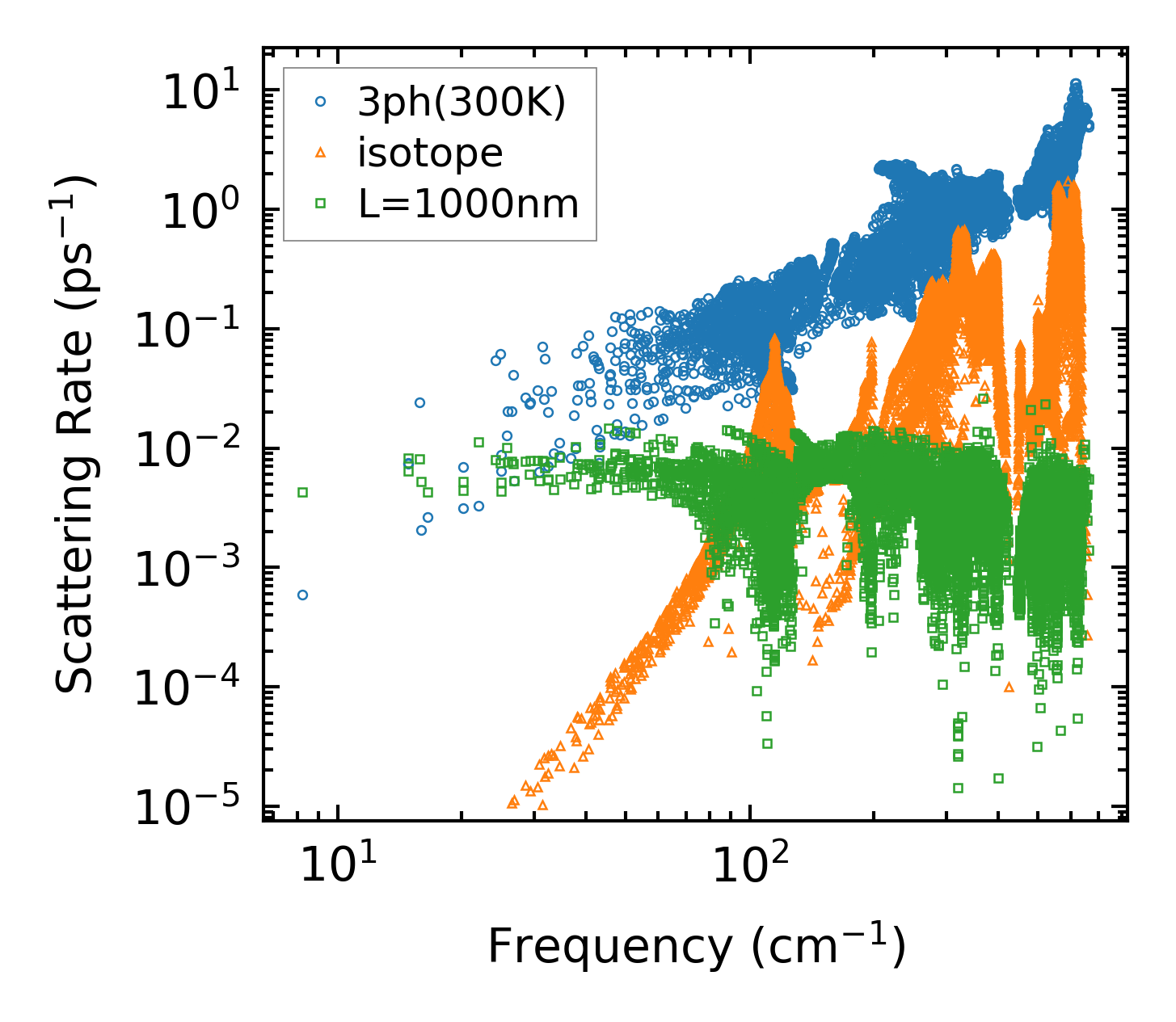

../../_images/fig_scat_rates1973.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

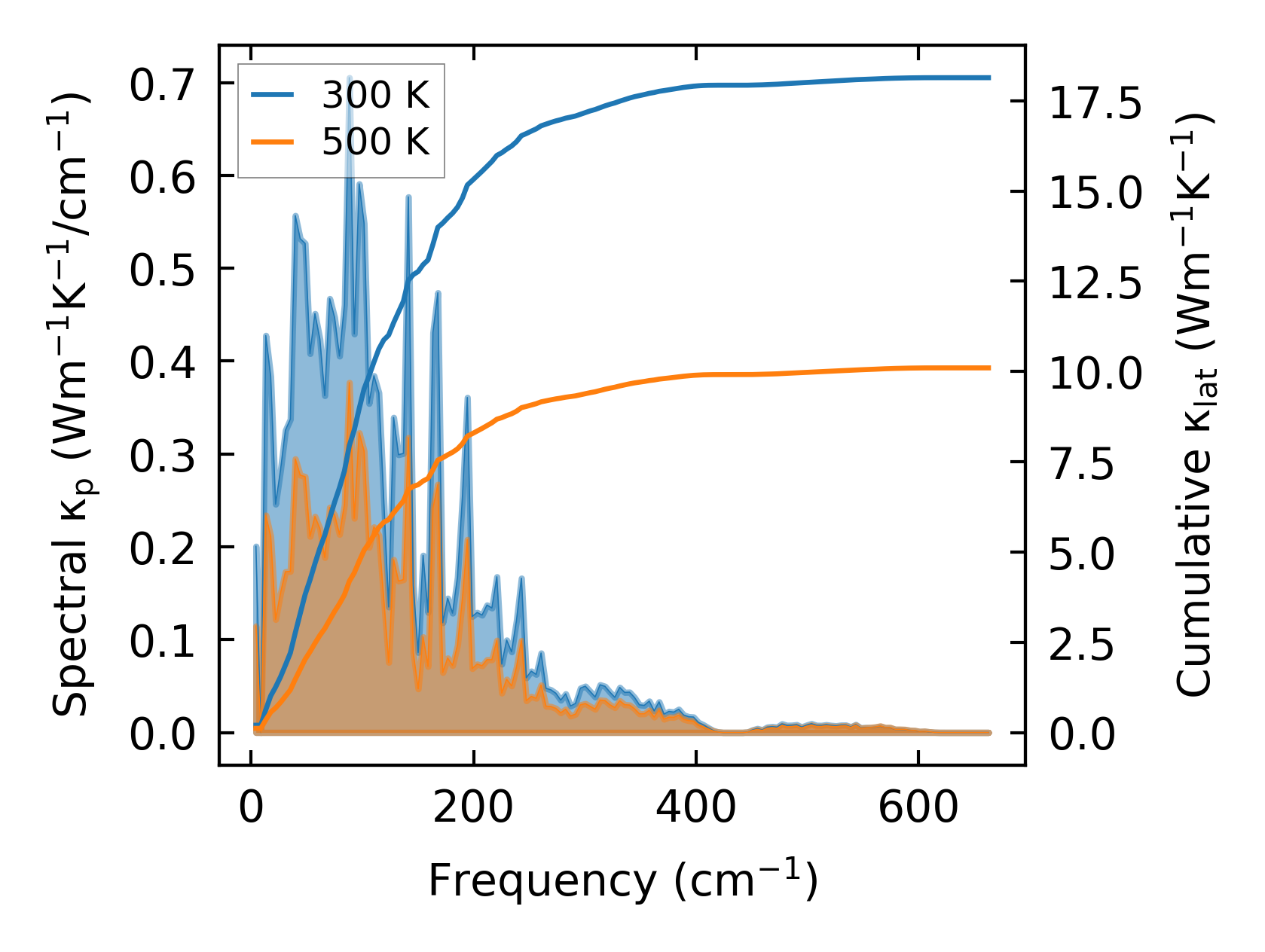

../../_images/fig_cumu_frequency1974.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1974.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

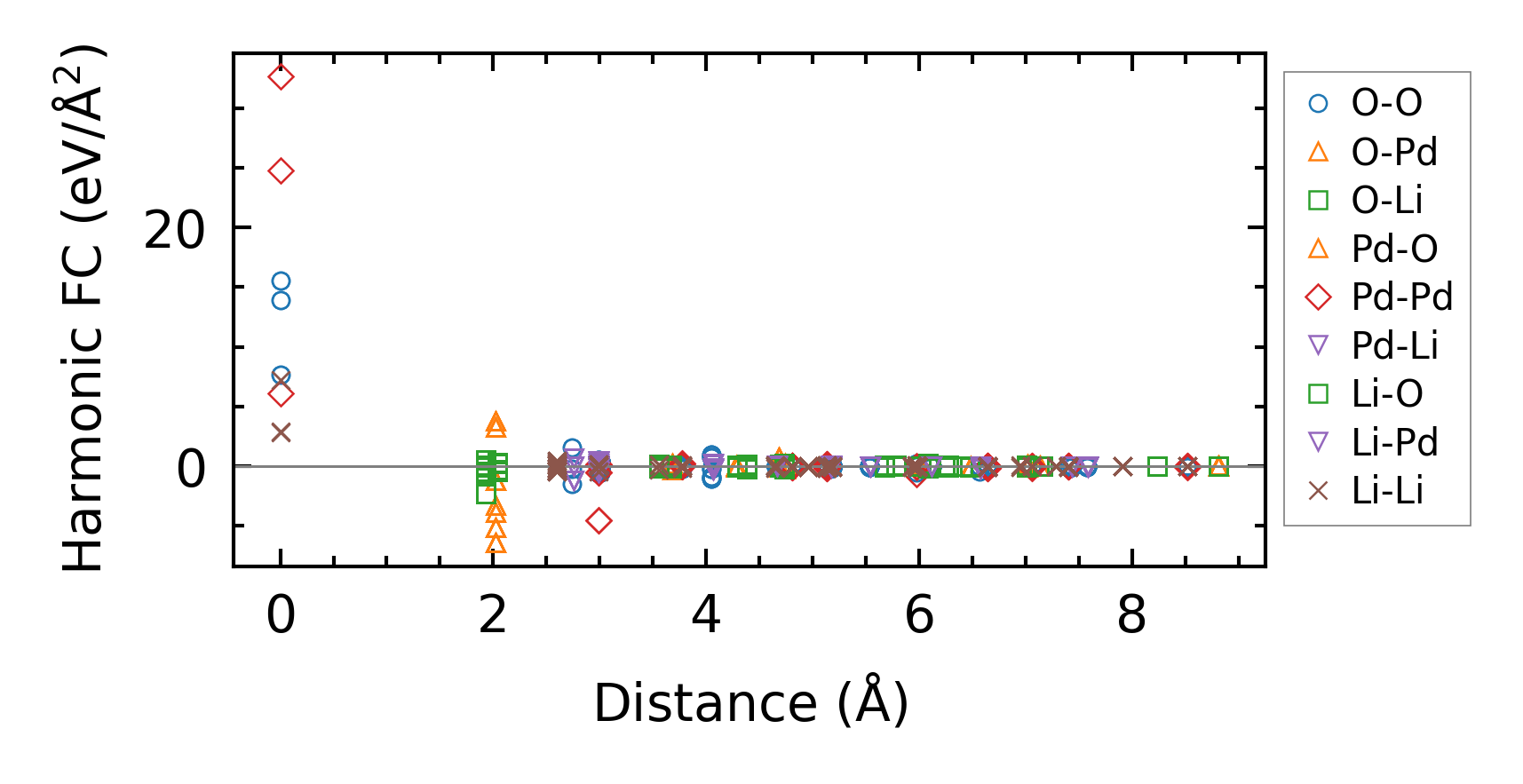

../../_images/fig_fc24405.png — (a) Force constants w.r.t atomic distance

Summary

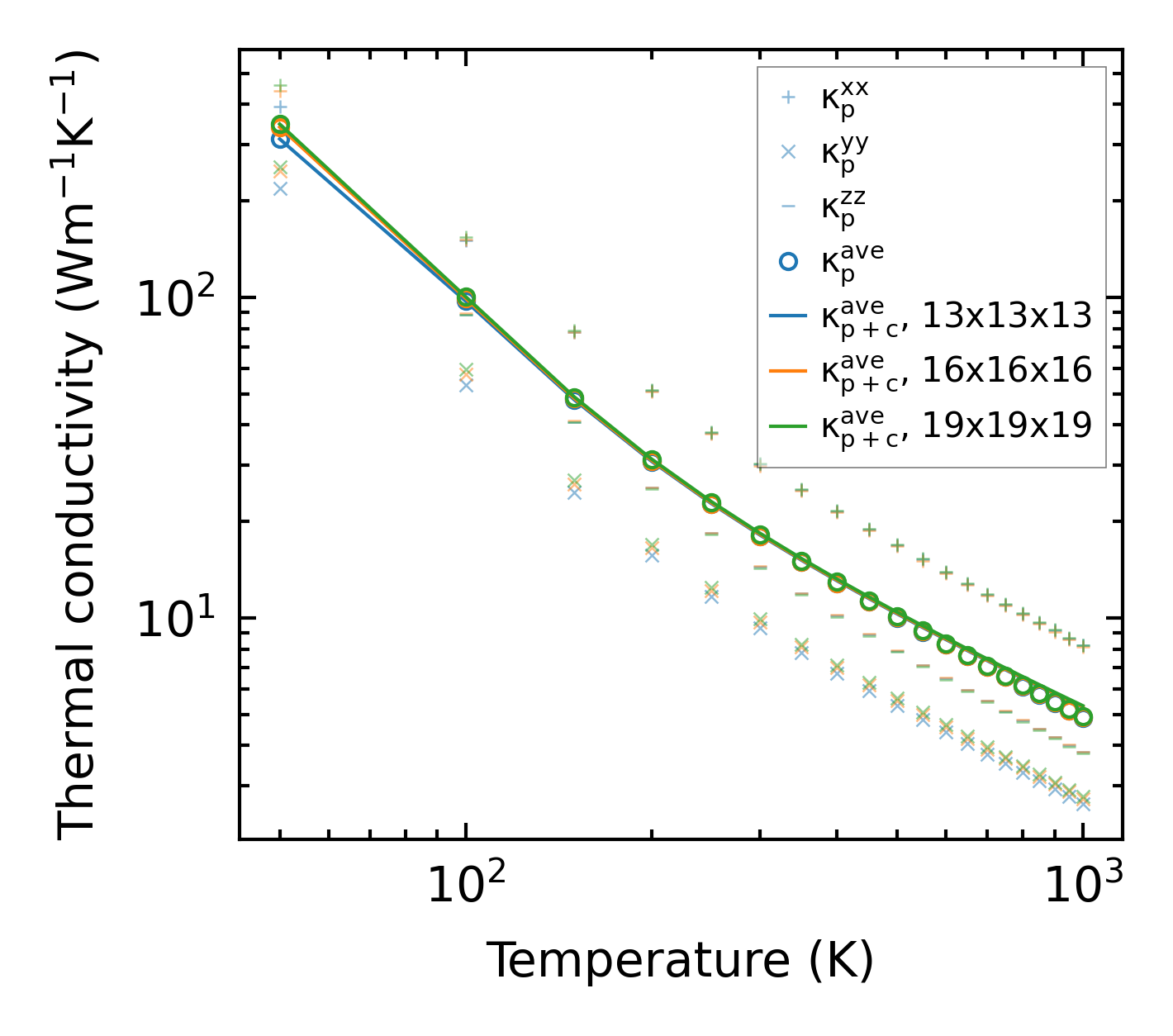

../../_images/fig_kappa3803.png — (a) Temperature-dependent lattice thermal conductivity

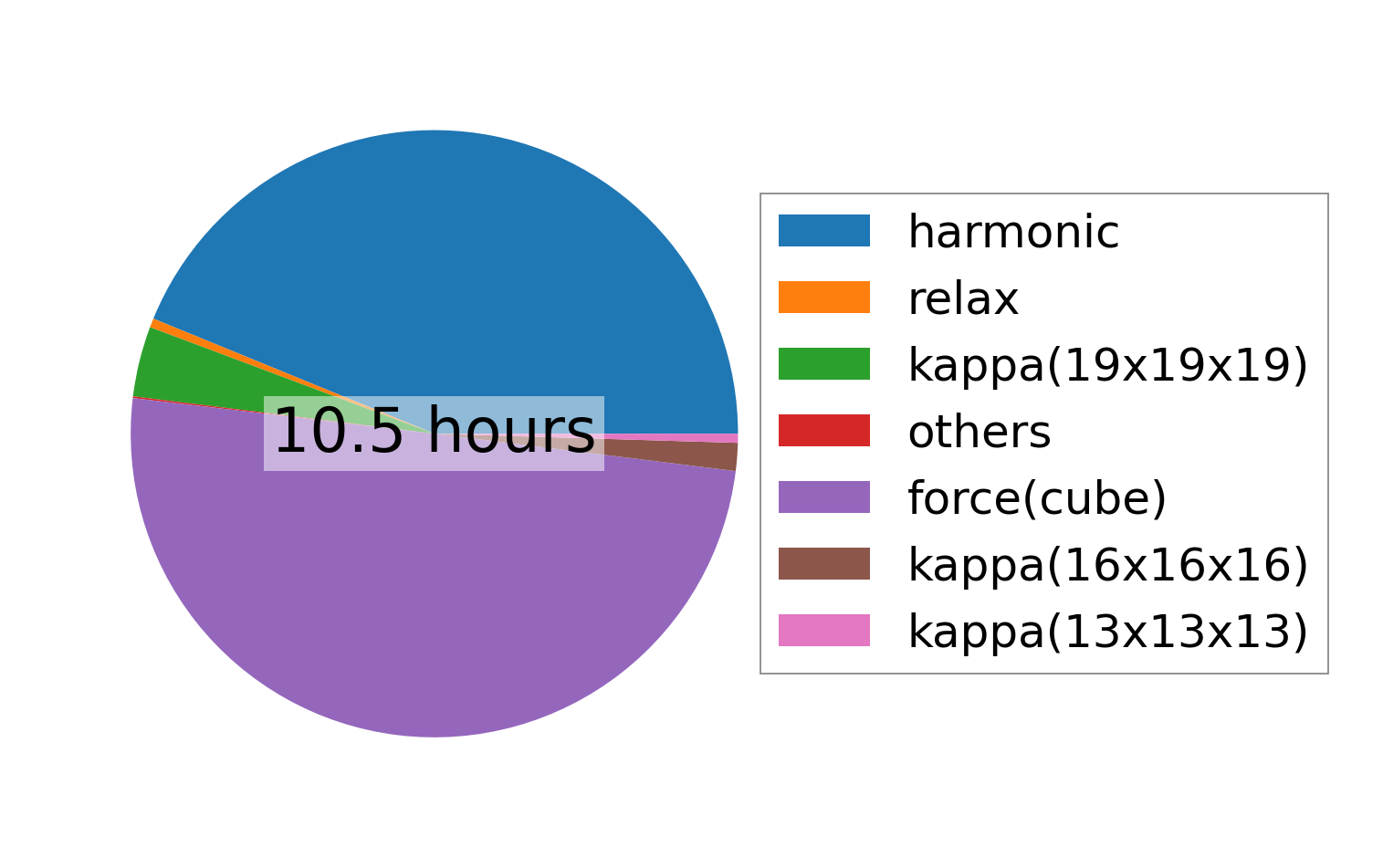

../../_images/fig_times8176.png — (b) Computation time
