mp-17854/LiInGeO4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-17854.tar.gz

Harmonic properties

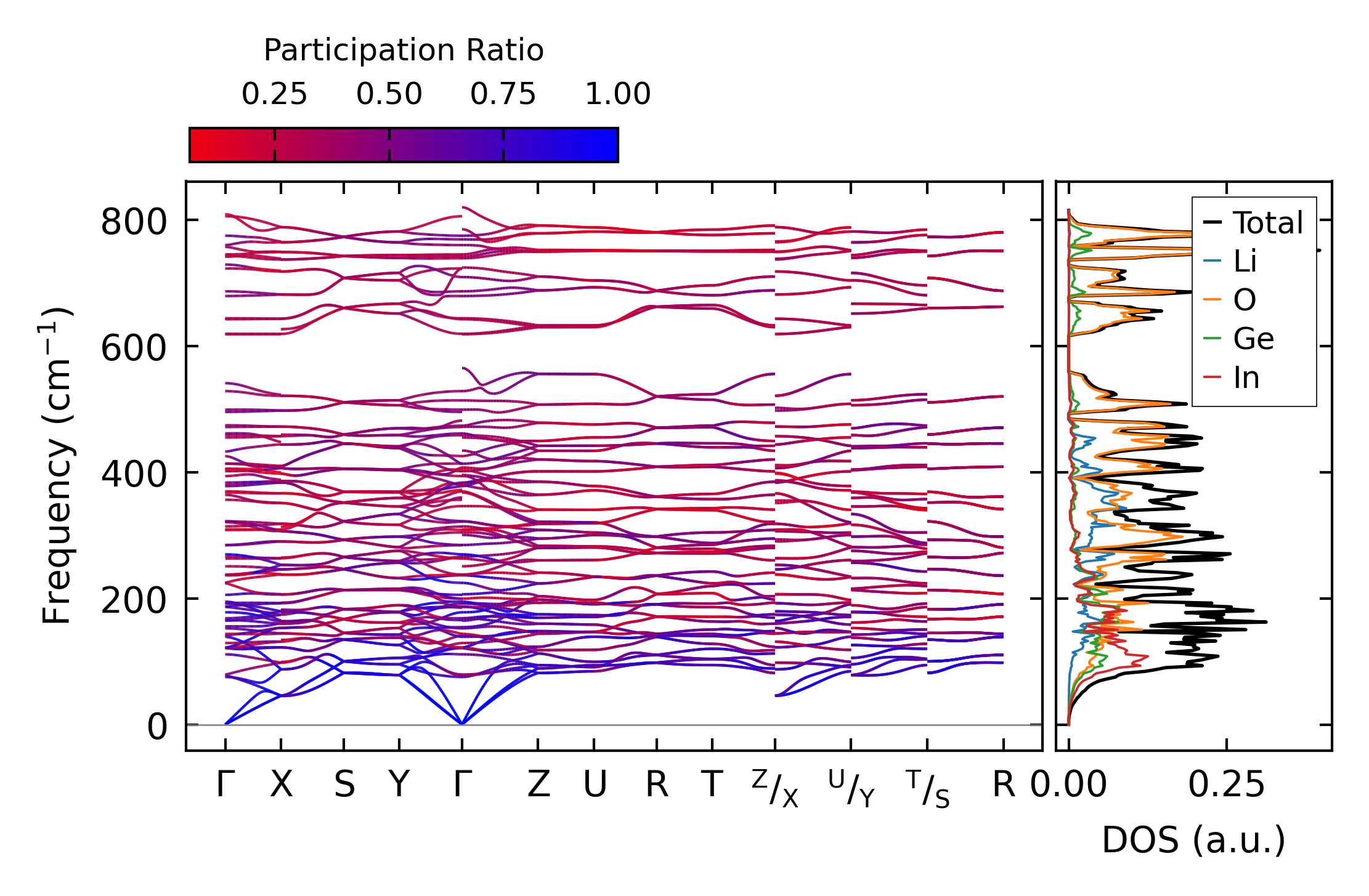

../../_images/fig_bandos_pr14046.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14046.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5958.png — (a) Grüneisen parameters

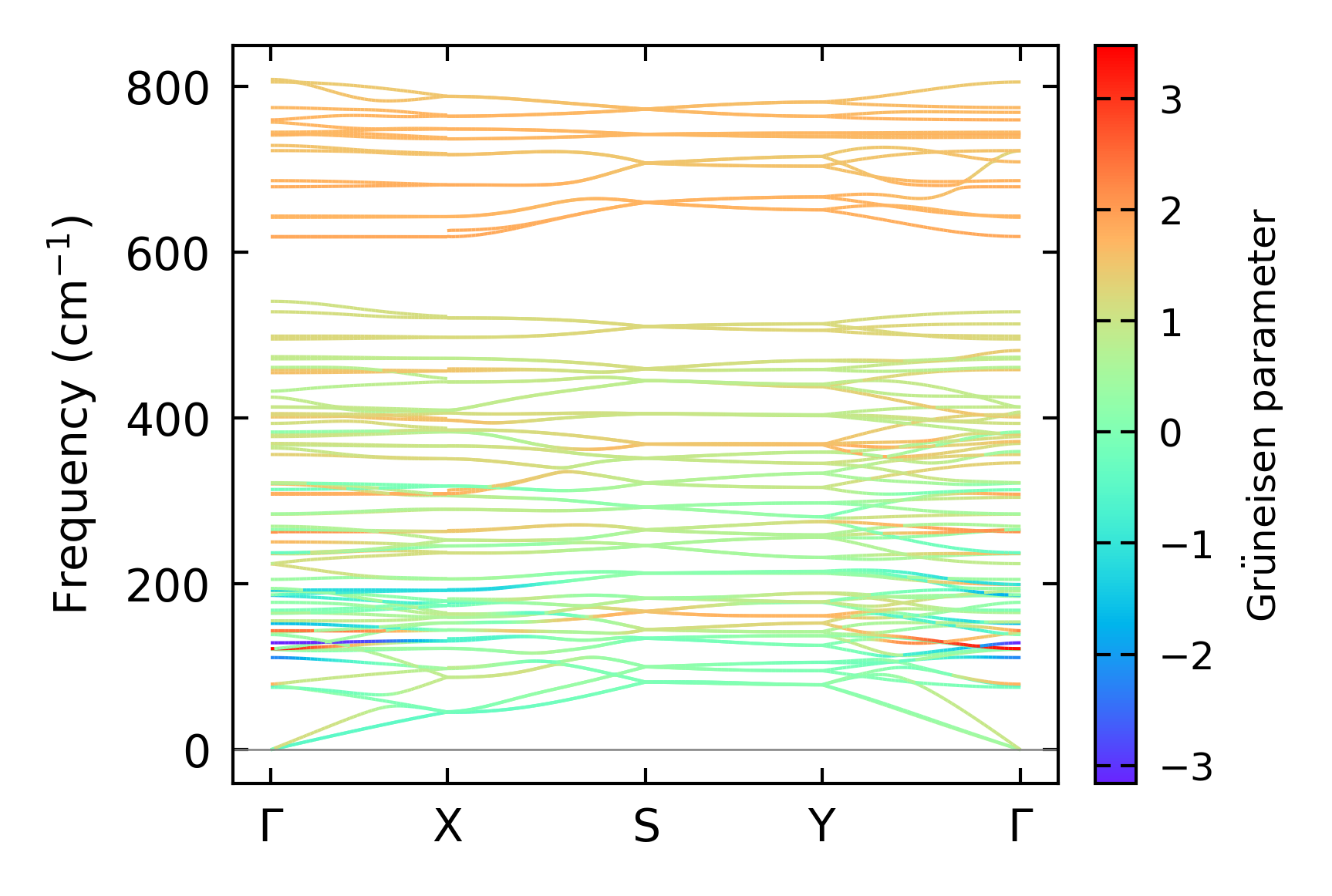

../../_images/fig_gruneisen5958.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x11x14, supercell: 1x2x2

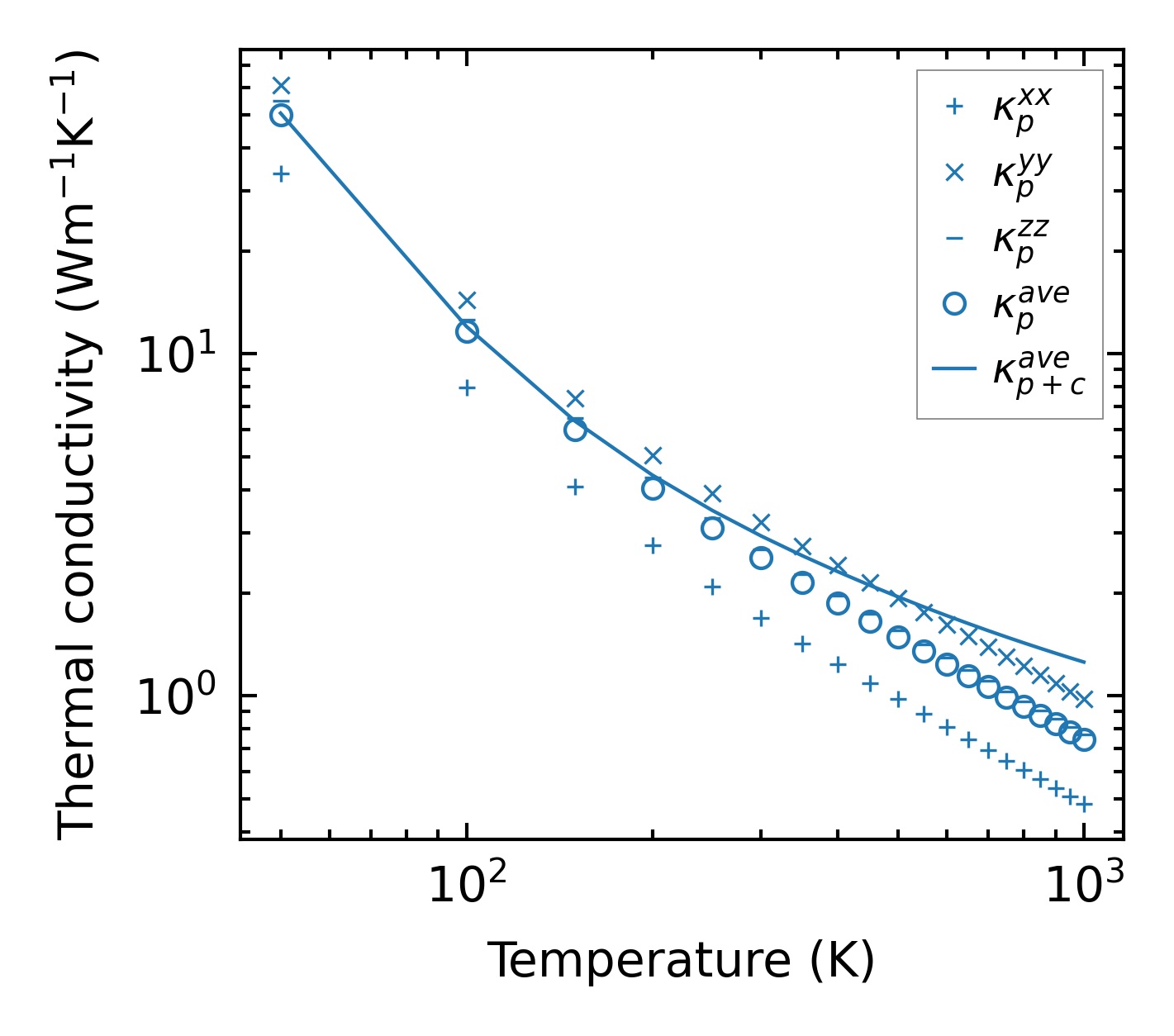

../../_images/fig_kappa11216.png — (a) Temperature-dependent lattice thermal conductivity

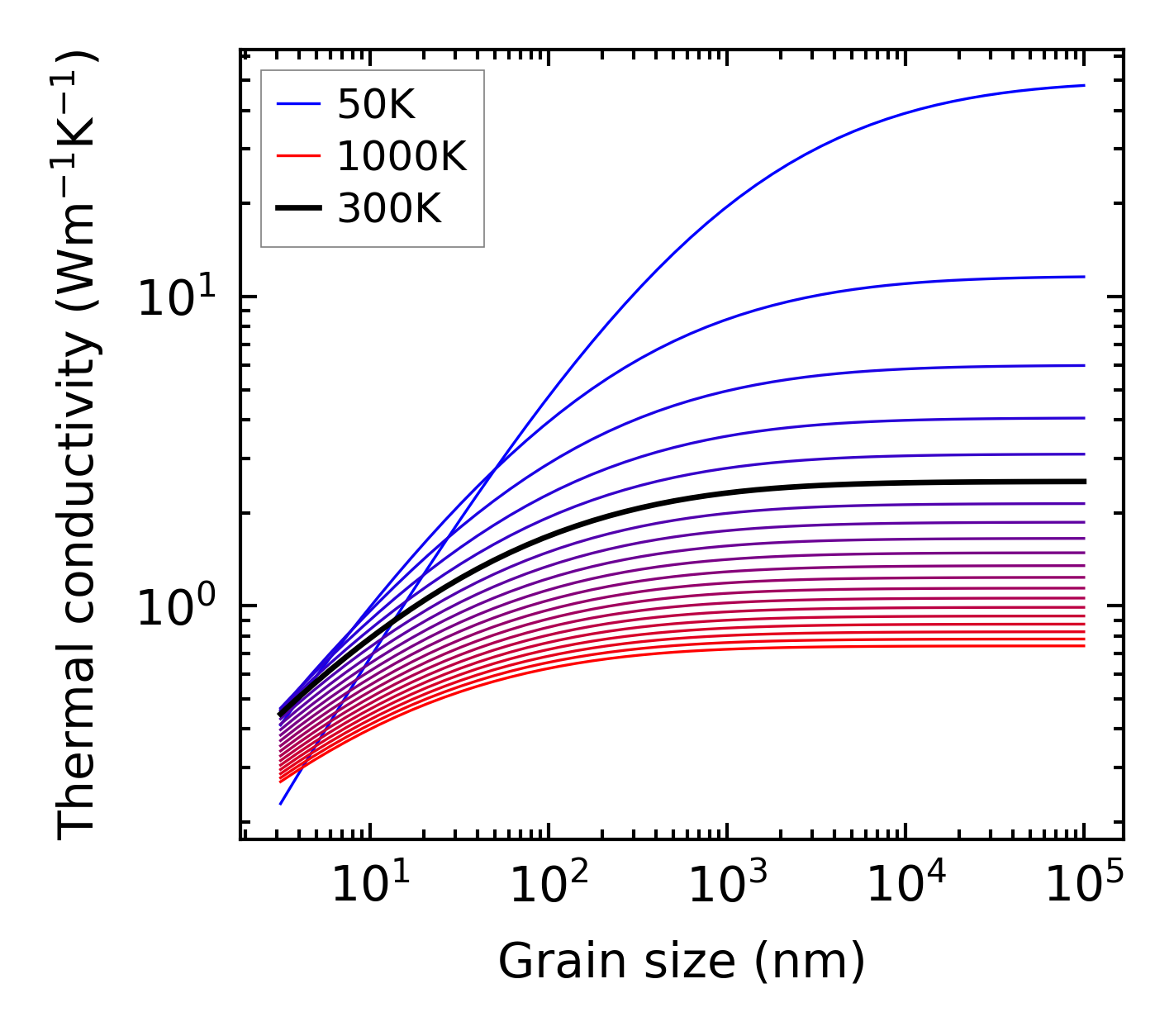

../../_images/fig_kappa_vs_grain_size6036.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

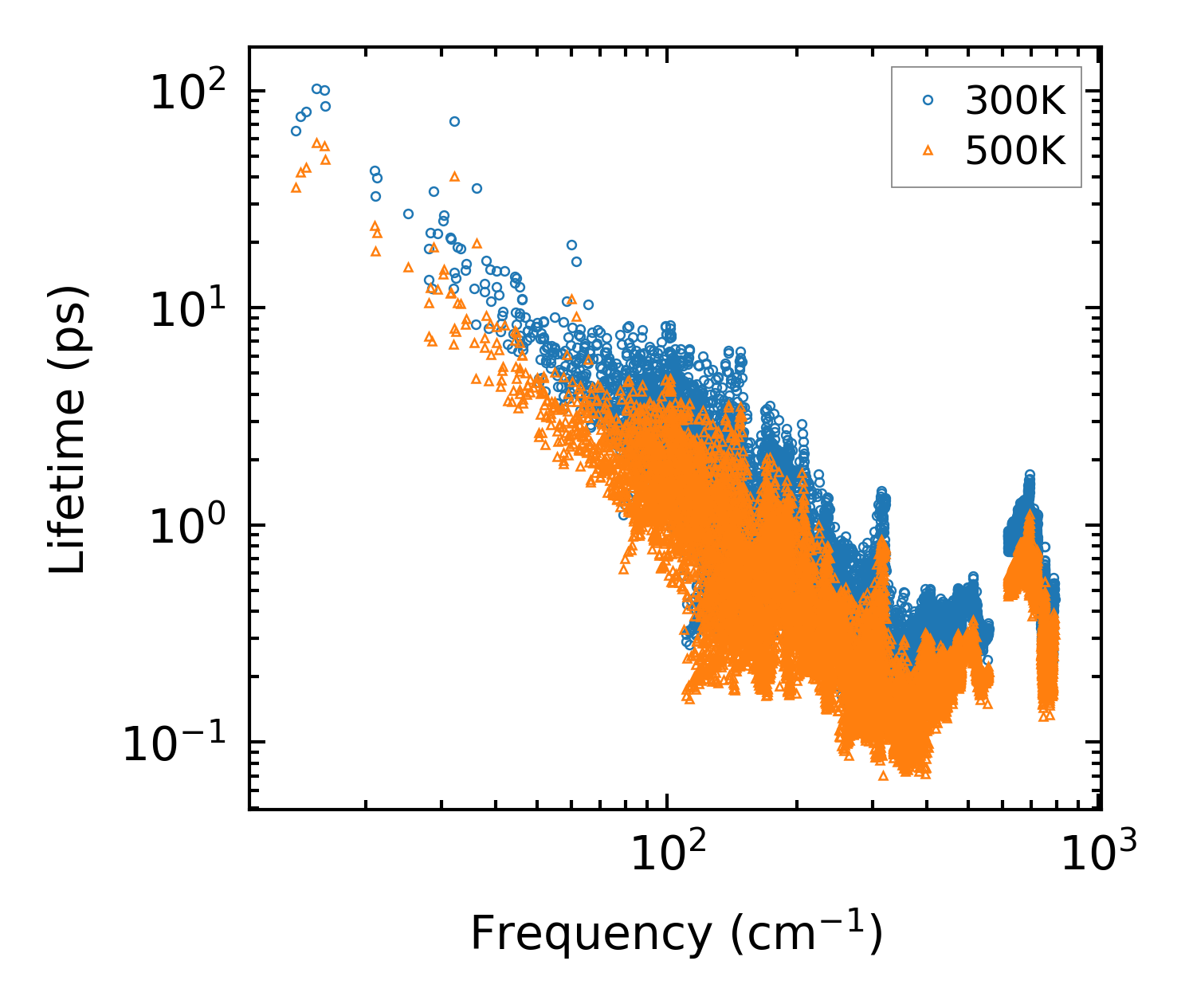

../../_images/fig_lifetime5901.png — (a) Phonon lifetime due to phonon-phonon scattering

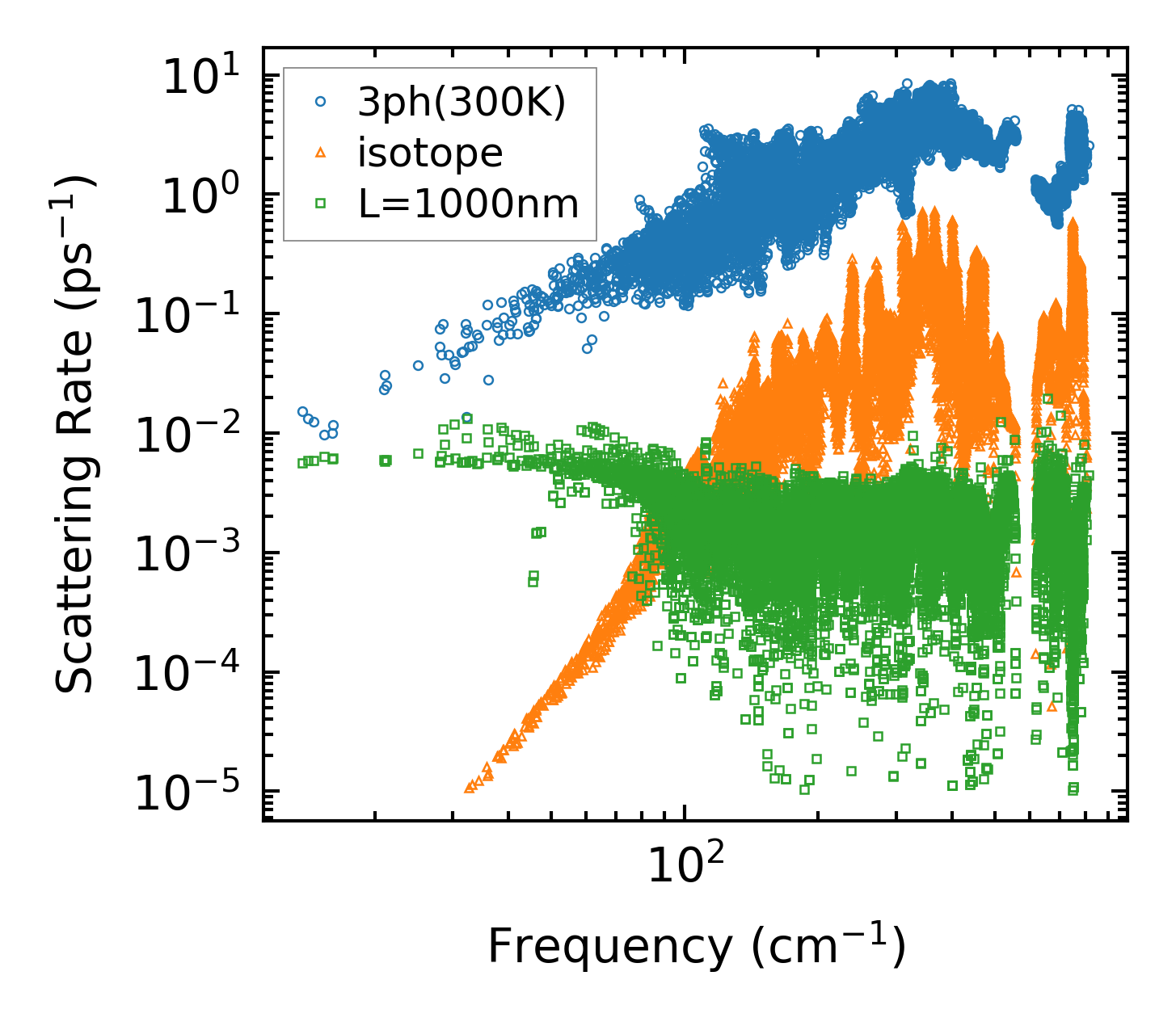

../../_images/fig_scat_rates5900.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5901.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

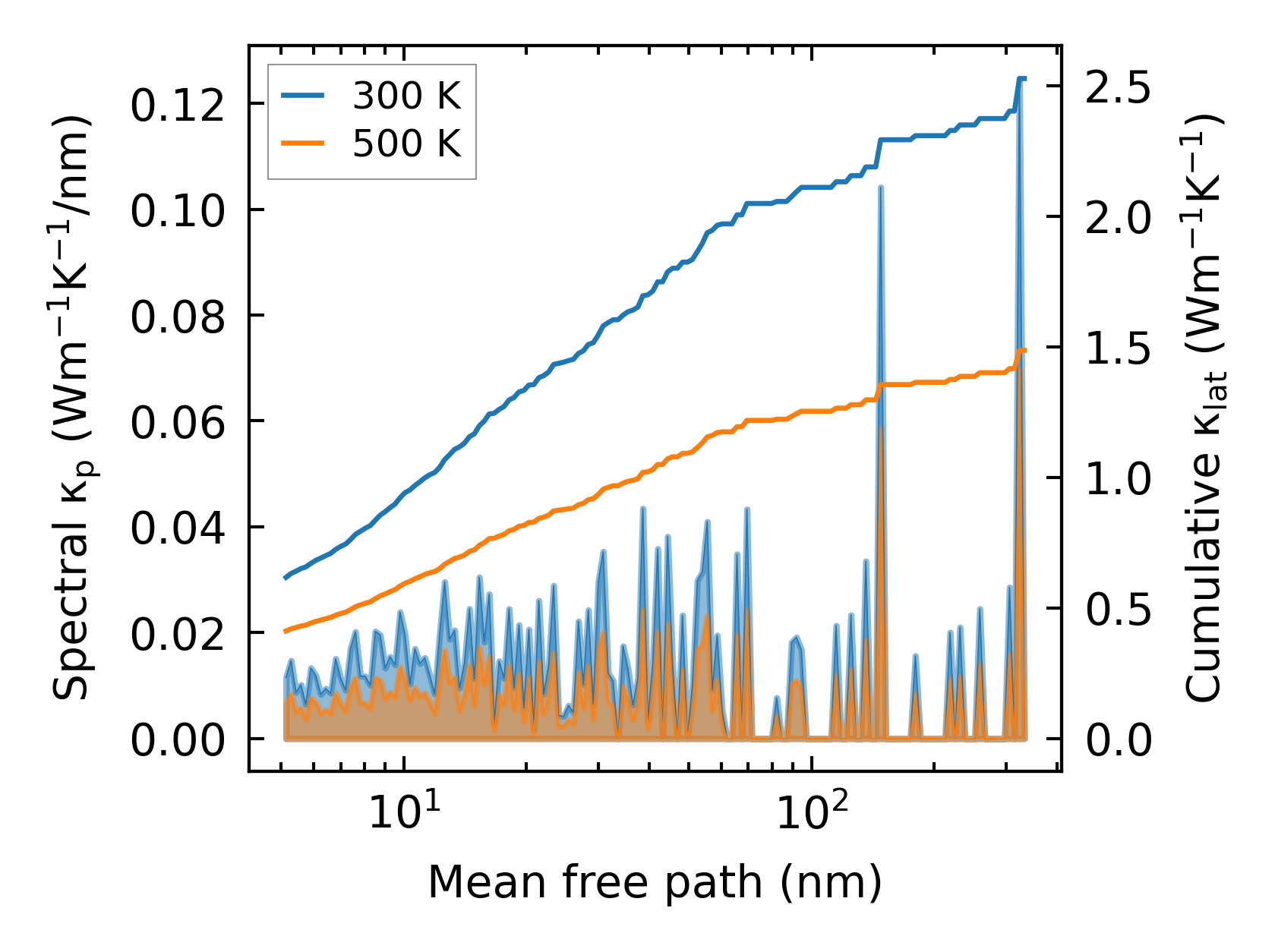

../../_images/fig_cumu_mfp5900.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213674.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11217.png — (a) Temperature-dependent lattice thermal conductivity

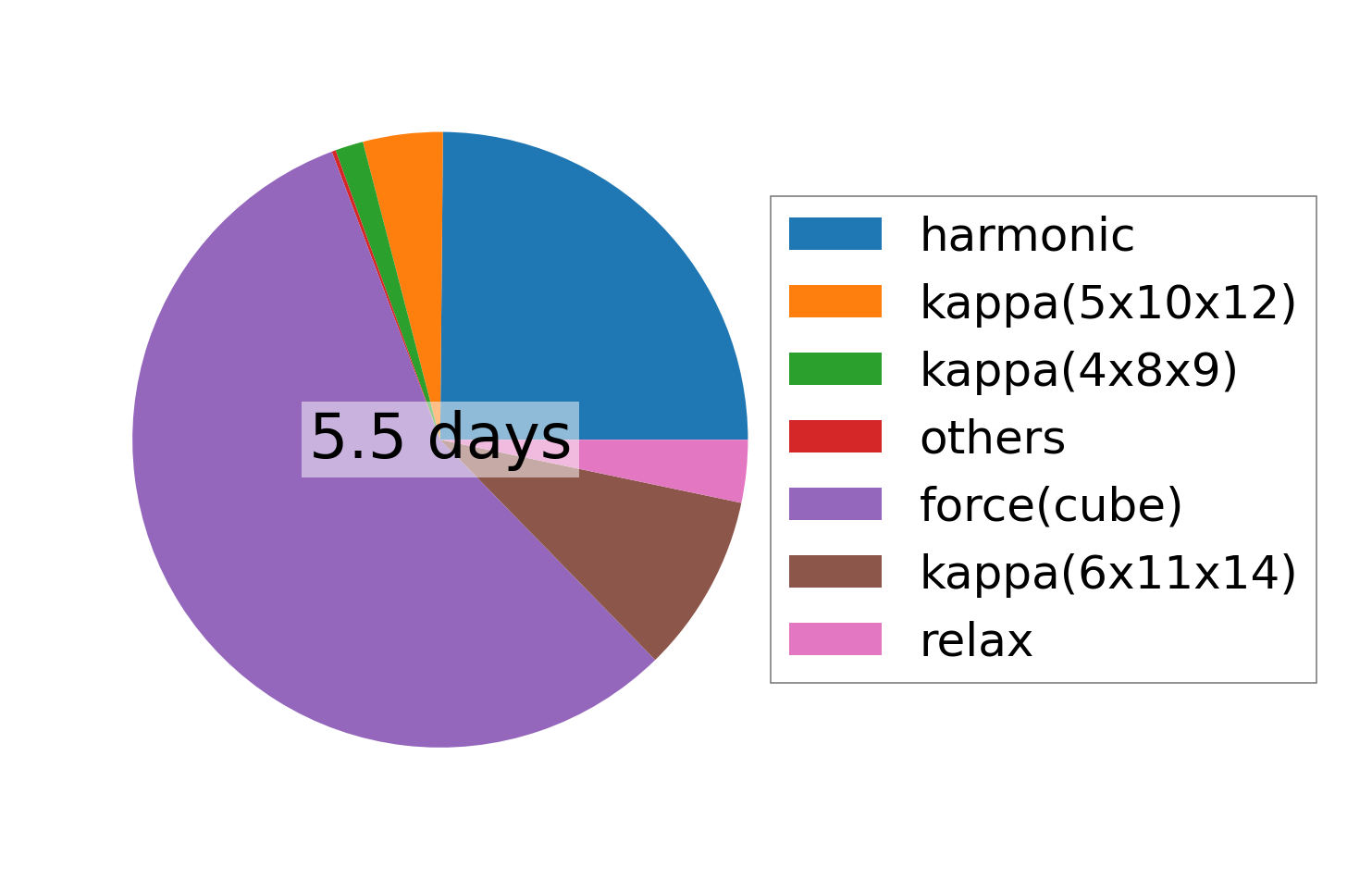

../../_images/fig_times23501.png — (b) Computation time
