mp-17817-2/Ca3Ge2P4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-17817-2.tar.gz

Equation of state

../../_images/fig_bm7023.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr14024.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14024.png — (b) Thermodynamic properties

Grüneisen parameters

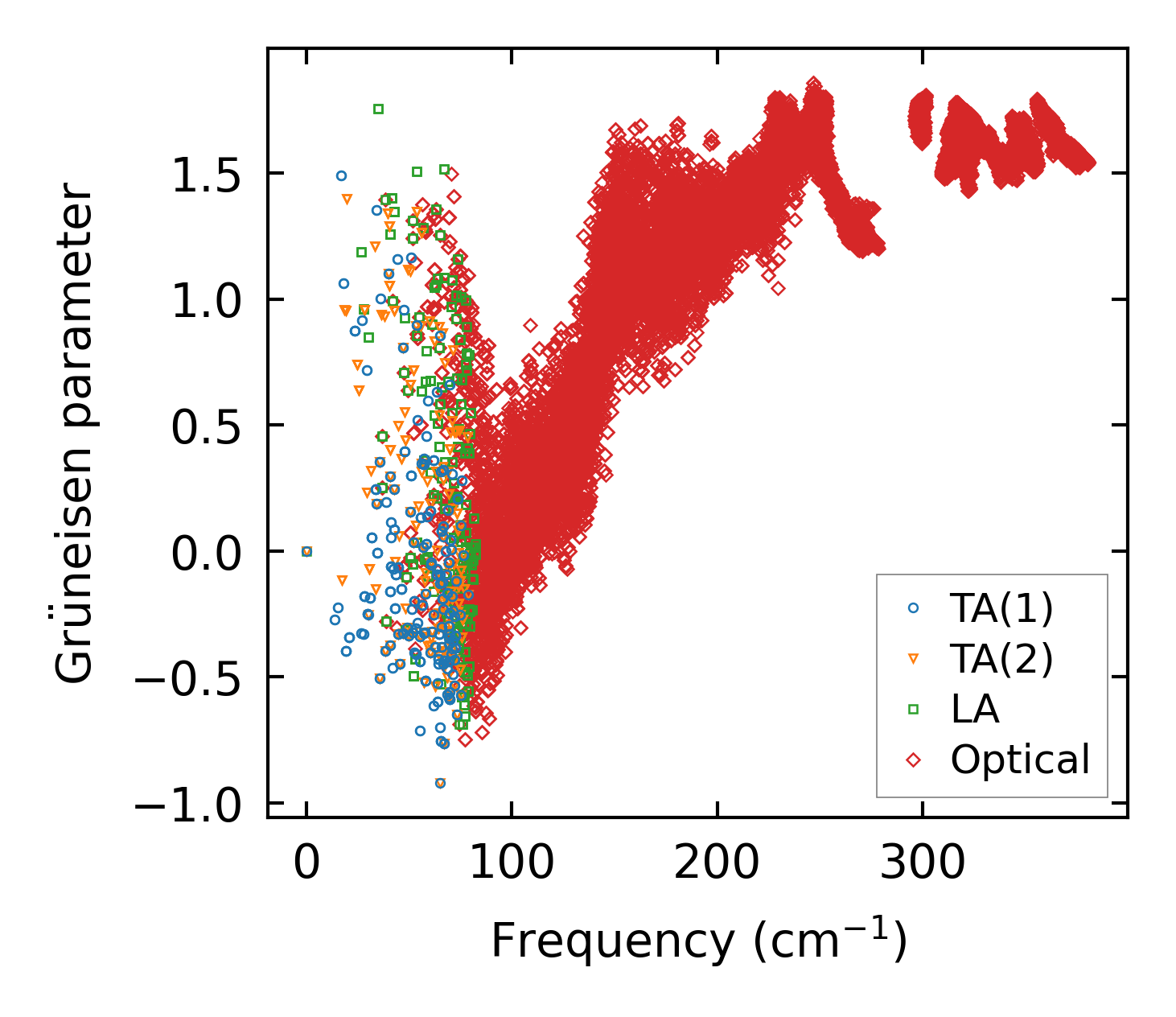

../../_images/fig_gru_all5945.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5945.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x4x10, supercell: 2x1x2

../../_images/fig_kappa11191.png — (a) Temperature-dependent lattice thermal conductivity

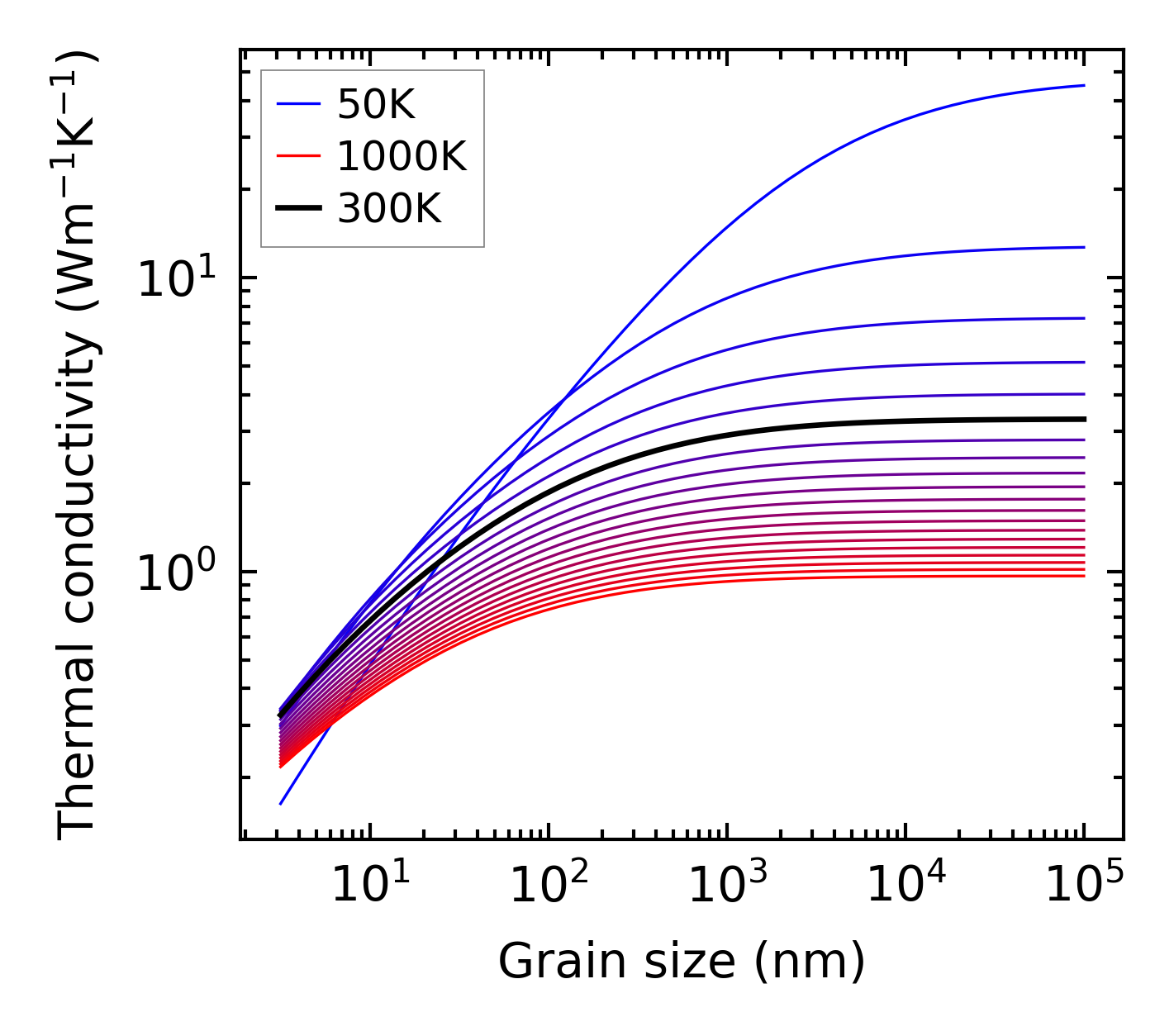

../../_images/fig_kappa_vs_grain_size6023.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5888.png — (a) Phonon lifetime due to phonon-phonon scattering

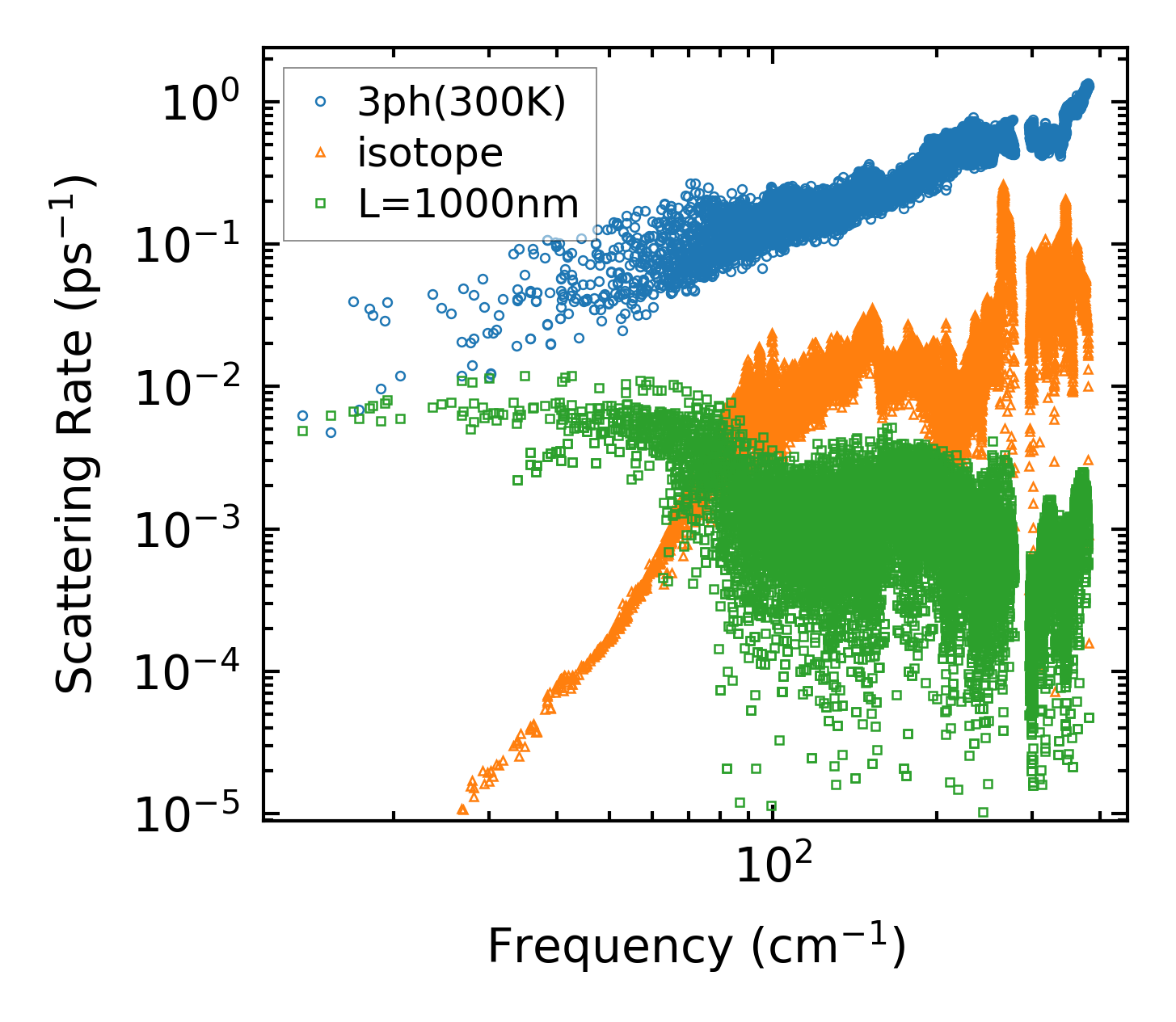

../../_images/fig_scat_rates5887.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

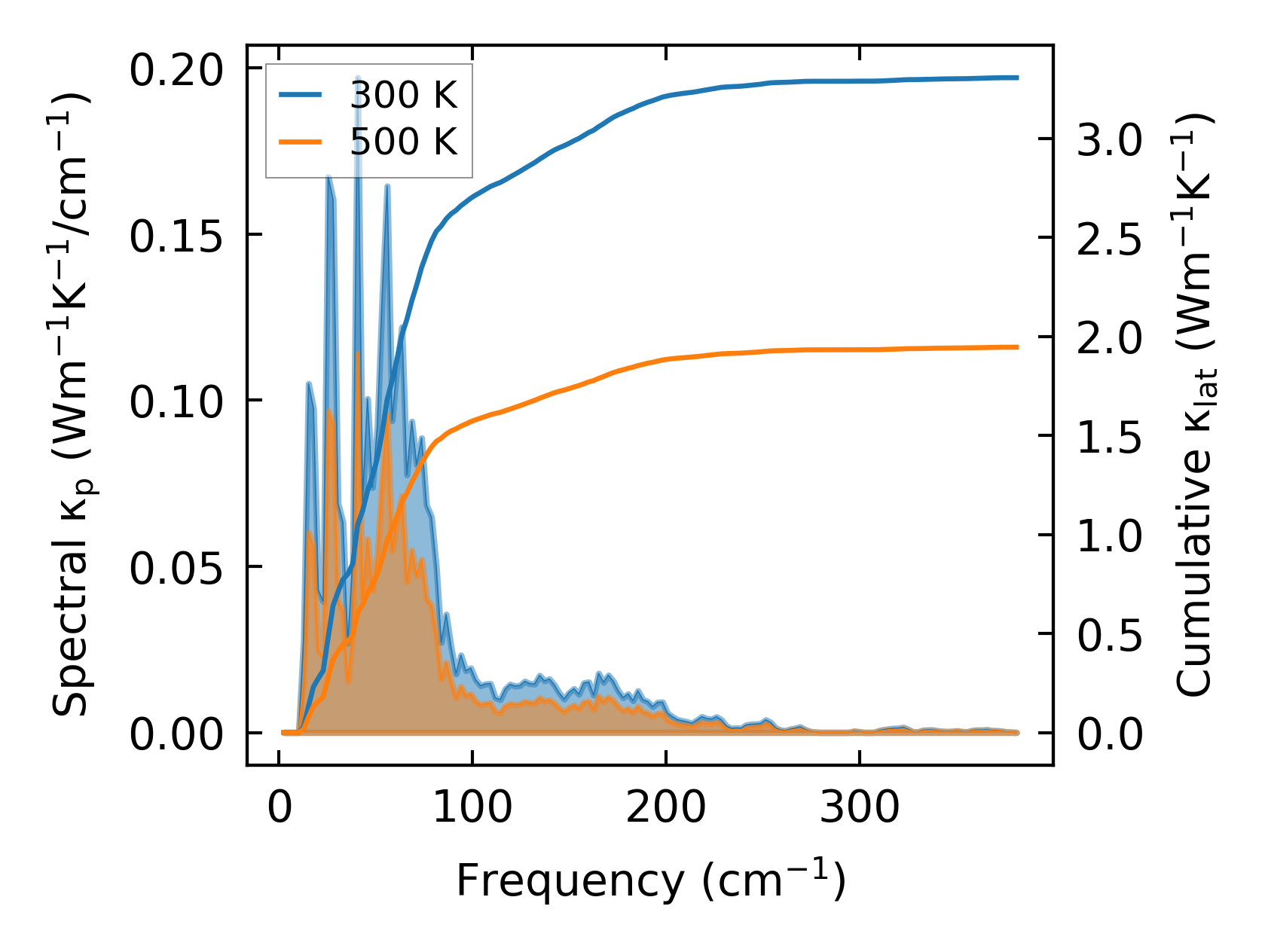

../../_images/fig_cumu_frequency5888.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

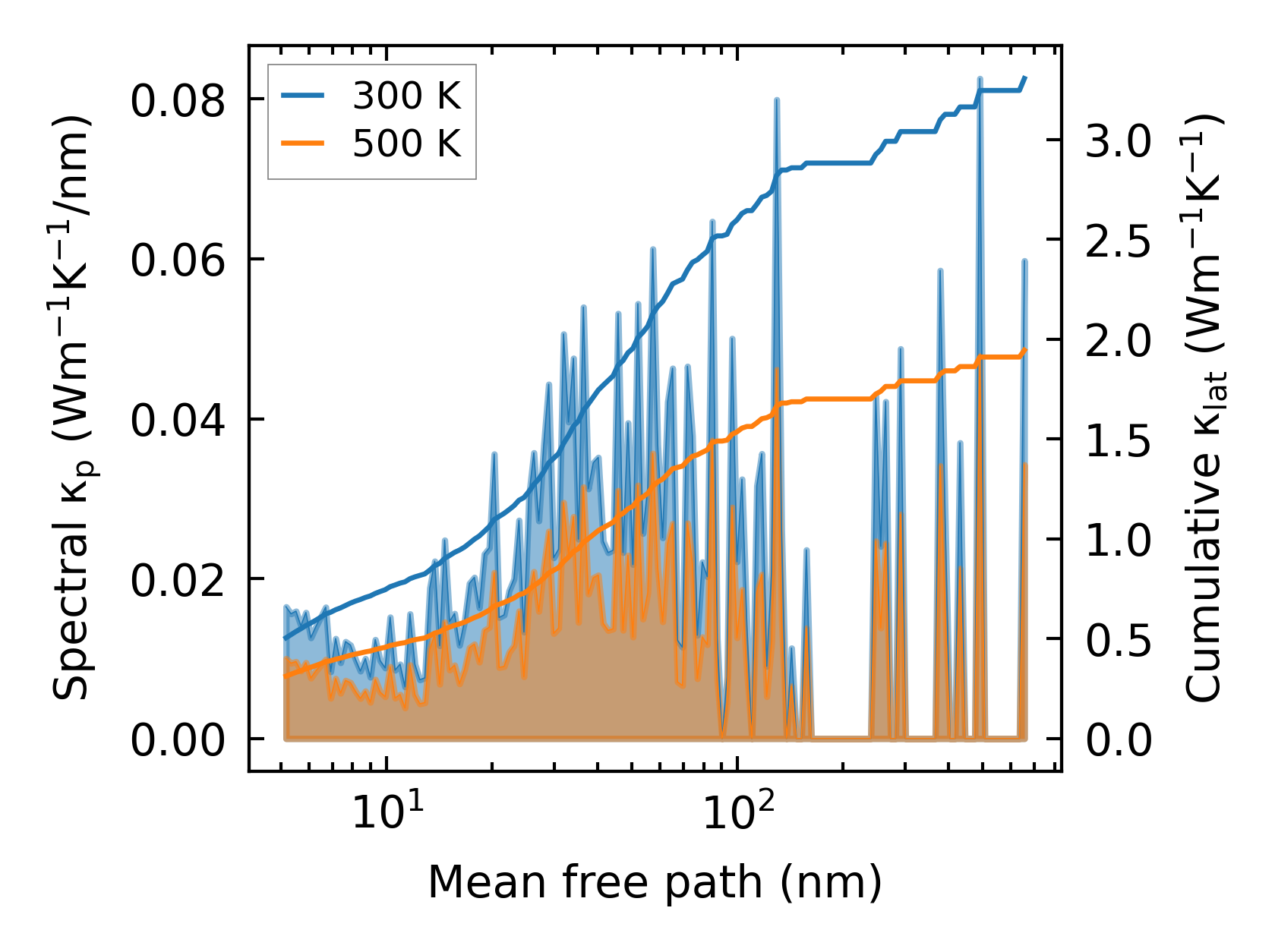

../../_images/fig_cumu_mfp5887.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

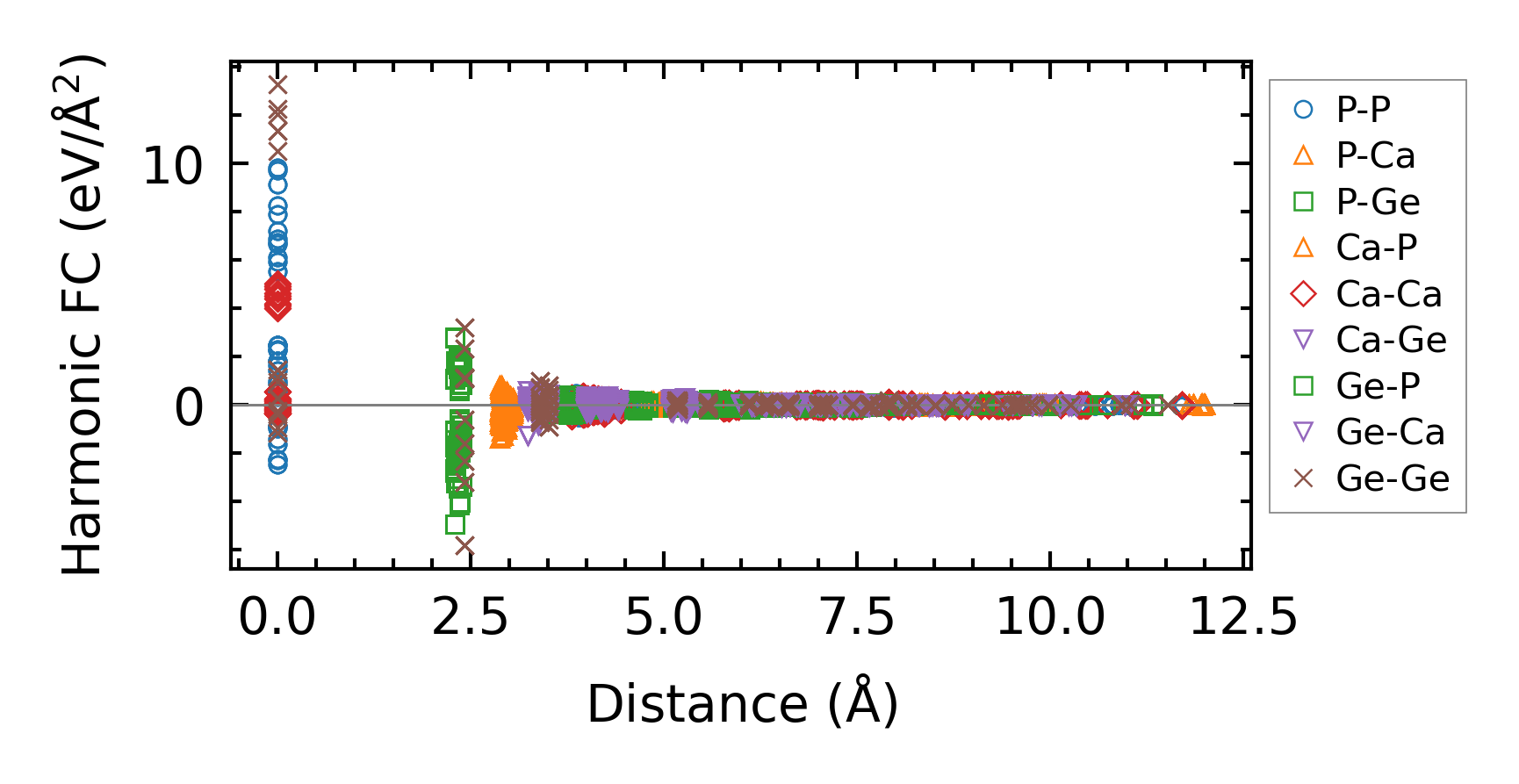

../../_images/fig_fc213652.png — (a) Force constants w.r.t atomic distance

Summary

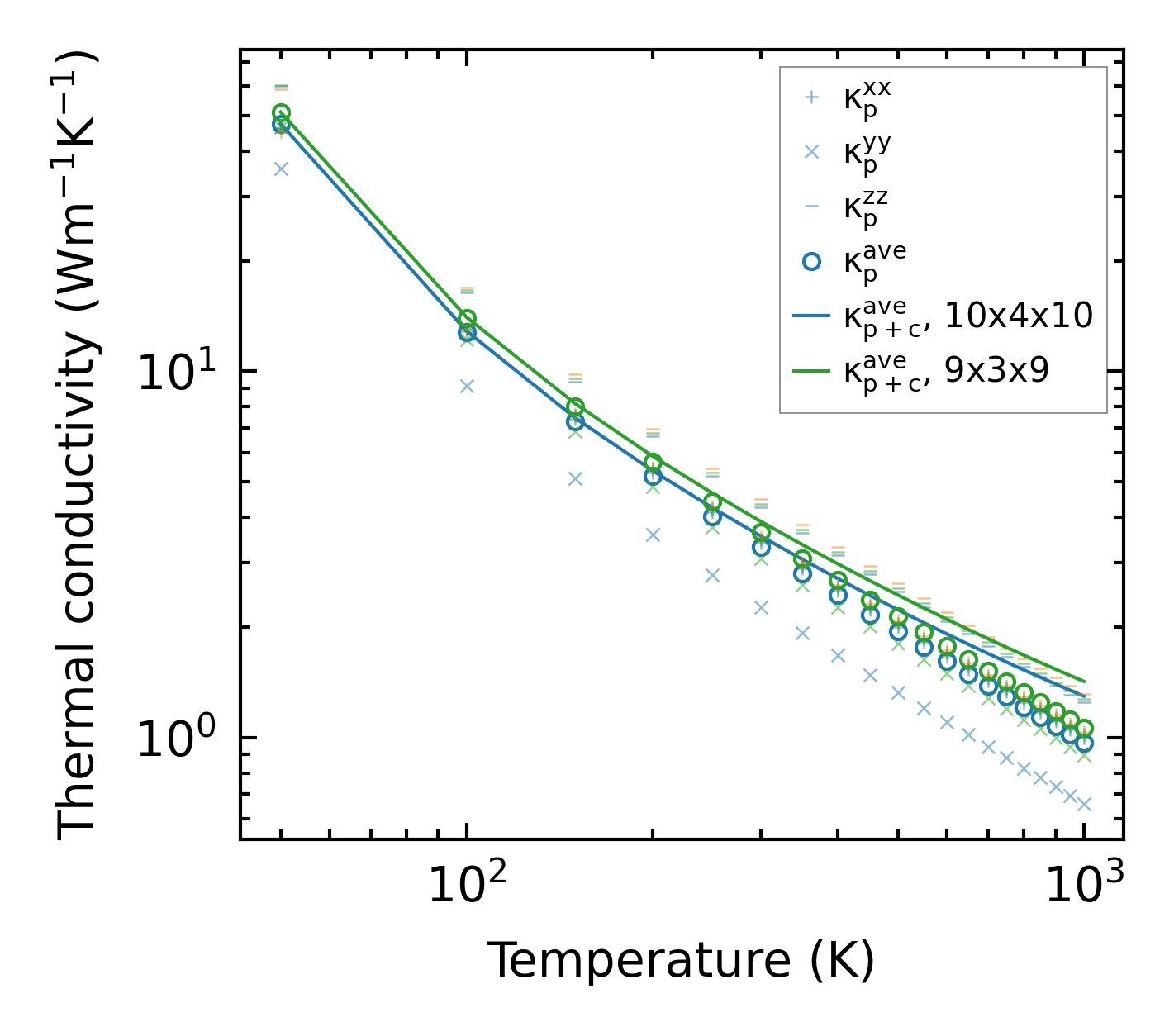

../../_images/fig_kappa11192.png — (a) Temperature-dependent lattice thermal conductivity

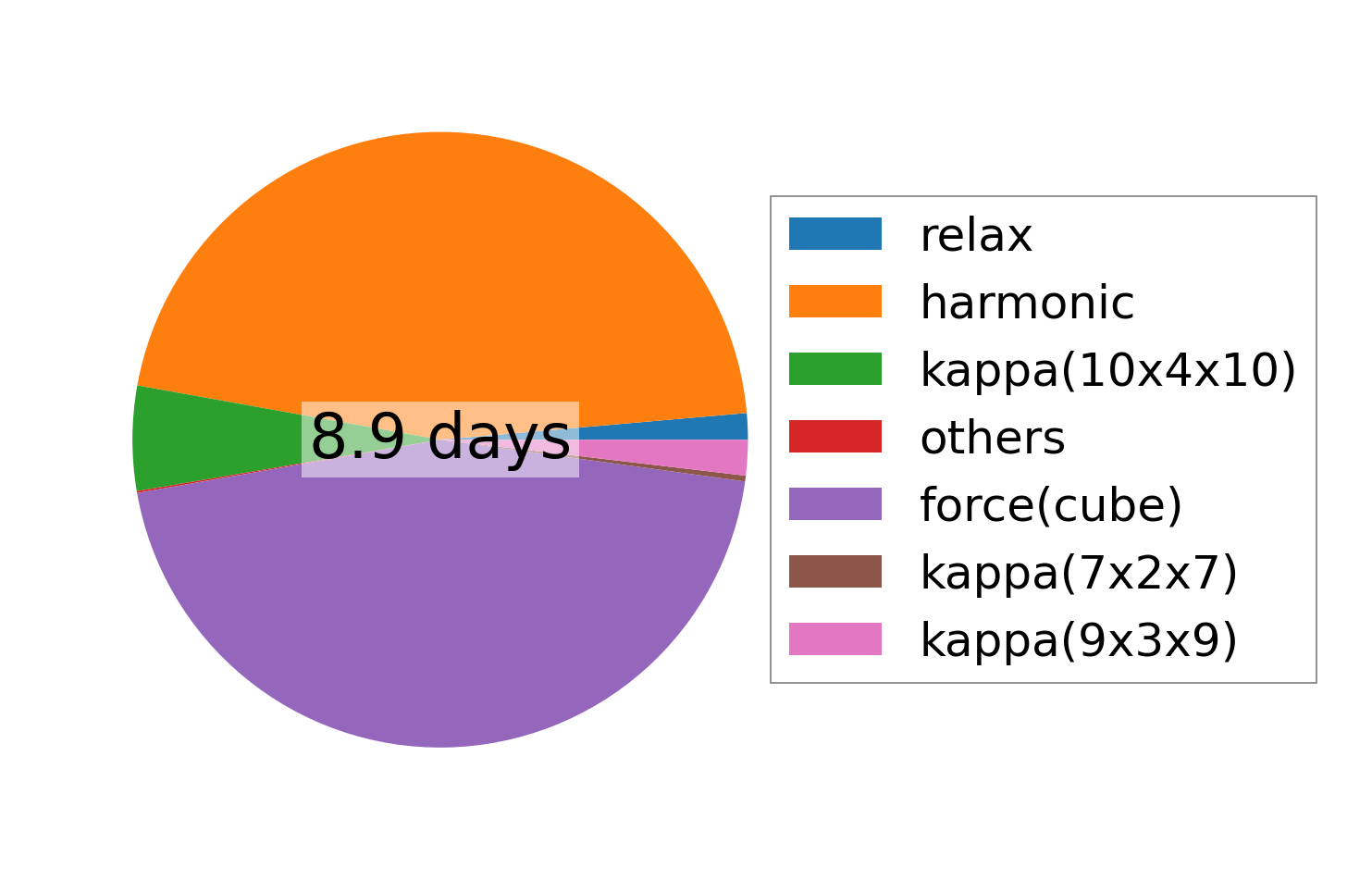

../../_images/fig_times23473.png — (b) Computation time
