mp-17071-2/Rb2CrO4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-17071-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14182.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14182.png — (b) Thermodynamic properties

Grüneisen parameters

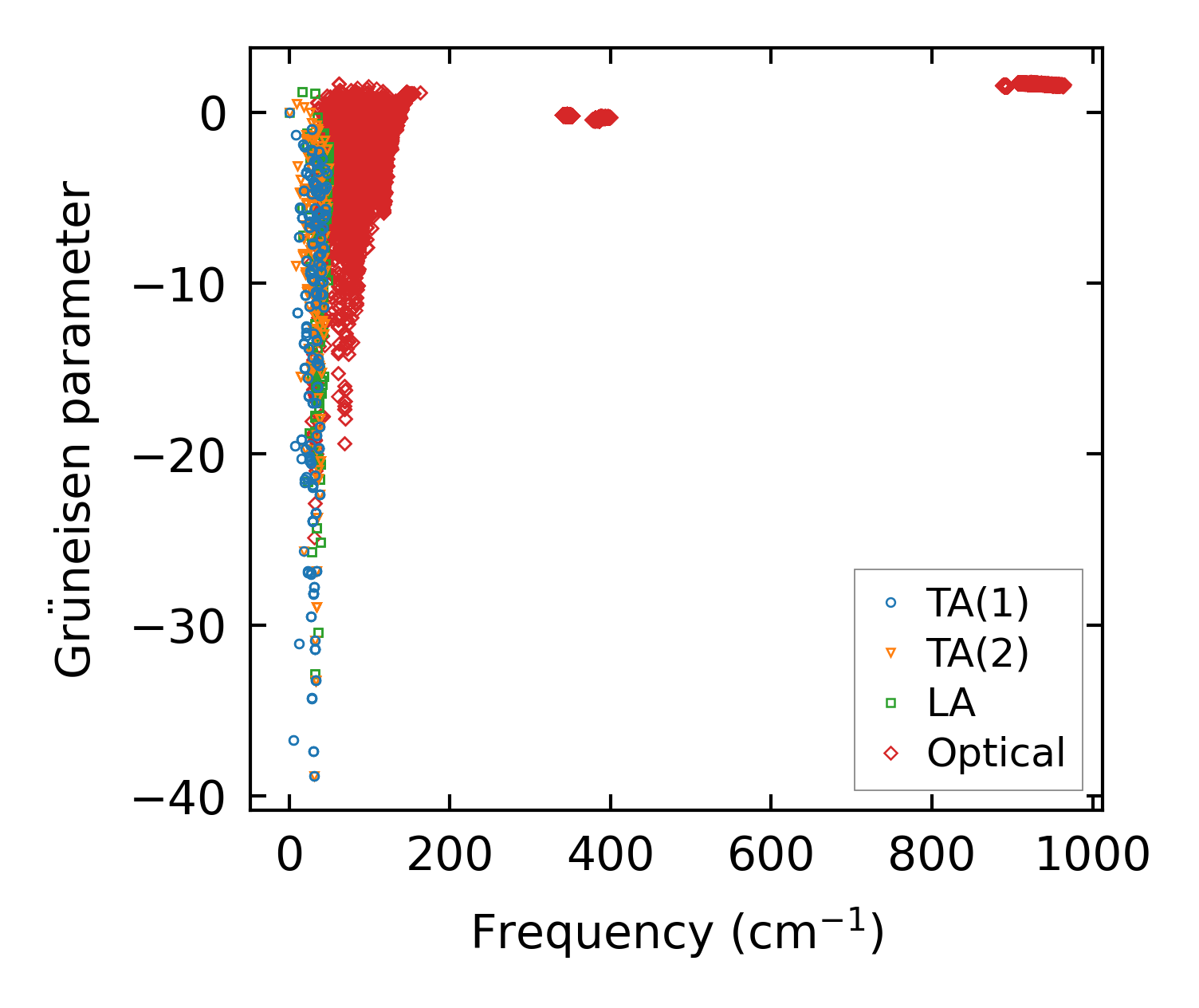

../../_images/fig_gru_all6026.png — (a) Grüneisen parameters

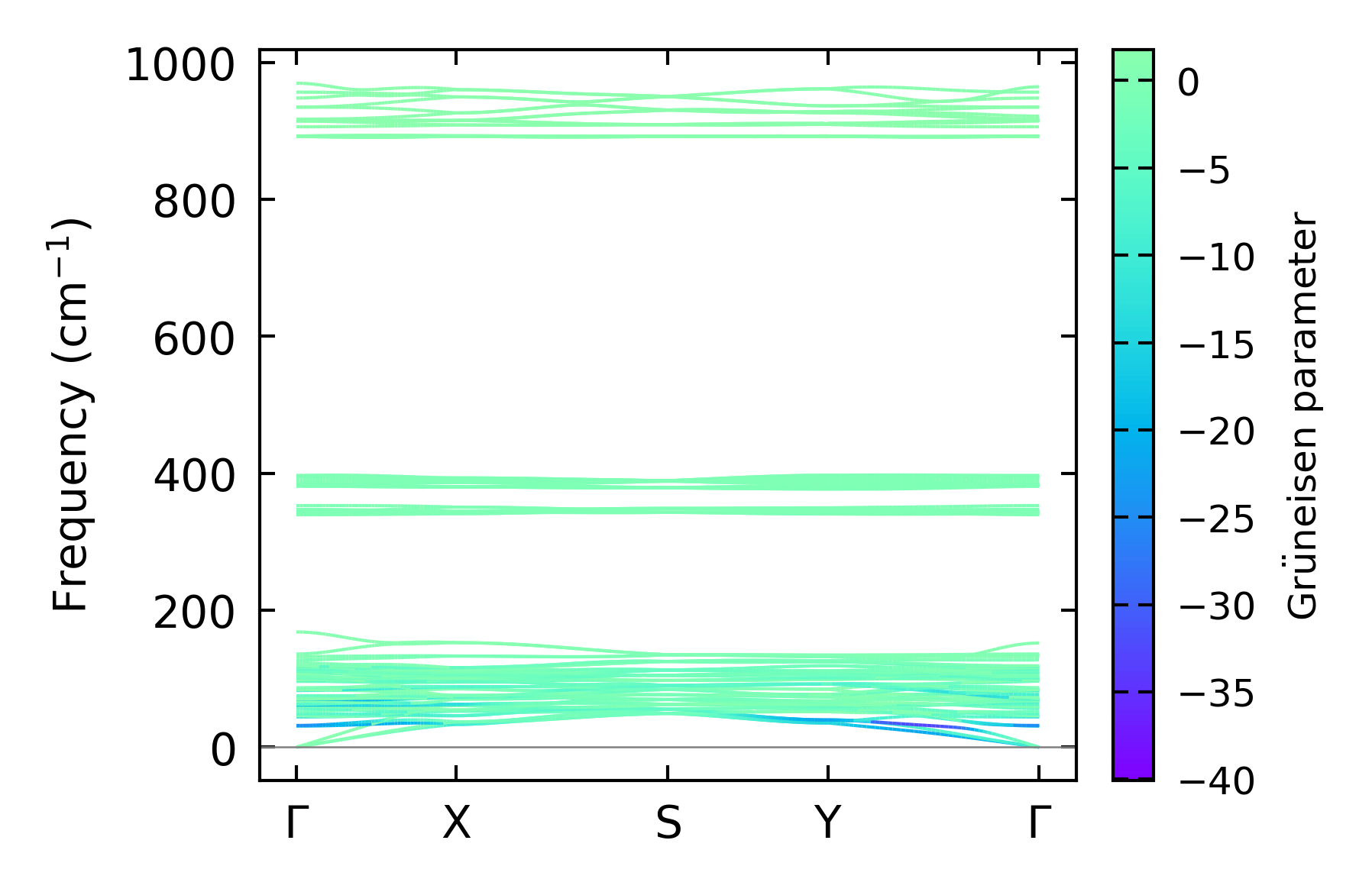

../../_images/fig_gruneisen6026.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x11x6, supercell: 2x2x1

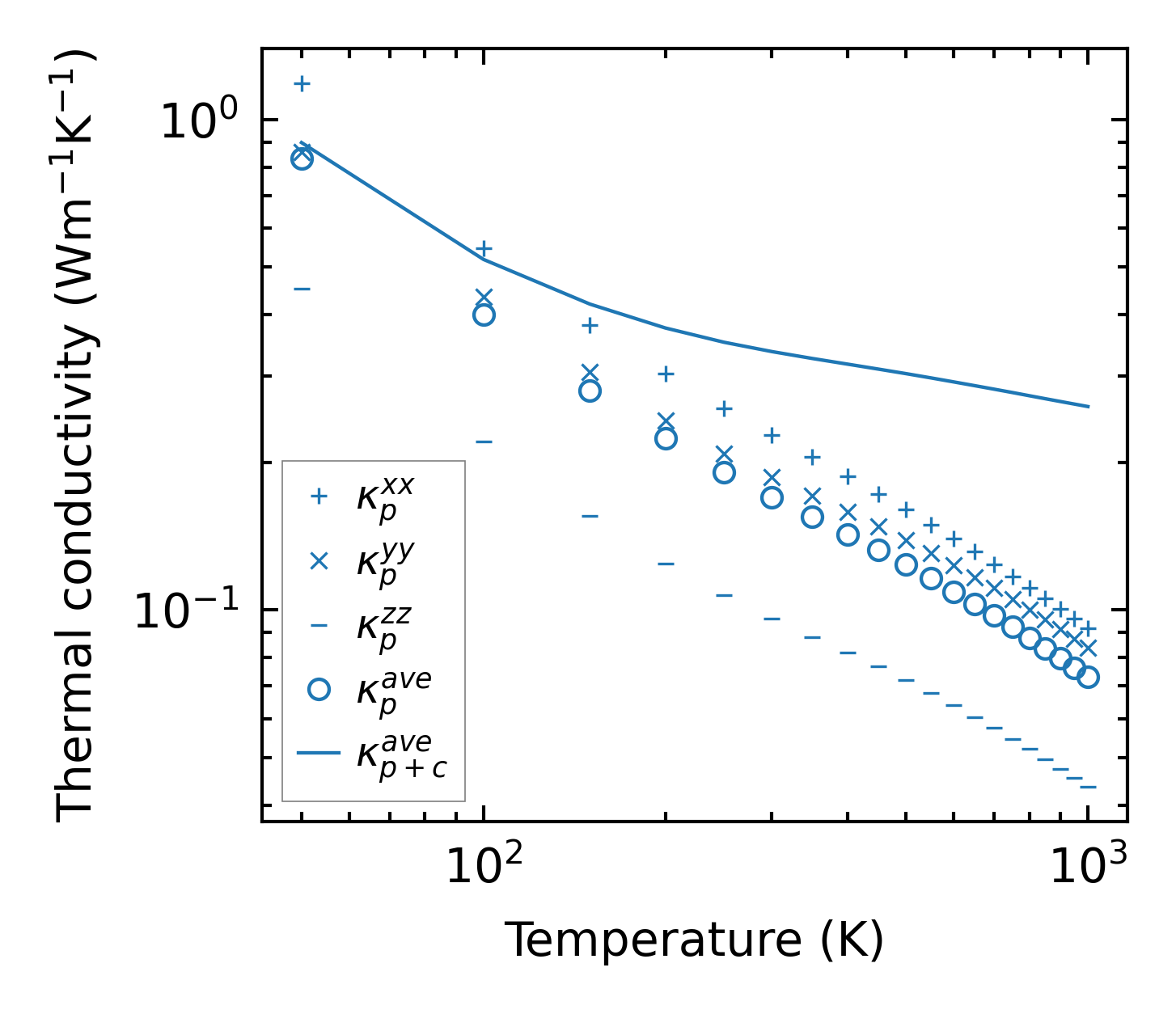

../../_images/fig_kappa11339.png — (a) Temperature-dependent lattice thermal conductivity

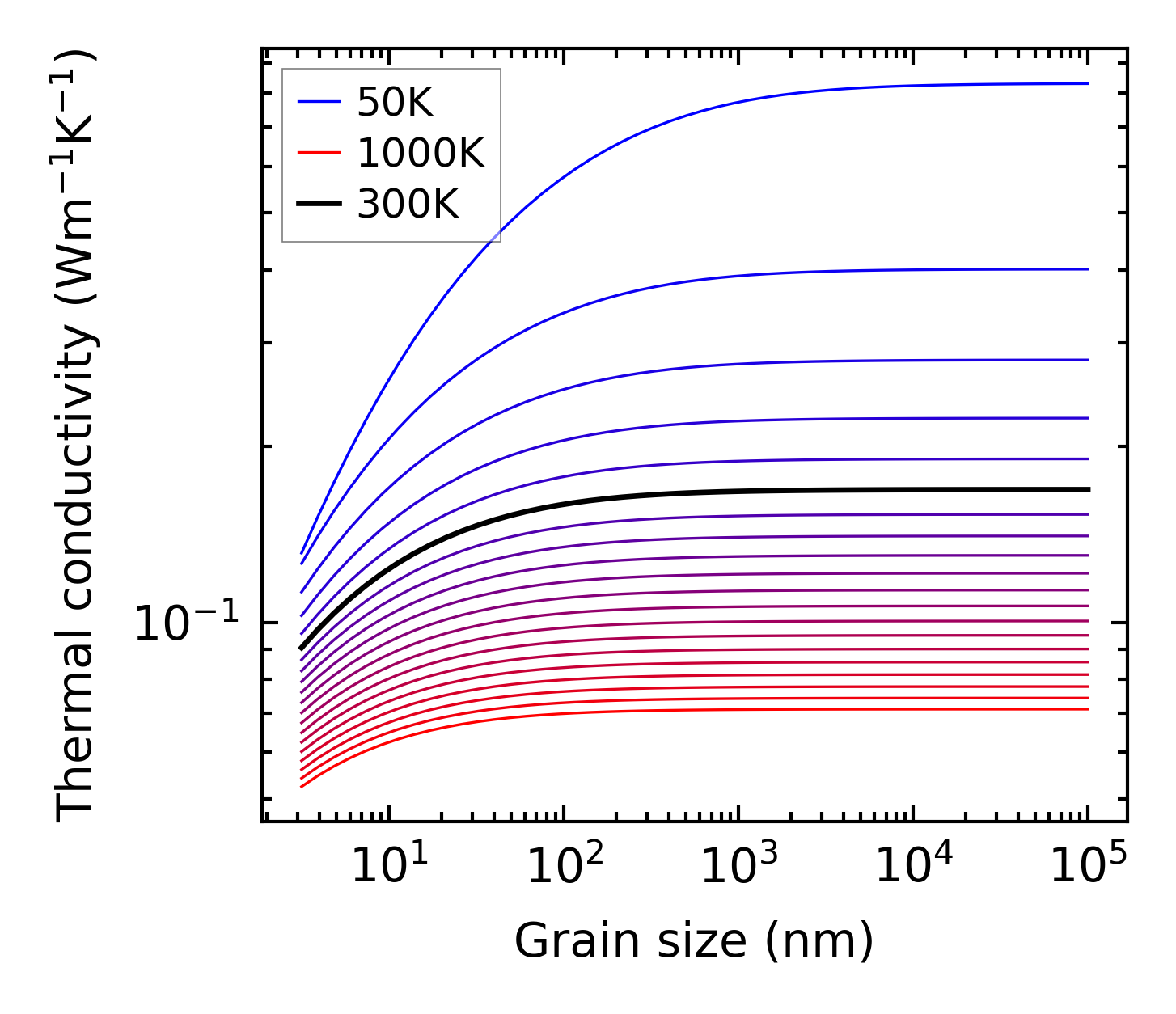

../../_images/fig_kappa_vs_grain_size6103.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

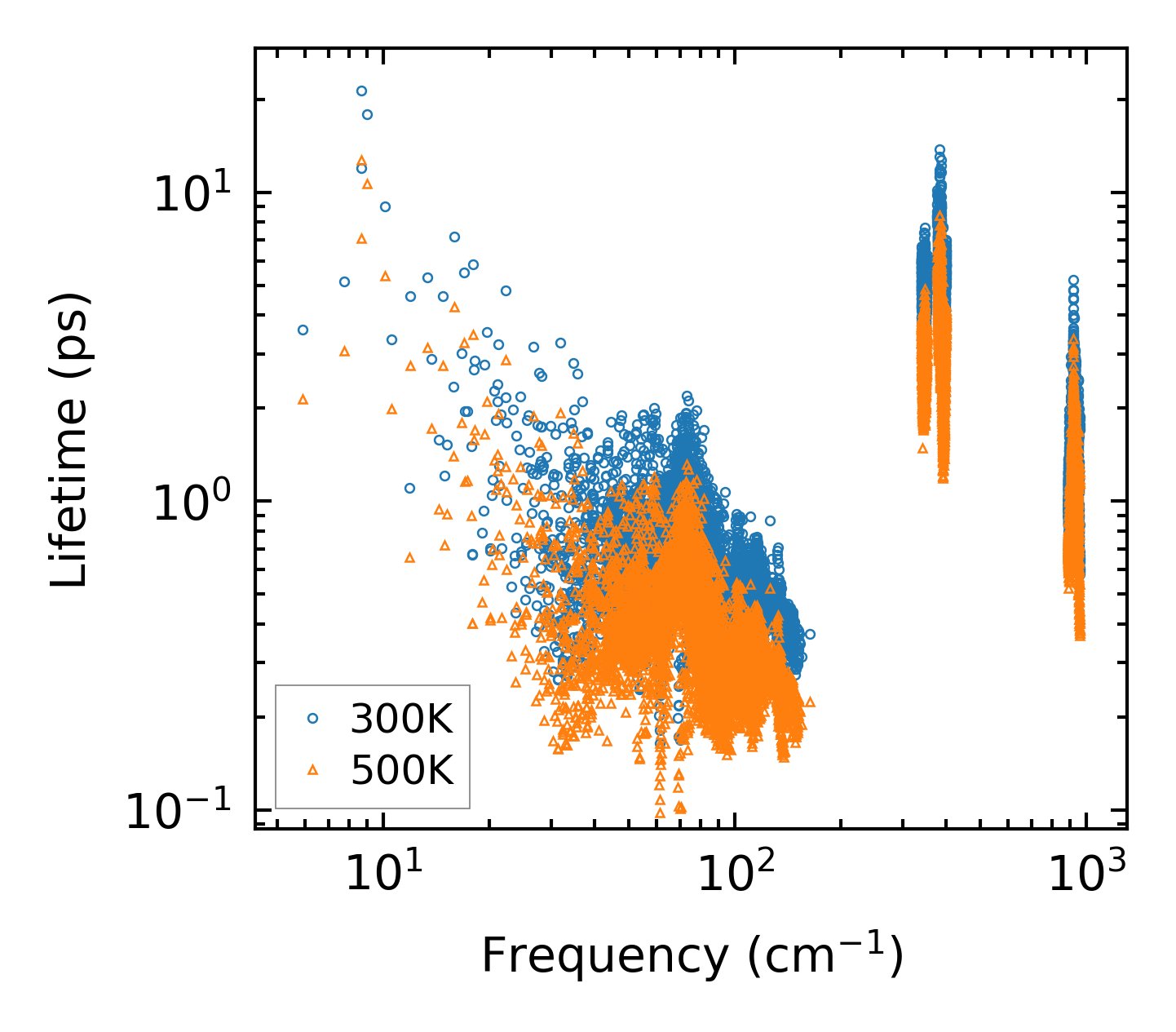

../../_images/fig_lifetime5965.png — (a) Phonon lifetime due to phonon-phonon scattering

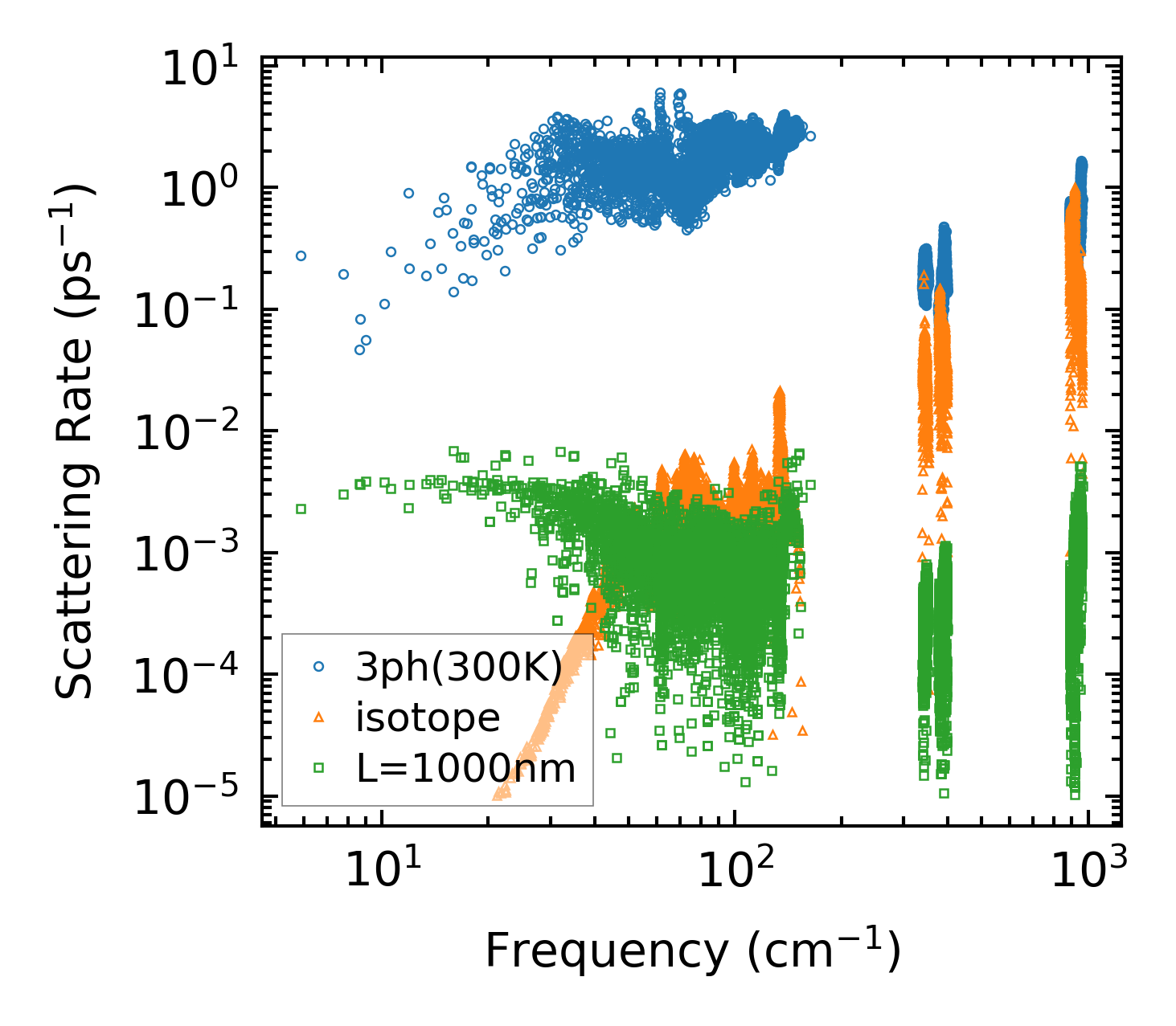

../../_images/fig_scat_rates5964.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

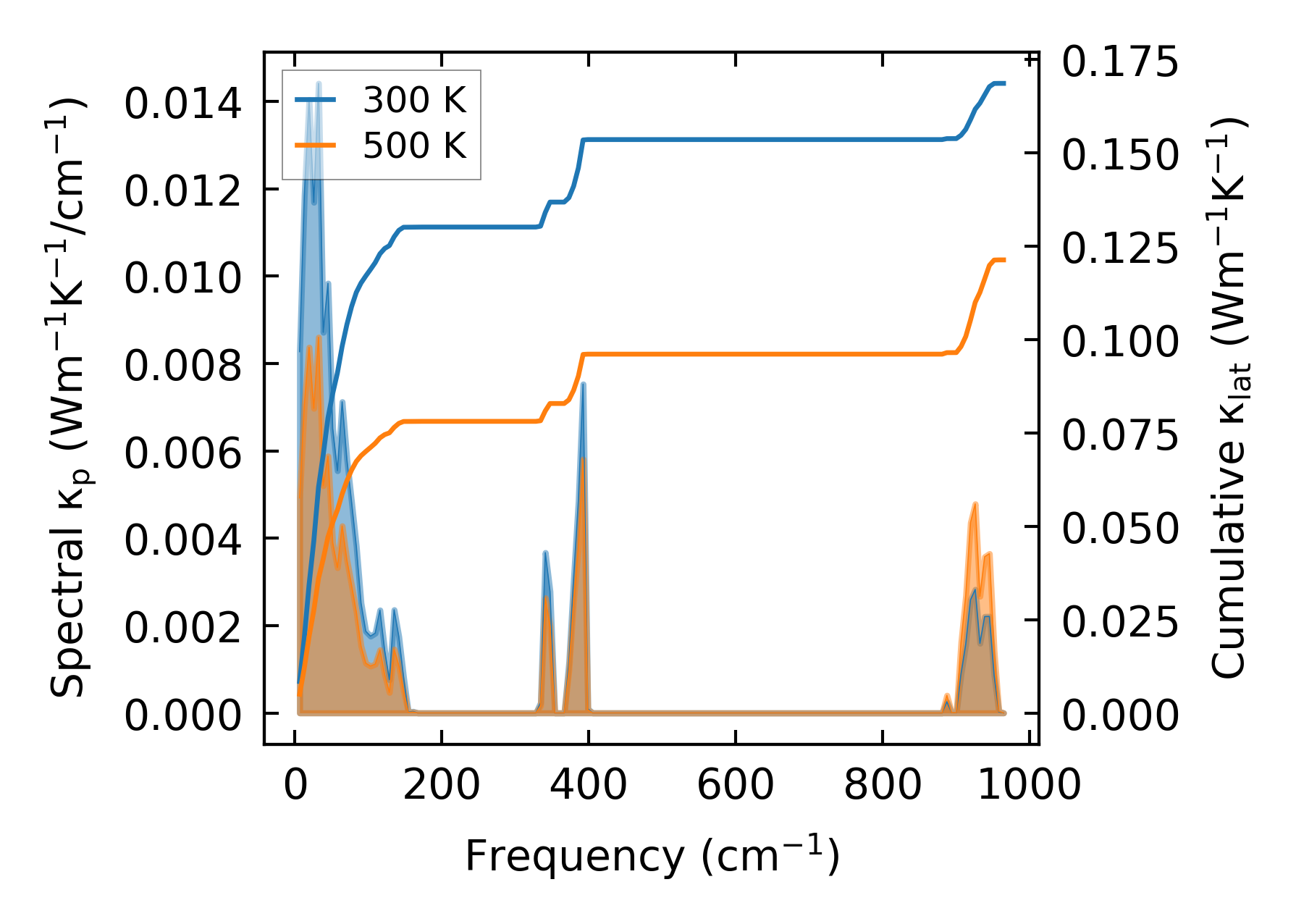

../../_images/fig_cumu_frequency5965.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

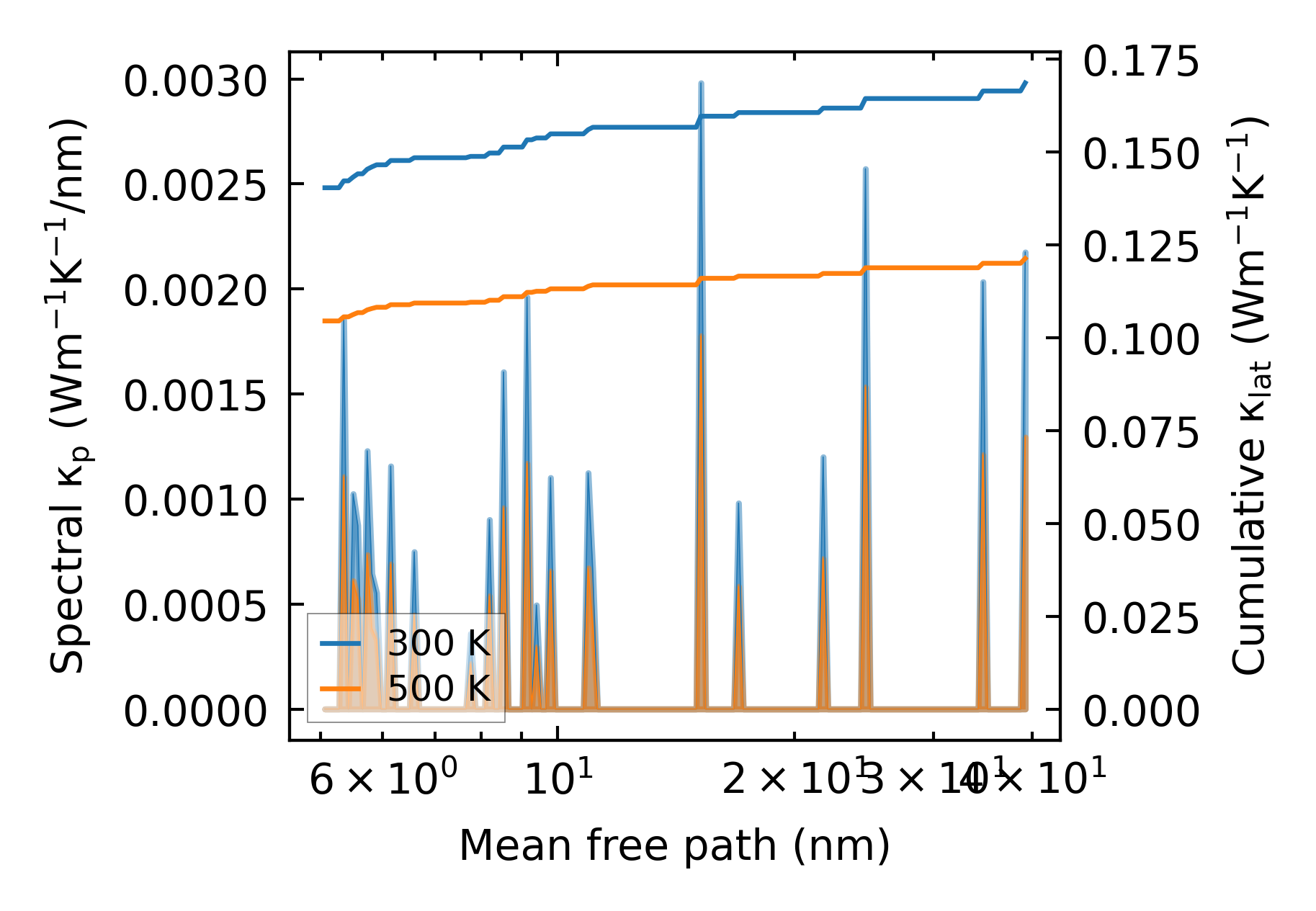

../../_images/fig_cumu_mfp5964.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213810.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11340.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23703.png — (b) Computation time
