mp-17324-2/ZrSnS3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-17324-2.tar.gz

Equation of state

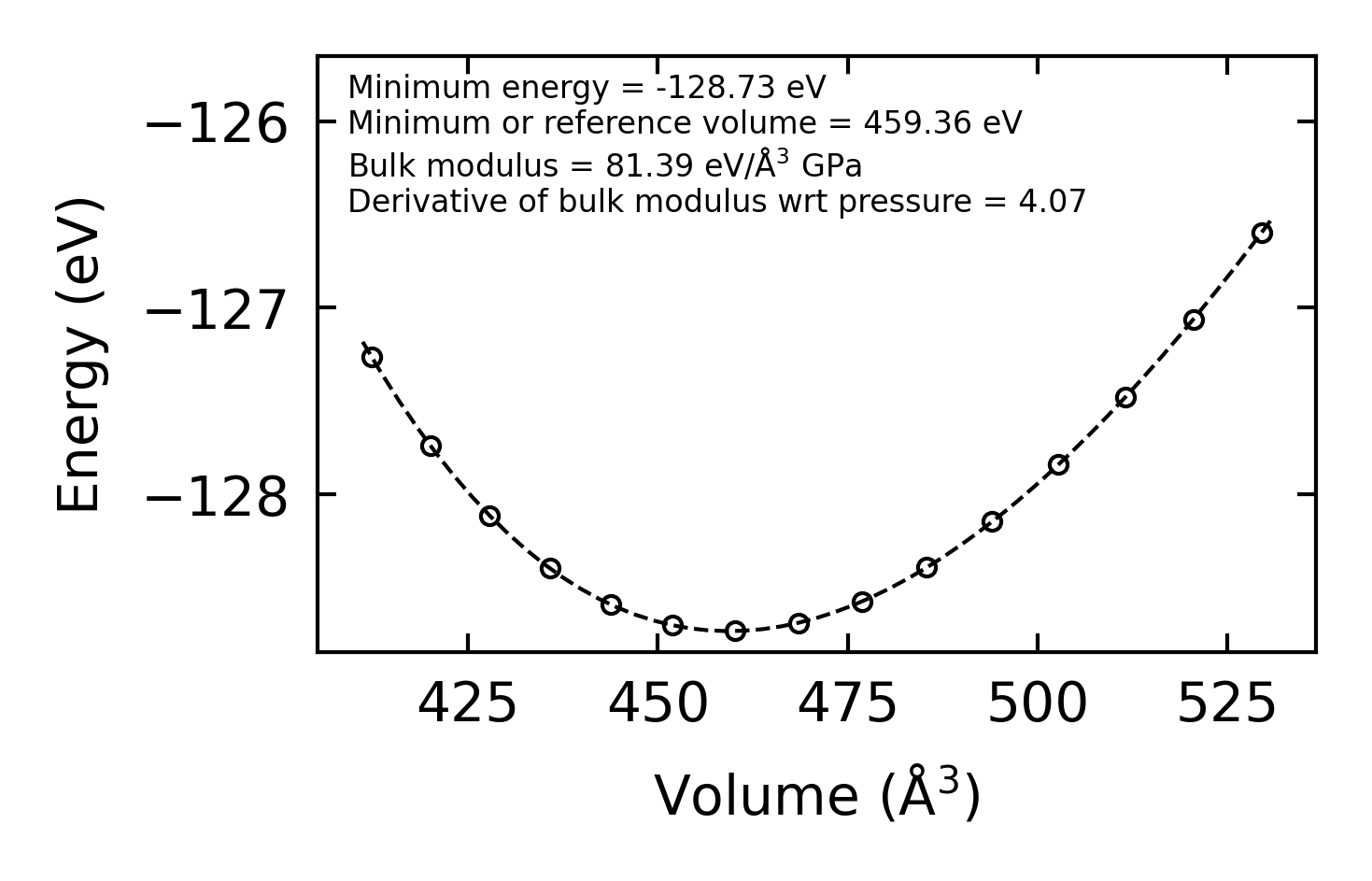

../../_images/fig_bm7138.png — (a) Equation of state

Harmonic properties

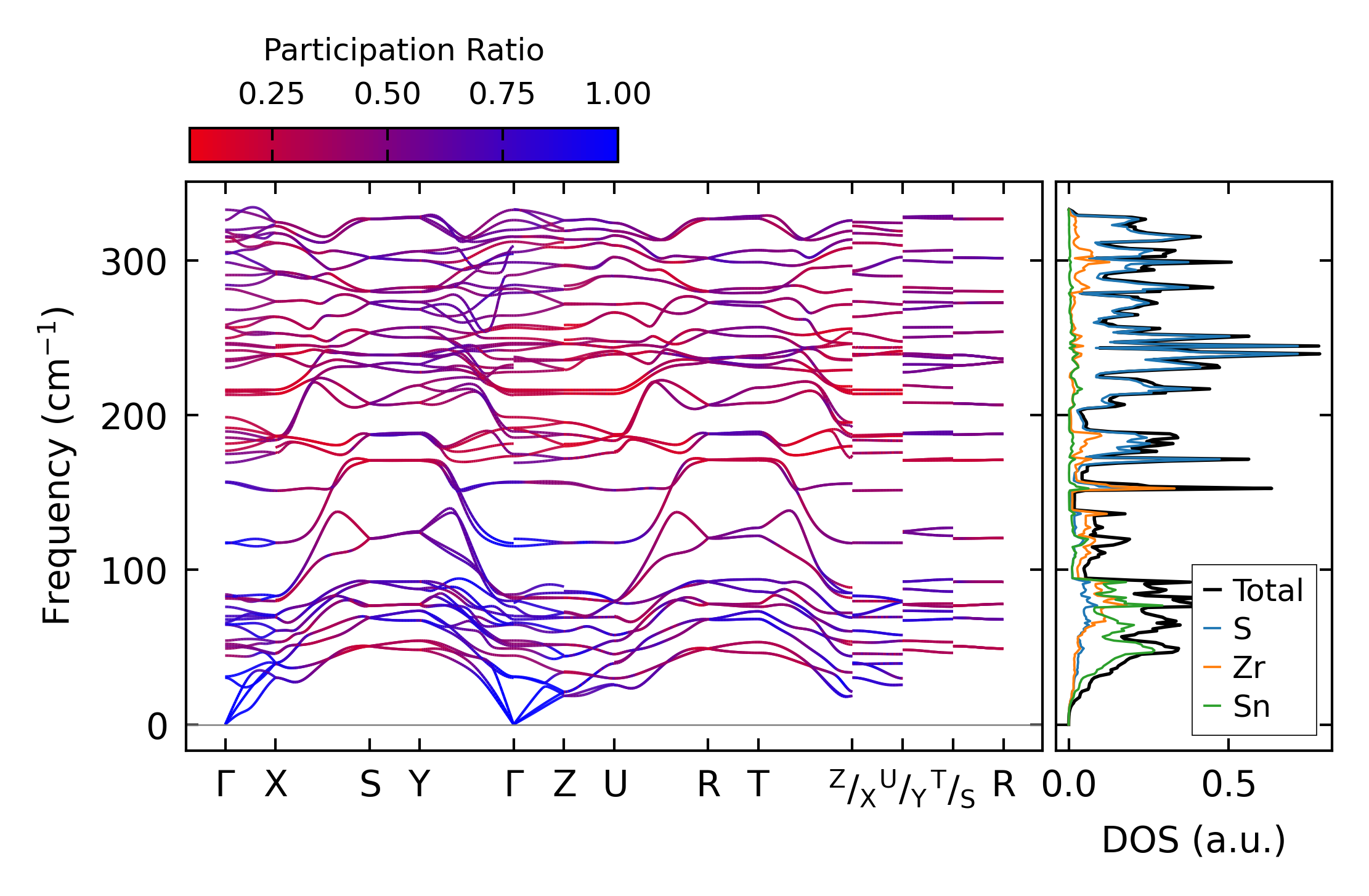

../../_images/fig_bandos_pr14250.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14250.png — (b) Thermodynamic properties

Grüneisen parameters

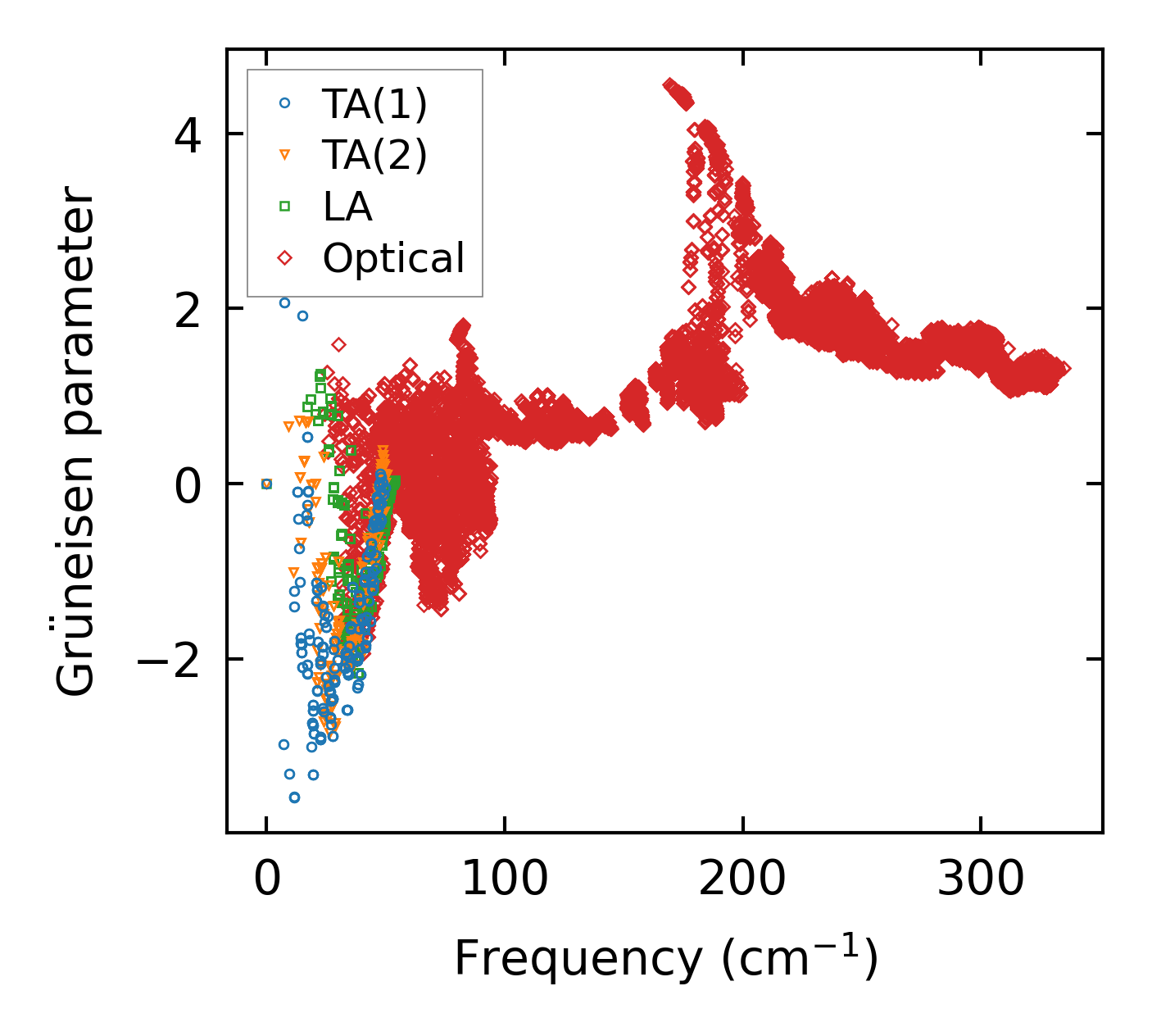

../../_images/fig_gru_all6062.png — (a) Grüneisen parameters

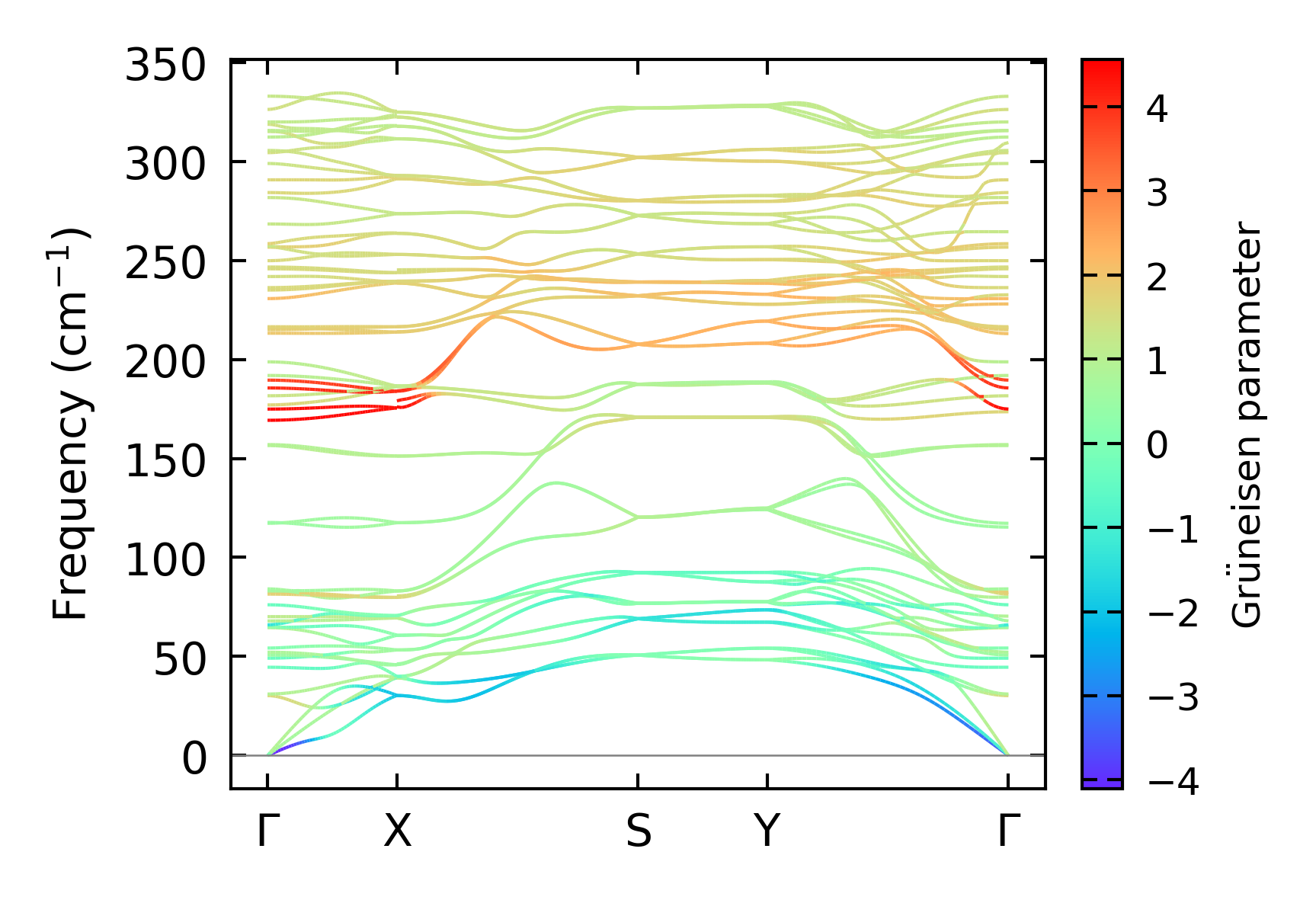

../../_images/fig_gruneisen6062.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x19x5, supercell: 2x3x1

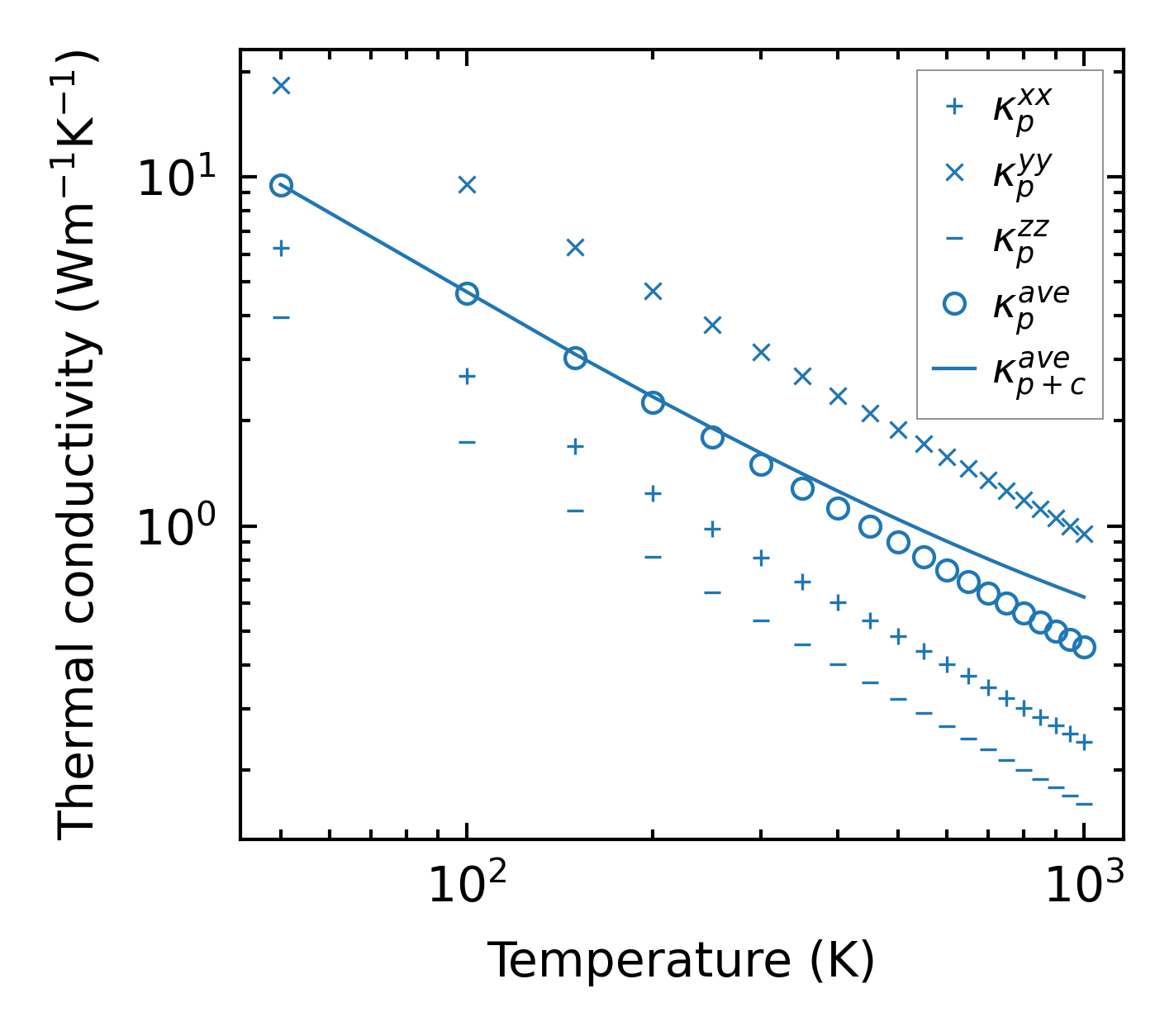

../../_images/fig_kappa11407.png — (a) Temperature-dependent lattice thermal conductivity

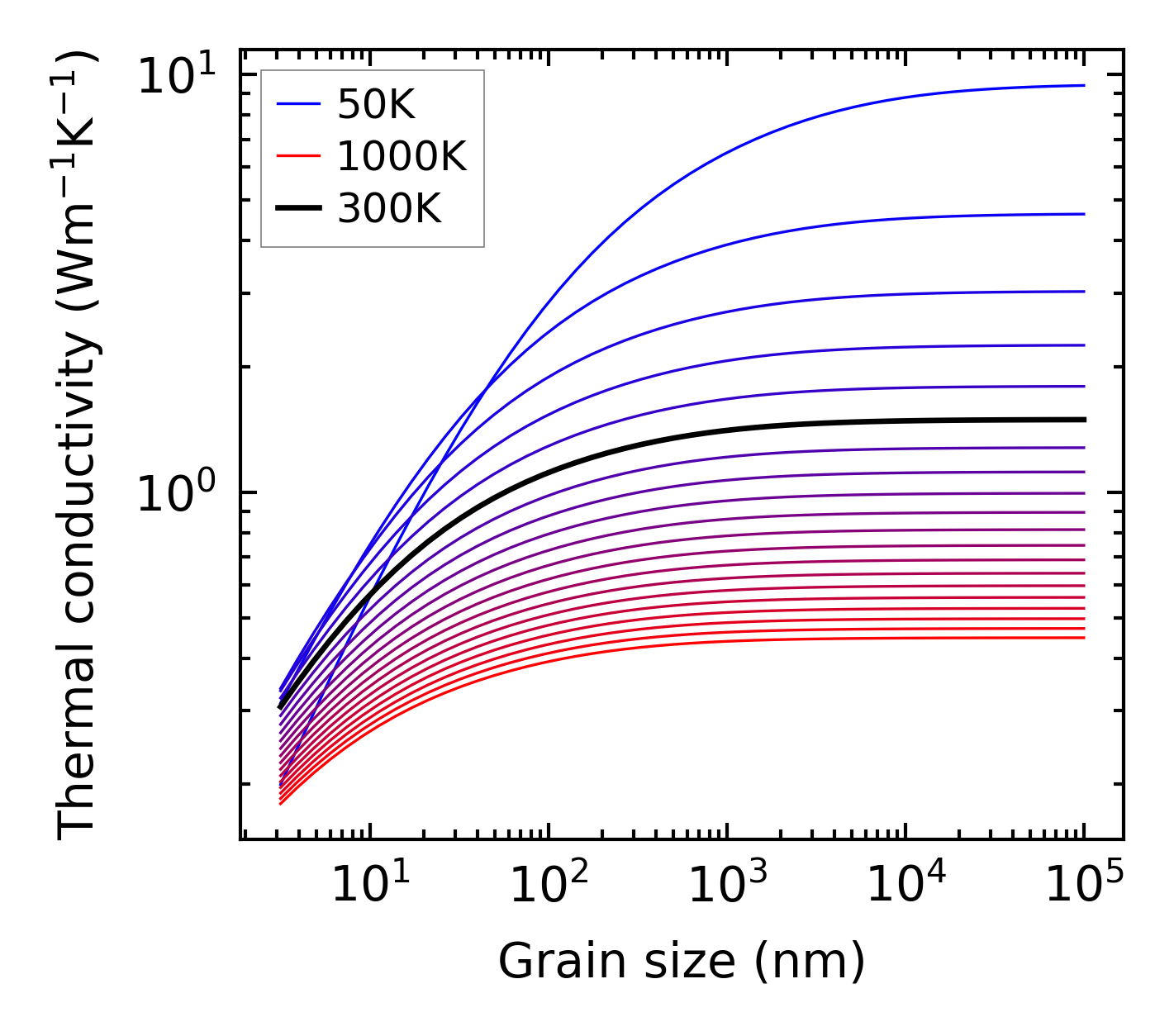

../../_images/fig_kappa_vs_grain_size6140.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

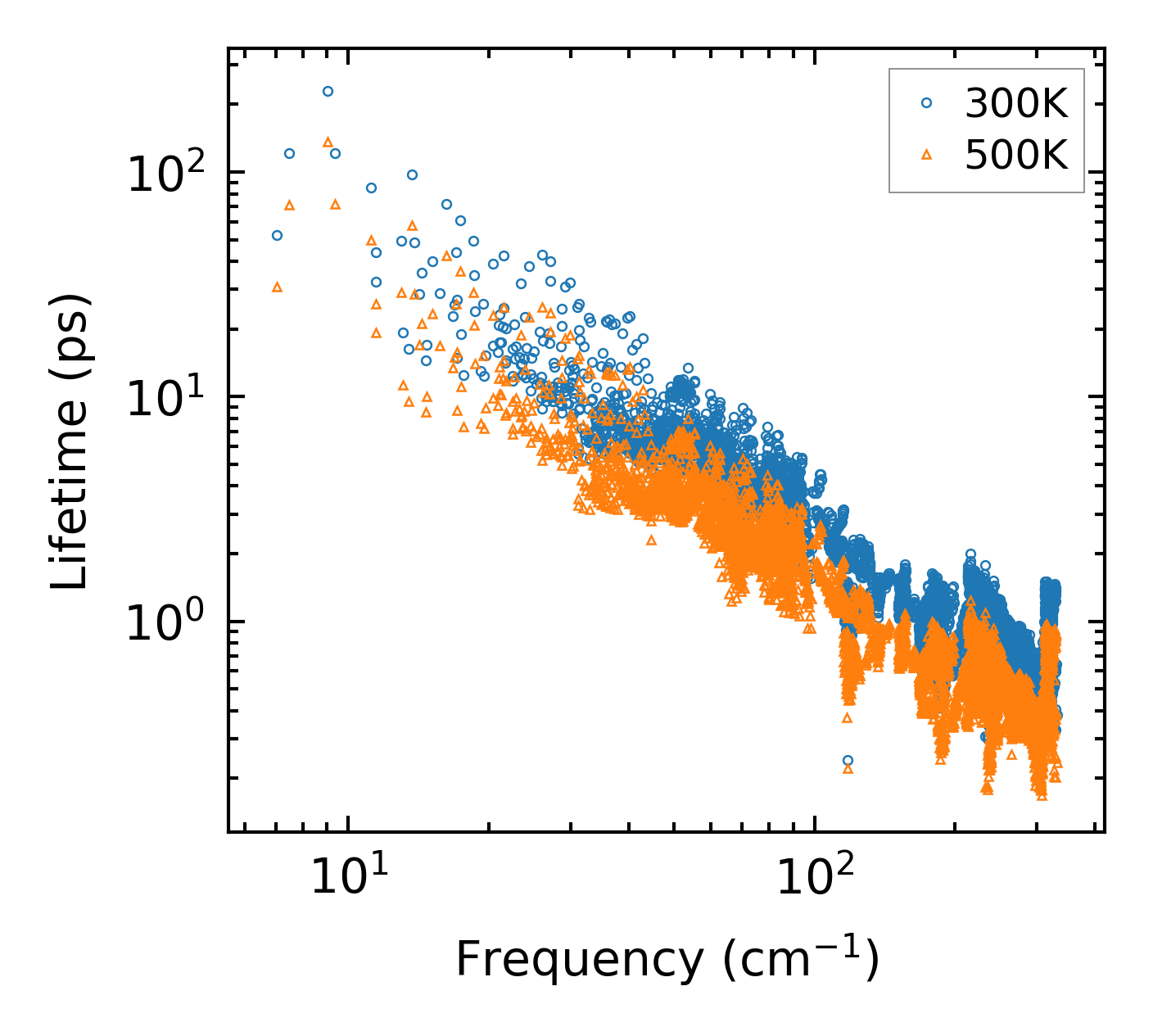

../../_images/fig_lifetime6001.png — (a) Phonon lifetime due to phonon-phonon scattering

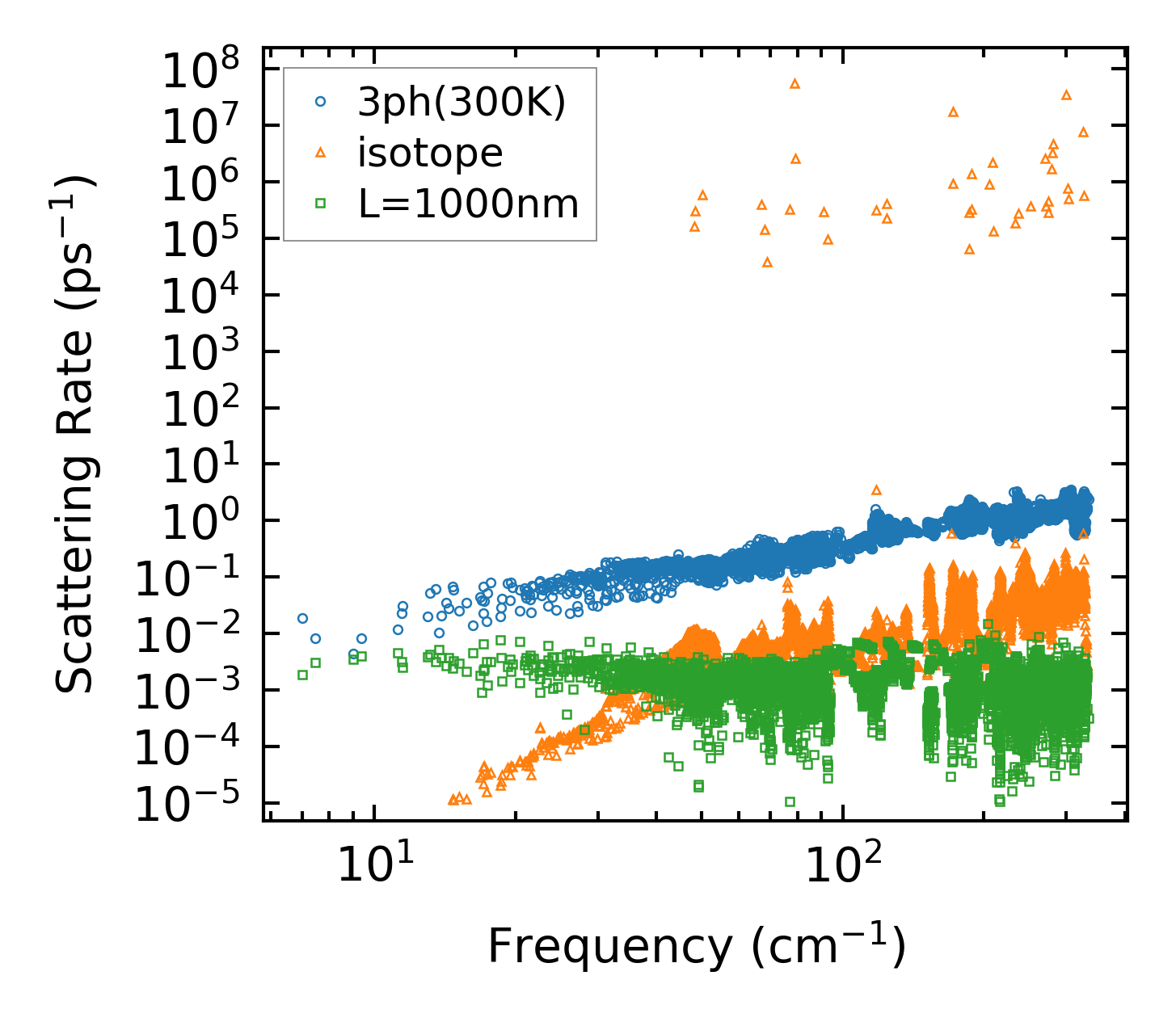

../../_images/fig_scat_rates6000.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

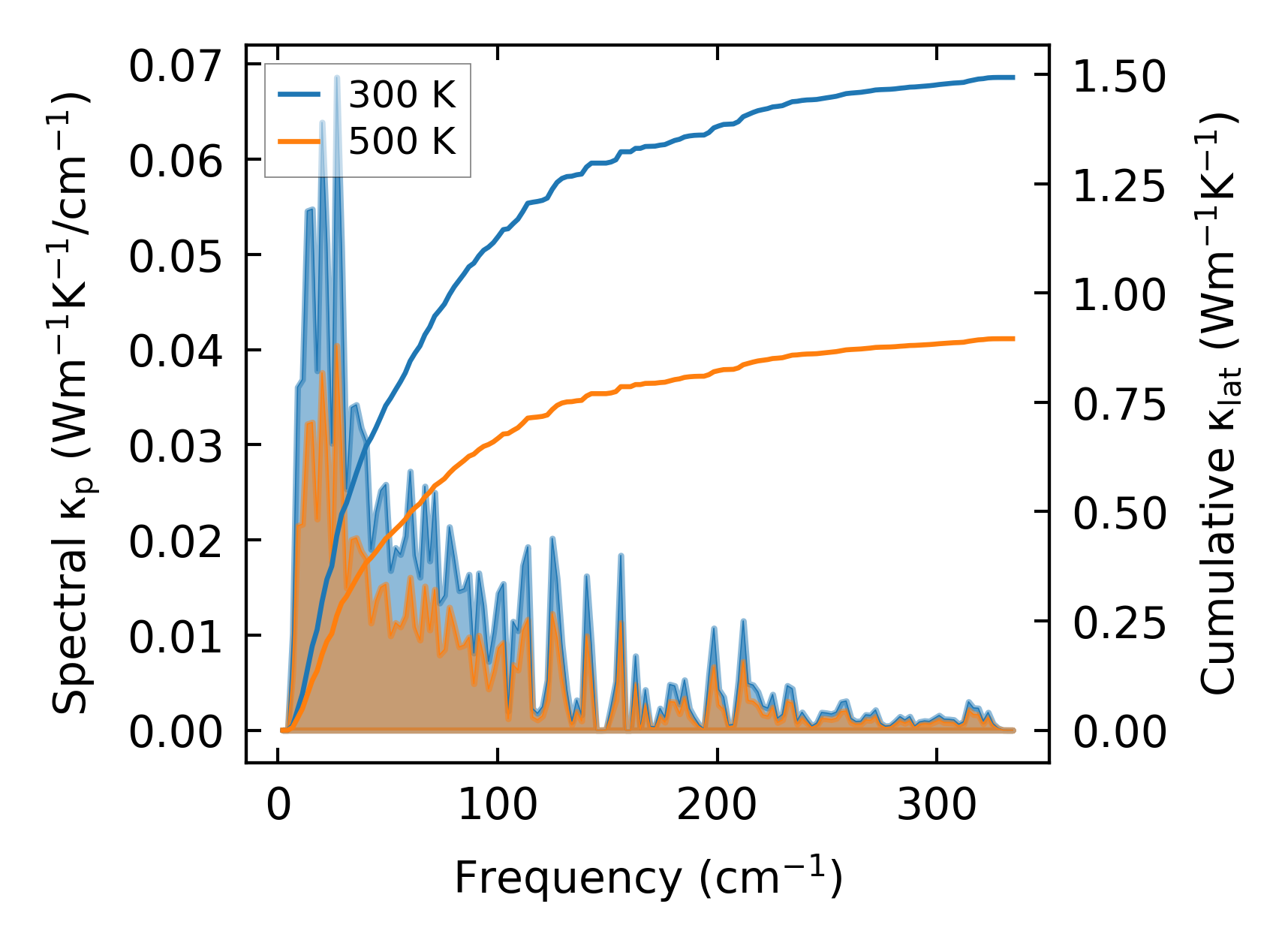

../../_images/fig_cumu_frequency6001.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

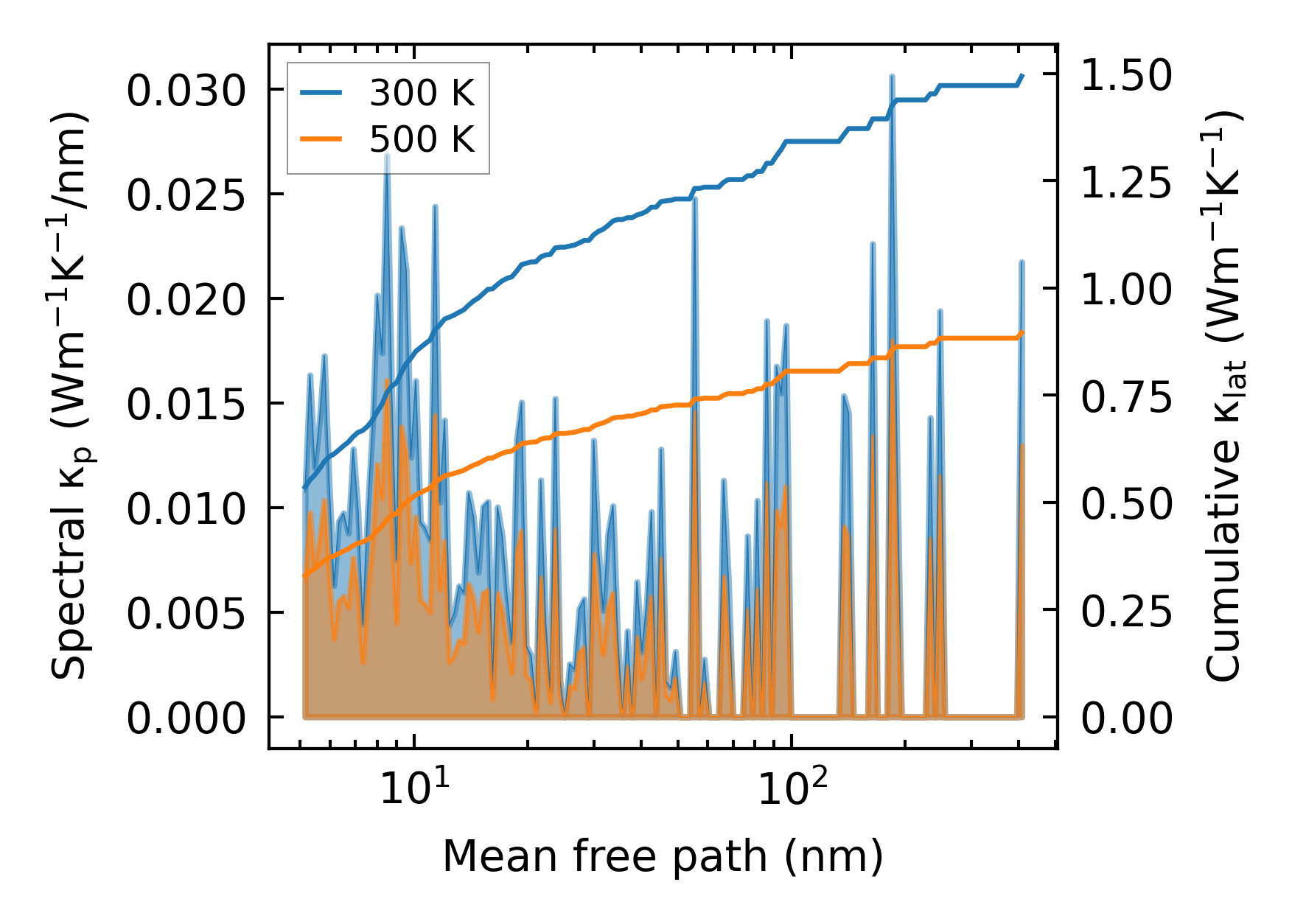

../../_images/fig_cumu_mfp6000.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

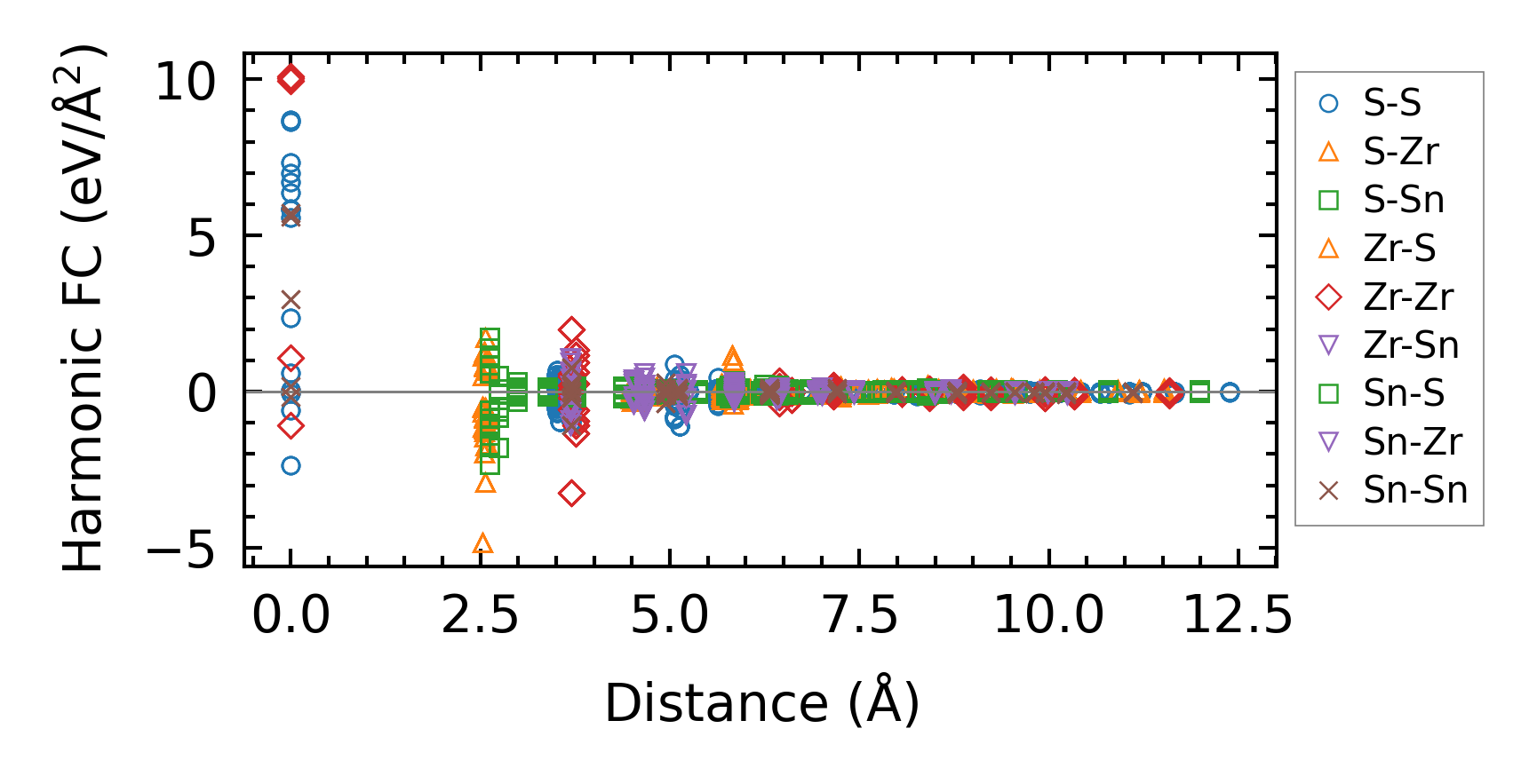

../../_images/fig_fc213878.png — (a) Force constants w.r.t atomic distance

Summary

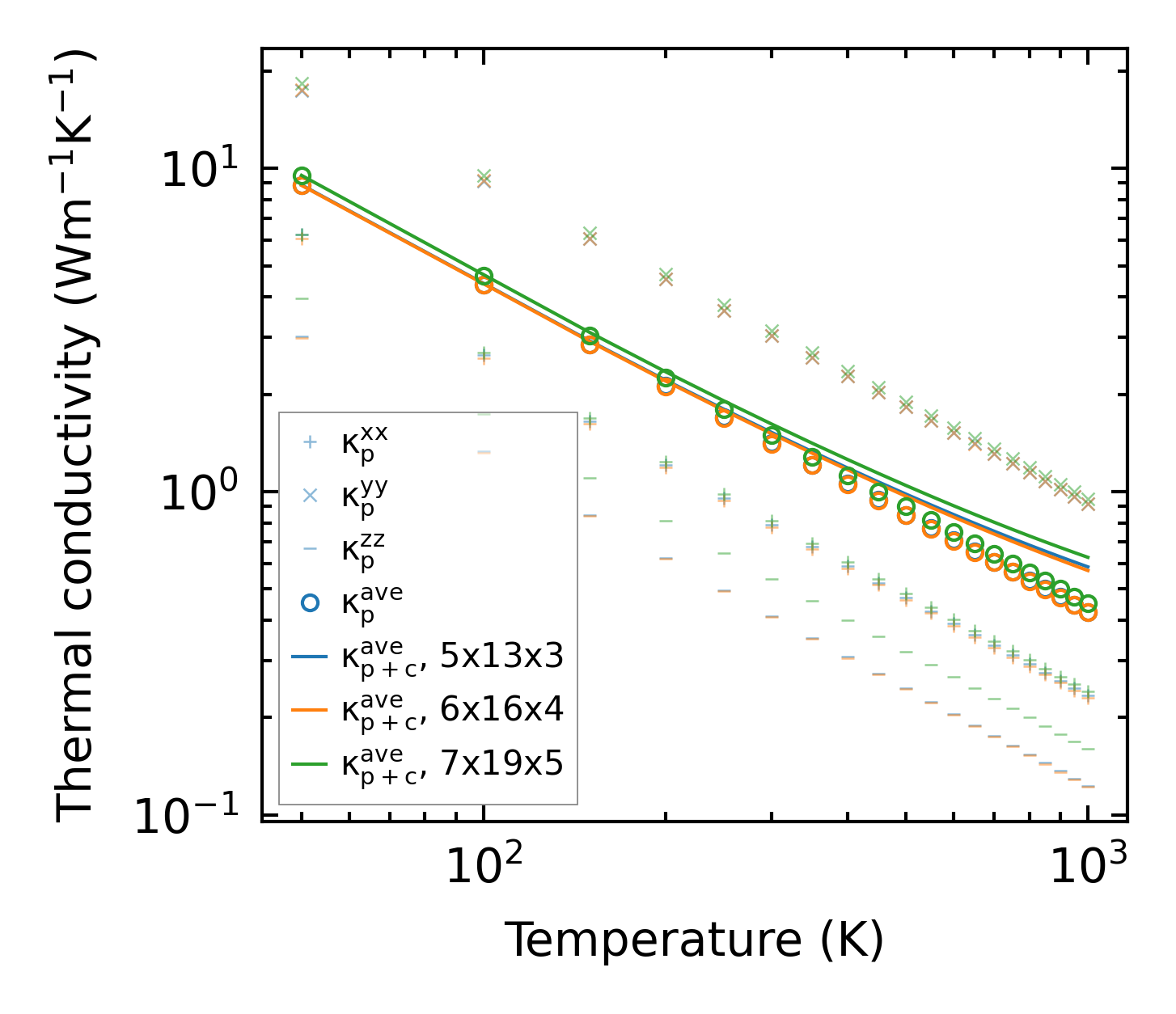

../../_images/fig_kappa11408.png — (a) Temperature-dependent lattice thermal conductivity

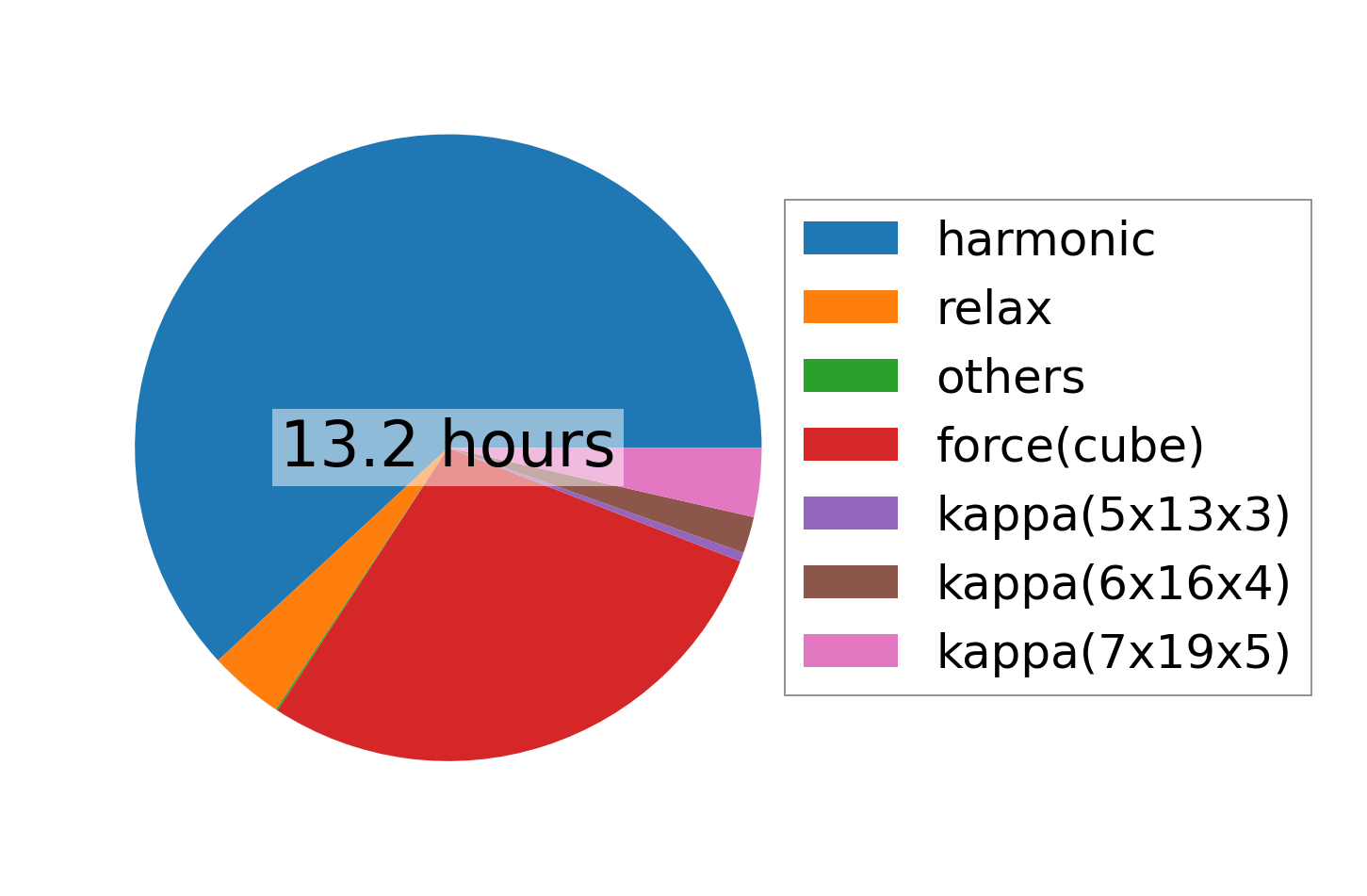

../../_images/fig_times23808.png — (b) Computation time
