mp-17817/Ca3Ge2P4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-17817.tar.gz

Harmonic properties

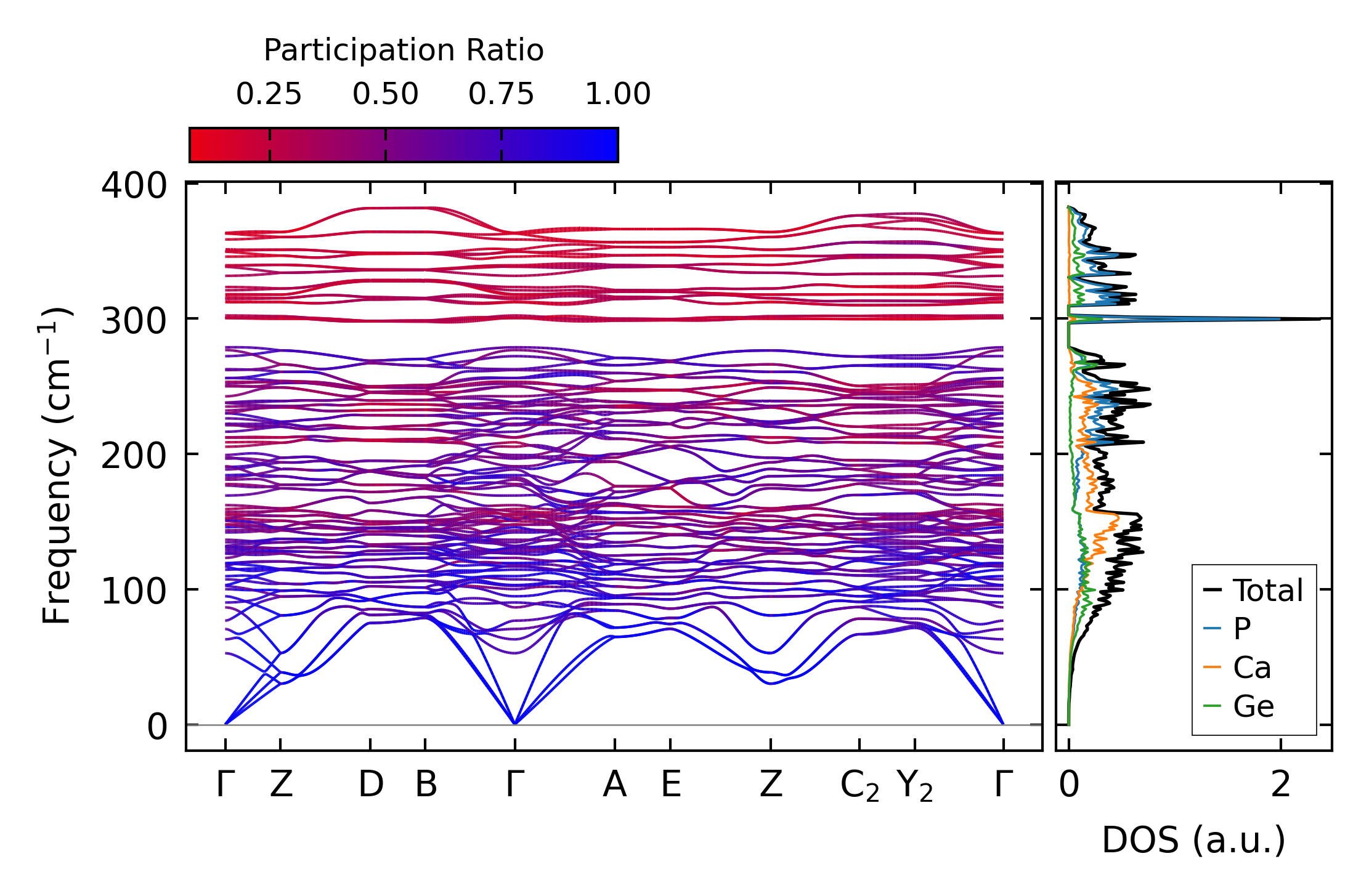

../../_images/fig_bandos_pr14023.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14023.png — (b) Thermodynamic properties

Grüneisen parameters

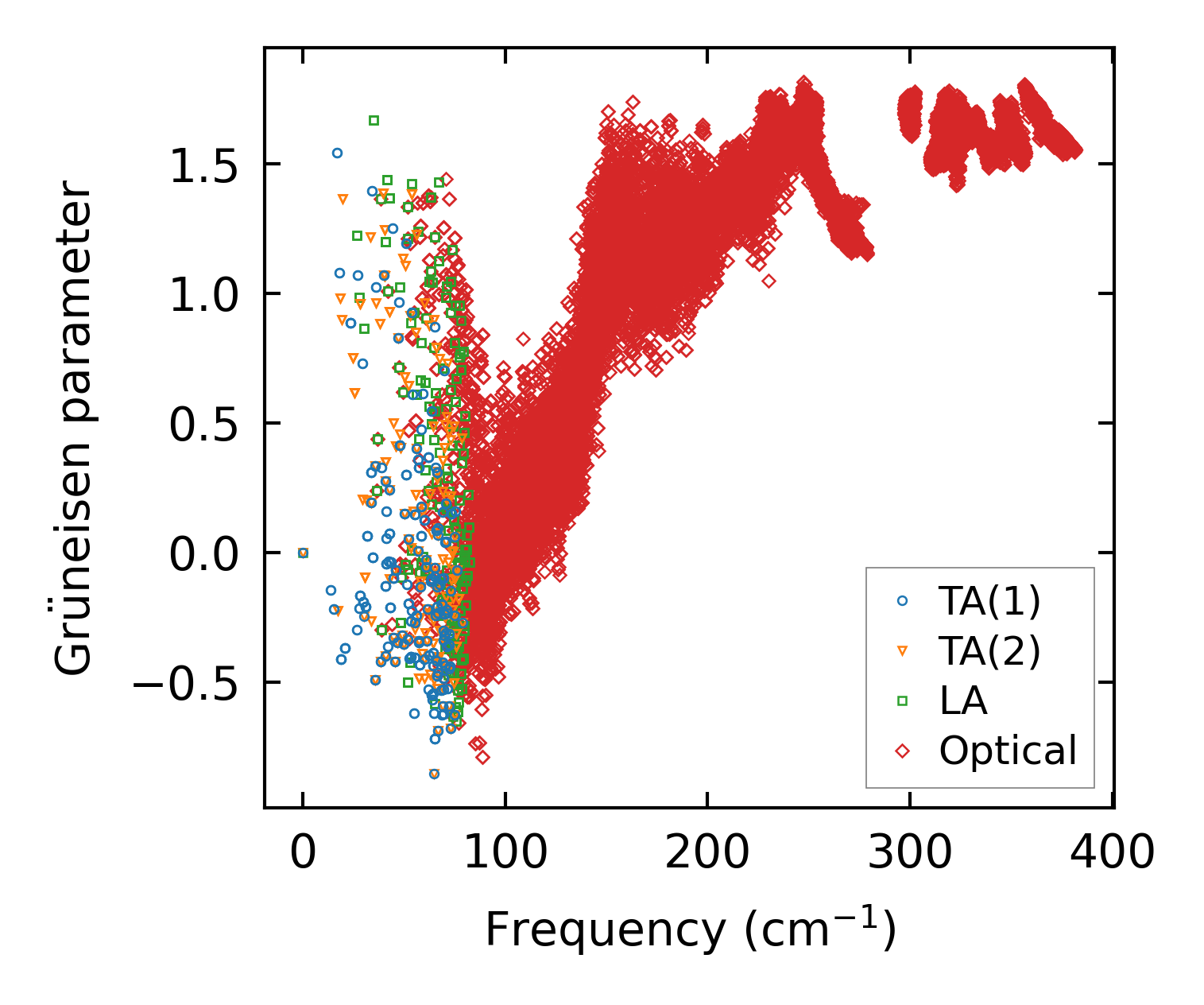

../../_images/fig_gru_all5944.png — (a) Grüneisen parameters

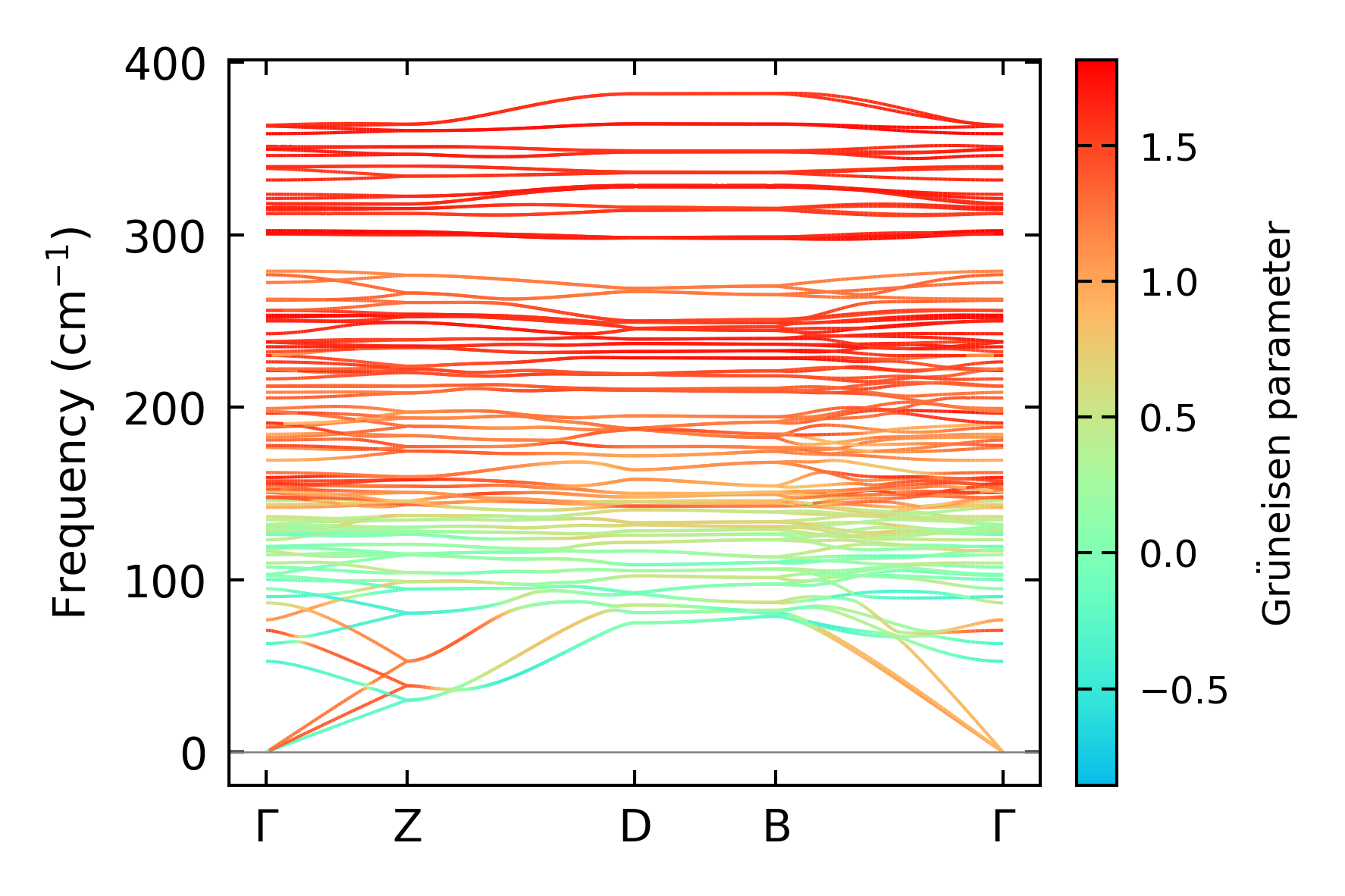

../../_images/fig_gruneisen5944.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x4x10, supercell: 2x1x2

../../_images/fig_kappa11189.png — (a) Temperature-dependent lattice thermal conductivity

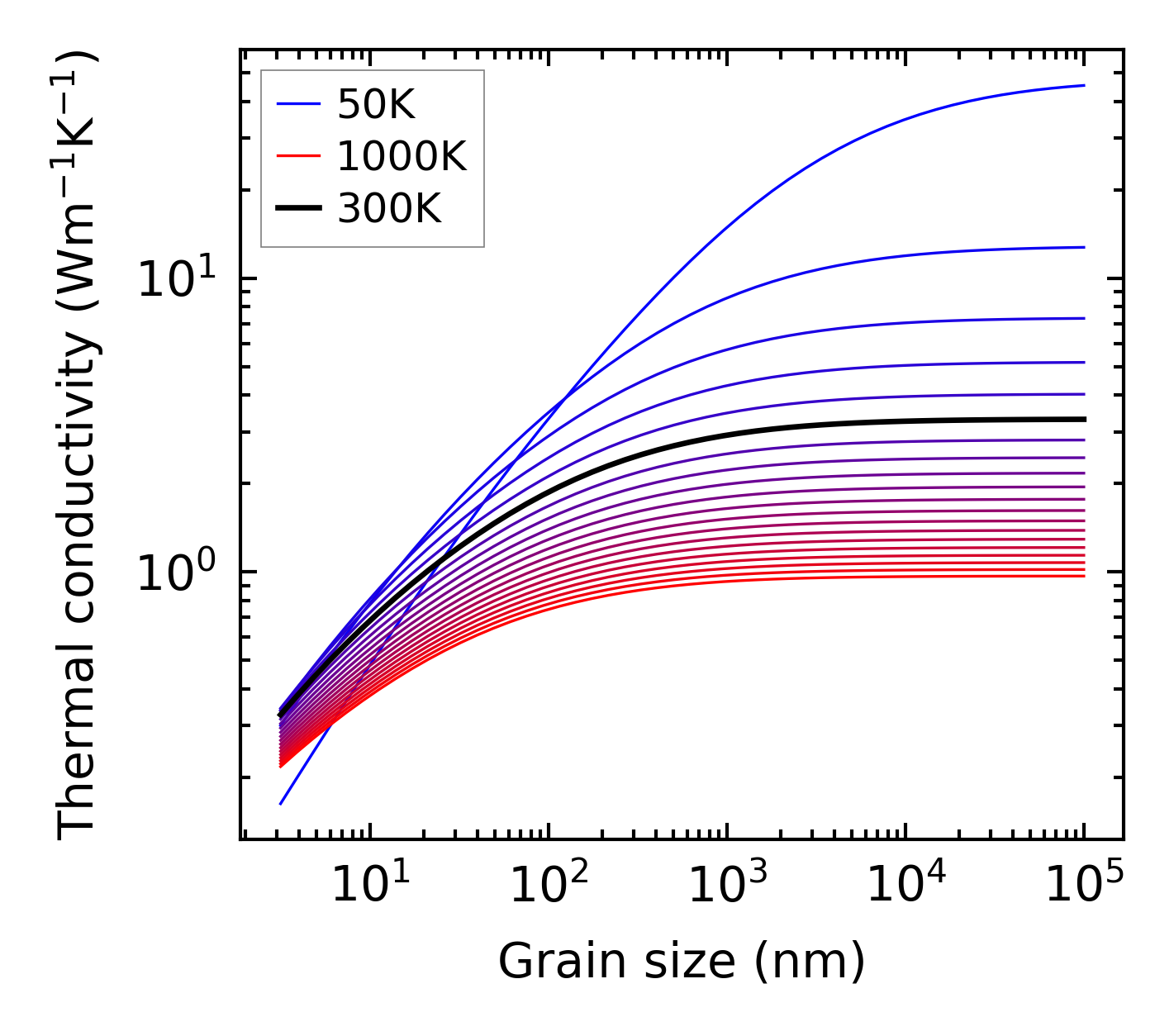

../../_images/fig_kappa_vs_grain_size6022.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

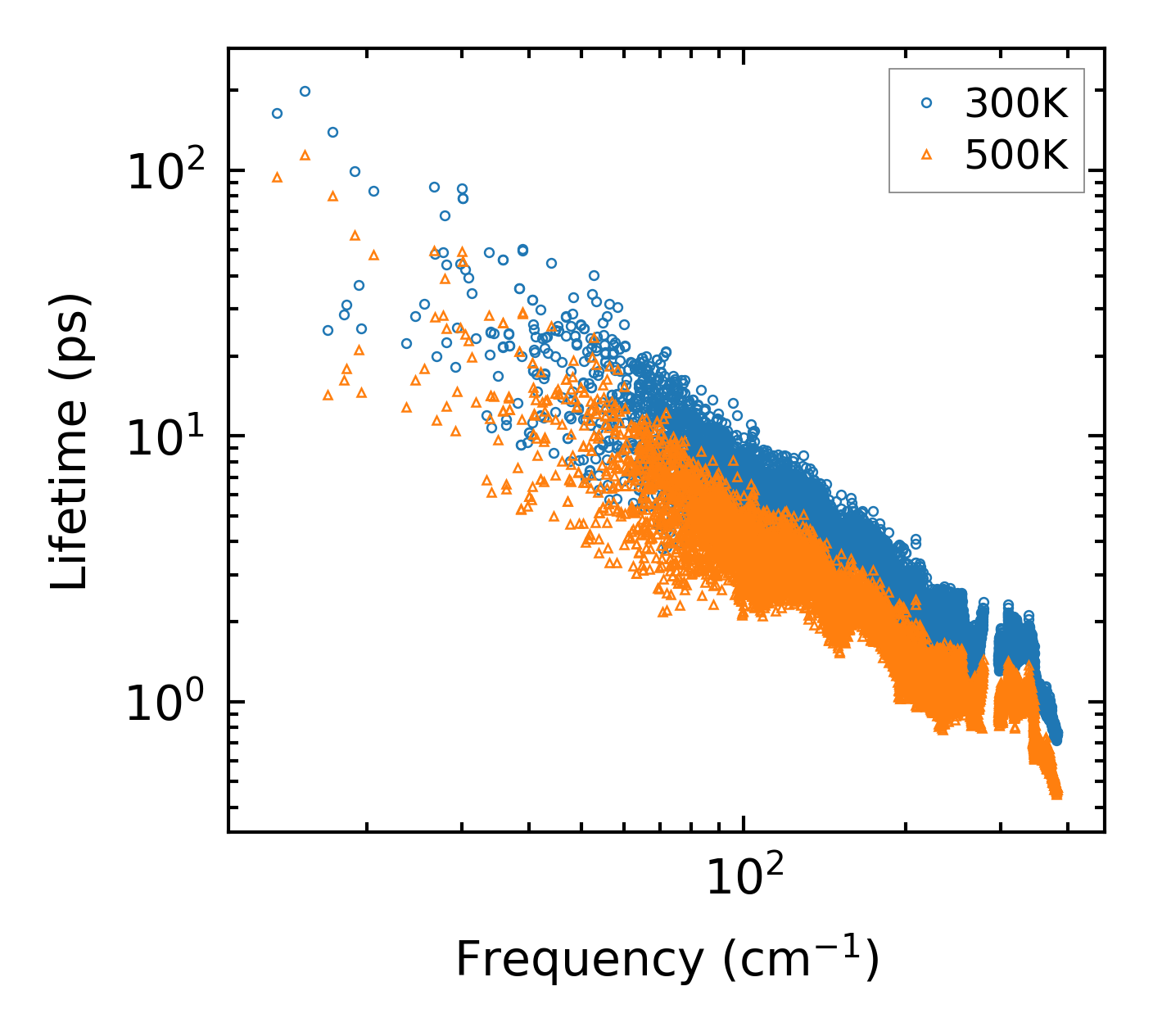

../../_images/fig_lifetime5887.png — (a) Phonon lifetime due to phonon-phonon scattering

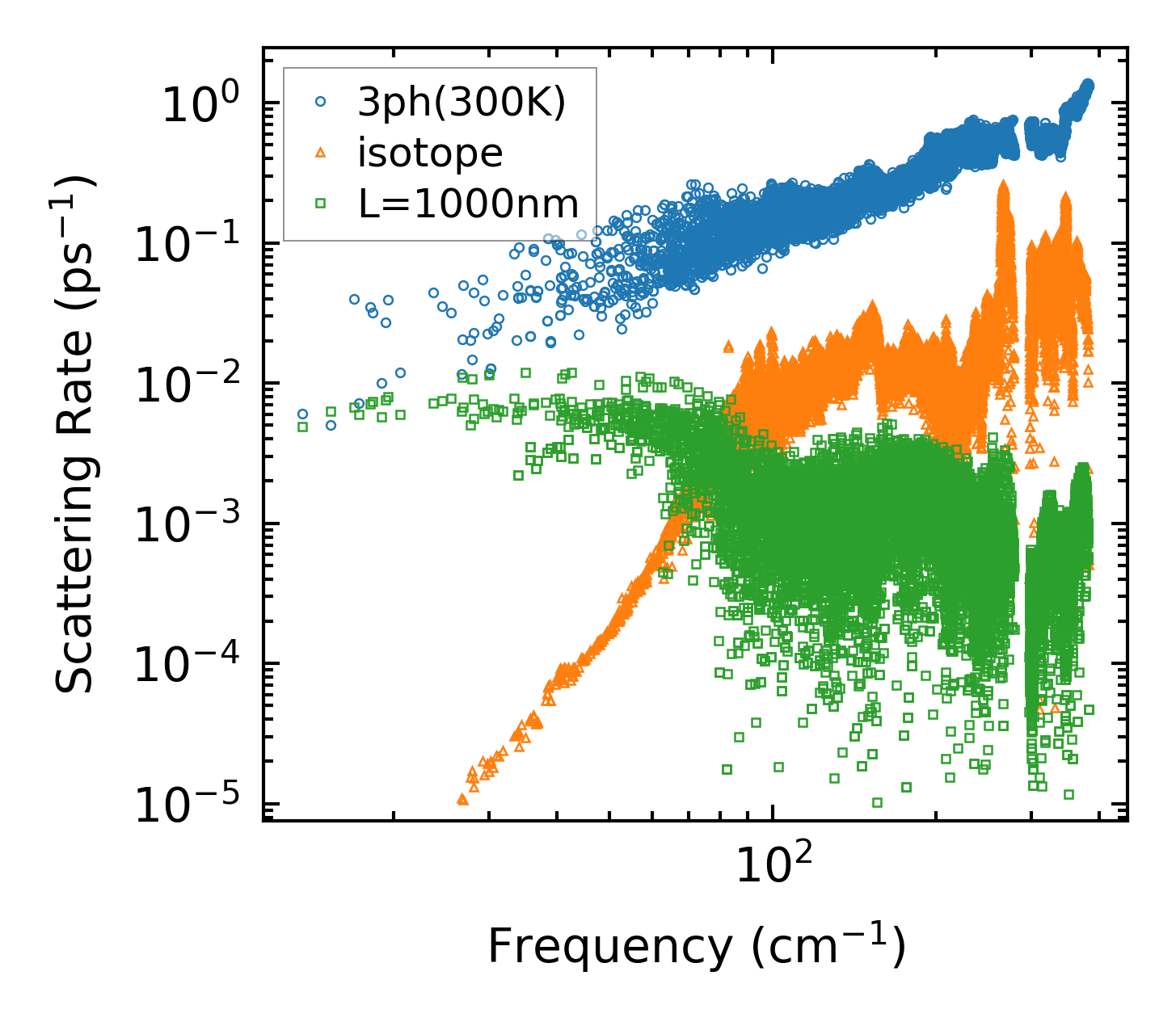

../../_images/fig_scat_rates5886.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

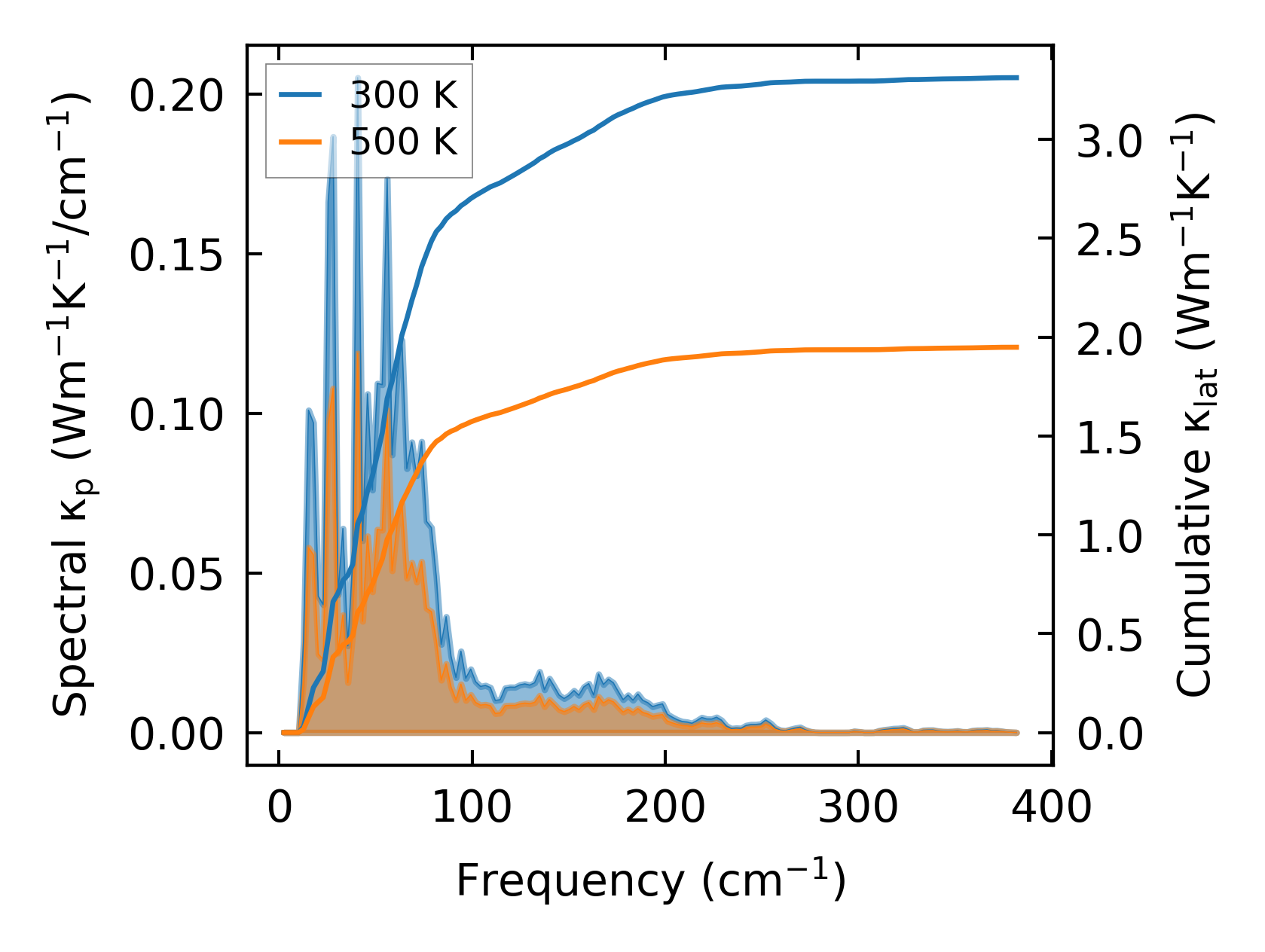

../../_images/fig_cumu_frequency5887.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5886.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213651.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11190.png — (a) Temperature-dependent lattice thermal conductivity

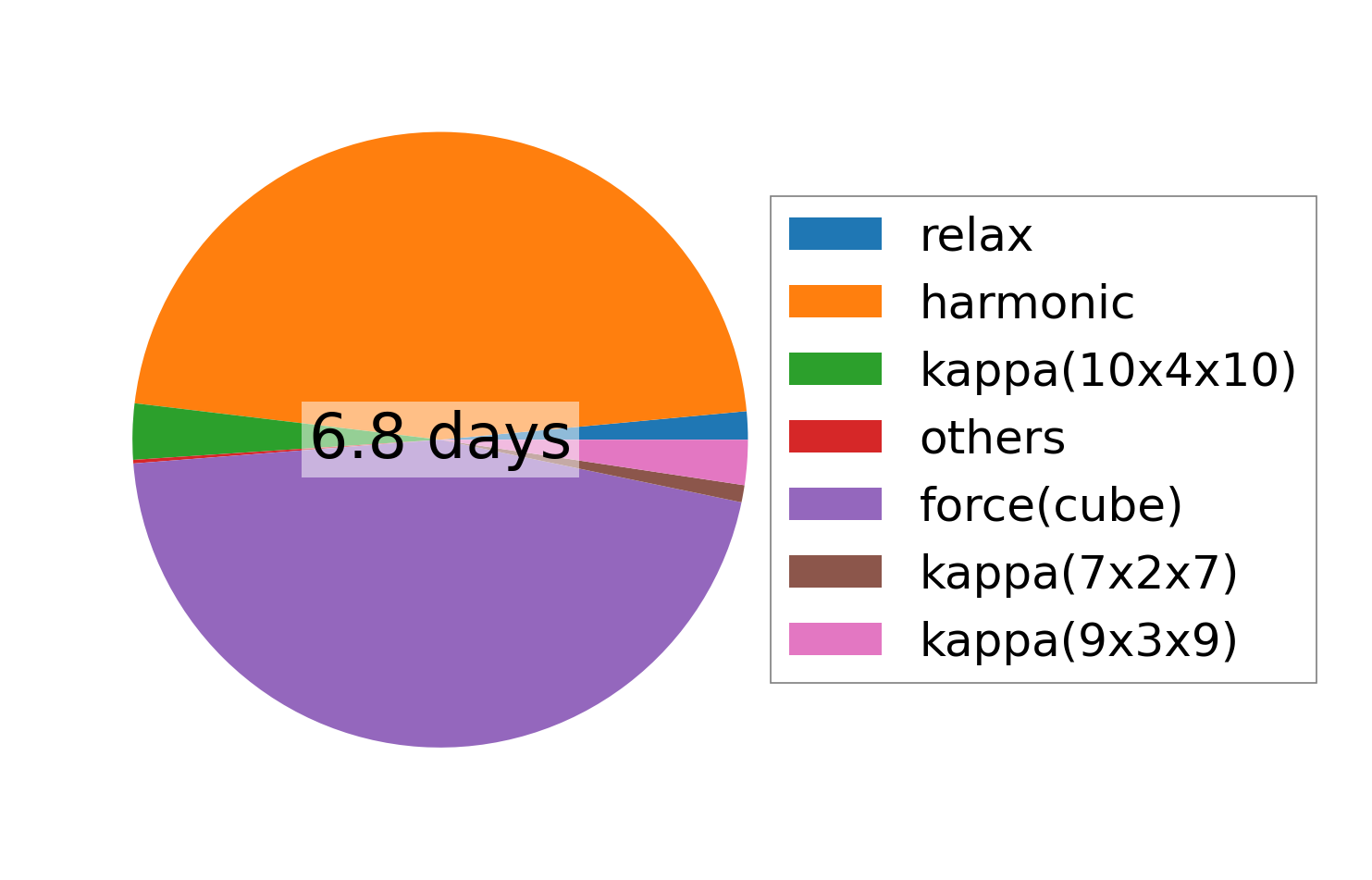

../../_images/fig_times23472.png — (b) Computation time
