mp-17708-2/Ge3Sb2O9/anharm

Space group: P6_3/m (176)
Link: Materials Project
Download: mp-17708-2.tar.gz

Equation of state

../../_images/fig_bm7001.png — (a) Equation of state

Harmonic properties

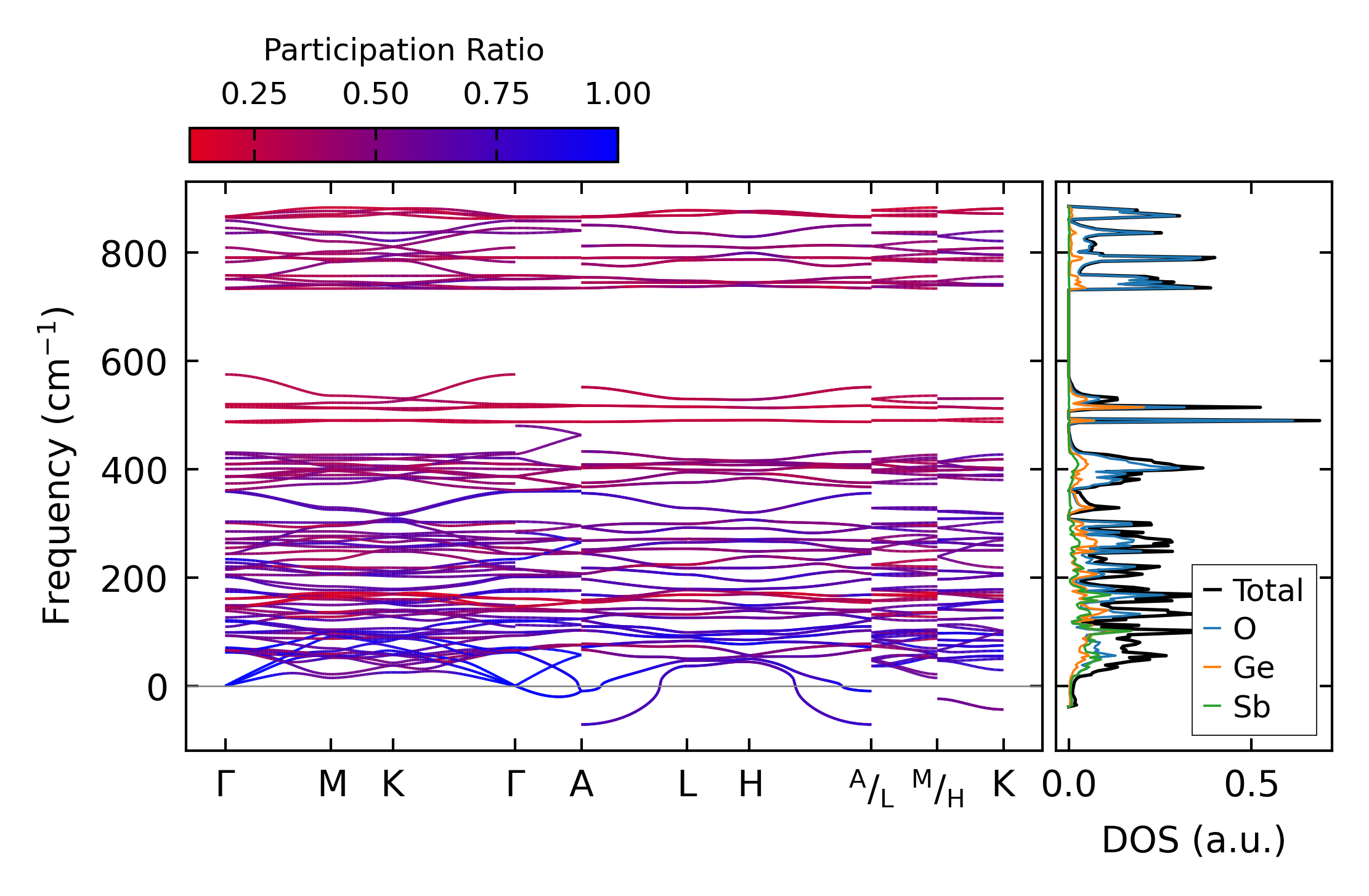

../../_images/fig_bandos_pr13988.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos18369.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13988.png — (c) Thermodynamic properties

Grüneisen parameters

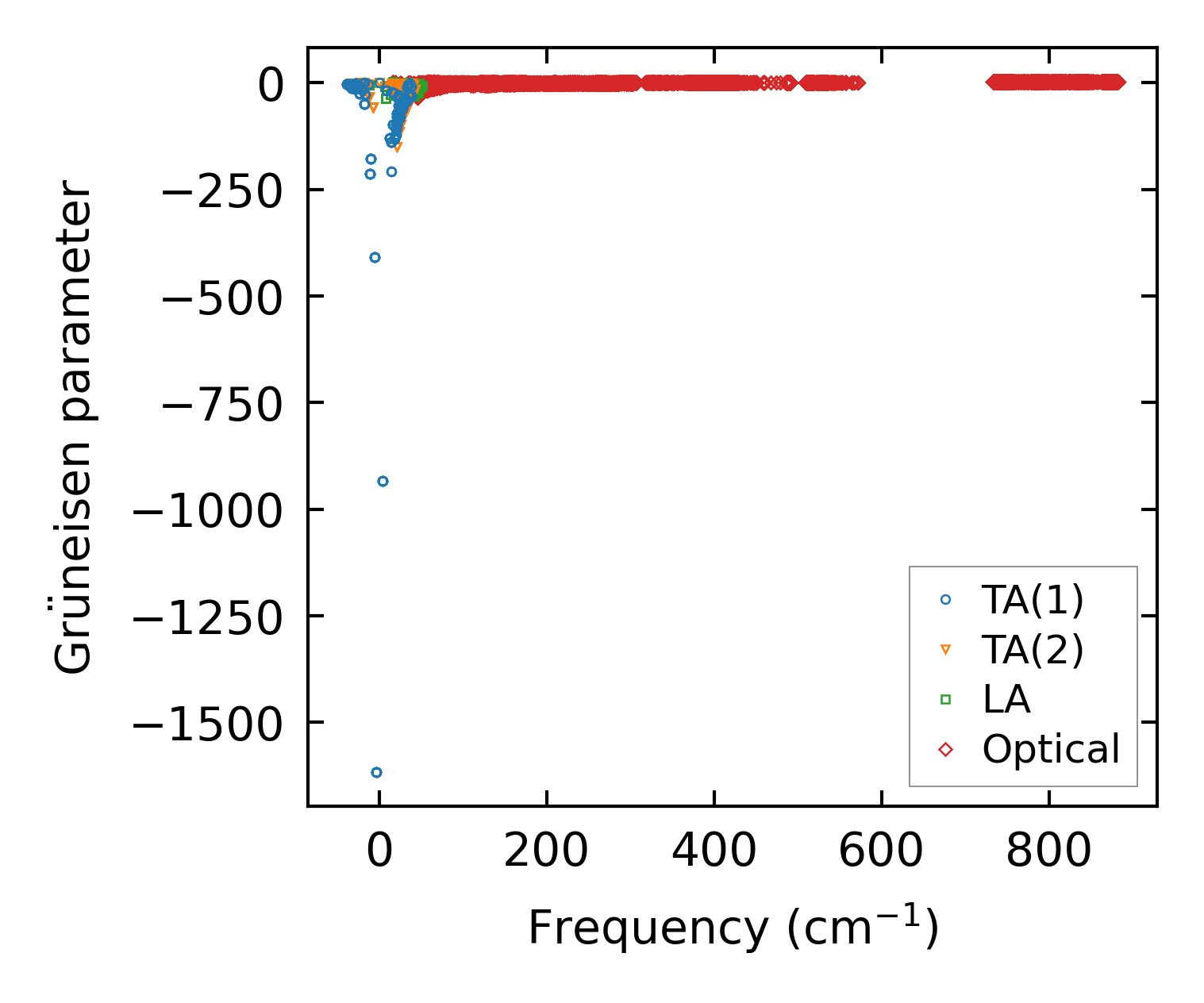

../../_images/fig_gru_all5927.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5927.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 10x10x7, supercell: 2x2x2

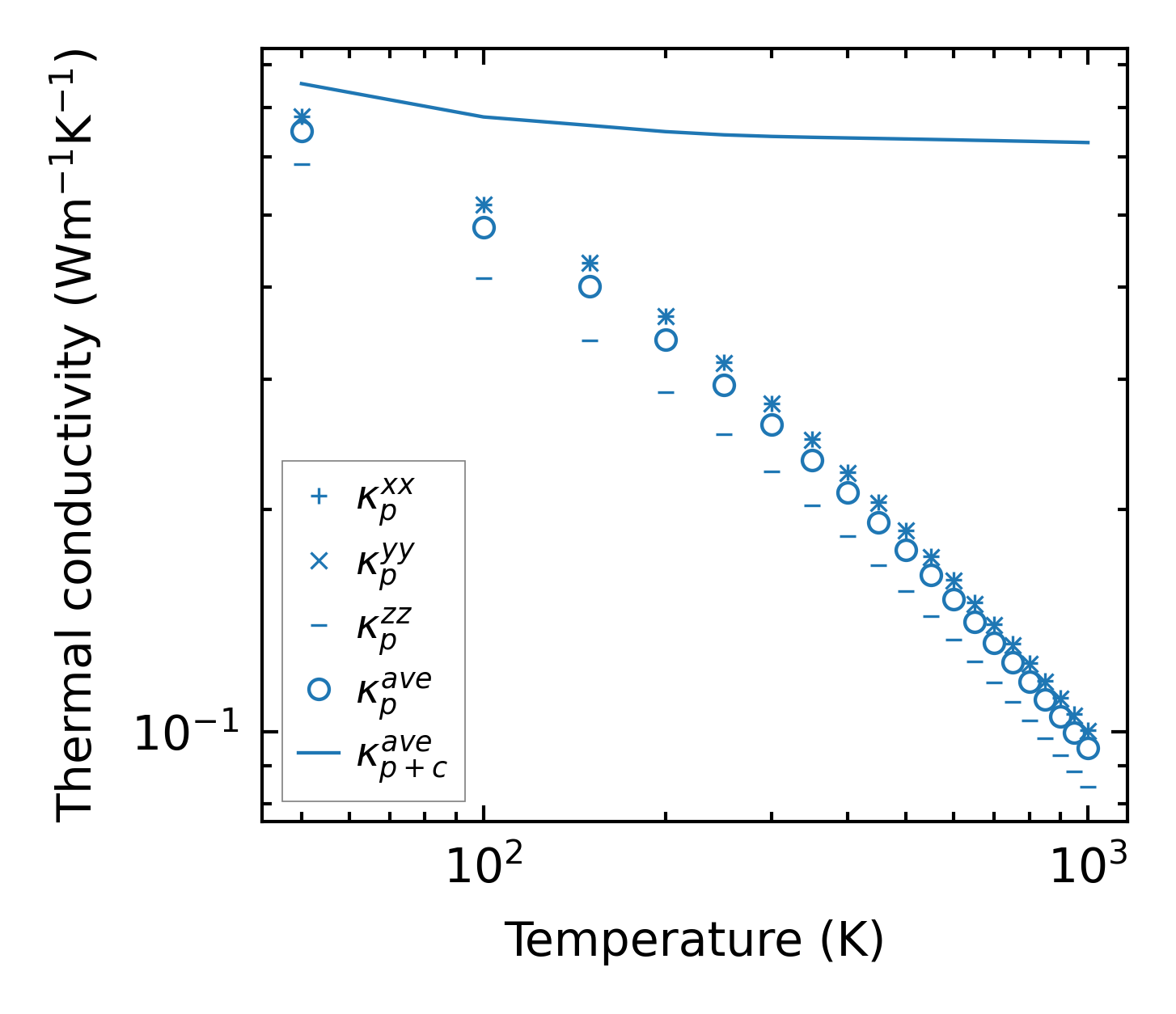

../../_images/fig_kappa11157.png — (a) Temperature-dependent lattice thermal conductivity

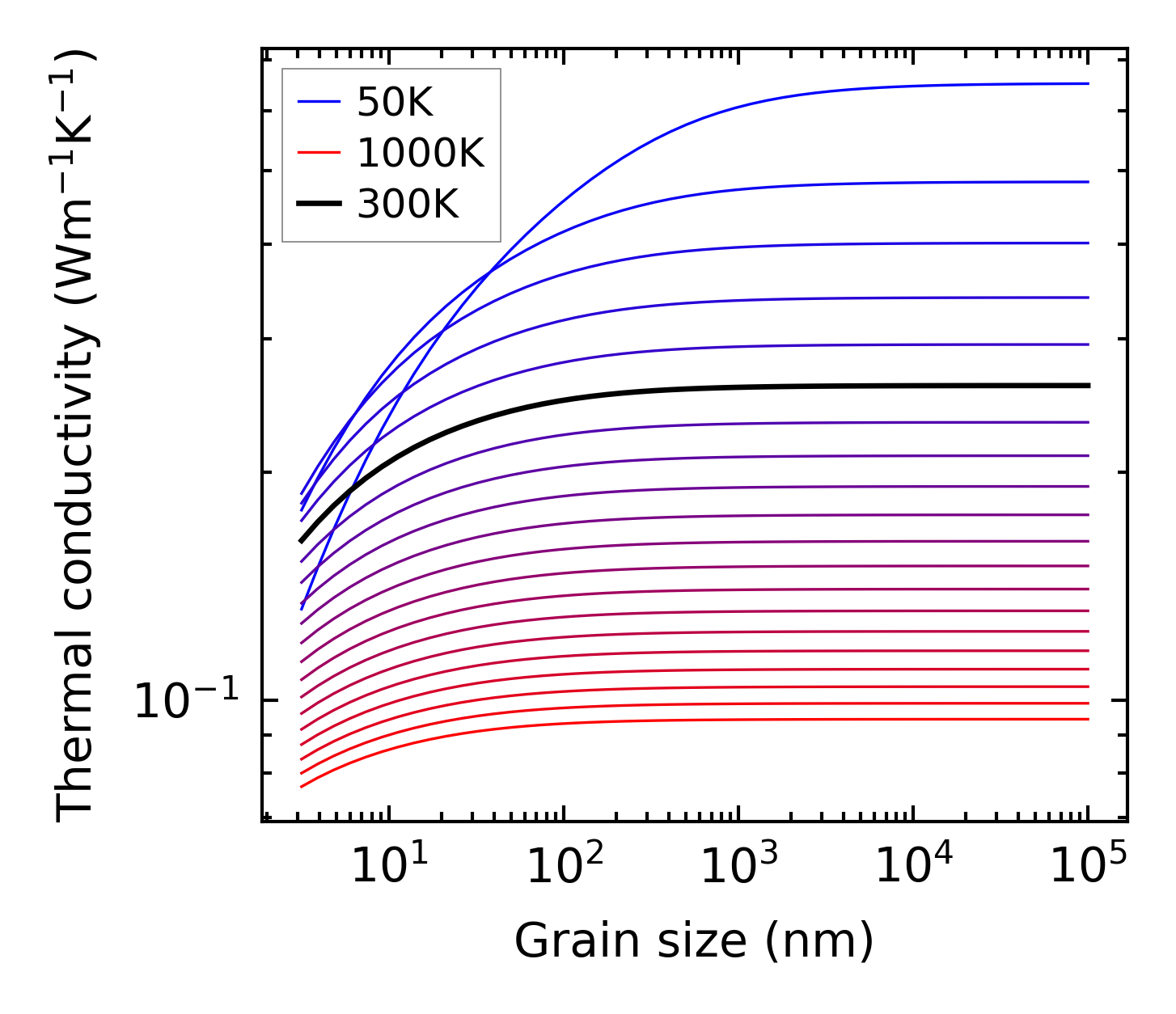

../../_images/fig_kappa_vs_grain_size6004.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

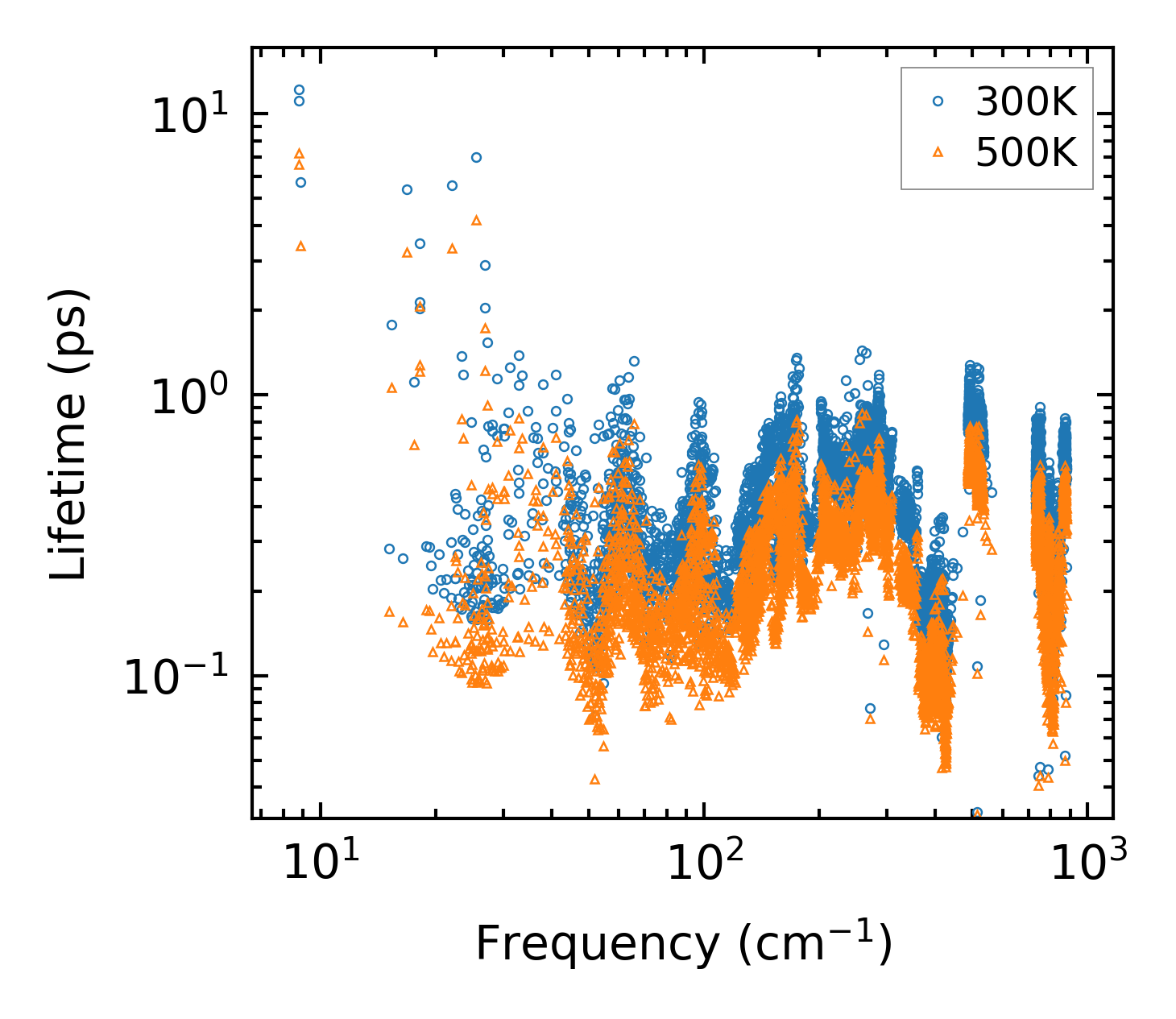

../../_images/fig_lifetime5870.png — (a) Phonon lifetime due to phonon-phonon scattering

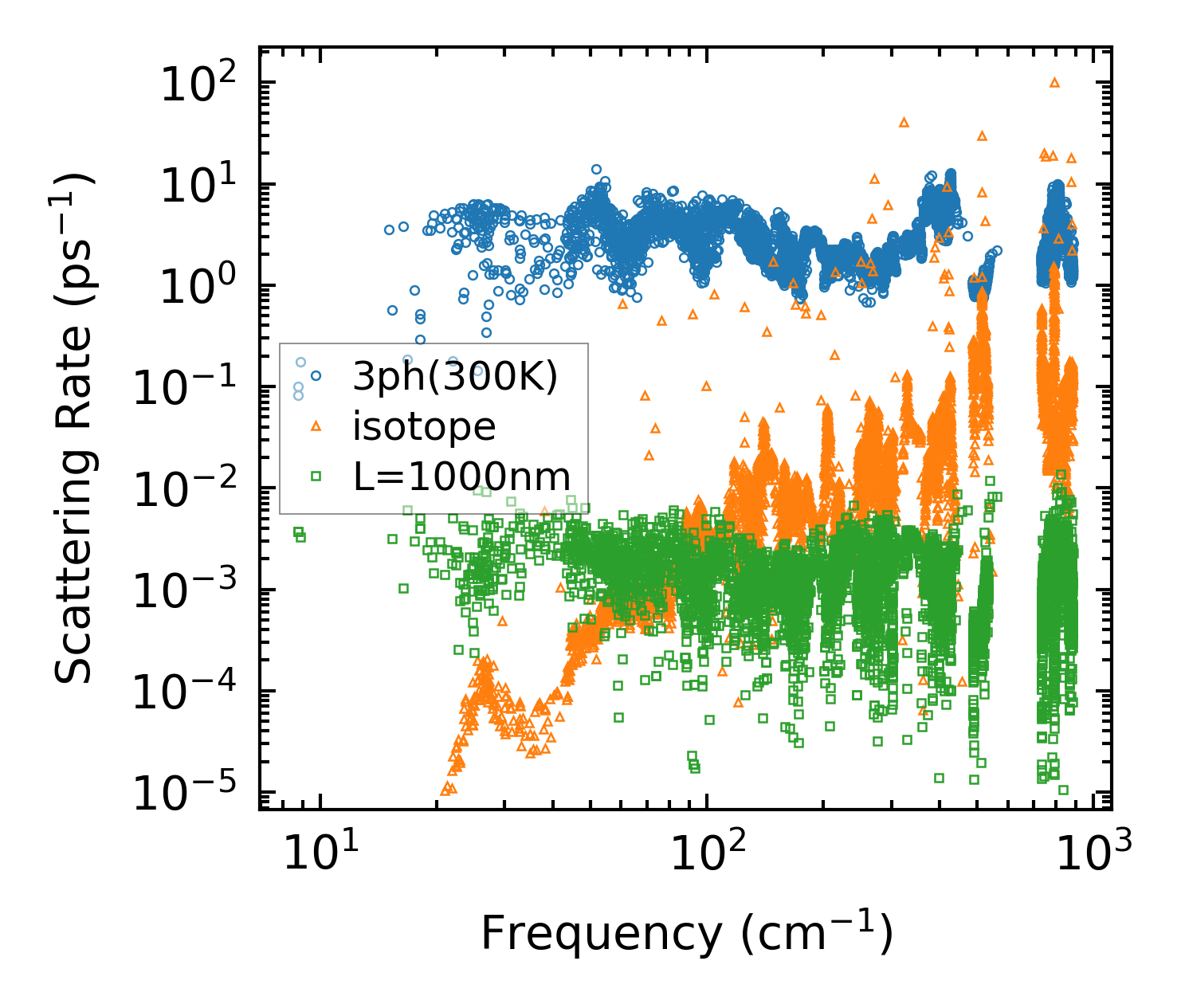

../../_images/fig_scat_rates5869.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

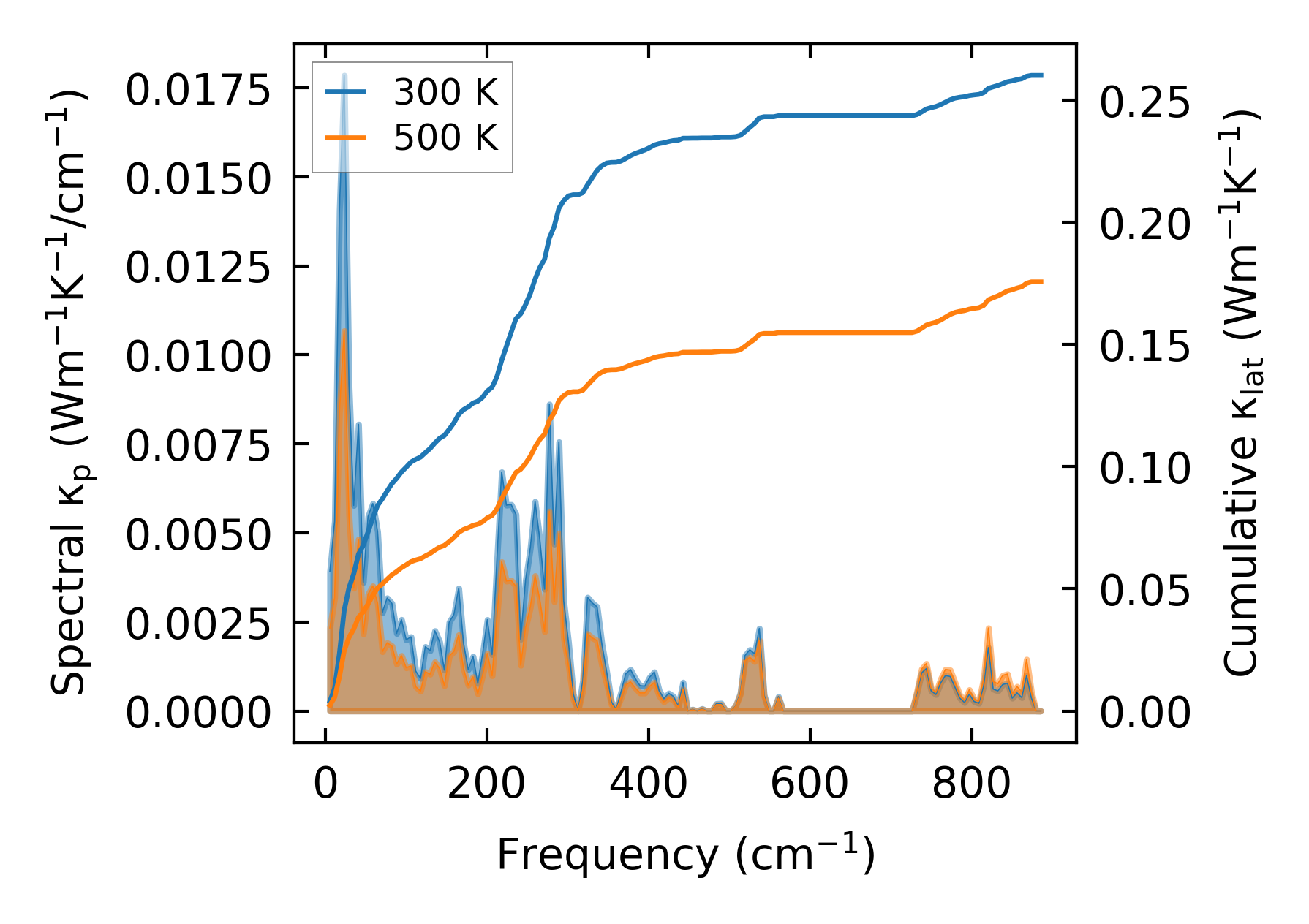

../../_images/fig_cumu_frequency5870.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5869.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213616.png — (a) Force constants w.r.t atomic distance

Summary

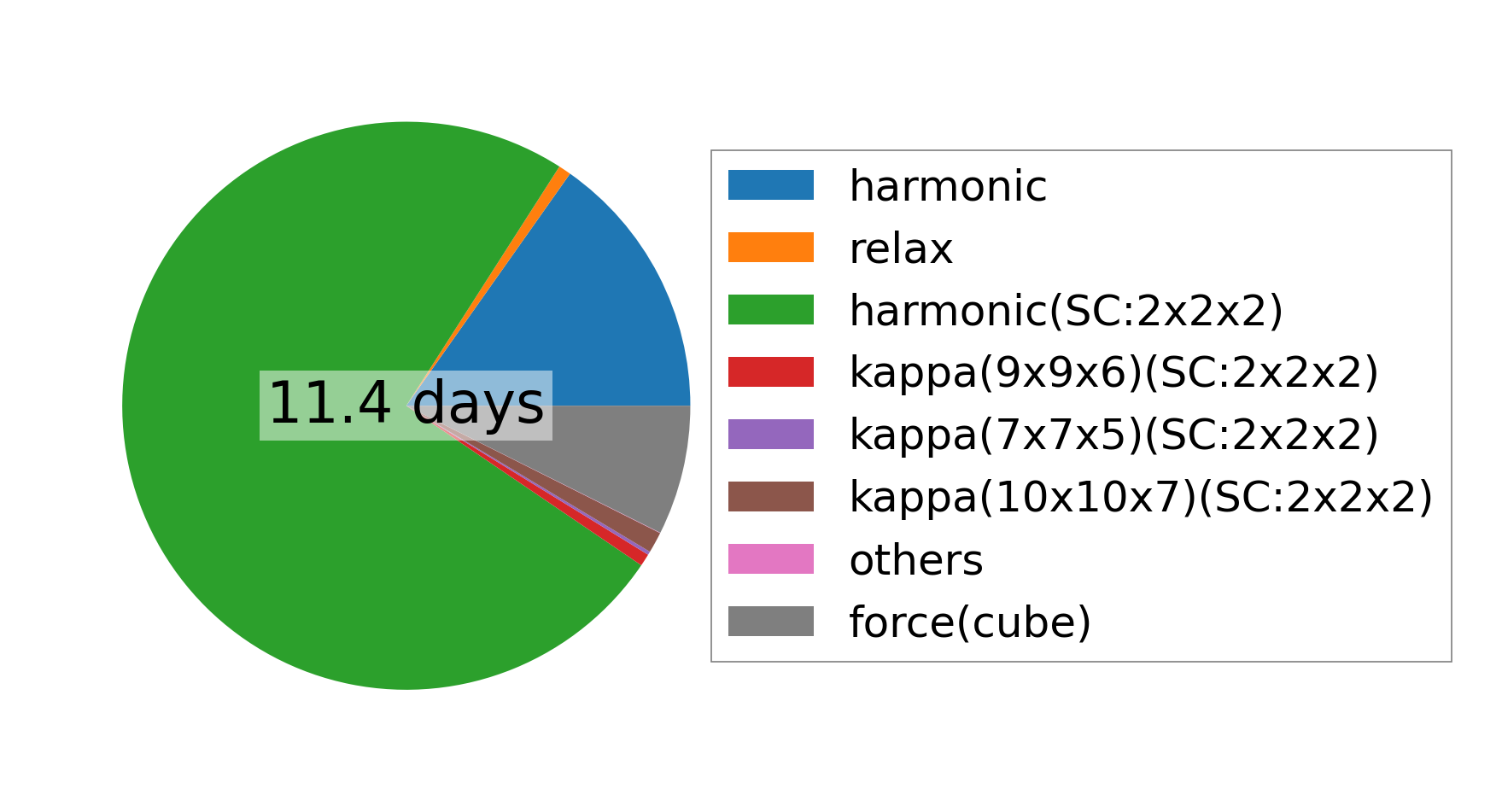

../../_images/fig_times23419.png — (a) Computation time
