mp-17516/Ca10P6SeO24/anharm

Space group: P-3 (147)
Link: Materials Project
Download: mp-17516.tar.gz

Harmonic properties

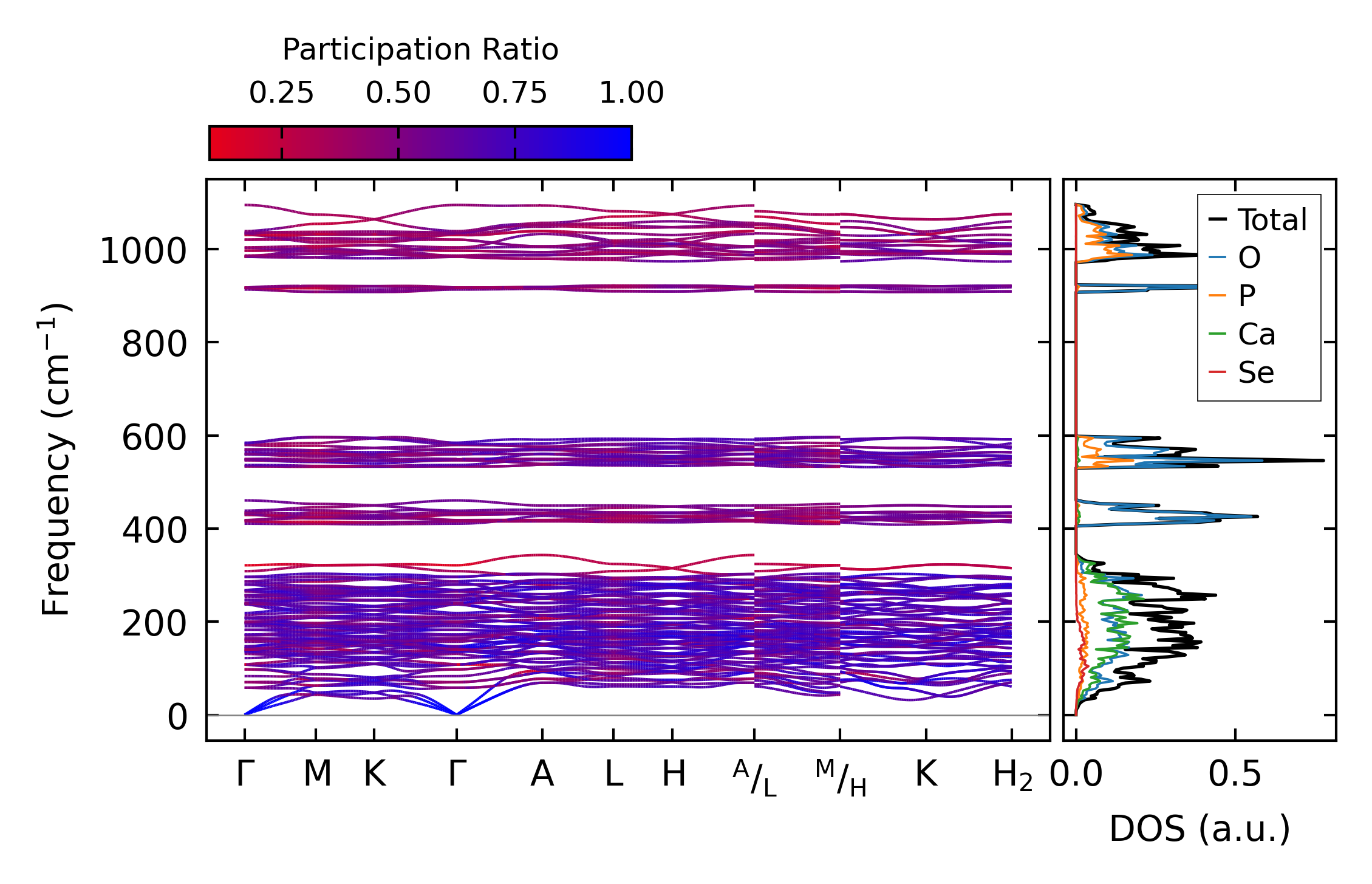

../../_images/fig_bandos_pr13940.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13940.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5900.png — (a) Grüneisen parameters

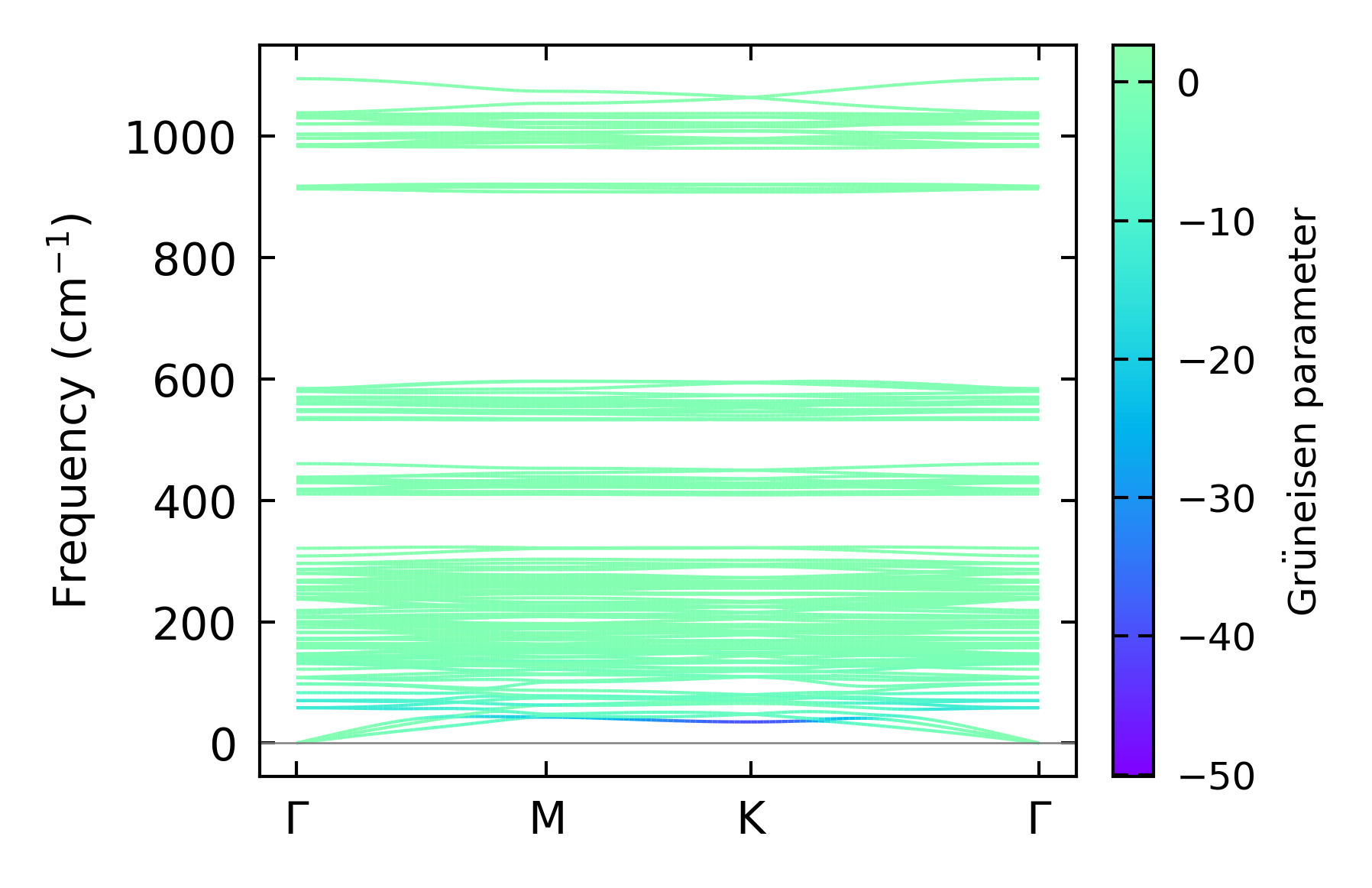

../../_images/fig_gruneisen5900.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x11, supercell: 1x1x2

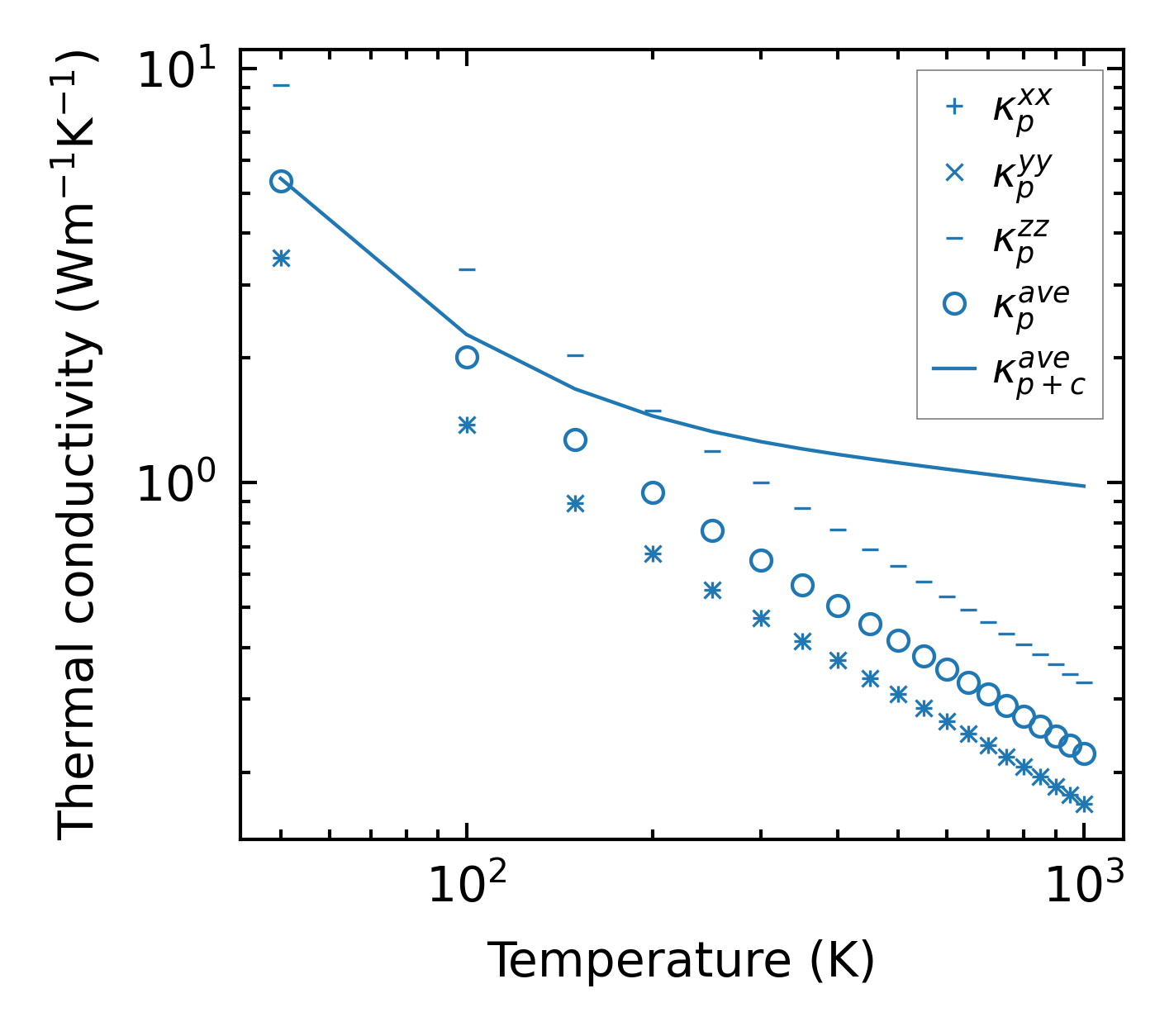

../../_images/fig_kappa11106.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5977.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

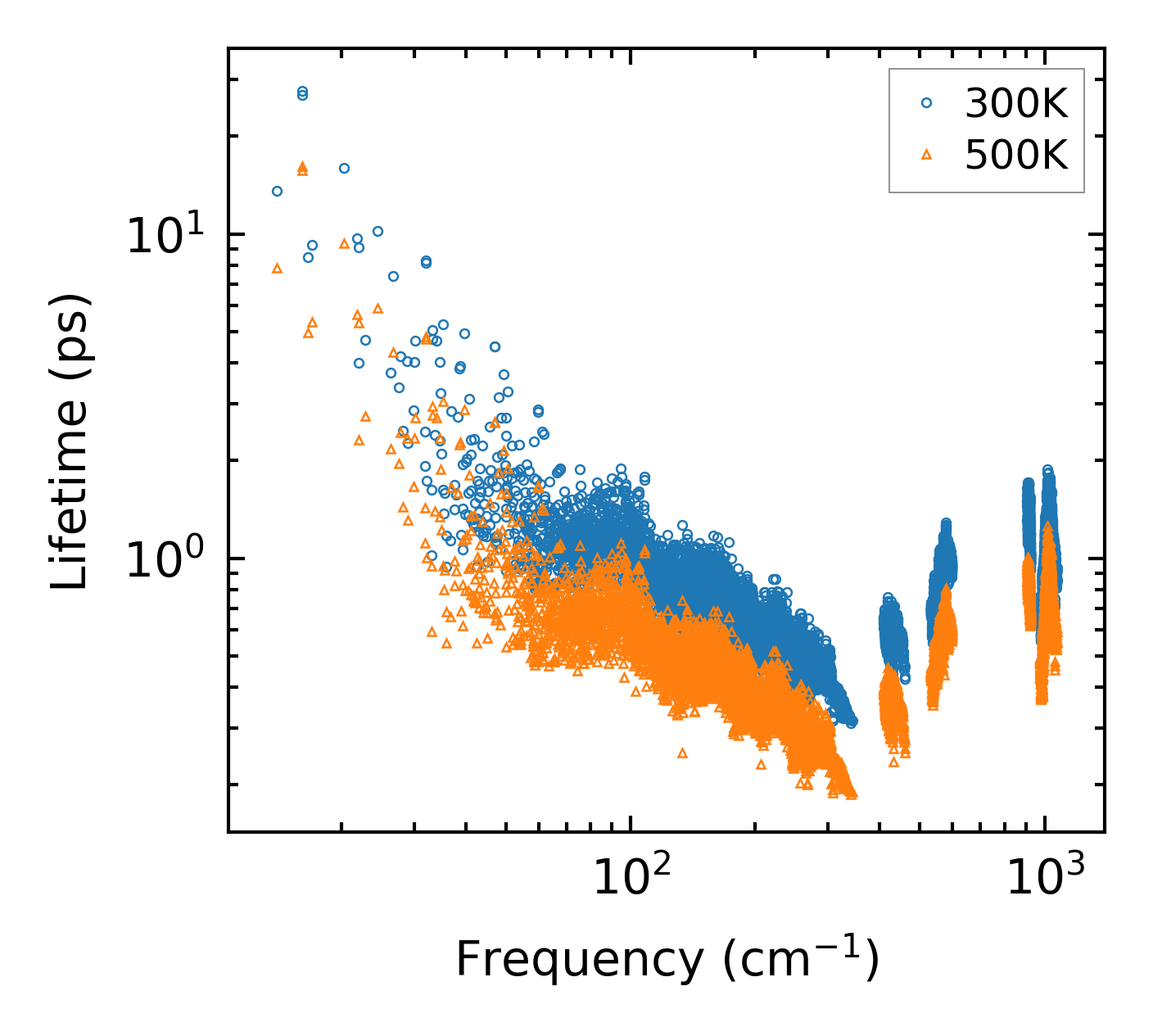

../../_images/fig_lifetime5843.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5842.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

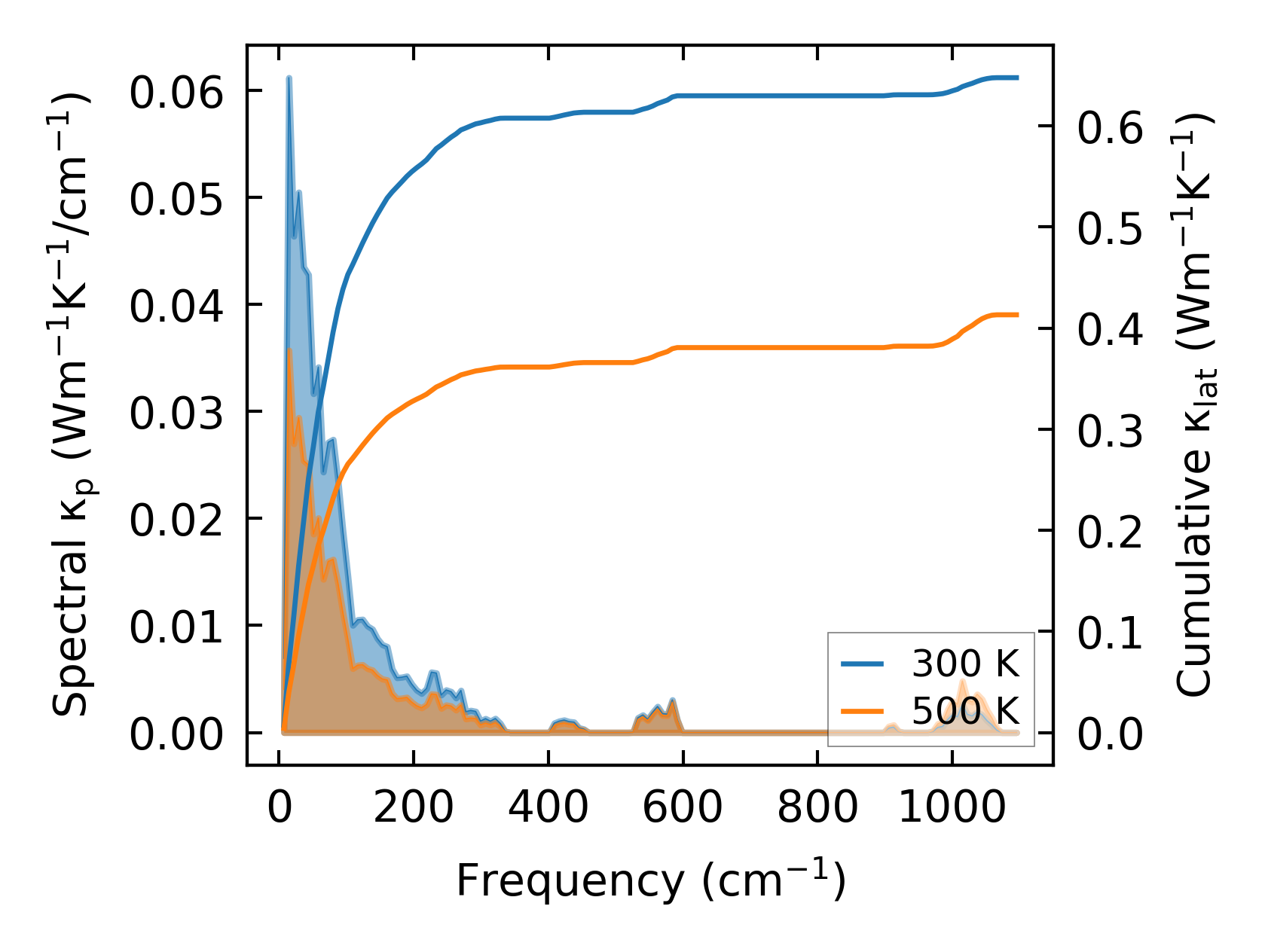

../../_images/fig_cumu_frequency5843.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

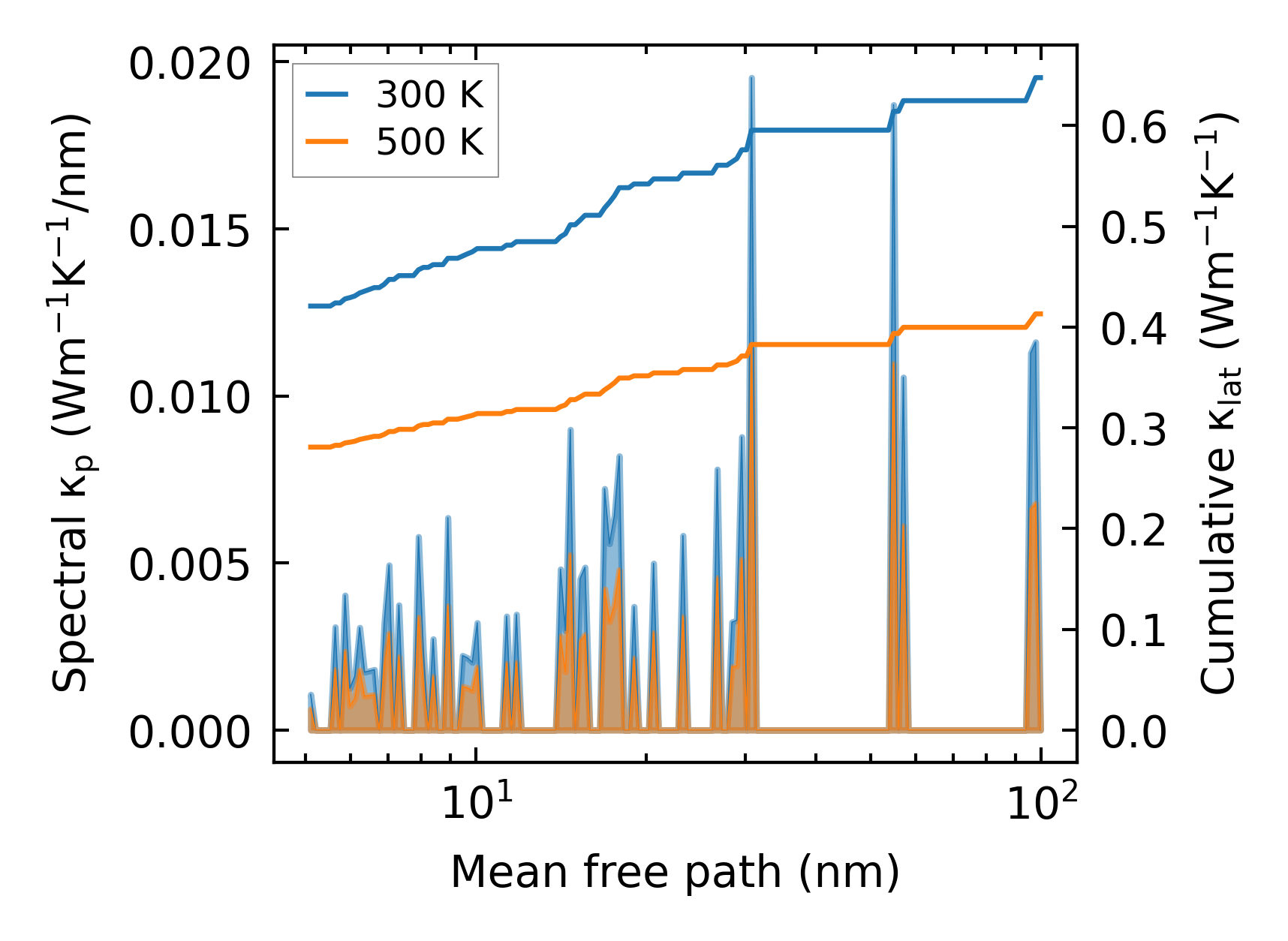

../../_images/fig_cumu_mfp5842.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

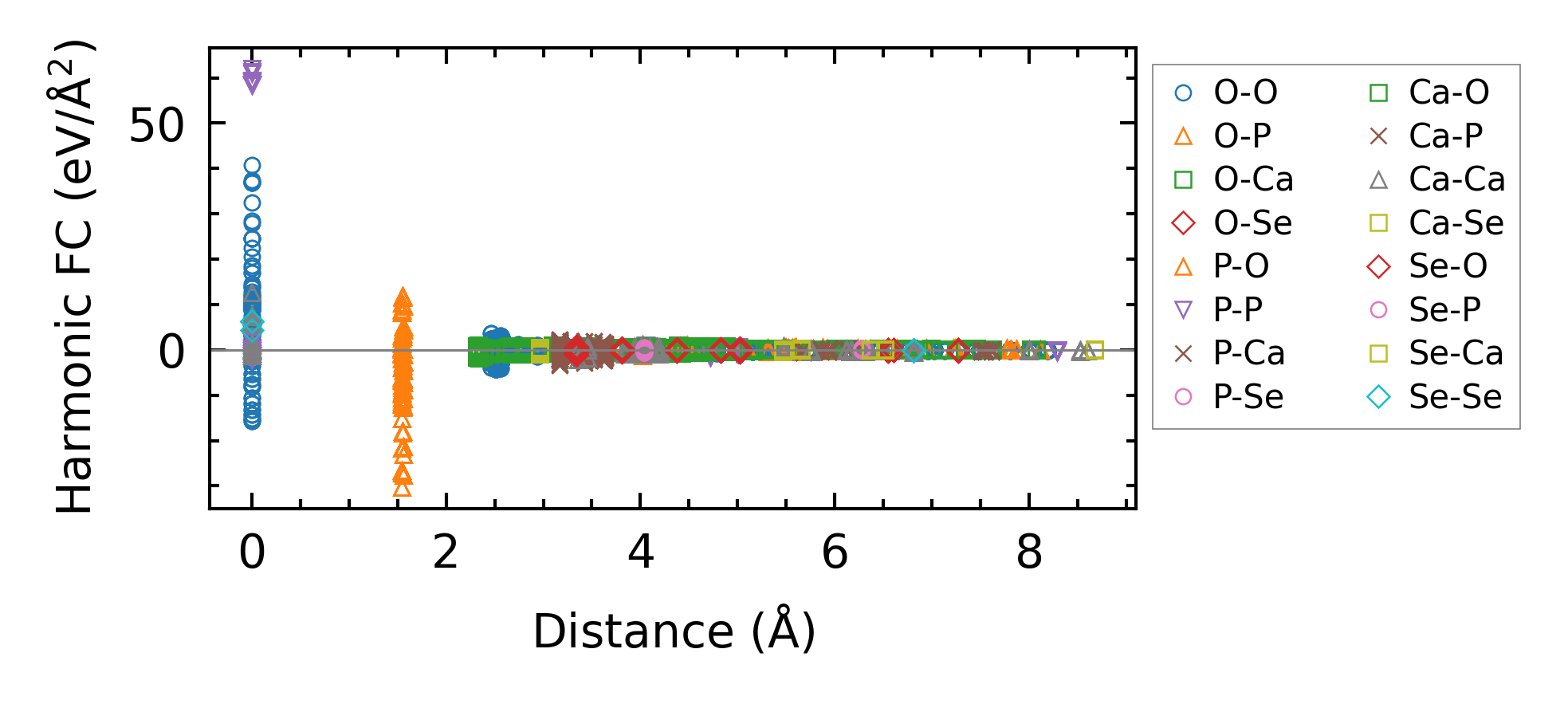

../../_images/fig_fc213568.png — (a) Force constants w.r.t atomic distance

Summary

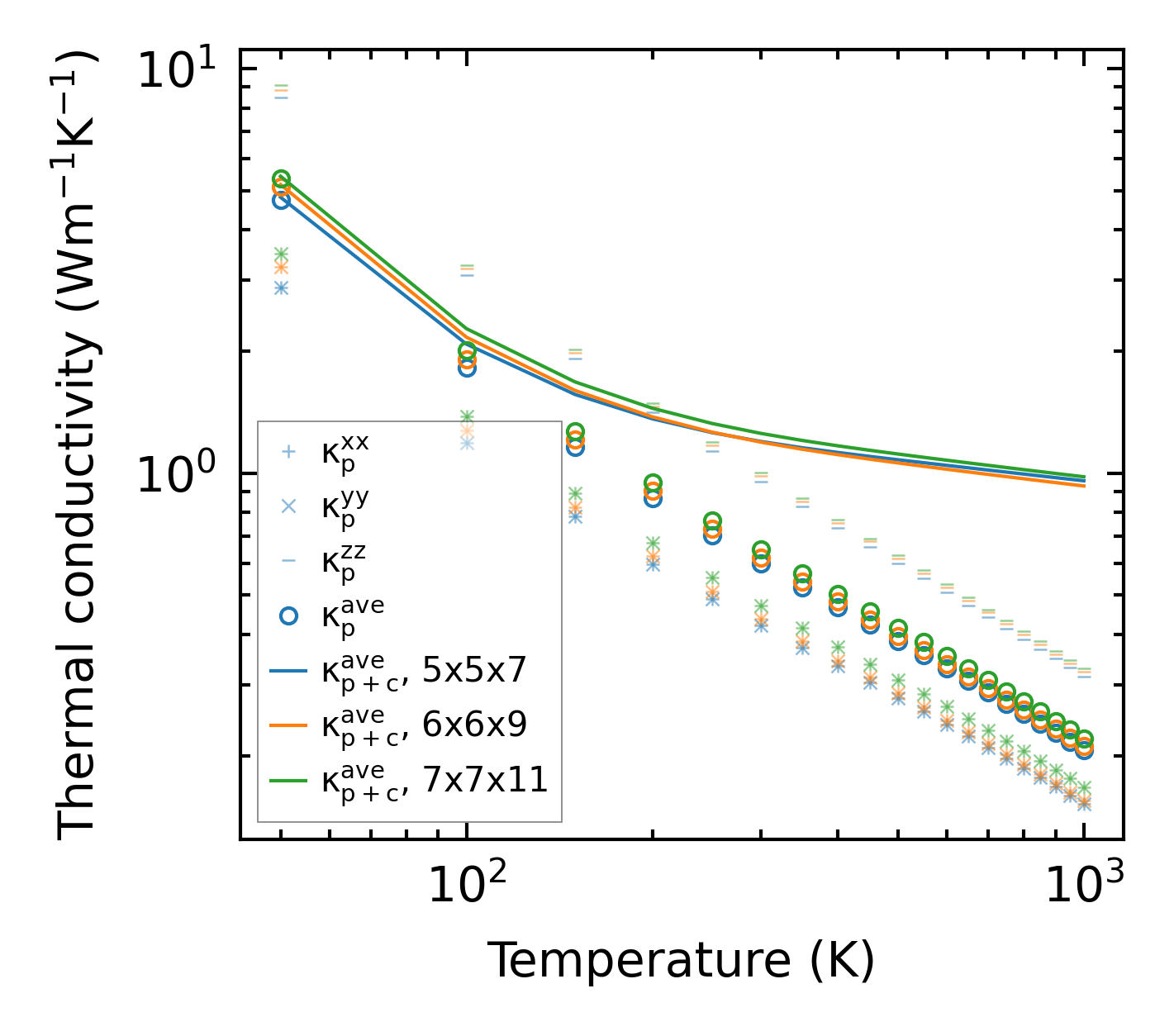

../../_images/fig_kappa11107.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23352.png — (b) Computation time
