mp-17015-2/K4GeO4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-17015-2.tar.gz

Equation of state

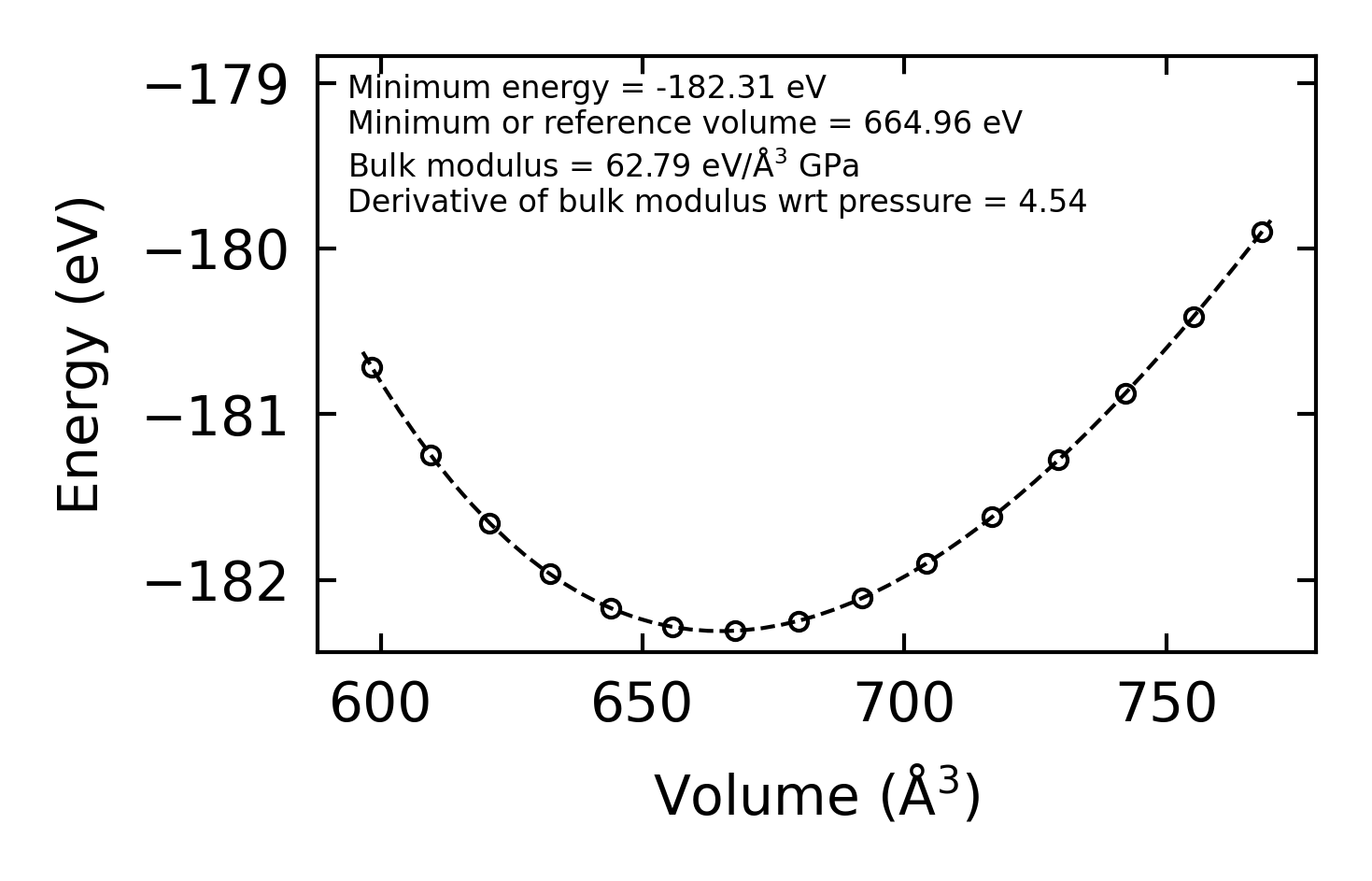

../../_images/fig_bm7093.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr14162.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos18556.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14162.png — (c) Thermodynamic properties

Grüneisen parameters

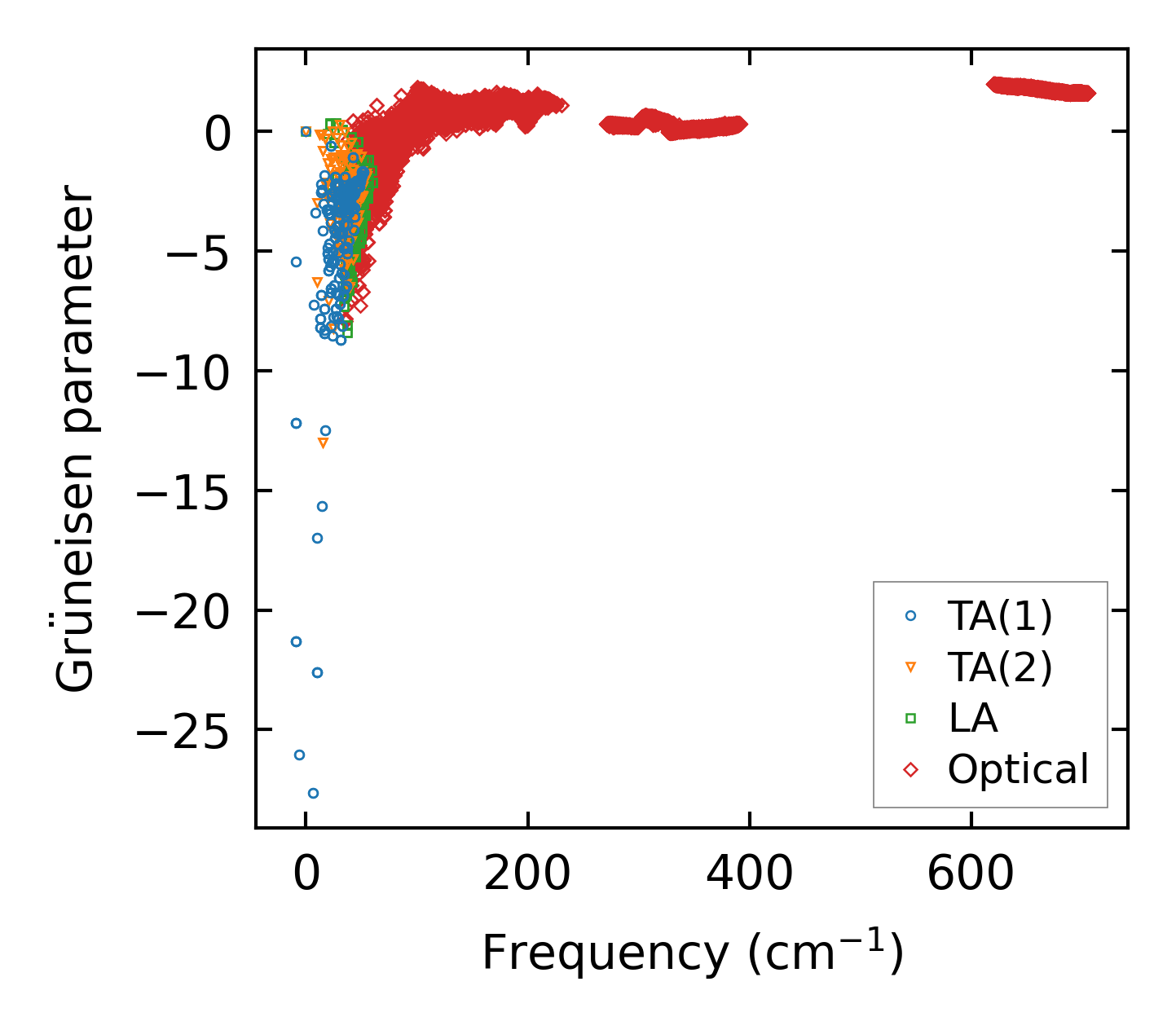

../../_images/fig_gru_all6014.png — (a) Grüneisen parameters

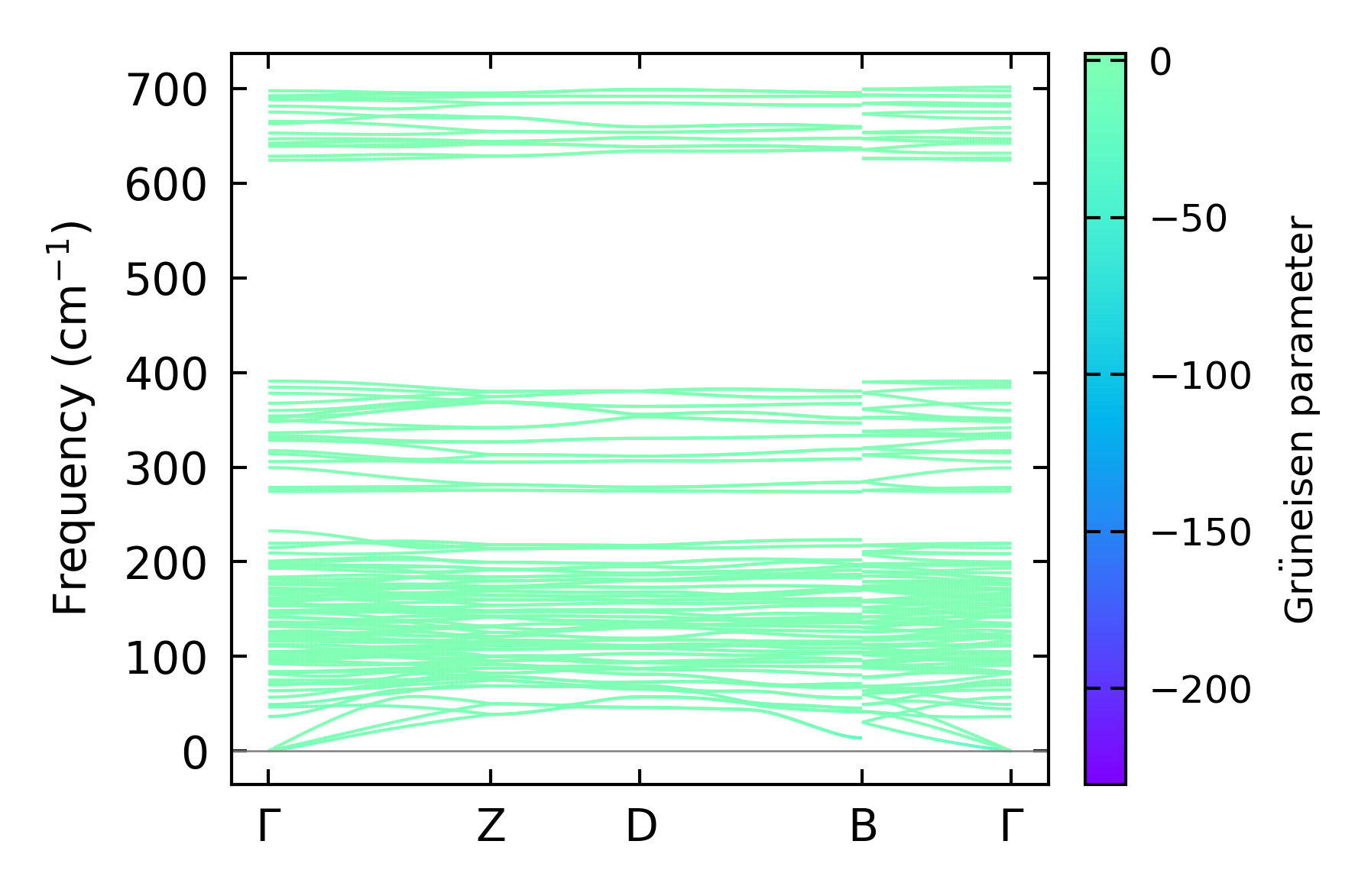

../../_images/fig_gruneisen6014.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 7x11x7, supercell: 2x2x2

../../_images/fig_kappa11320.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6092.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5955.png — (a) Phonon lifetime due to phonon-phonon scattering

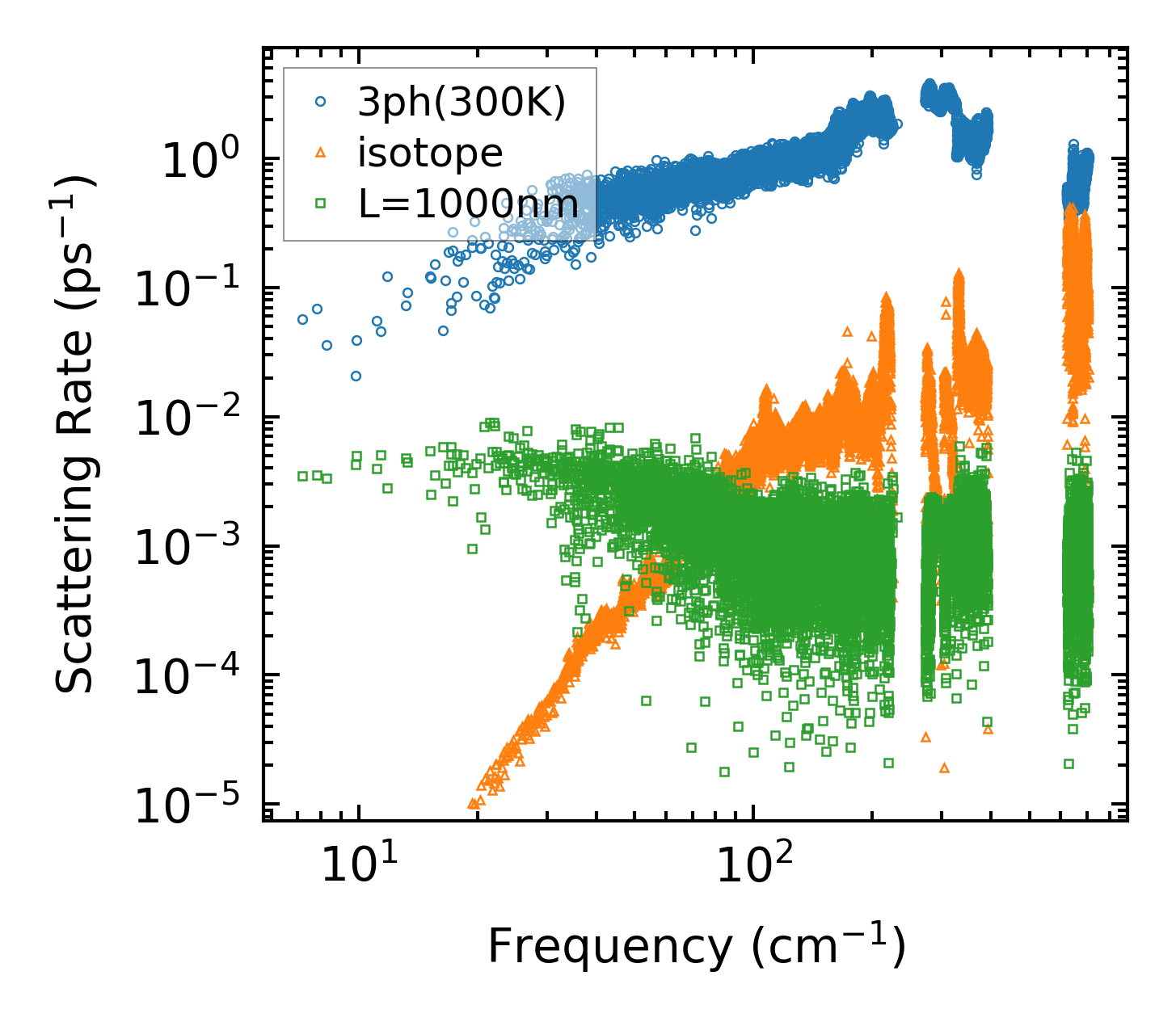

../../_images/fig_scat_rates5954.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

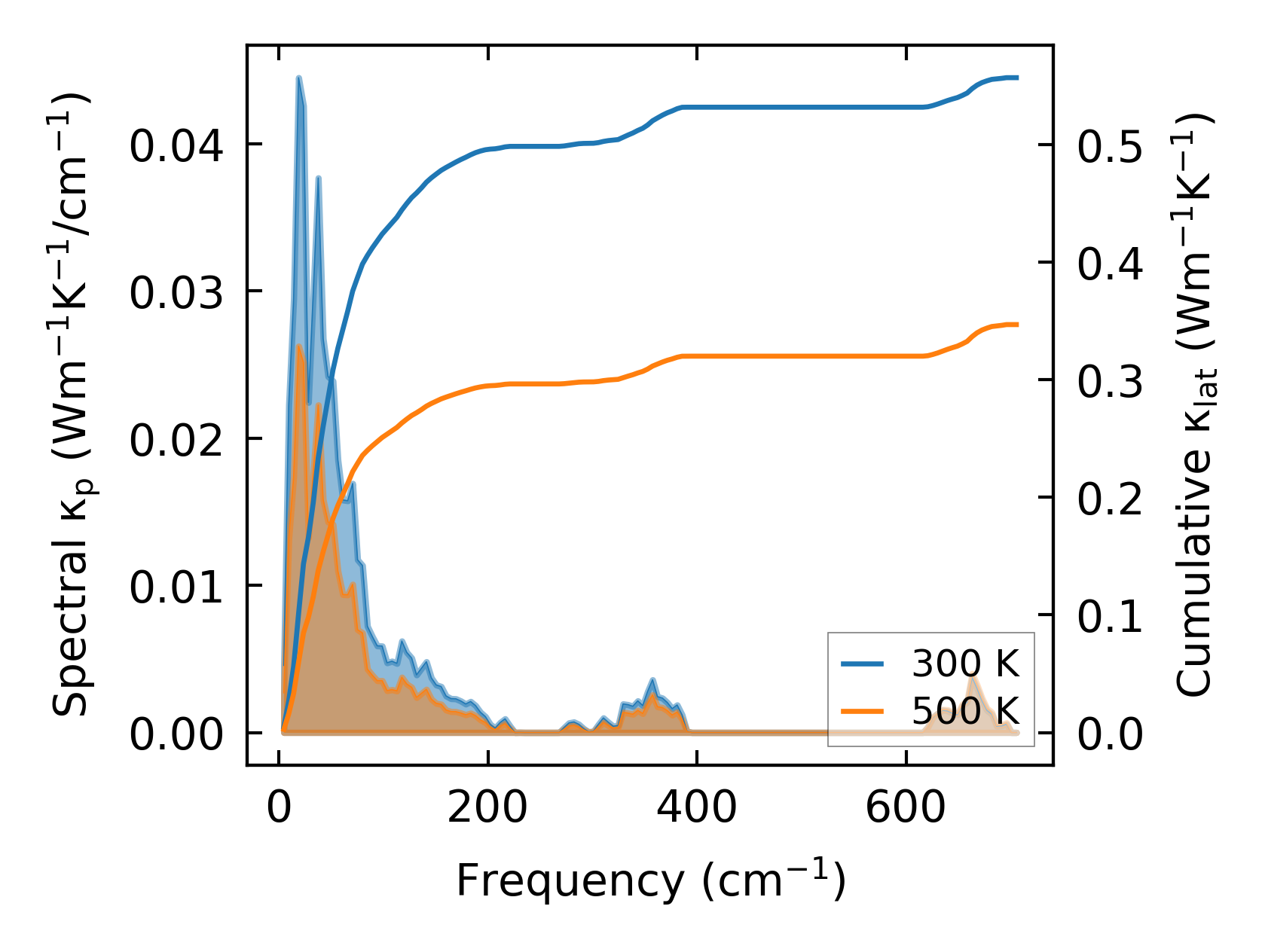

../../_images/fig_cumu_frequency5955.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

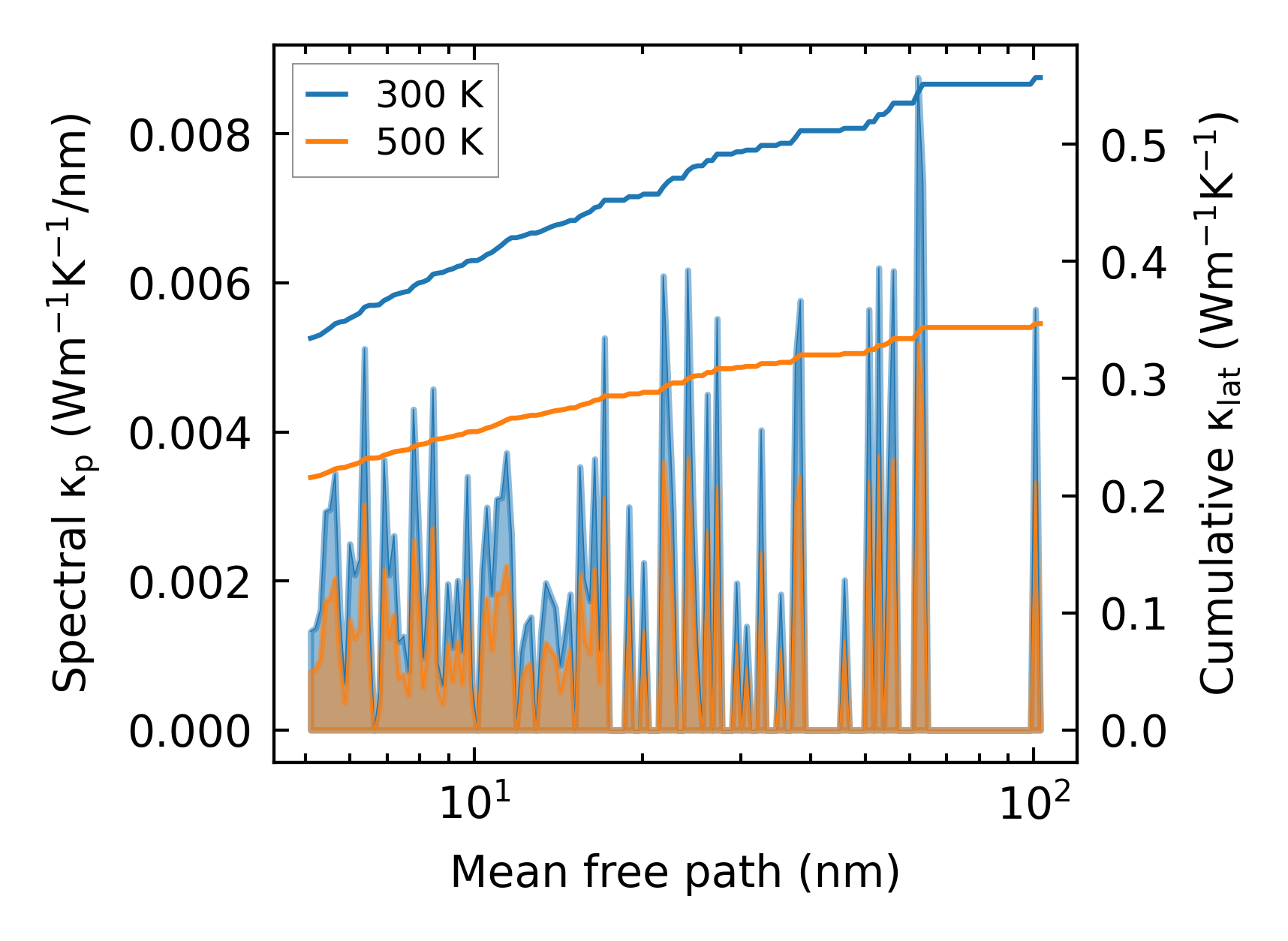

../../_images/fig_cumu_mfp5954.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

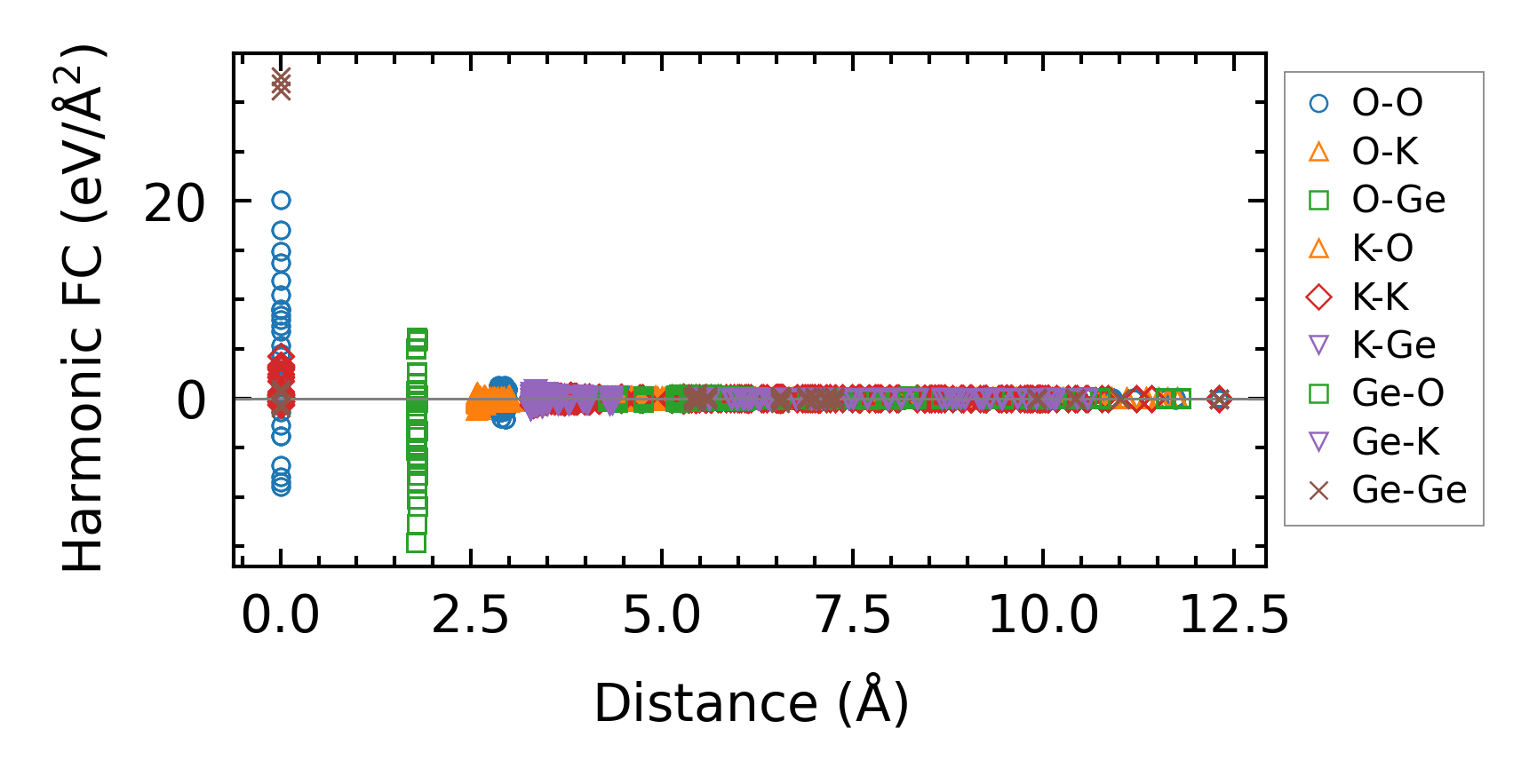

../../_images/fig_fc213790.png — (a) Force constants w.r.t atomic distance

Summary

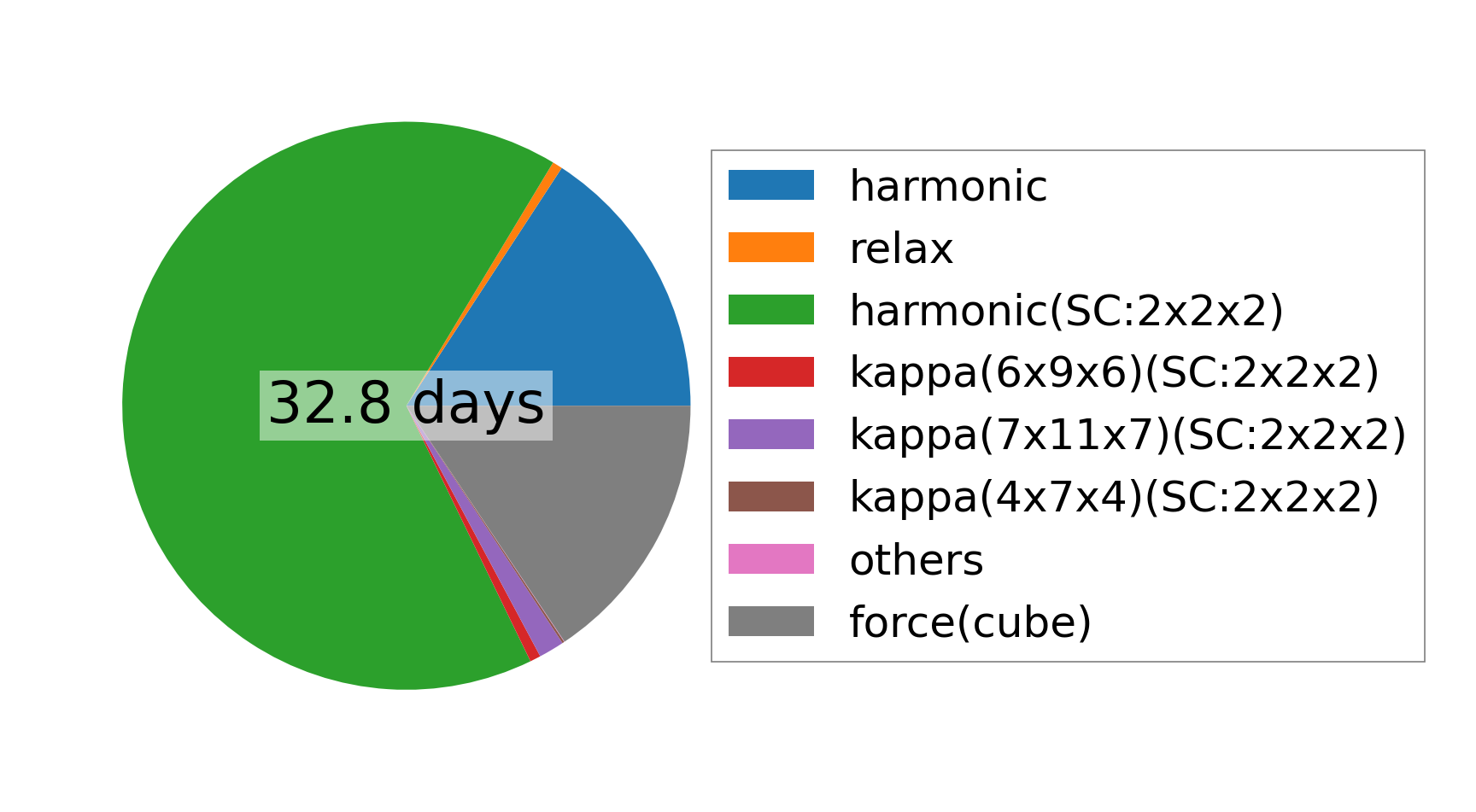

../../_images/fig_times23676.png — (a) Computation time
