mp-17808/Nb2Zn4O9/anharm

Space group: P-3c1 (165)
Link: Materials Project
Download: mp-17808.tar.gz

Harmonic properties

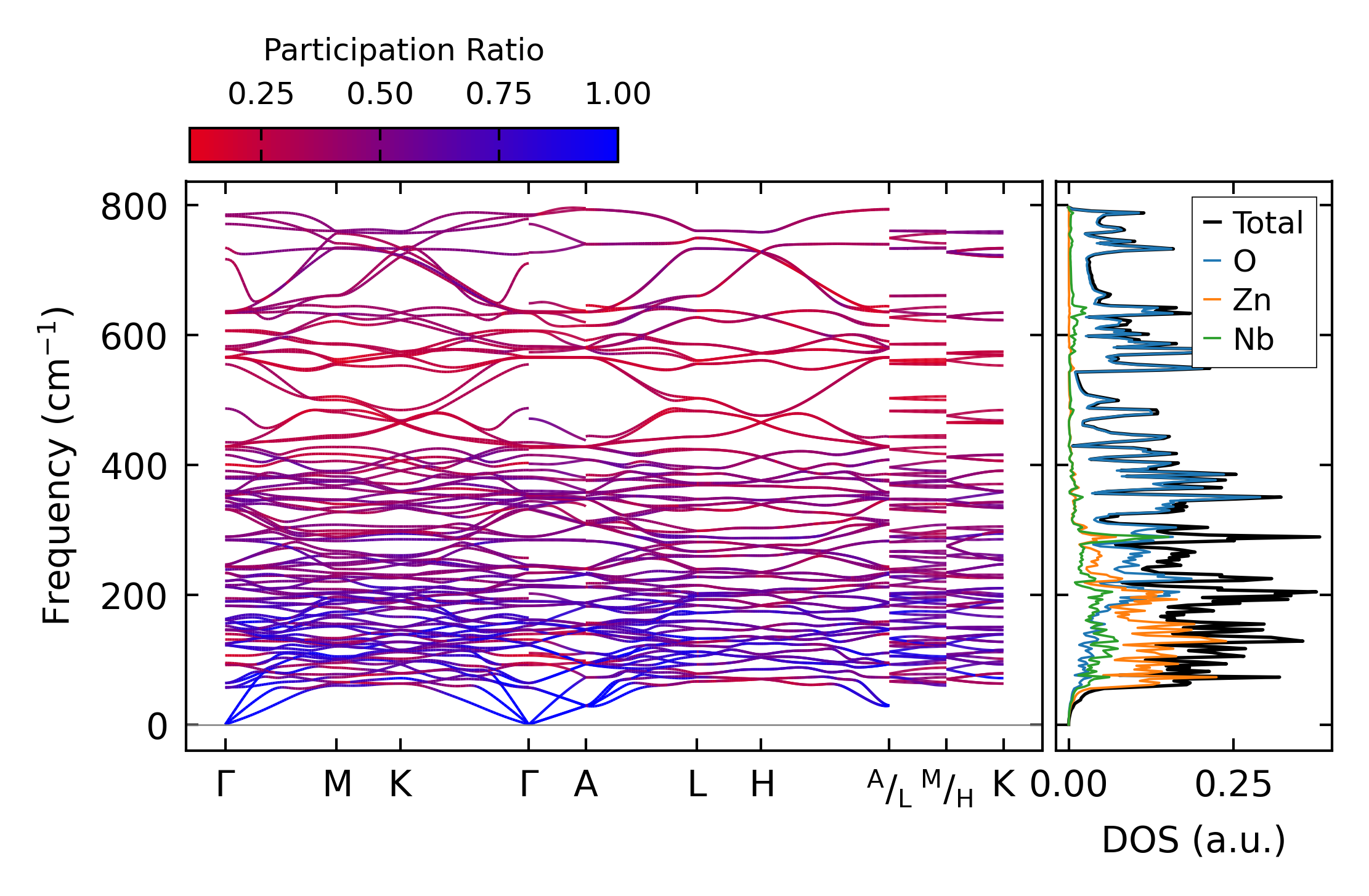

../../_images/fig_bandos_pr14022.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14022.png — (b) Thermodynamic properties

Grüneisen parameters

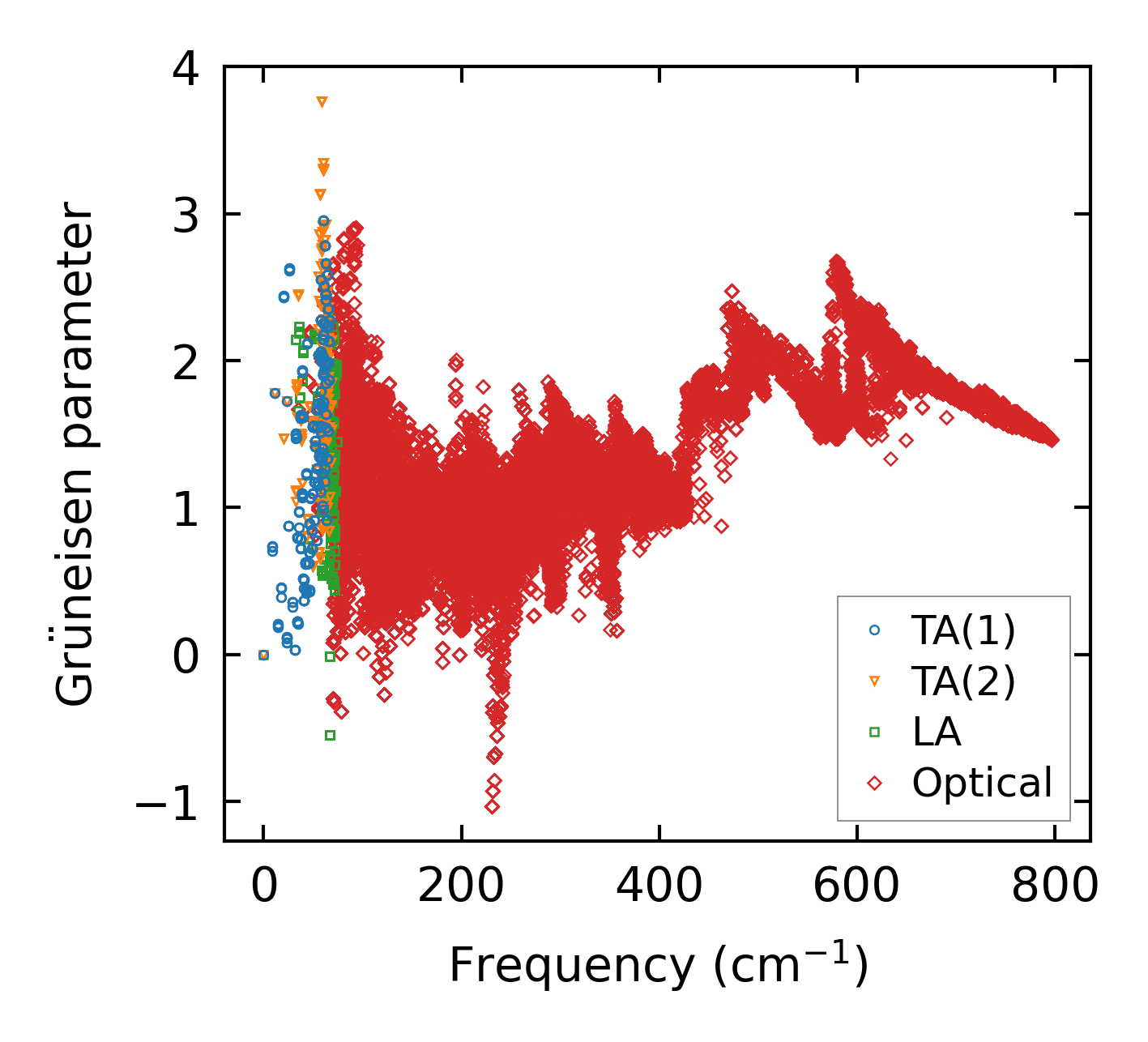

../../_images/fig_gru_all5943.png — (a) Grüneisen parameters

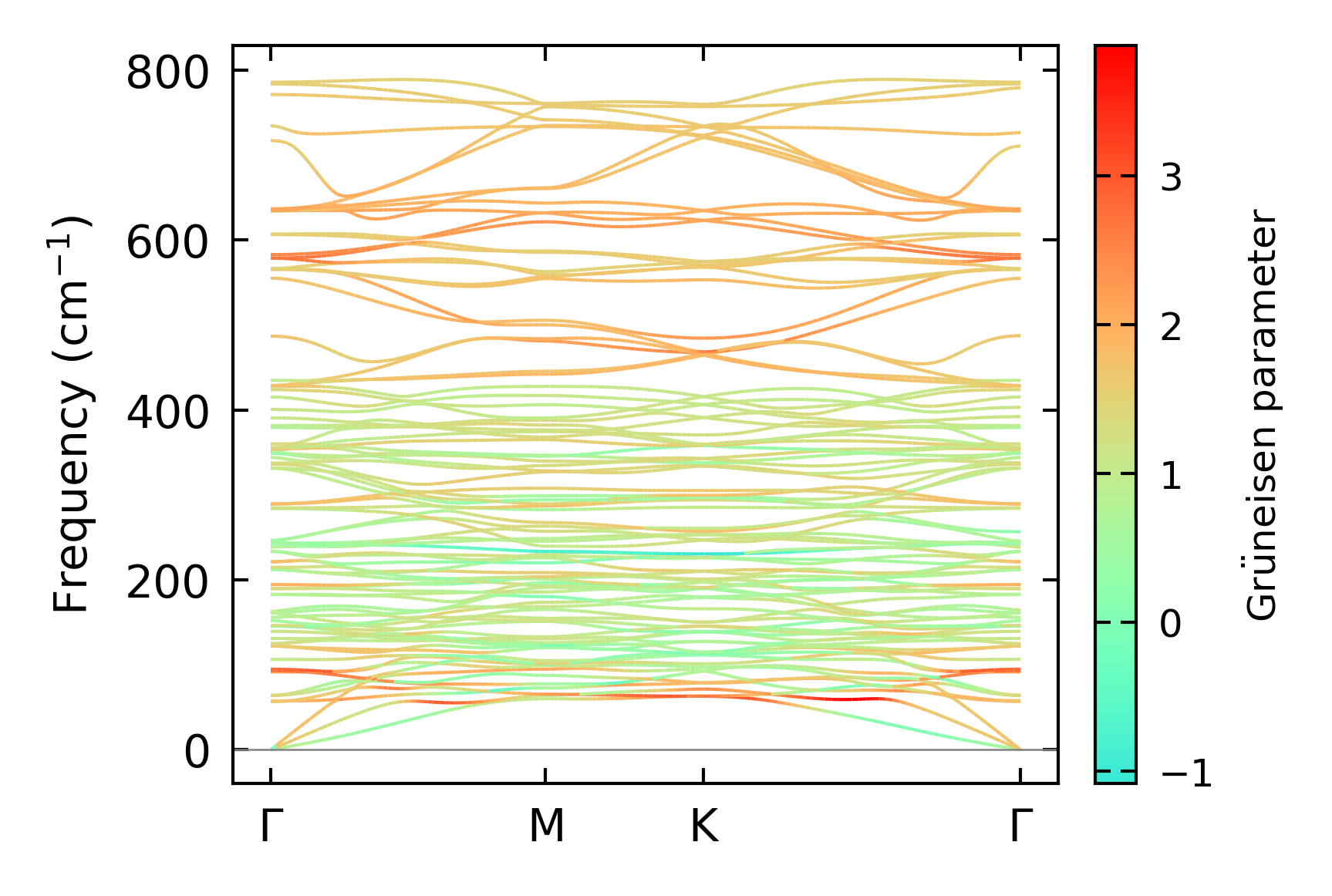

../../_images/fig_gruneisen5943.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x5, supercell: 2x2x1

../../_images/fig_kappa11187.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6021.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

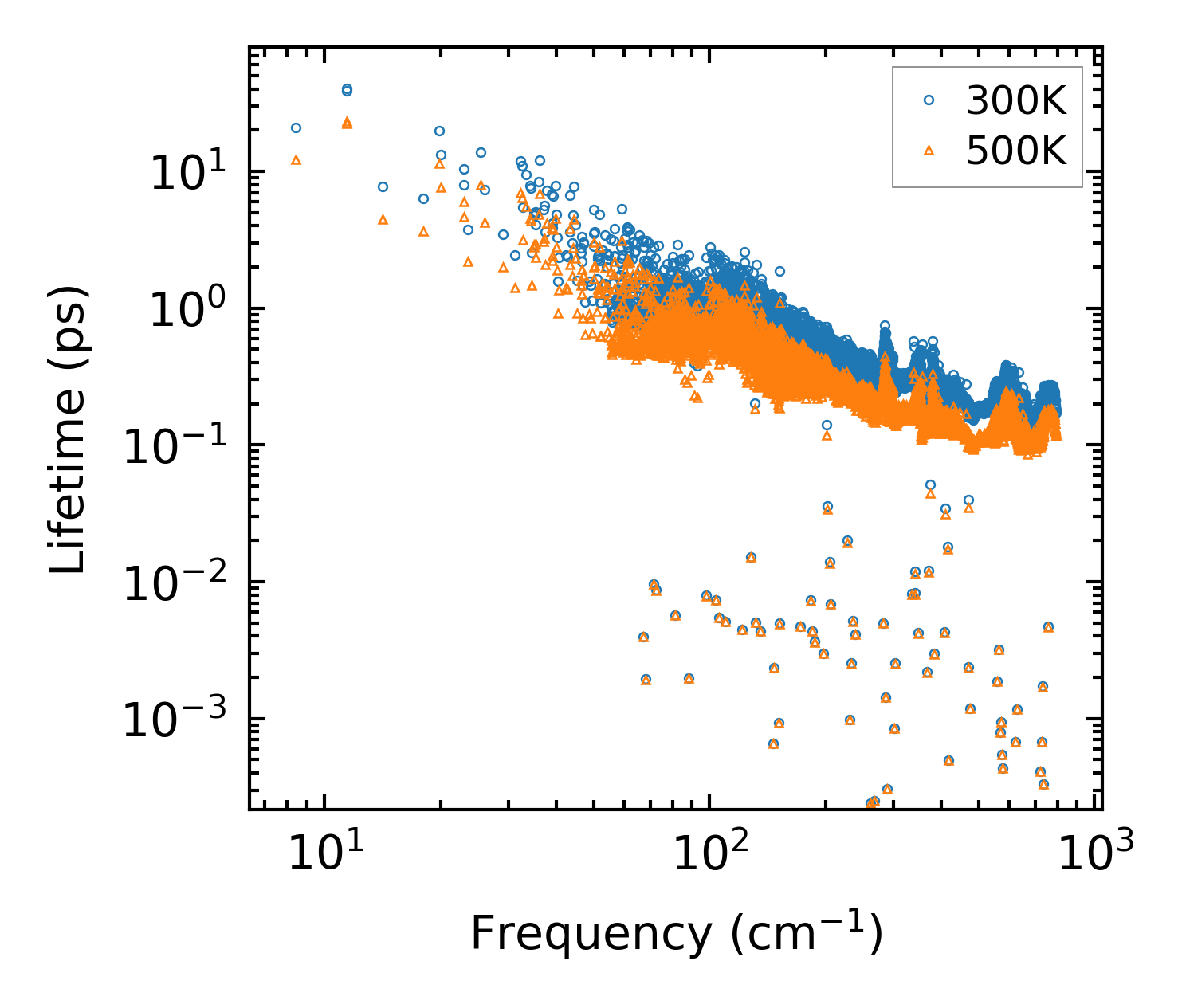

../../_images/fig_lifetime5886.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5885.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

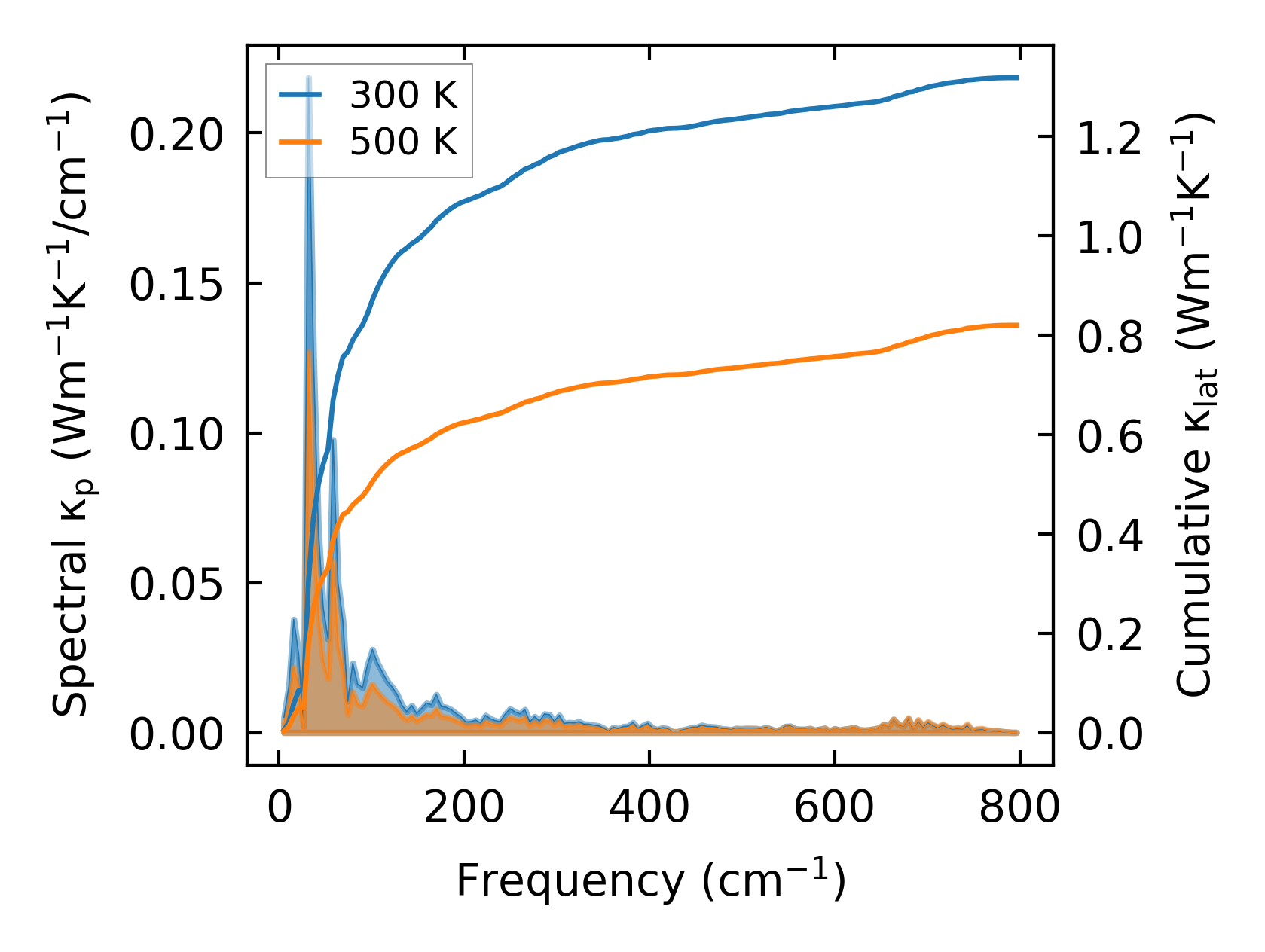

../../_images/fig_cumu_frequency5886.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

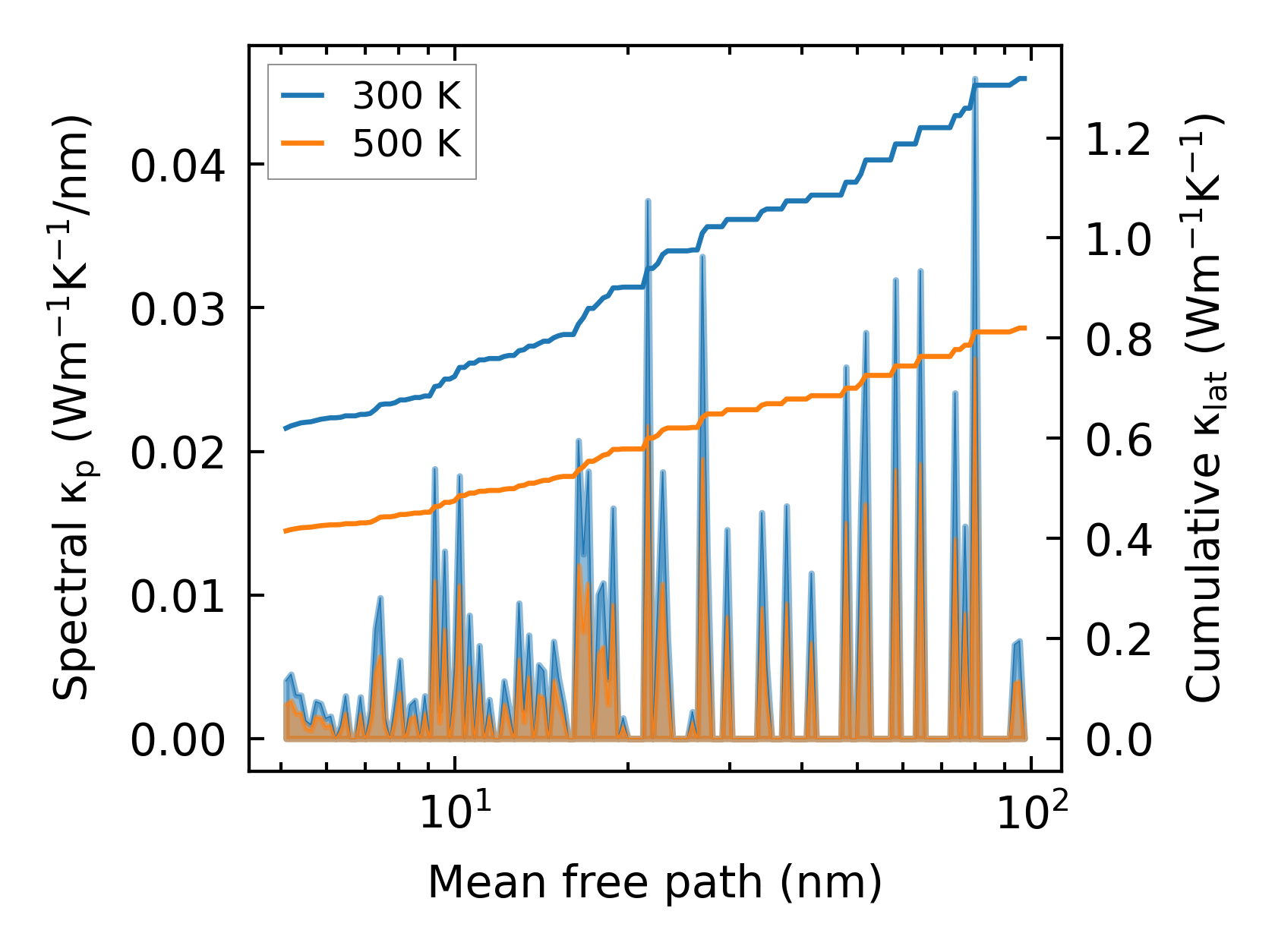

../../_images/fig_cumu_mfp5885.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

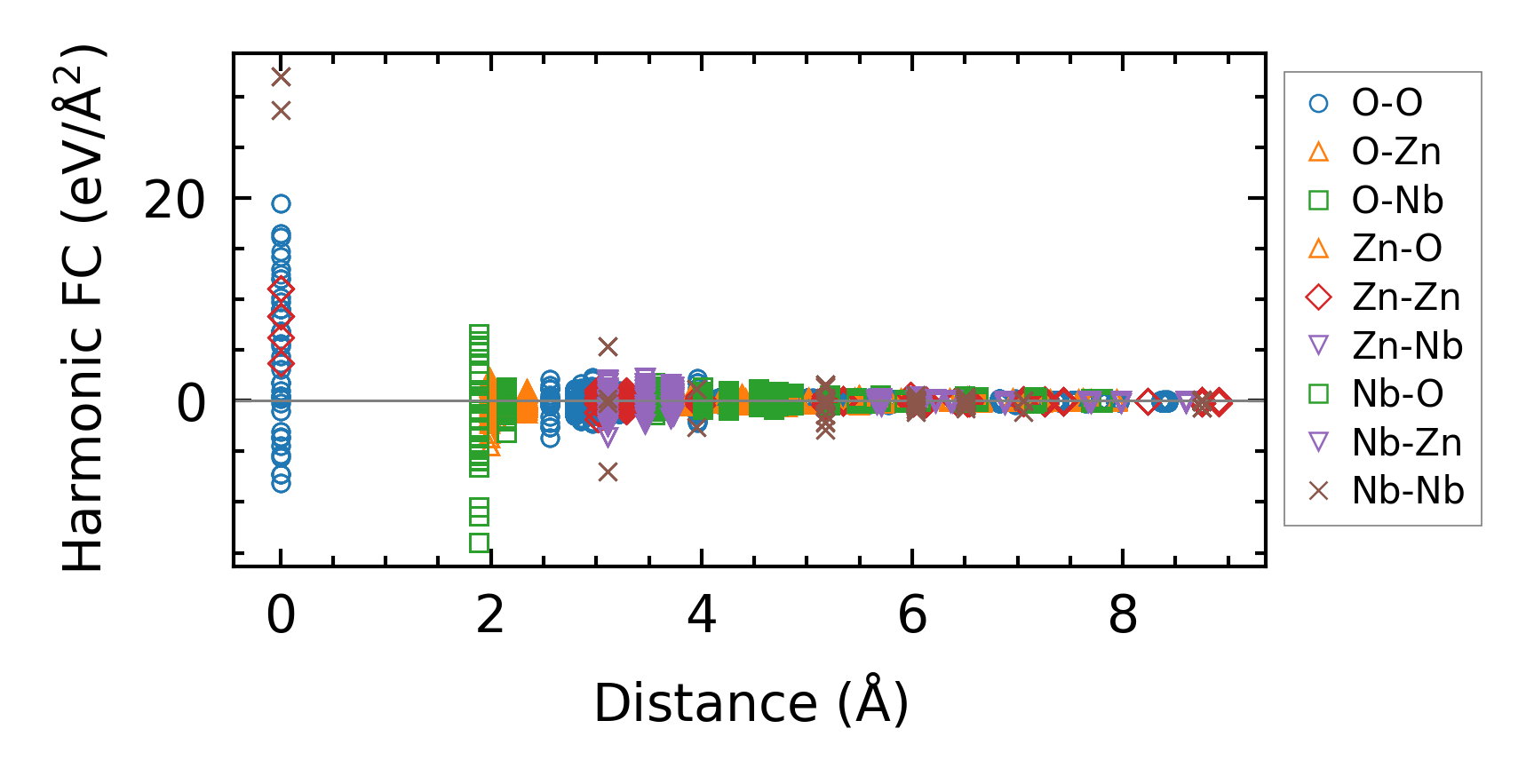

../../_images/fig_fc213650.png — (a) Force constants w.r.t atomic distance

Summary

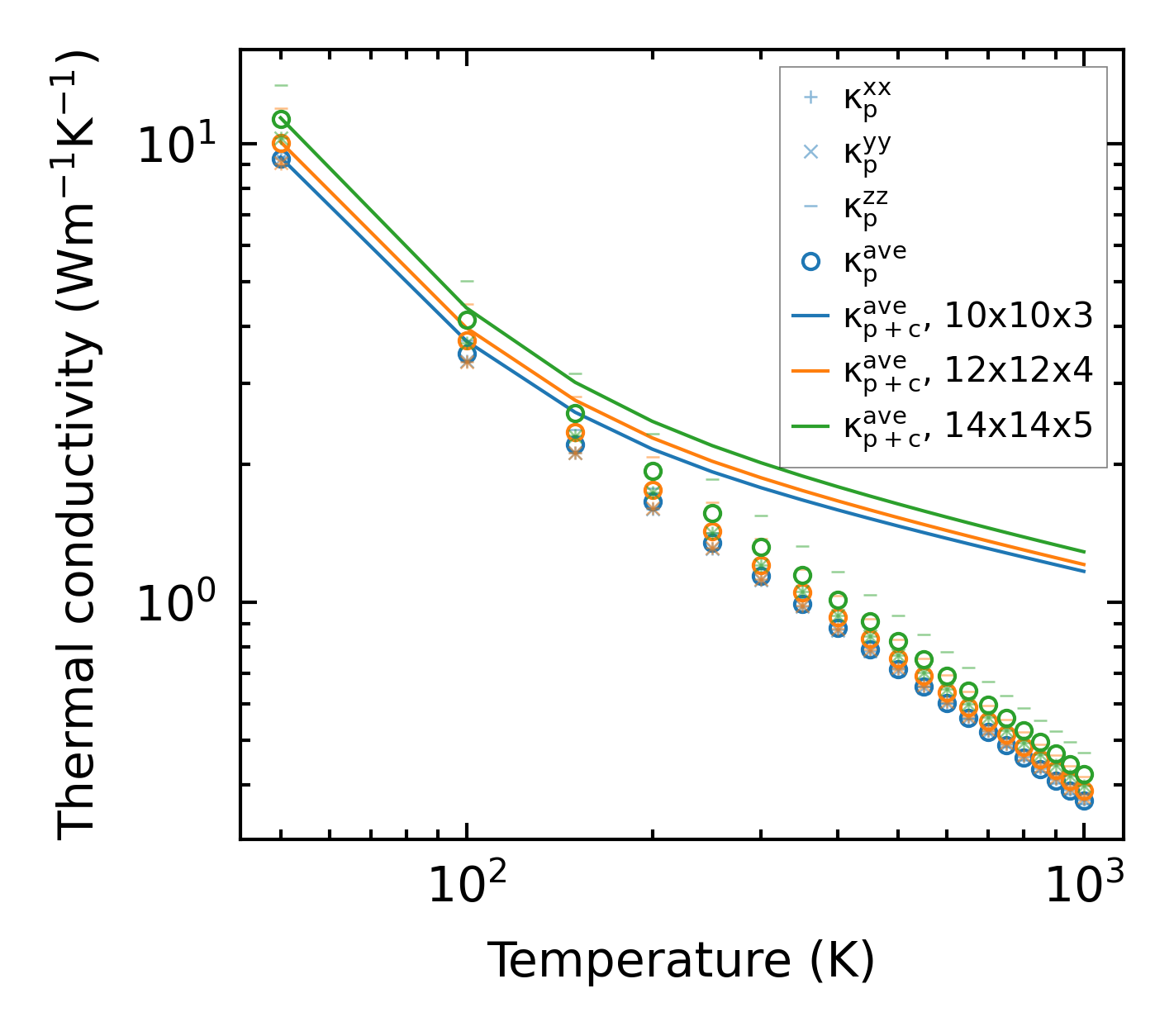

../../_images/fig_kappa11188.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23469.png — (b) Computation time
