mp-17344/RbEr2Cu3S5/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-17344.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14253.png — (a) Phonon dispersion with participation ratio and DOS

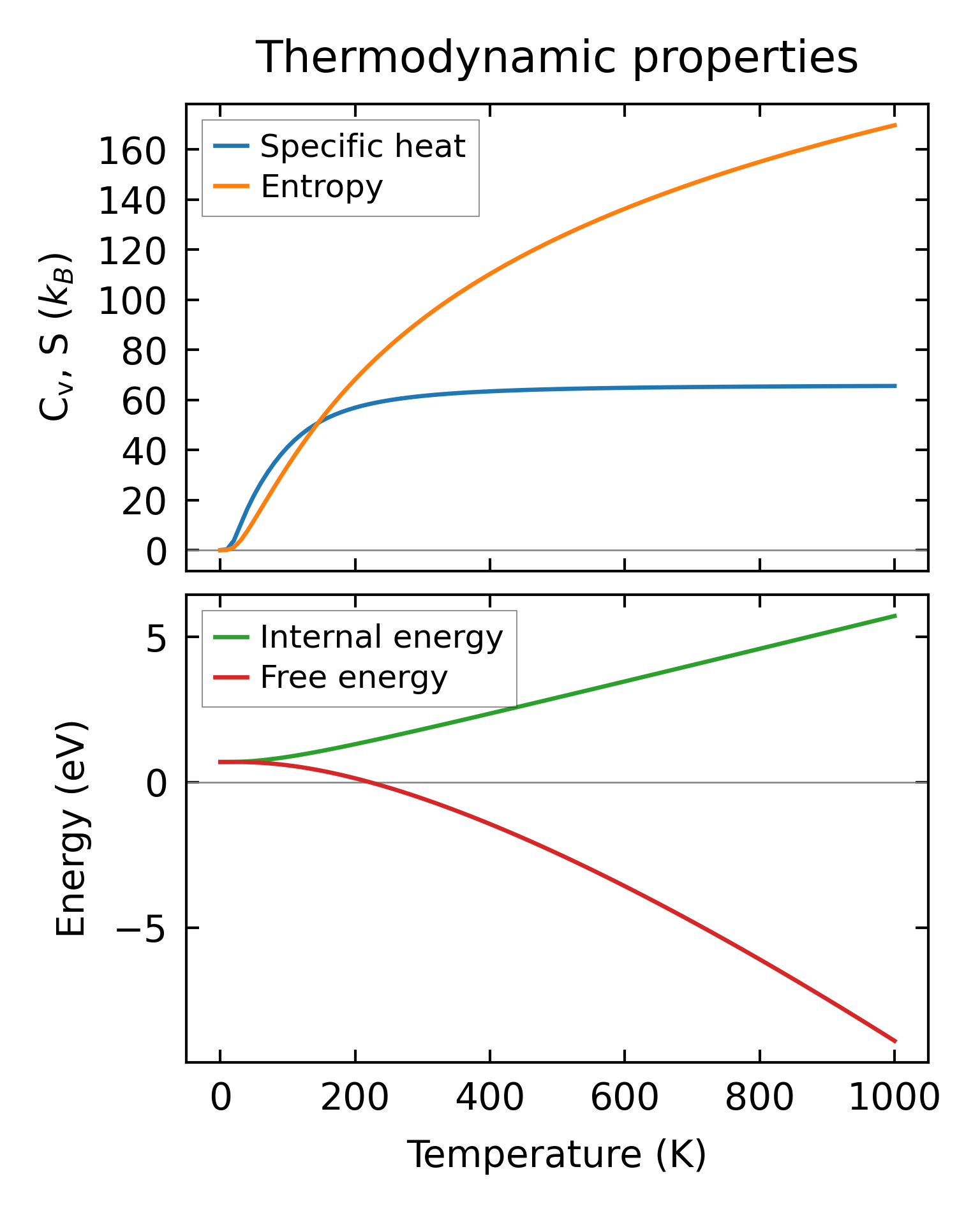

../../_images/fig_thermo14253.png — (b) Thermodynamic properties

Grüneisen parameters

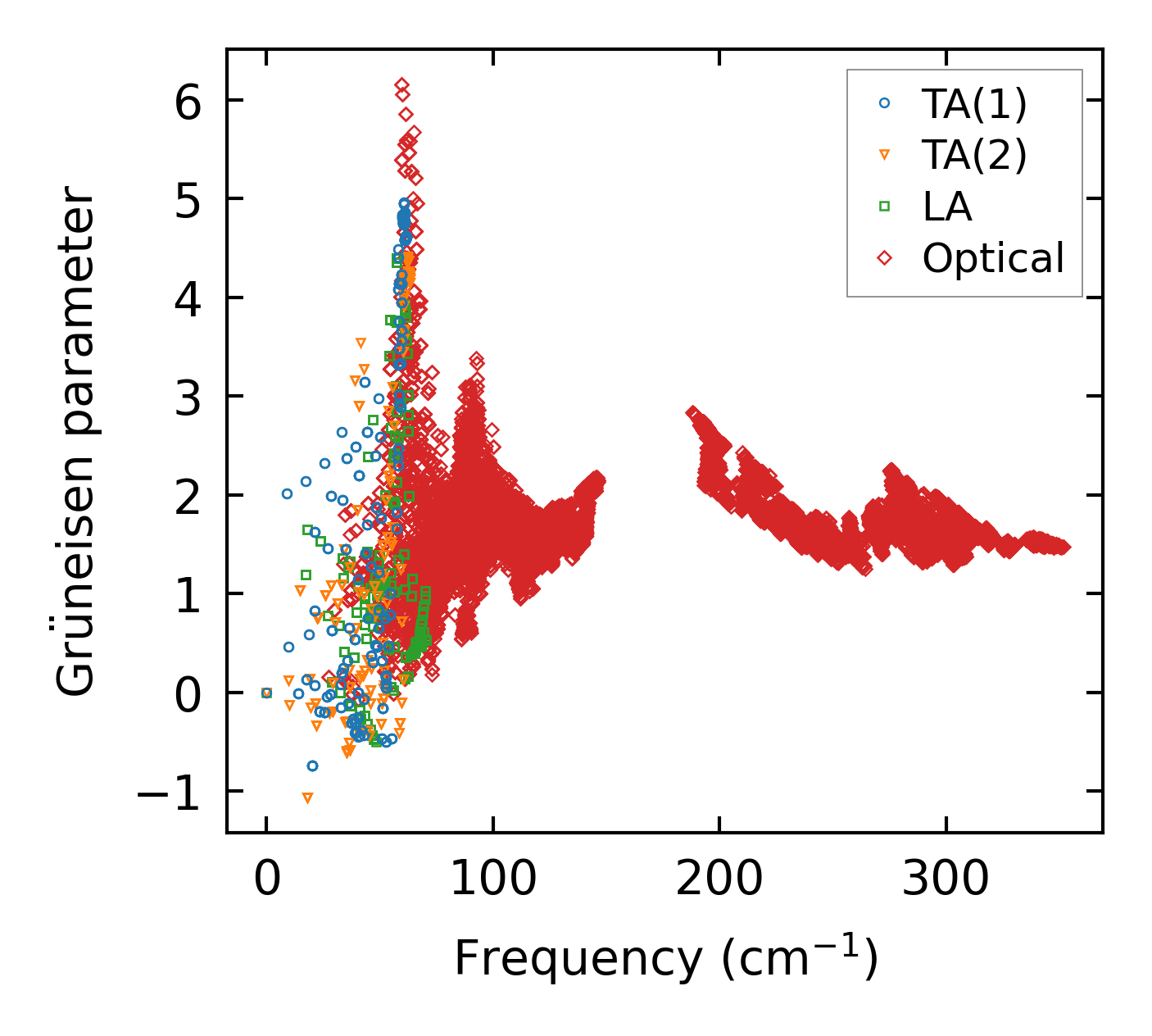

../../_images/fig_gru_all6064.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6064.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x5, supercell: 3x1x1

../../_images/fig_kappa11411.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6142.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6003.png — (a) Phonon lifetime due to phonon-phonon scattering

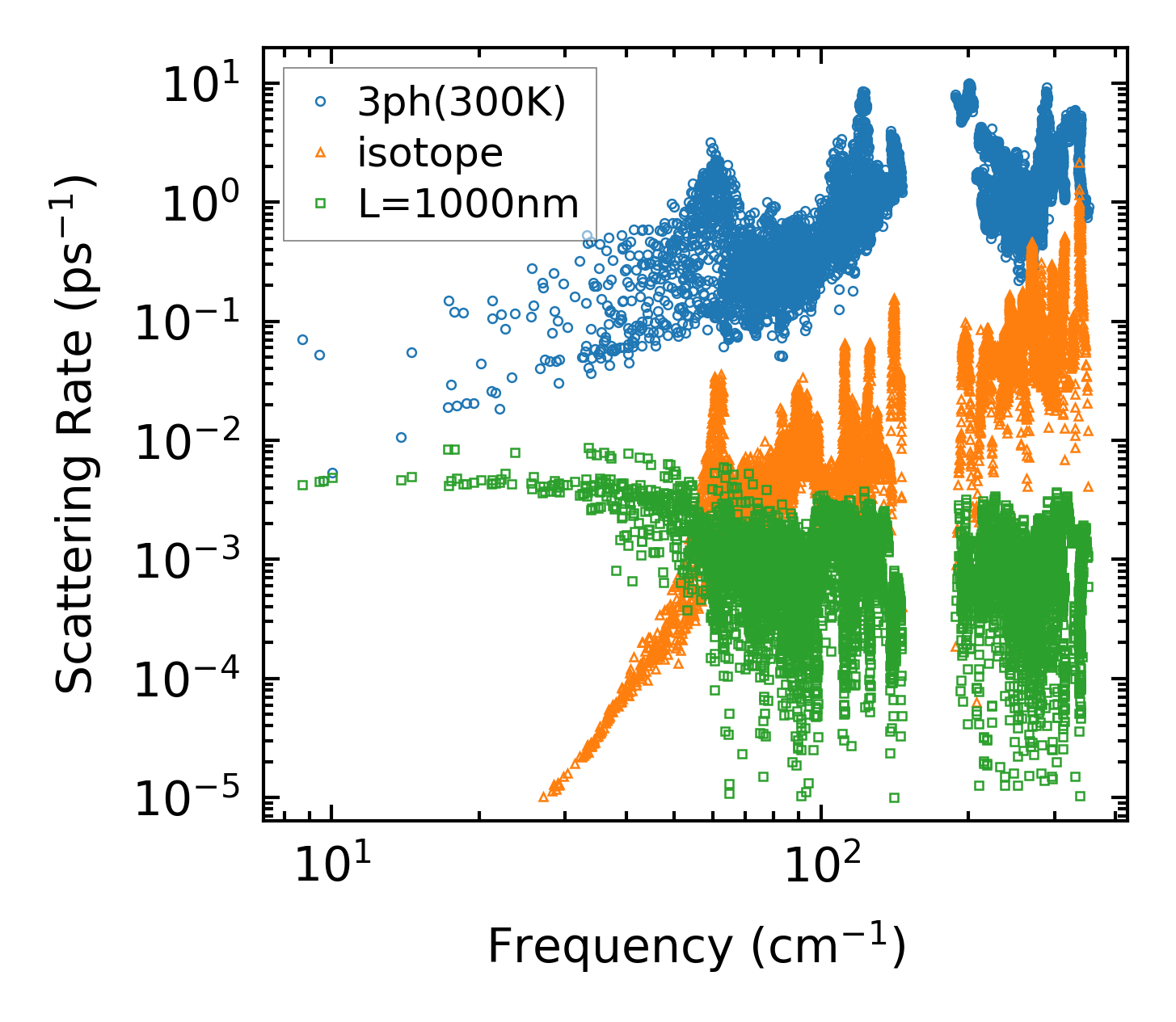

../../_images/fig_scat_rates6002.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

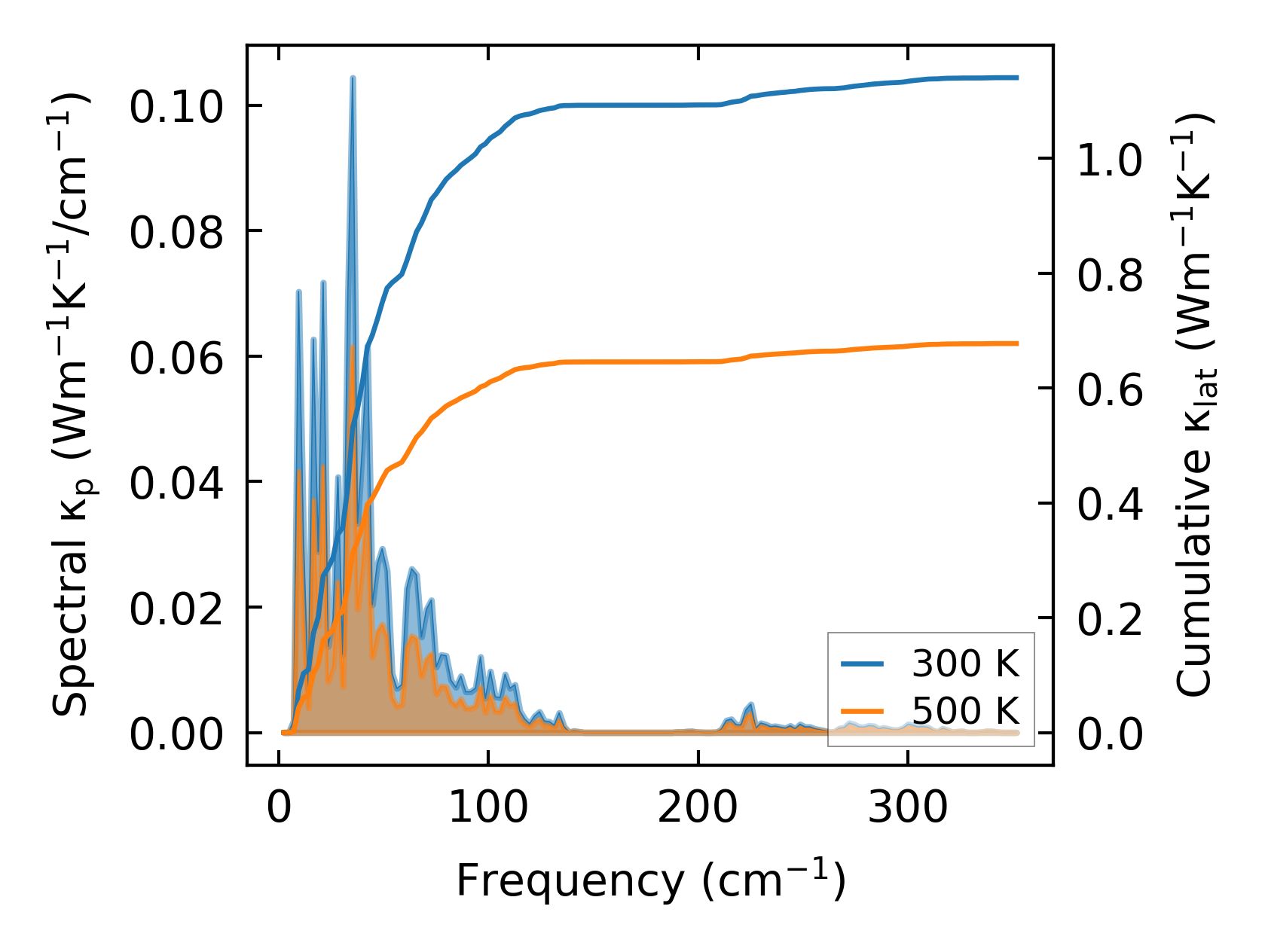

../../_images/fig_cumu_frequency6003.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

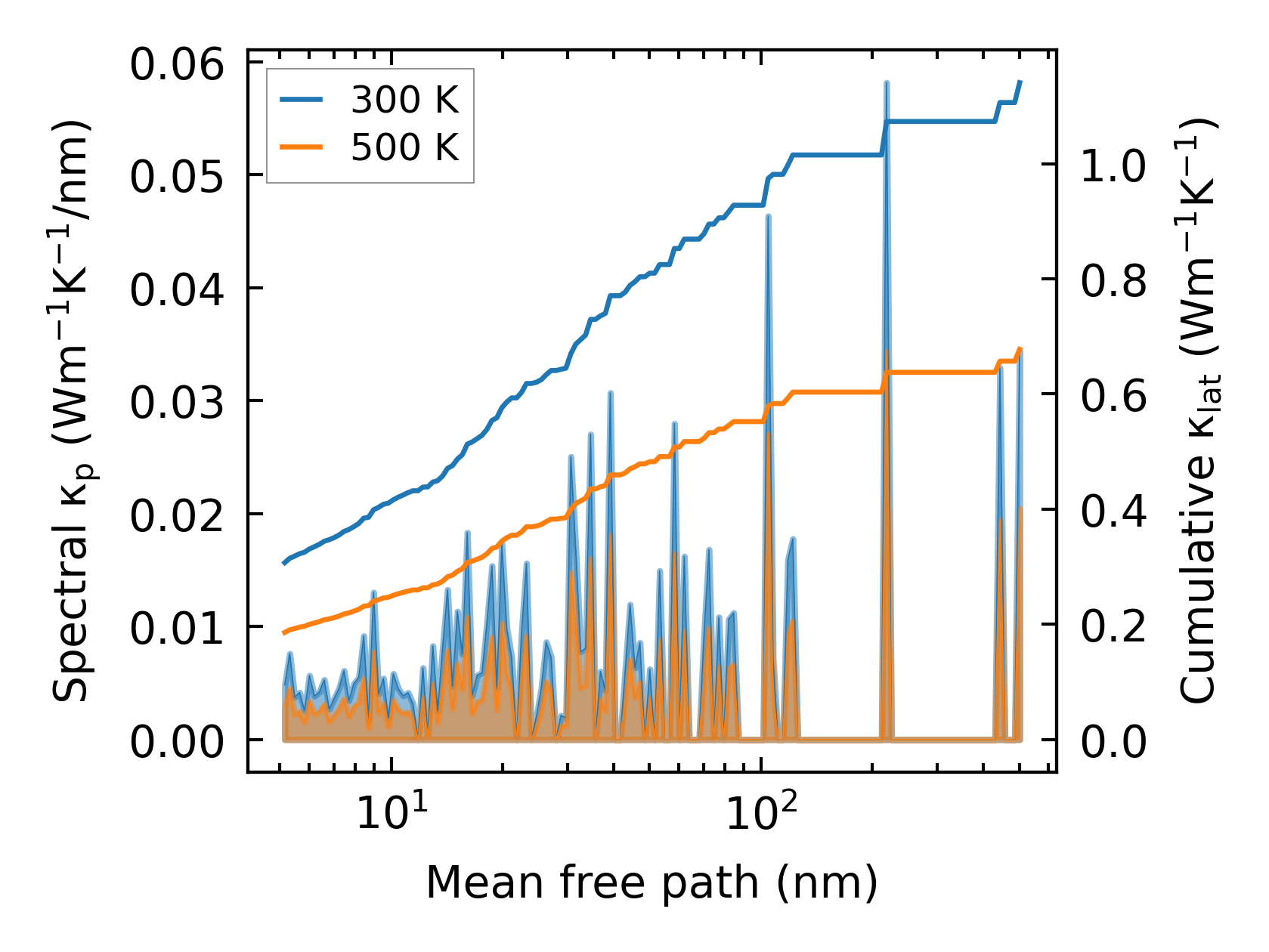

../../_images/fig_cumu_mfp6002.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

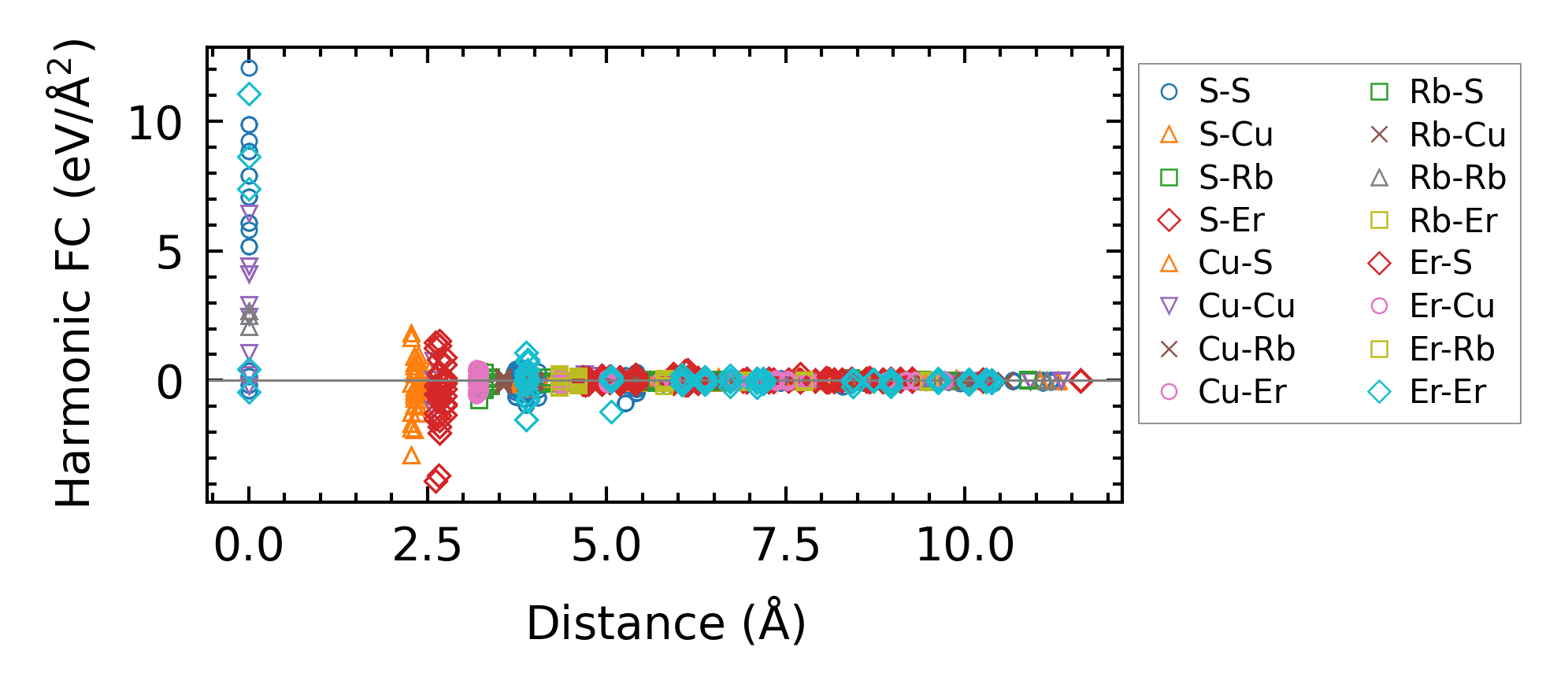

../../_images/fig_fc213881.png — (a) Force constants w.r.t atomic distance

Summary

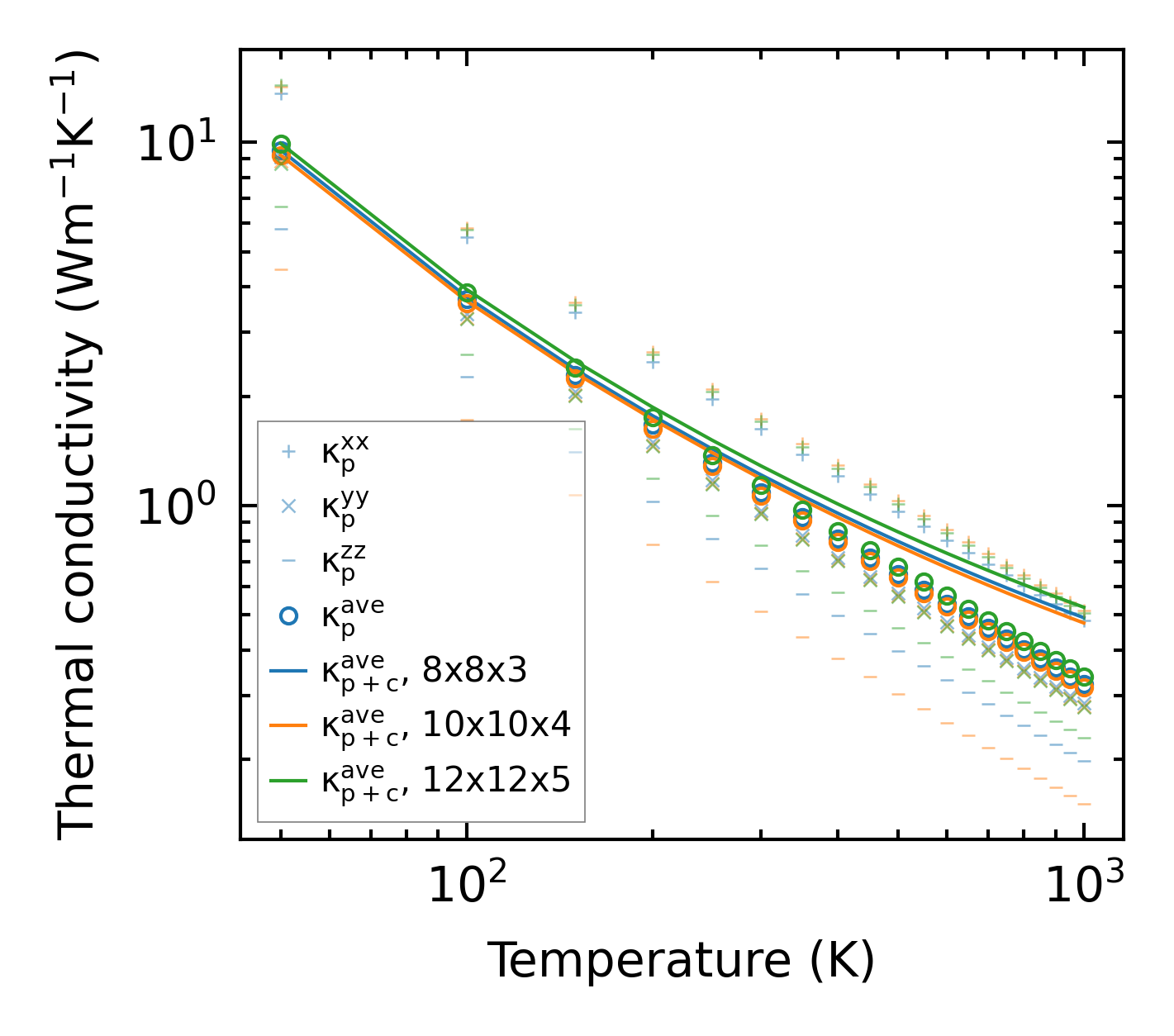

../../_images/fig_kappa11412.png — (a) Temperature-dependent lattice thermal conductivity

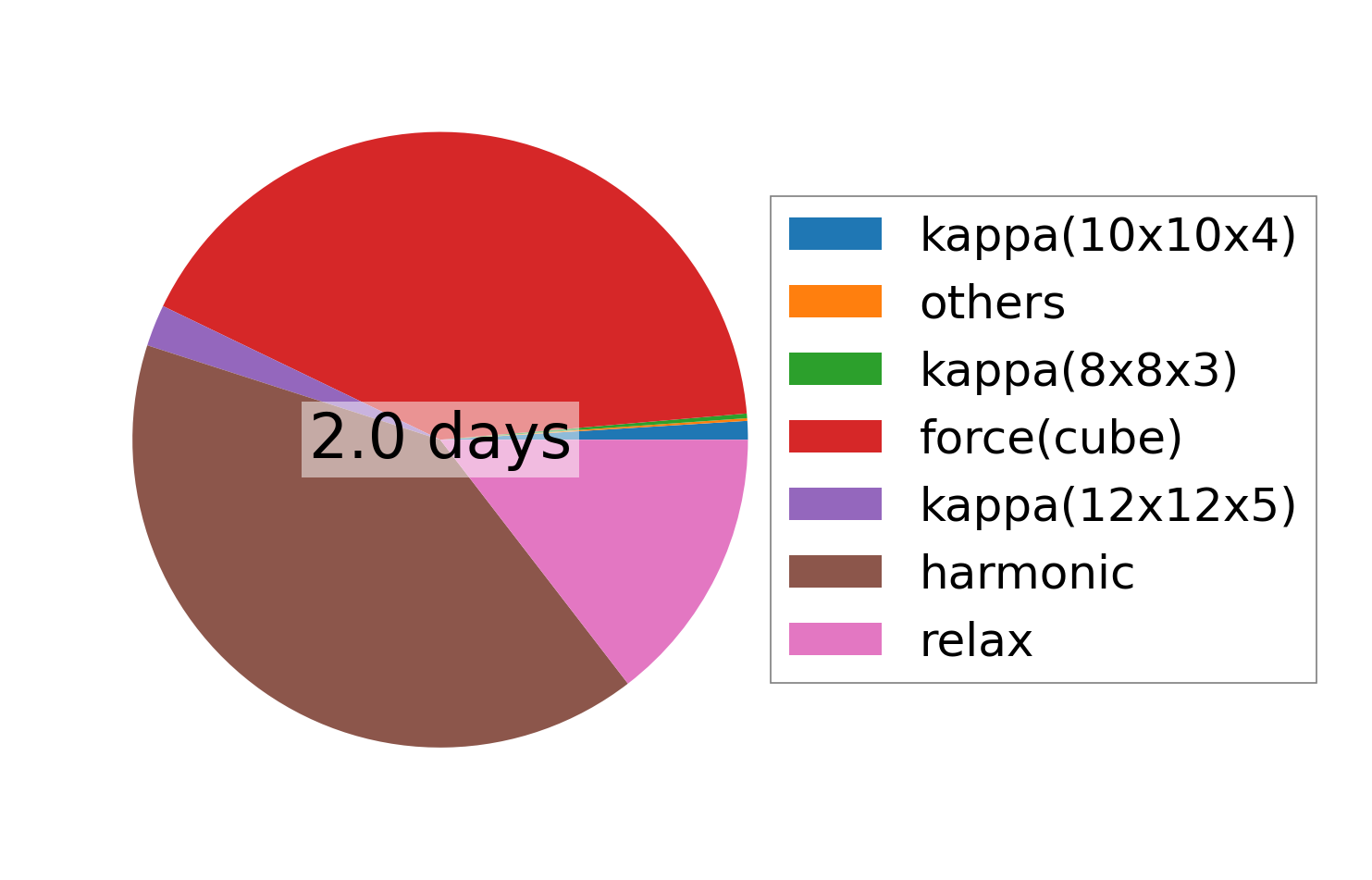

../../_images/fig_times23813.png — (b) Computation time
