mp-17486-2/Ho3SiCuS7/anharm

Space group: P6_3 (173)
Link: Materials Project
Download: mp-17486-2.tar.gz

Equation of state

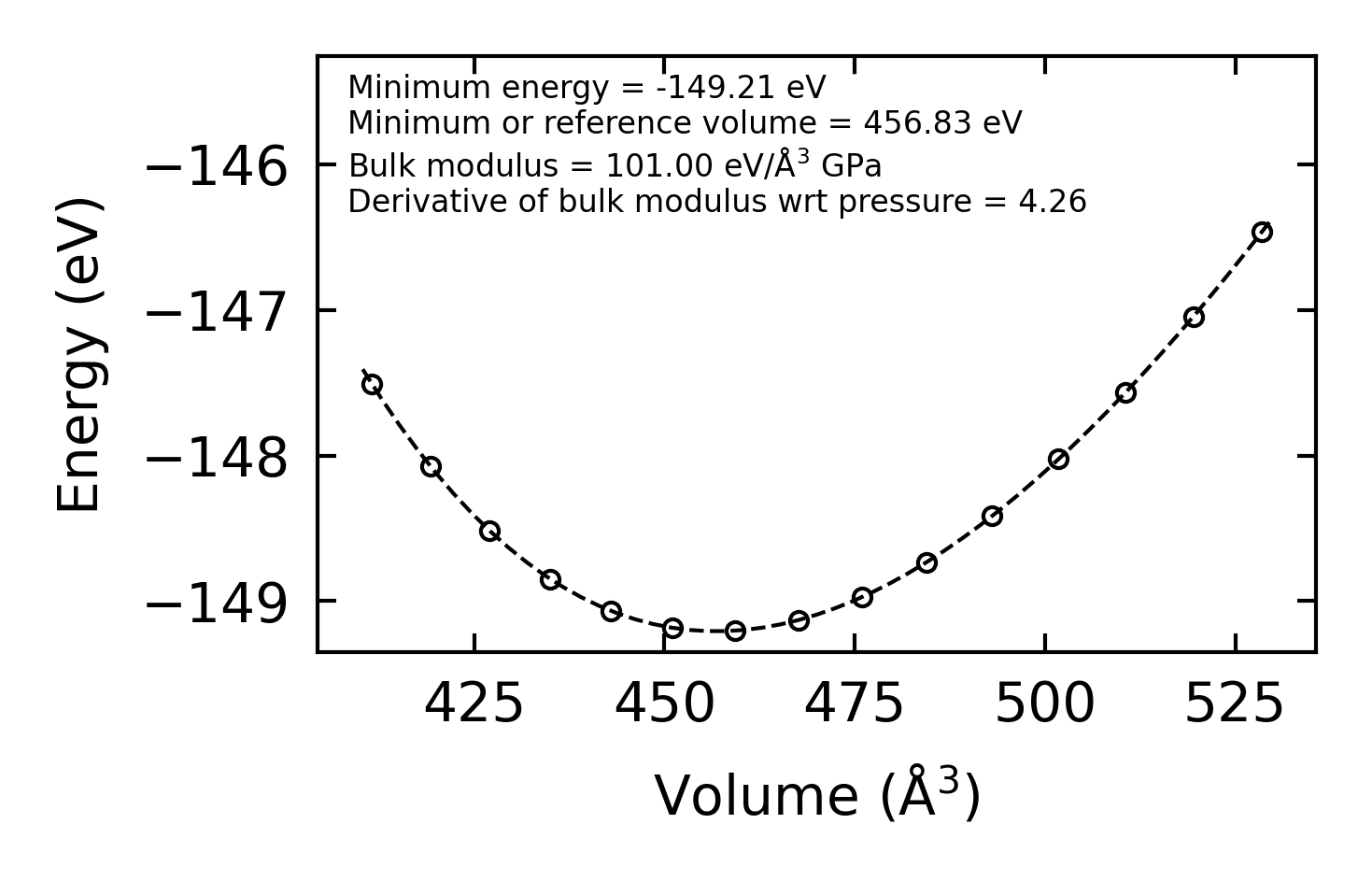

../../_images/fig_bm6974.png — (a) Equation of state

Harmonic properties

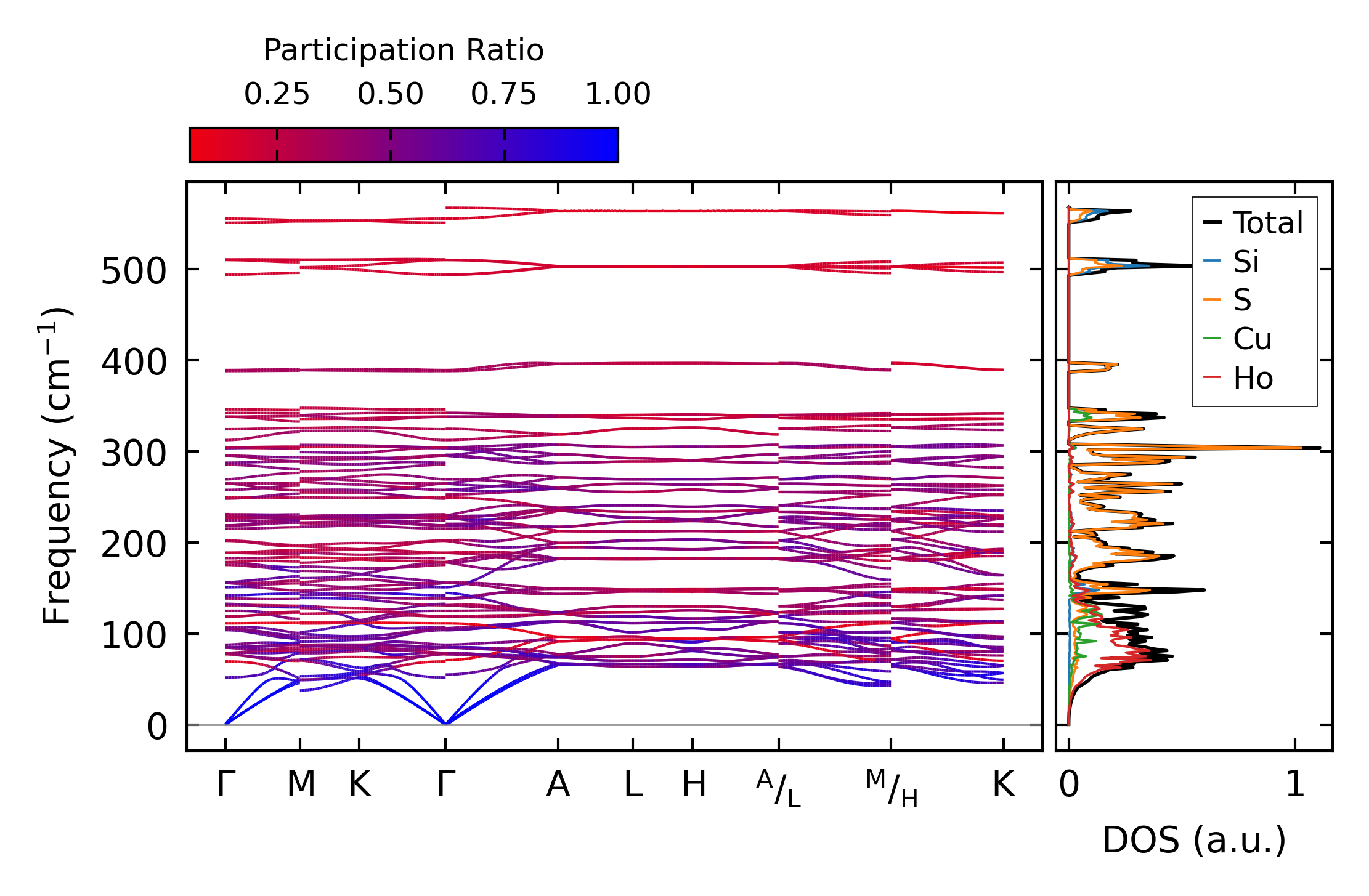

../../_images/fig_bandos_pr13932.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13932.png — (b) Thermodynamic properties

Grüneisen parameters

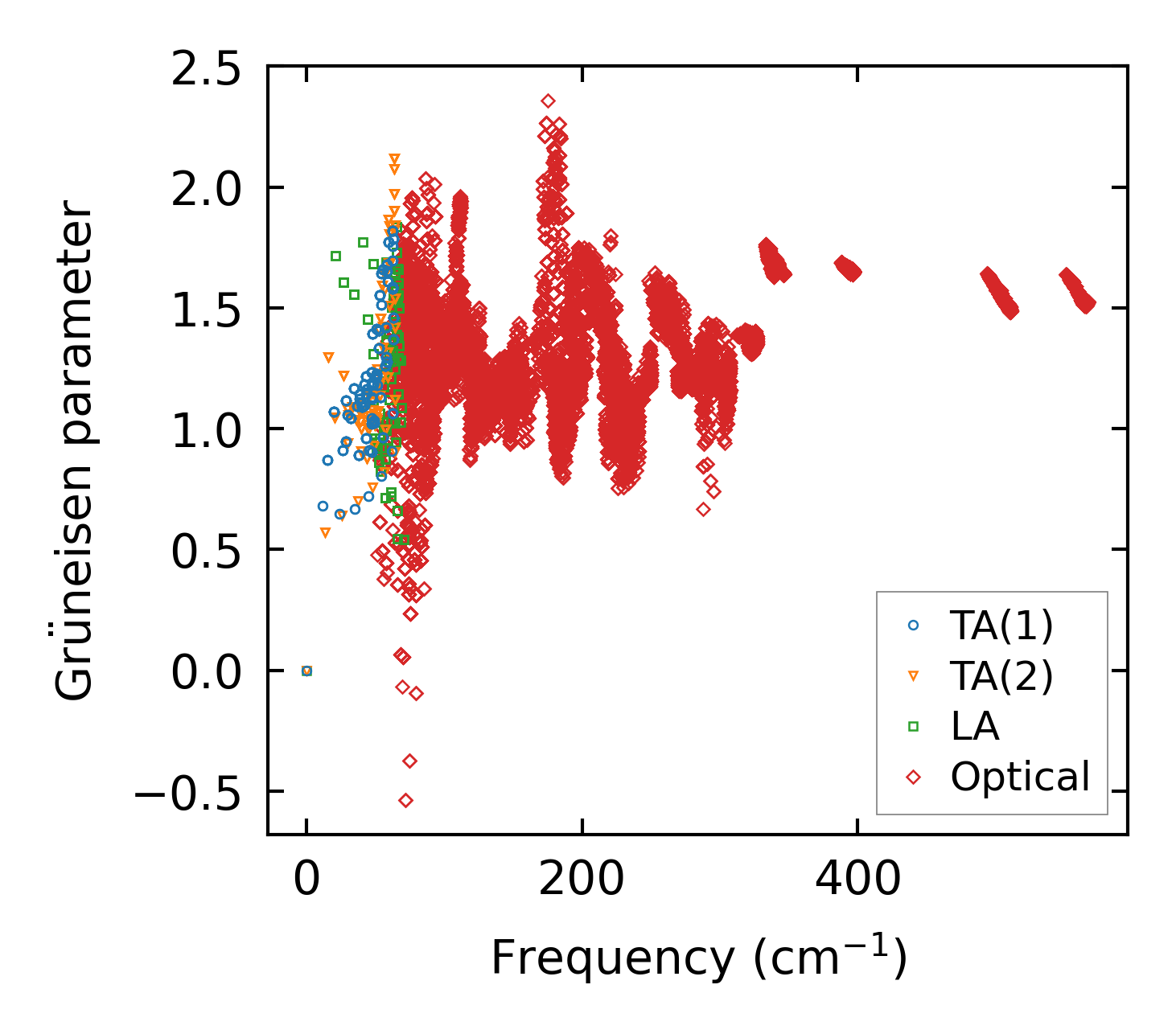

../../_images/fig_gru_all5893.png — (a) Grüneisen parameters

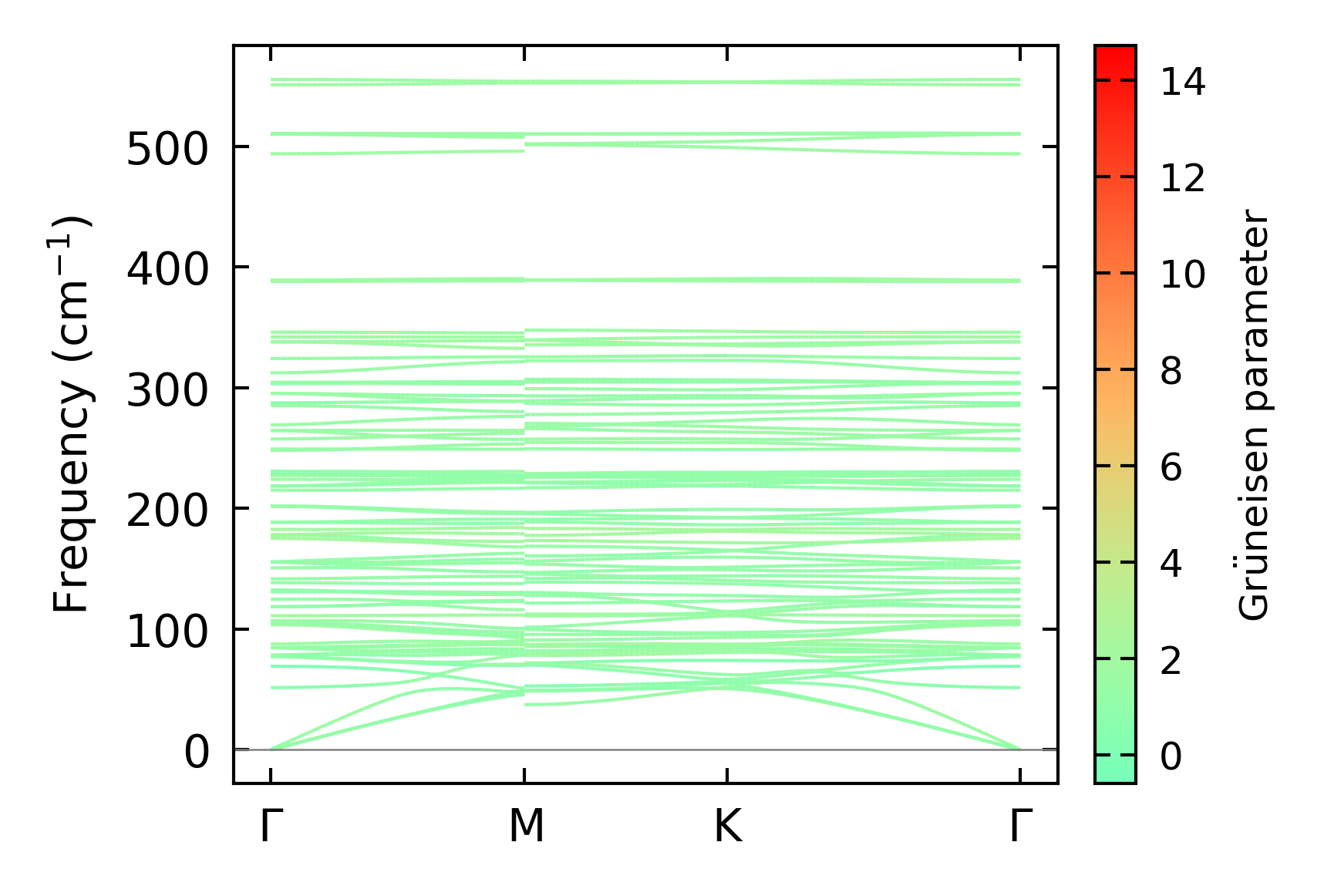

../../_images/fig_gruneisen5893.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x13, supercell: 1x1x2

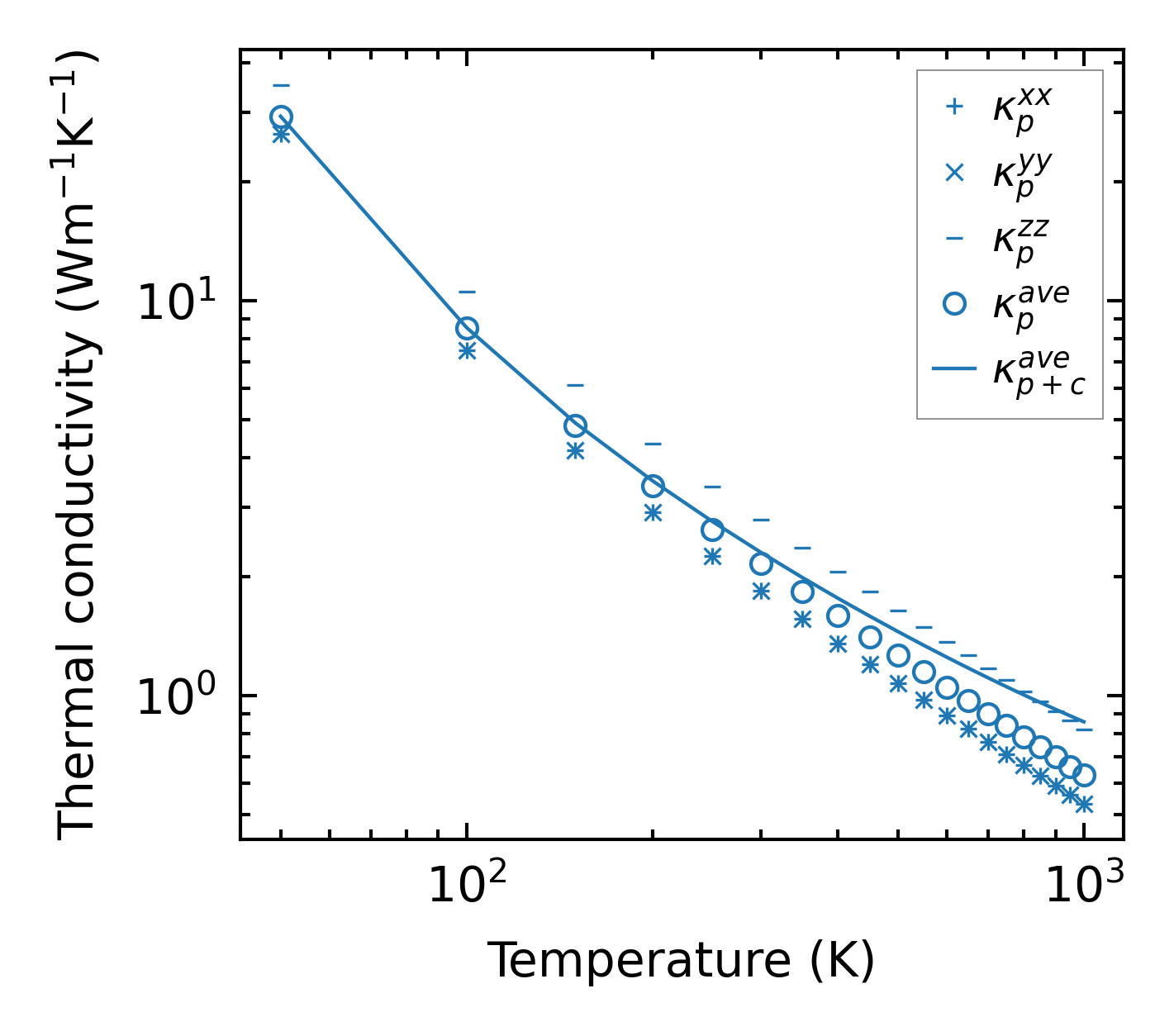

../../_images/fig_kappa11091.png — (a) Temperature-dependent lattice thermal conductivity

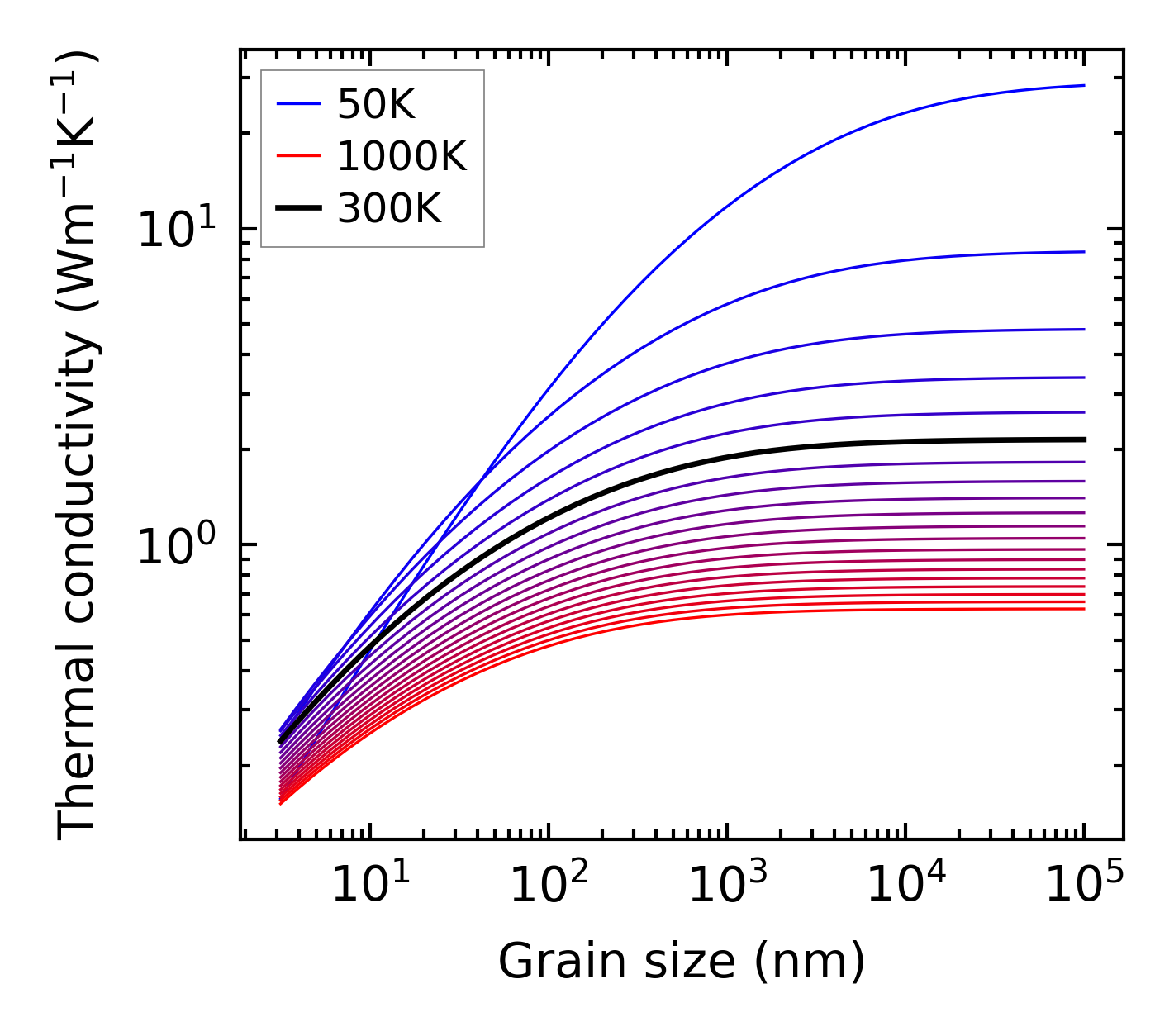

../../_images/fig_kappa_vs_grain_size5969.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 7x7x13, supercell: 2x2x2

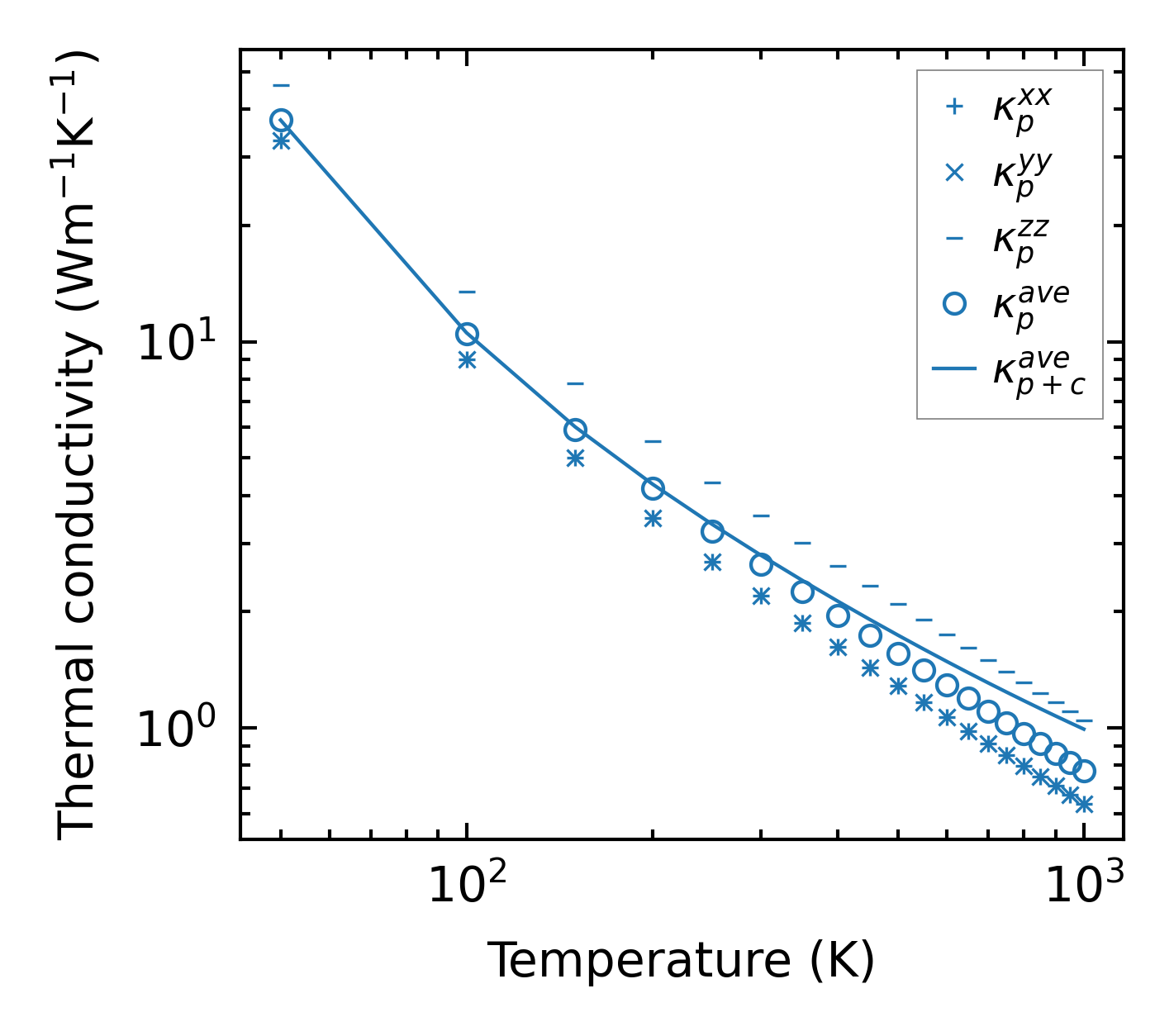

../../_images/fig_kappa11092.png — (a) Temperature-dependent lattice thermal conductivity

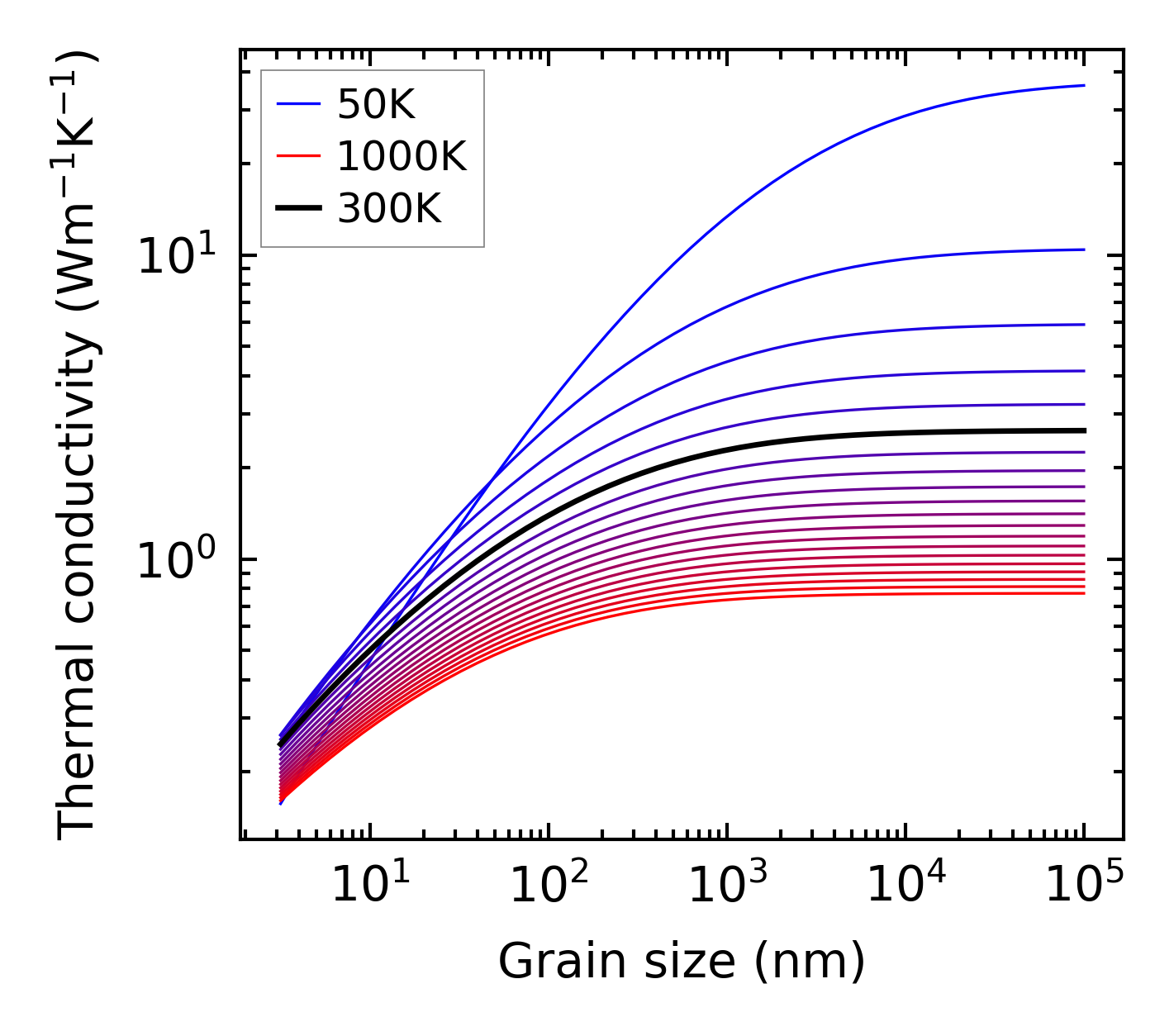

../../_images/fig_kappa_vs_grain_size5970.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

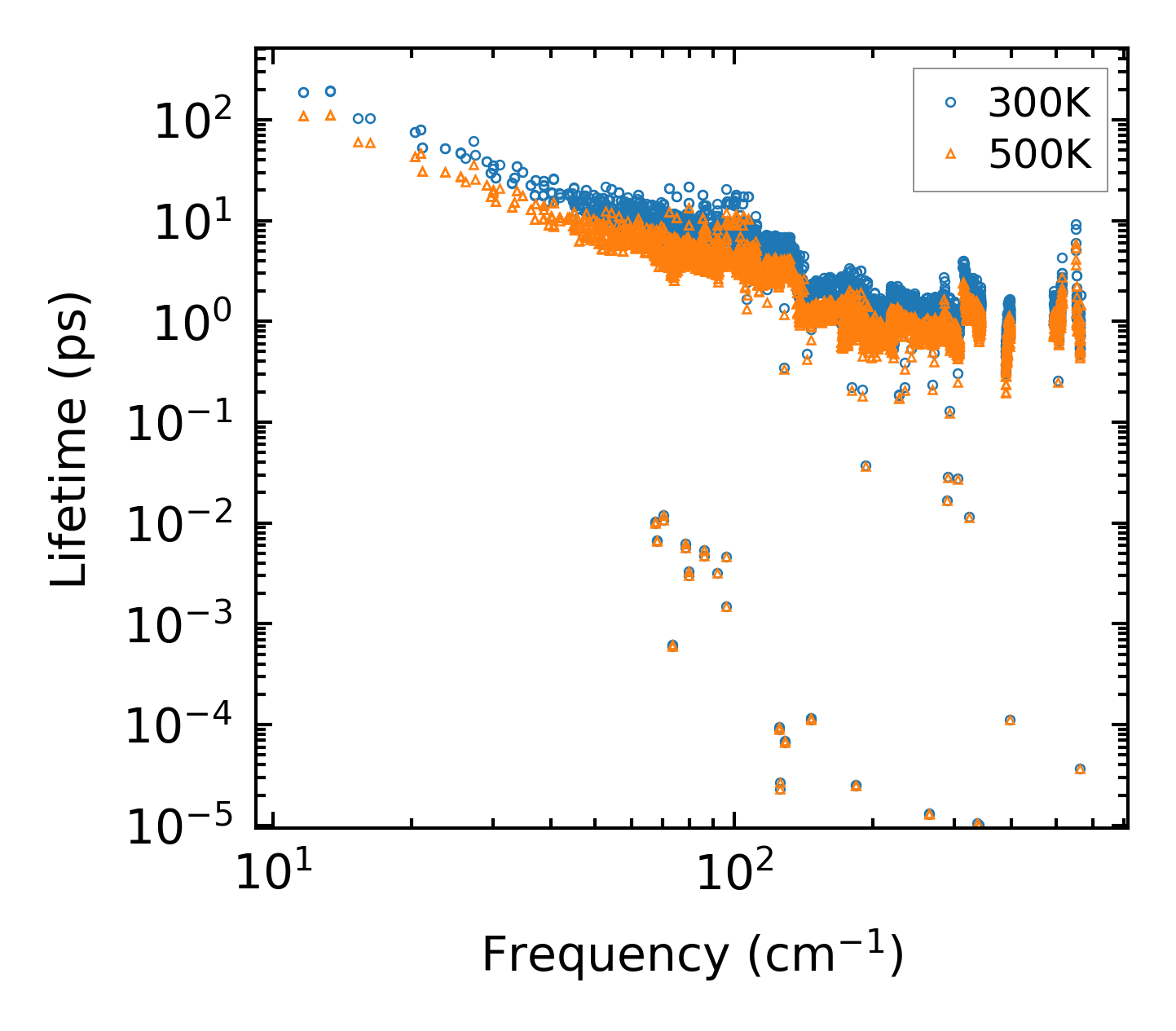

../../_images/fig_lifetime5836.png — (a) Phonon lifetime due to phonon-phonon scattering

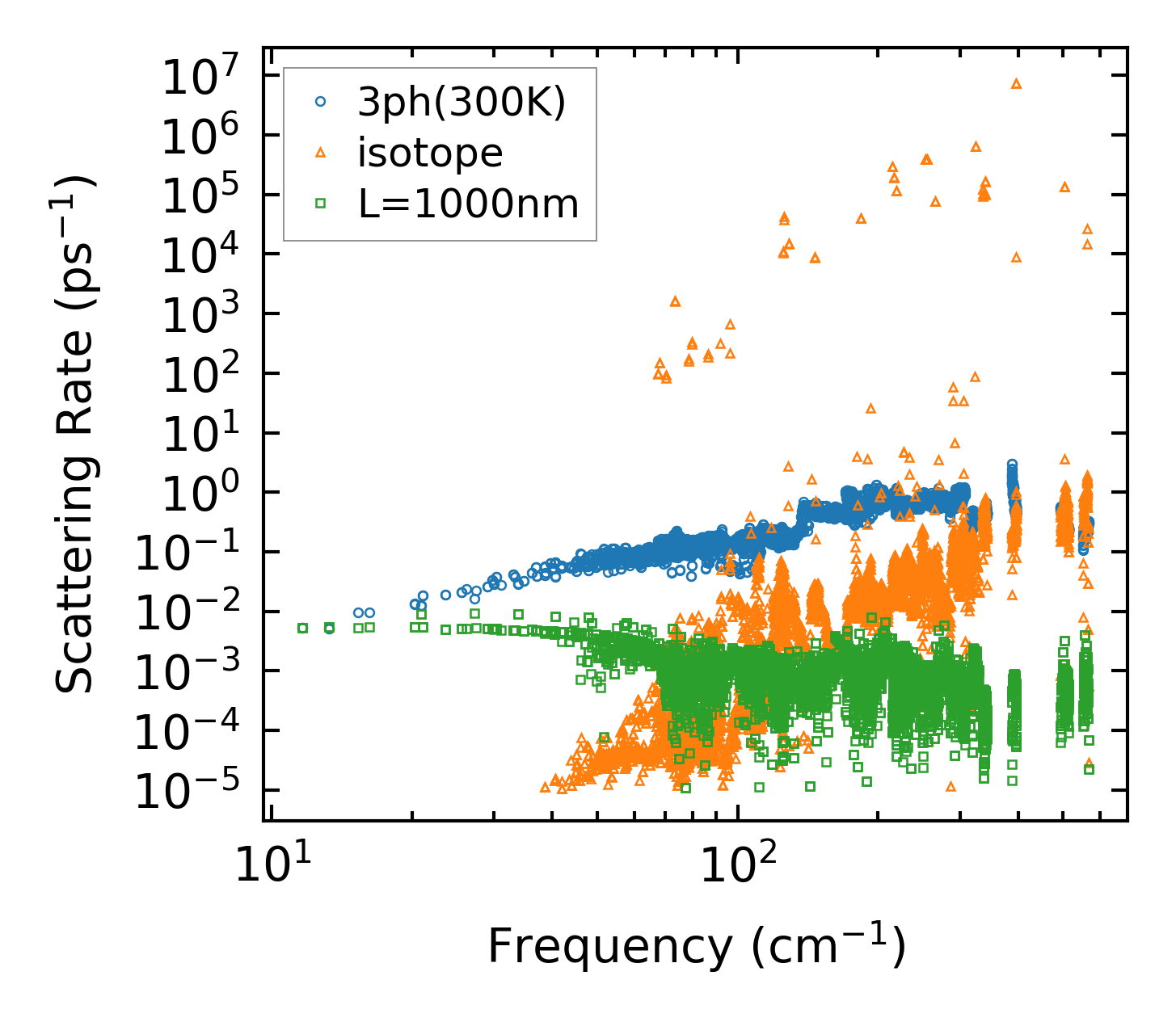

../../_images/fig_scat_rates5835.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

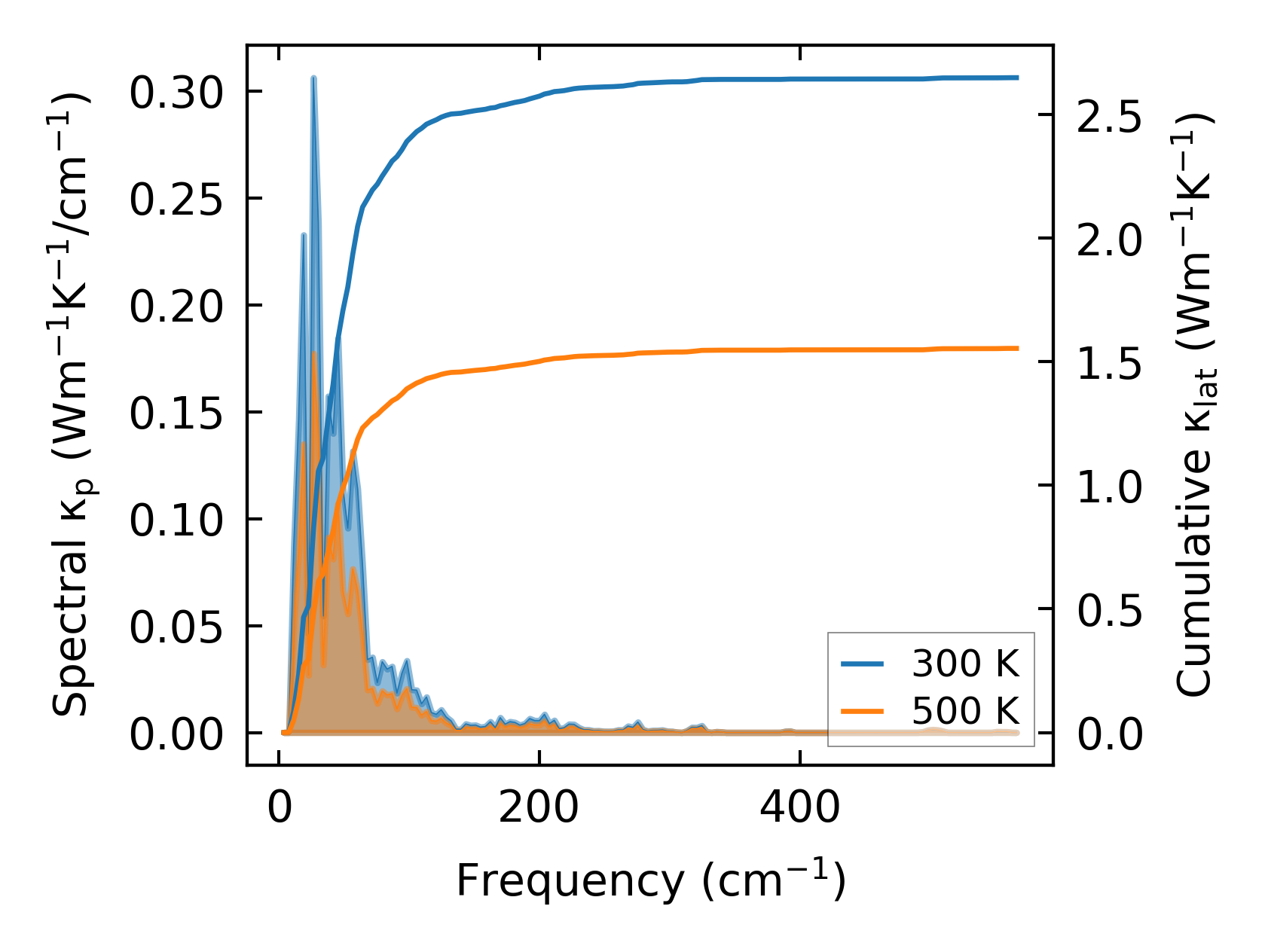

../../_images/fig_cumu_frequency5836.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

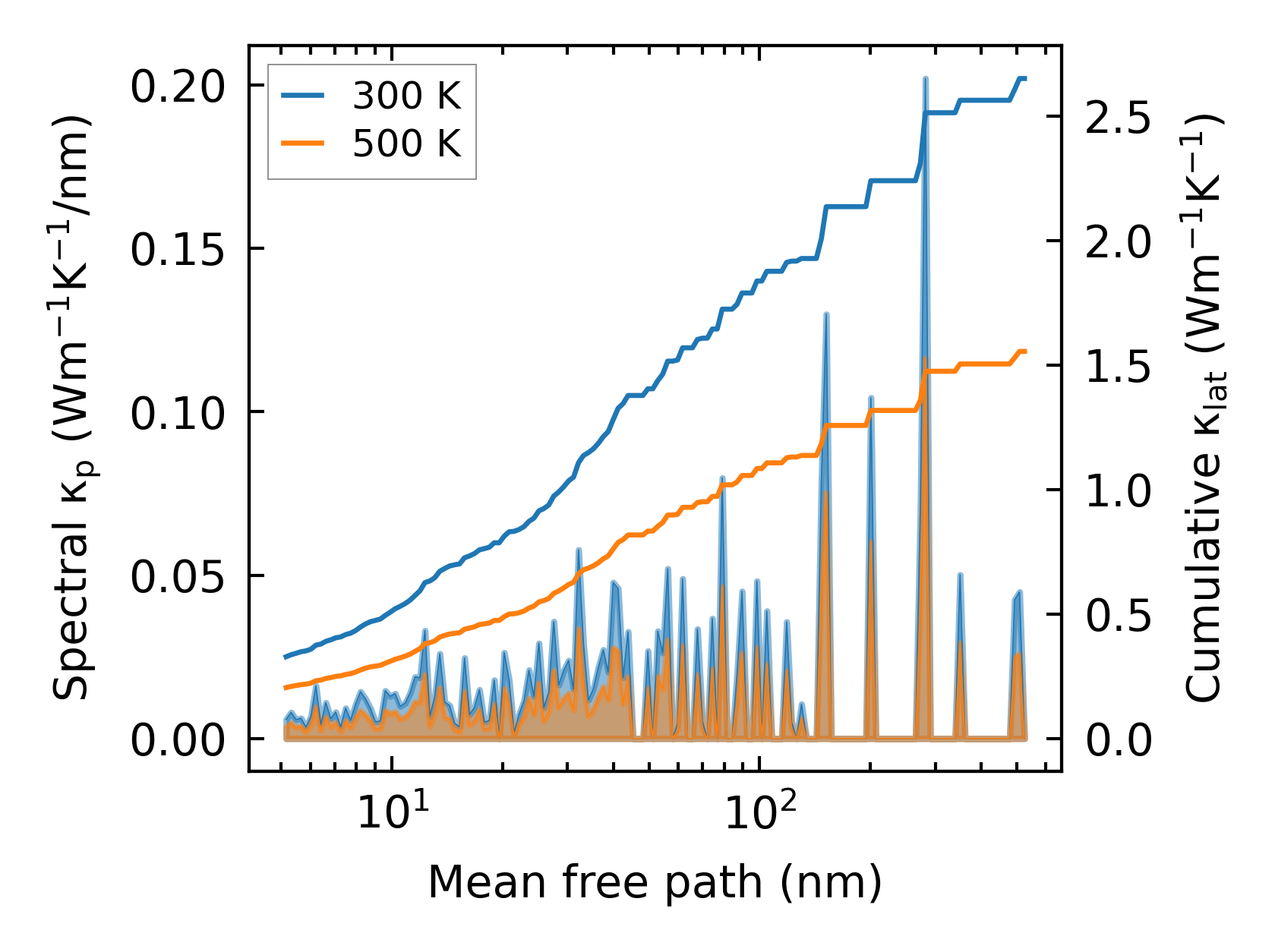

../../_images/fig_cumu_mfp5835.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

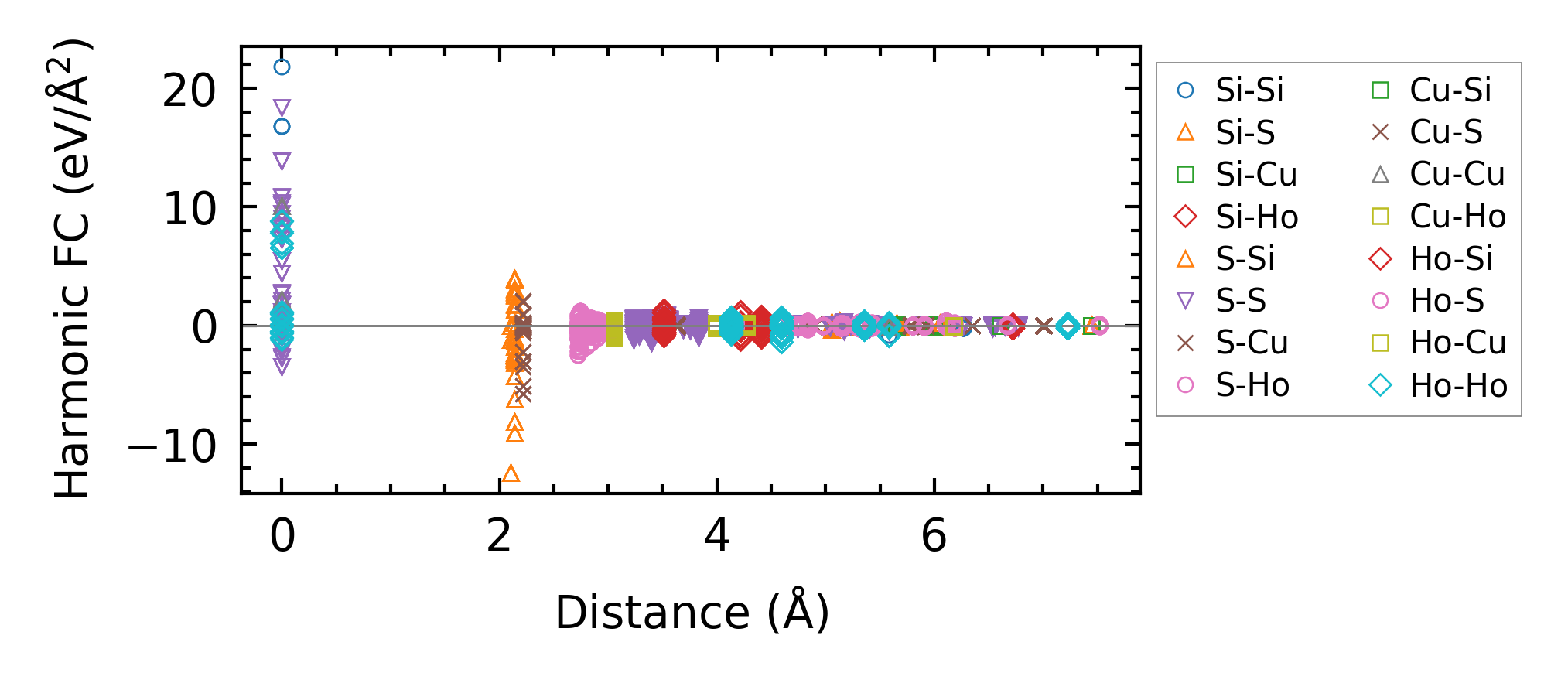

../../_images/fig_fc213560.png — (a) Force constants w.r.t atomic distance

Summary

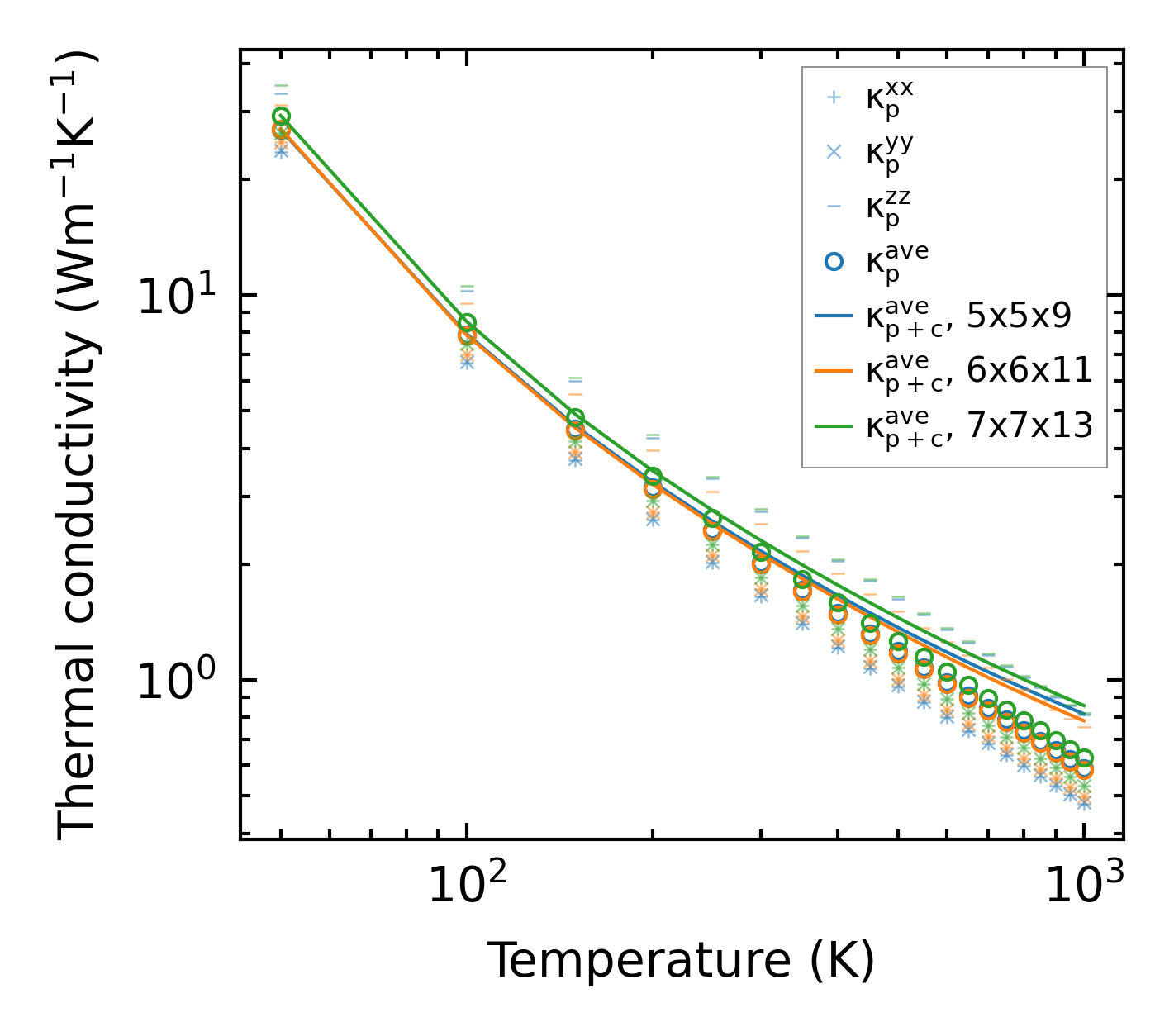

../../_images/fig_kappa11093.png — (a) Temperature-dependent lattice thermal conductivity

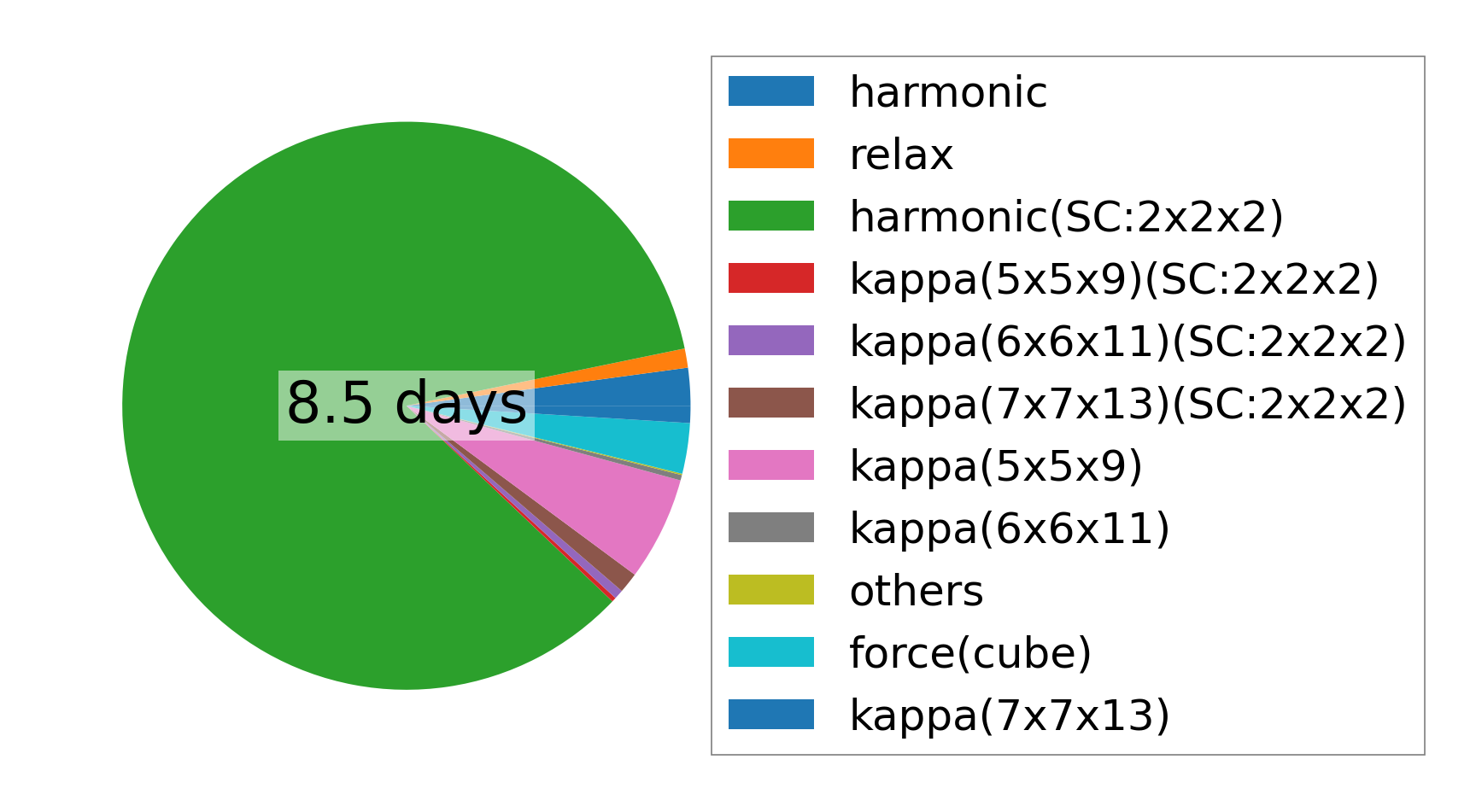

../../_images/fig_times23339.png — (b) Computation time
