mp-17559/Y2TiO5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-17559.tar.gz

Equation of state

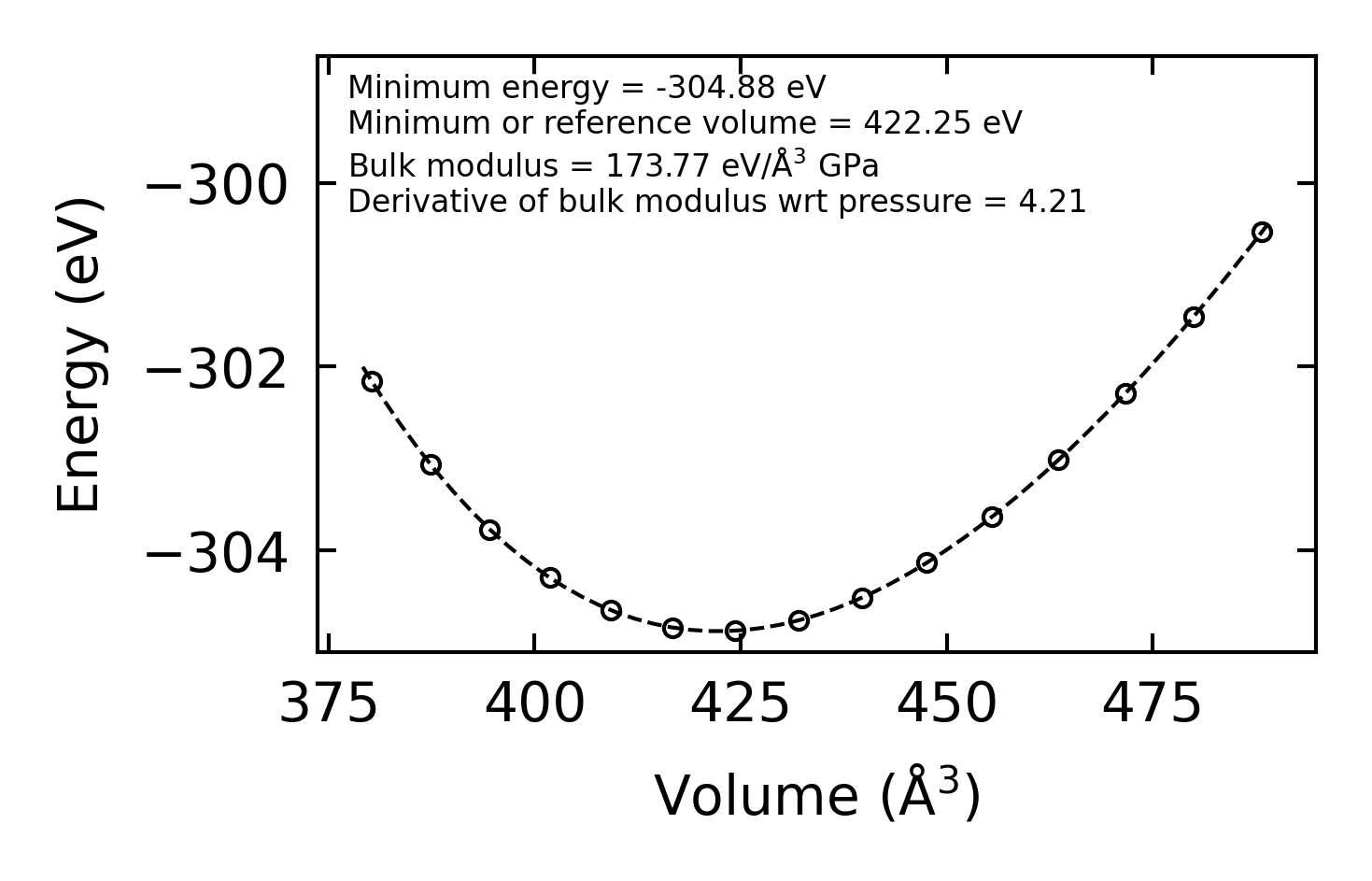

../../_images/fig_bm6981.png — (a) Equation of state

Harmonic properties

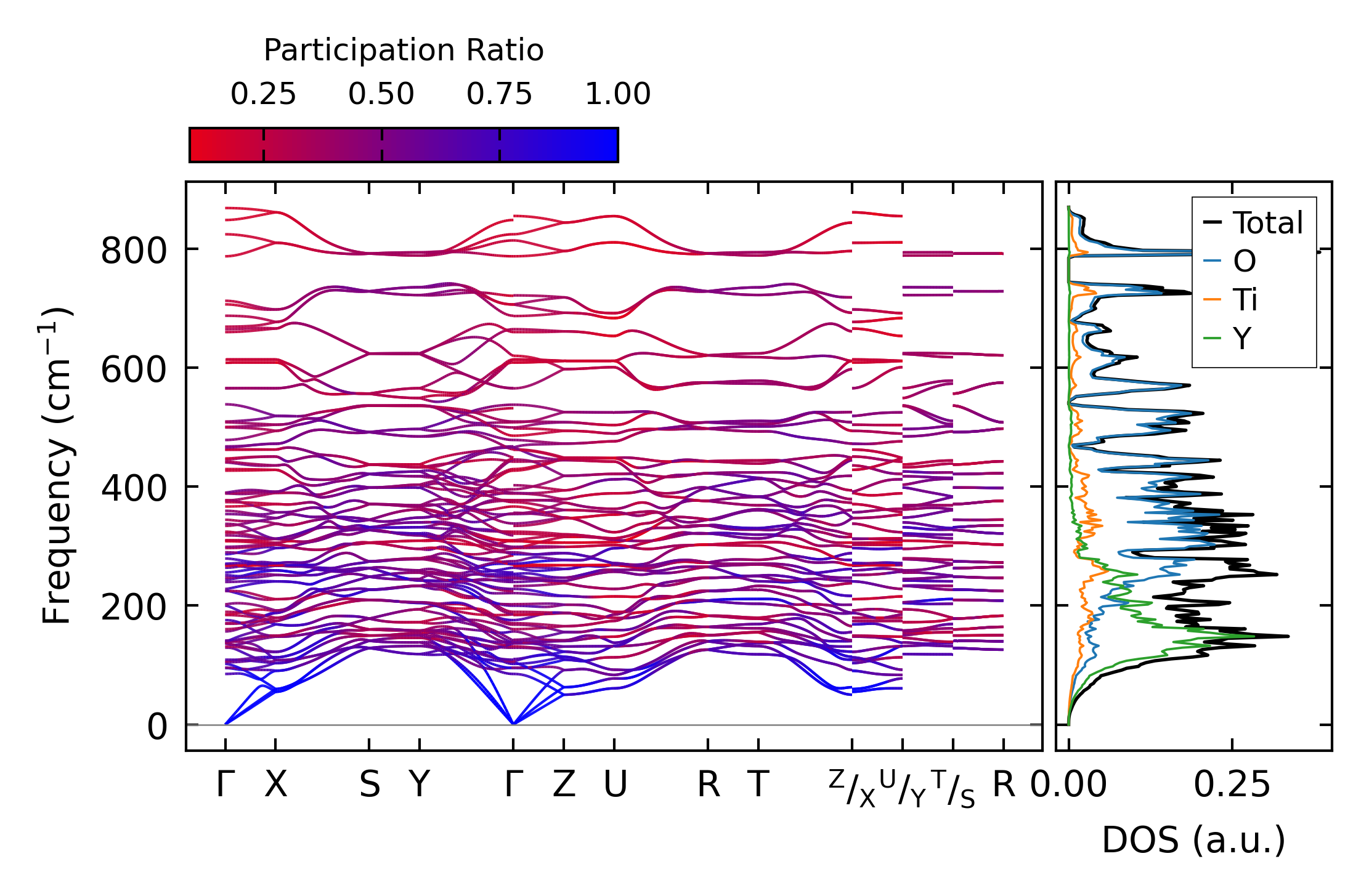

../../_images/fig_bandos_pr13950.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13950.png — (b) Thermodynamic properties

Grüneisen parameters

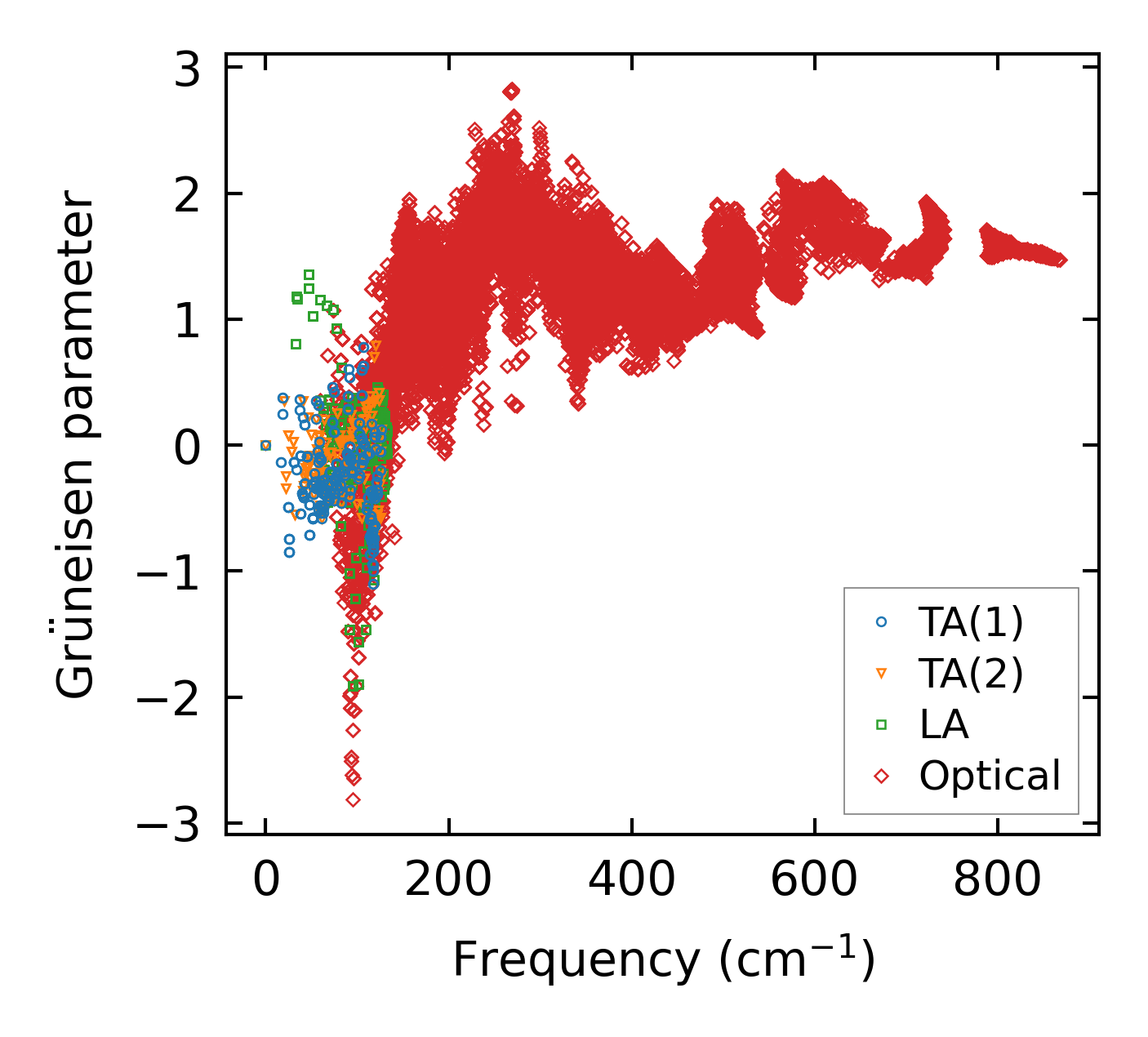

../../_images/fig_gru_all5905.png — (a) Grüneisen parameters

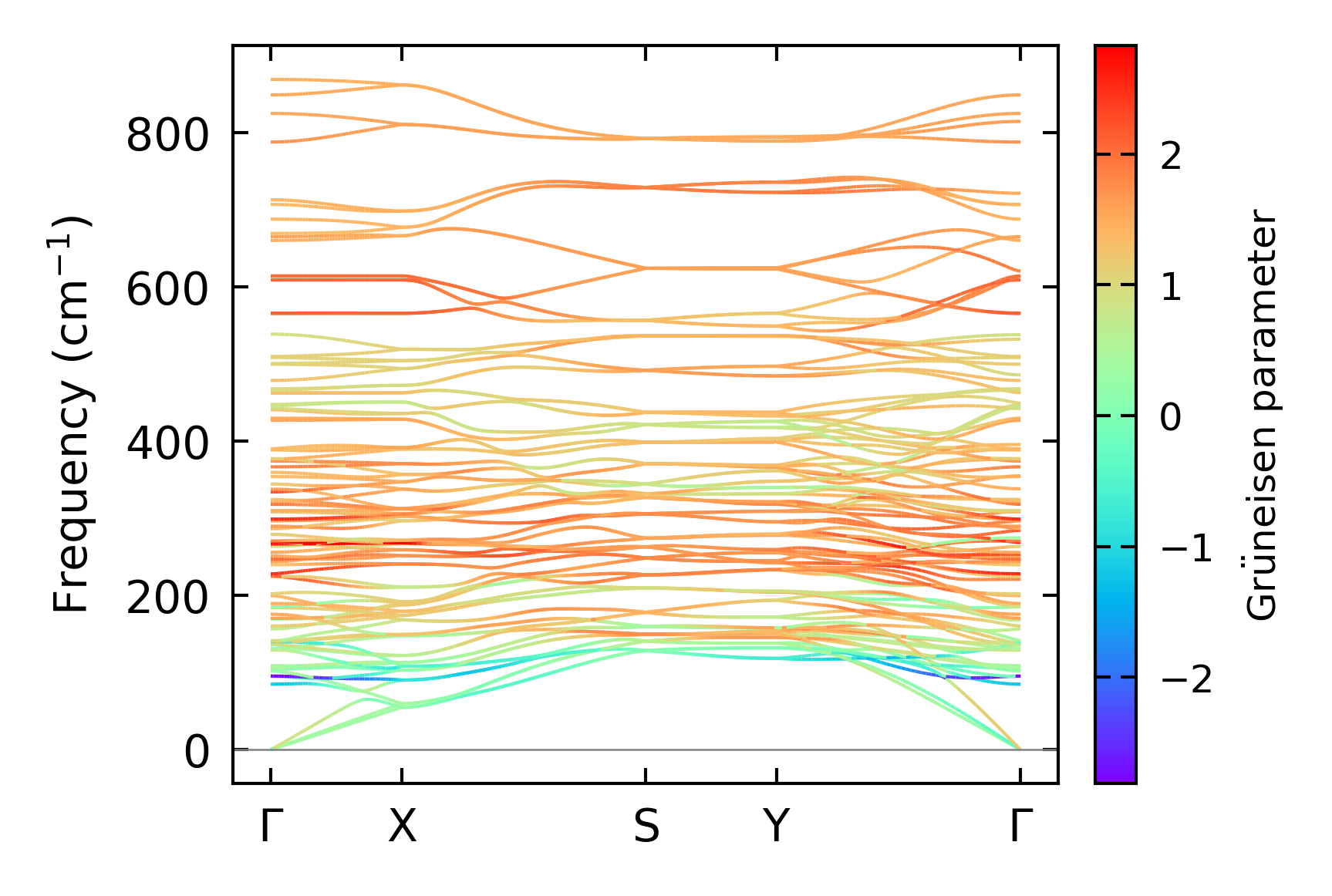

../../_images/fig_gruneisen5905.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x19x6, supercell: 1x3x1

../../_images/fig_kappa11115.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5982.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5848.png — (a) Phonon lifetime due to phonon-phonon scattering

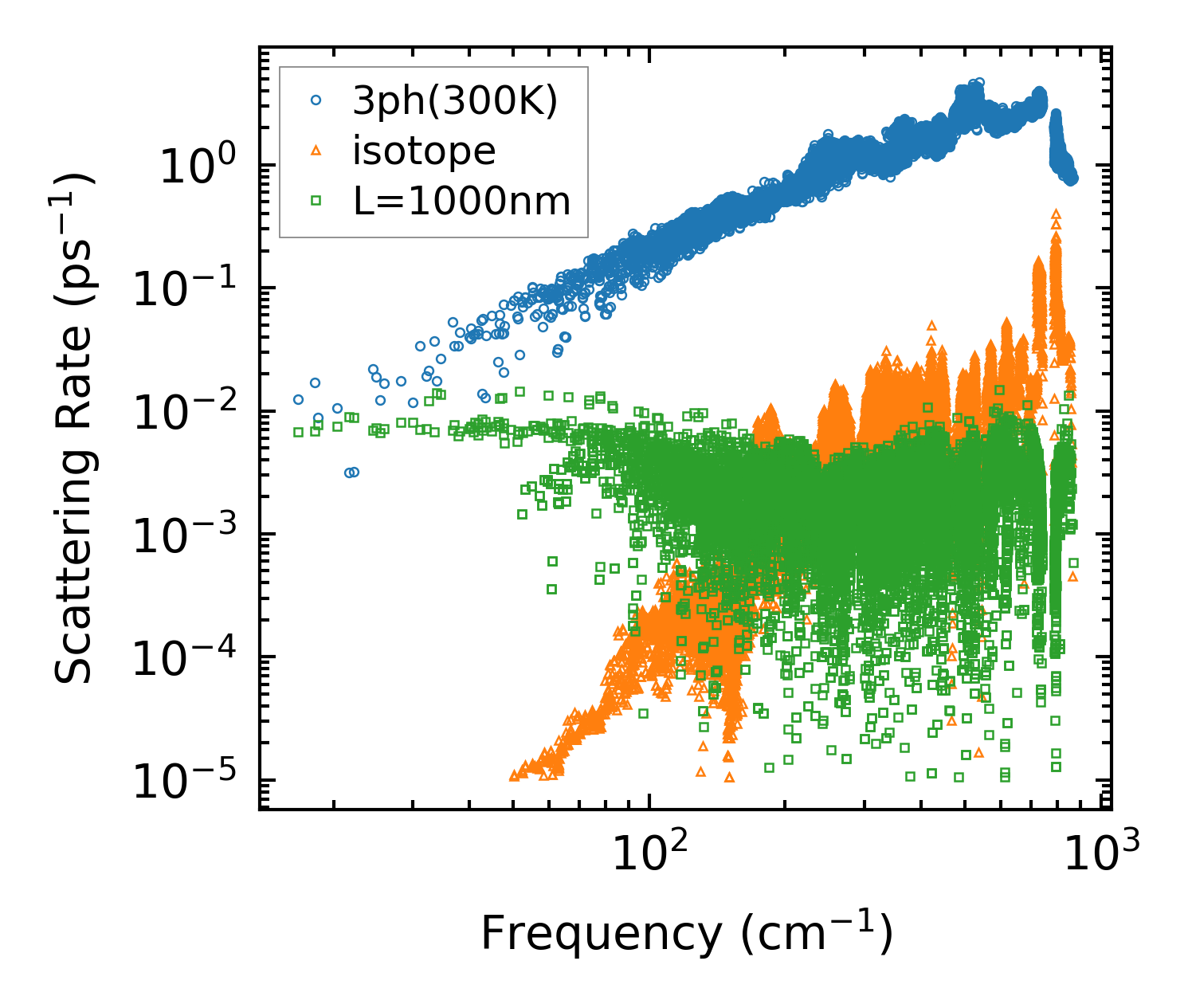

../../_images/fig_scat_rates5847.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

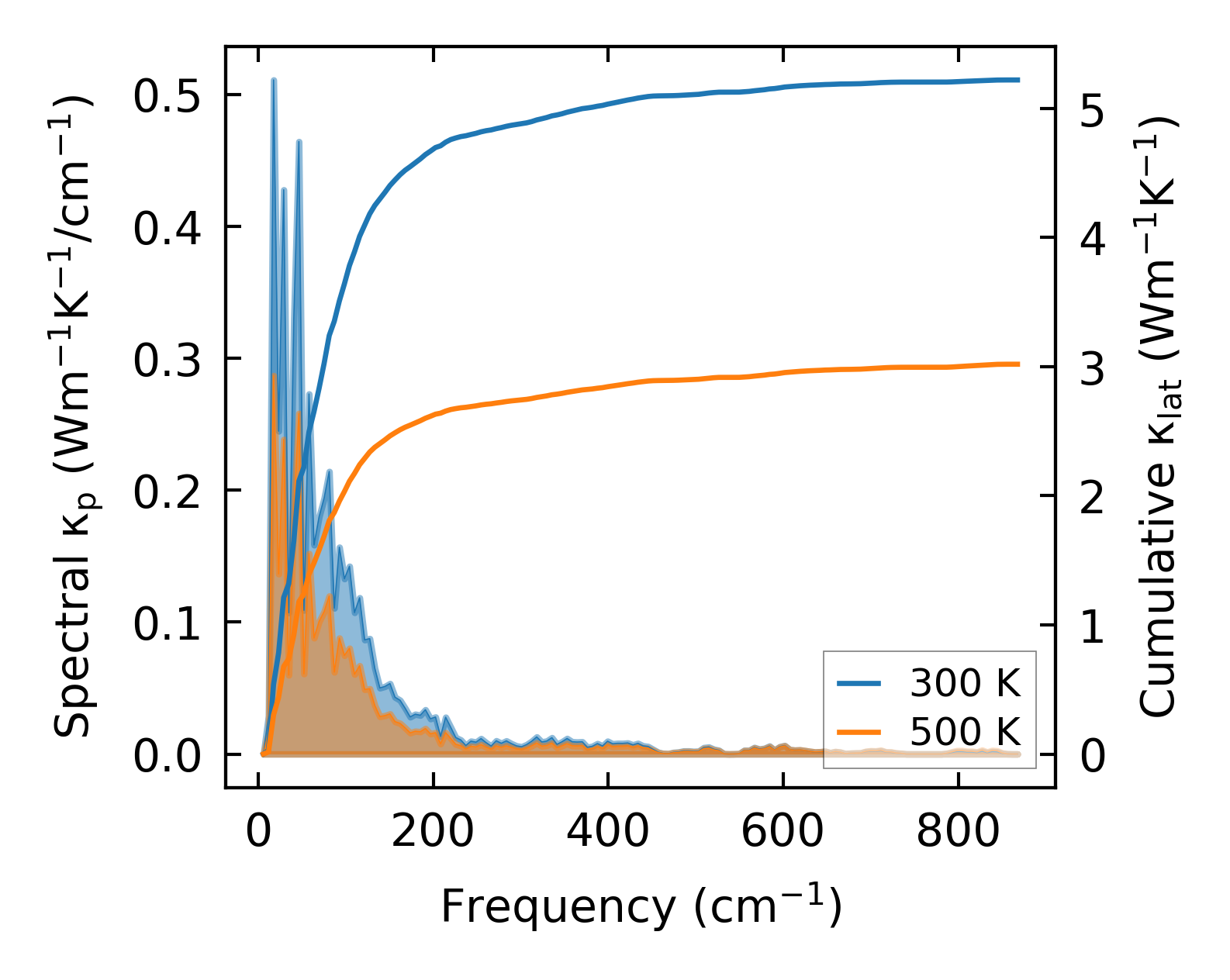

../../_images/fig_cumu_frequency5848.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

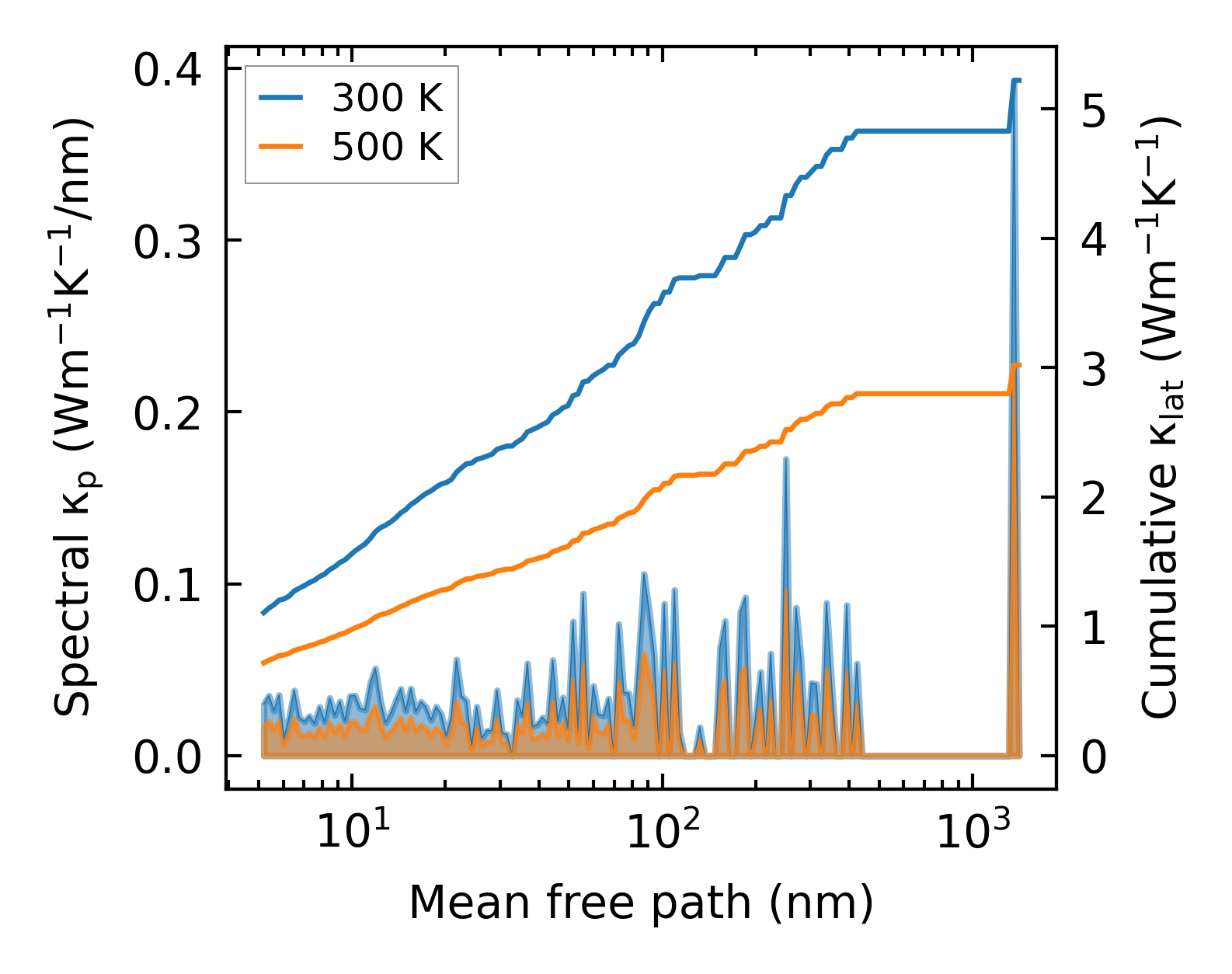

../../_images/fig_cumu_mfp5847.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213578.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11116.png — (a) Temperature-dependent lattice thermal conductivity

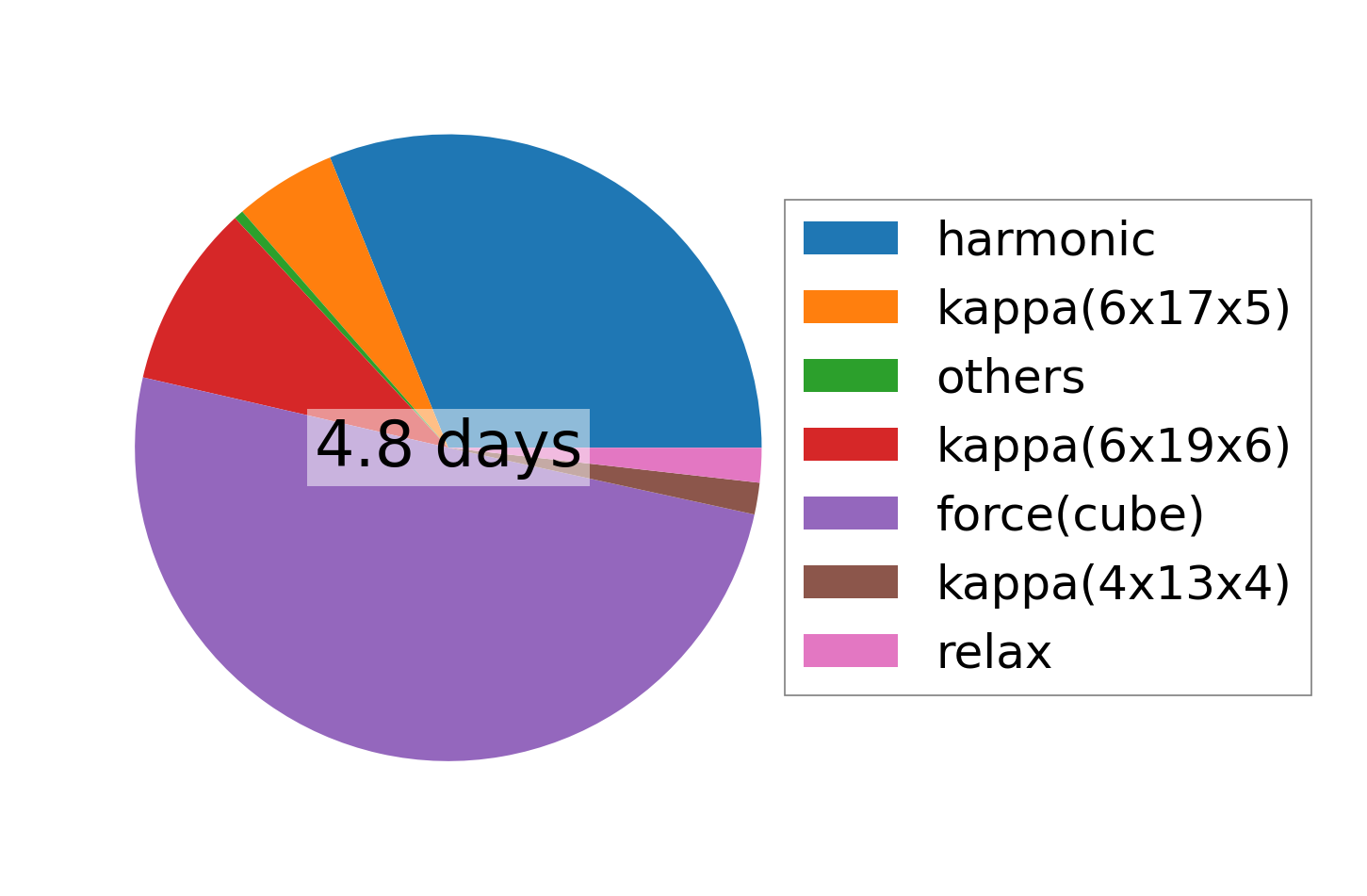

../../_images/fig_times23366.png — (b) Computation time
