mp-17749-2/V2HgO6/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-17749-2.tar.gz

Equation of state

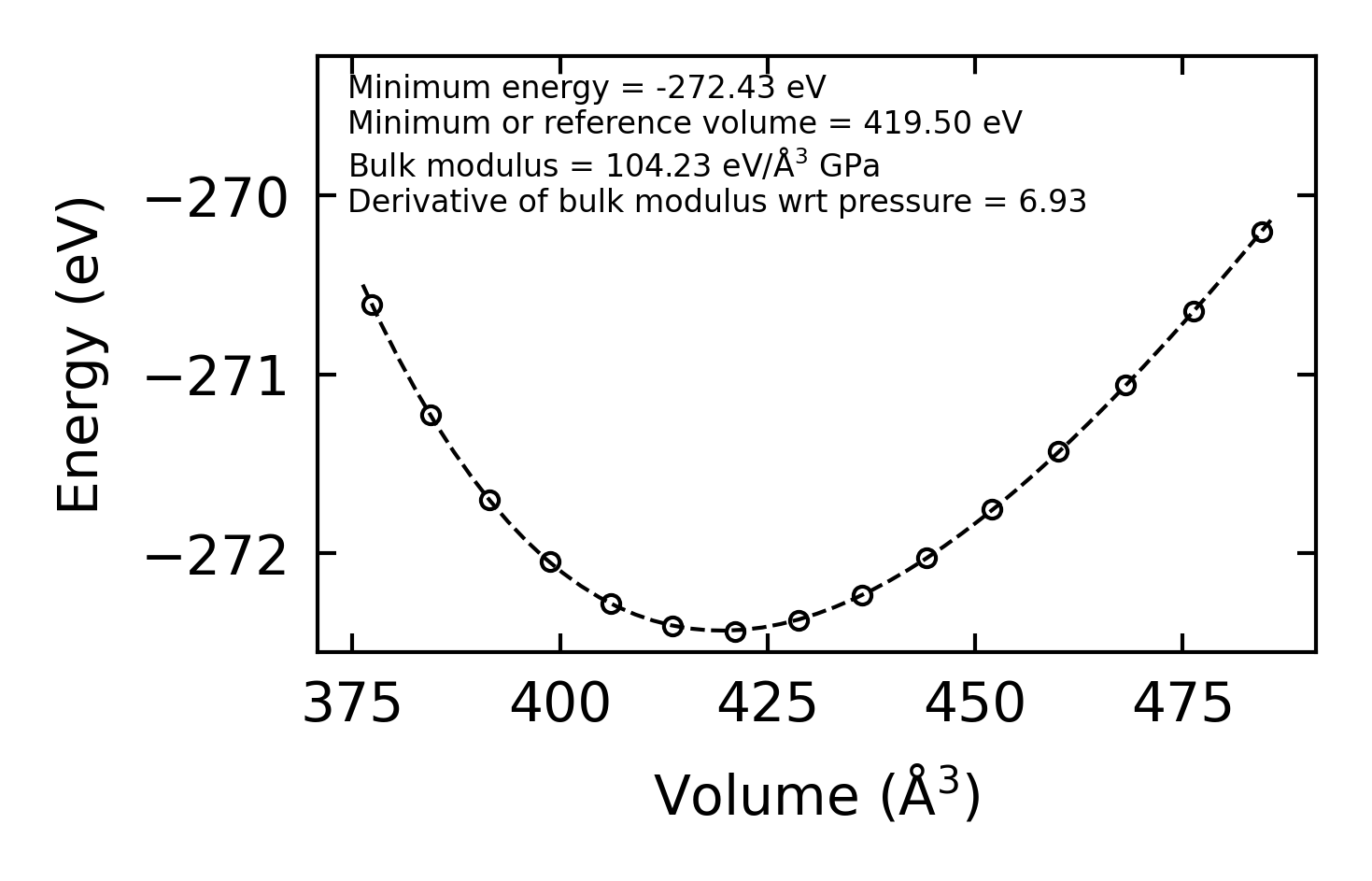

../../_images/fig_bm7012.png — (a) Equation of state

Harmonic properties

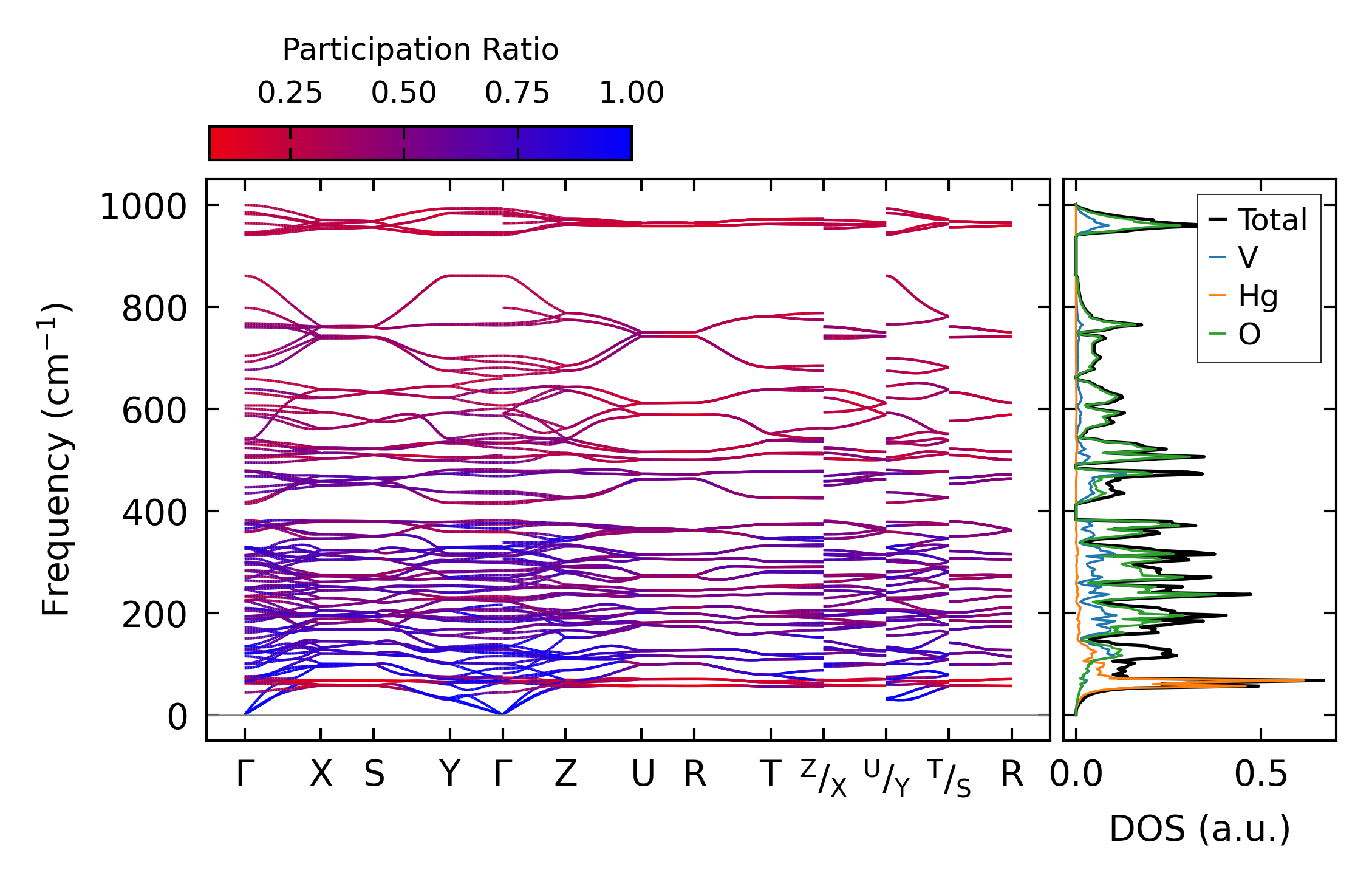

../../_images/fig_bandos_pr14006.png — (a) Phonon dispersion with participation ratio and DOS

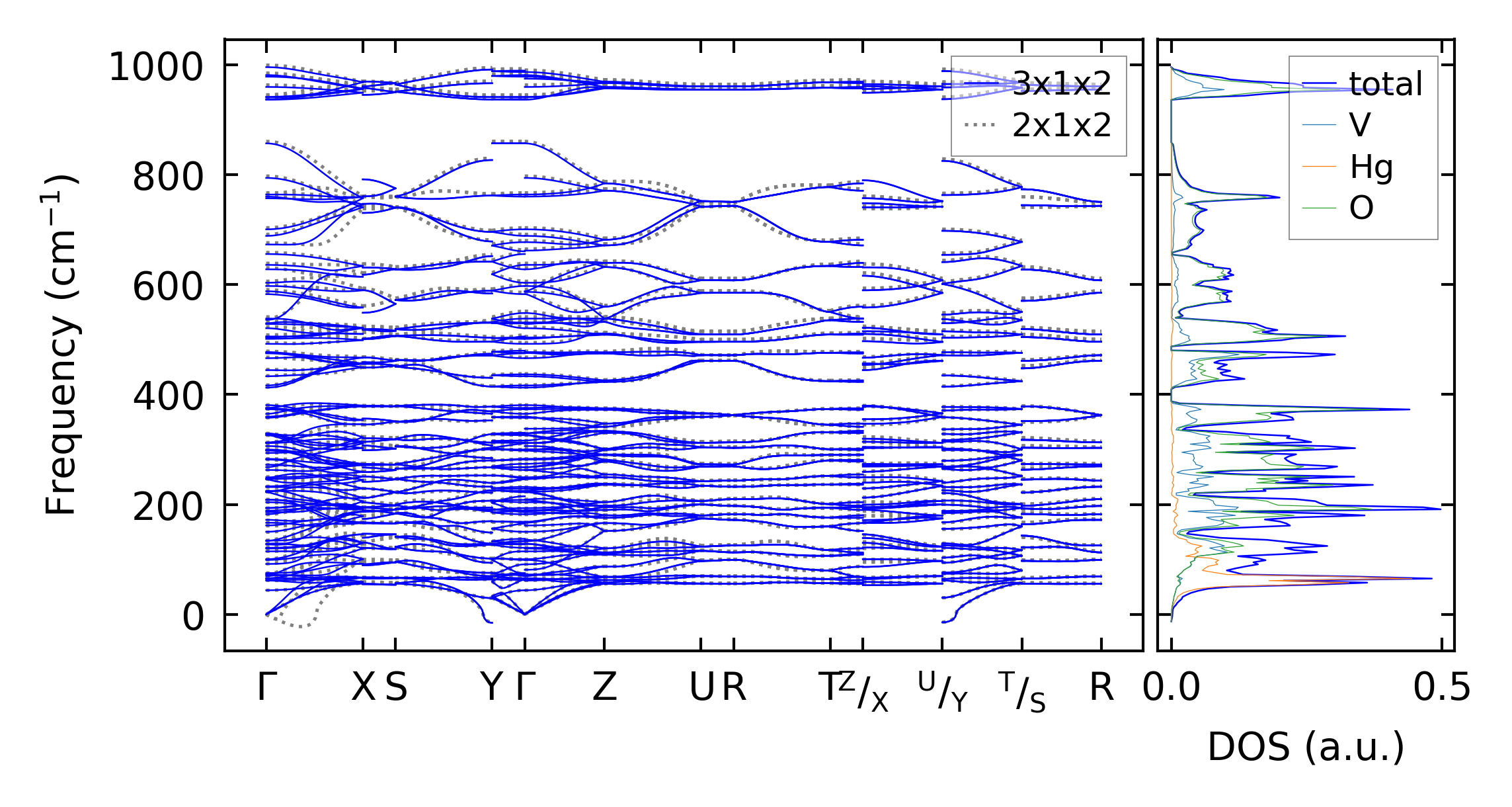

../../_images/fig_bandos18389.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14006.png — (c) Thermodynamic properties

Grüneisen parameters

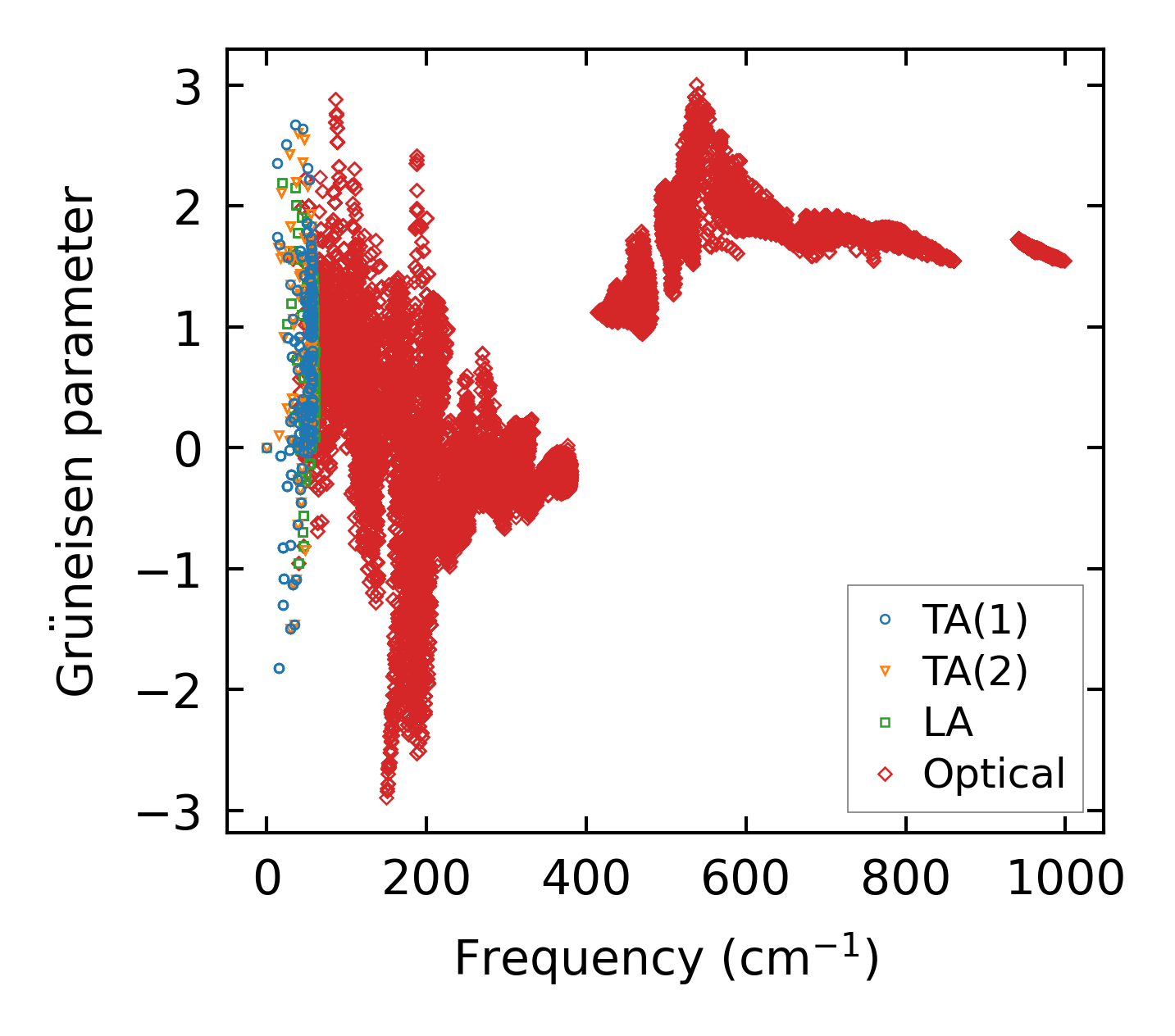

../../_images/fig_gru_all5934.png — (a) Grüneisen parameters

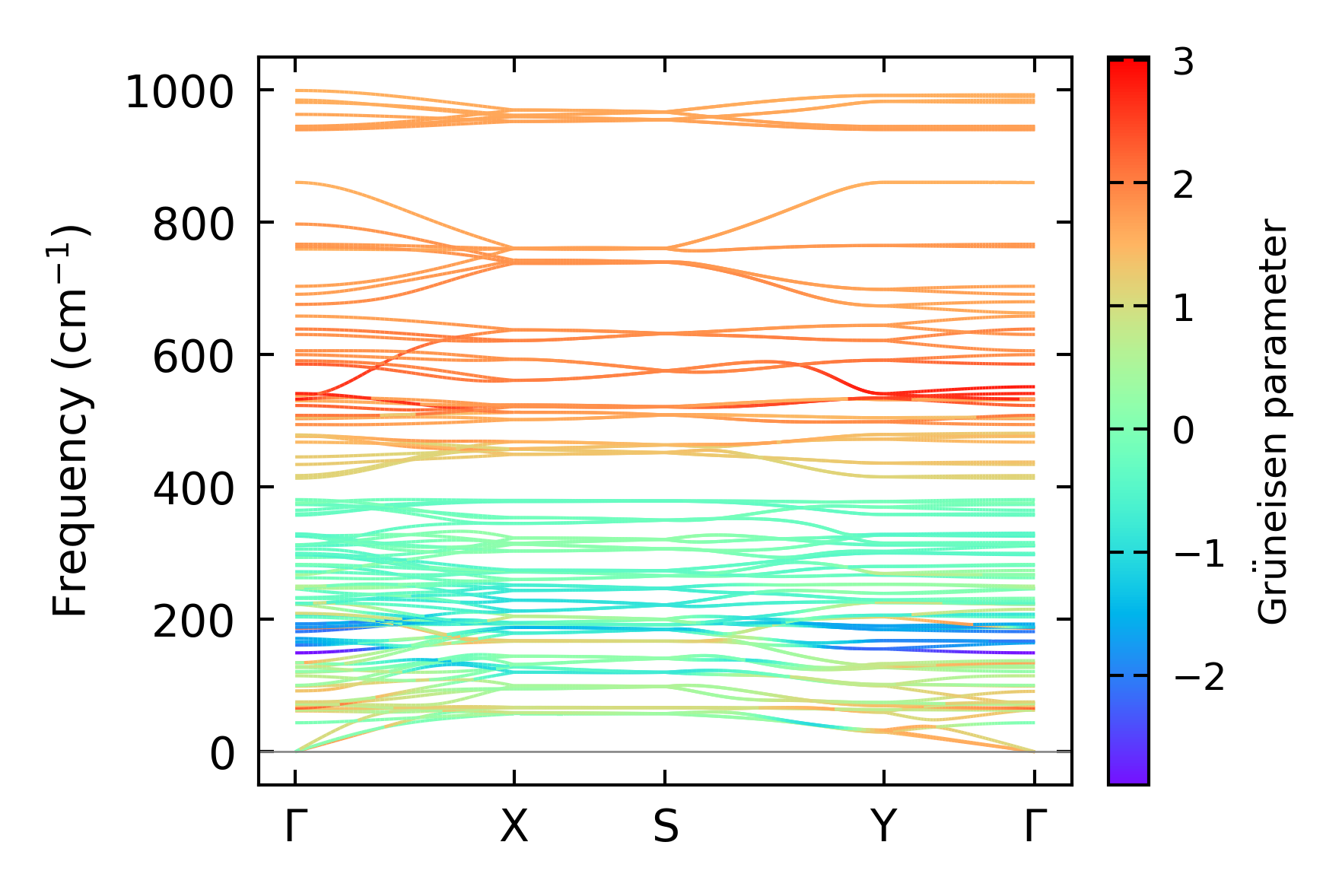

../../_images/fig_gruneisen5934.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x4x12, supercell: 2x1x2

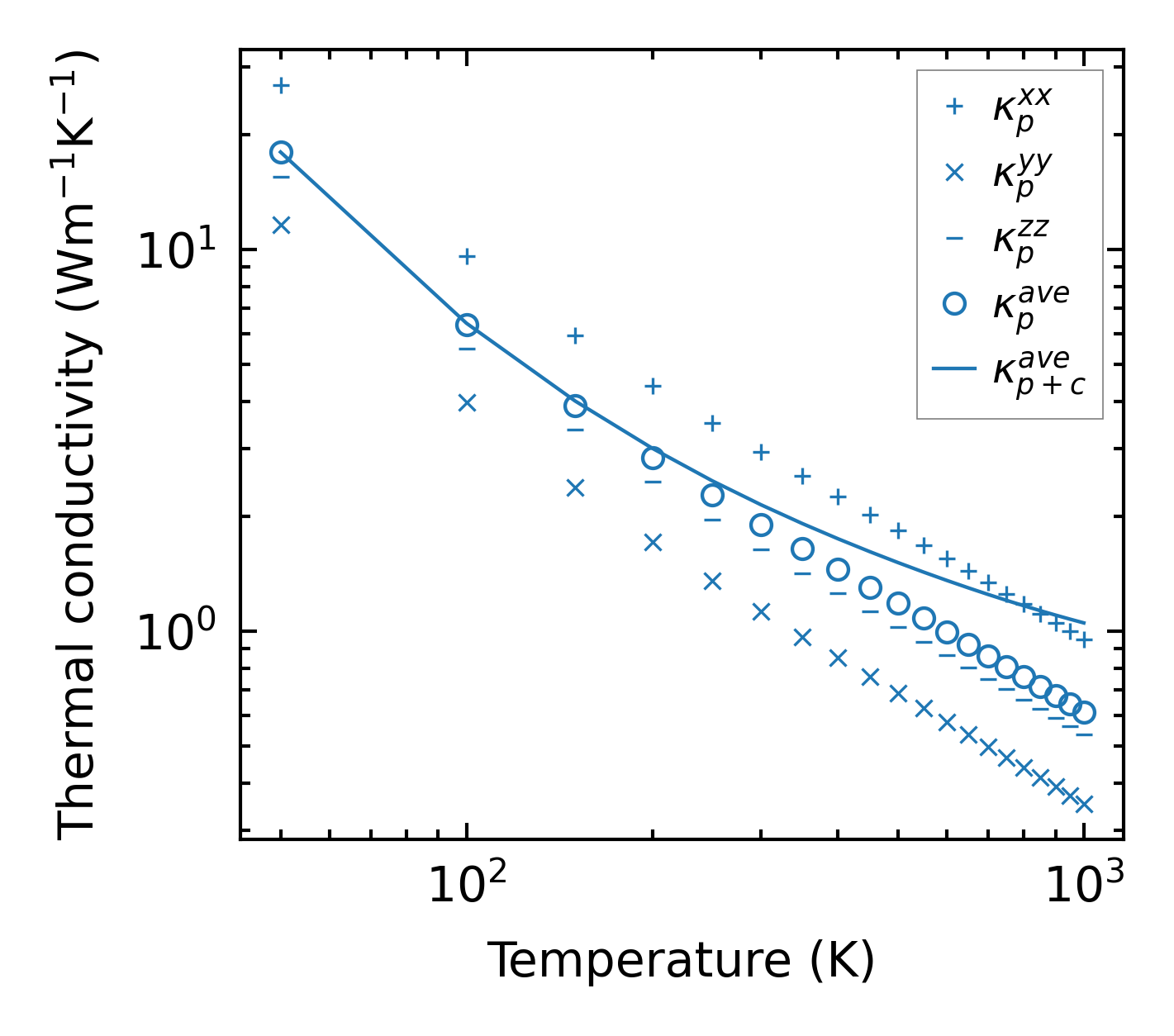

../../_images/fig_kappa11169.png — (a) Temperature-dependent lattice thermal conductivity

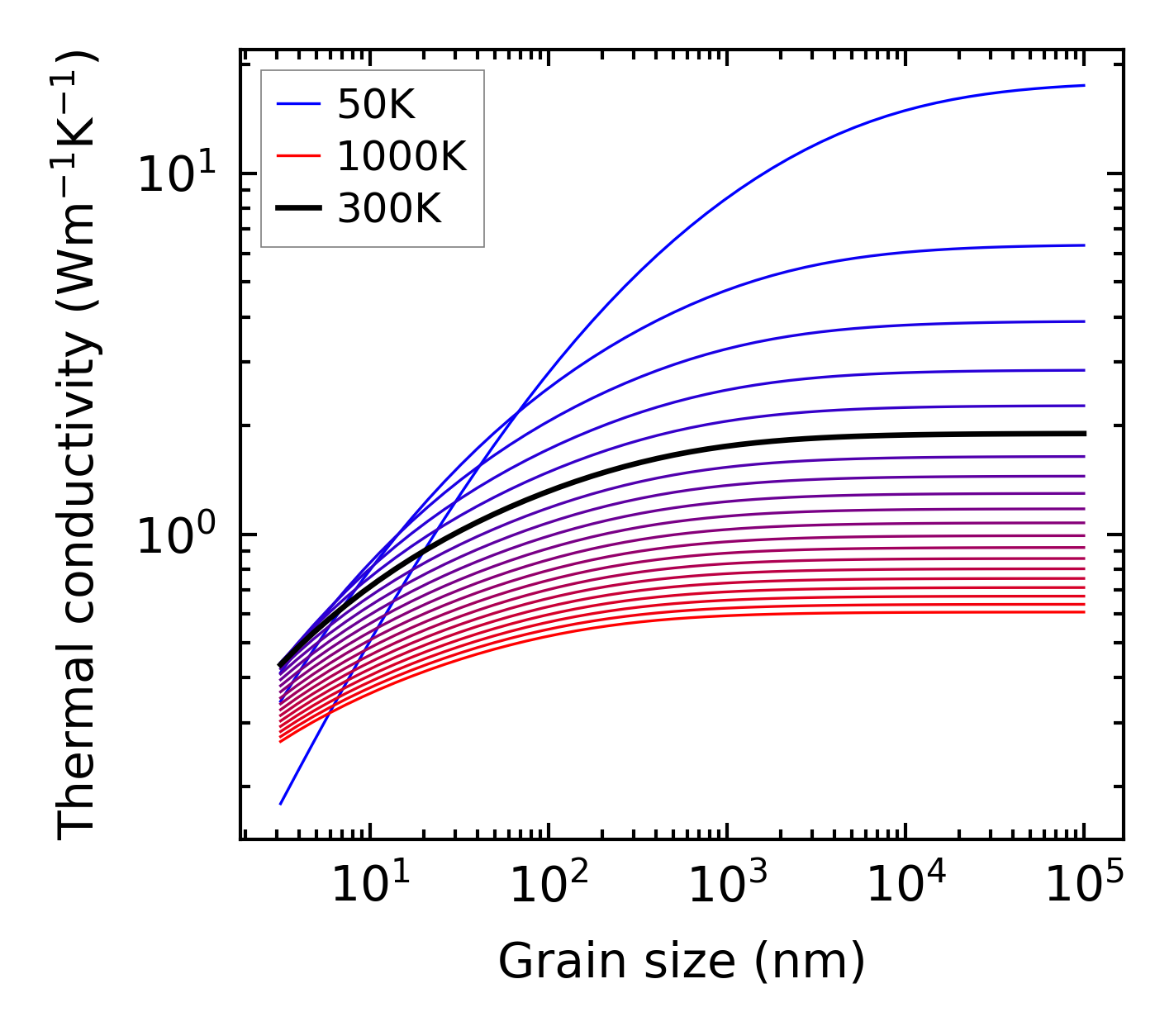

../../_images/fig_kappa_vs_grain_size6012.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

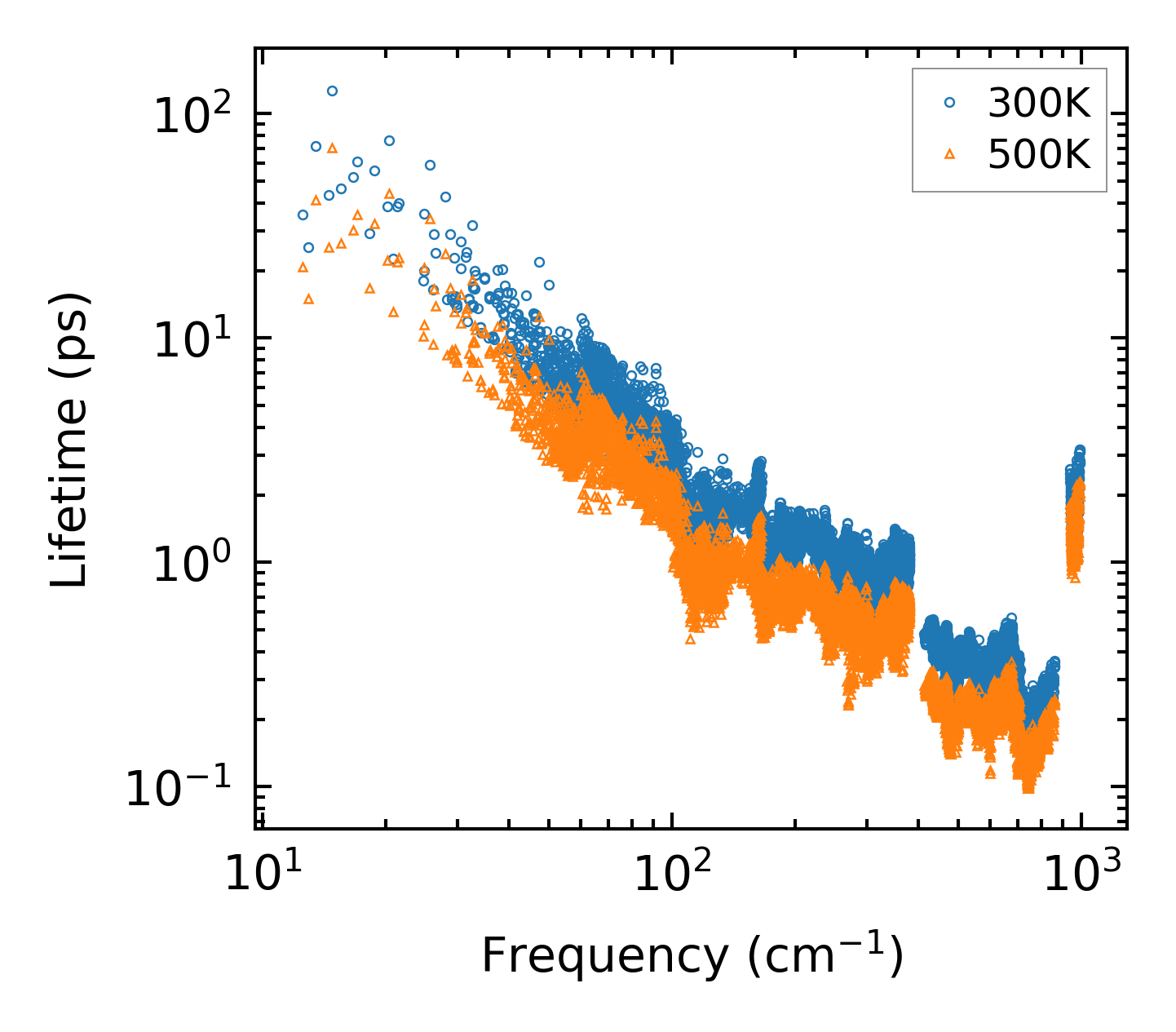

../../_images/fig_lifetime5877.png — (a) Phonon lifetime due to phonon-phonon scattering

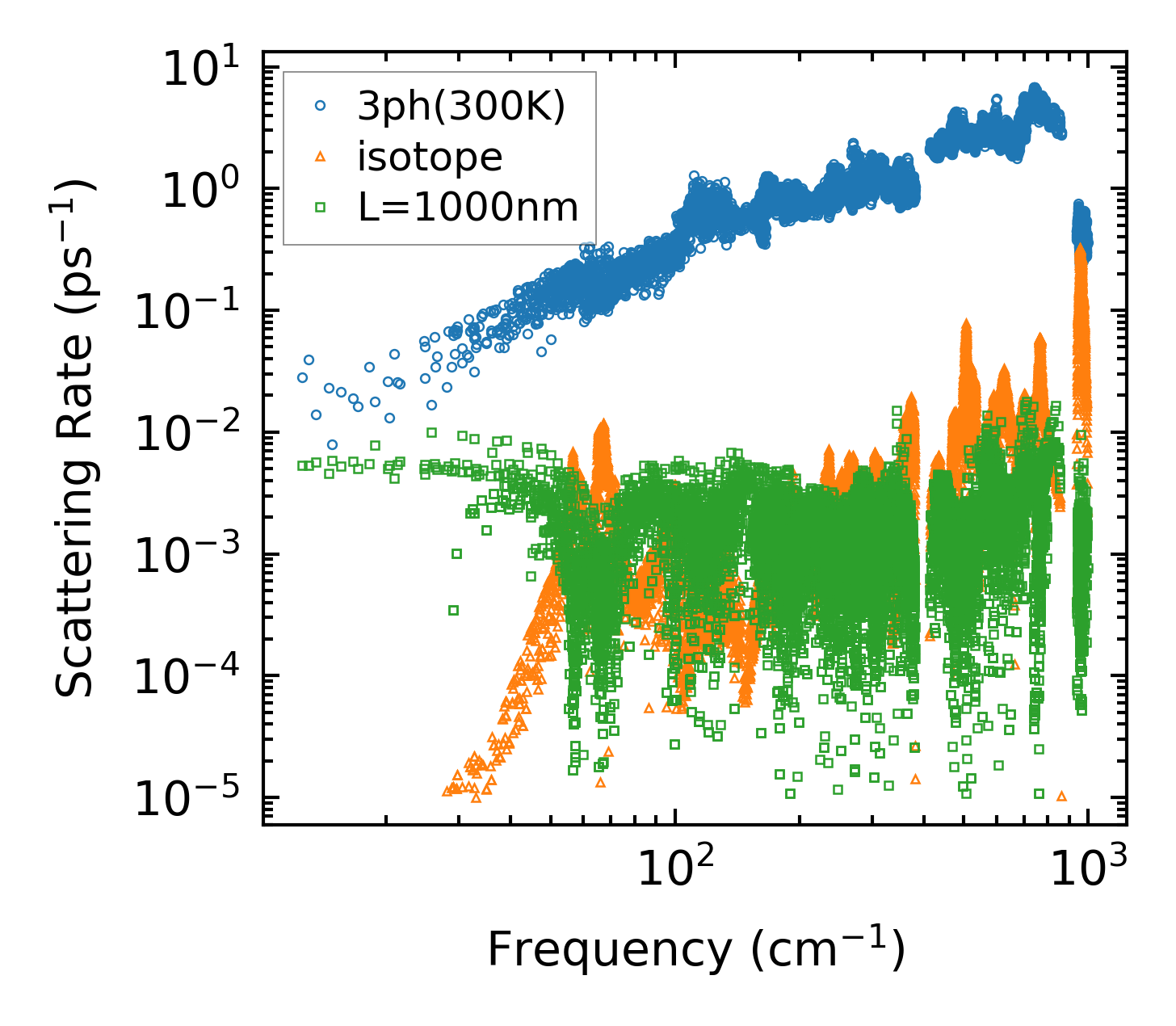

../../_images/fig_scat_rates5876.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

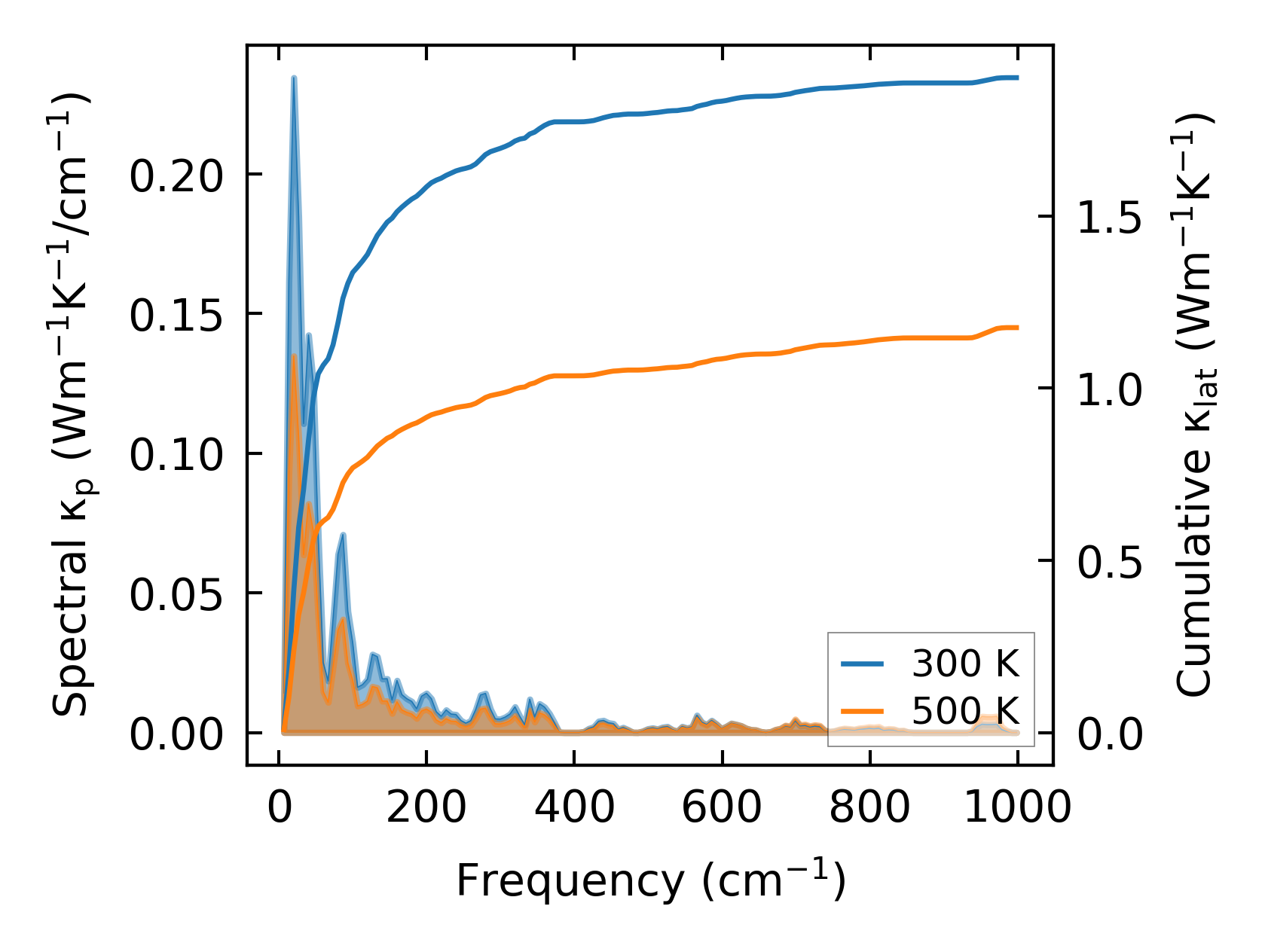

../../_images/fig_cumu_frequency5877.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

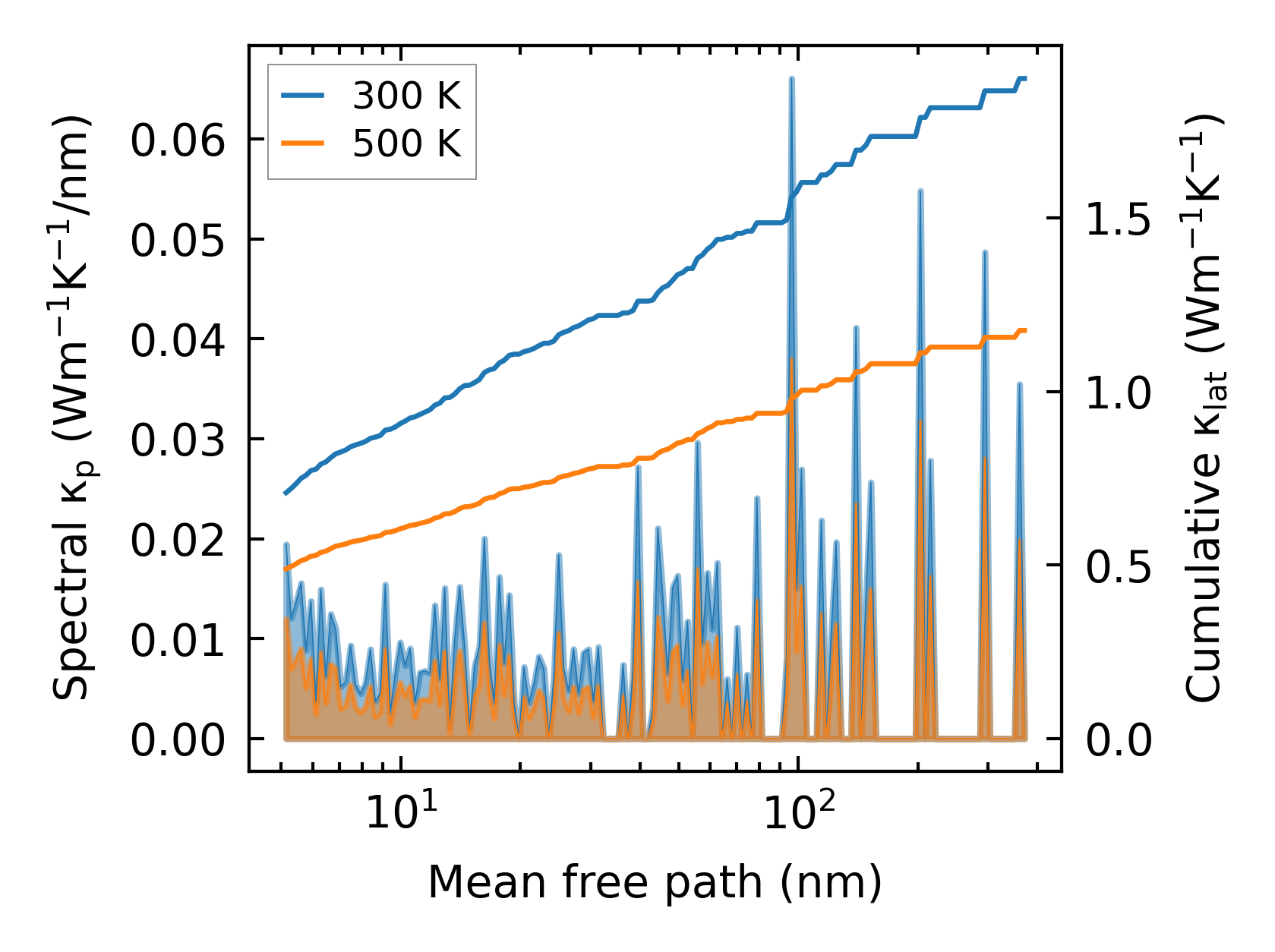

../../_images/fig_cumu_mfp5876.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

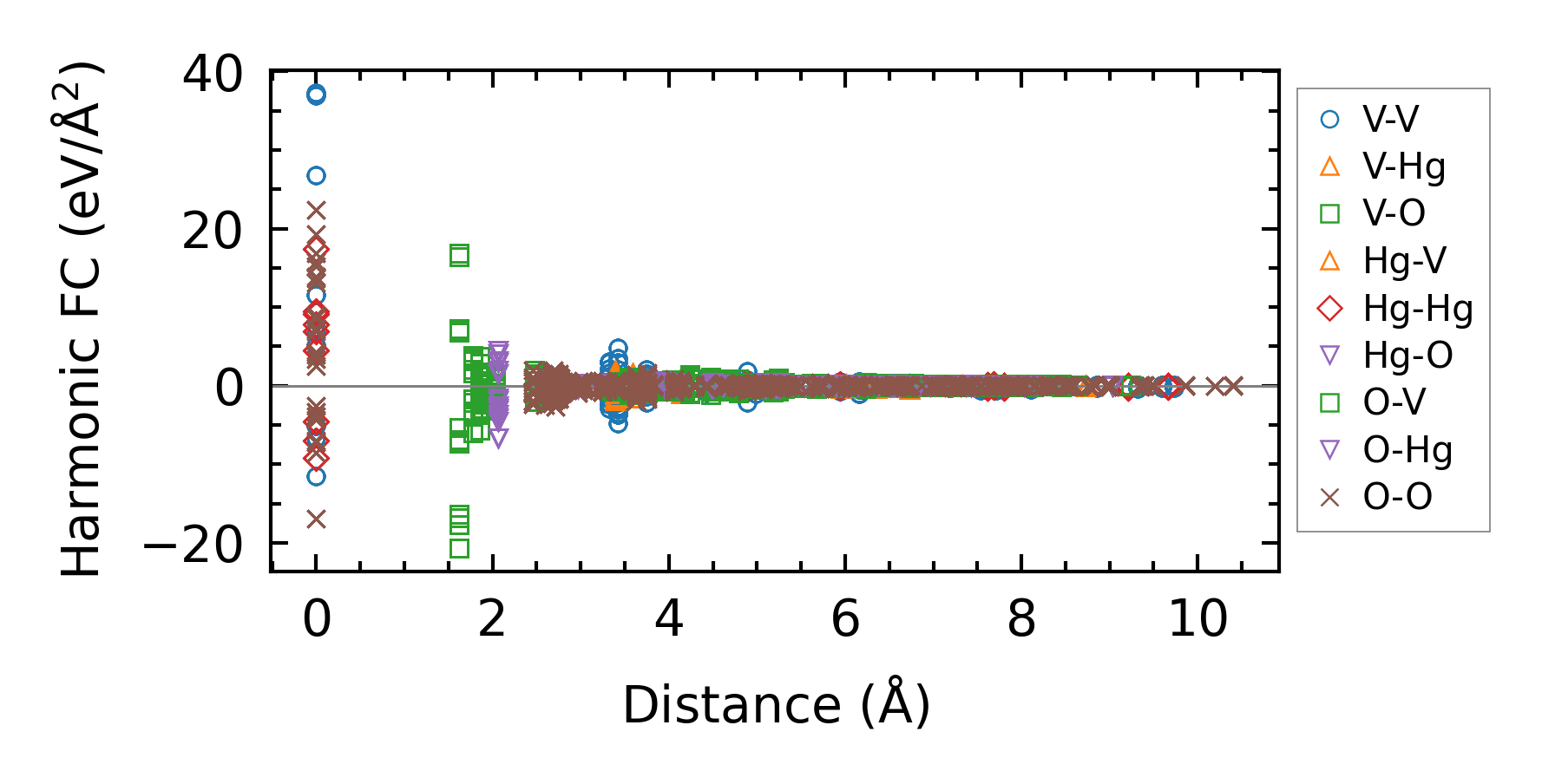

../../_images/fig_fc213634.png — (a) Force constants w.r.t atomic distance

Summary

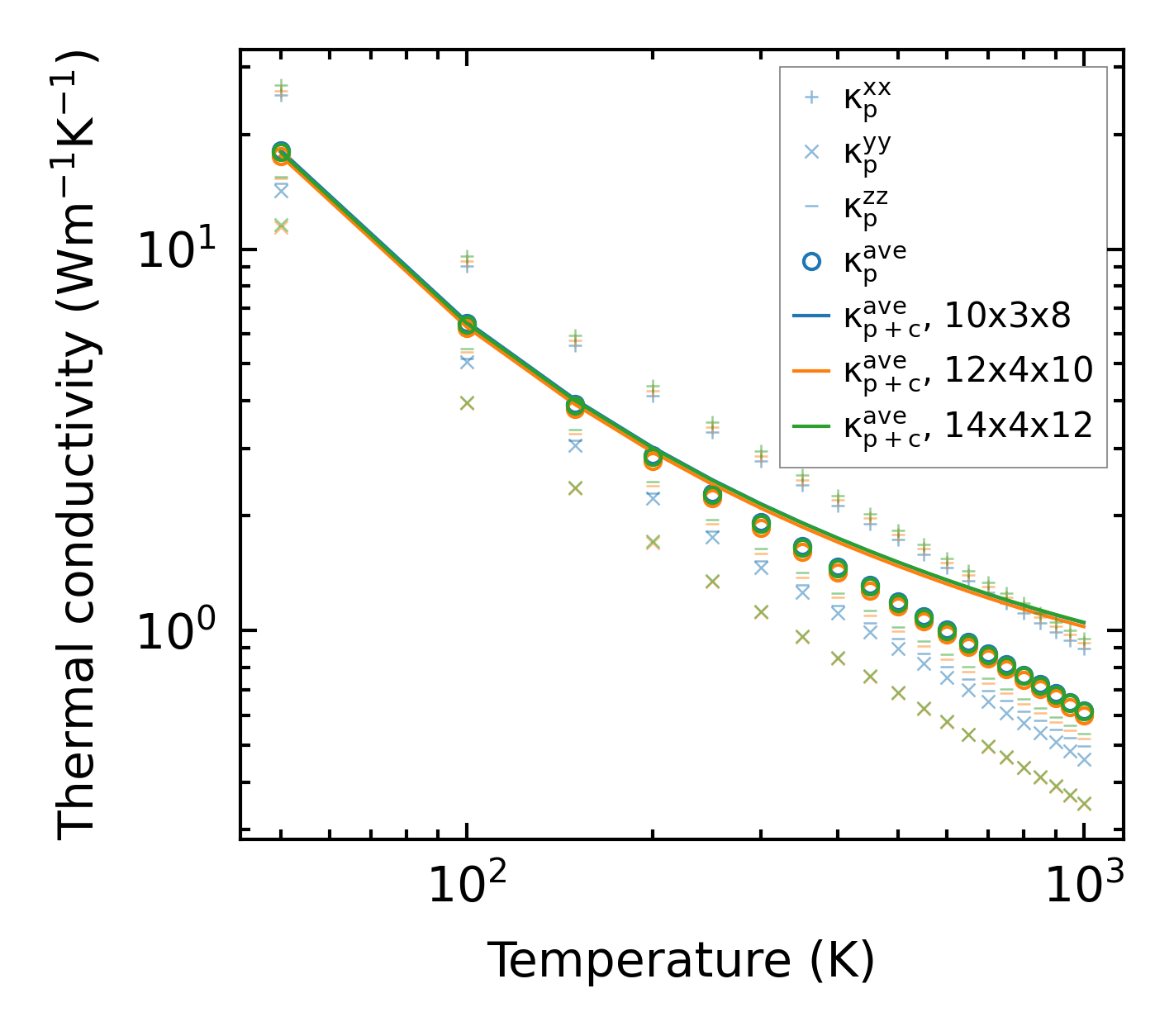

../../_images/fig_kappa11170.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times23442.png — (b) Computation time
