mp-17366/Ho2SiSO4/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-17366.tar.gz

Harmonic properties

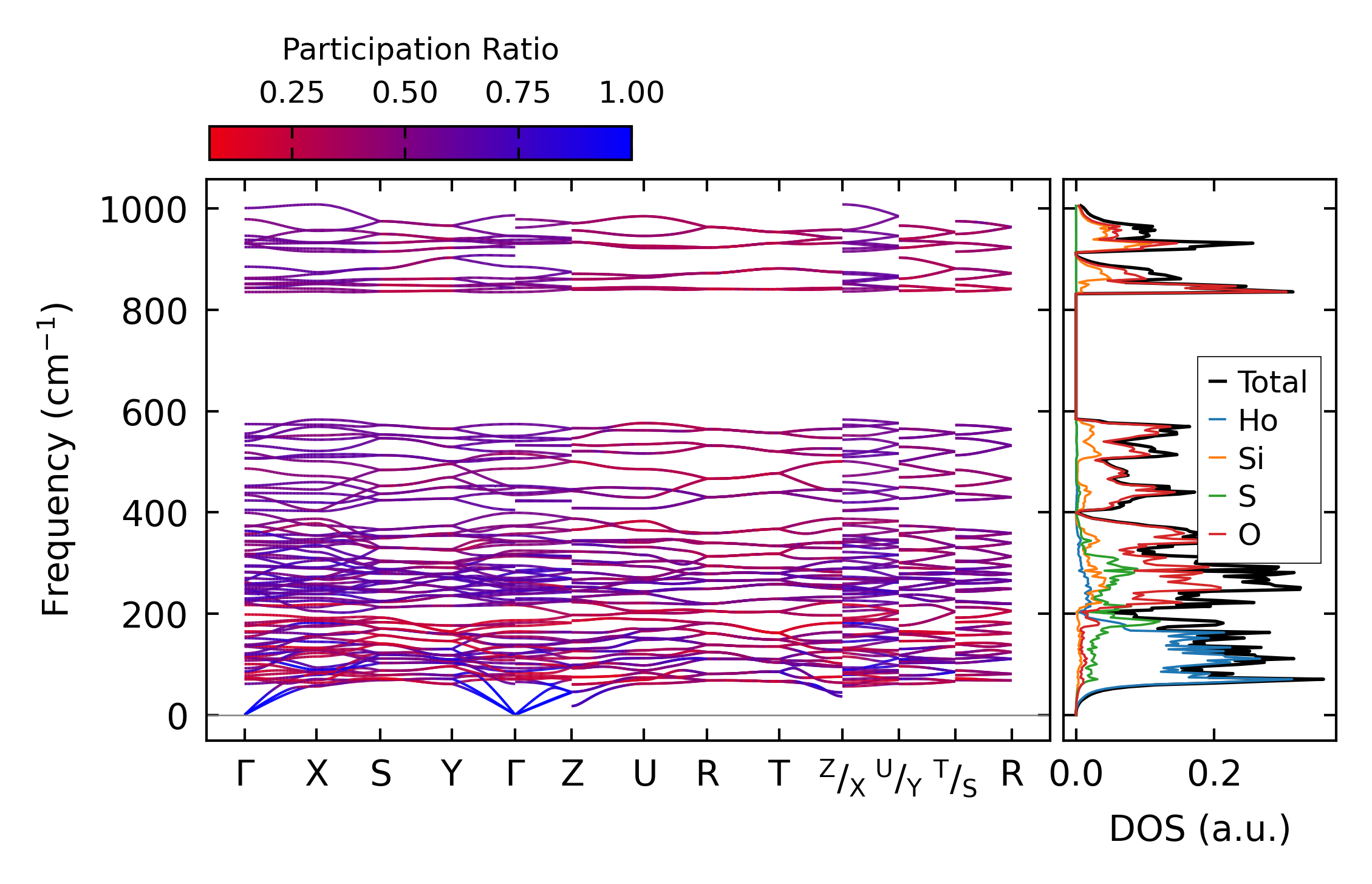

../../_images/fig_bandos_pr14262.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14262.png — (b) Thermodynamic properties

Grüneisen parameters

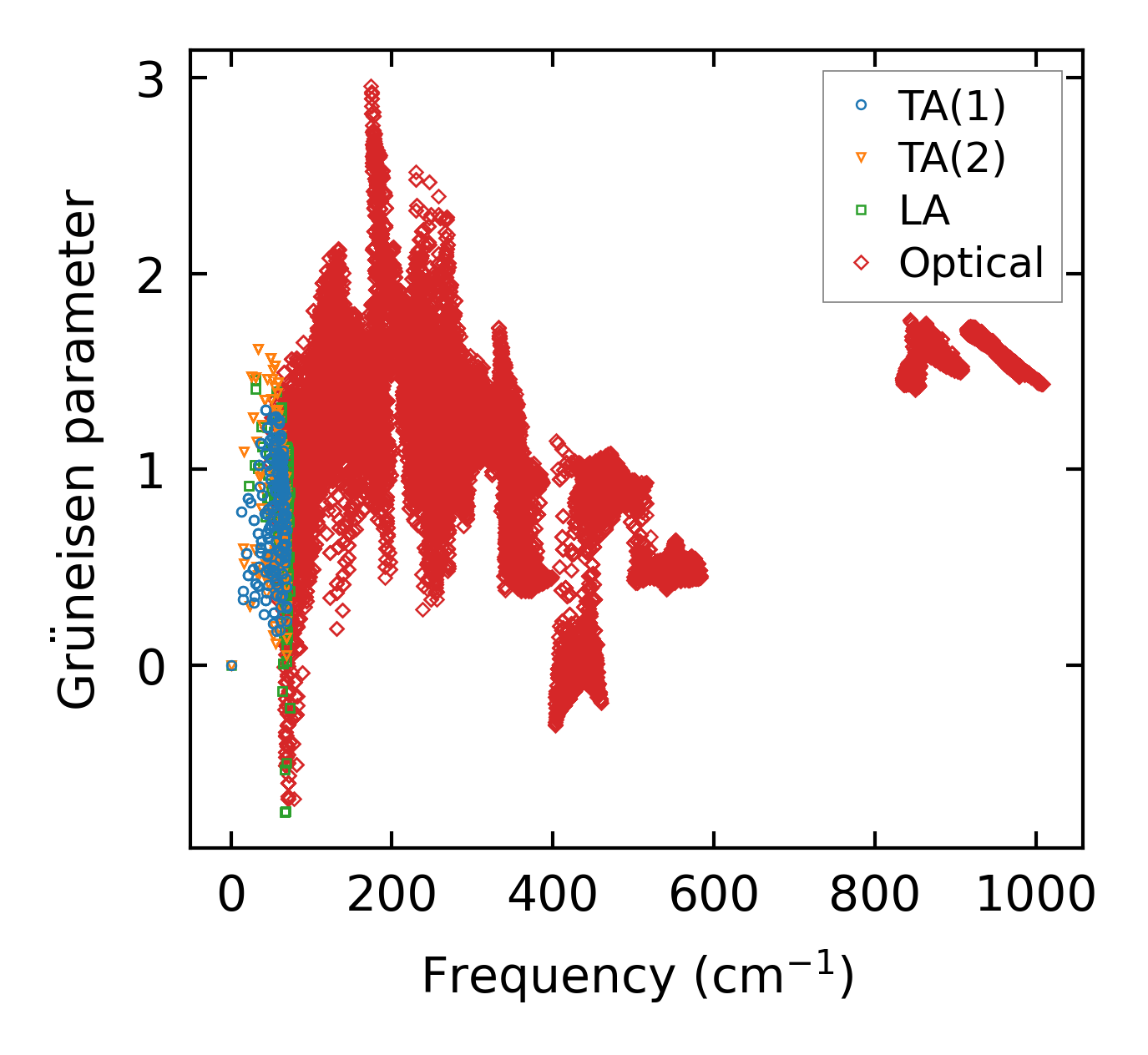

../../_images/fig_gru_all6069.png — (a) Grüneisen parameters

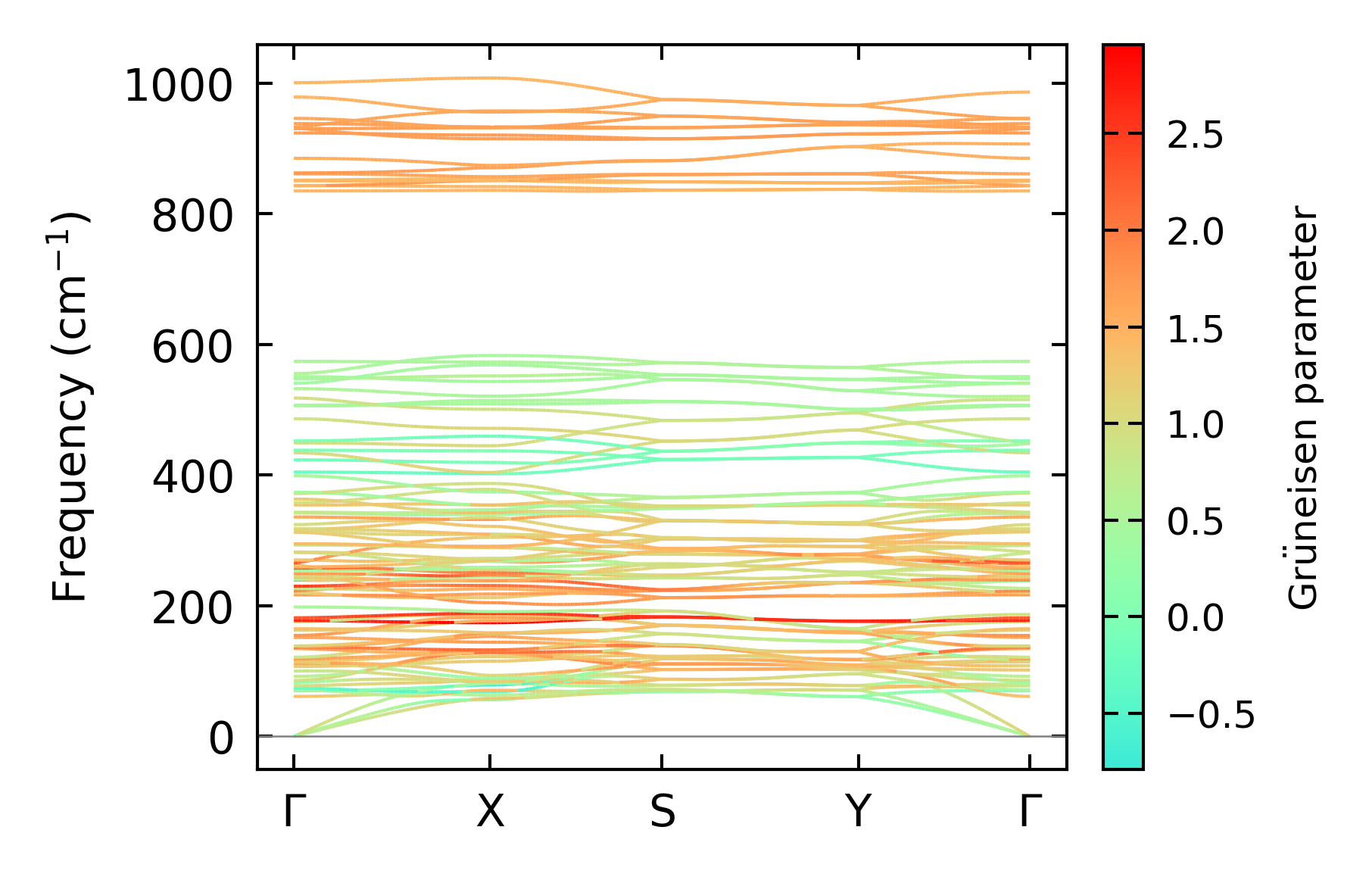

../../_images/fig_gruneisen6069.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x10x6, supercell: 2x2x1

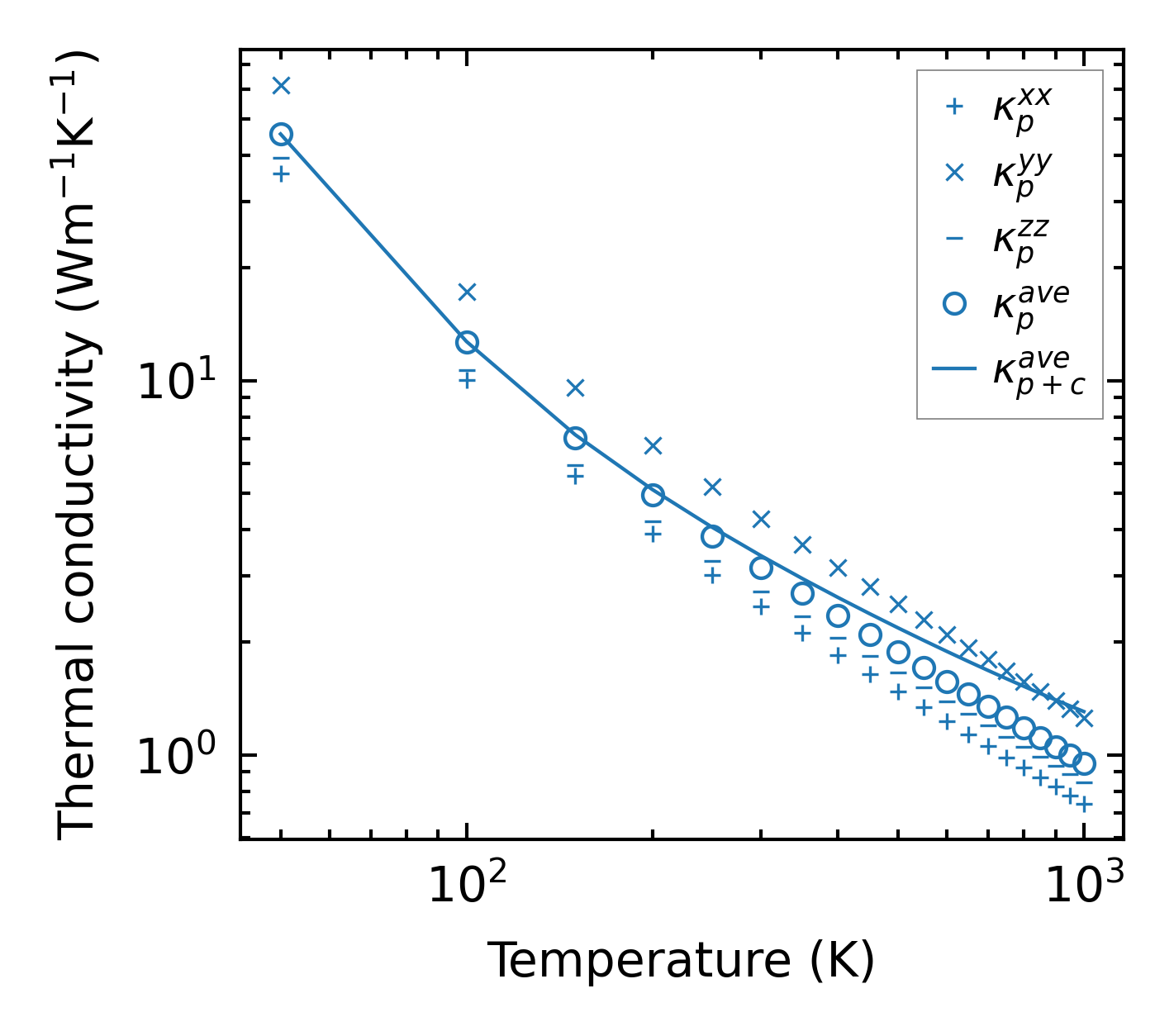

../../_images/fig_kappa11419.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6147.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

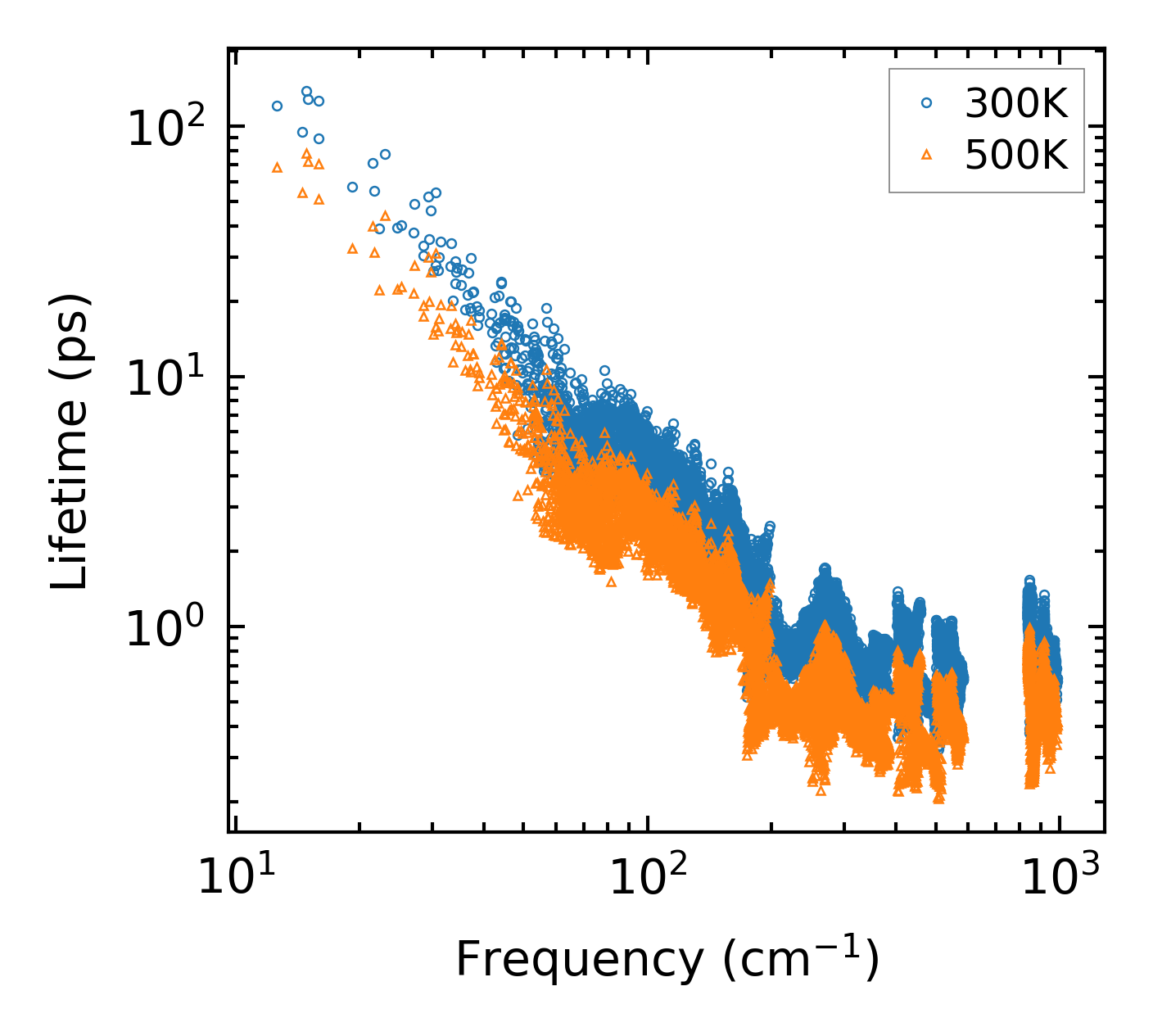

../../_images/fig_lifetime6008.png — (a) Phonon lifetime due to phonon-phonon scattering

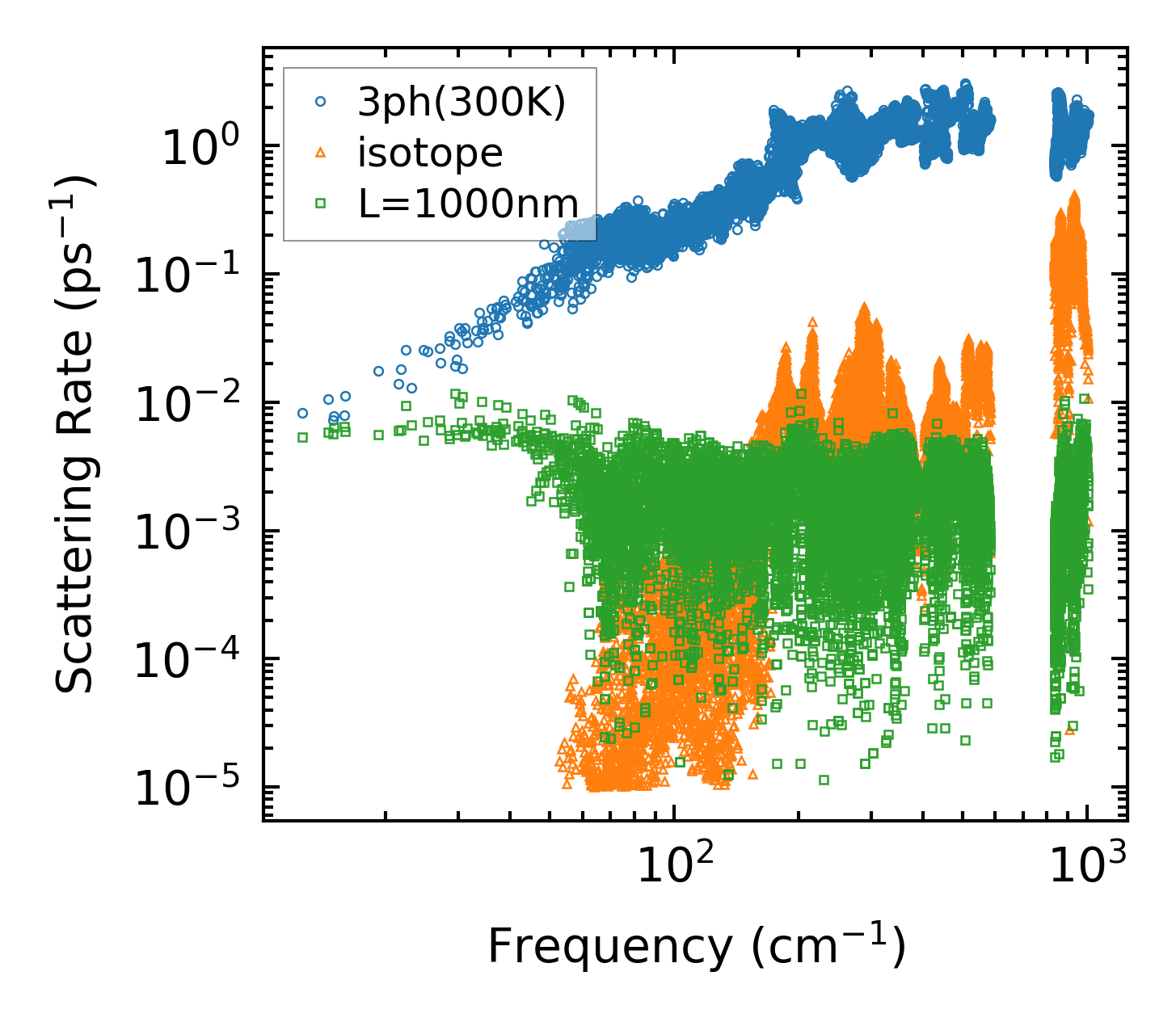

../../_images/fig_scat_rates6007.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

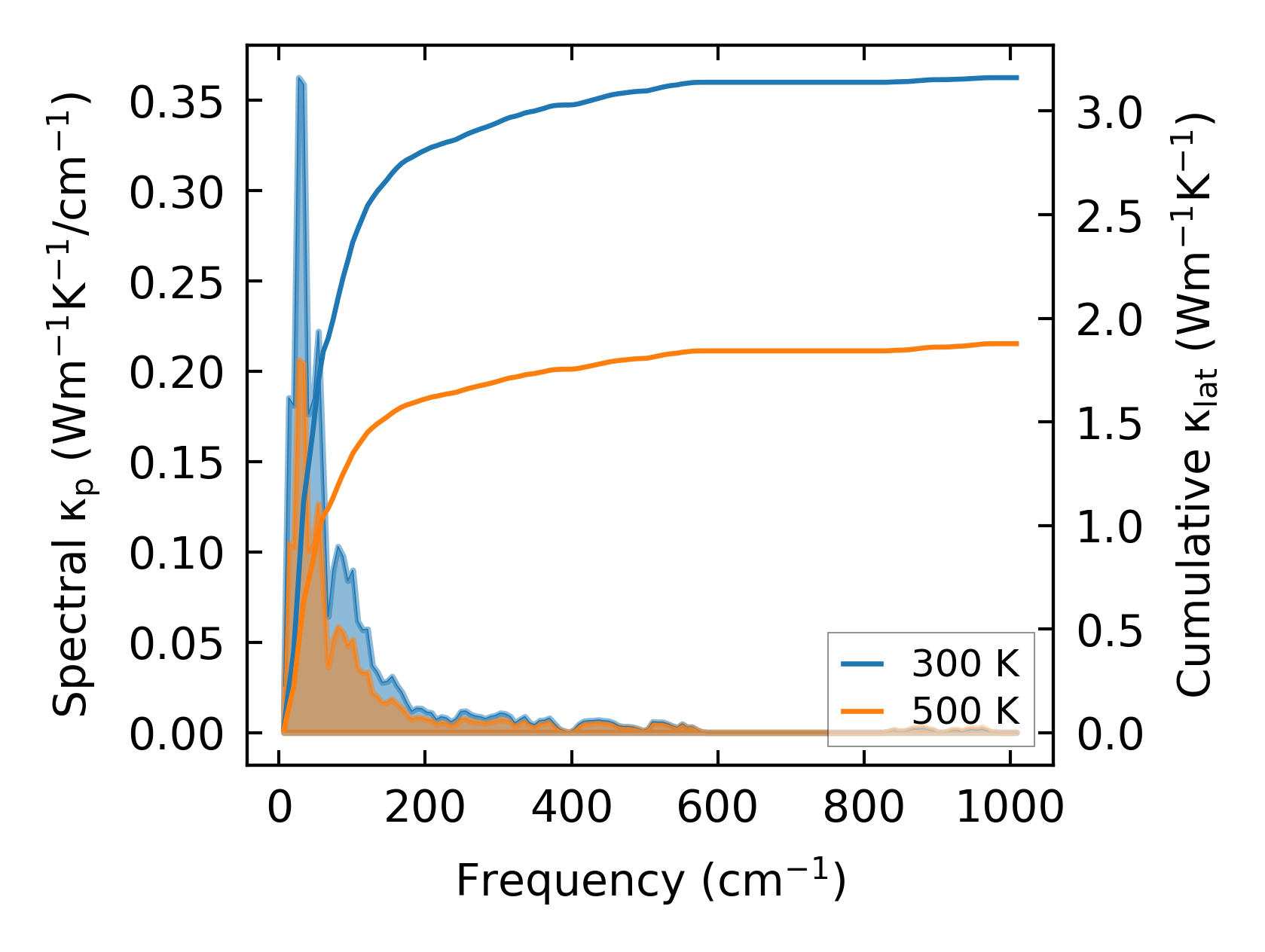

../../_images/fig_cumu_frequency6008.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

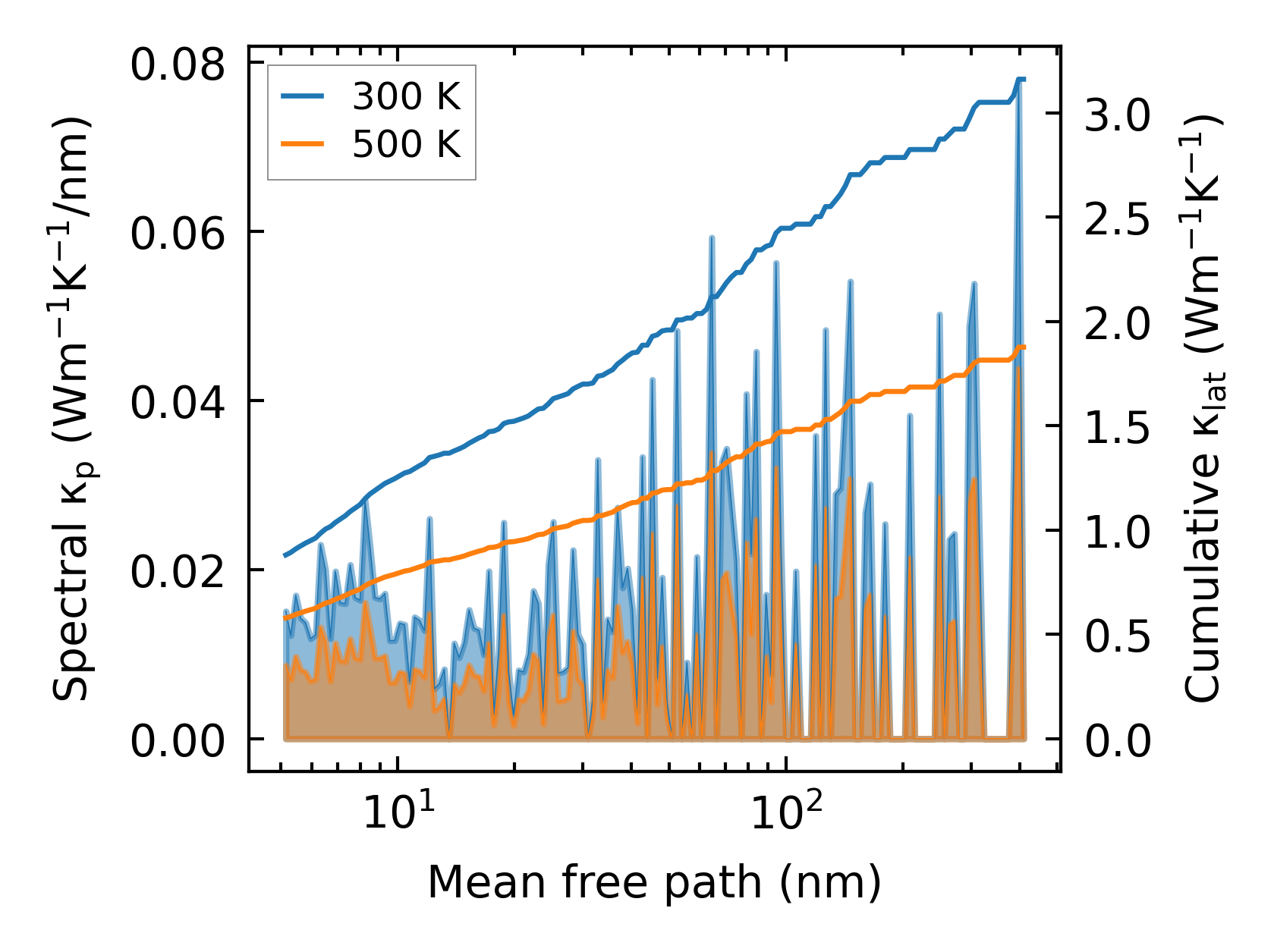

../../_images/fig_cumu_mfp6007.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

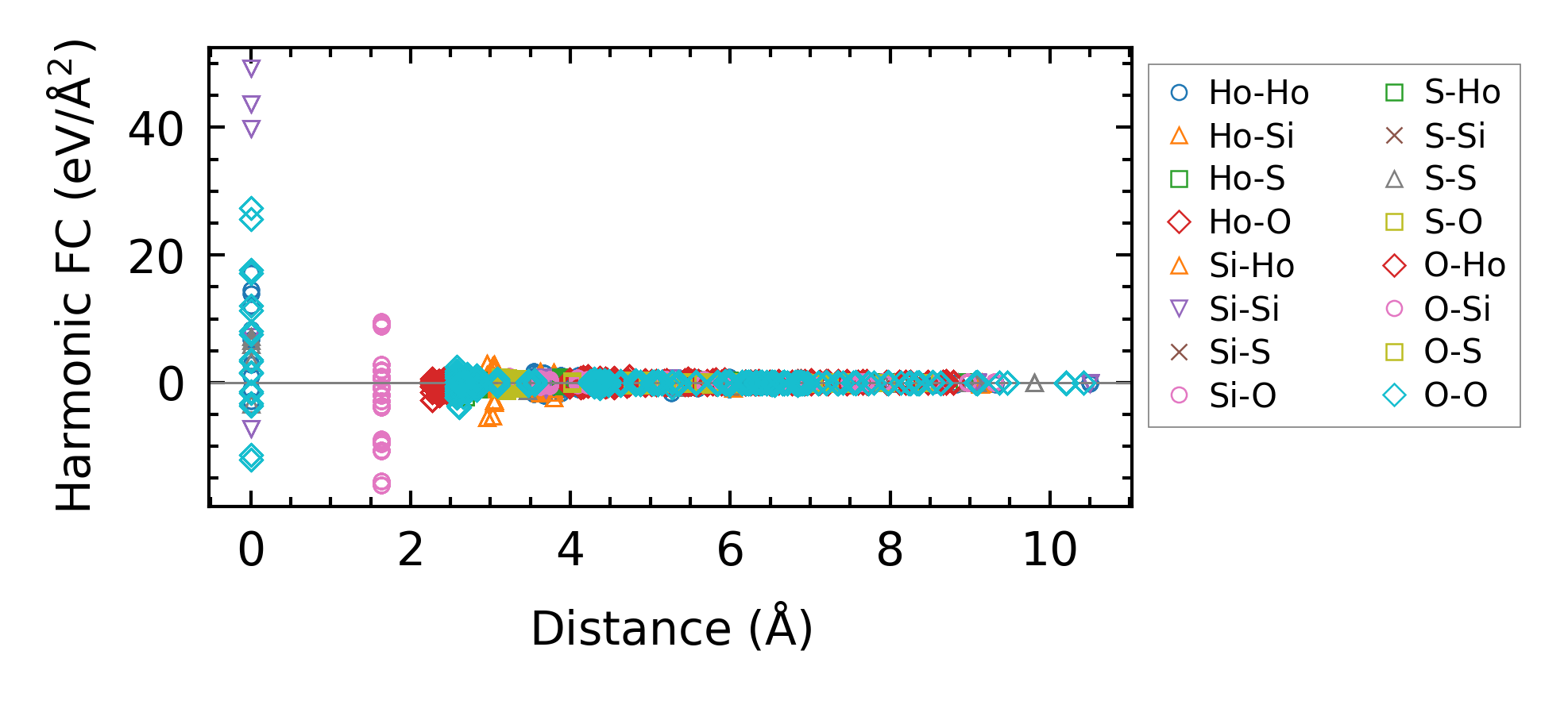

../../_images/fig_fc213890.png — (a) Force constants w.r.t atomic distance

Summary

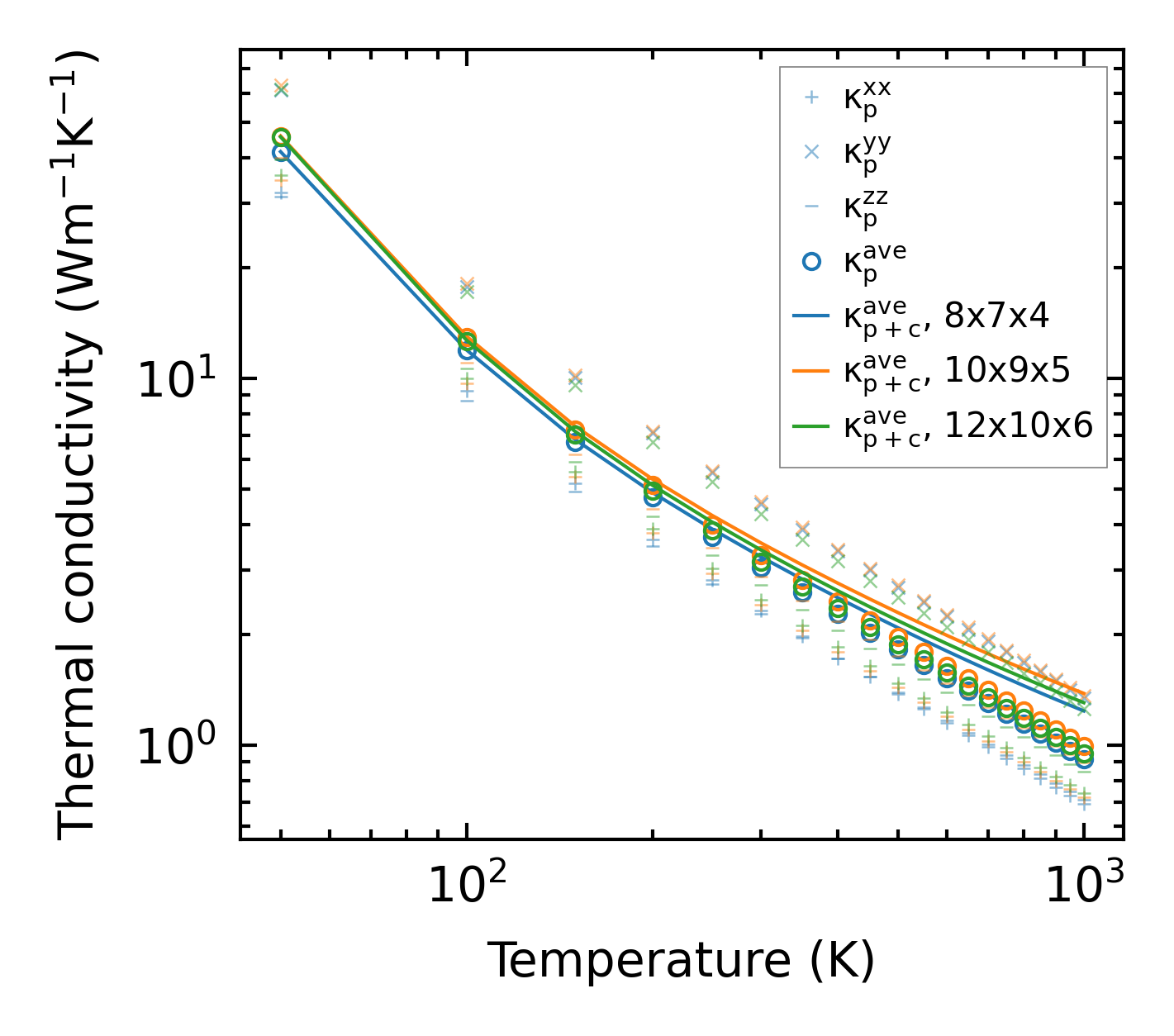

../../_images/fig_kappa11420.png — (a) Temperature-dependent lattice thermal conductivity

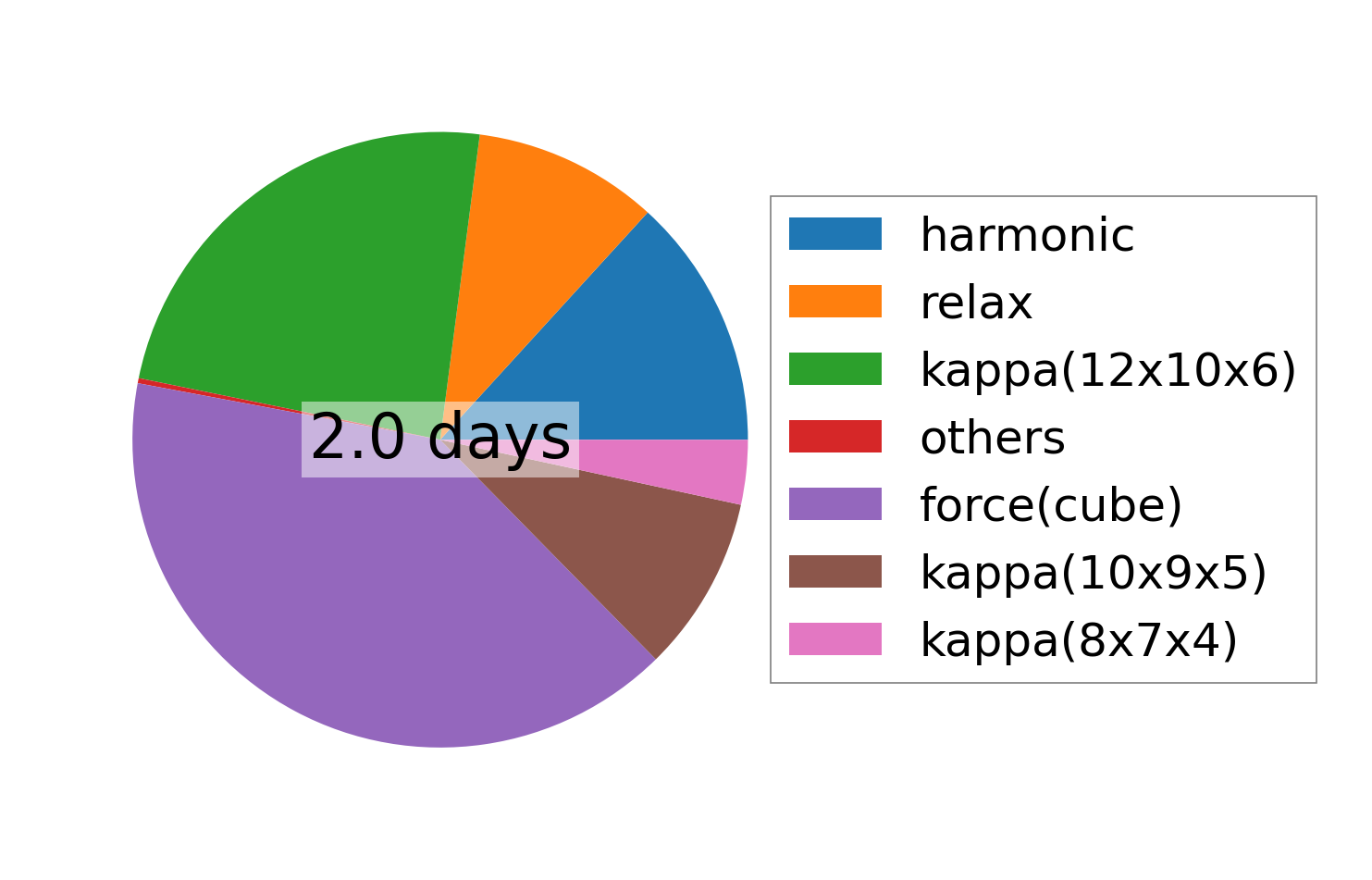

../../_images/fig_times23823.png — (b) Computation time
